120 liter i Syrafast 316

Vi erbjuder finansiering via:

Art.nr: 6071

122,000.00 SEK/st exkl moms

Lagersaldo: 1st

Mer information

Volym i liter

120

Nytillverkad/Begagnad

Nytillverkad

Livsmedelsklassad

Ja

Modell

Vertikal

Material

Syrafast 316

Omrörare

Ja

Uppvärmning/kylning

Ja

Isolerad

Ja

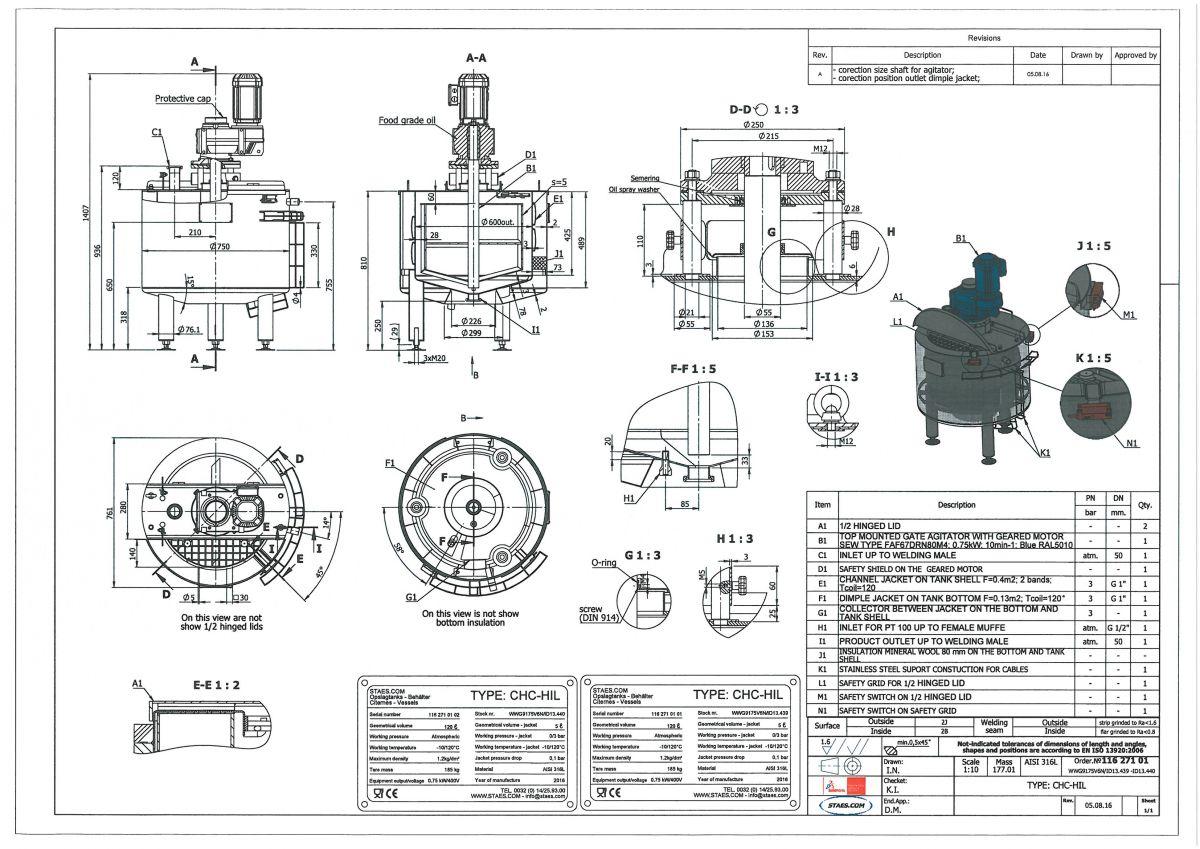

Ritning-1

Öppna

Ritning-2

Öppna

item available on order

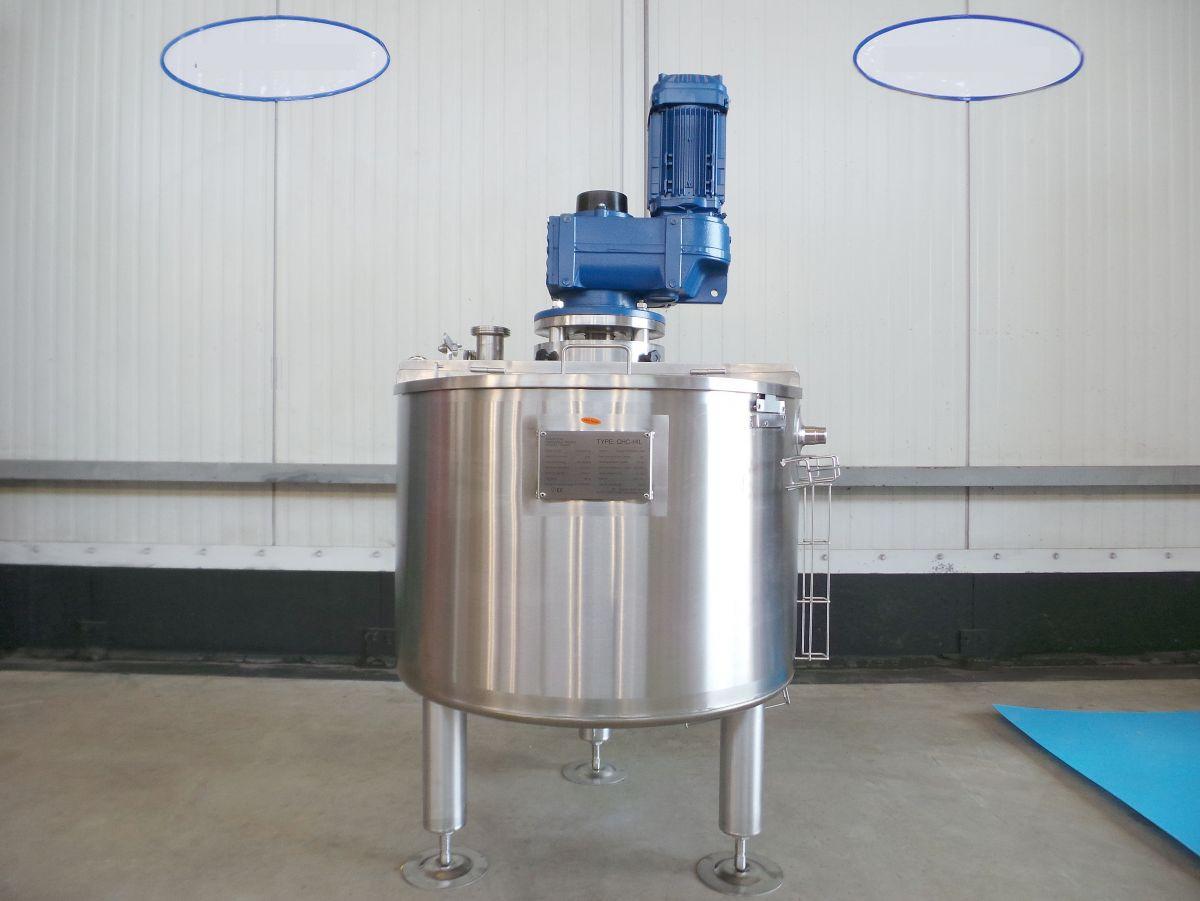

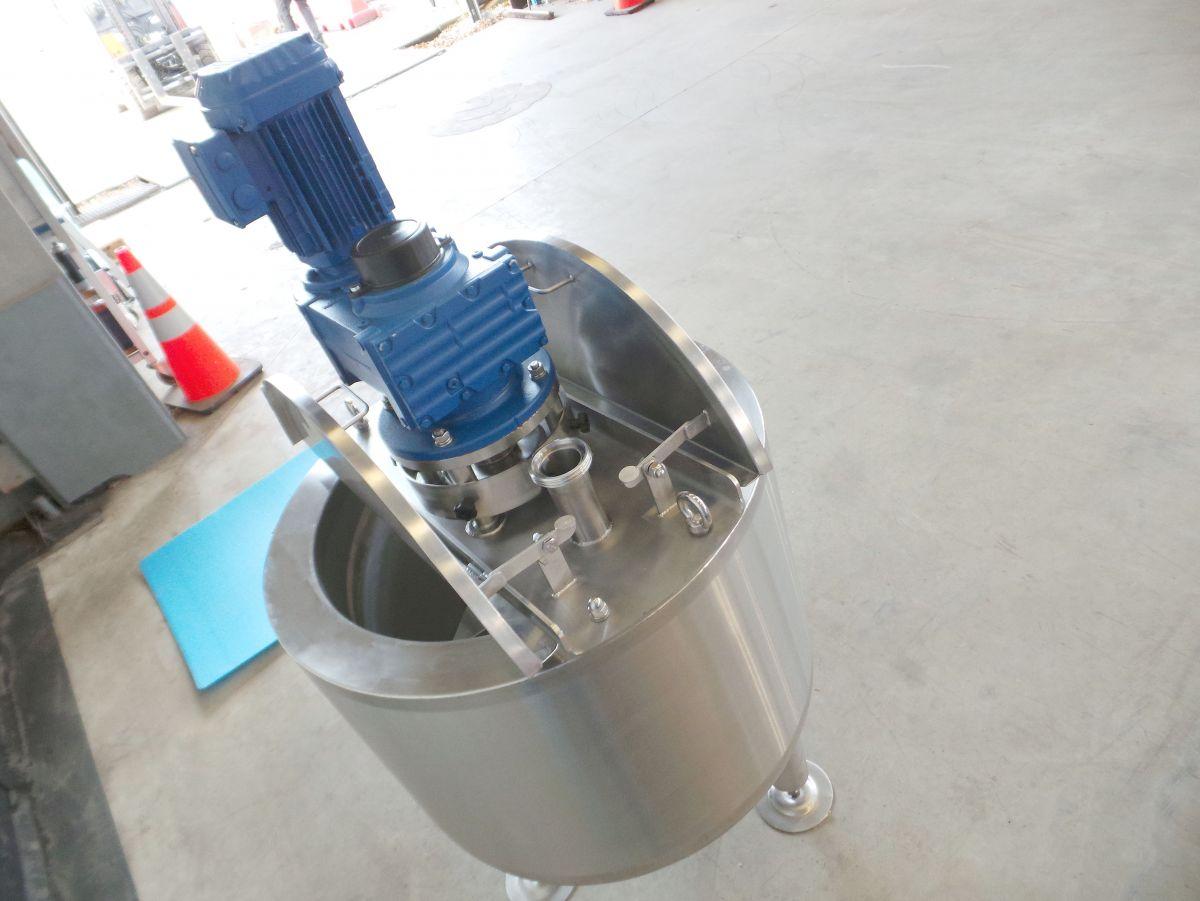

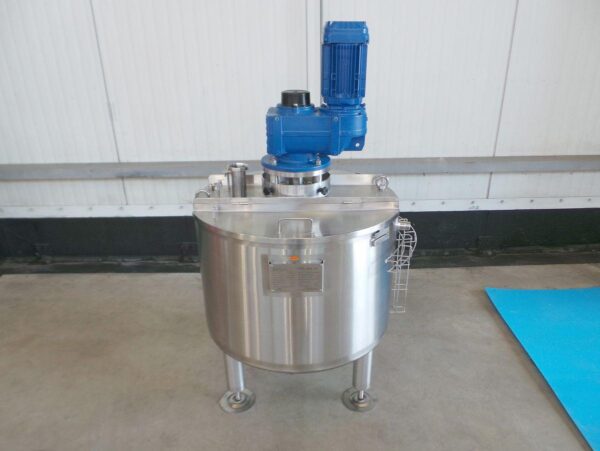

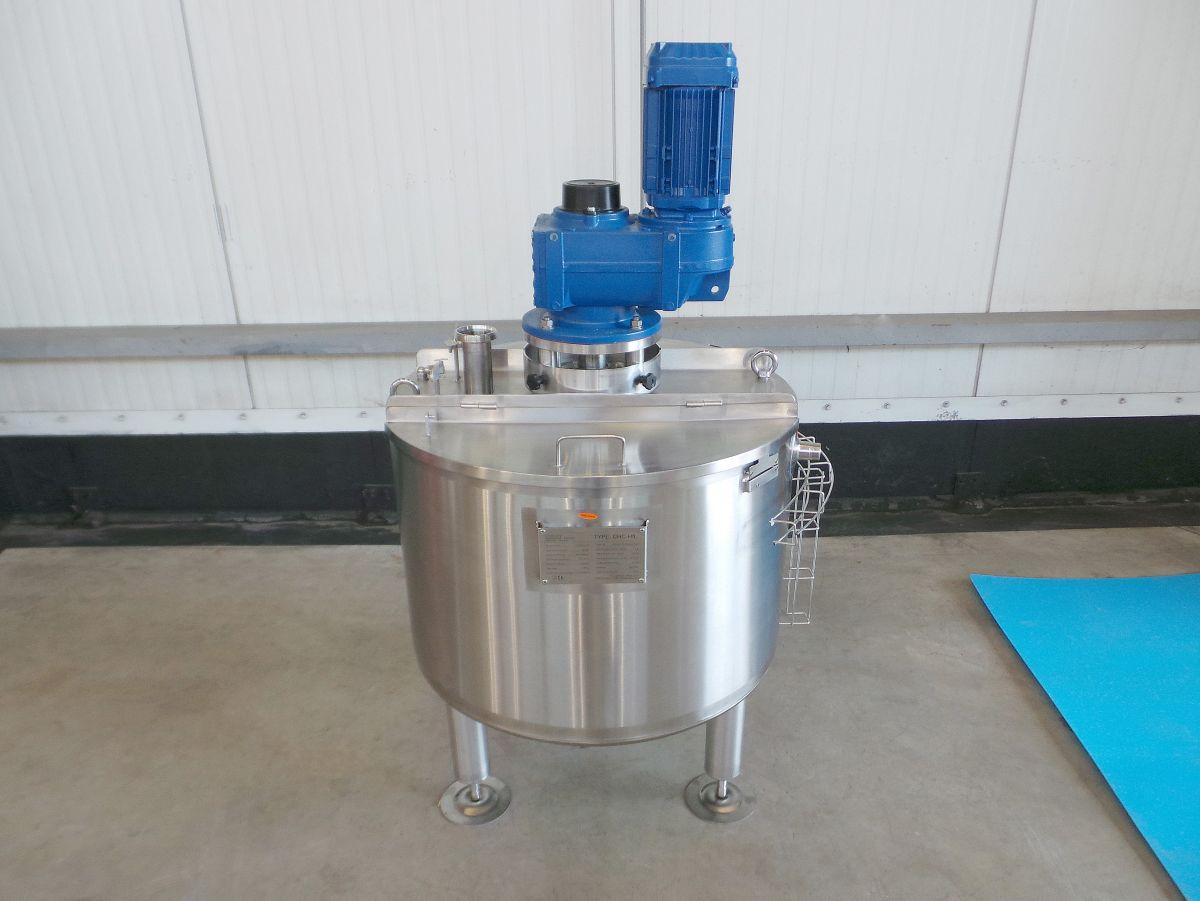

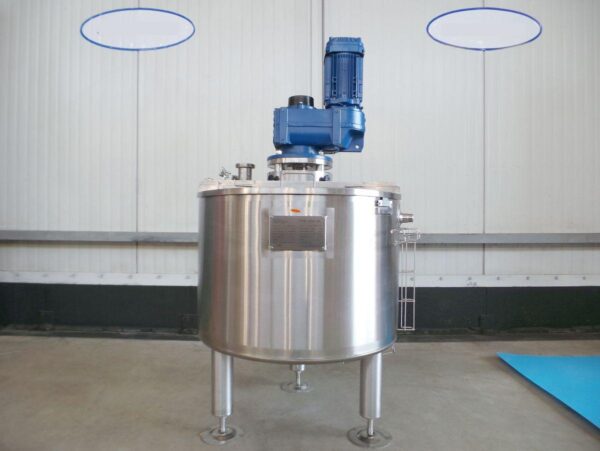

Article type: brand new mixing tank – type CHC-HILA
Additional information: Delivered with food certificate; article price without control panel; see options; (The article can also be purchased without options)
Capacity: 120 L
Maximal density of the product: 1.200
Working pressure in tank: ATM – atmosferic

Max. working temperature: 100 °C
Material wet parts: SS AISI 316L (V4A)
Model: vertical
Configuration: insulated with heat-exchanger
Heat exchanger: yes

Insulation: yes
Agitator: yes
Mobile tank: no

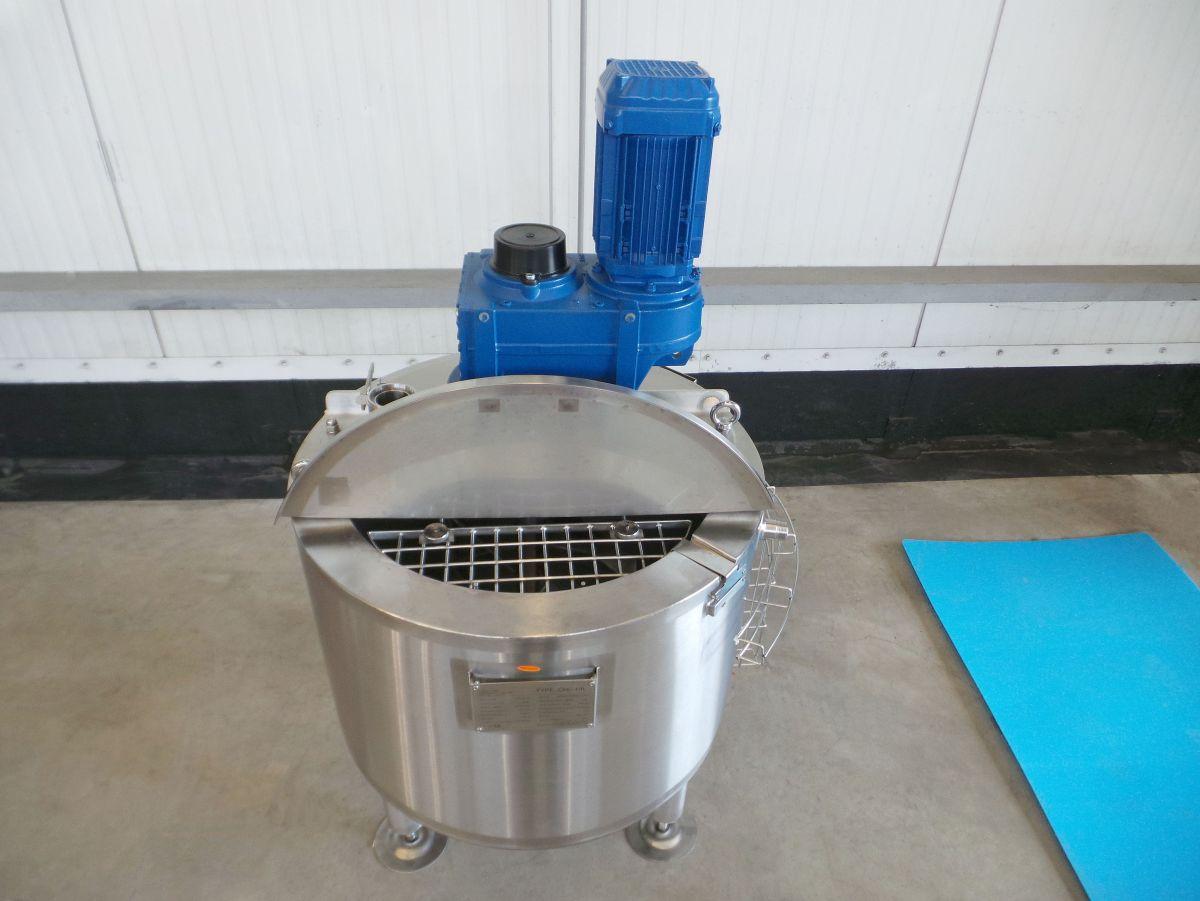

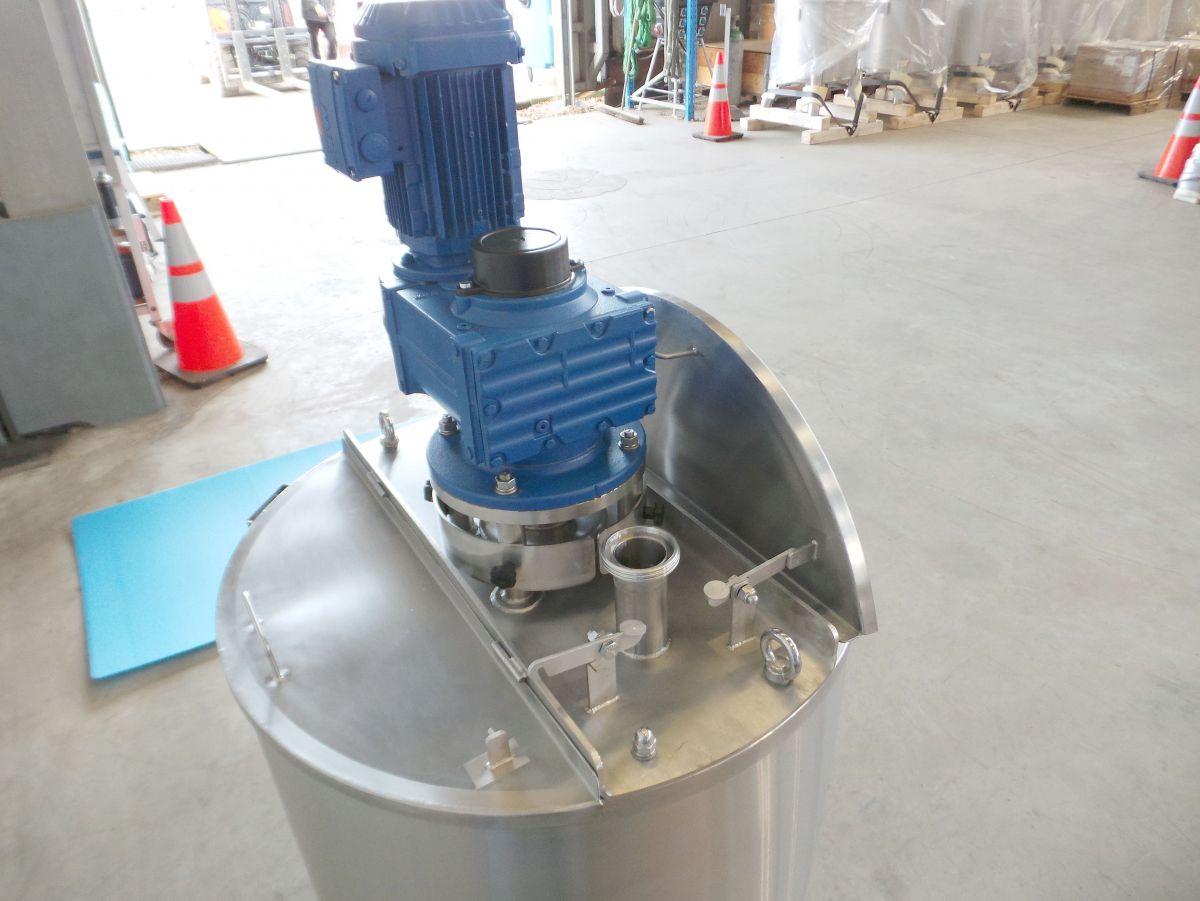

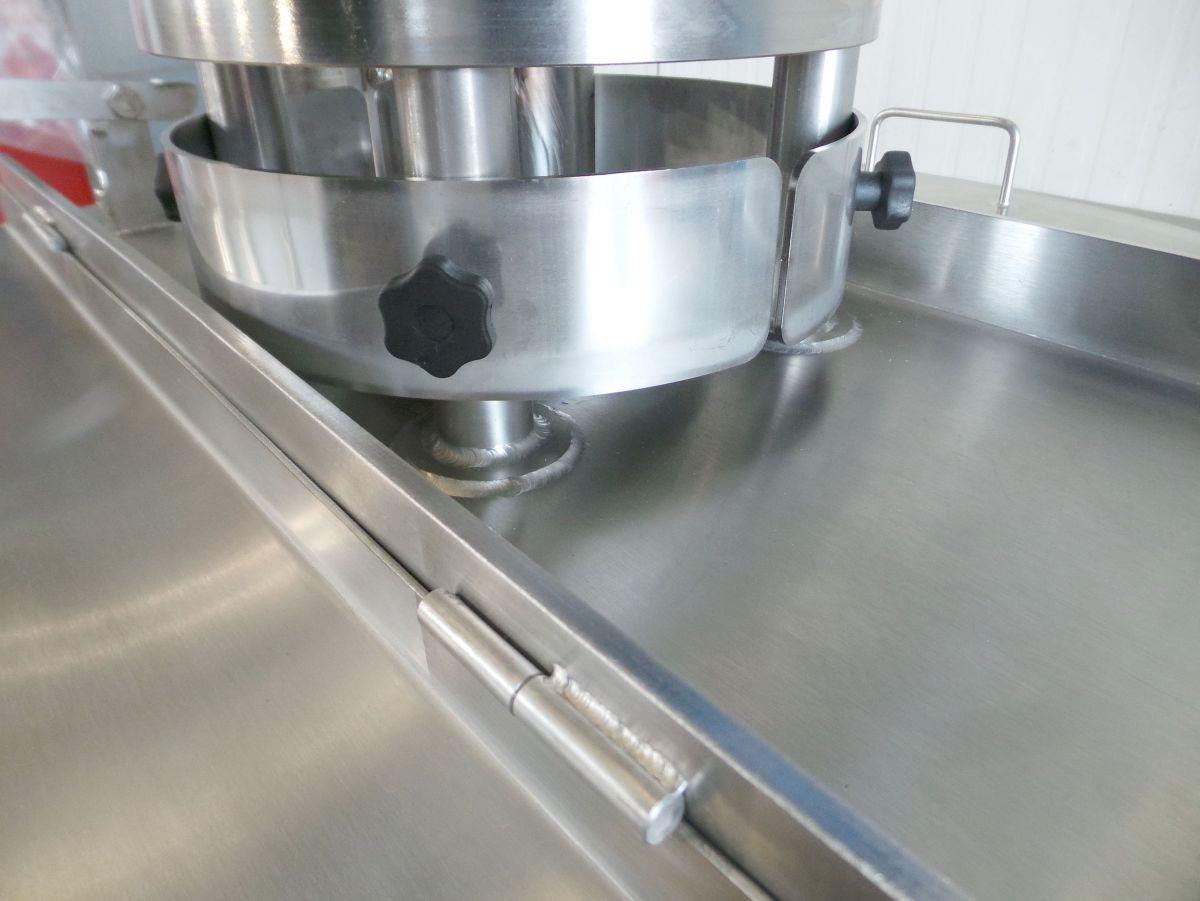

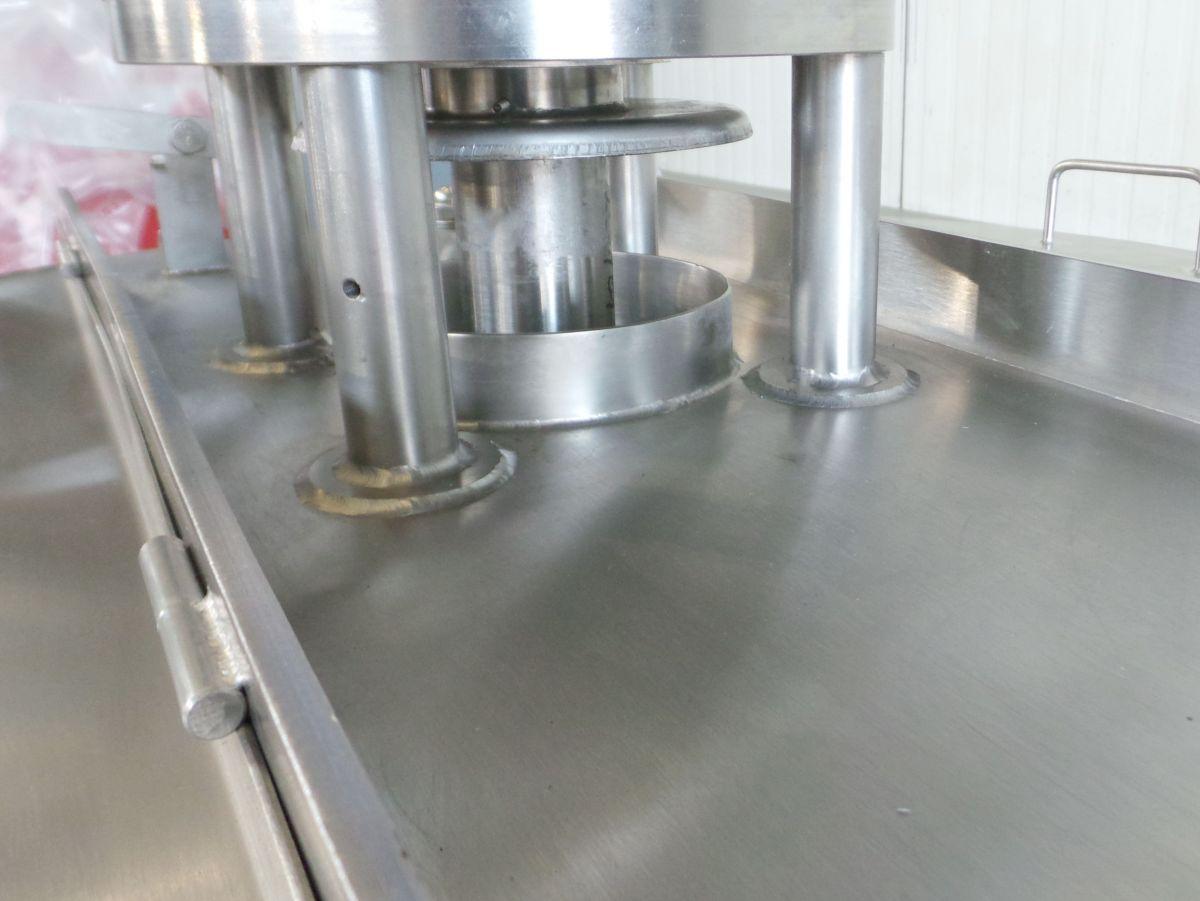

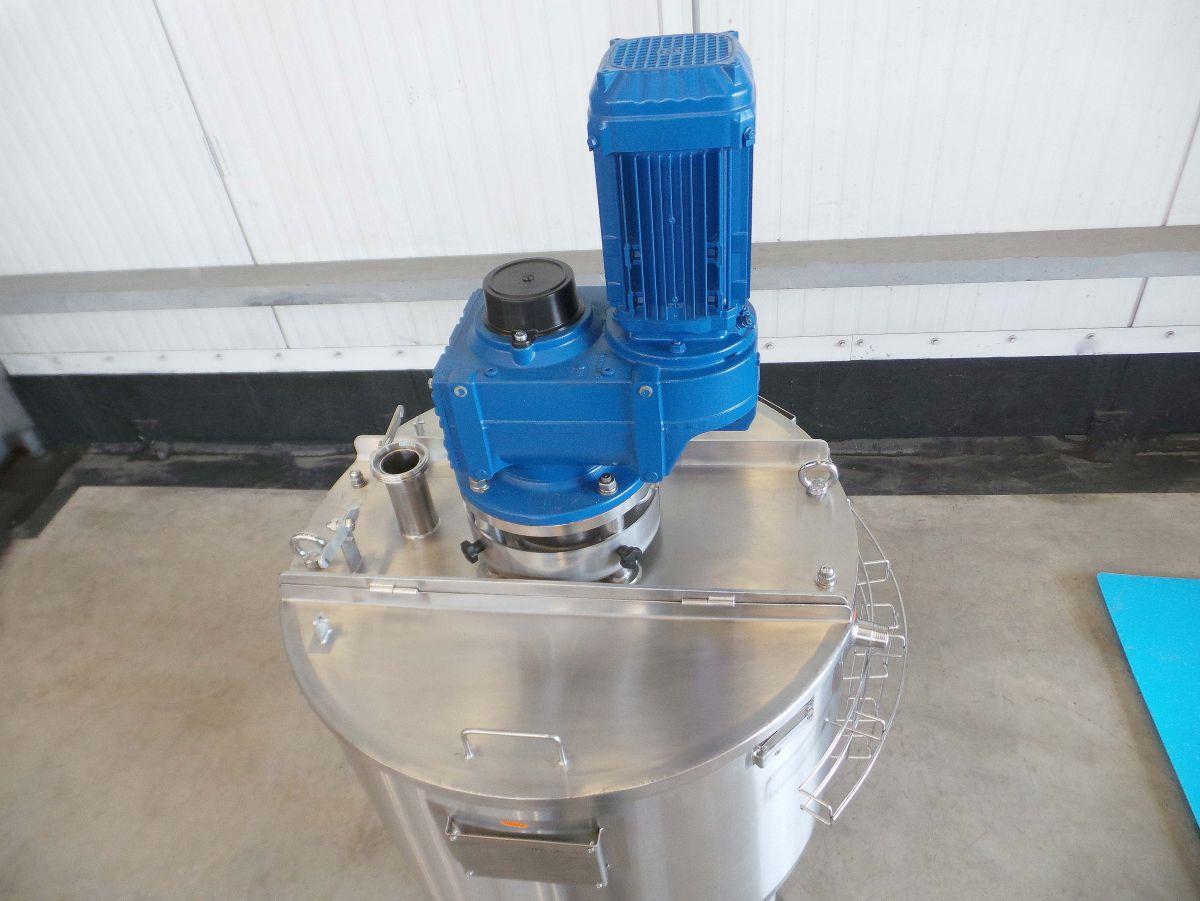

Top type: bridge with 2 lids
Shape of tank: cylindrical

Bottom type: conical 15 °
Total discharge: yes
Fixation points: 3 adjustable feet
Legs: Set of baseplates and adjusting pieces included
Type of HE on the cylinder: half pipe welded onto the outside of the innertank

Position HE: the complet cilinder
Number of windings: 3
Water pressure HE: 3 Bar
Contact surface cylinder: 0,40 m²

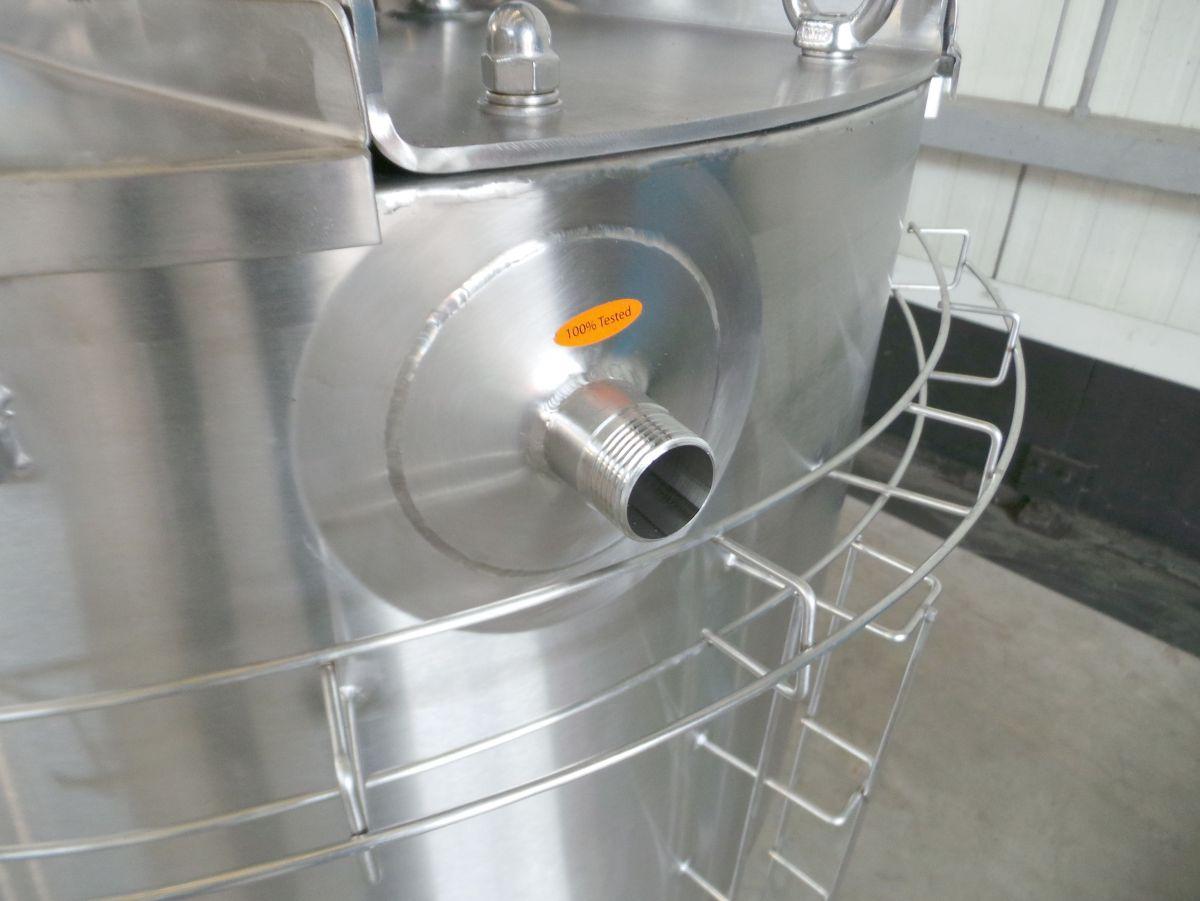

Connection HE: 1 BSP

Working temperature HE cylinder: 100 °C
Type of HE on the bottom: dimple-jacket
Heat exchanger bottom connected with cylinder: yes
Connection of the bottom to the cylinder: binnen isolatie
Water pressure HE: 3 Bar

Contact surface bottom: 0,13
Connection HE: 1 BSP
Working temperature HE bottom: 100 °C
Heat exchanger: RVS 304
Insulation material: Rockwool

Outer jacket (ornamental wall): RVS 304
Fixation point(s): RVS 304
Suitable for food industry: yes
Documents included: yes, optional
Technical drawing included: yes

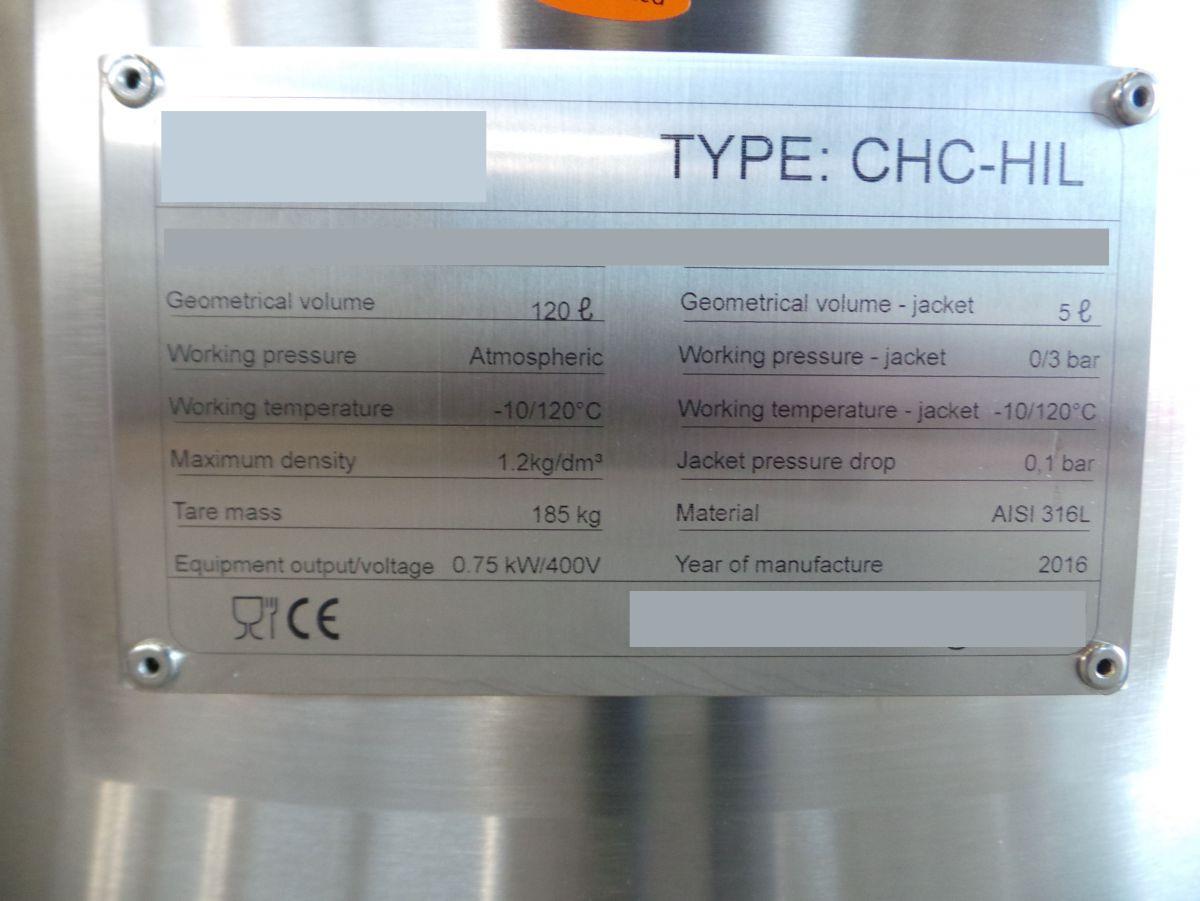

Registration plate on the tank: yes
with inspection of: TüV

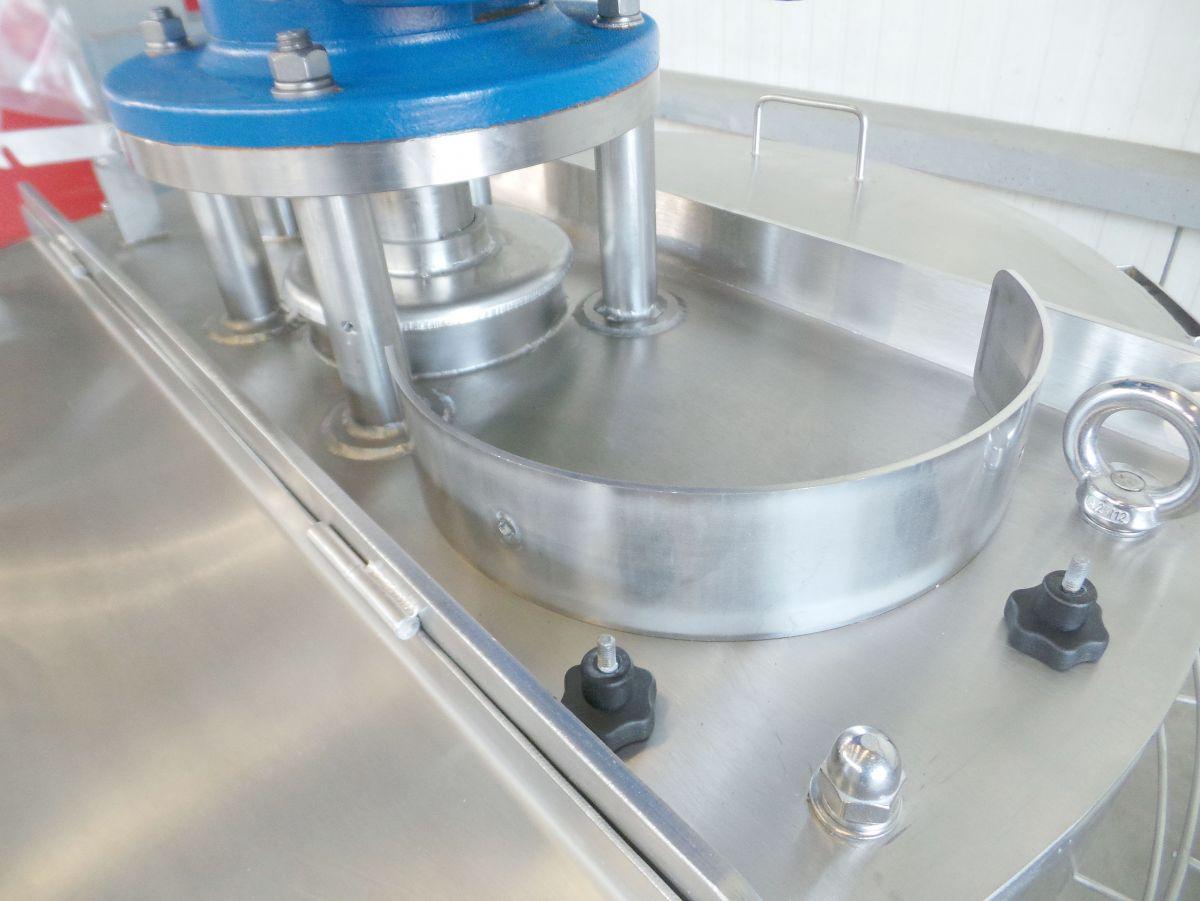

Flange for agitator: yes
Spray ball: no

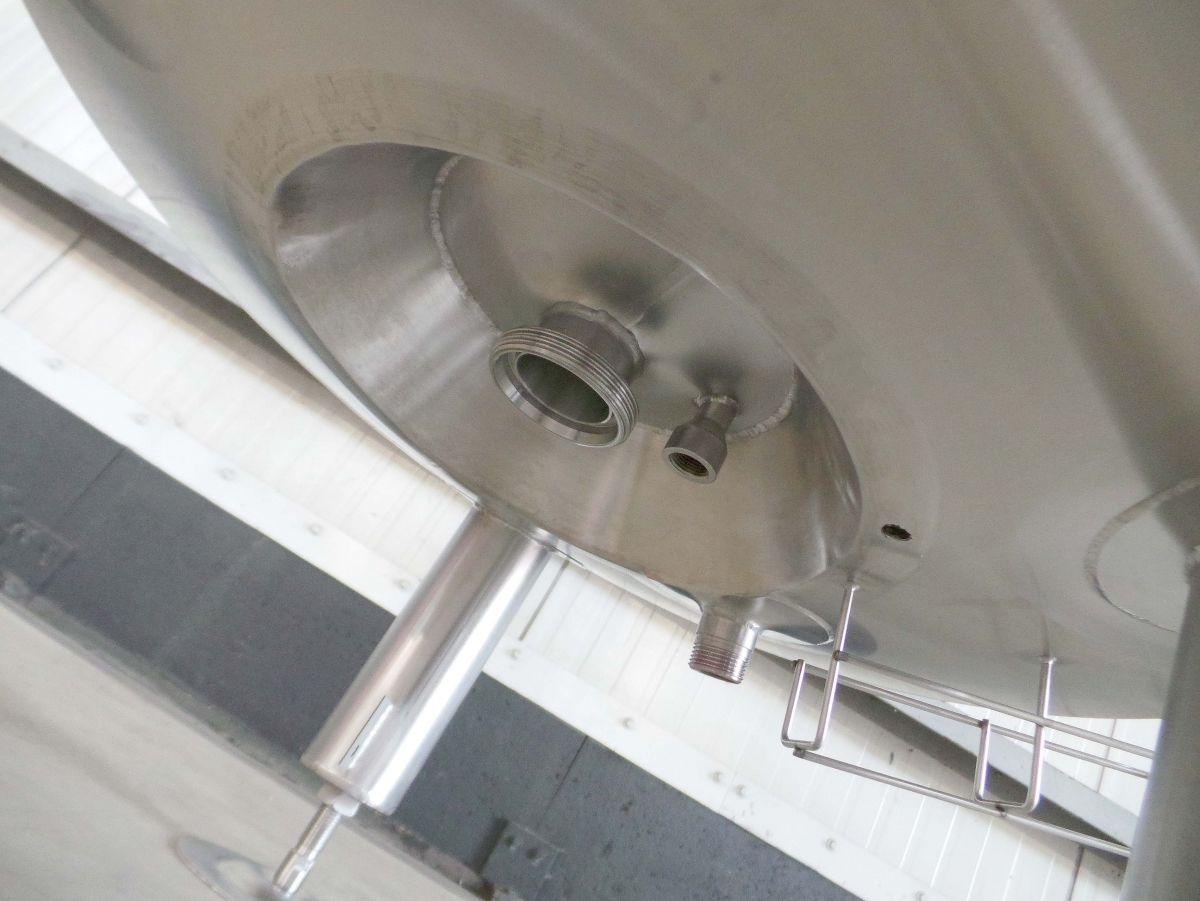

Tank outlet: inside Ø 50 mm

Outlet type: DIN 11851 Male
Total outlet valve: yes, optional
Type shut-off valve: butterfly valve
Adjustable legs: yes

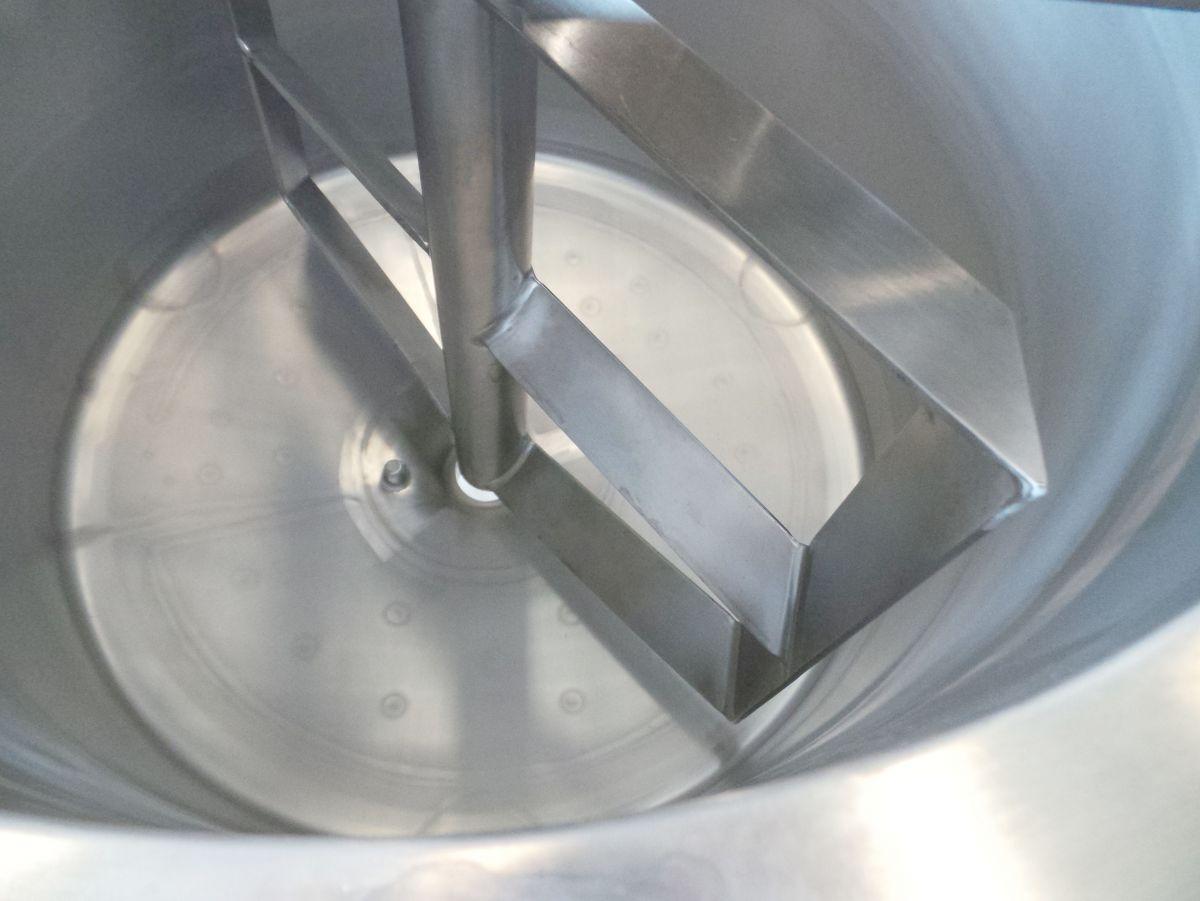

Agitator type: gate

Position engine: at the top
Number of revolutions: 10
: yes

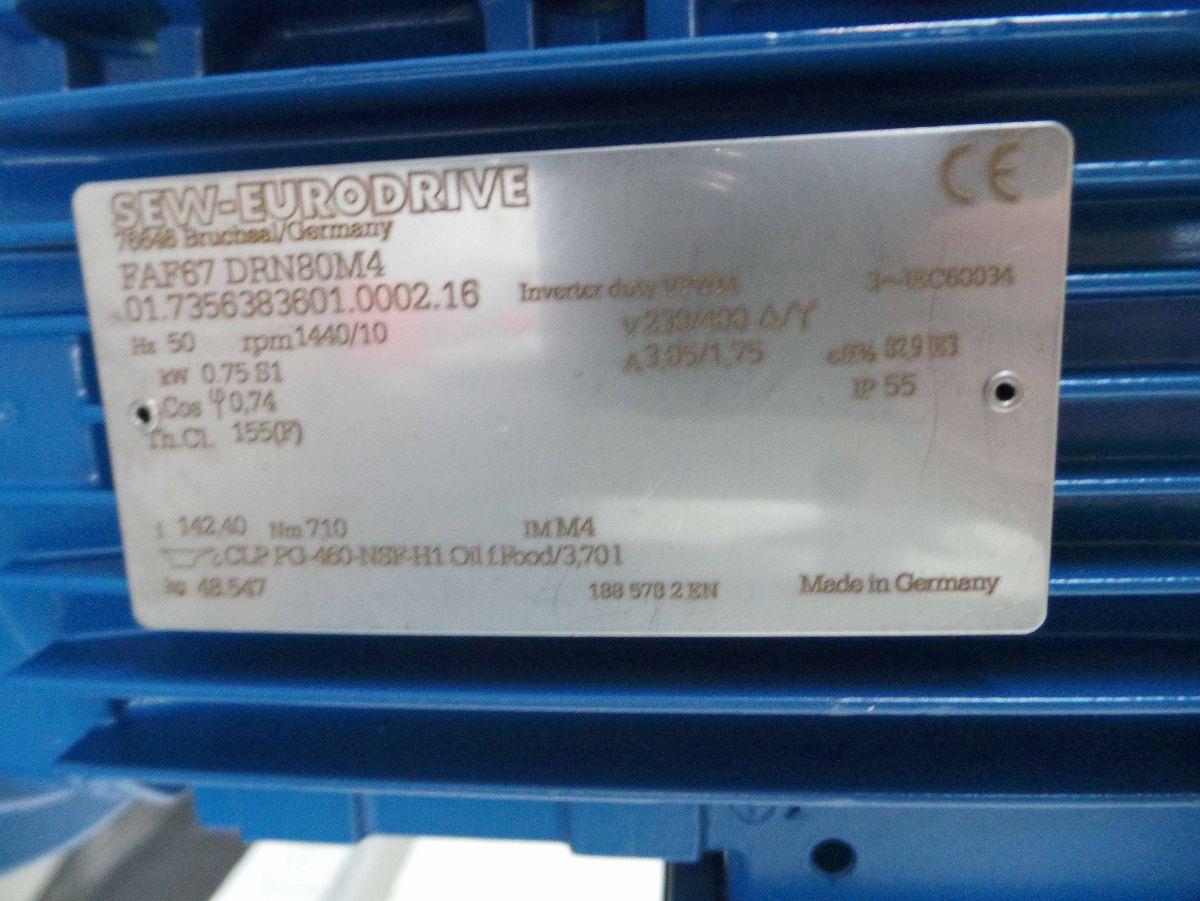

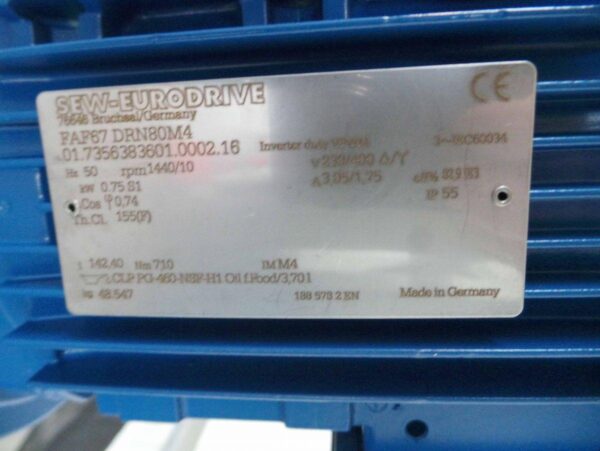

Power: 0,75
Voltage: 400 V – three-phase

Top: 2 mm
Cylinder: 3 mm
Bottom: 3 mm
Cylinder: 2
Insulation body: yes

Bottom: 2
Insulation bottom/sides: yes
finish of the outer jacket: welded
Insulation thickness: 70
Internal diameter tank: 600 mm

Distance from outlet to ground: 250 mm
Outer diameter tank: 750 mm
Cylinder height: 425 mm
Feet height: 298 mm
Total height of tank: 1.400 mm

Empty weight tank: 180
