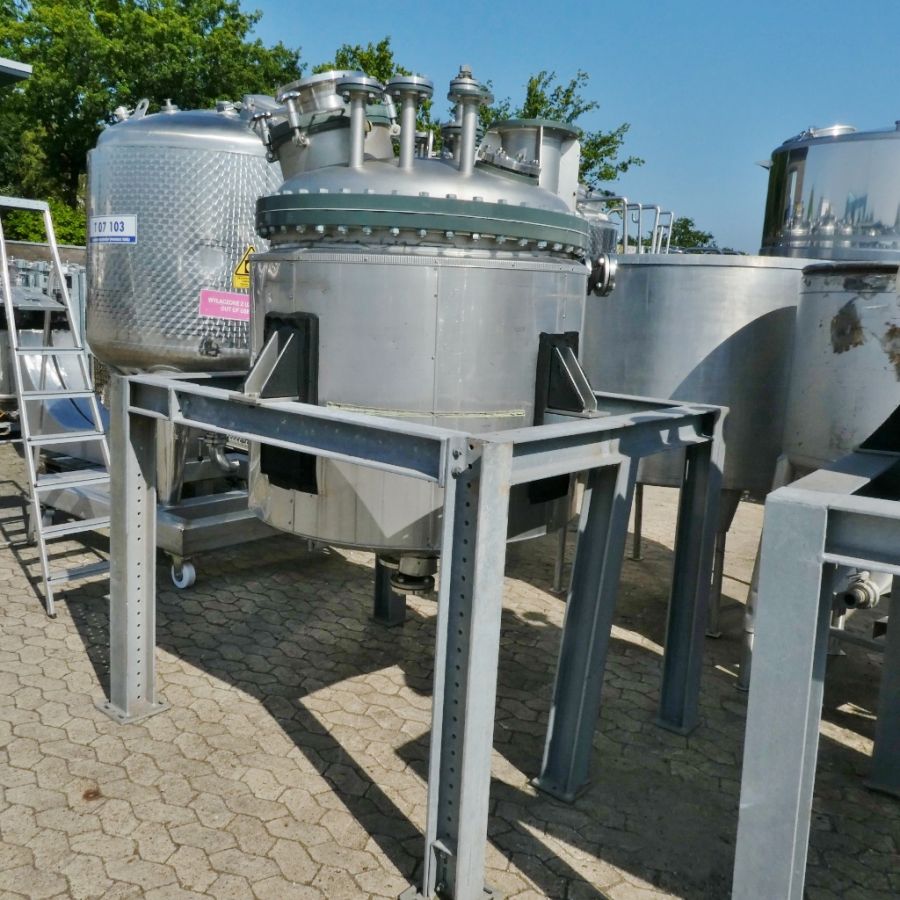

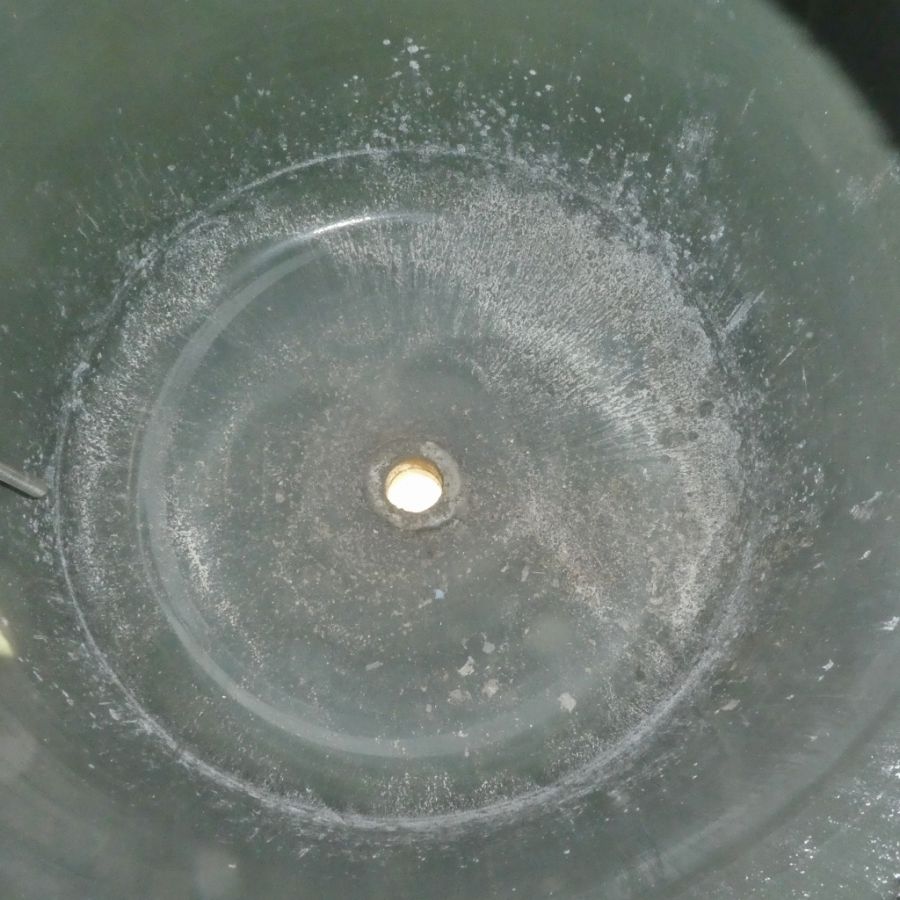

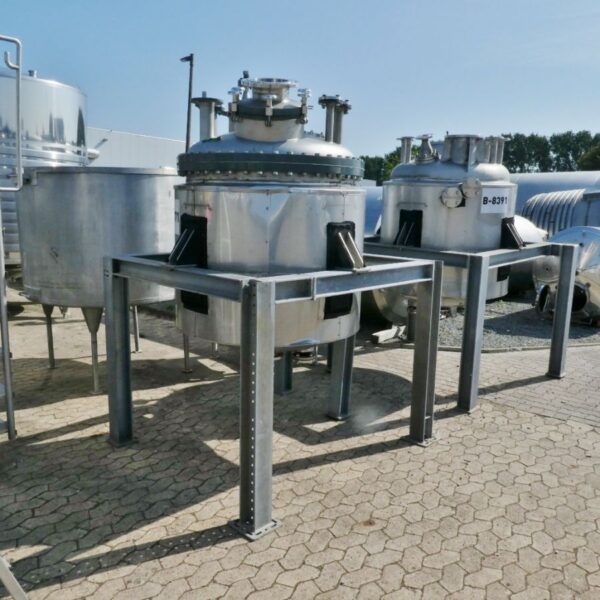

Additional information: petrol; Halar-coating inside (very good resistance against acids, lyes and solvents); type plate non-existent; a number of connections were changed by the former operator, among other things 1 new outlet was welded in (no coating in the weld-in area of the lower floor and in the new outlet itself; no coating in the manhole cover as well); 5-feet frame Fe (galvanized; 1 foot slightly bent); some residues of previous content; bump at the insulation jacket
Volumetric volume (L): 1.150 L
Pressure in tank: pressure and vacuum
Max. pressure (Bar): 0,60 Bar
Min. pressure (Bar): 1 Bar

Max. temperature (°C): 120 °C
Material wet parts: SS AISI 316 (V4A)
Model: vertical
Configuration: insulated with heat-exchanger
Heat exchanger: yes

Insulation: yes
Mobile tank: no
Total discharge: yes
Max Overpressure: 0,60 Bar
Max onderdruk: 1 Bar

Type HE on the bottom: half pipe welded onto the outside of the innertank
Type HE on the cylinder: half pipe welded onto the outside of the innertank
Heat exchanger: RVS 316
Documents included: no
Technical drawing included: no

Registration plate on the tank: no
Flange for agitator: yes
Position of manway: in the bottom
Outlet of tank: flange DN100
Cylinder: 4 mm

Bottom: 4 mm
Internal diameter tank: 1.100 mm
Outer diameter tank: 1.250 mm
Cylinder height: 870 mm
Total height of tank: 2.600 mm

Total outer width: 1.660 mm
Total outer length: 1.850 mm
