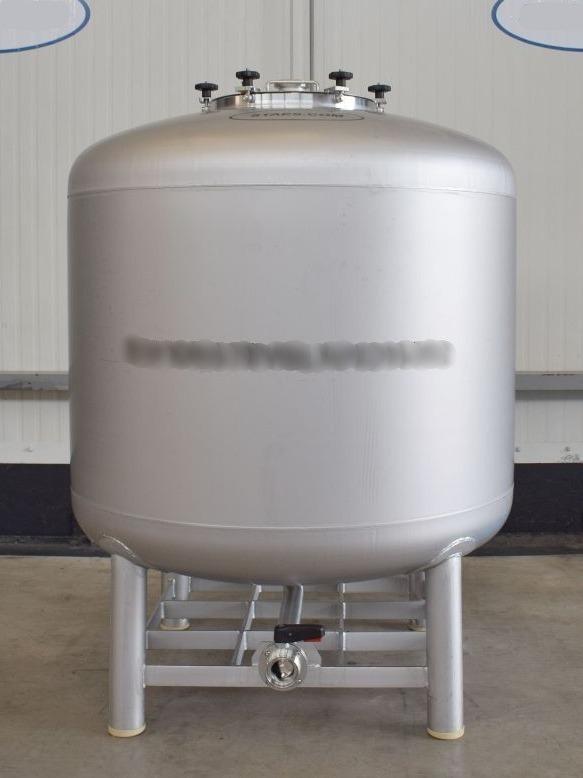

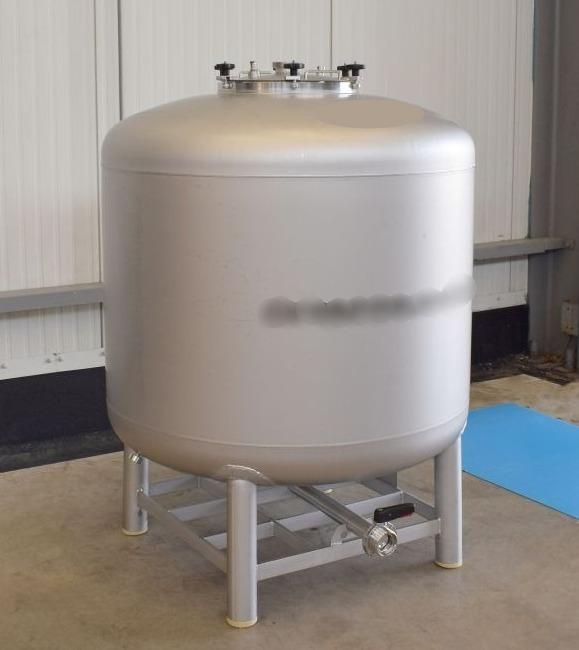

1050 liter i Syrafast 316

item available on order

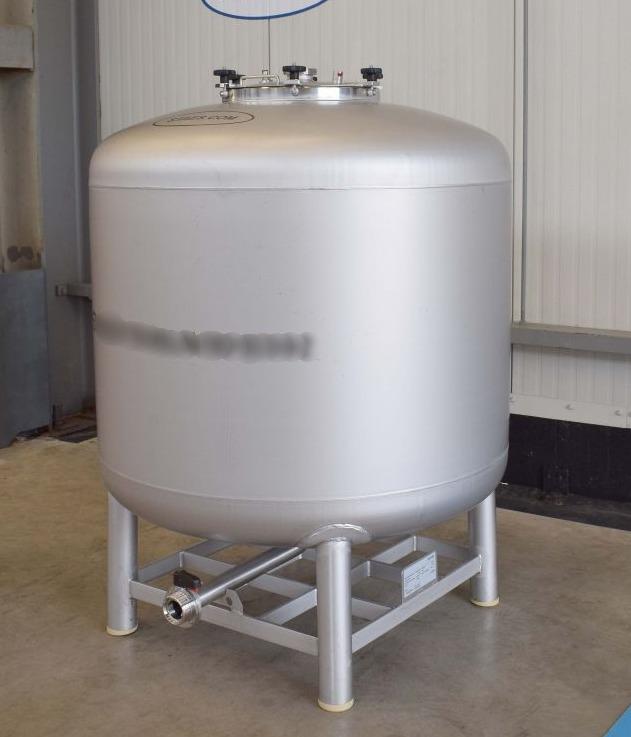

Article type: brand new pressure tank – type BBT-ES-SL
Capacity: 1.050 L
Maximal density of the product: 1.200
Finish stainless steel: pickled
Working pressure in tank: pressure

Overpressure: 2 Bar
Material wet parts: SS AISI 316L (V4A)
Model: vertical
Configuration: single-skin
Heat exchanger: no

Insulation: no
Agitator: yes, optional
Mobile tank: no
Top type: dished
Shape of tank: cylindrical

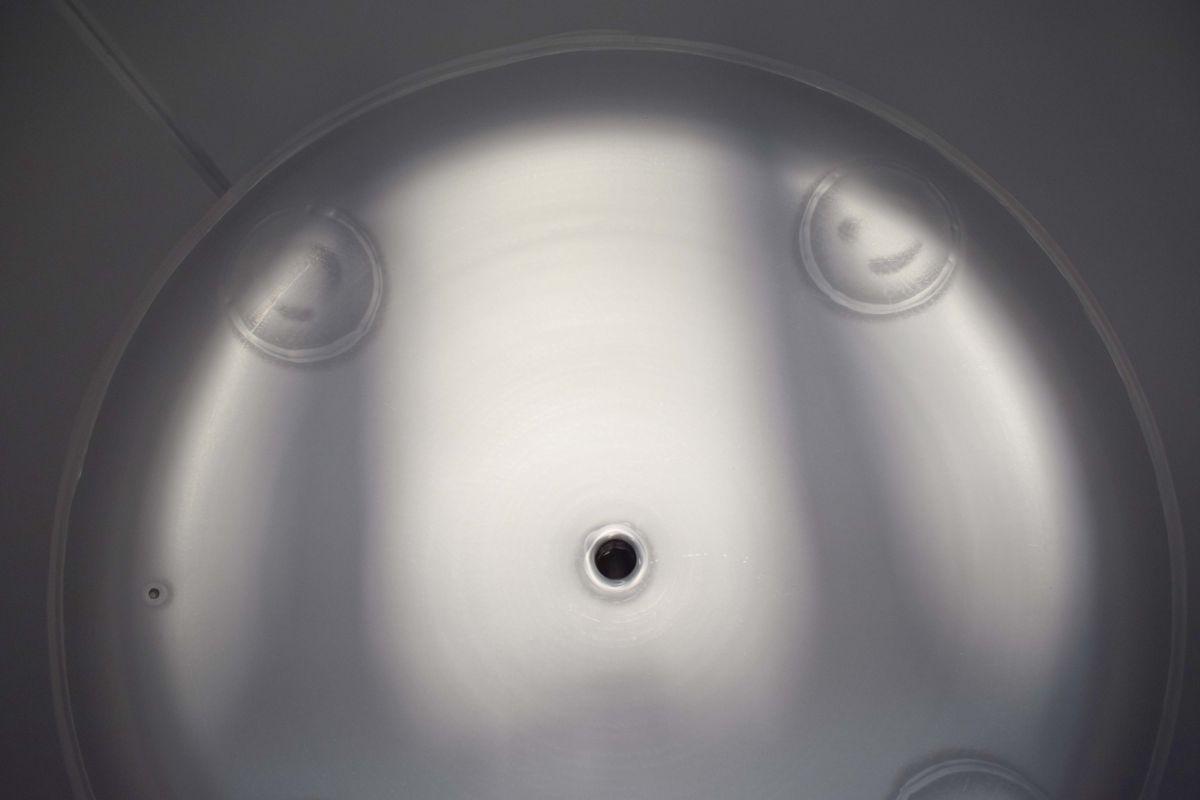

Bottom type: dished
Total discharge: yes

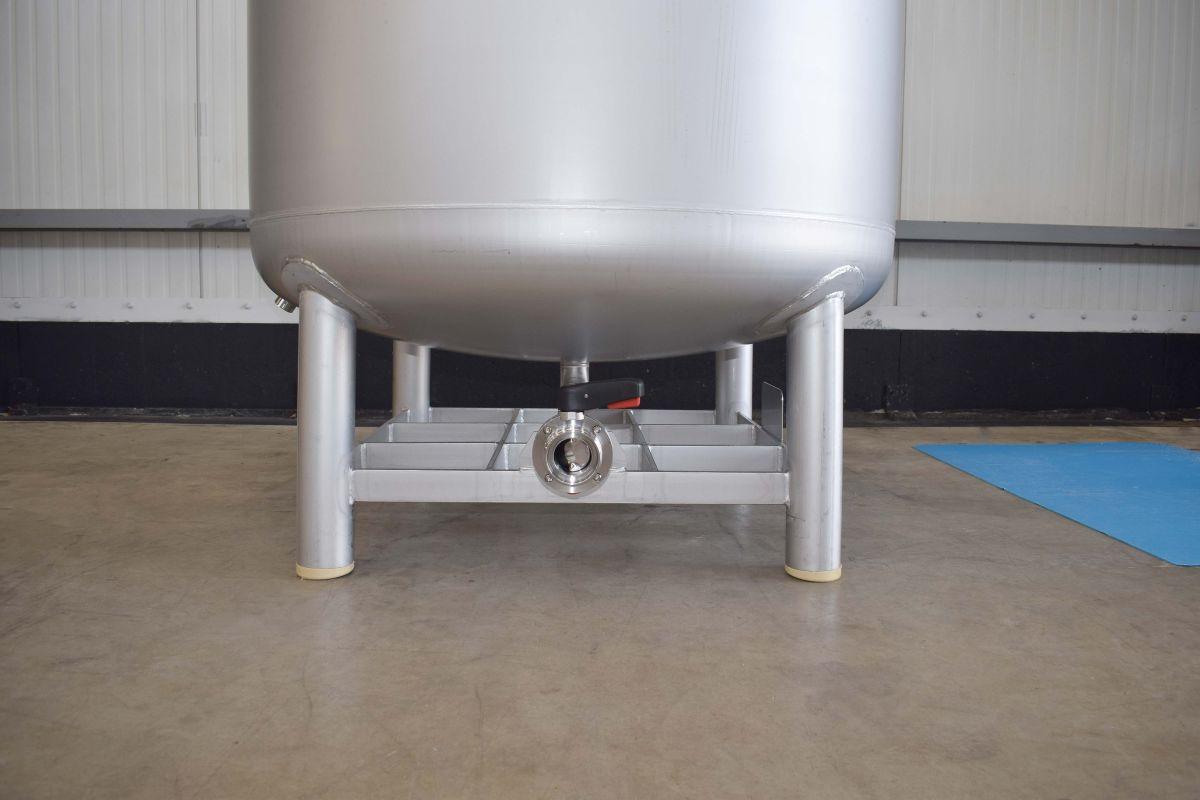

Fixation points: 4 non adjustable feet

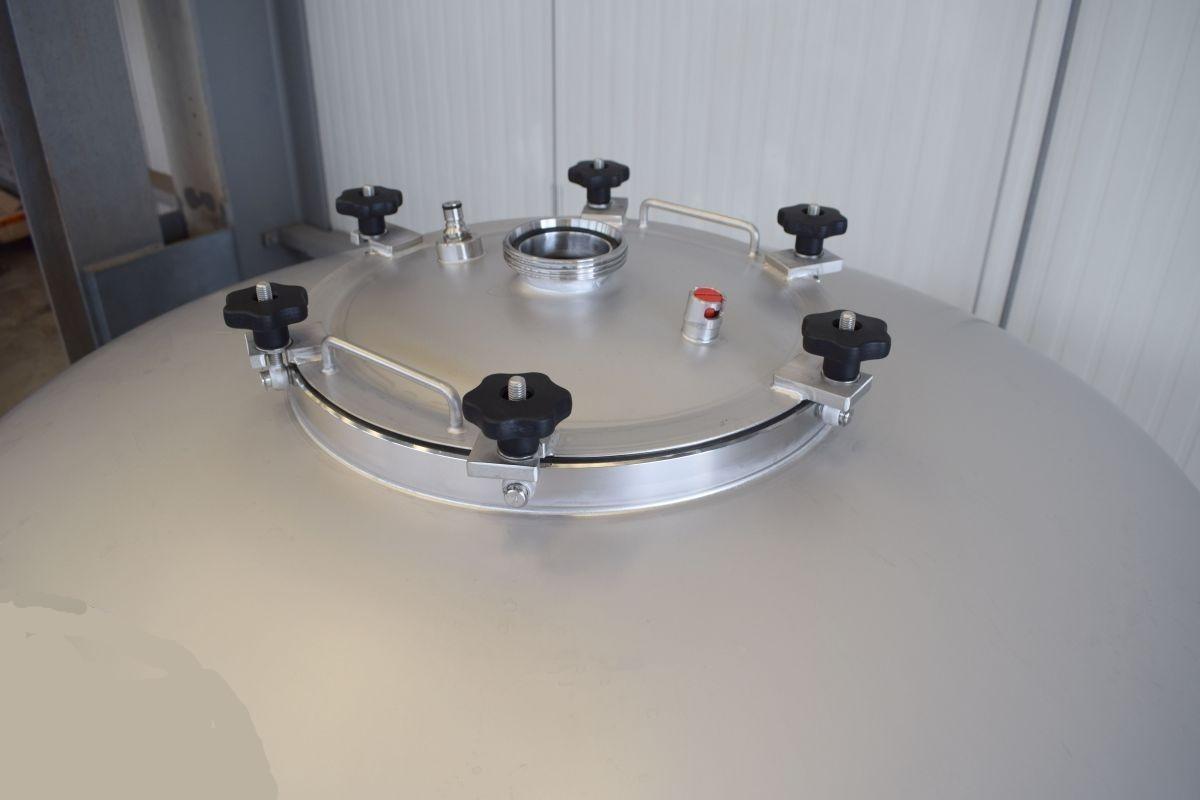

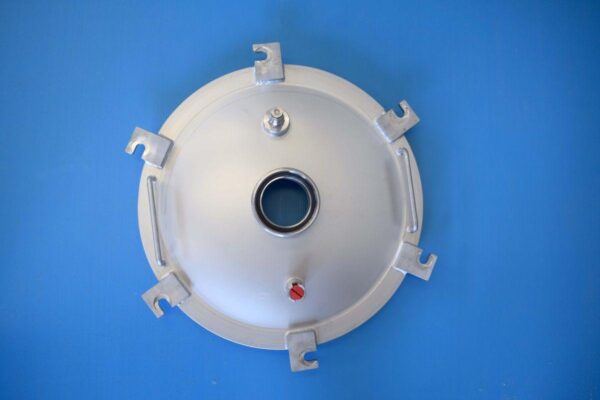

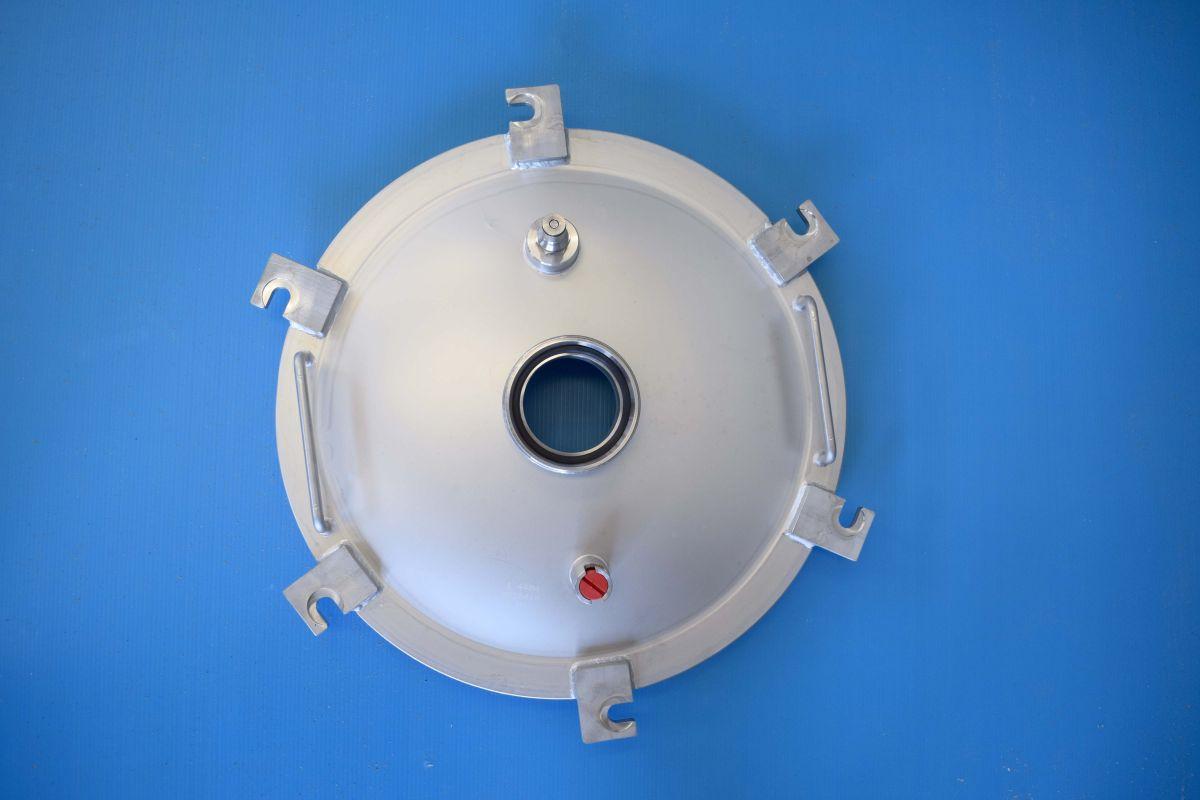

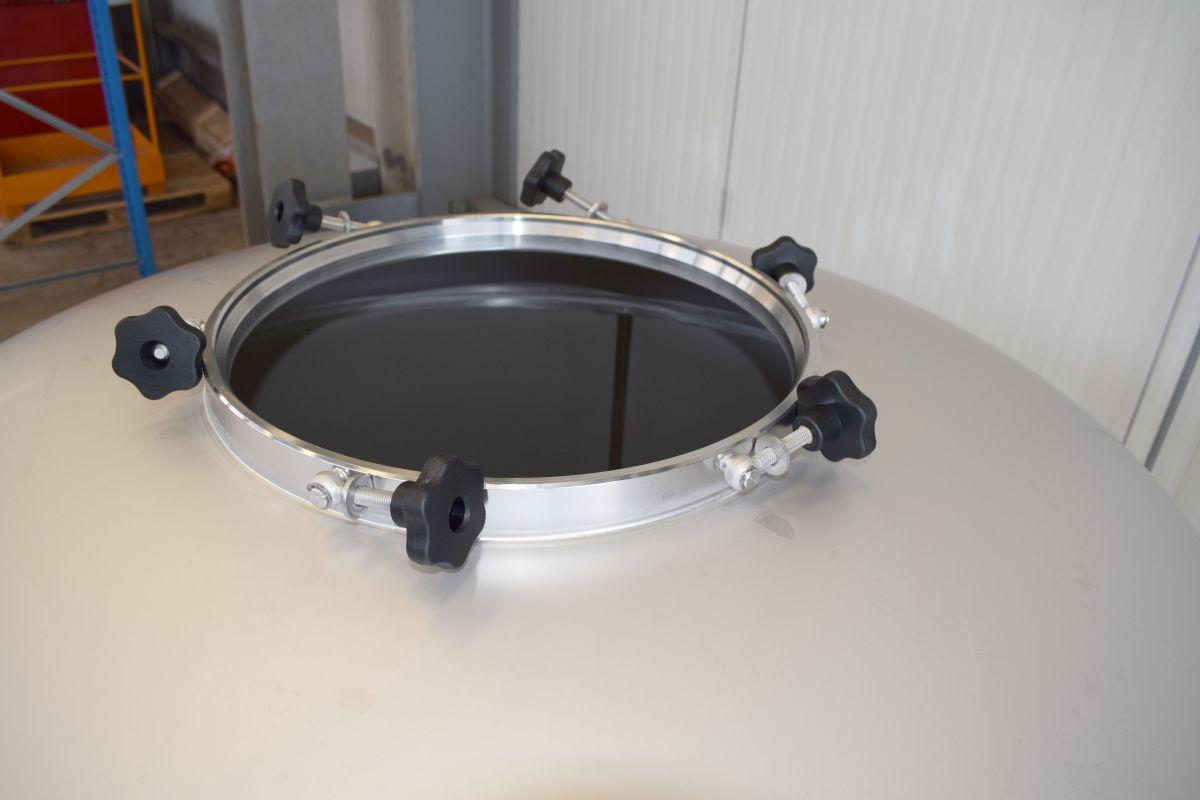

Manway(s): RVS 316
Gasket manway(s): EPDM

Valve: RVS 316L
Gasket shut-off valve (mat): EPDM
Fixation point(s): RVS 304L
Suitable for food industry: yes
Documents included: yes, optional

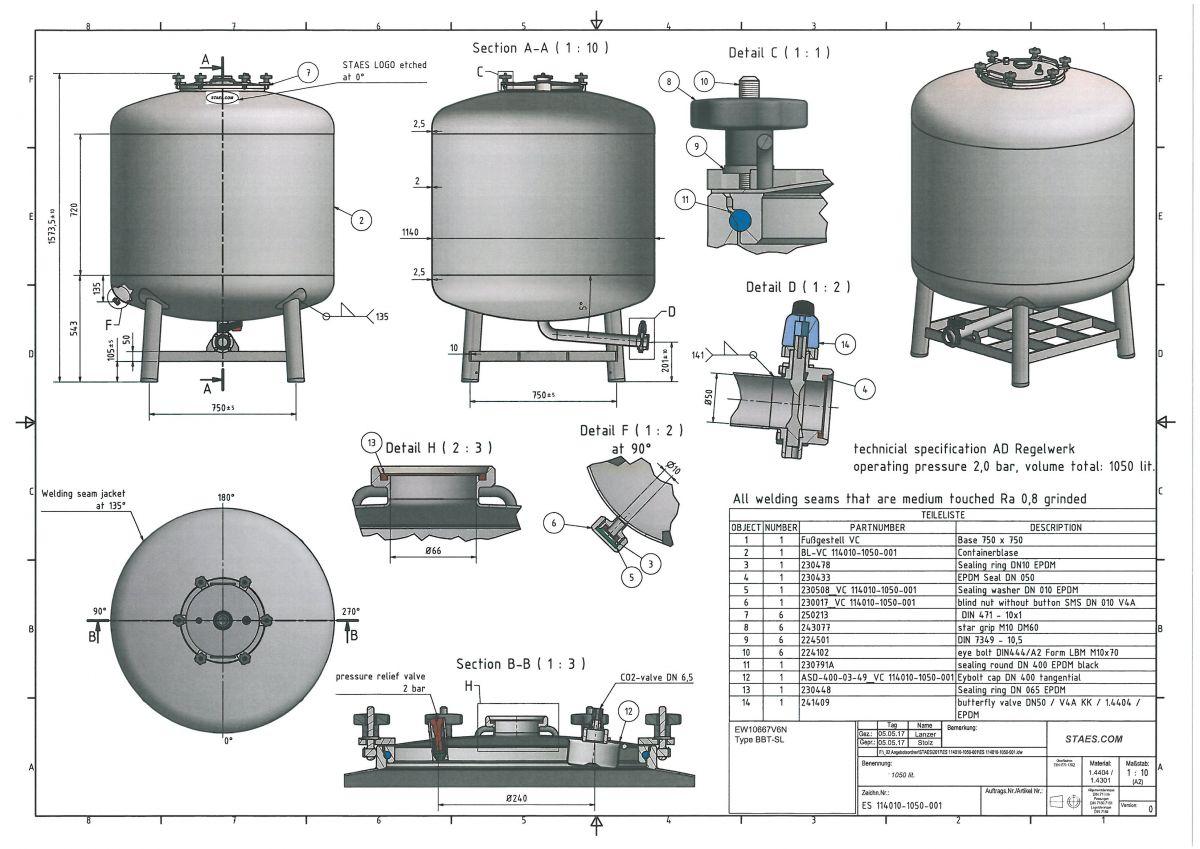

Technical drawing included: yes
Registration plate on the tank: yes
with inspection of: TUV
Flange for agitator: no

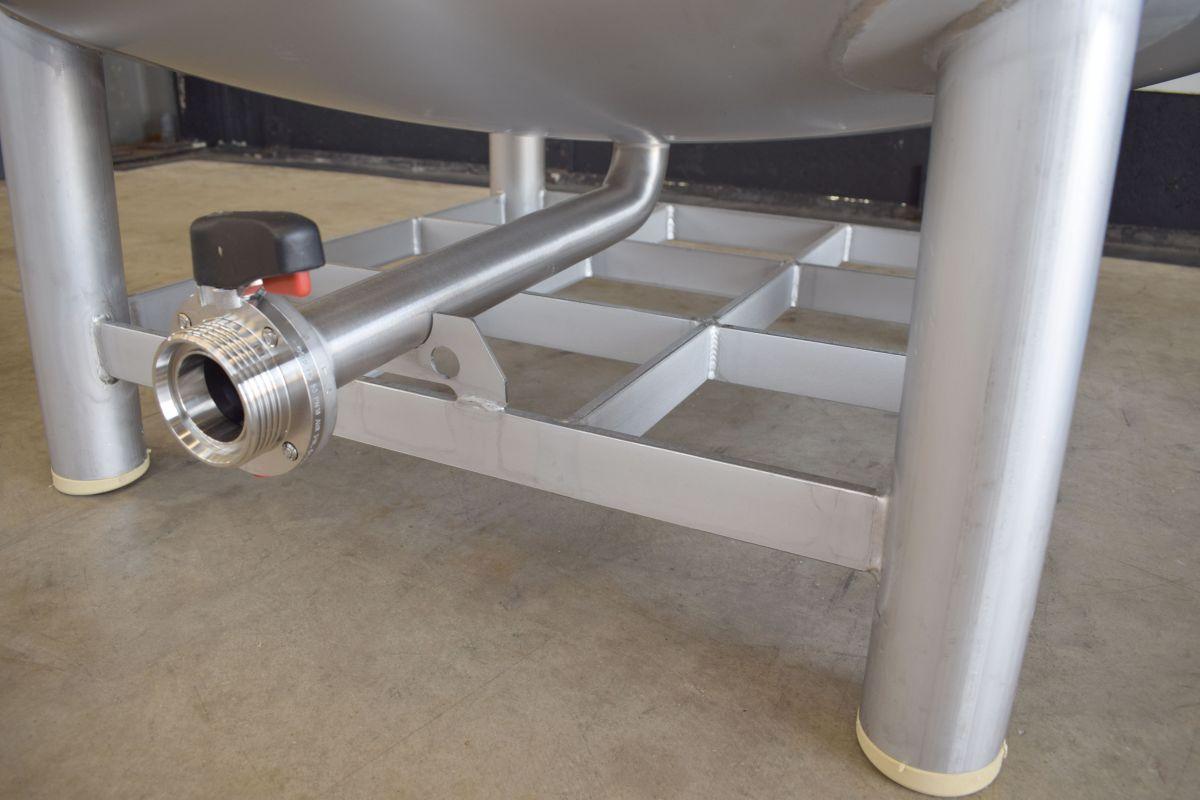

Tank outlet: inside Ø 50 mm

Outlet type: DIN11851 male
Total outlet valve: yes

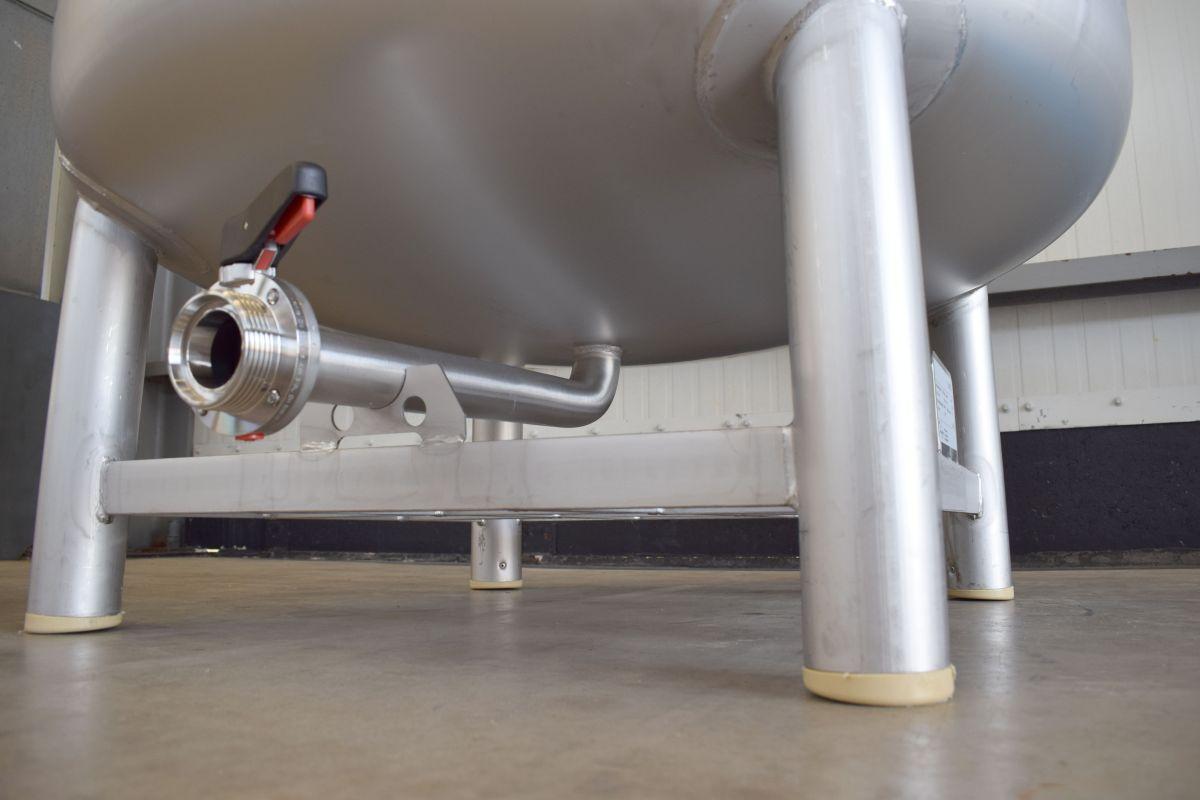

Type shut-off valve: butterfly valve
Top: 2,50 mm
Cylinder: 2 mm

Bottom: 2,50 mm
Distance from outlet to ground: 200 mm
Outer diameter tank: 1.140 mm
Cylinder height: 720 mm
Total height of tank: 1.573 mm

Empty weight tank: 130
