10300 liter i Syrafast 316

Vi erbjuder finansiering via:

Art.nr: 11325

99,000.00 SEK/st exkl moms

Lagersaldo: 7st

Mer information

Volym i liter

10300

Nytillverkad/Begagnad

Nytillverkad

Livsmedelsklassad

Ja

Modell

Vertikal

Material

Syrafast 316

Omrörare

Nej

Uppvärmning/kylning

Nej

Isolerad

Nej

Ritning

Öppna

item available on order

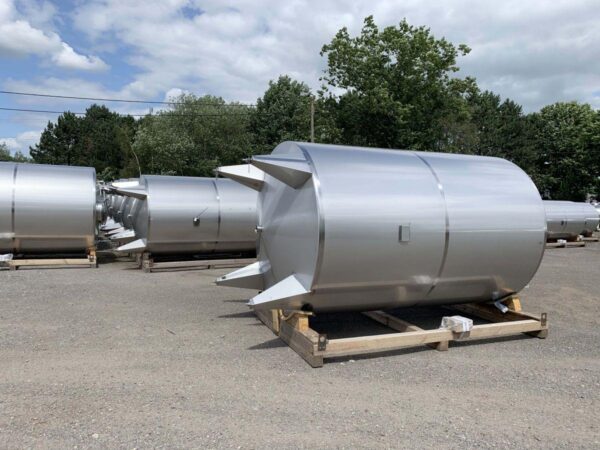

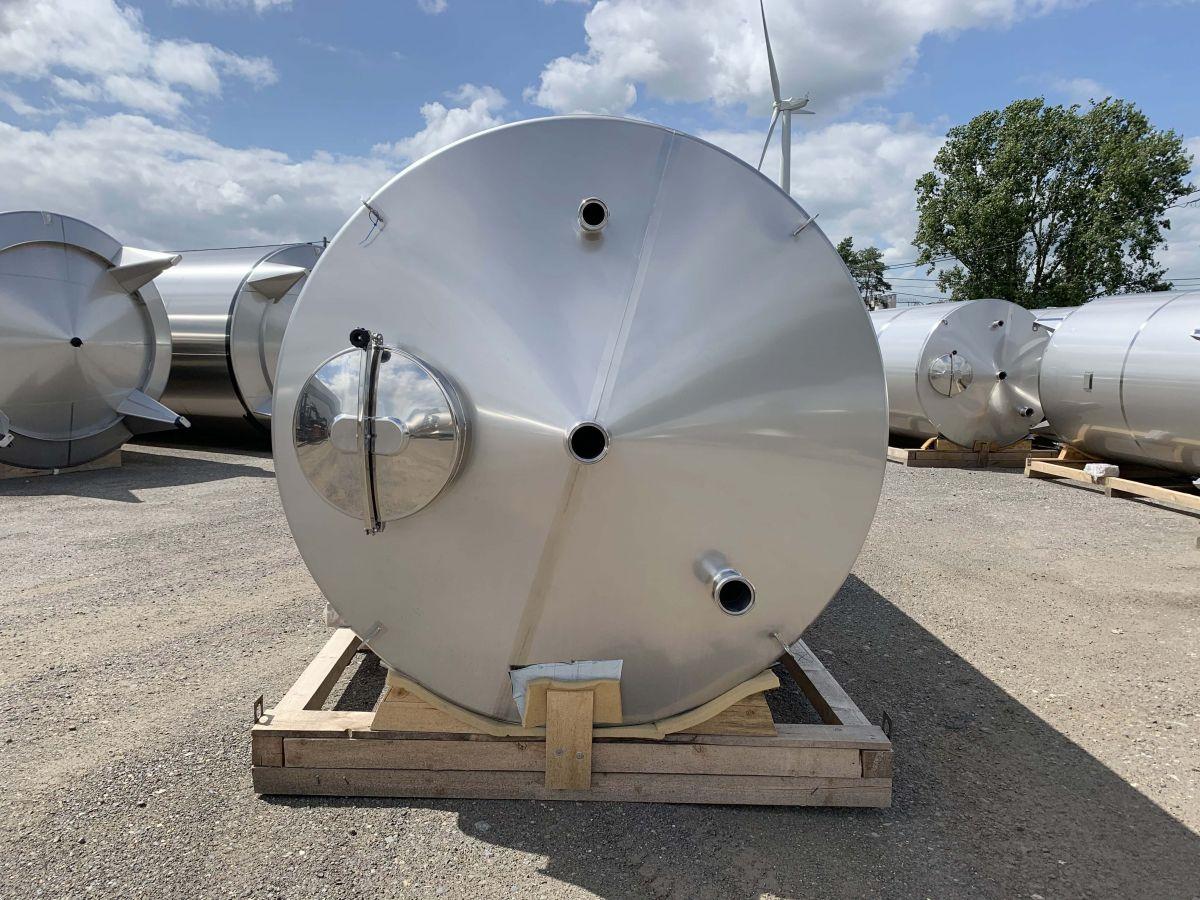

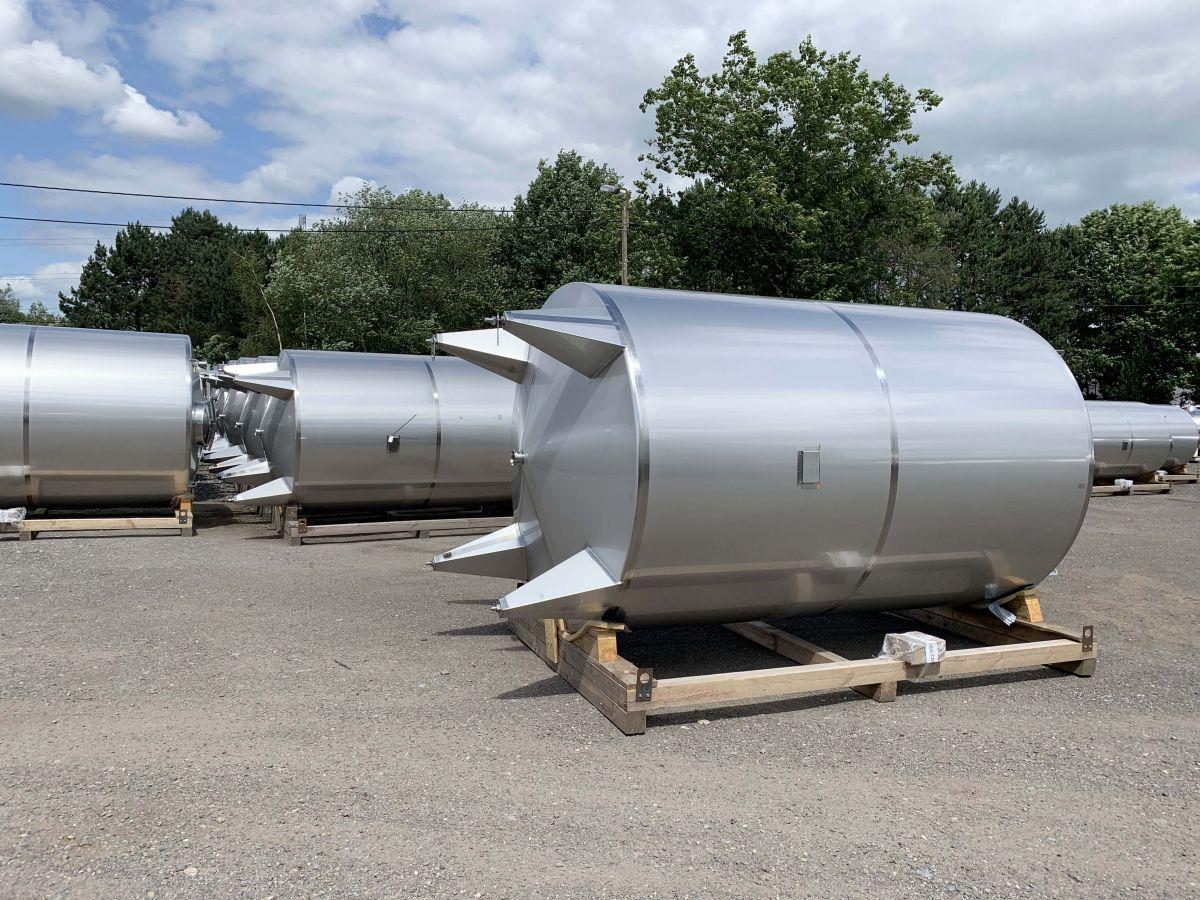

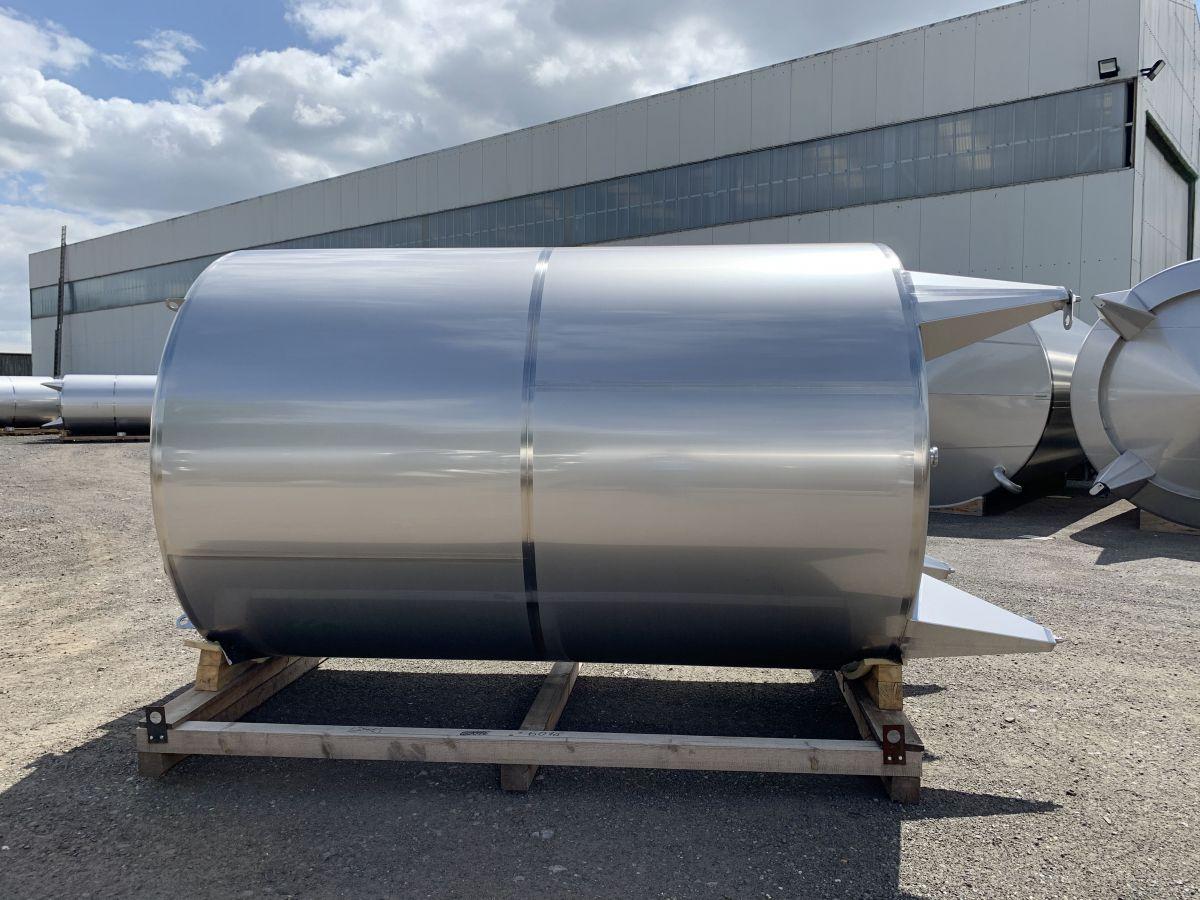

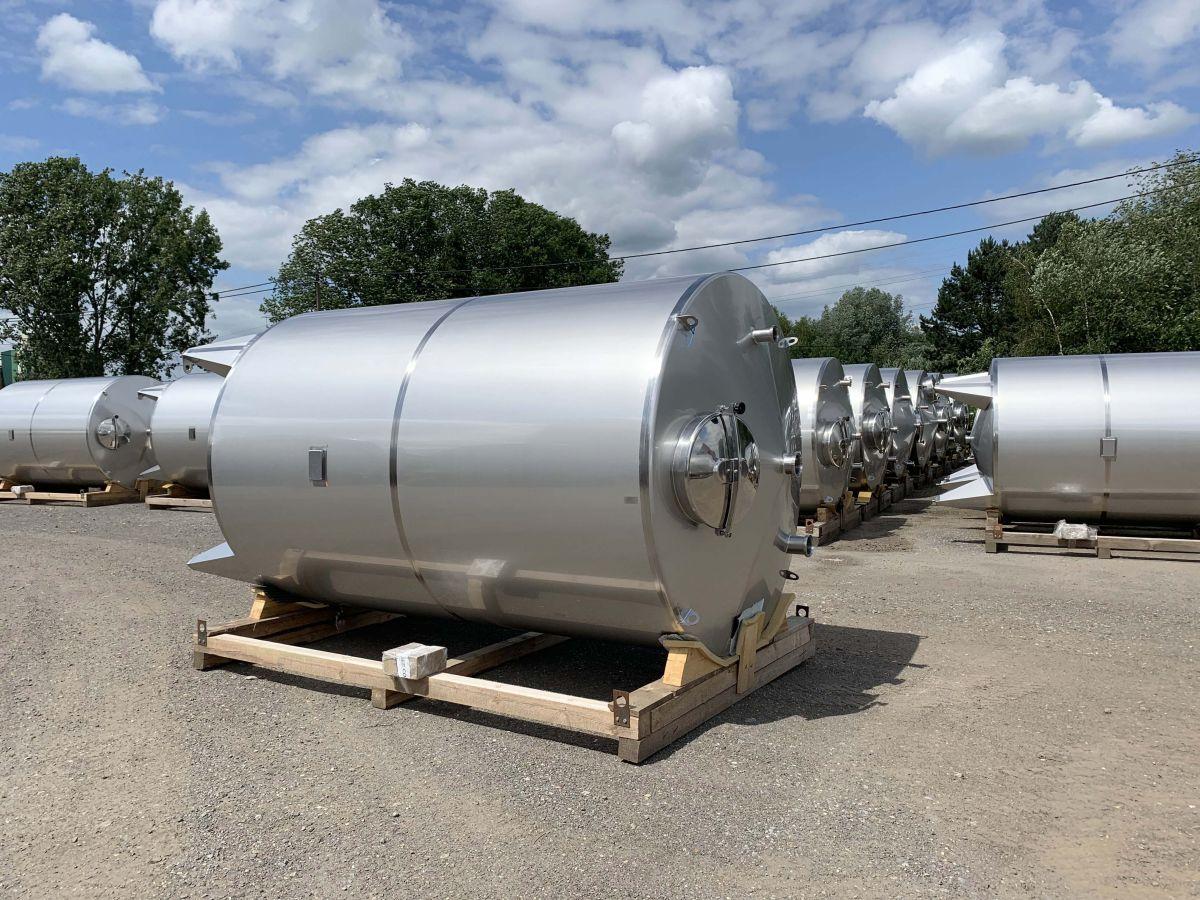

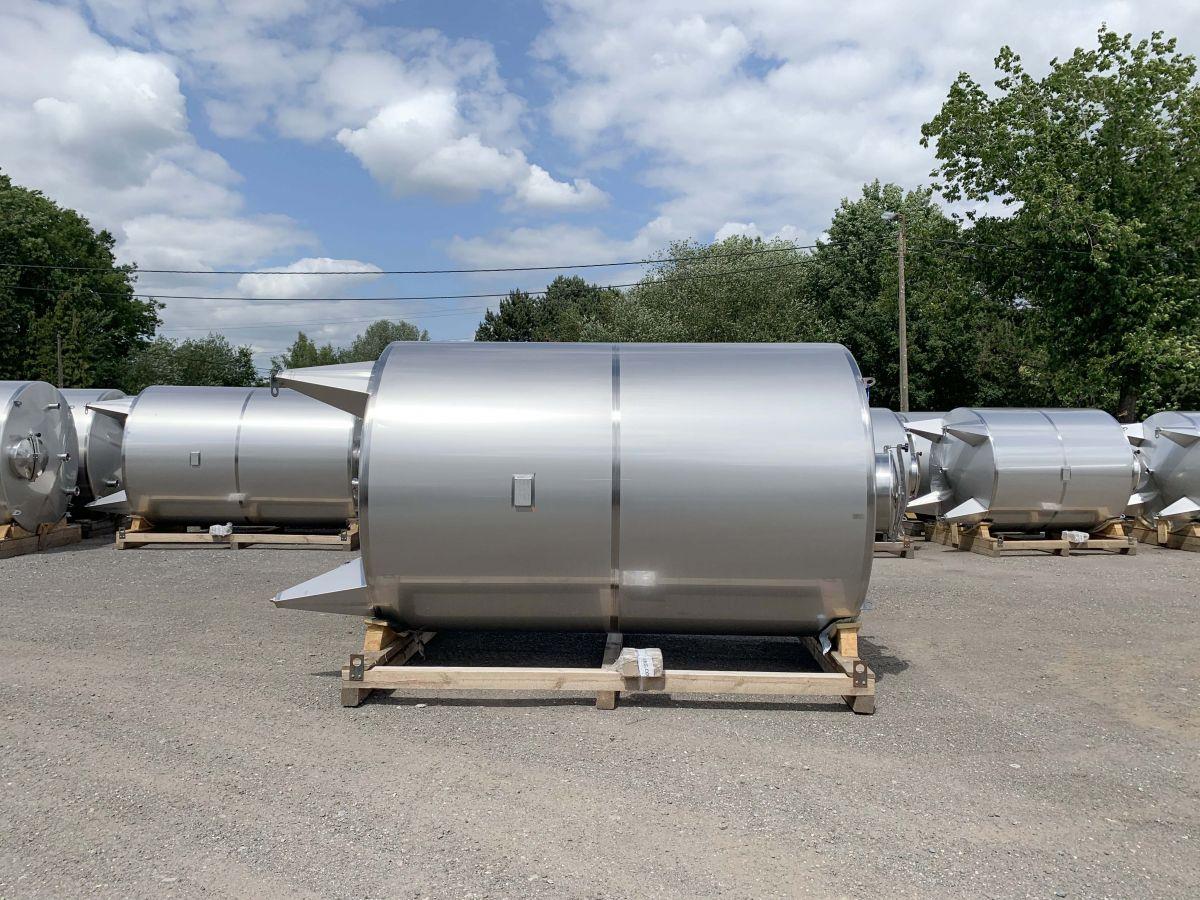

Article type: brand new storage tank – type K3-SL
Capacity: 10.300 L
Maximal density of the product: 1.200
Ra inner weld: 1,60
Finish stainless steel: 2b

Working pressure in tank: ATM – atmosferic
Max. working temperature: 80 °C
Min. working temperature: -10 °C
Material wet parts: SS AISI 316L (V4A)
Model: vertical

Configuration: single-skin
Heat exchanger: no
Insulation: no
Agitator: yes, optional
Mobile tank: no

Top type: conical 15 °
Shape of tank: cylindrical

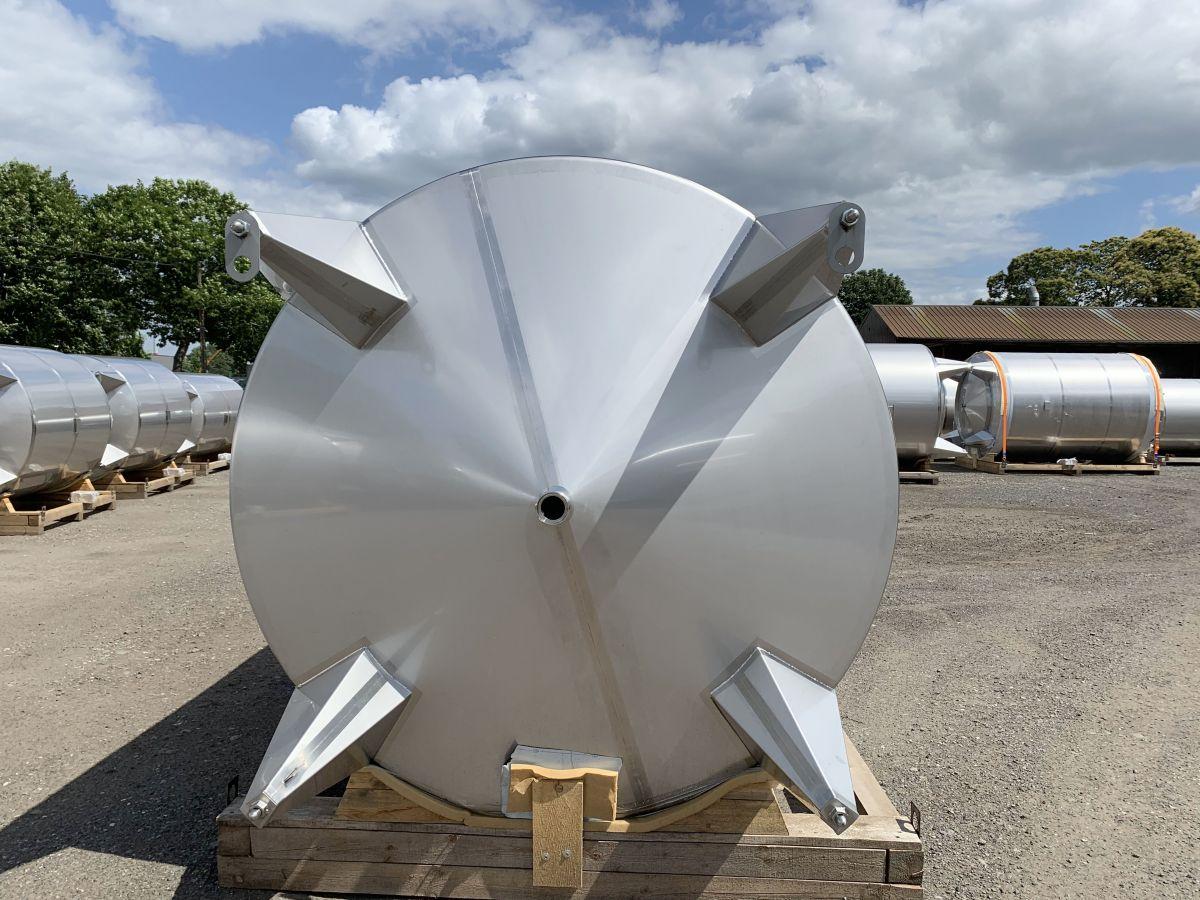

Bottom type: conical 15 °
Total discharge: yes

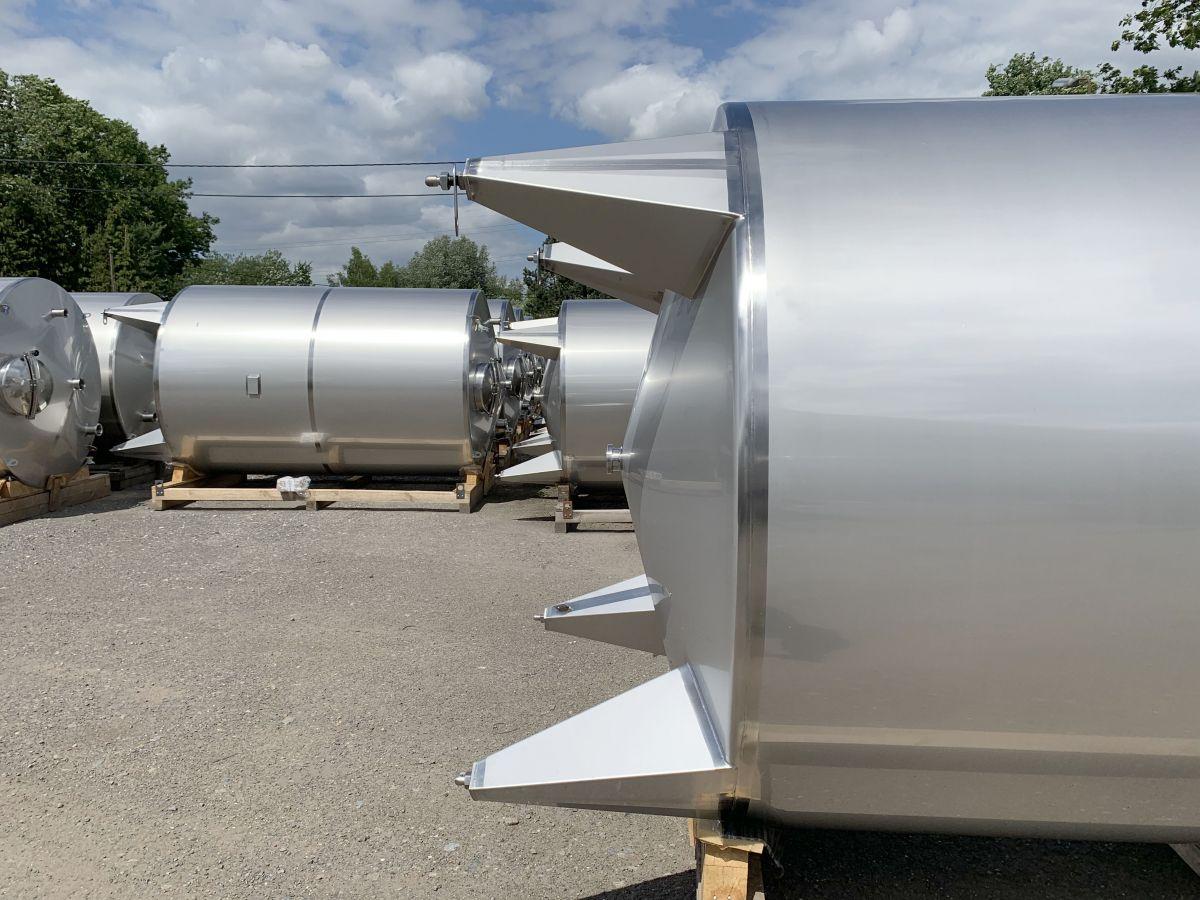

Fixation points: 4 adjustable feet

Legs: Set of baseplates and adjusting pieces included
Manway(s): RVS 316
Gasket manway(s): EPDM
Fixation point(s): RVS 304L
Suitable for food industry: yes

Documents included: yes, optional
Technical drawing included: yes
Registration plate on the tank: yes
with inspection of: TUV
Flange for agitator: no

Number of manways: 1

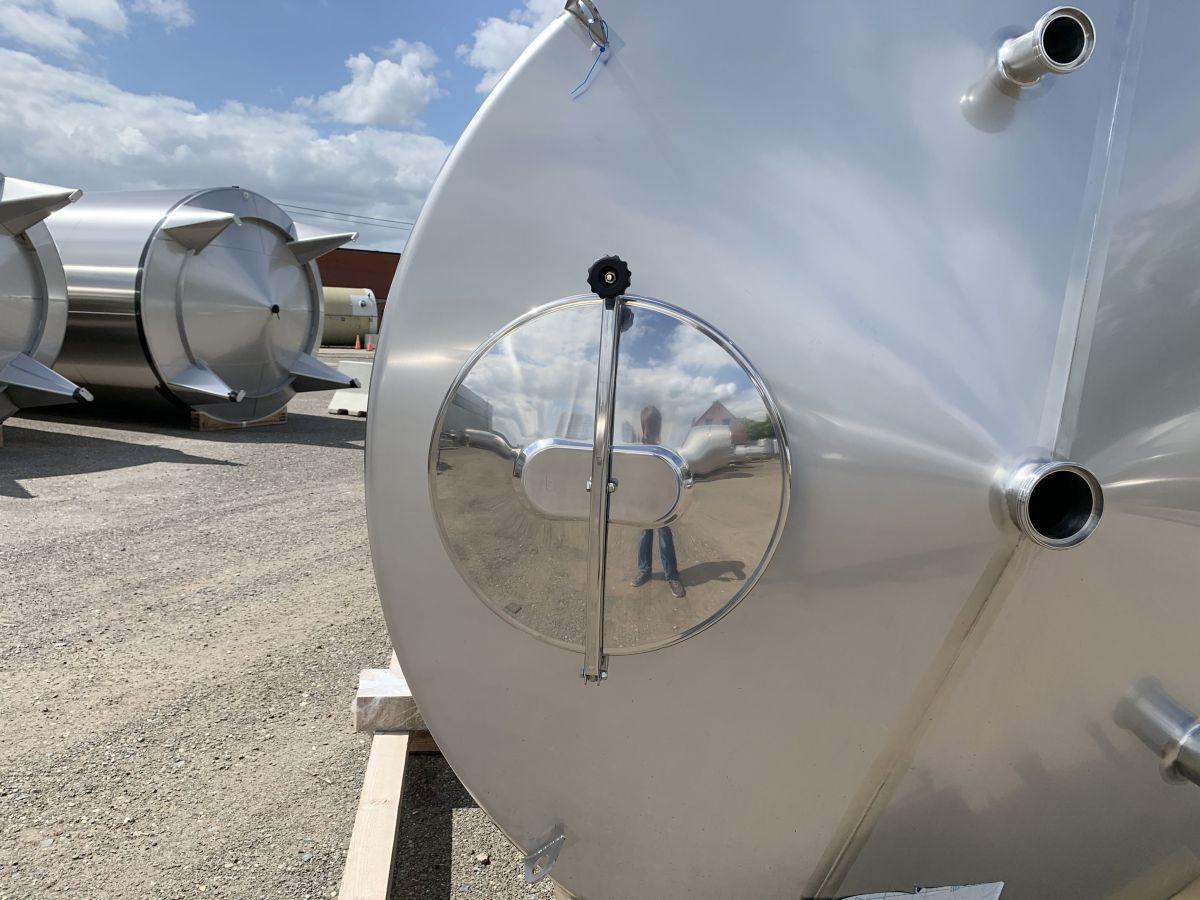

Position manway: at the top

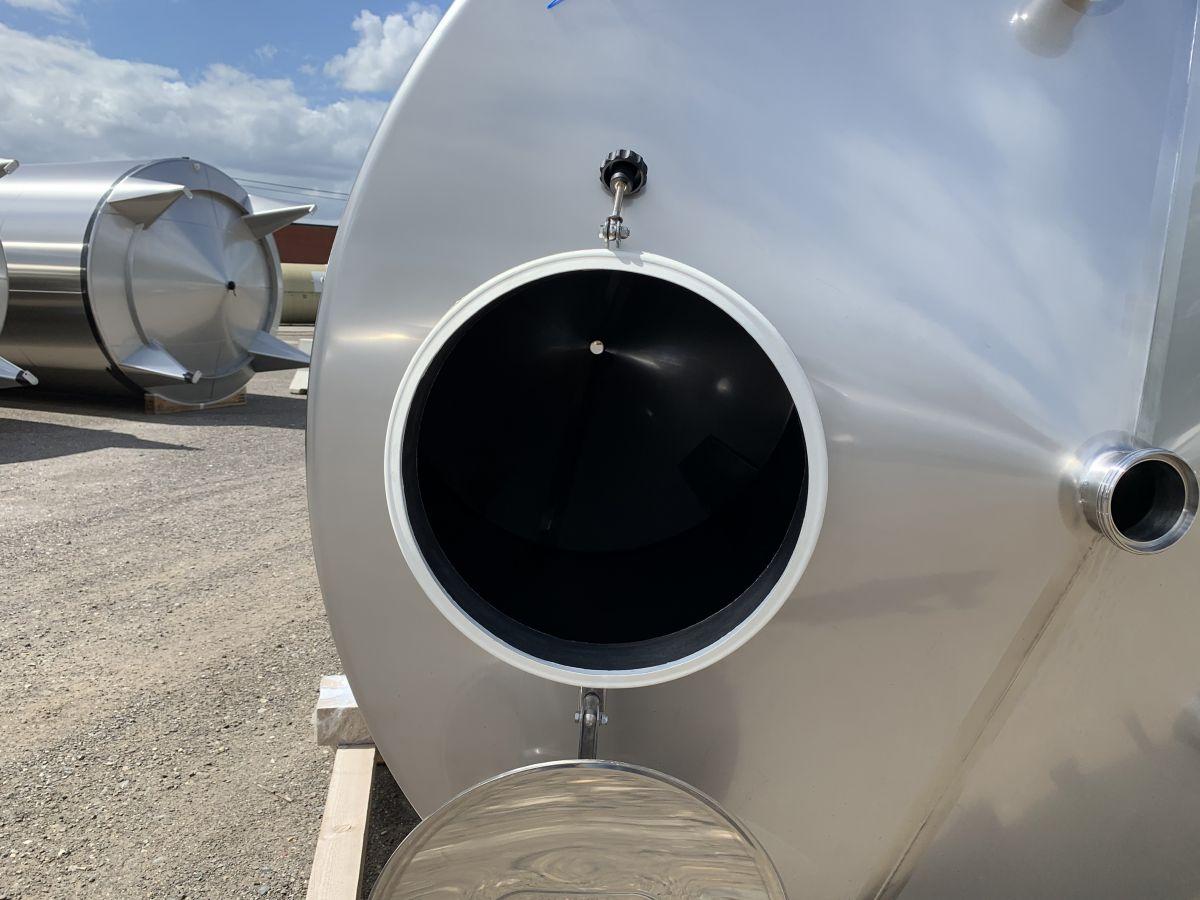

Manway 1: 500 mm
Tank outlet: inside Ø 65 mm
Outlet type: DIN11850

Total outlet valve: yes, optional
Top: 2 mm
Cylinder: 2 mm
Bottom: 3 mm
Distance from outlet to ground: 306 mm

Outer diameter tank: 2.024 mm
Cylinder height: 3.000 mm
Feet height: 694 mm
Total height of tank: 4.041 mm
Empty weight tank: 500
