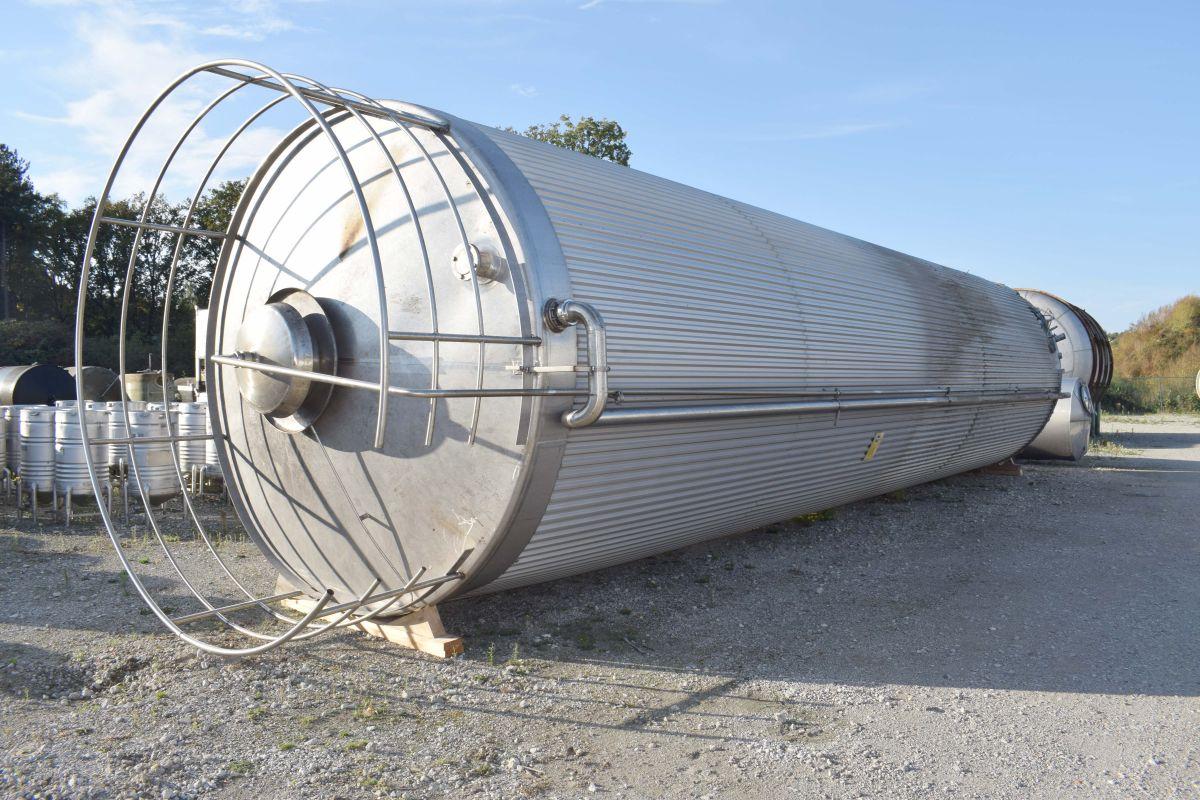

102000 liter i rostfritt 304
Art.nr: 4160Tipsa en kollega
Beskrivning
https://www.staes.com/en/available-from-stock/EWG11531V4
Description of the article
-
Article type: second-hand storage tank
-
Capacity: 102.000 L
-

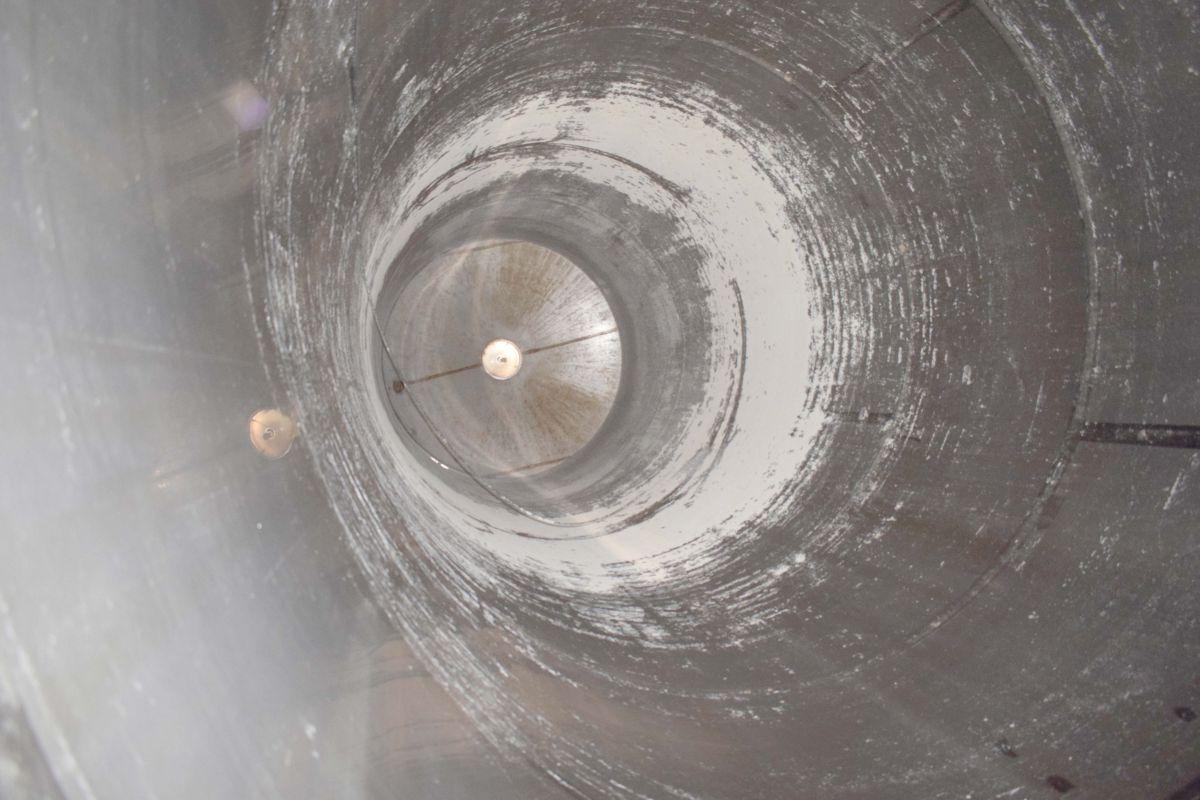

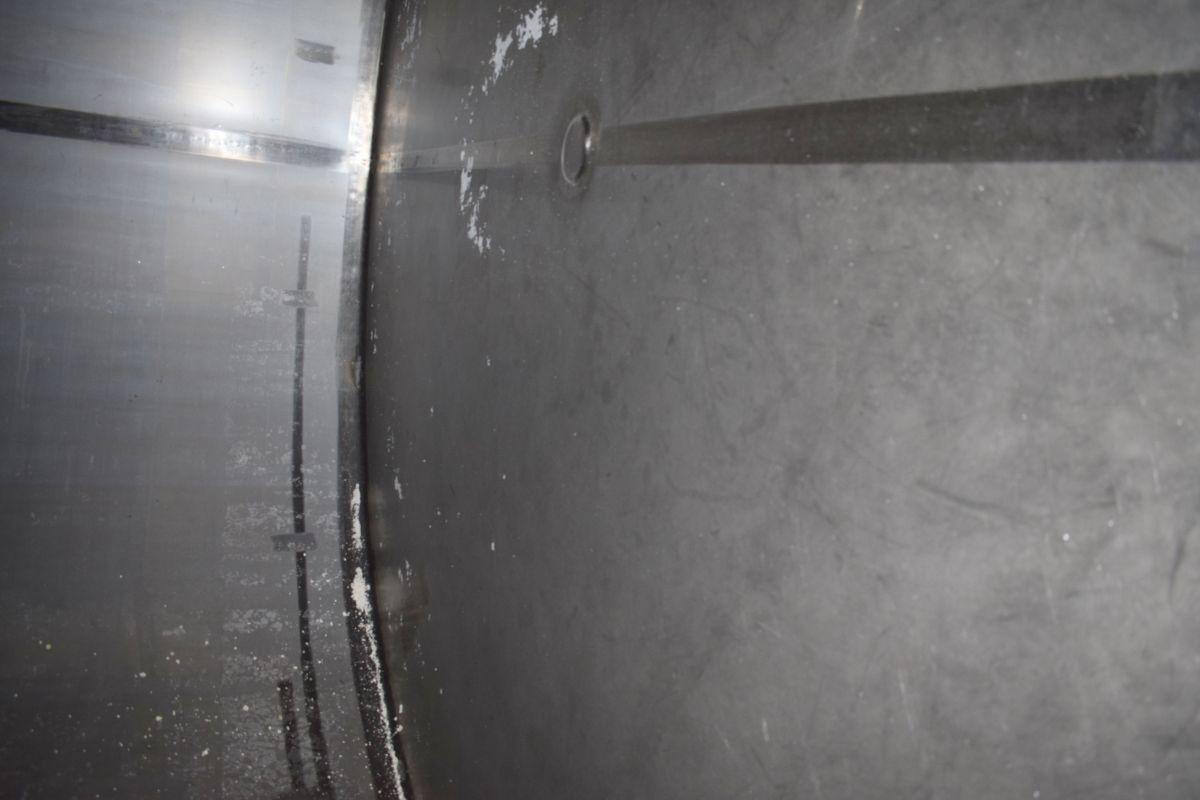

Ra inner weld: 0,80 µ
-
Finish stainless steel: 2b
-
Working pressure in tank: ATM – atmosferic
-
Material wet parts: SS AISI 304 (V2A)
-
Model: vertical
-
Configuration: insulated
-
Heat exchanger: no
-
Insulation: yes
-
Agitator: no
-
Mobile tank: no
-

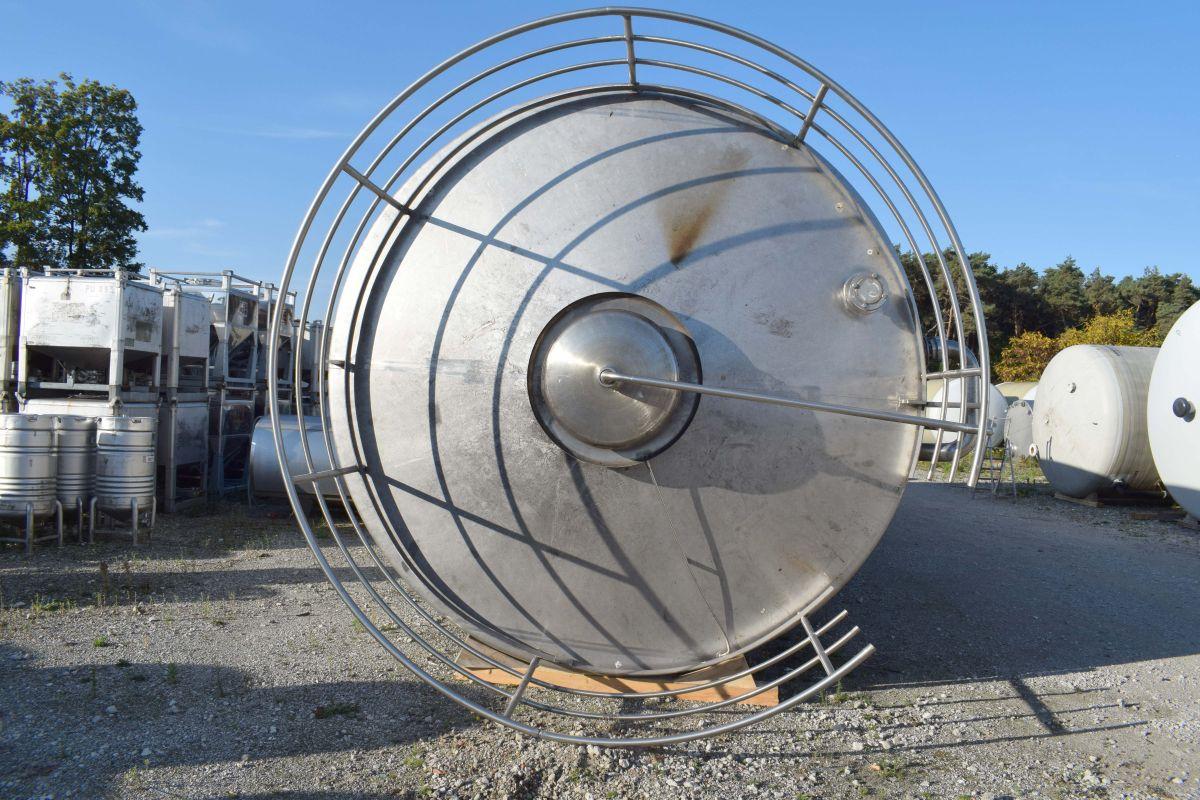

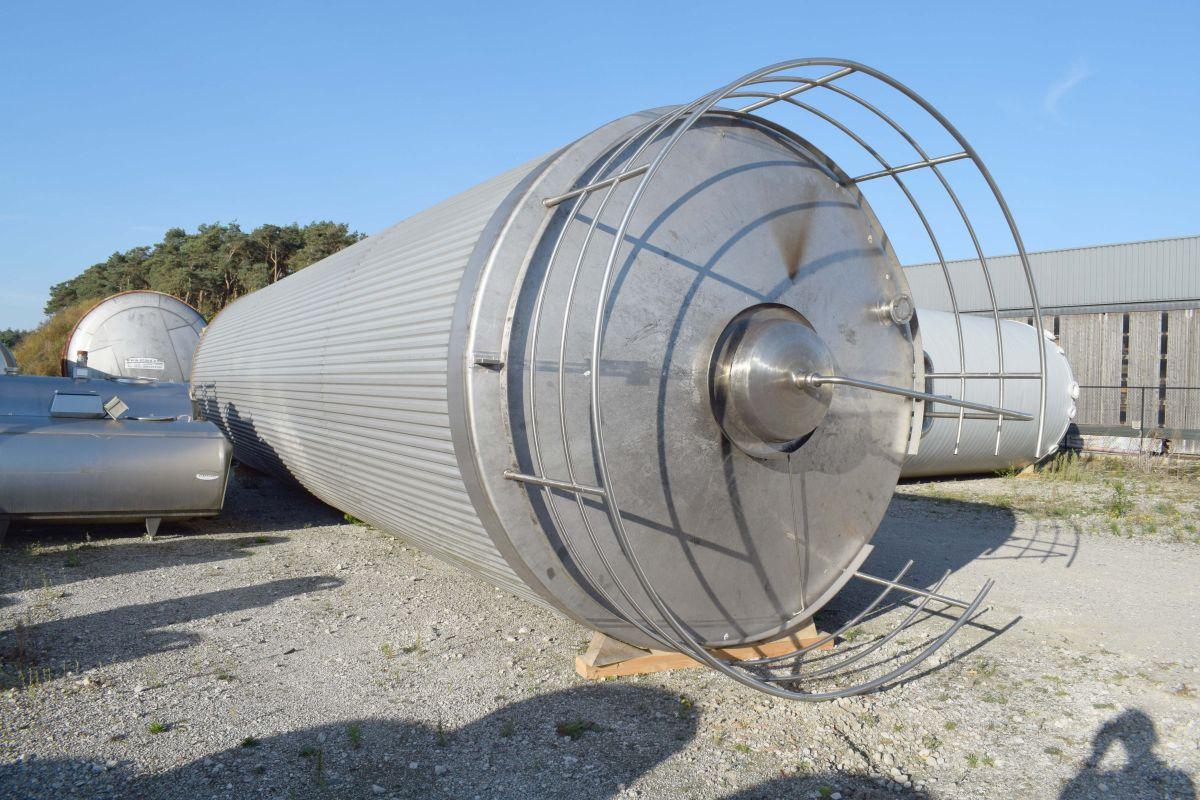

Top type: conical
-
Shape of tank: cylindrical
-

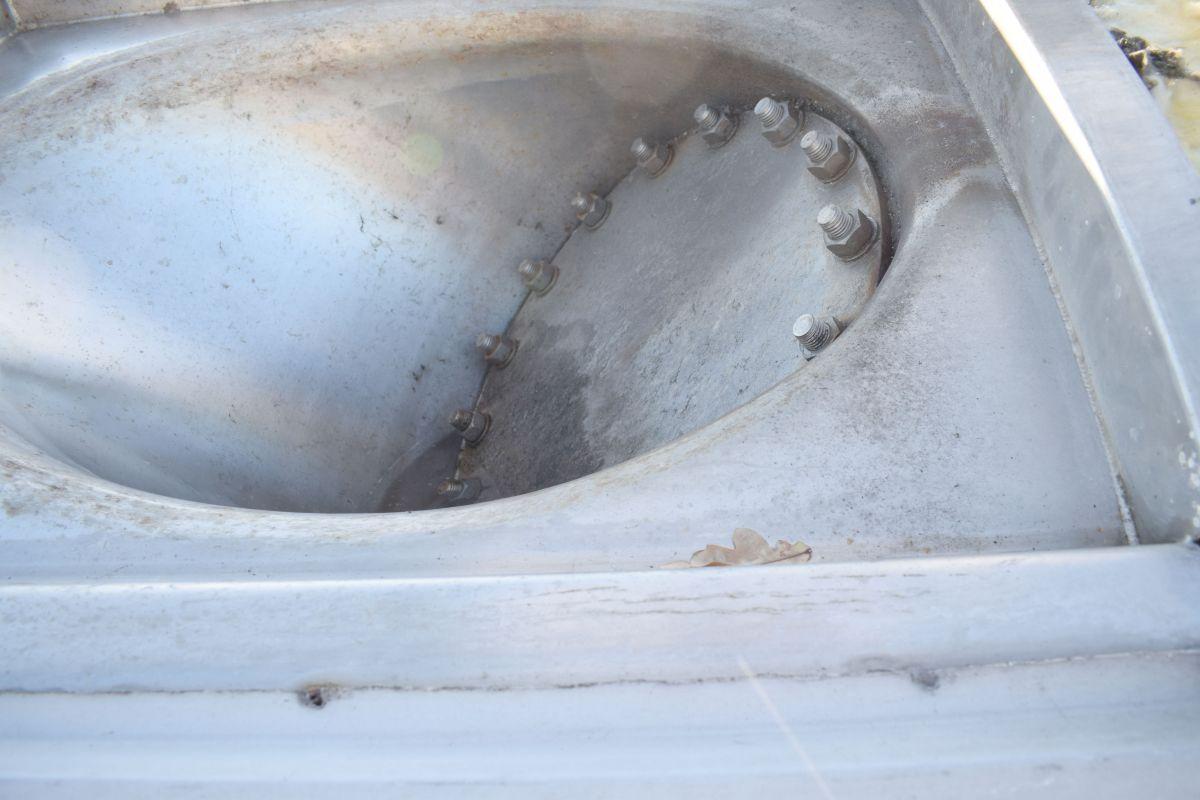

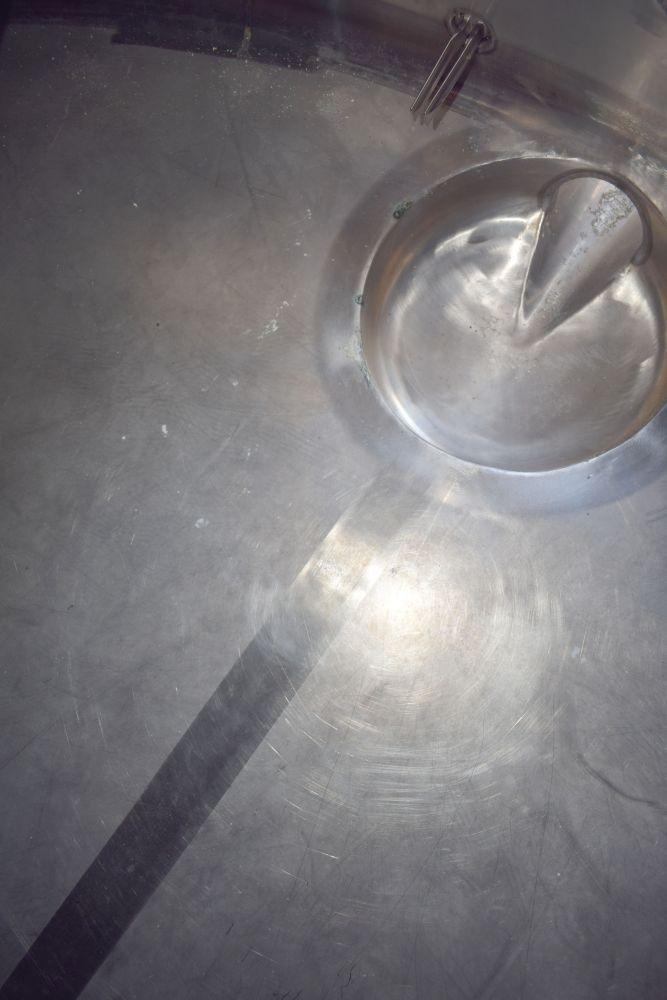

Bottom type: flat sloping 3 °
-
Total discharge: yes
Overview materials
-
Material wet parts: SS AISI 304 (V2A)
-

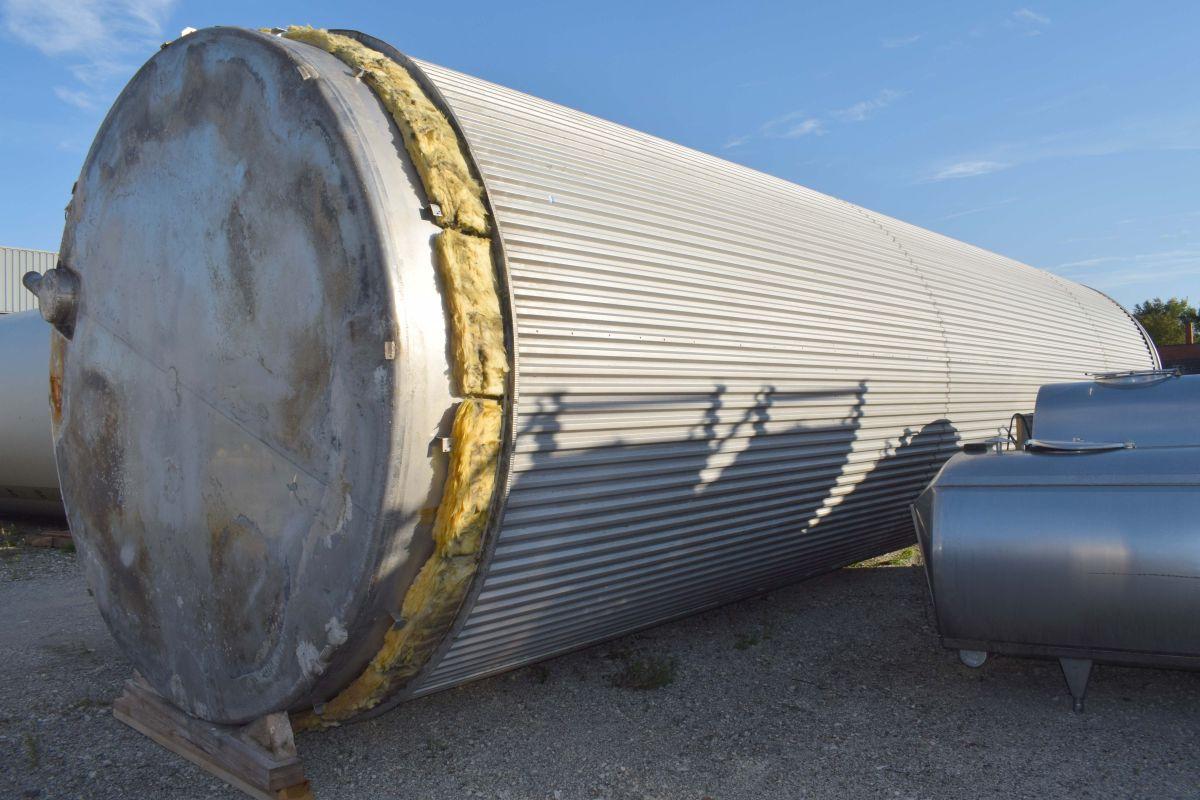

Insulation material: Rockwool
-
Outer jacket (ornamental wall): galvanised steel
-
Manway(s): RVS 304
-
Gasket manway(s): unknown
Equipment
-
Suitable for food industry: yes
-
Documents included: no
-
Technical drawing included: no
-
Registration plate on the tank: no
-
Flange for agitator: yes
-
Number of manways: 1
-
Position manway: cylinder
-

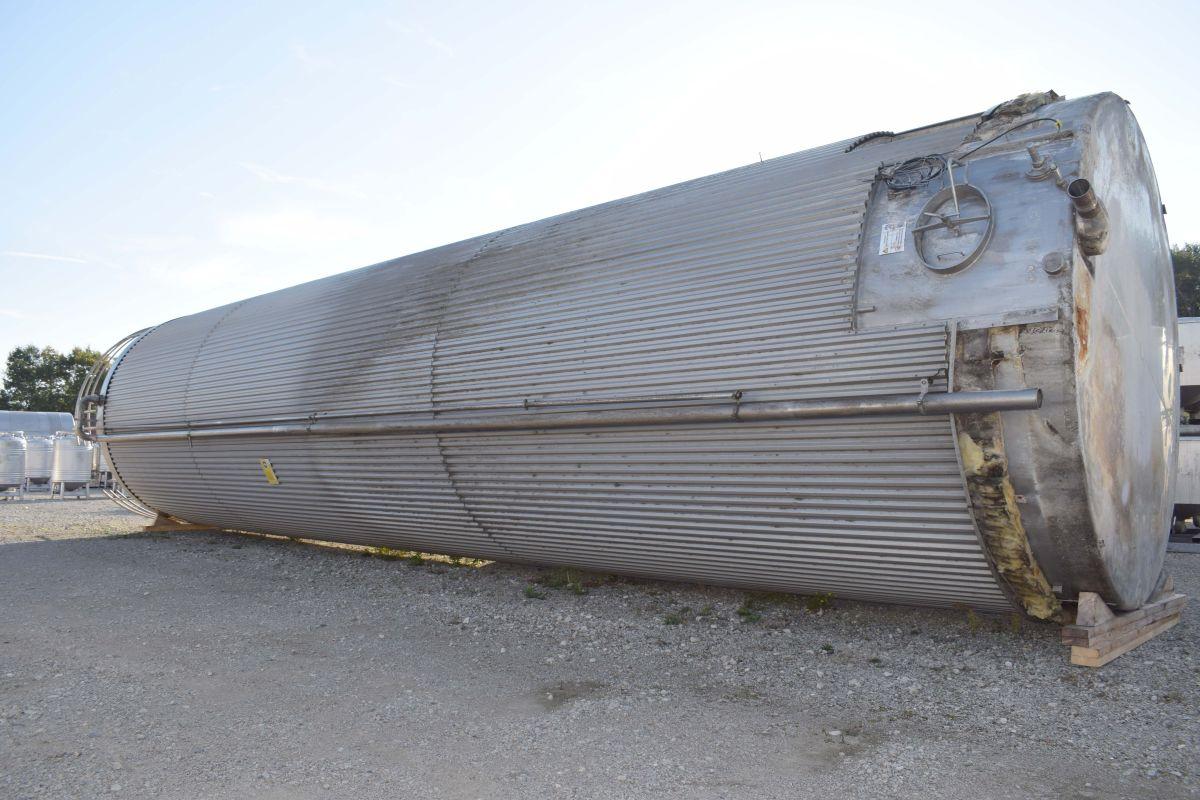

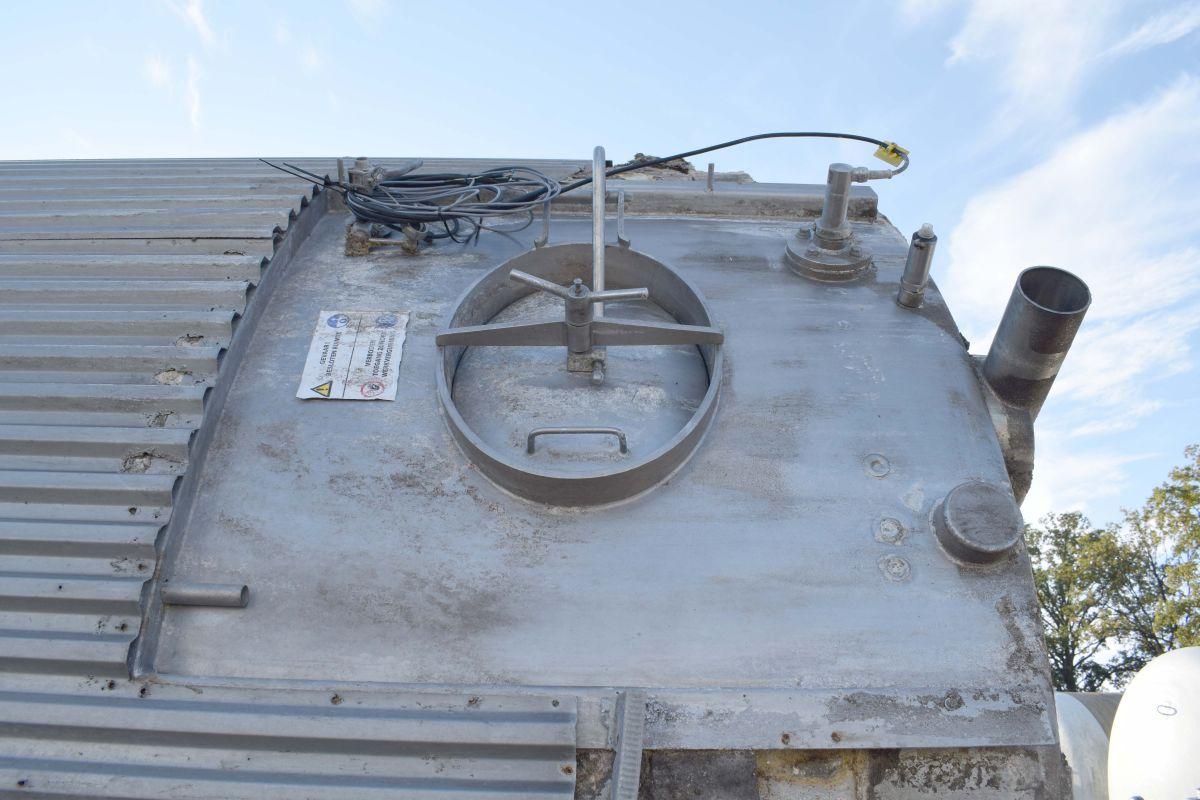

Manway 1: Ø 405 mm x H 505 mm
-

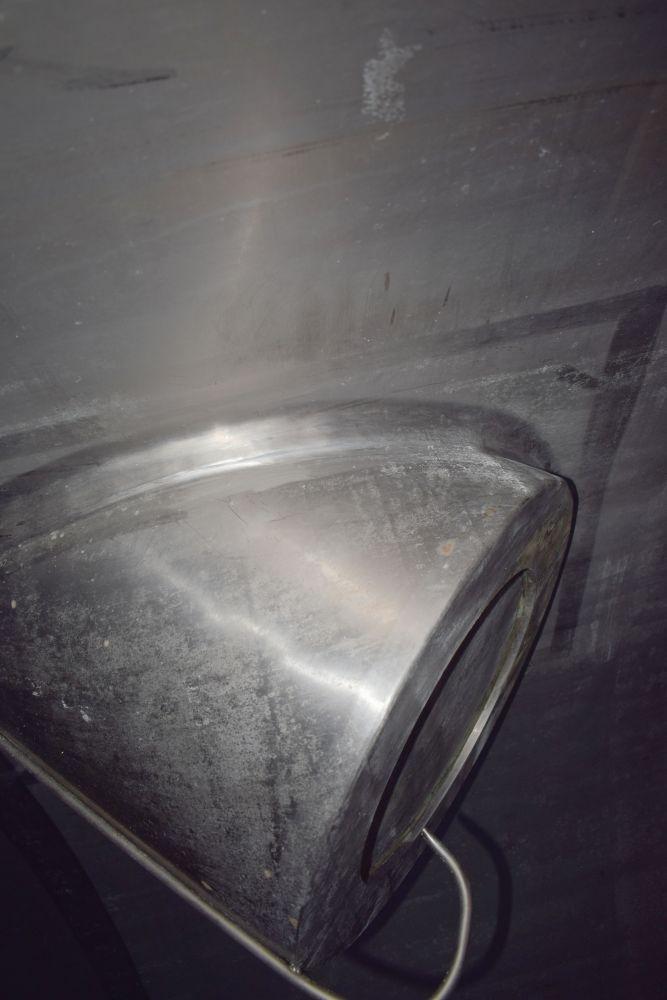

Tank outlet: inside Ø 100 mm
-
Outlet type: PIPE END
Wall thicknesses of the ornamental wall and insulation
-
Cylinder: 50
-
Insulation body: yes
-
finish of the outer jacket: riveted
-
Insulation material: Rockwool
Dimensions of the tank
-
Internal diameter tank: 3.140 mm
-
Outer diameter tank: 3.400 mm
-
Cylinder height: 13.250 mm
-
Total height of tank: 14.350 mm
-
Empty weight tank: 5.000 Kg
