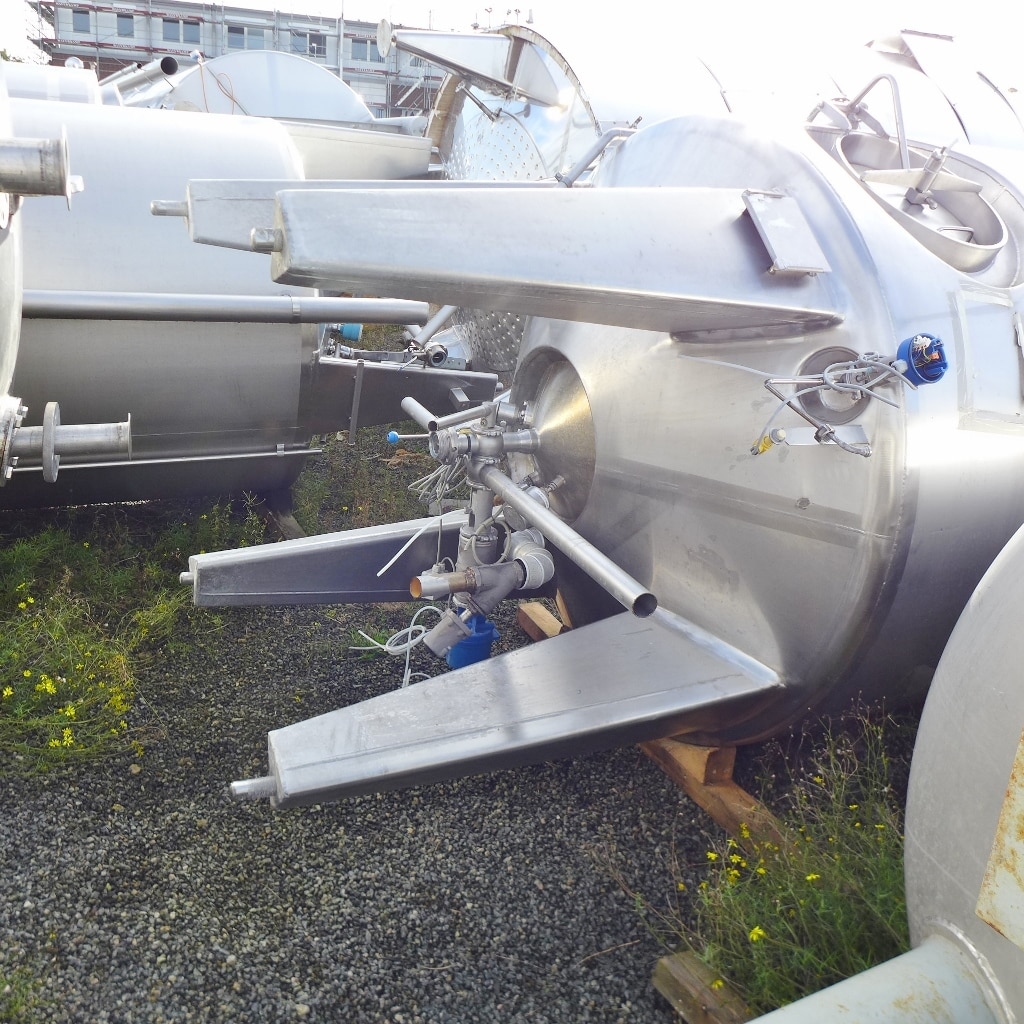

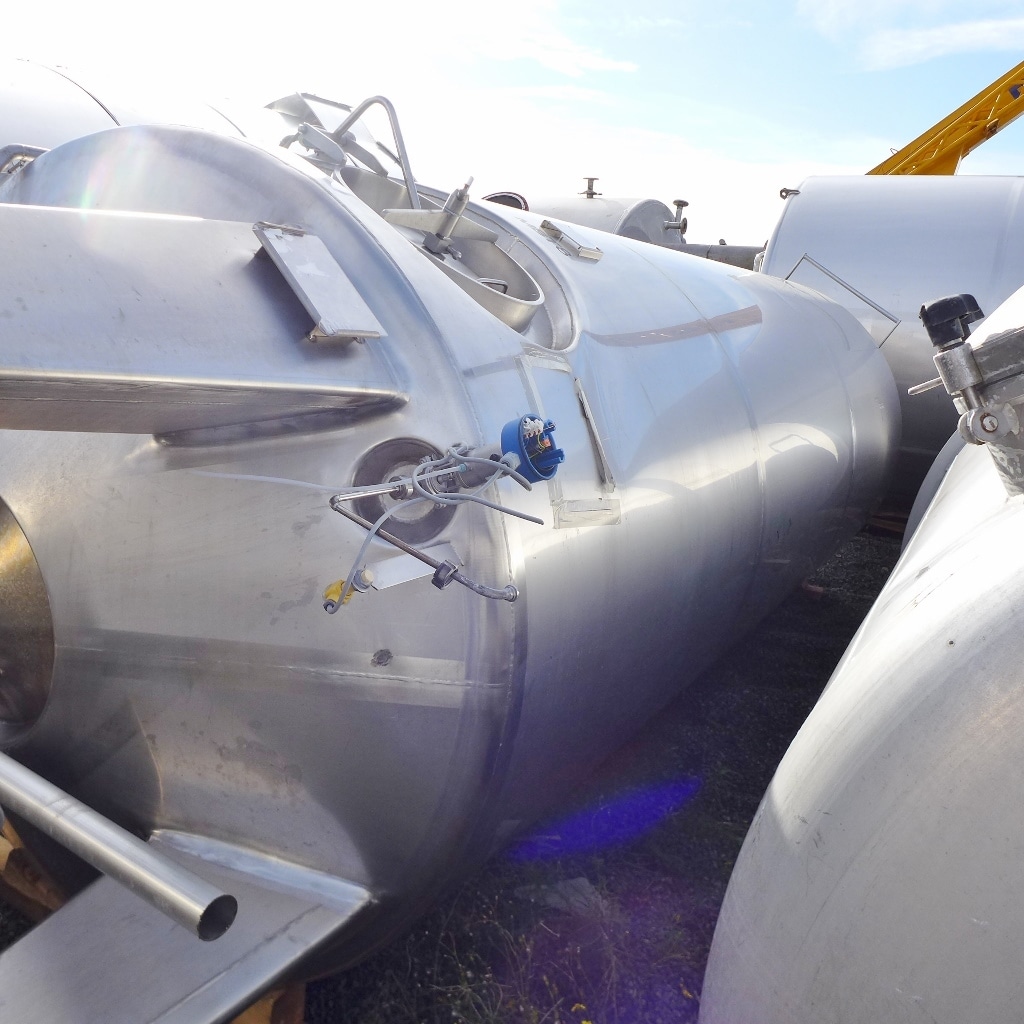

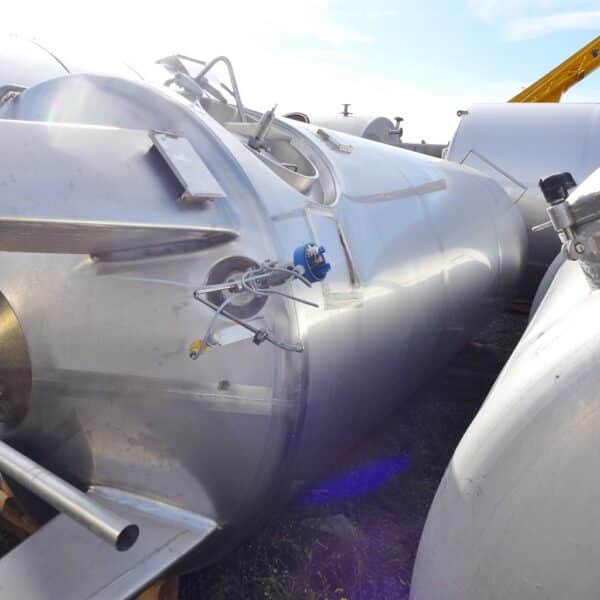

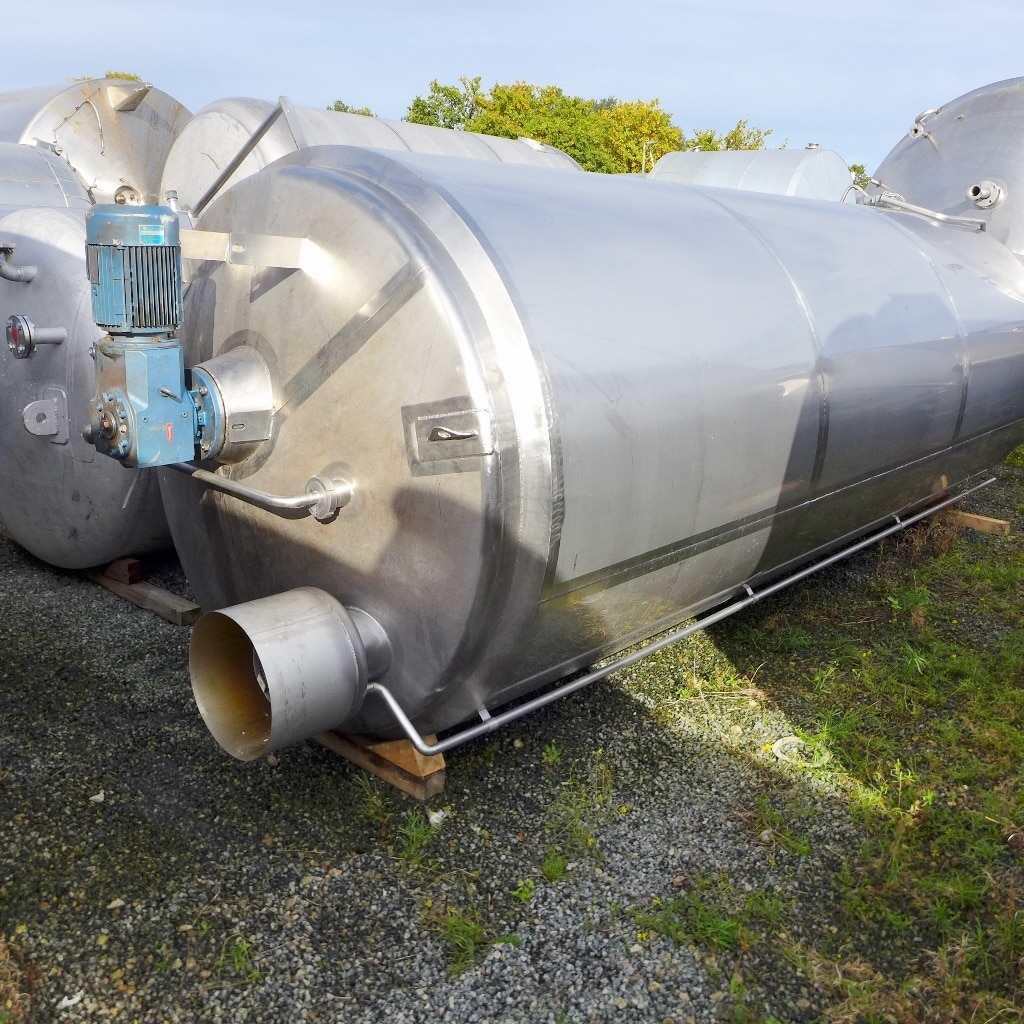

10000 liter tank i Rostfritt 304

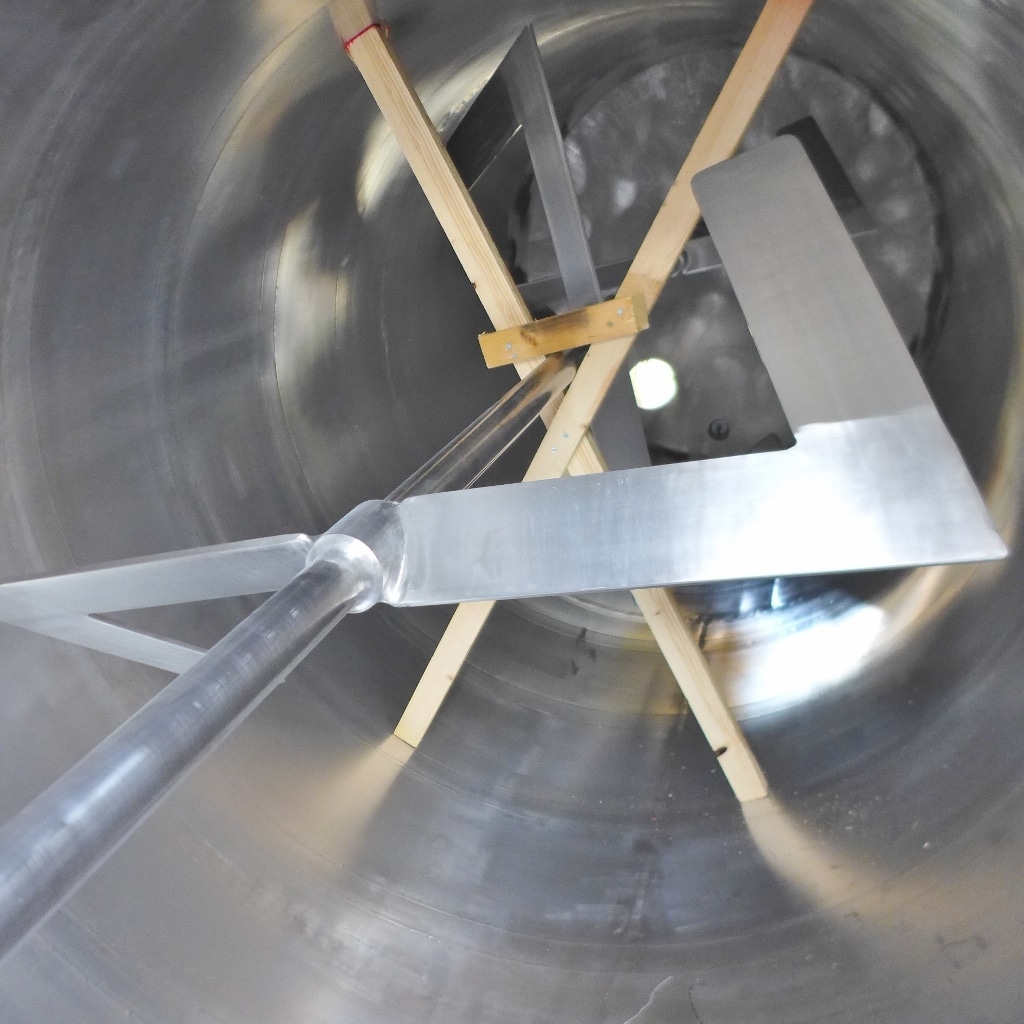

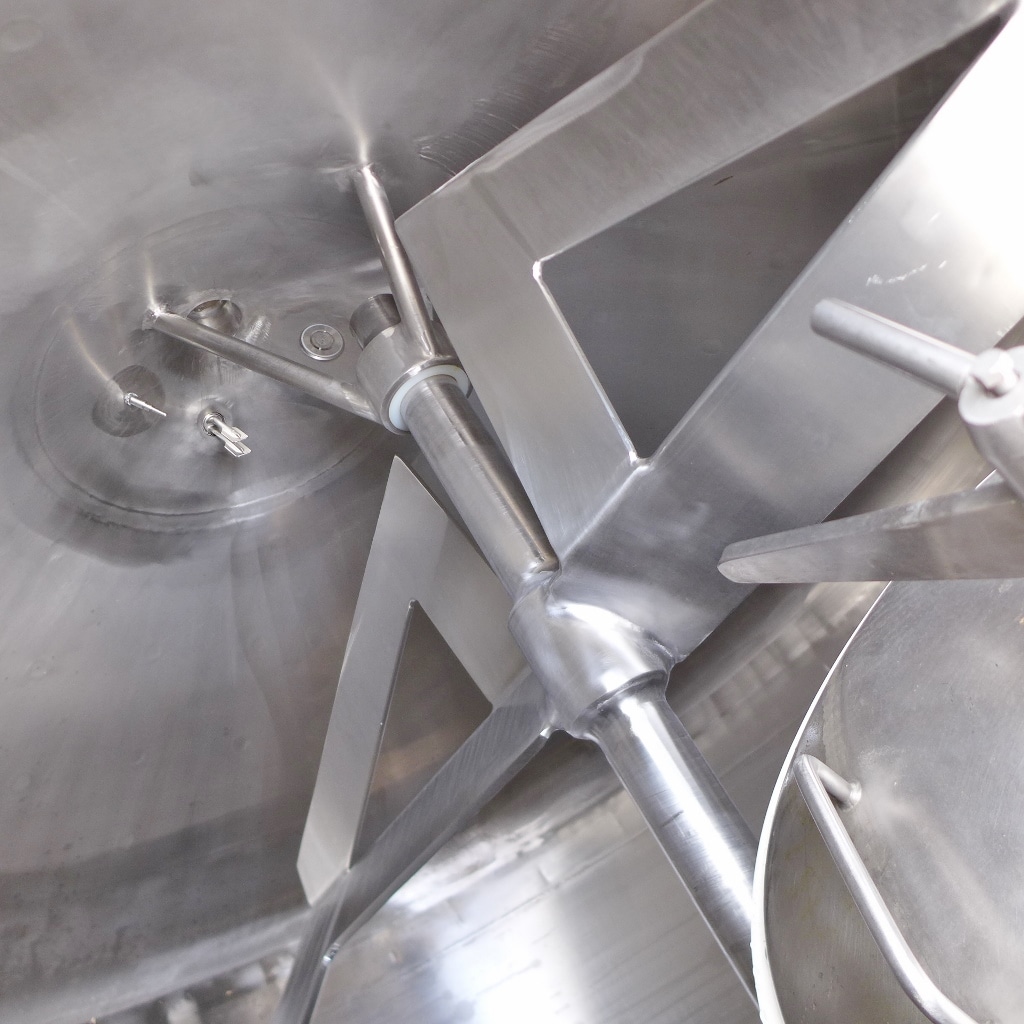

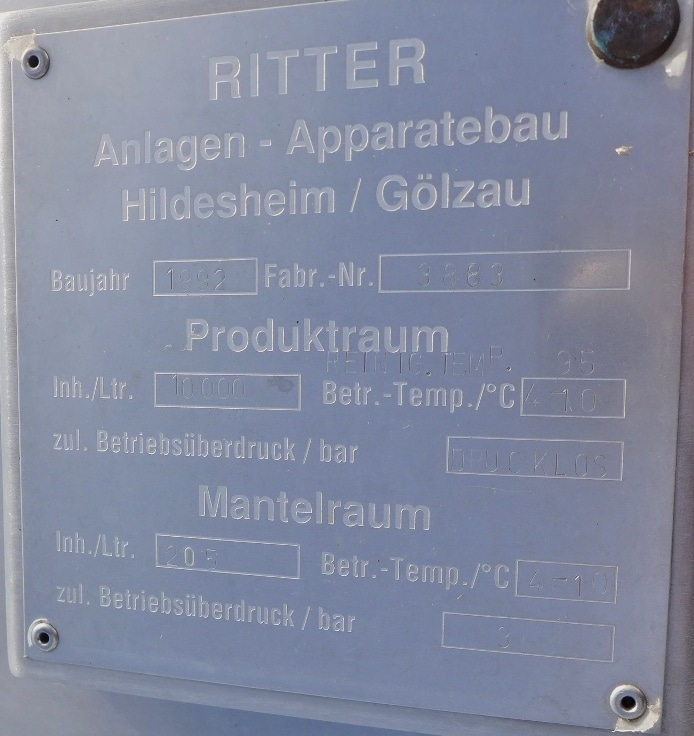

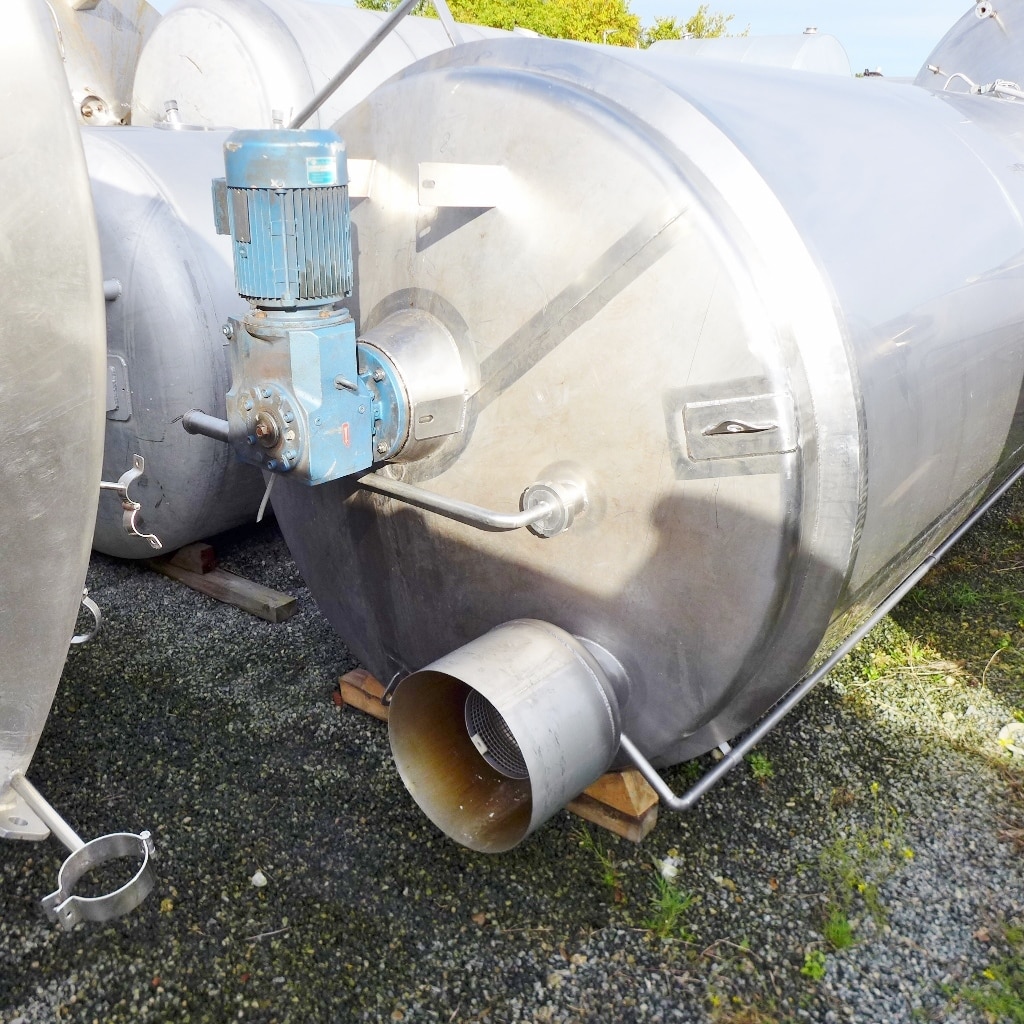

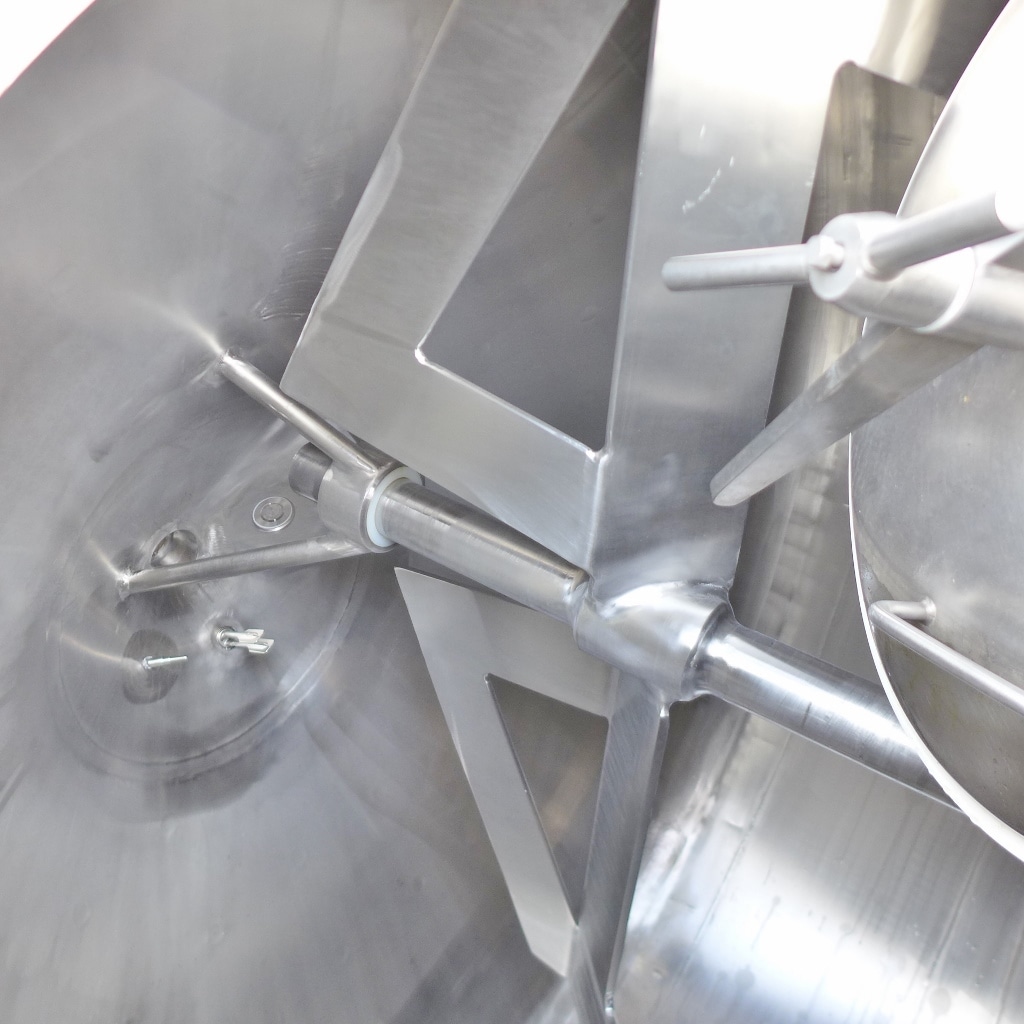

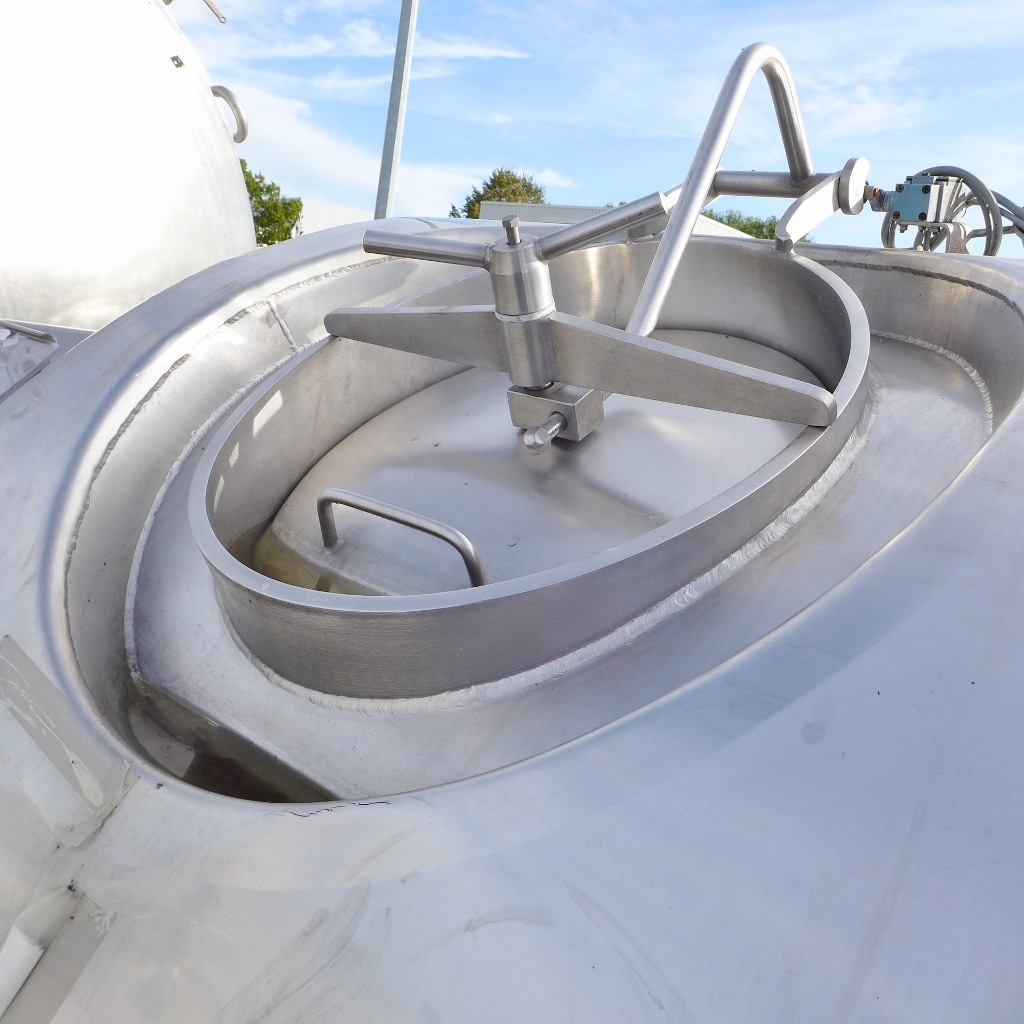

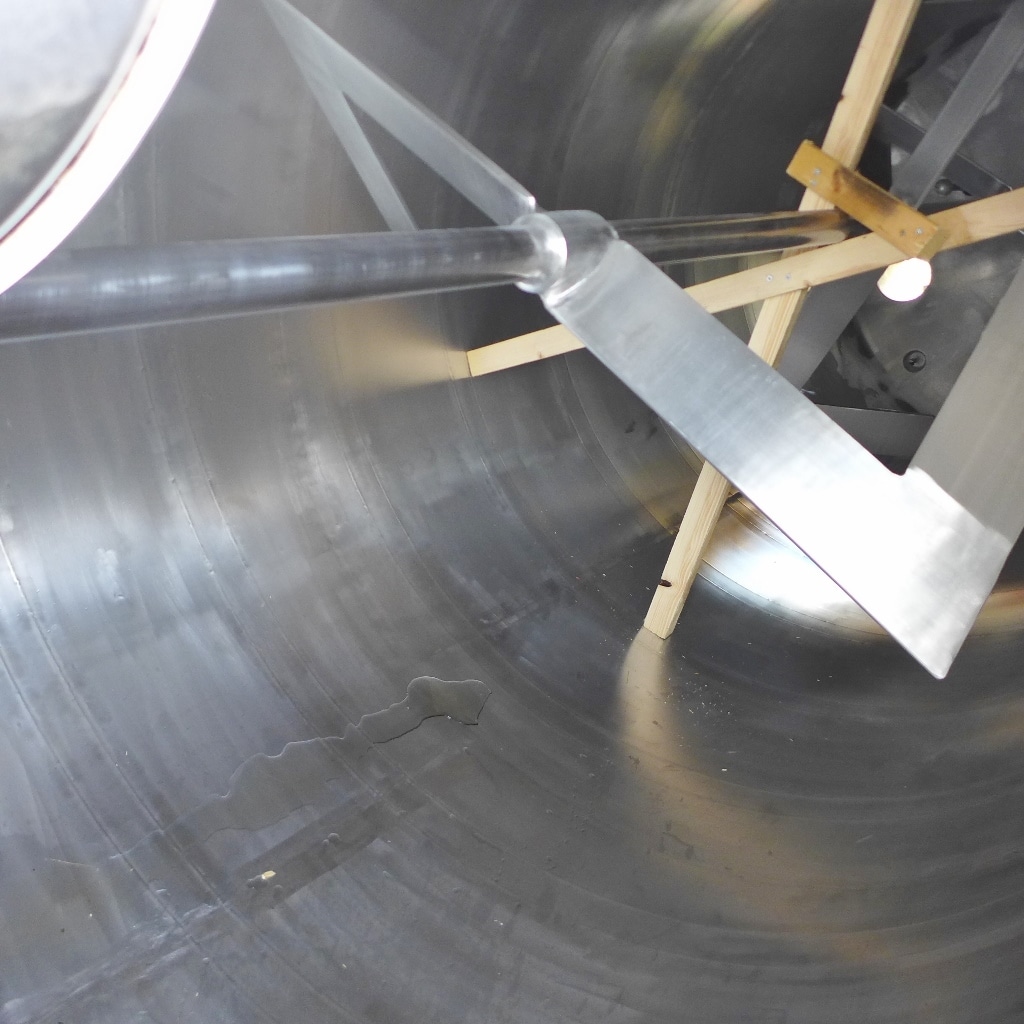

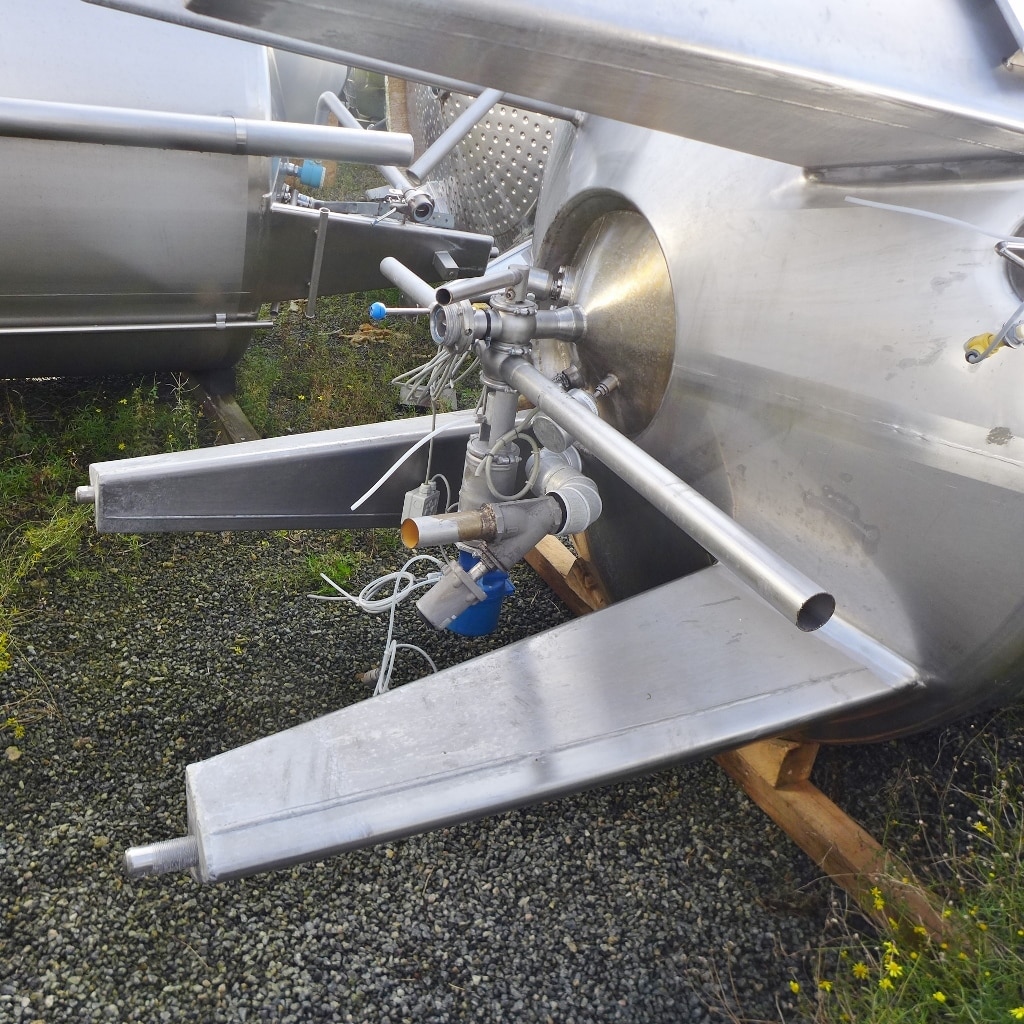

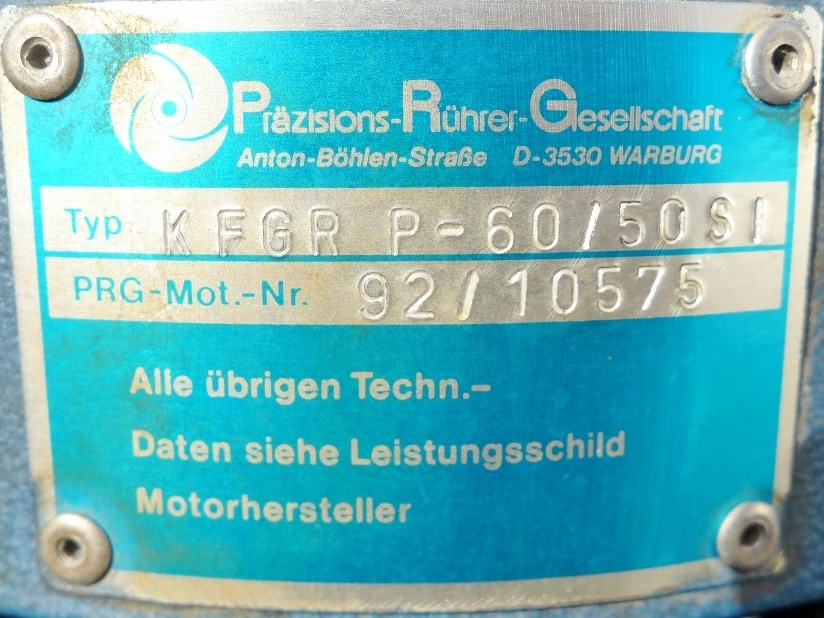

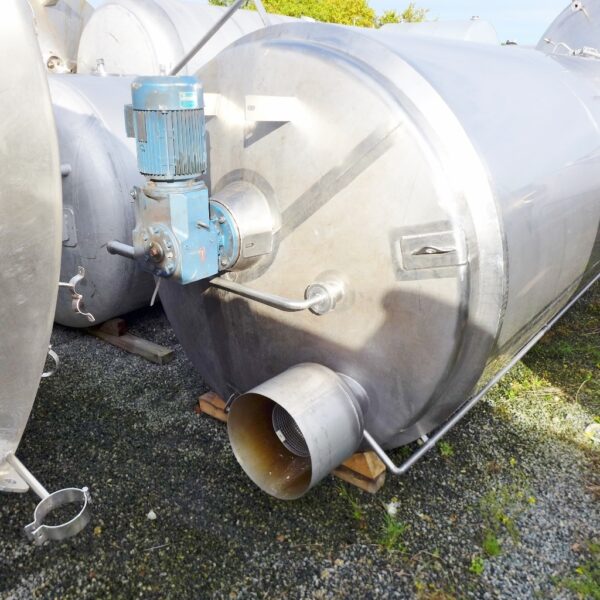

Additional information: Ice water; Manhole appr. 410 x 510 mm; Heating connections cut off Volumetric volume (L): 10.000 L Pressure in tank: ATM - atmosferic Max. temperature (°C): 10 °C Material wet parts: SS AISI 304 (V2A) Model: vertical Configuration: insulated with heat-exchanger Heat exchanger: yes Insulation: yes Mobile tank: no Total discharge: yes Volume: 205 L Max Overpressure: 3 Bar Documents included: no Technical drawing included: no Registration plate on the tank: yes Flange for agitator: no Position of manway: cylinder Outlet of tank: DN50 DIN 11851 Agitator: yes Number of revolutions: 17 / 35 Power: 1.2 / 2.2 Cylinder: 4 mm Bottom: 4 mm Internal diameter tank: 1.660 mm Outer diameter tank: 1.790 mm Cylinder height: 4.500 mm Total height of tank: 6.600 mm
