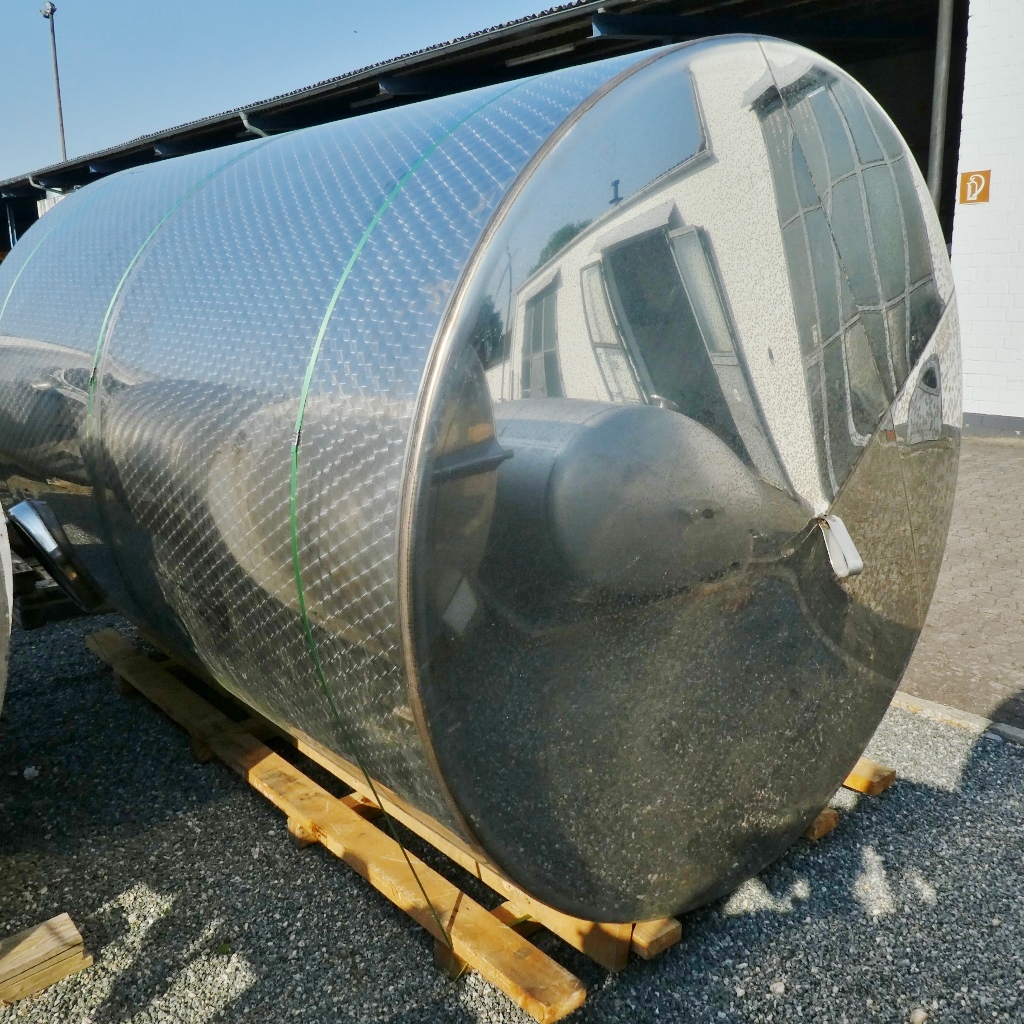

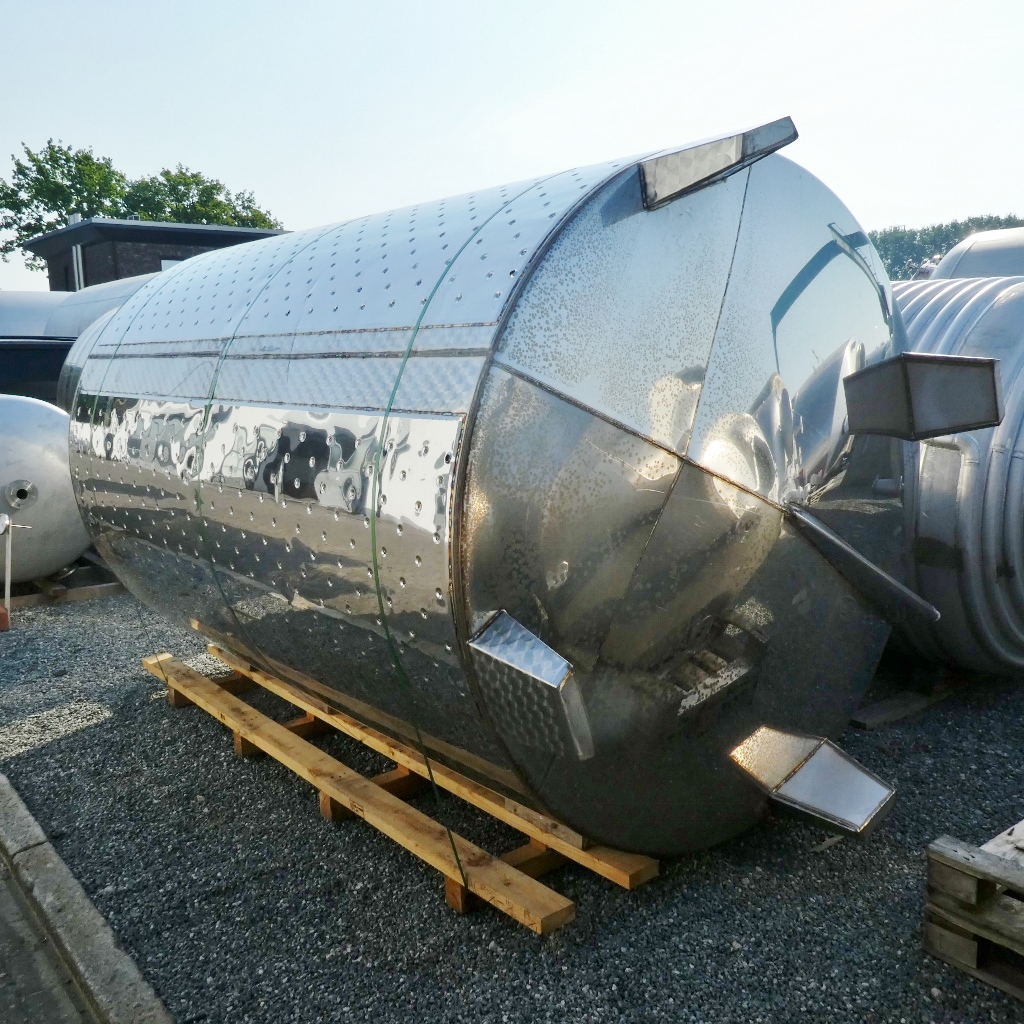

10000 liter tank i Rostfritt 304

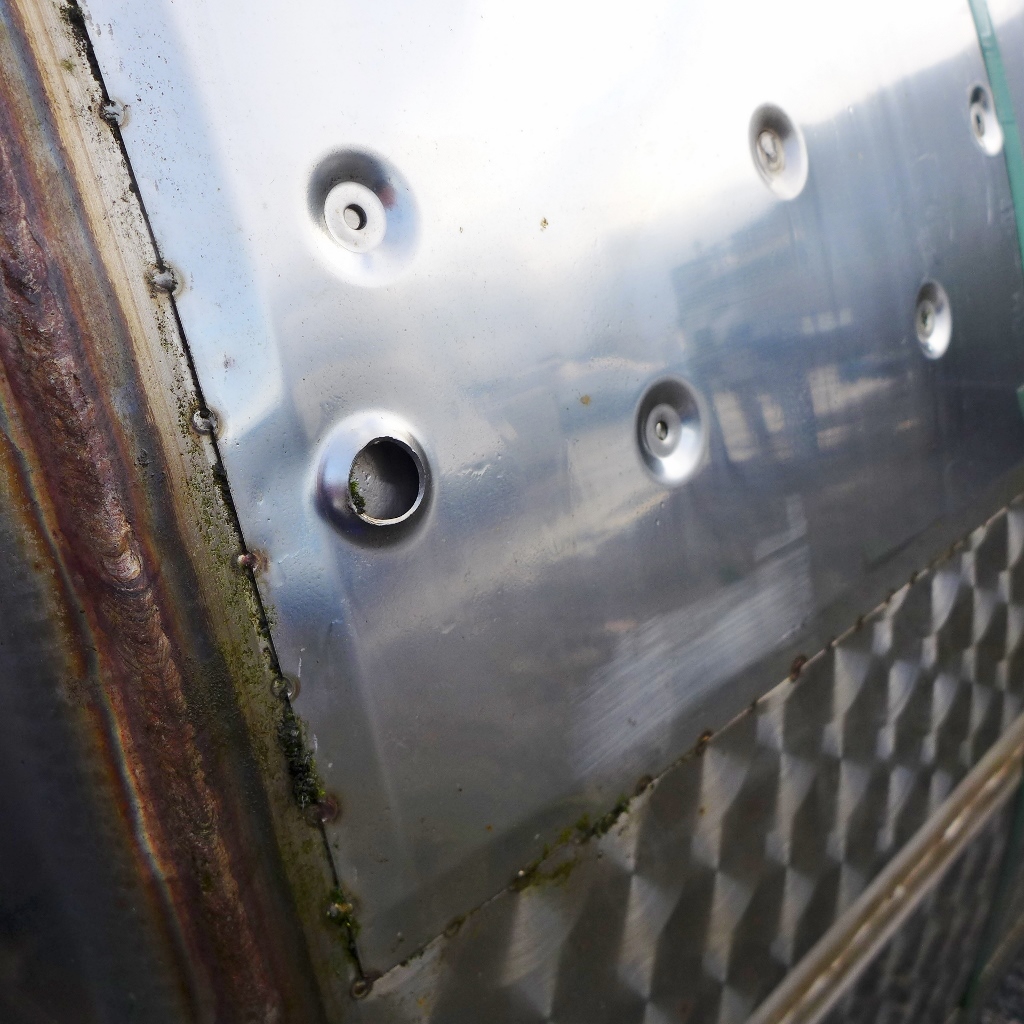

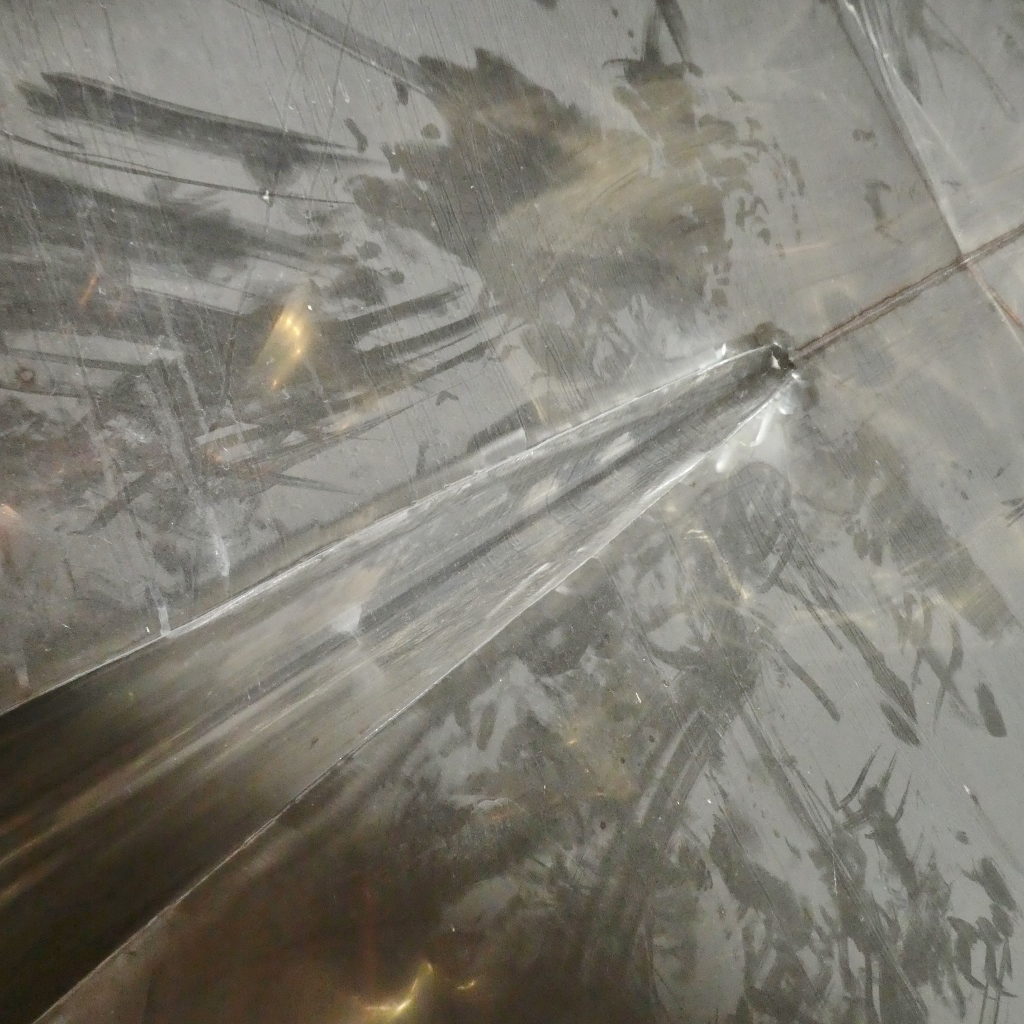

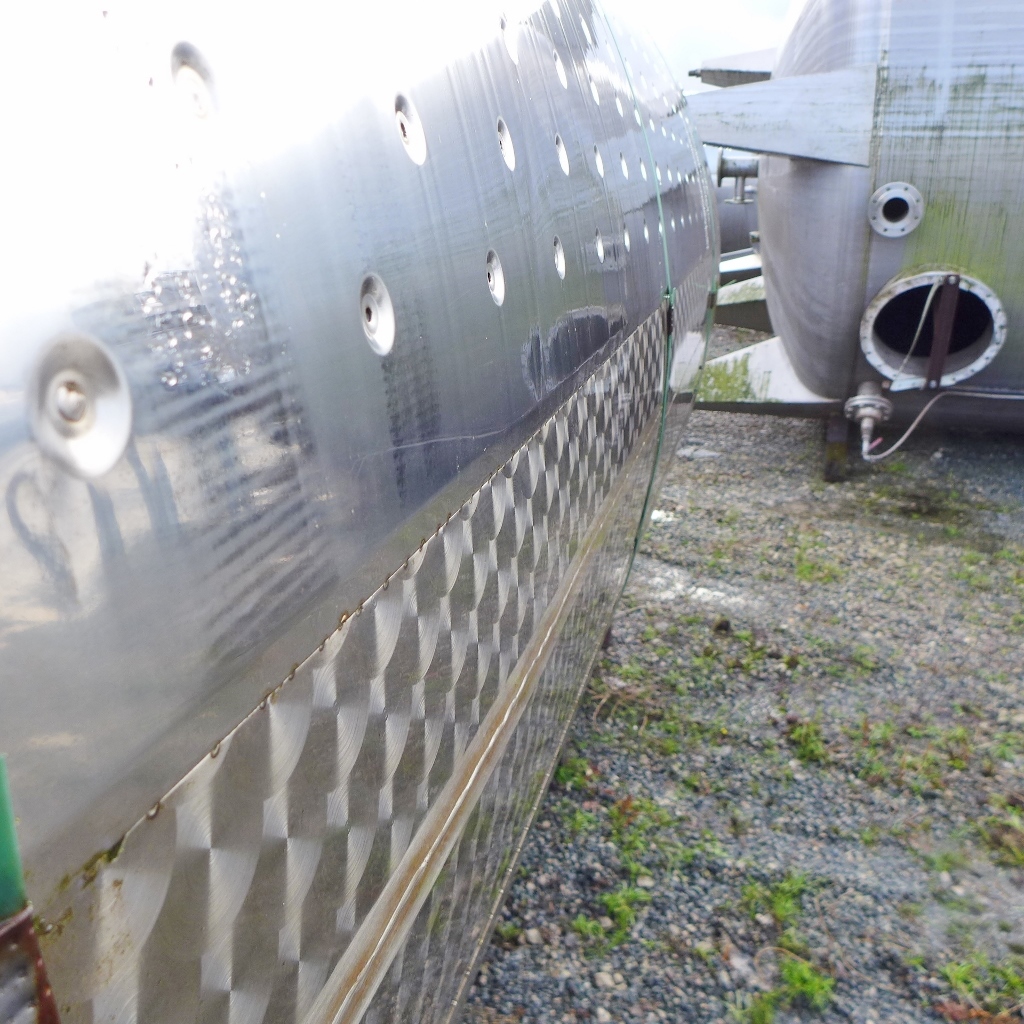

Additional information: Welds (discolored) were not pickled and passivated during manufacture; heating jacket only insufficiently welded; Heating connections not available (must be retrofitted on site) Volumetric volume (L): 10.000 L Pressure in tank: ATM - atmosferic Material wet parts: SS AISI 304 (V2A) Model: vertical Configuration: single jacketed with heat-exchanger Heat exchanger: yes Insulation: no Mobile tank: no Total discharge: yes Documents included: no Technical drawing included: no Registration plate on the tank: no Flange for agitator: no Position of manway: cylinder Outlet of tank: 35 Internal diameter tank: 2.040 mm Cylinder height: 3.000 mm Total height of tank: 3.700 mm
