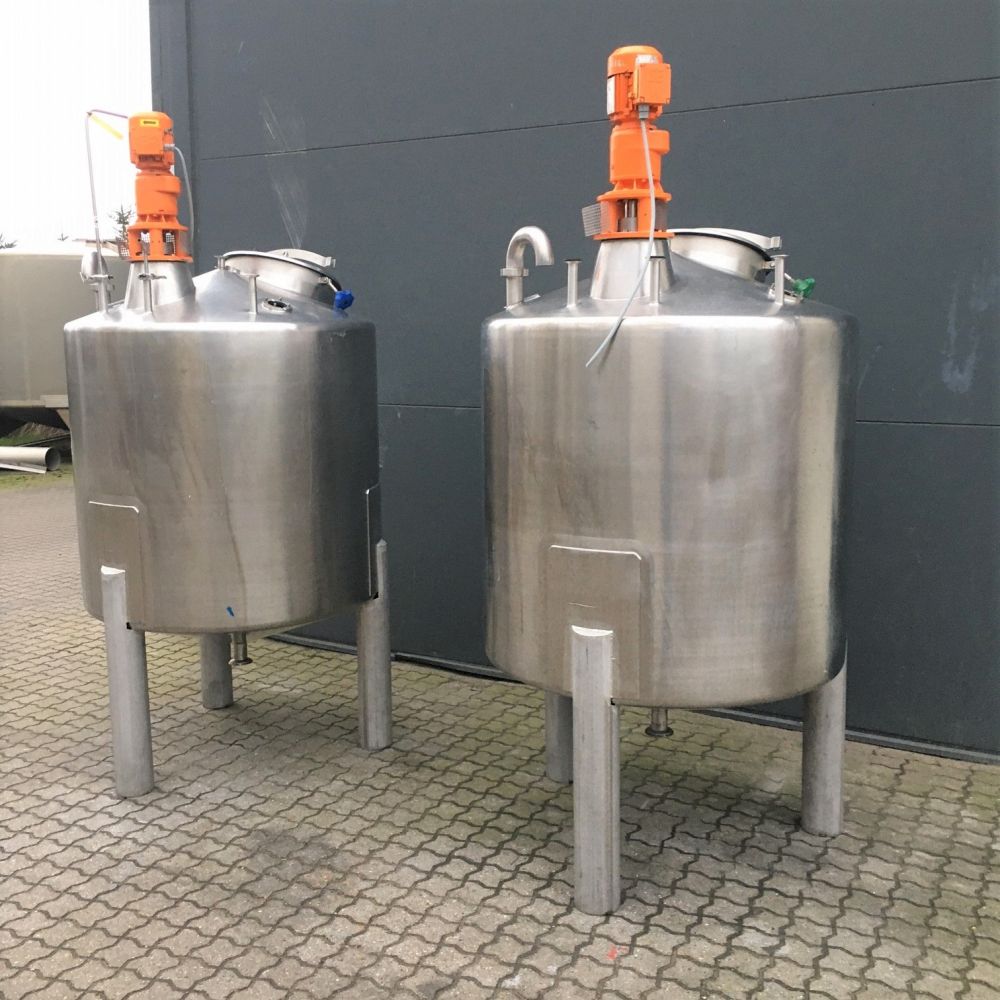

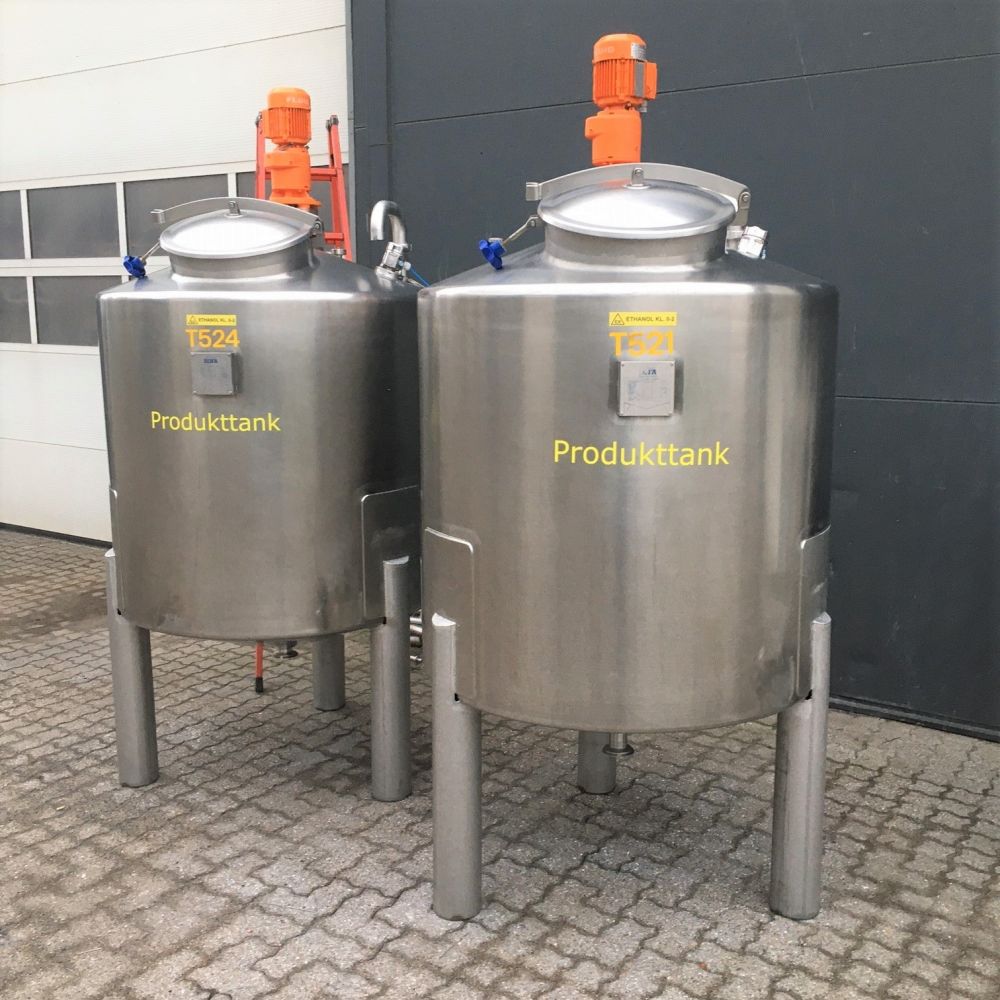

Article type: second-hand mixing tank
Additional information: we can’t give any guarantees about the agitator
Volumetric volume (L): 1.000 L
Pressure in tank: ATM - atmosferic
Material wet parts: SS AISI 316 (V4A)
Model: vertical
Configuration: single-skin
Heat exchanger: no
Insulation: no
Mobile tank: no
Top type: conical
Shape of tank: cylindrical
Bottom type: conical
Bottom outlet: yes
Total discharge: yes

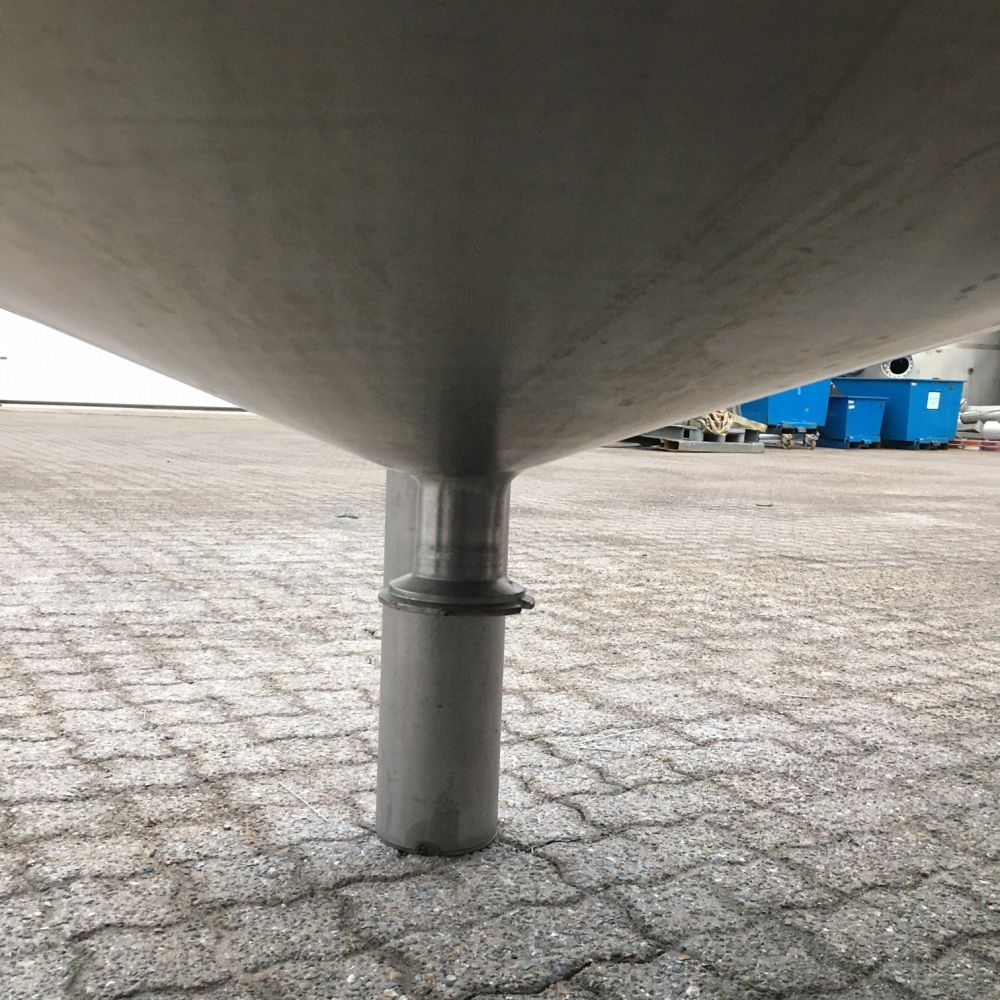

Fixation points: 3 non adjustable feet
Manway(s): RVS 316
Gasket manway(s): unknown
Fixation point(s): RVS 304
Suitable for food industry: yes
Documents included: no
Technical drawing included: no

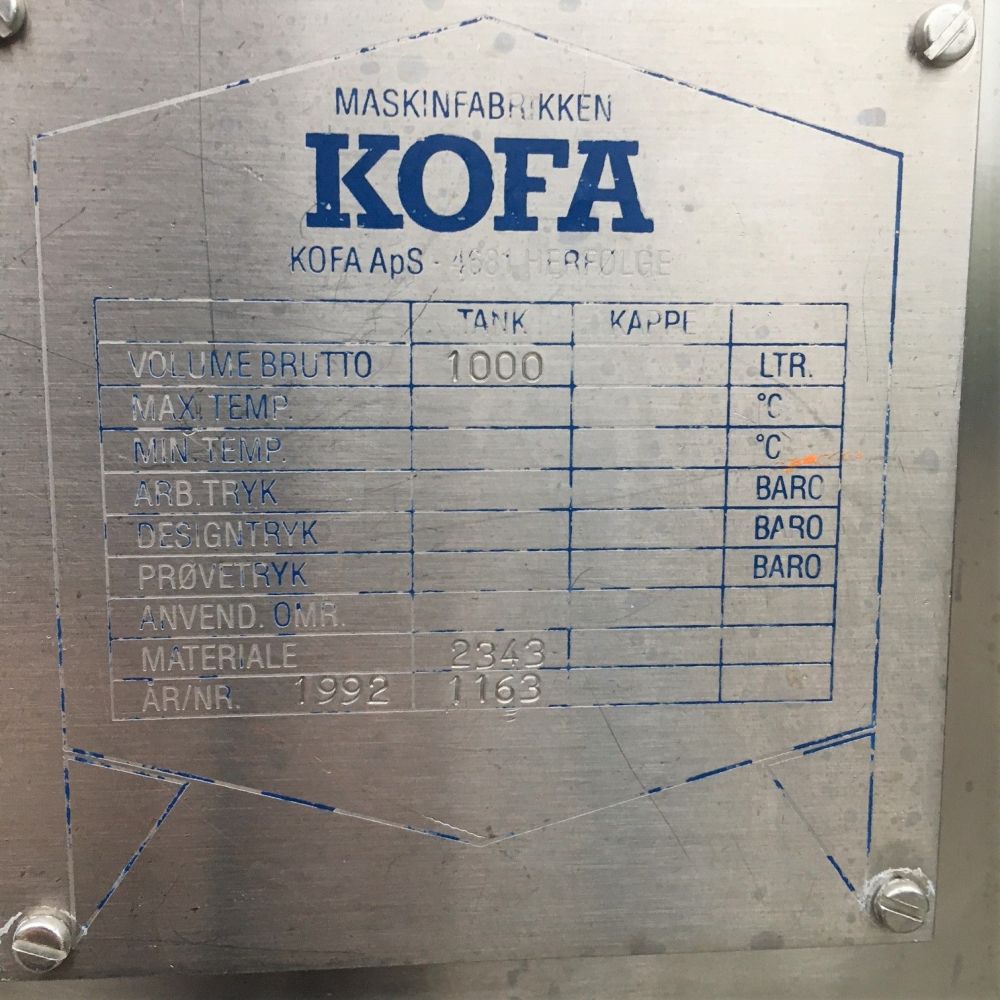

Registration plate on the tank: no
Flange for agitator: no
Number of manways: 1
Position of manway: at the top
Hinged lid: yes
Tank outlet: inside Ø 50 mm
Agitator: yes

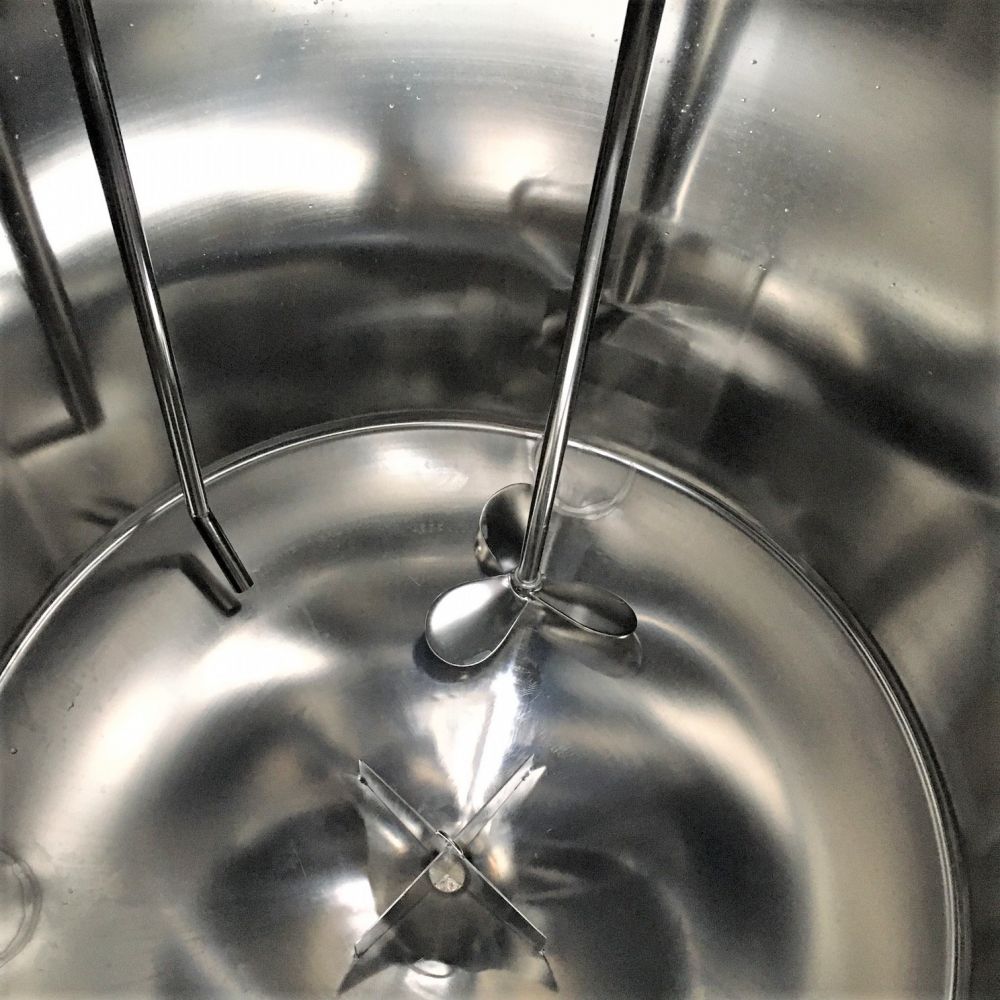

Agitator type: propeller agitator

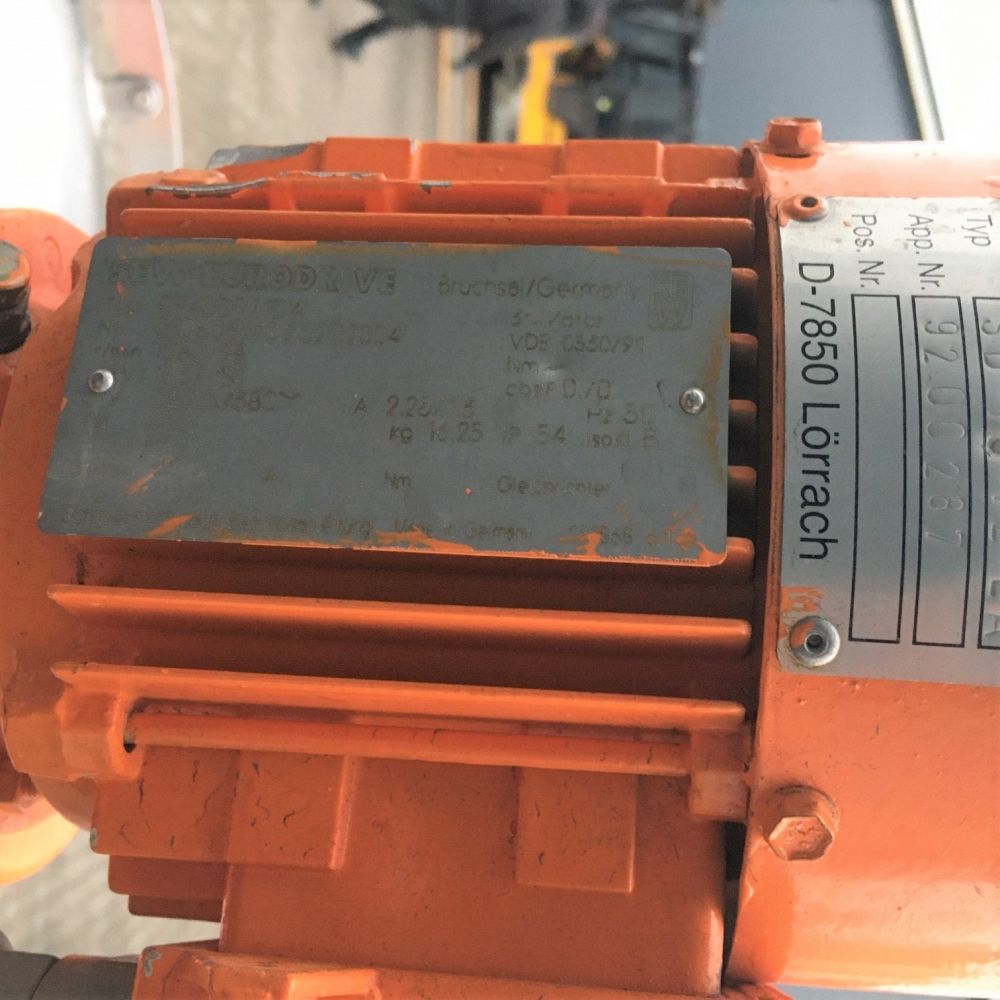

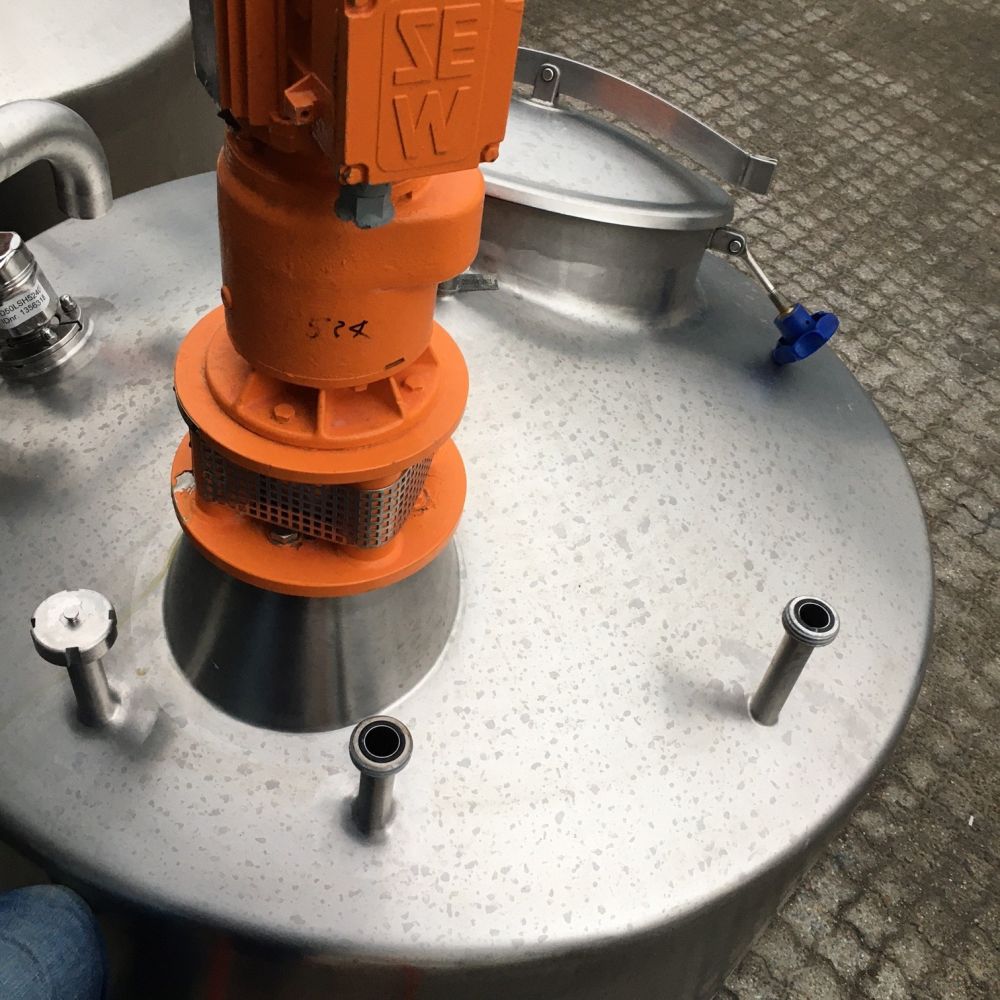

Position engine: at the top
Outer diameter tank: 1.100 mm
Total height of tank: 2.400 mm
Empty weight tank: 550
