1000 liter i Syrafast 316
120,000.00 SEK/st exkl moms
Mer information
Volym i liter | 1000 |
---|---|
Nytillverkad/Begagnad | Nytillverkad |
Livsmedelsklassad | Ja |
Modell | Vertikal |
Material | Syrafast 316 |
Omrörare | Nej |
Uppvärmning/kylning | Ja |
Isolerad | Ja |
Ritning
Öppnaitem available on order

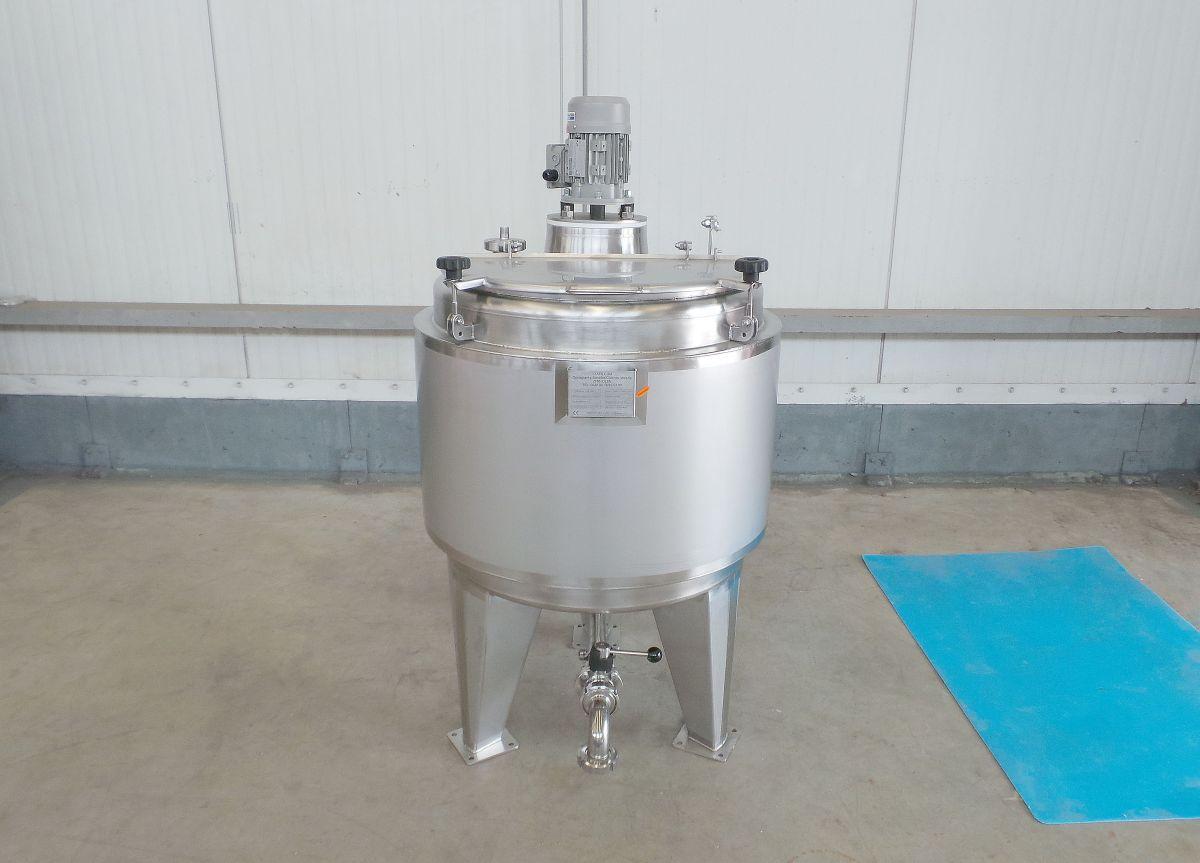

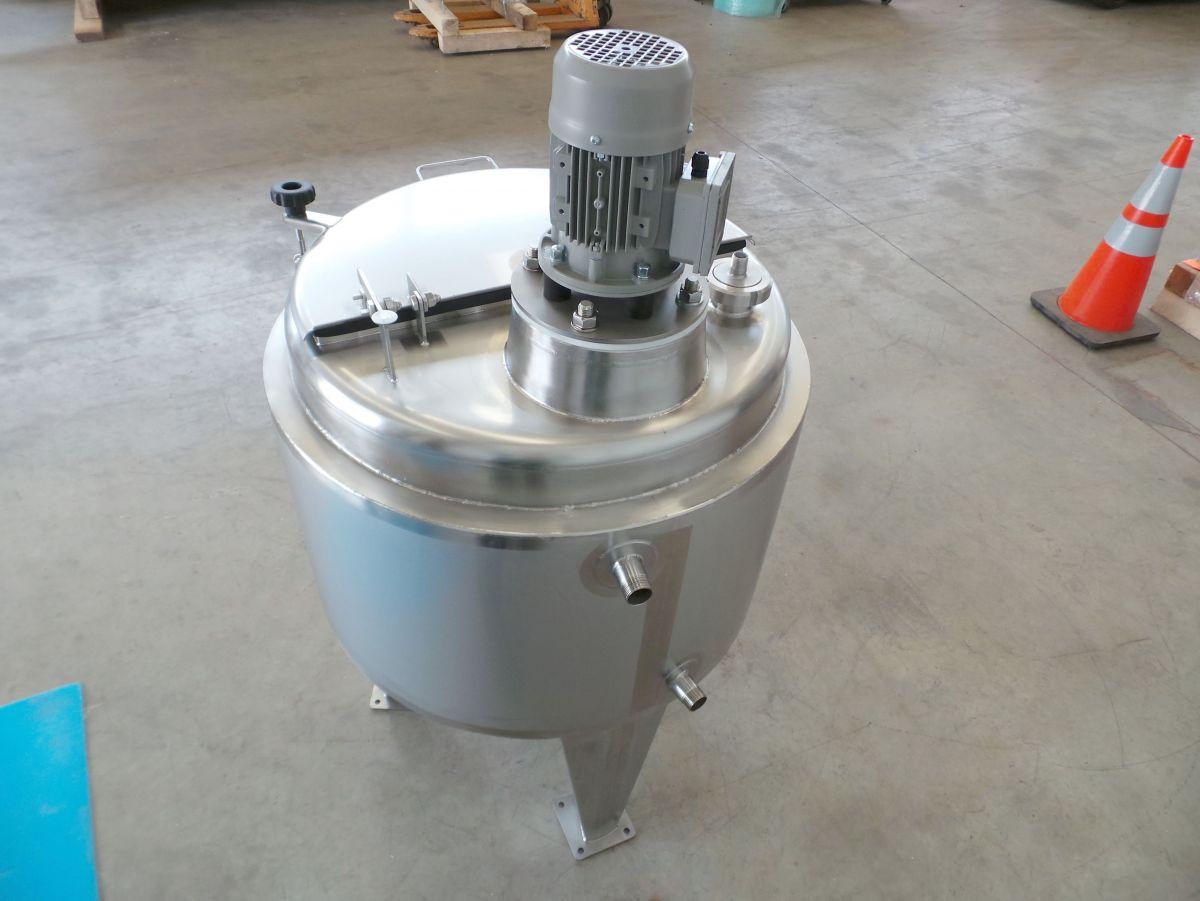

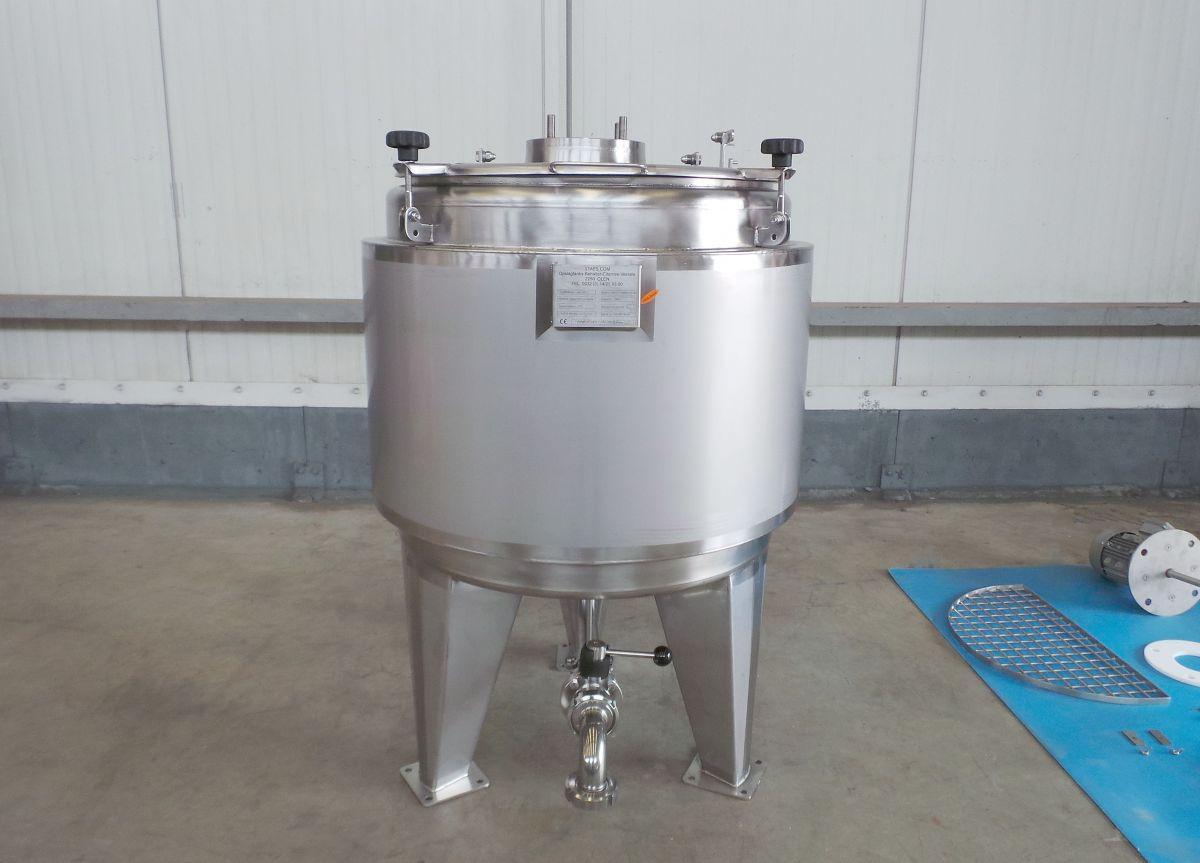

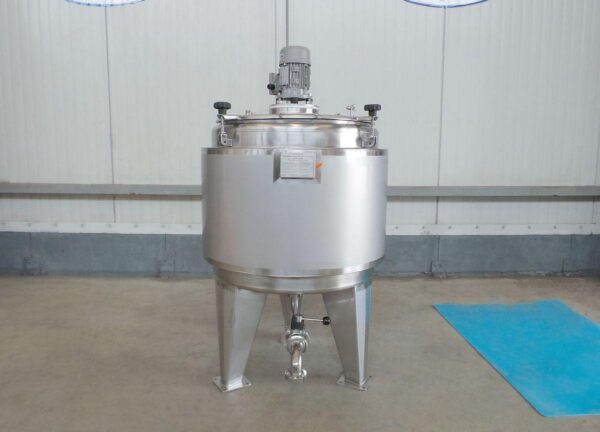

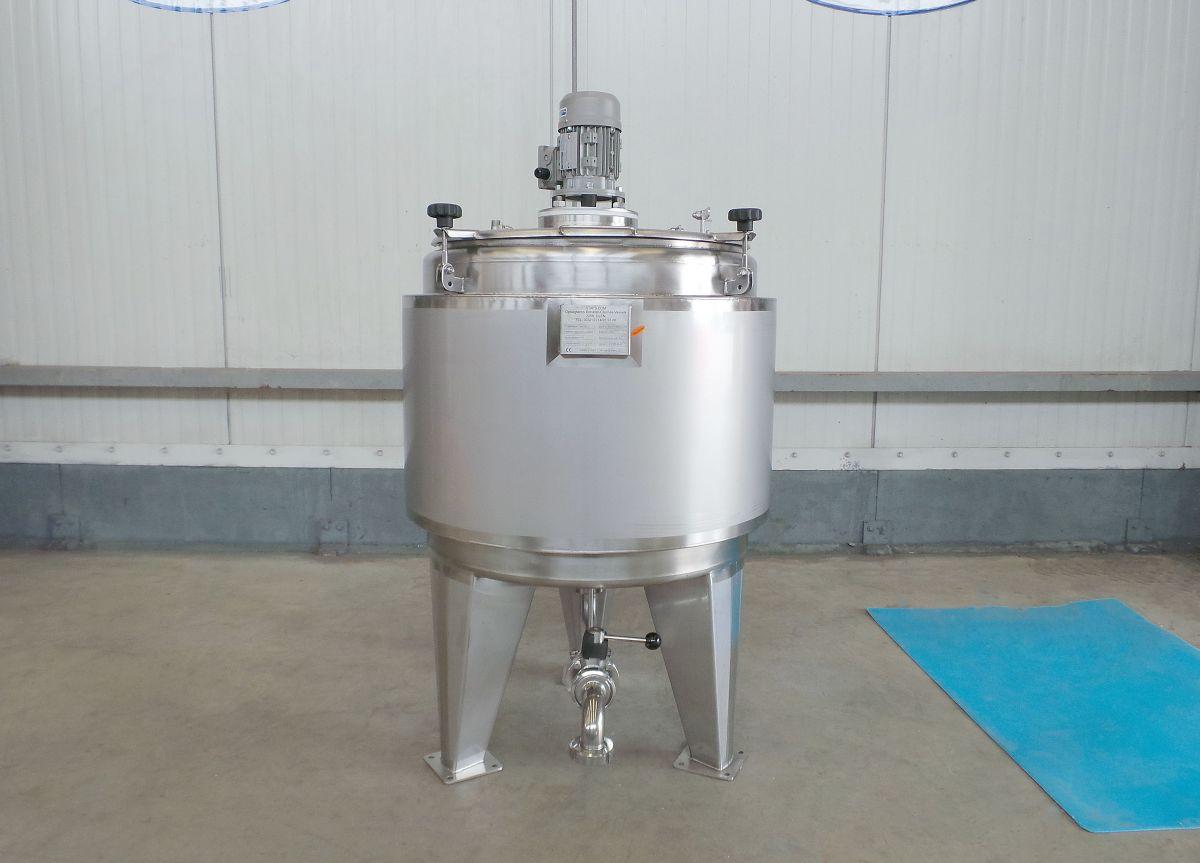

Article type: brand new mixing tank – type VC-HILA
Capacity: 1.000 L
Maximal density of the product: 1.200
Ra inner weld: 0,80
Working pressure in tank: ATM – atmosferic
Max. working temperature: 100 °C
Min. working temperature: -10 °C
Material wet parts: SS AISI 316L (V4A)
Model: vertical
Configuration: insulated with heat-exchanger
Heat exchanger: yes
Insulation: yes

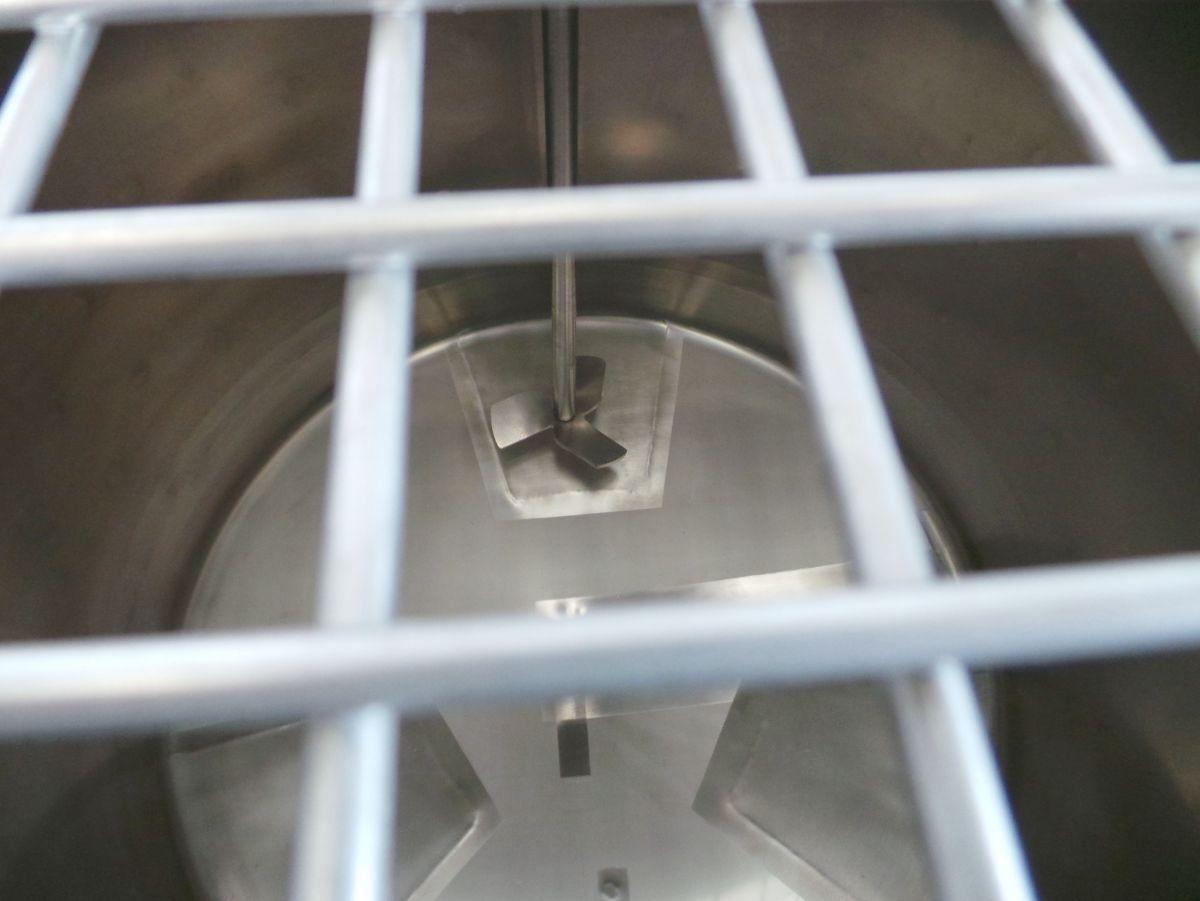

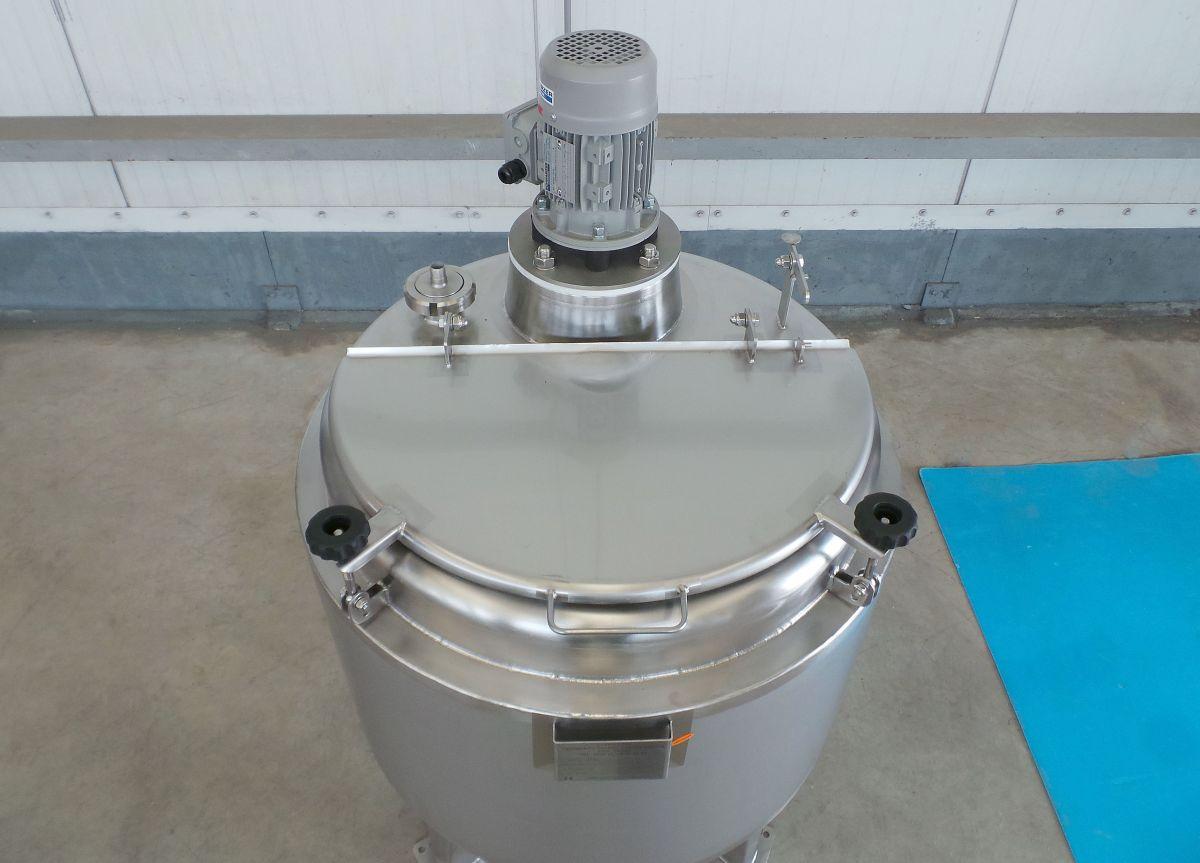

Agitator: yes, optional
Mobile tank: no

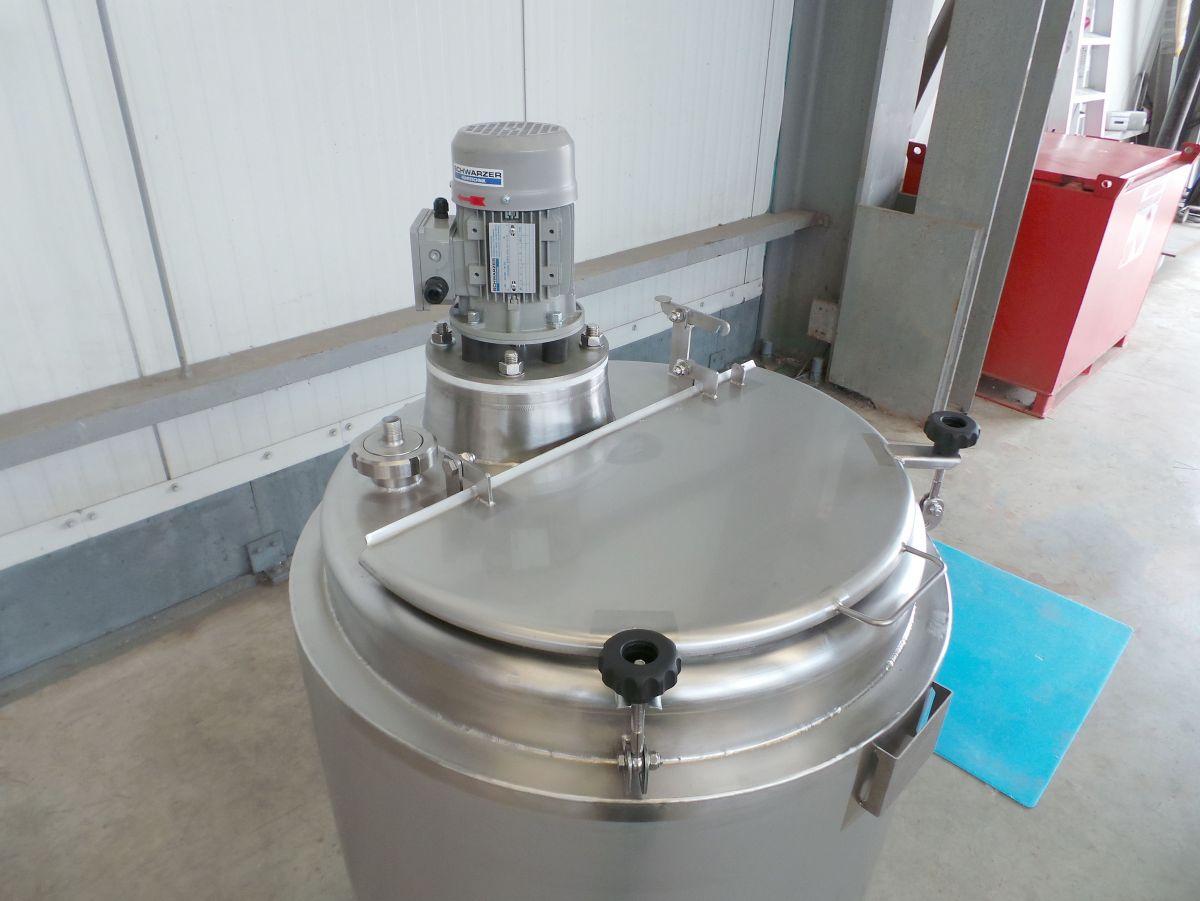

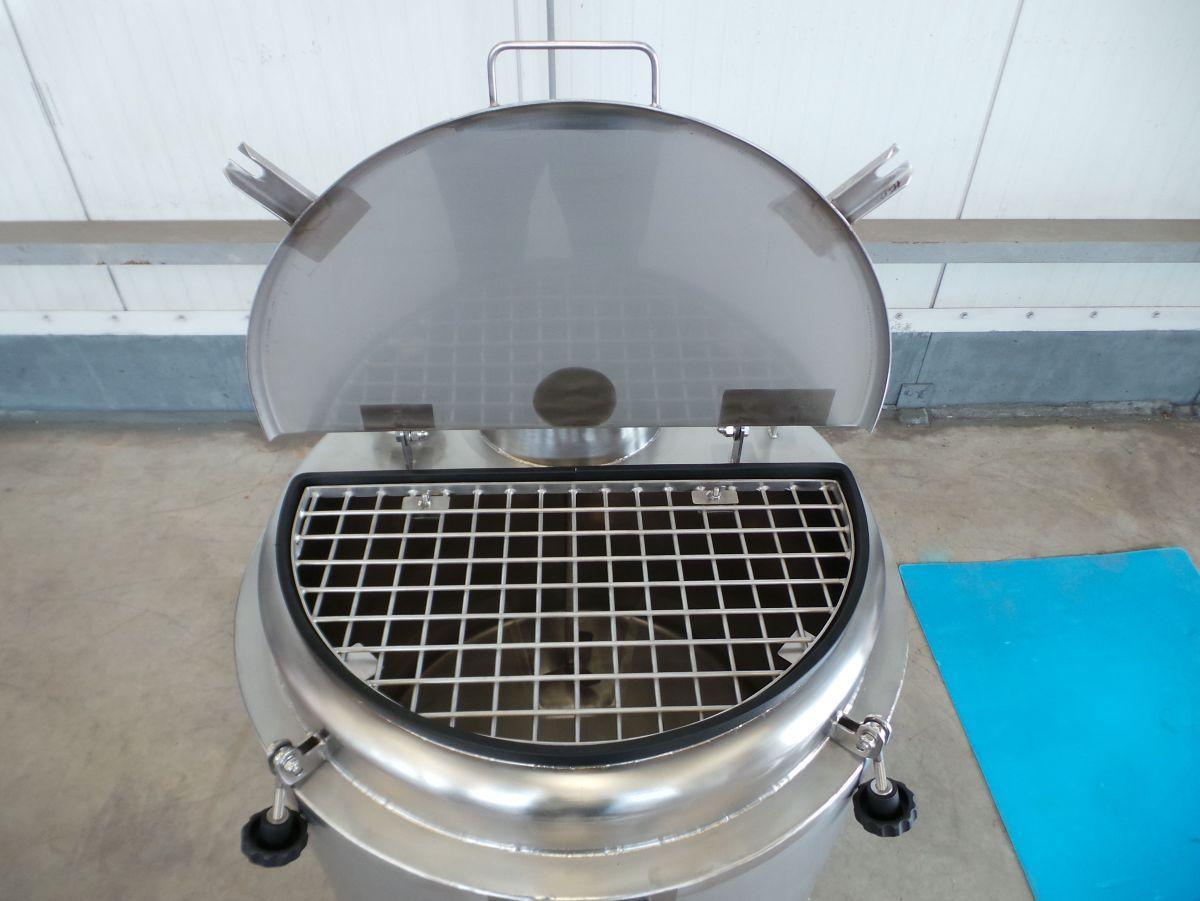

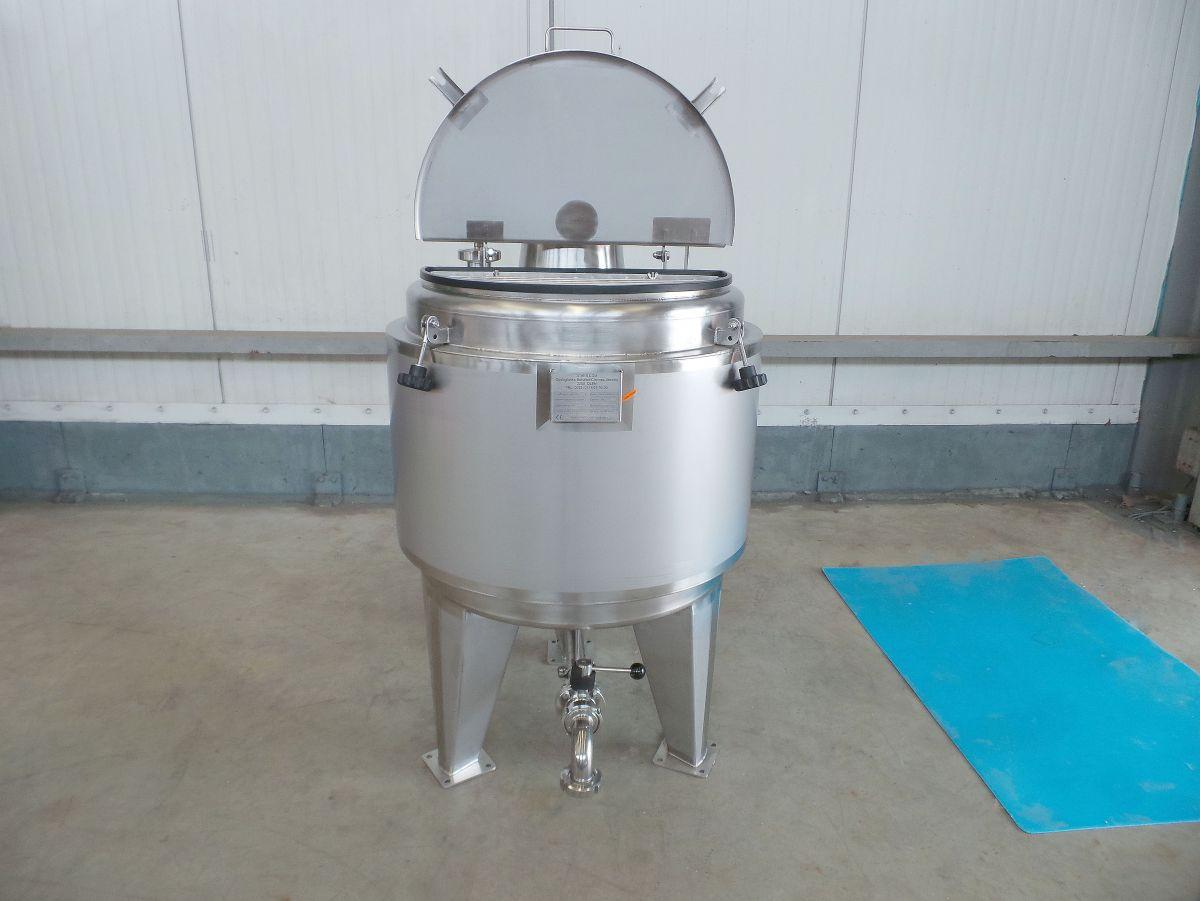

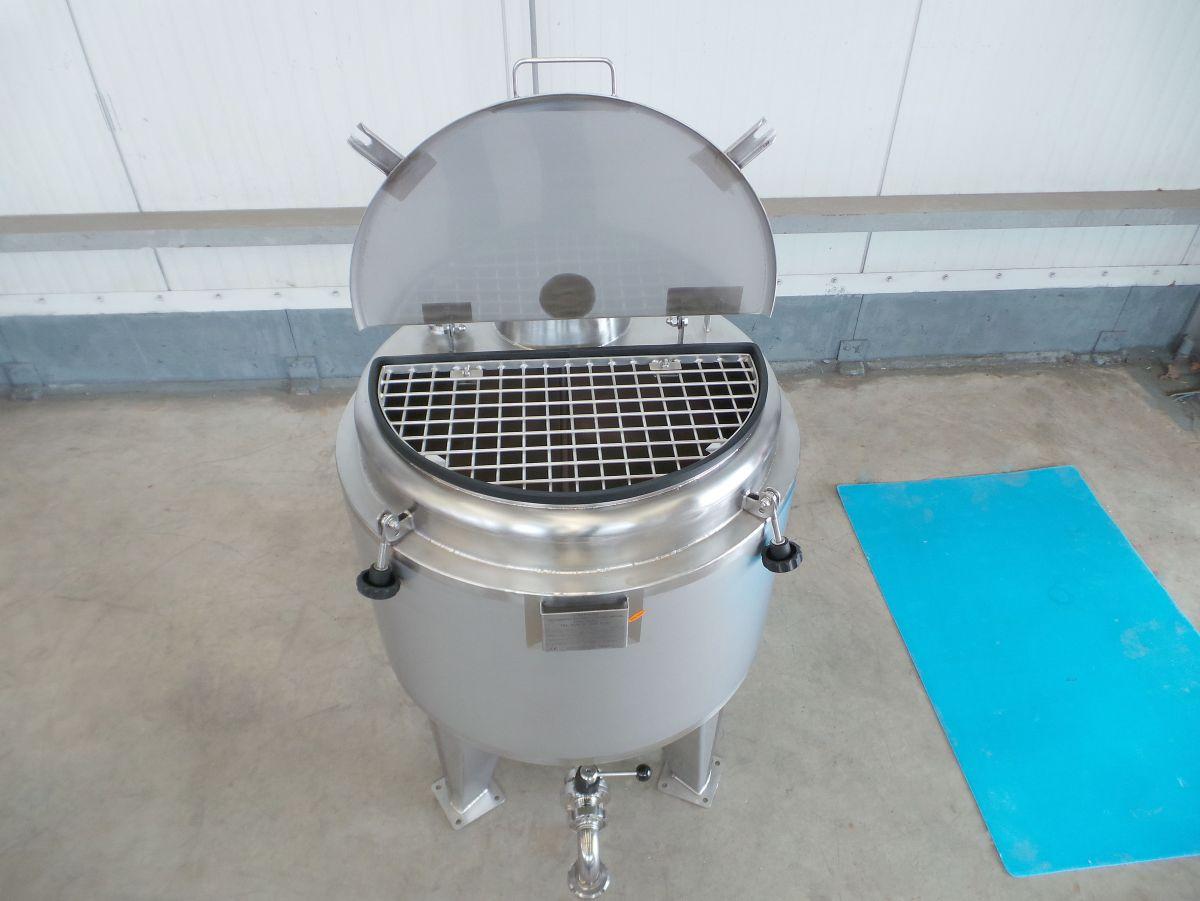

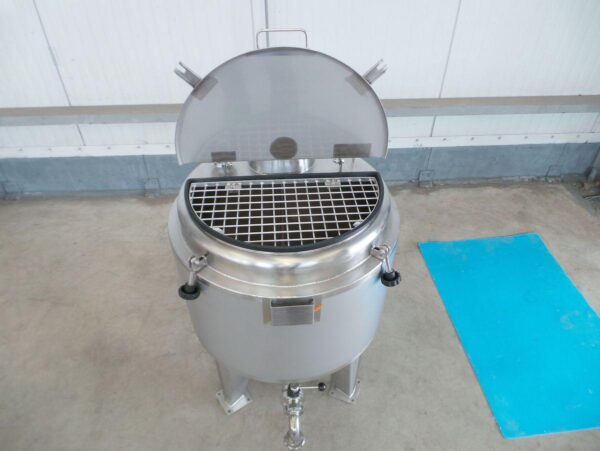

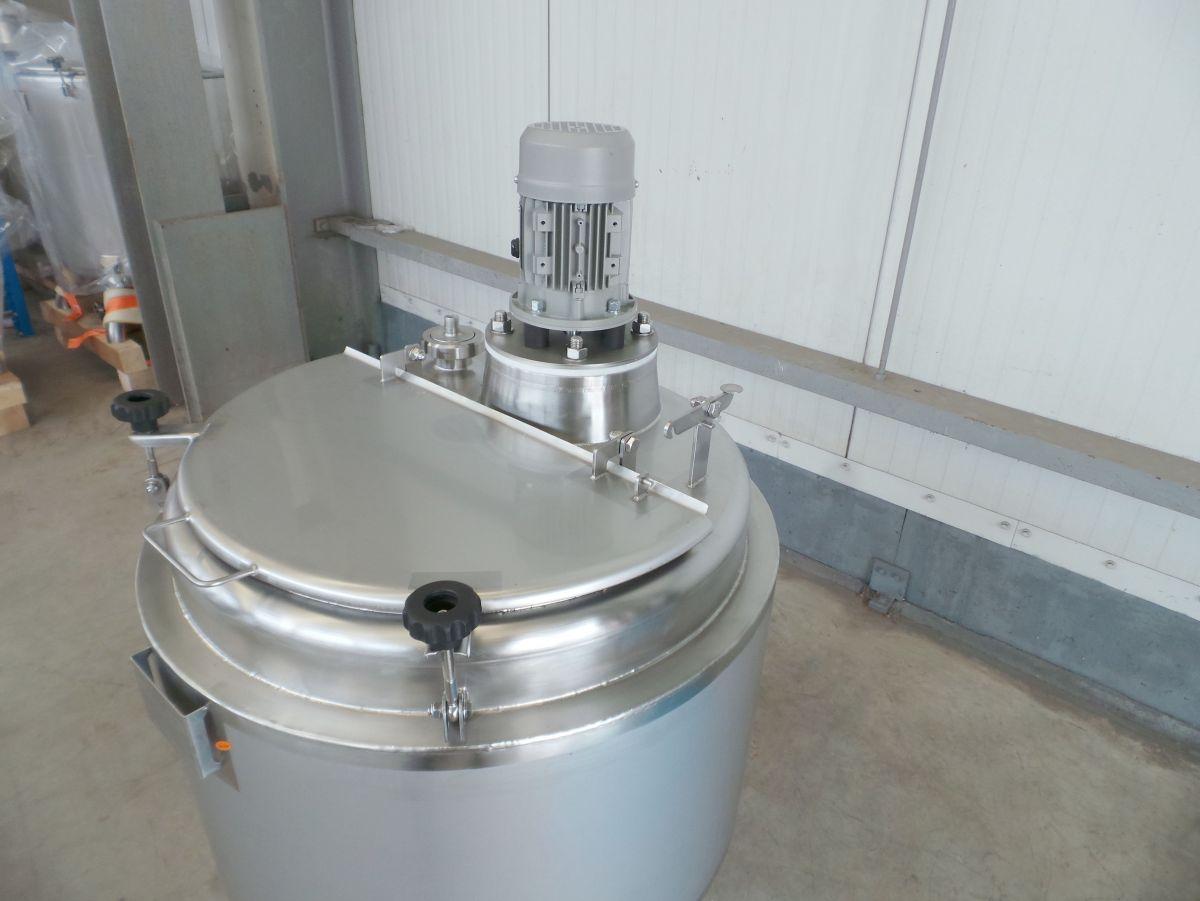

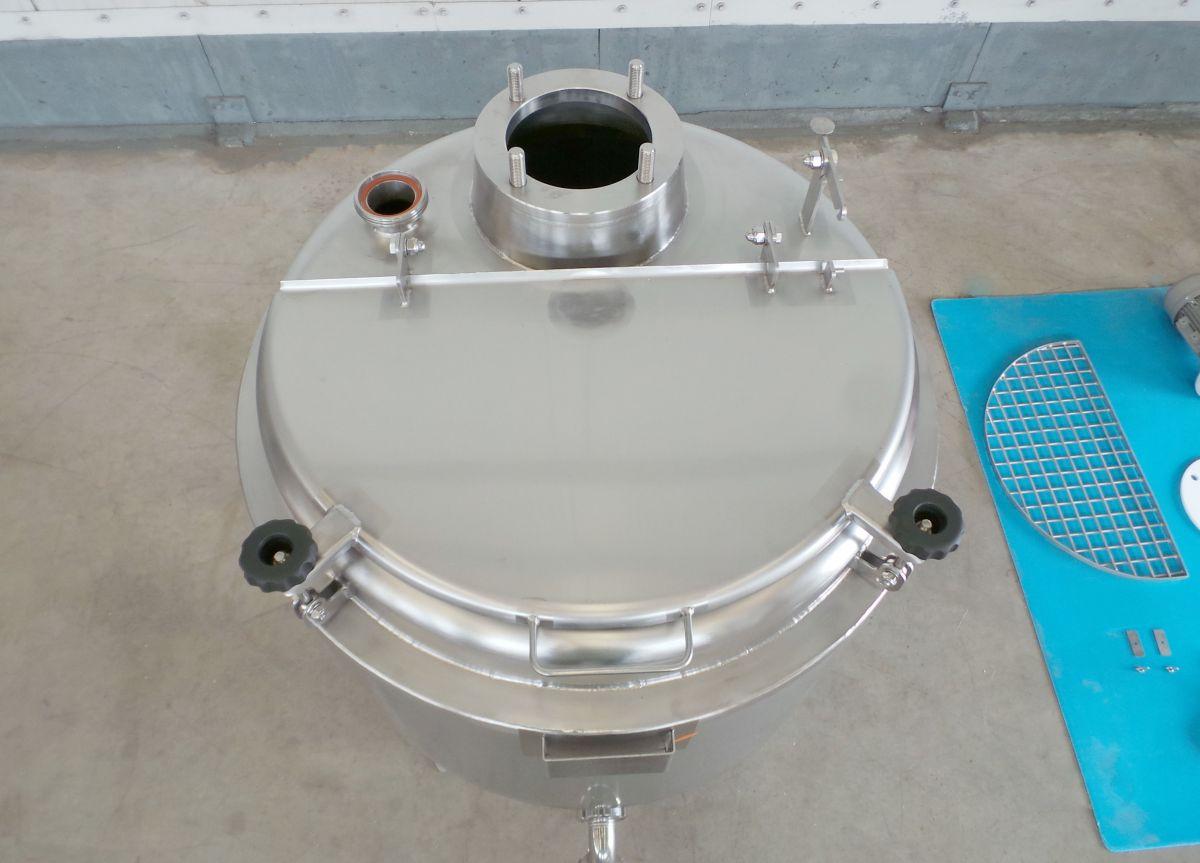

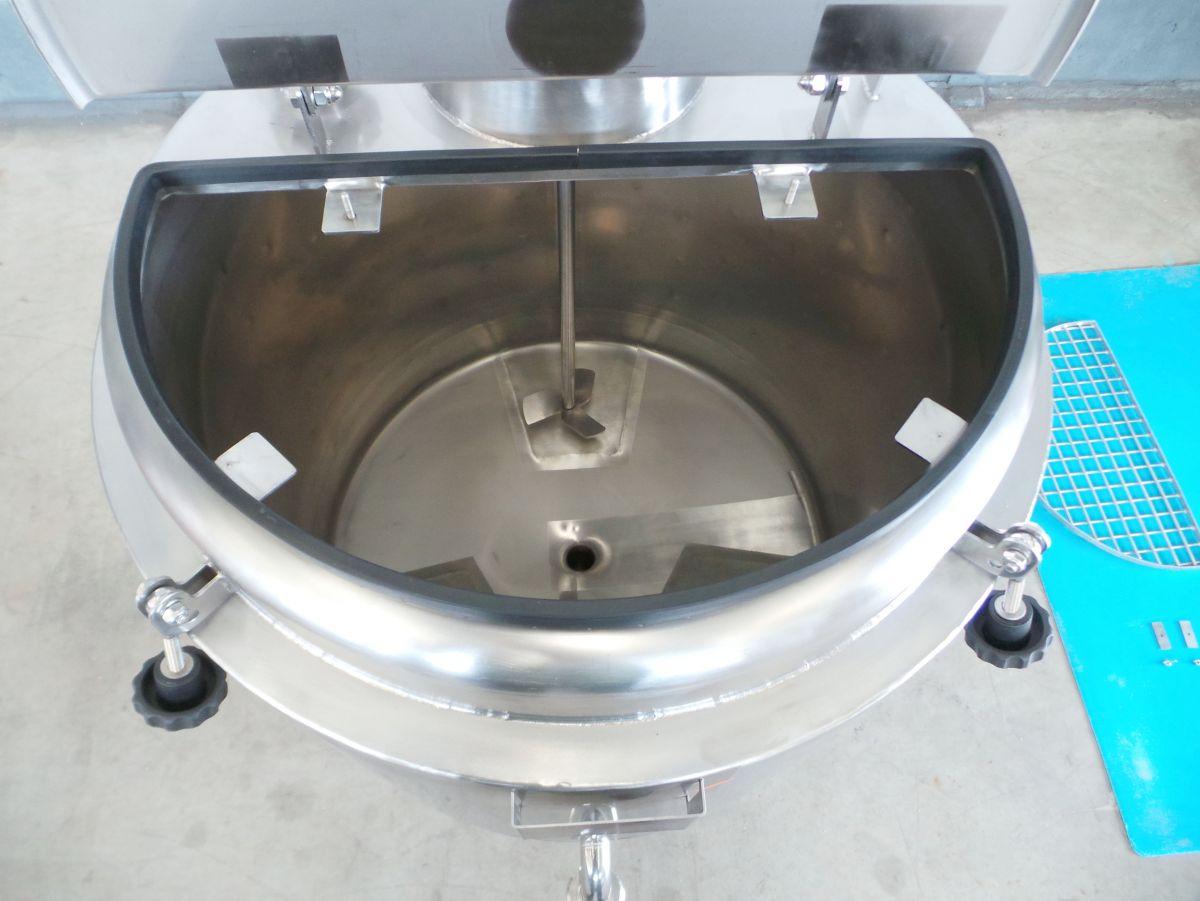

Top type: half hinging lid

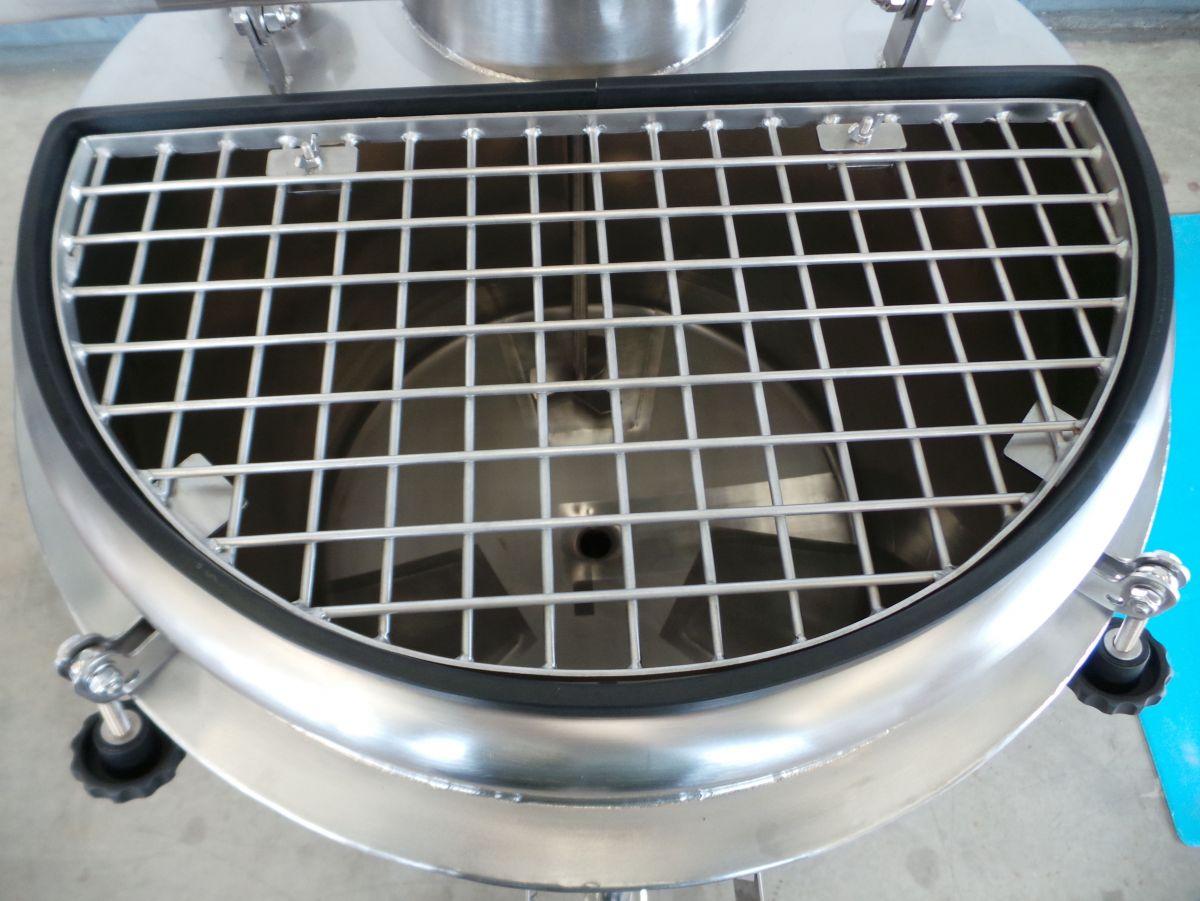

With blocking system: yes
Shape of tank: cylindrical

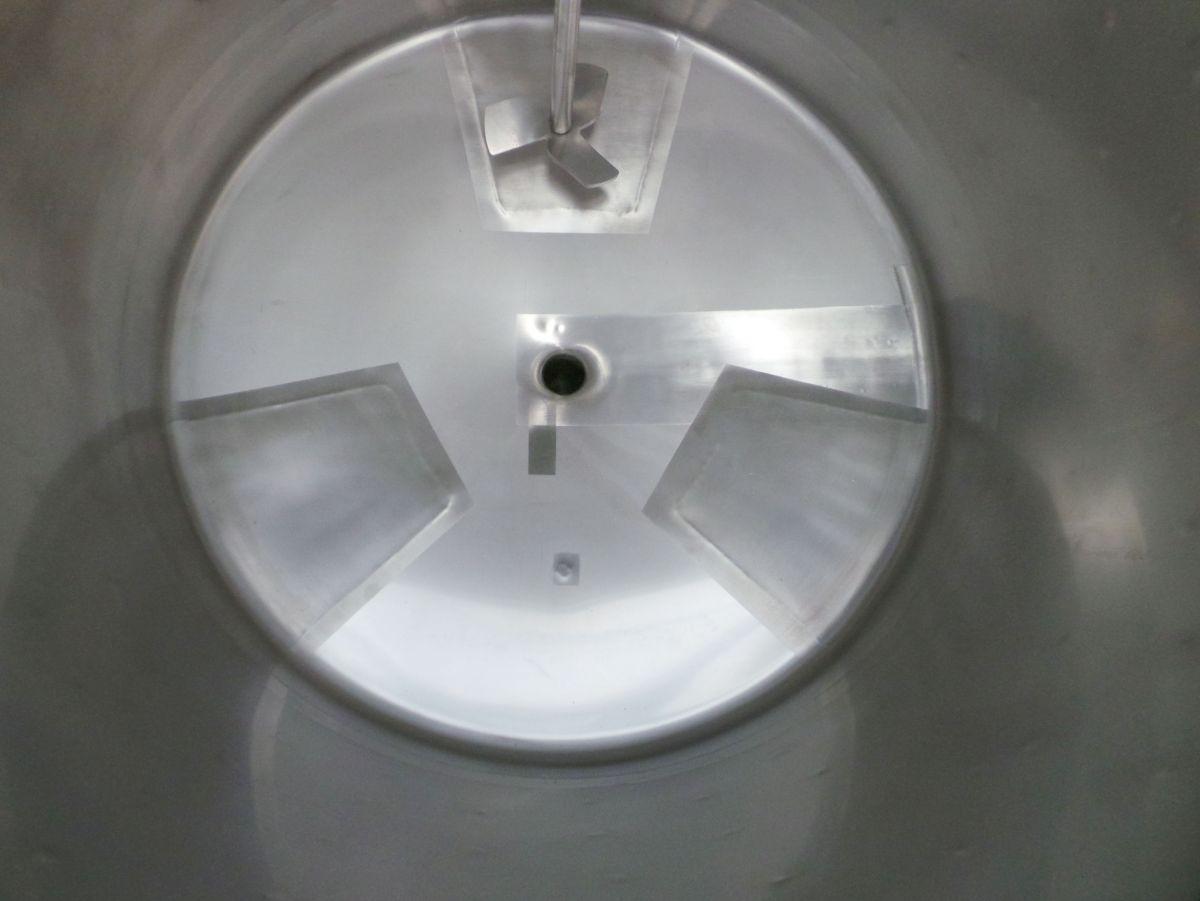

Bottom type: conical 20 °
Total discharge: yes
Fixation points: 3 non adjustable feet

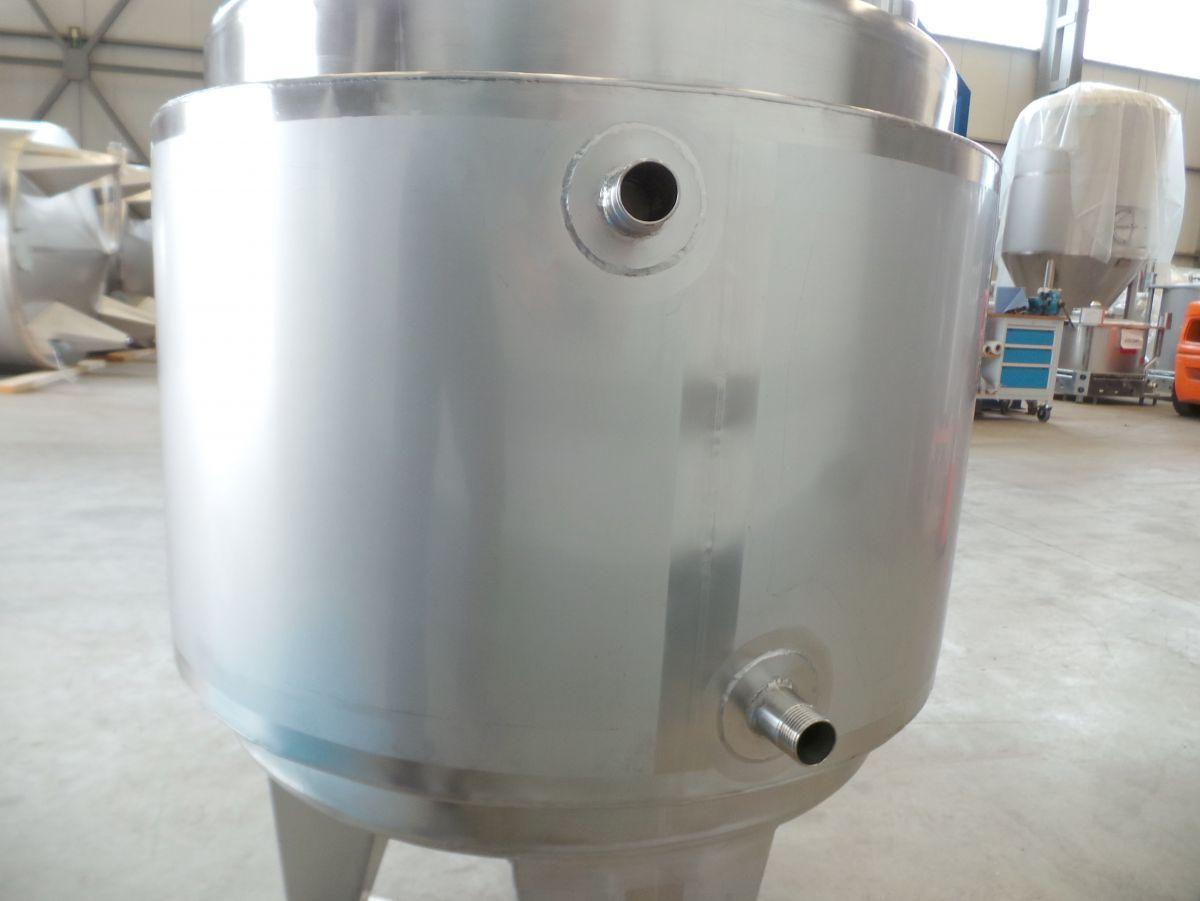

Type of HE on the cylinder: dimple-jacket
Position HE: the complet cilinder
Height HE: 250 mm
Number of sections: 1
Water pressure HE: 3 Bar
Contact surface cylinder: 0,30 m²
Connection HE: 1″ BSP
Working temperature HE cylinder: 100 °C
Heat exchanger: RVS 304
Insulation material: Rockwool
Outer jacket (ornamental wall): RVS 304
Gasket manway(s): EPDM
Fixation point(s): RVS 304
Suitable for food industry: yes
Documents included: yes, optional
Technical drawing included: yes
Registration plate on the tank: yes

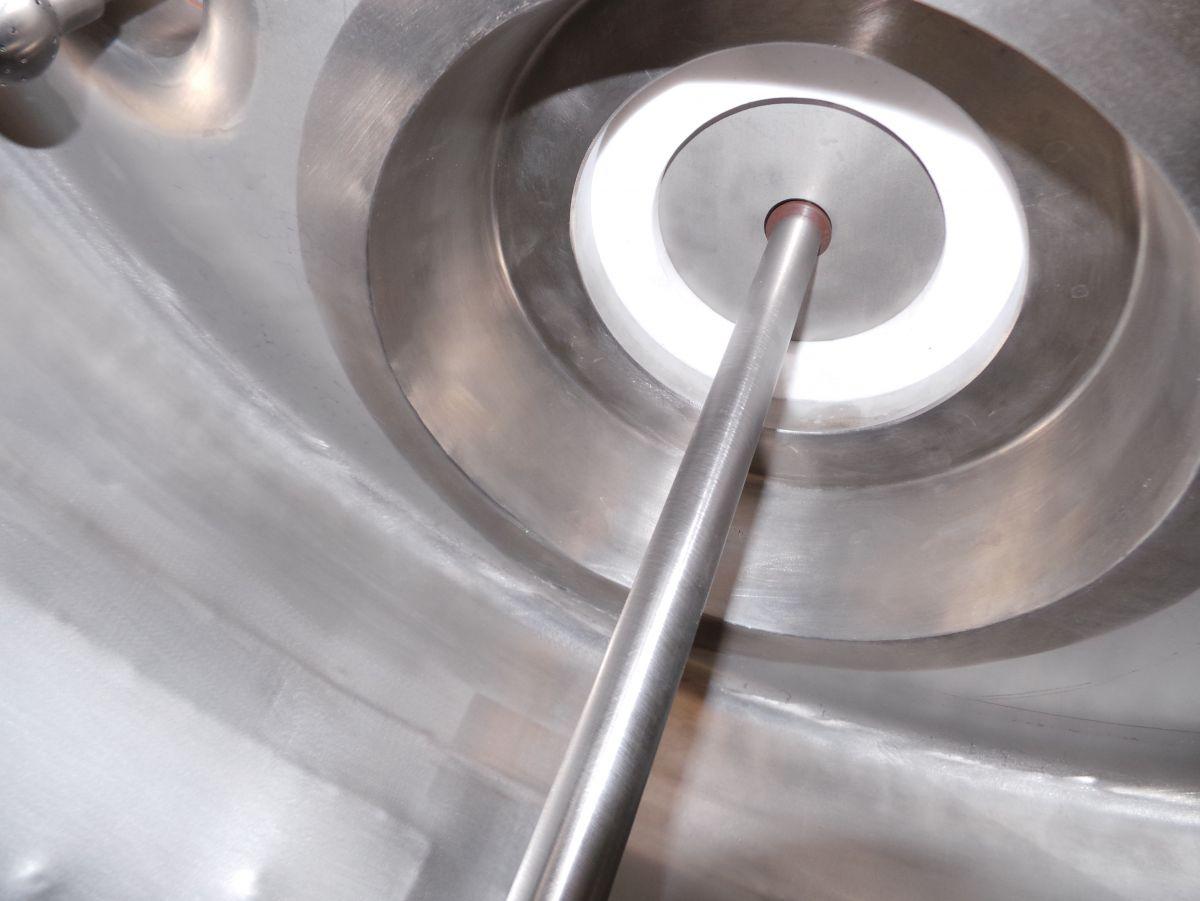

Flange for agitator: yes
Flange type: Tri-Clamp DN150
Spray ball: yes, optional
Number: 1

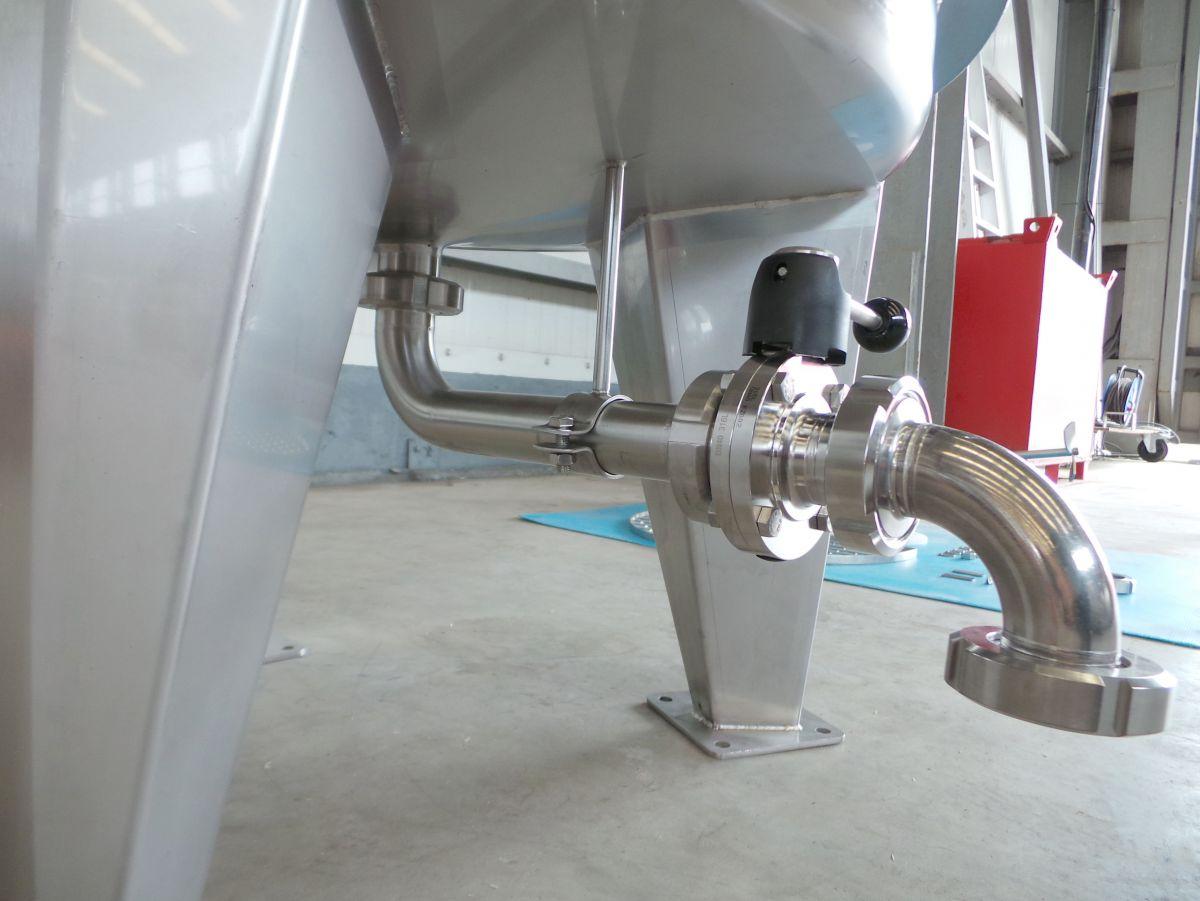

Tank outlet: inside Ø 40 mm
Outlet type: DIN11851 Liner
Total outlet valve: yes, optional
Type shut-off valve: butterfly valve
Top: 5 mm
Cylinder: 2,50 mm
Bottom: 2 mm
Cylinder: 2
Insulation body: yes
finish of the outer jacket: welded
Insulation thickness: 47
Internal diameter tank: 406 mm
Distance from outlet to ground: 250 mm
Outer diameter tank: 1.207 mm
Cylinder height: 375 mm
Total height of tank: 2.100 mm
Empty weight tank: 245
