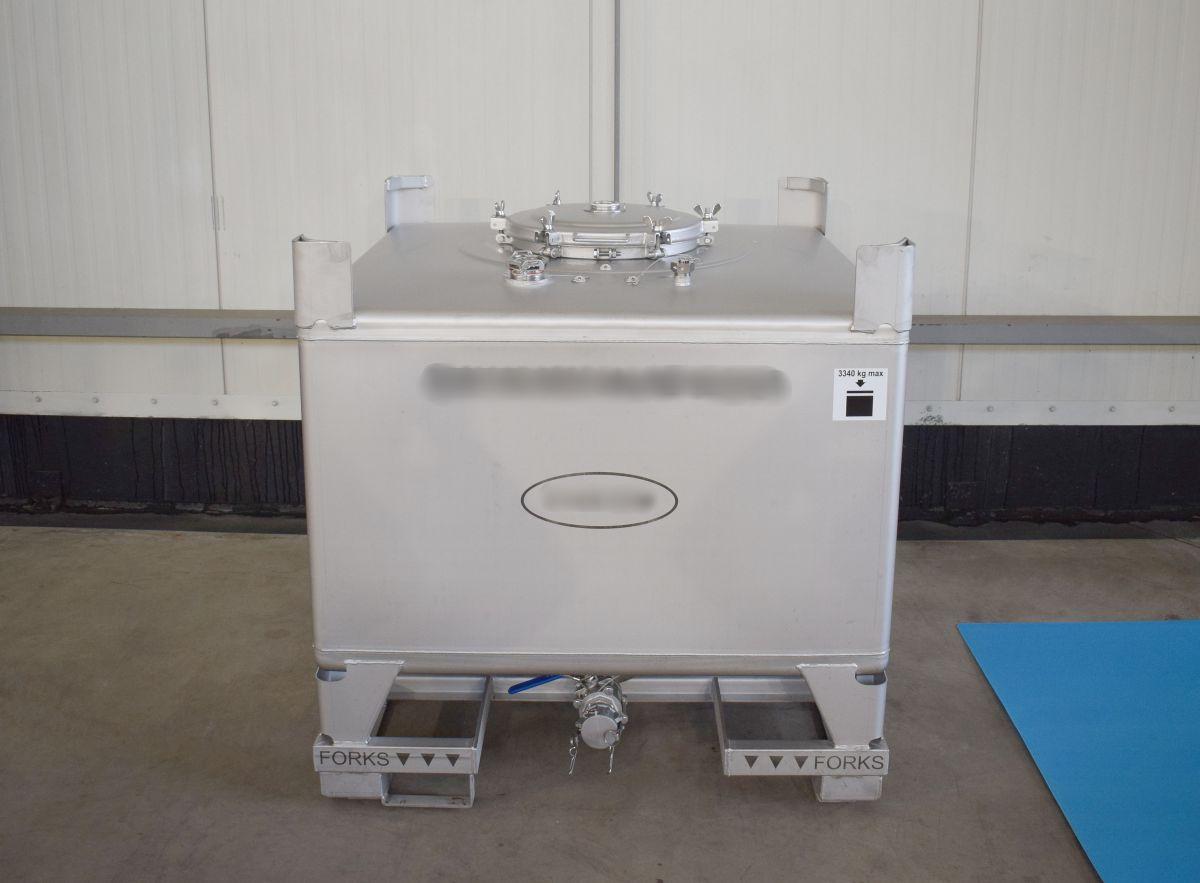

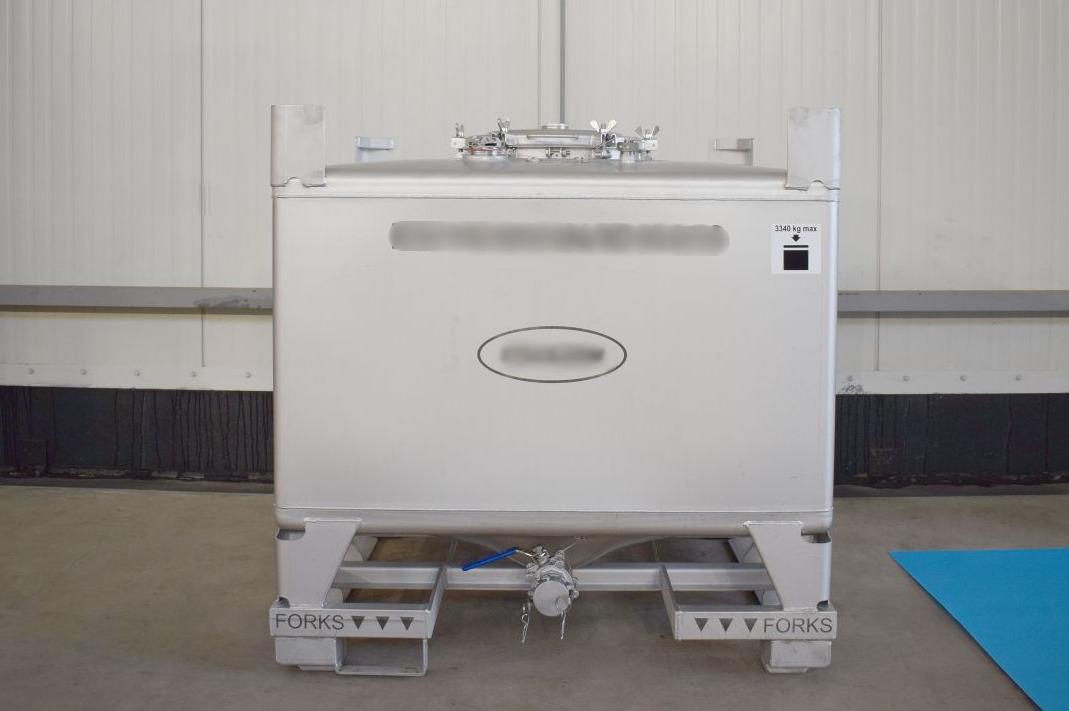

1000 liter i Rostfritt 304
33,000.00 SEK/st exkl moms
Mer information
Volym i liter | 1000 |
---|---|
Nytillverkad/Begagnad | Nytillverkad |
Livsmedelsklassad | Ja |
Modell | Vertikal |
Material | Rostfritt 304 |
Omrörare | Nej |
Uppvärmning/kylning | Nej |
Isolerad | Nej |
Trycktank | Ja |

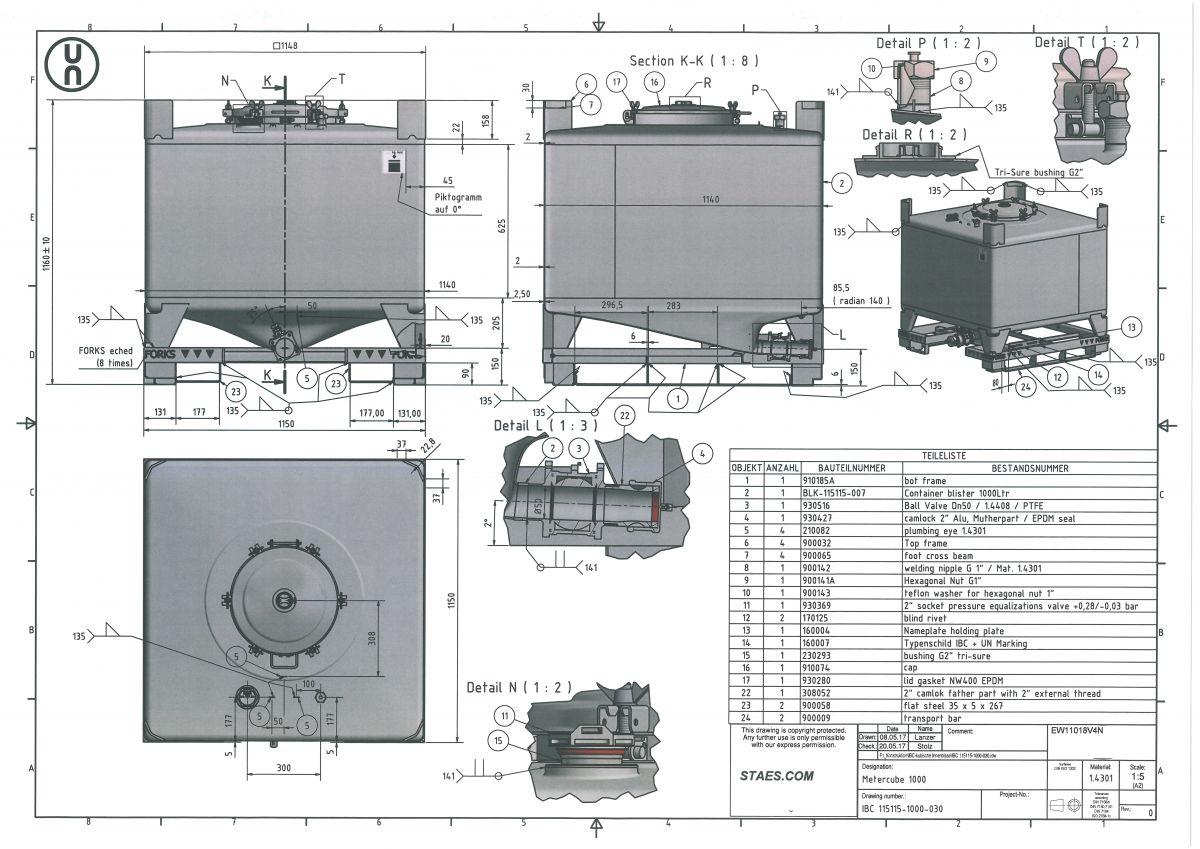

Ritning
Öppnaitem available on order
Article type: brand new transport tank
Additional information: UN31A/Y transportation hazardous liquids, packing groups II adn III, RID ADR
Capacity: 1.000 L
Maximal density of the product: 1.500

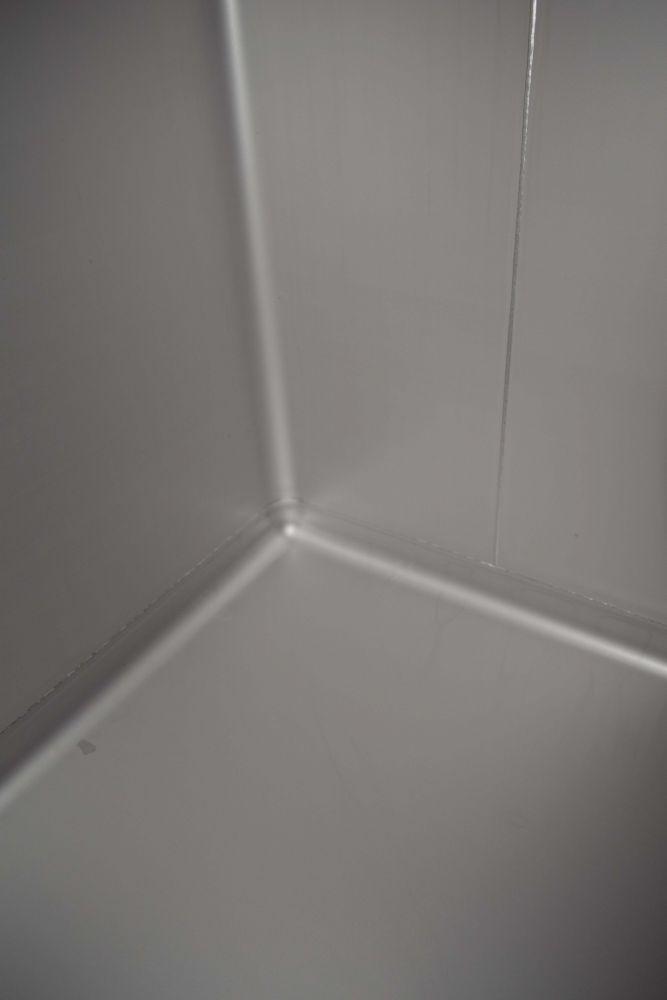

Ra inner weld: 1,60
Working pressure in tank: pressure
Overpressure: 0,10 Bar
Underpressure: 0,10 Bar
Max. working temperature: 50 °C
Material wet parts: SS AISI 304 (V2A)
Model: vertical
Configuration: single-skin
Heat exchanger: no
Insulation: no
Agitator: yes, optional
Mobile tank: no

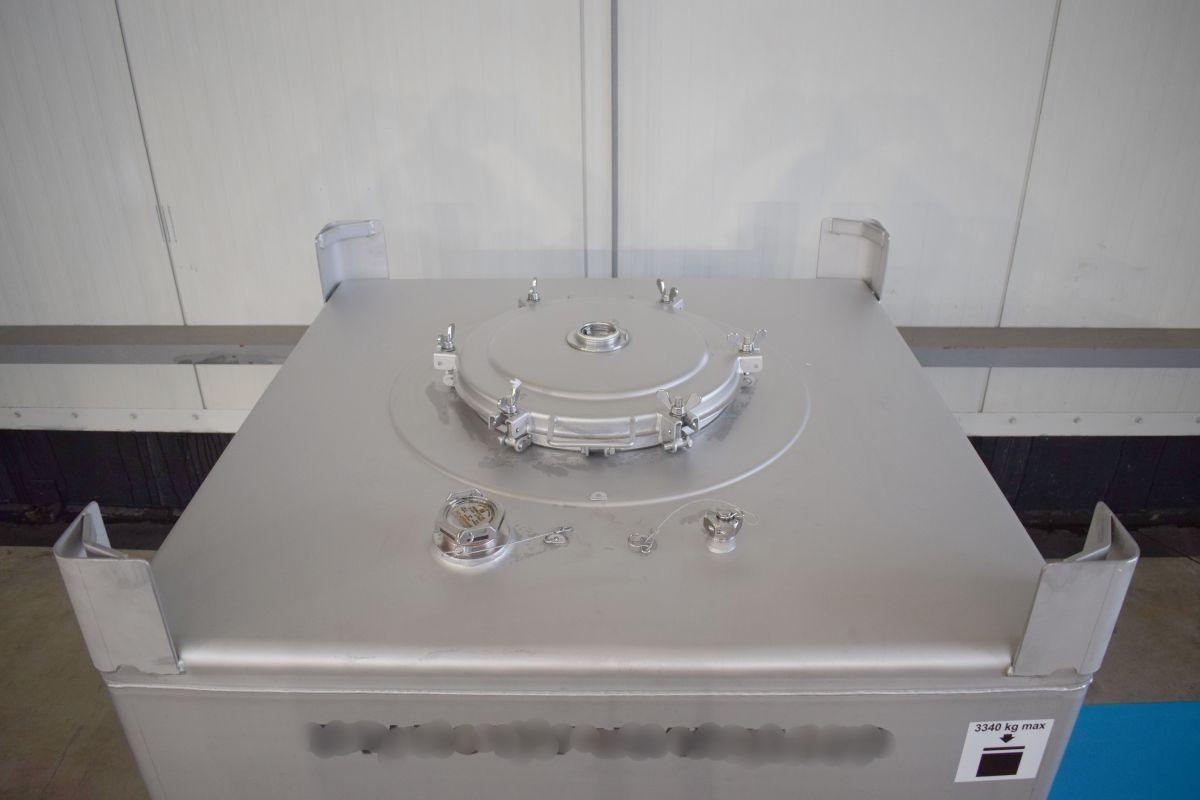

Top type: flat
Shape of tank: square

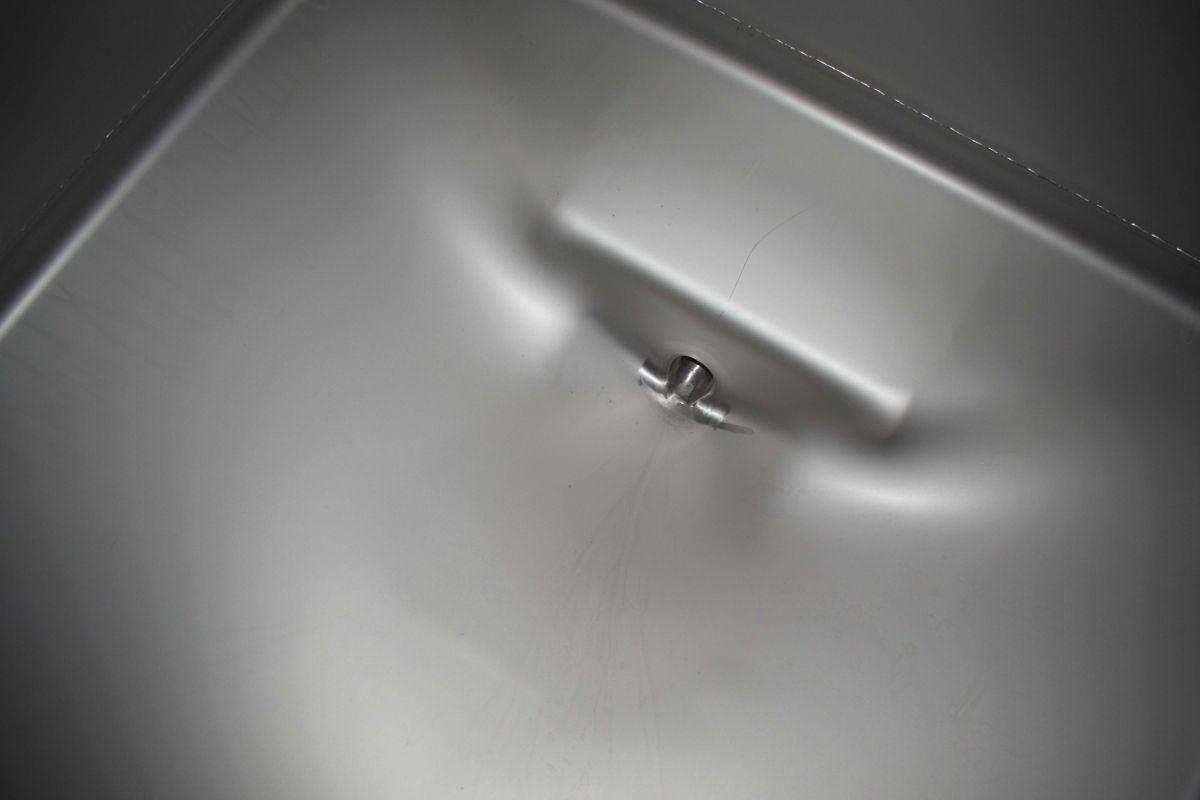

Bottom type: flat sloping
Total discharge: yes

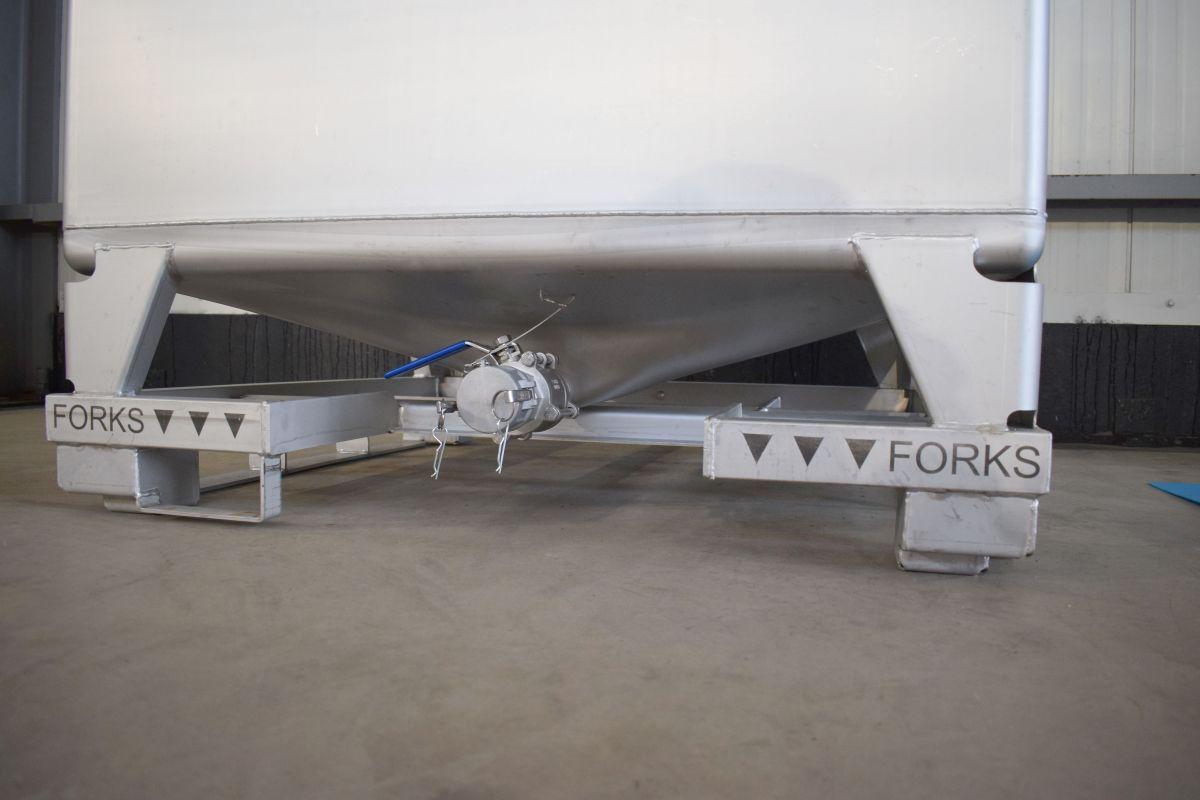

Fixation points: 4 stackable frame

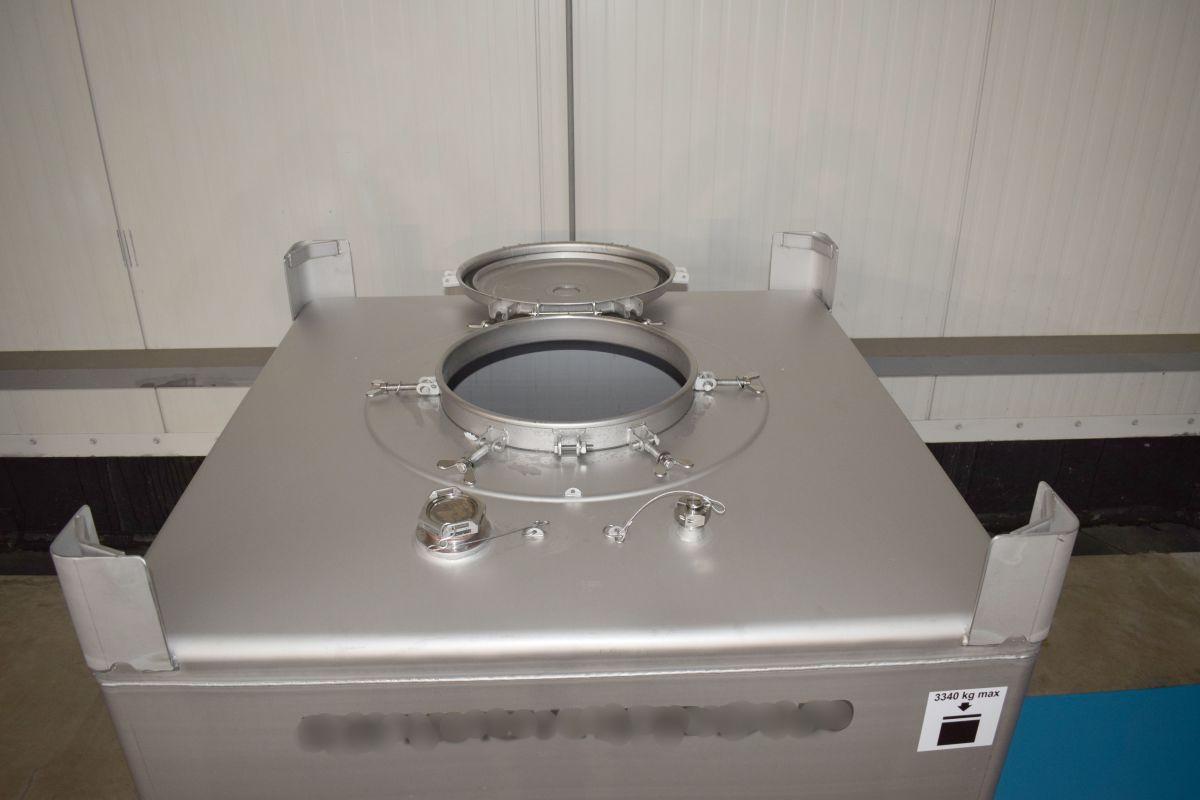

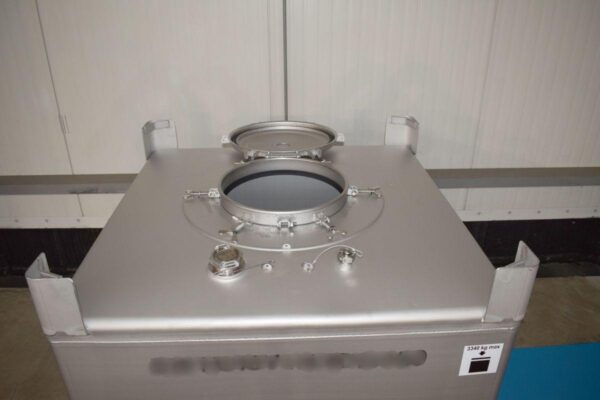

Manway(s): RVS 304
Gasket manway(s): EPDM
Fixation point(s): RVS 304
Suitable for food industry: yes
Documents included: yes, optional
Technical drawing included: yes
Registration plate on the tank: yes
with inspection of: RID ADR UN31A/Y
Flange for agitator: no
Number of manways: 1
Position manway: headside

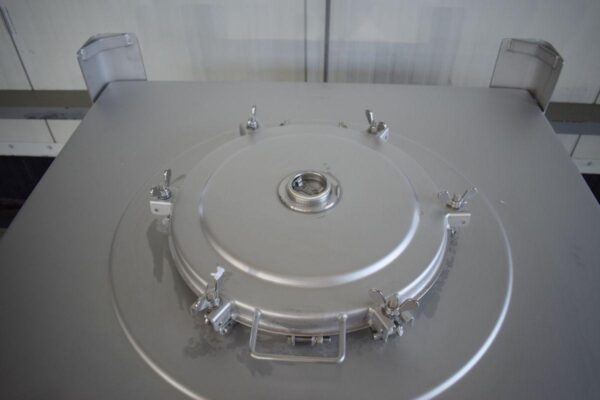

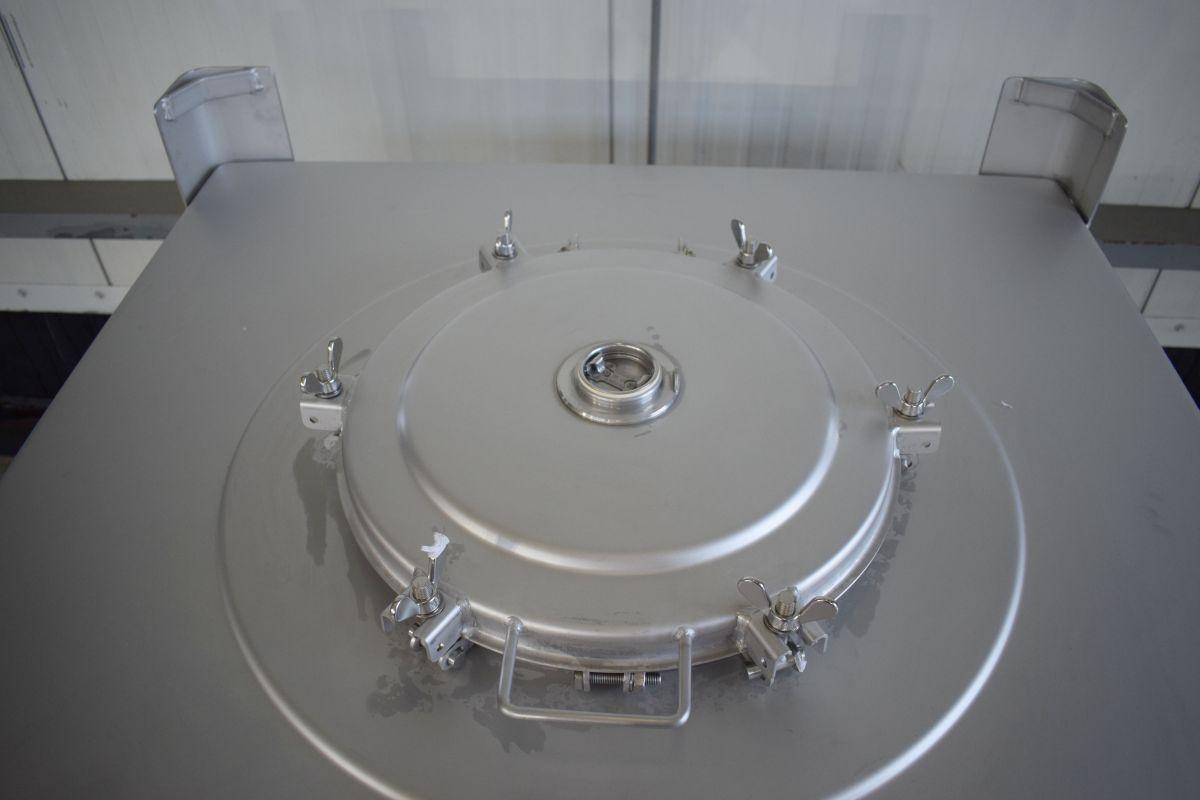

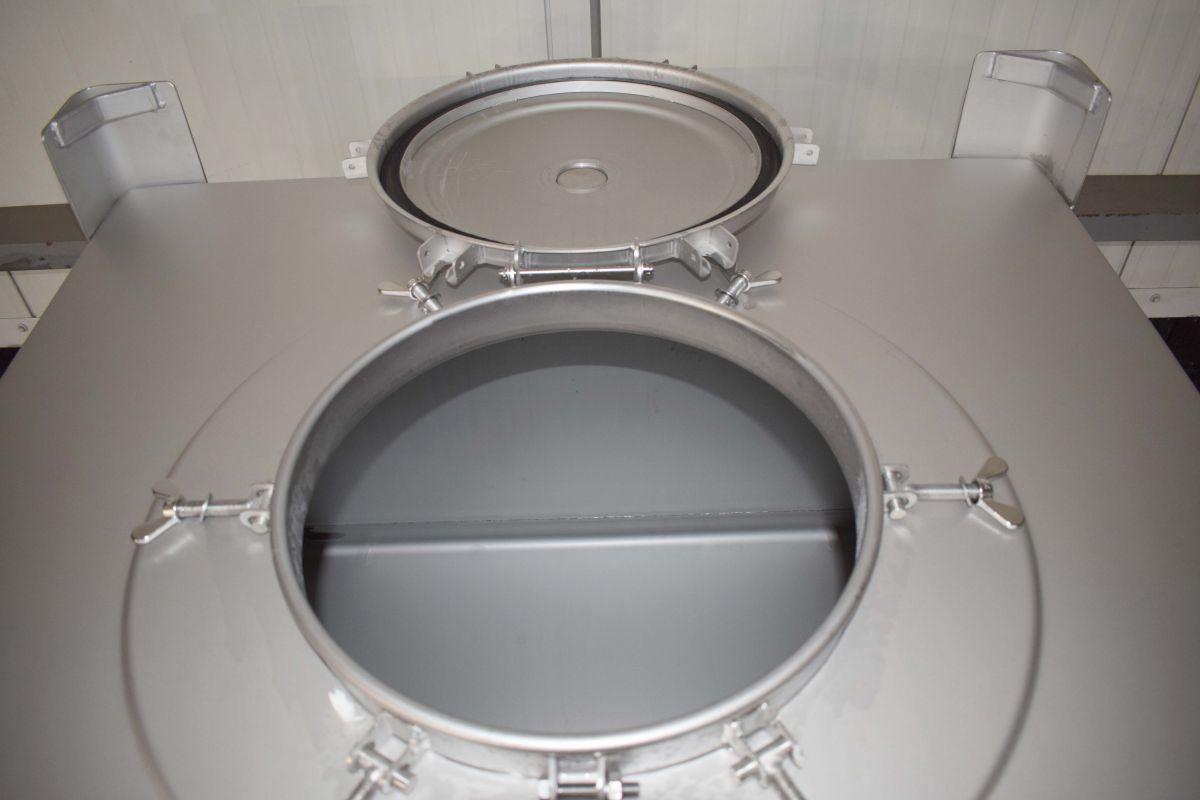

Manway 1: 400 mm
Tank outlet: inside Ø 50 mm

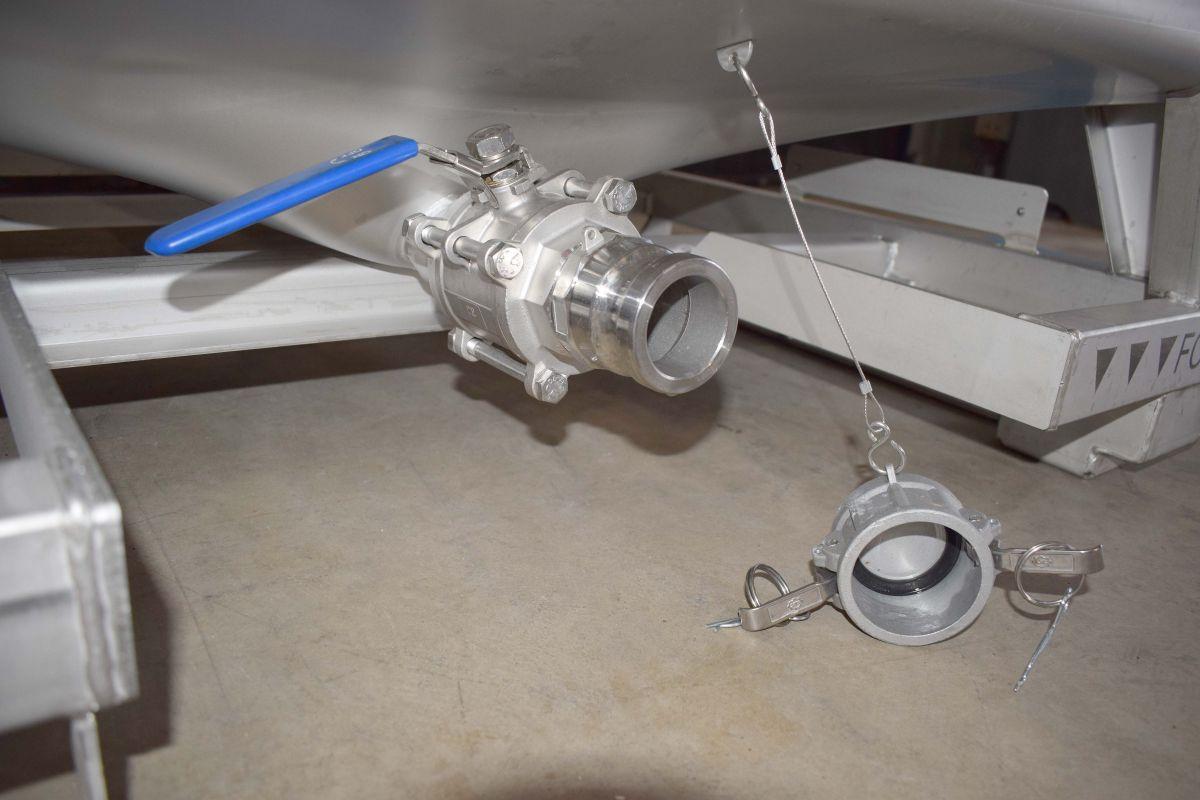

Outlet type: BSP CAMLOCK 2″
Total outlet valve: yes
Type shut-off valve: ball valve
Top: 2 mm
Cylinder: 2 mm
Bottom: 2,50 mm
Distance from outlet to ground: 150 mm
Cylinder height: 625 mm
Total height of tank: 1.160 mm
Total outer width: 1.150 mm
Total outer length: 1.150 mm
Empty weight tank: 180
