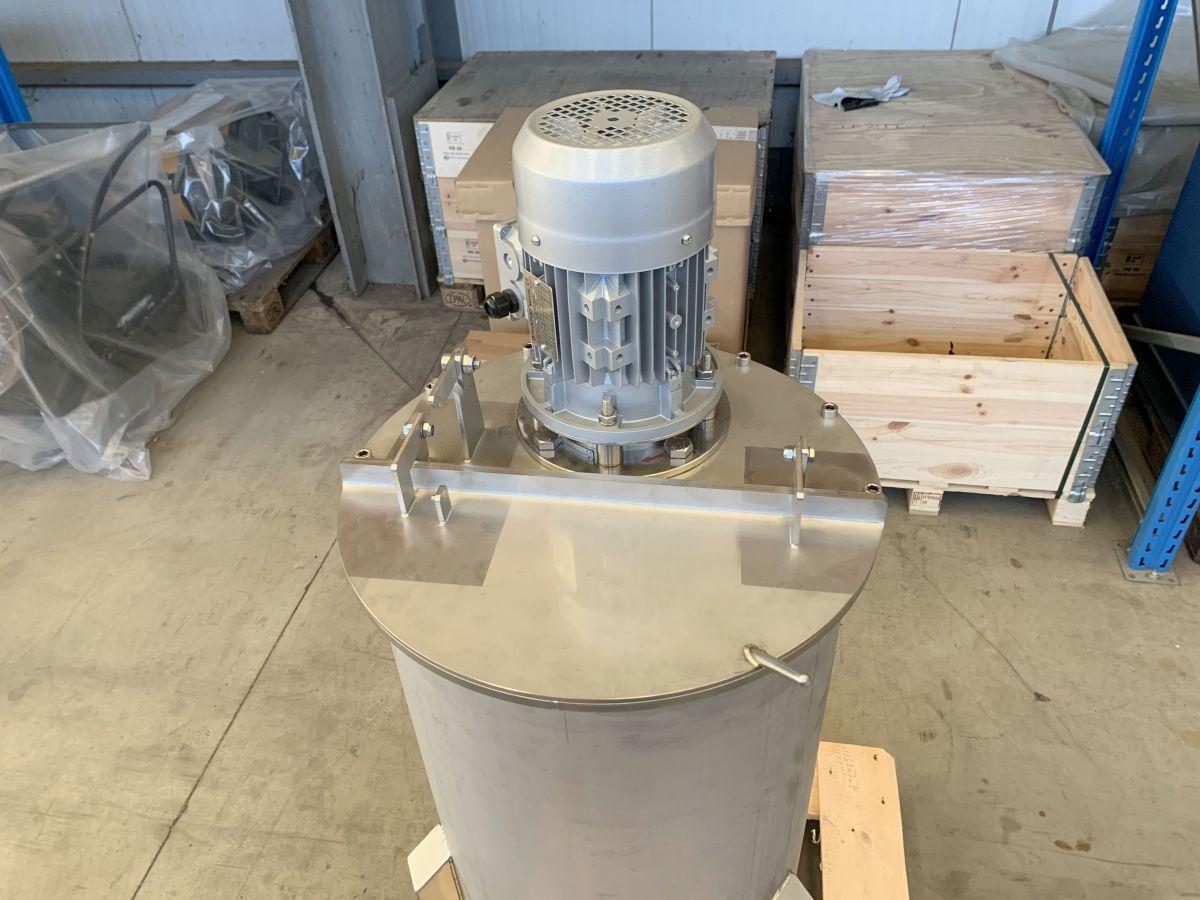

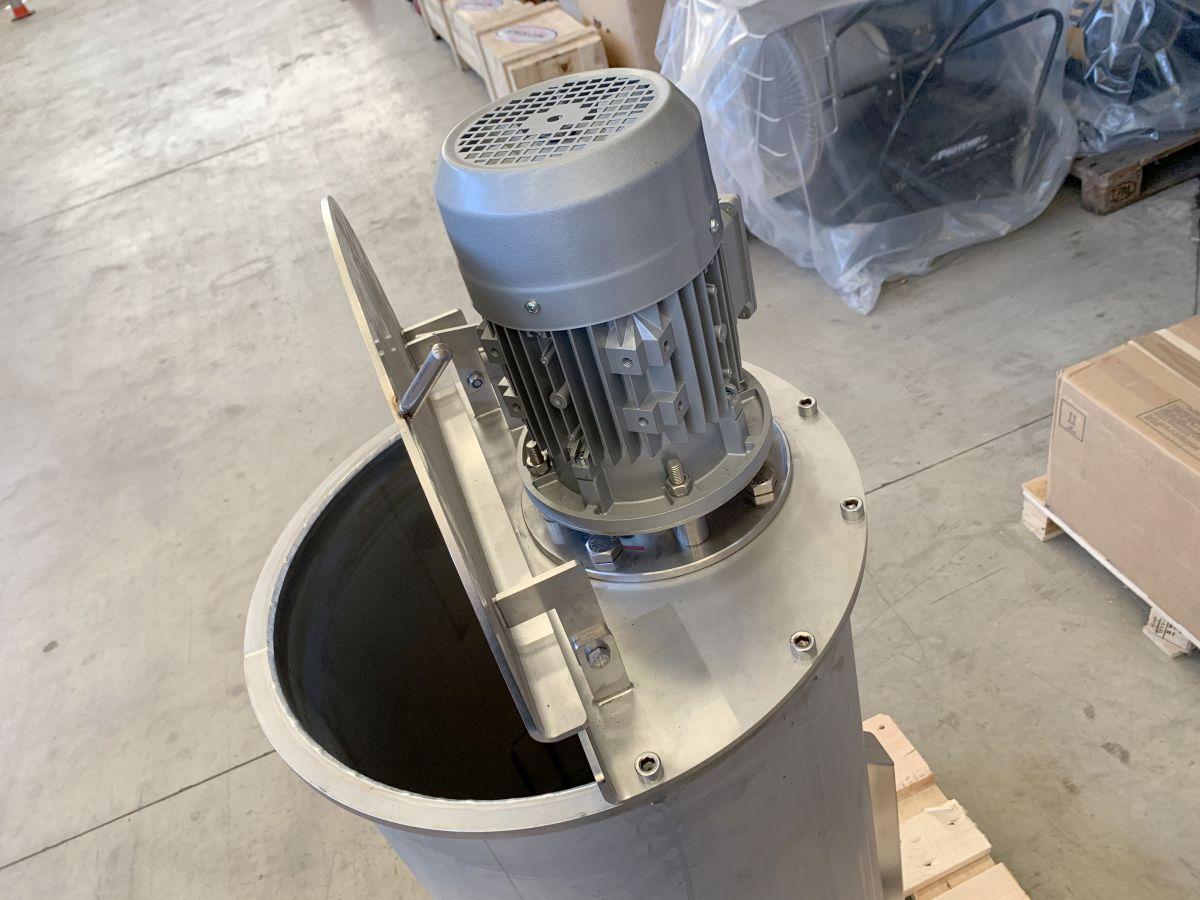

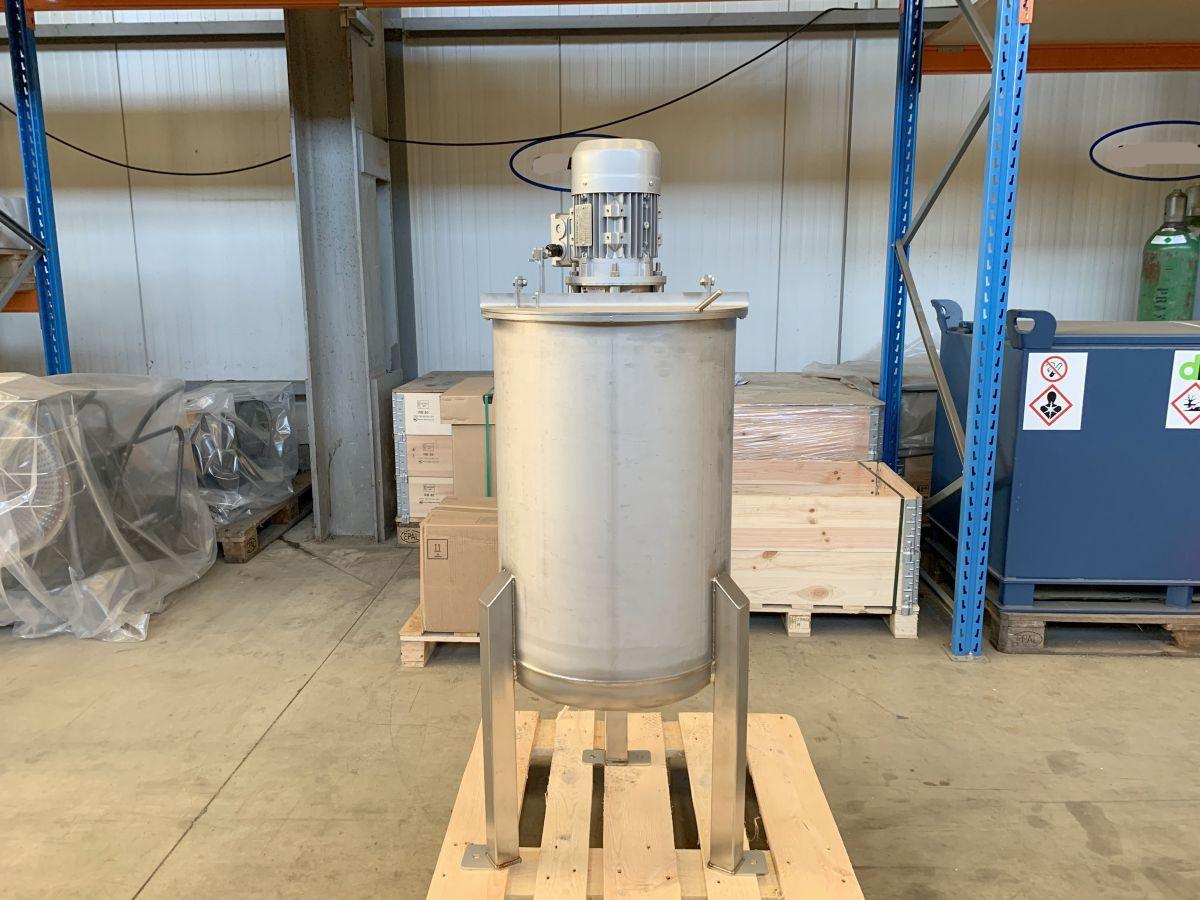

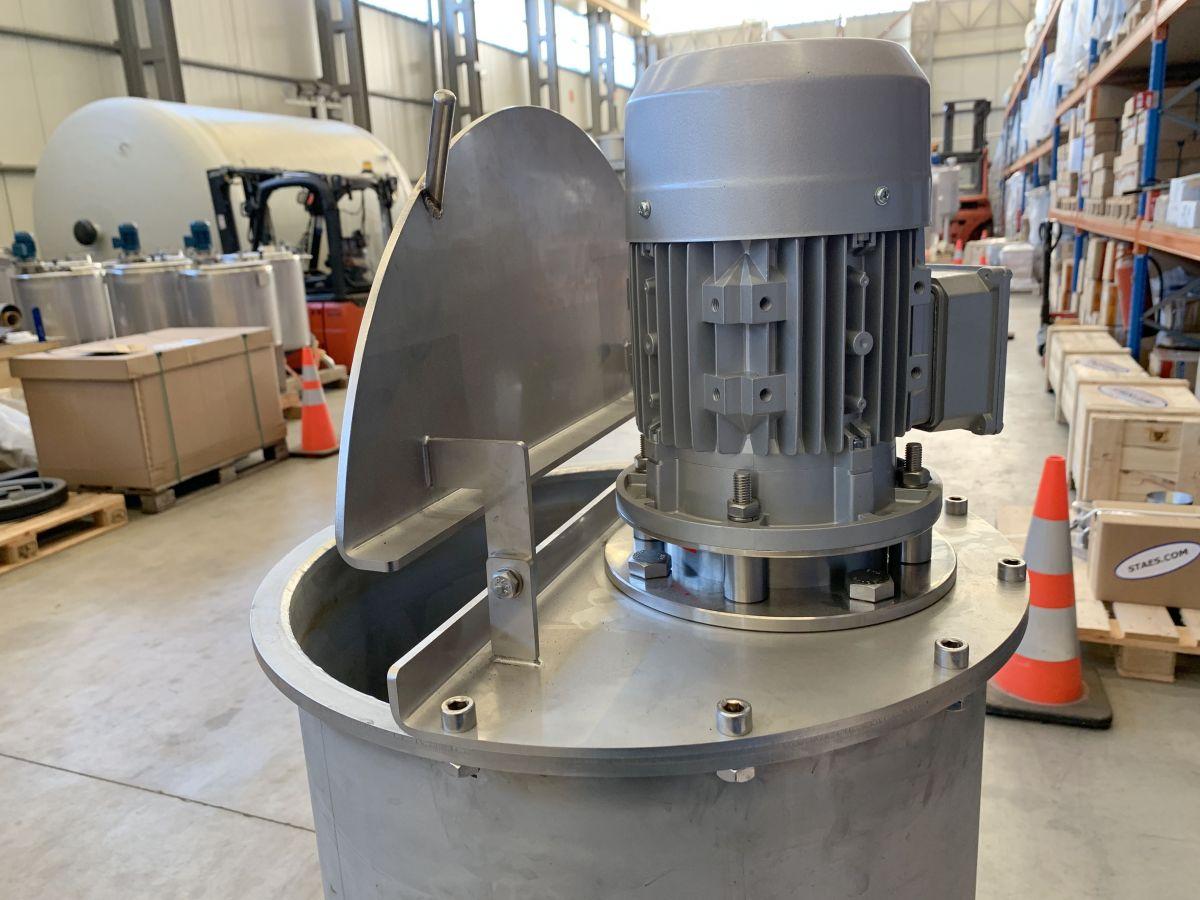

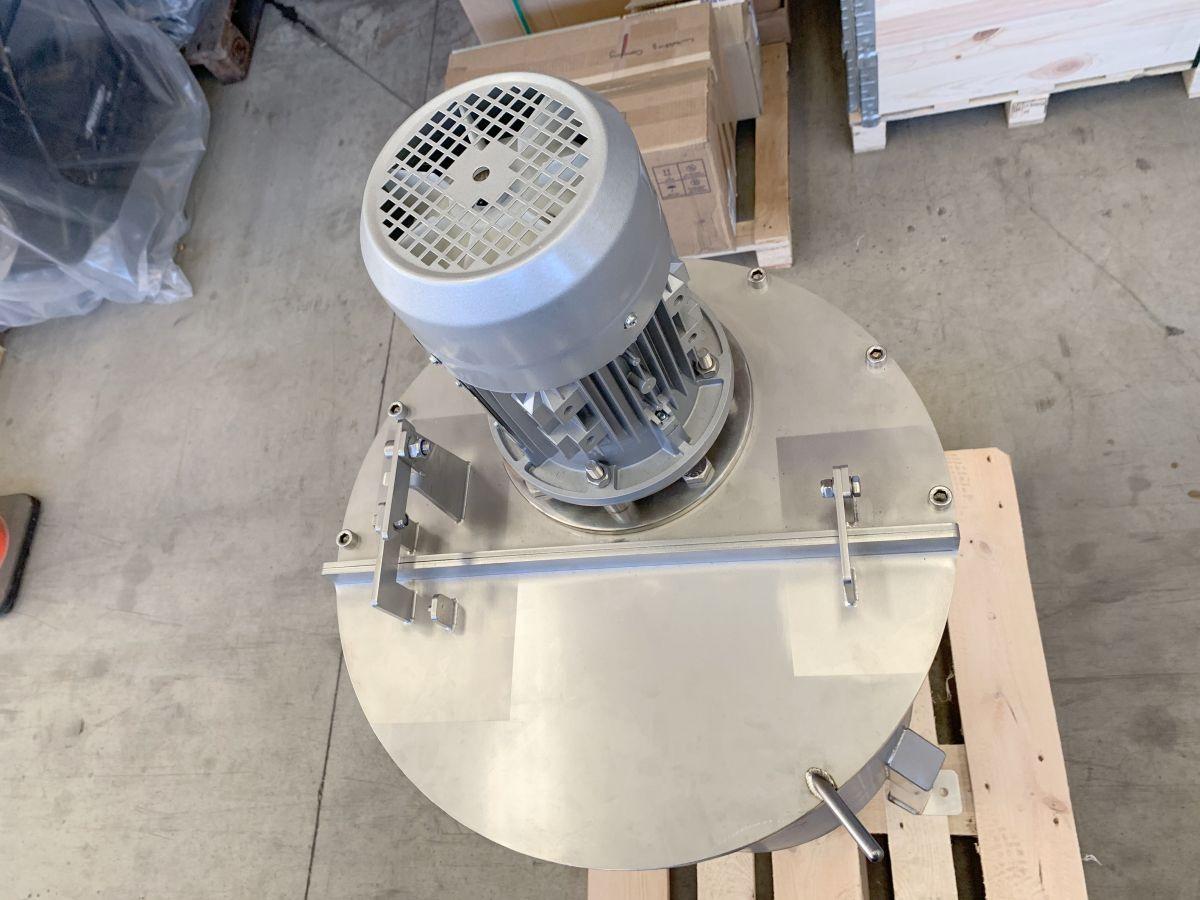

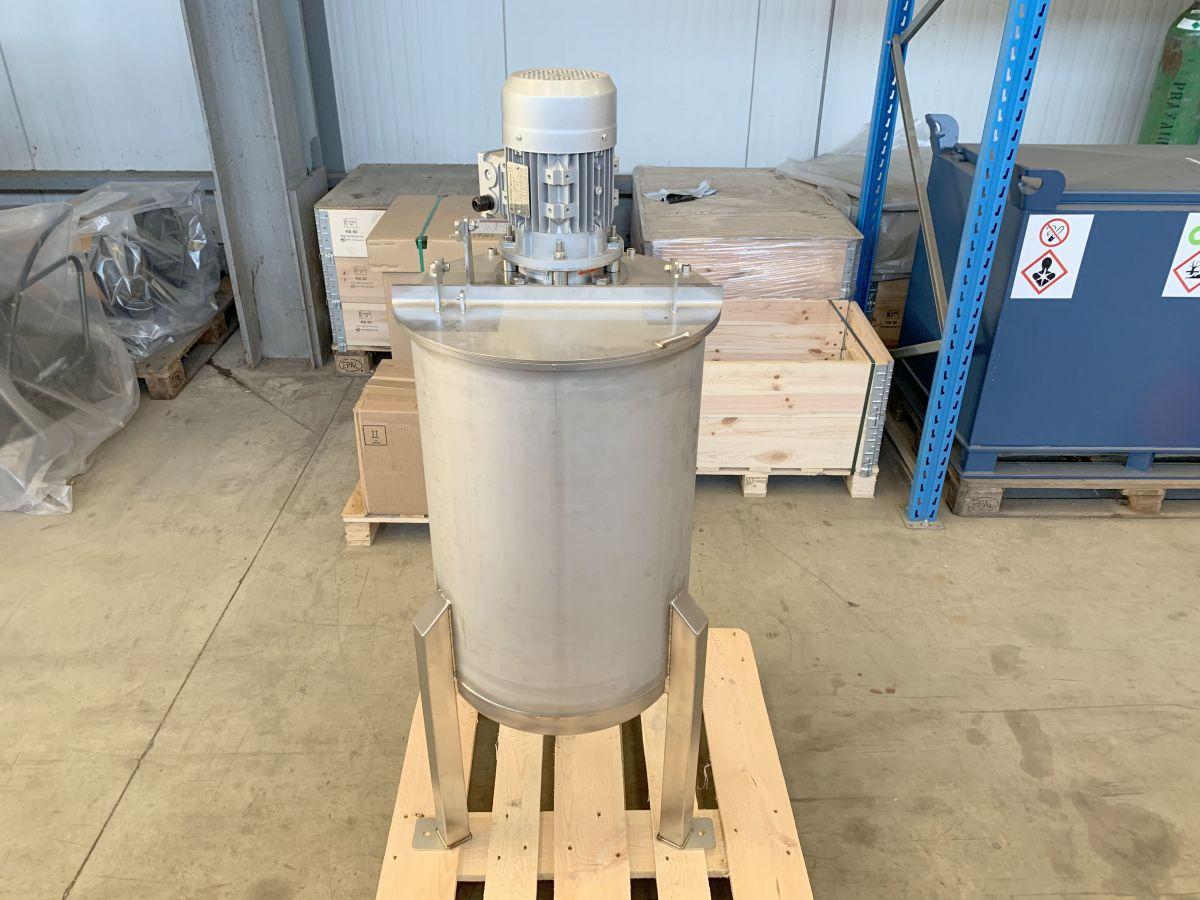

100 liter i Syrafast 316

Article type: second-hand mixing tank
Additional information: never been used; we can’t give any guarantees about the agitator
Capacity: 100 L
Working pressure in tank: ATM – atmosferic
Material wet parts: SS AISI 316L (V4A)

Model: vertical
Configuration: single-skin
Heat exchanger: no
Insulation: no

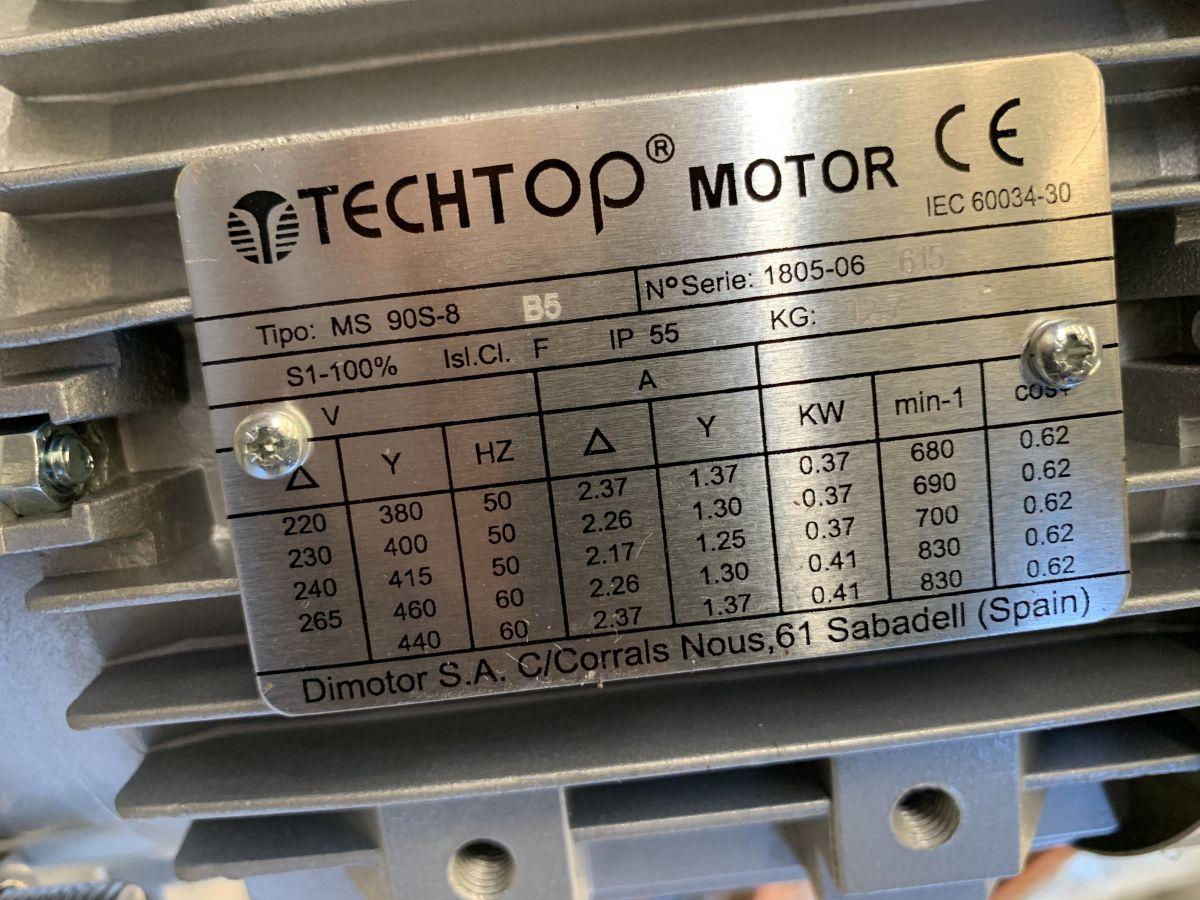

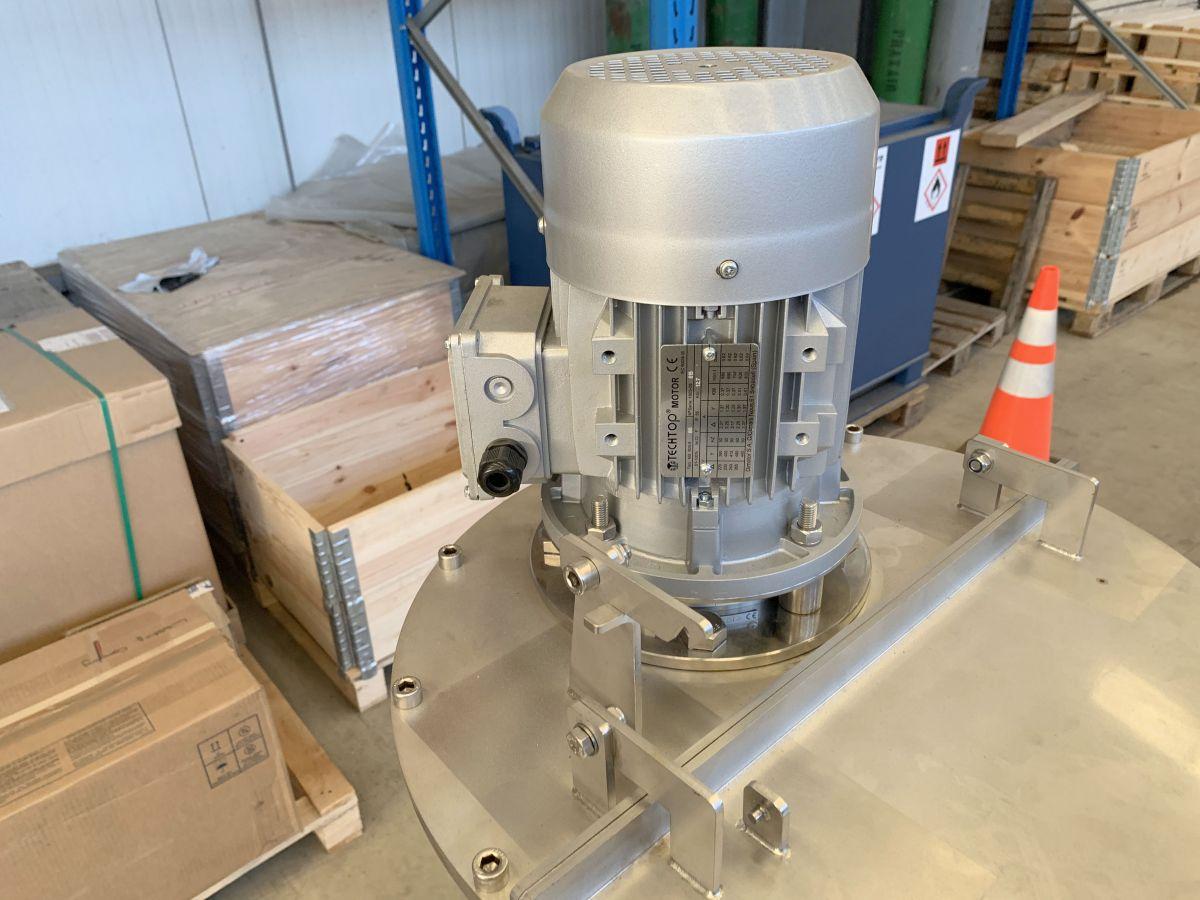

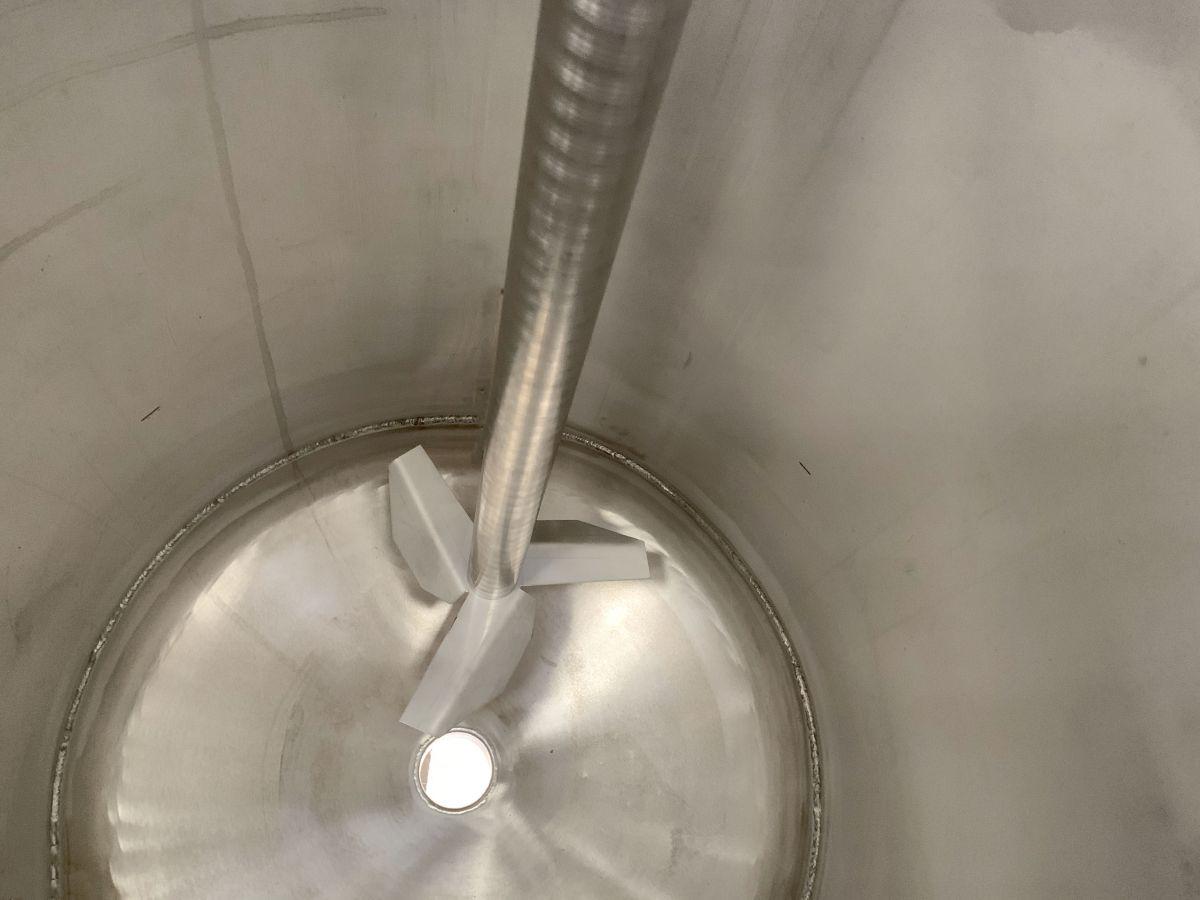

Agitator: yes

Mobile tank: no
Shape of tank: cylindrical

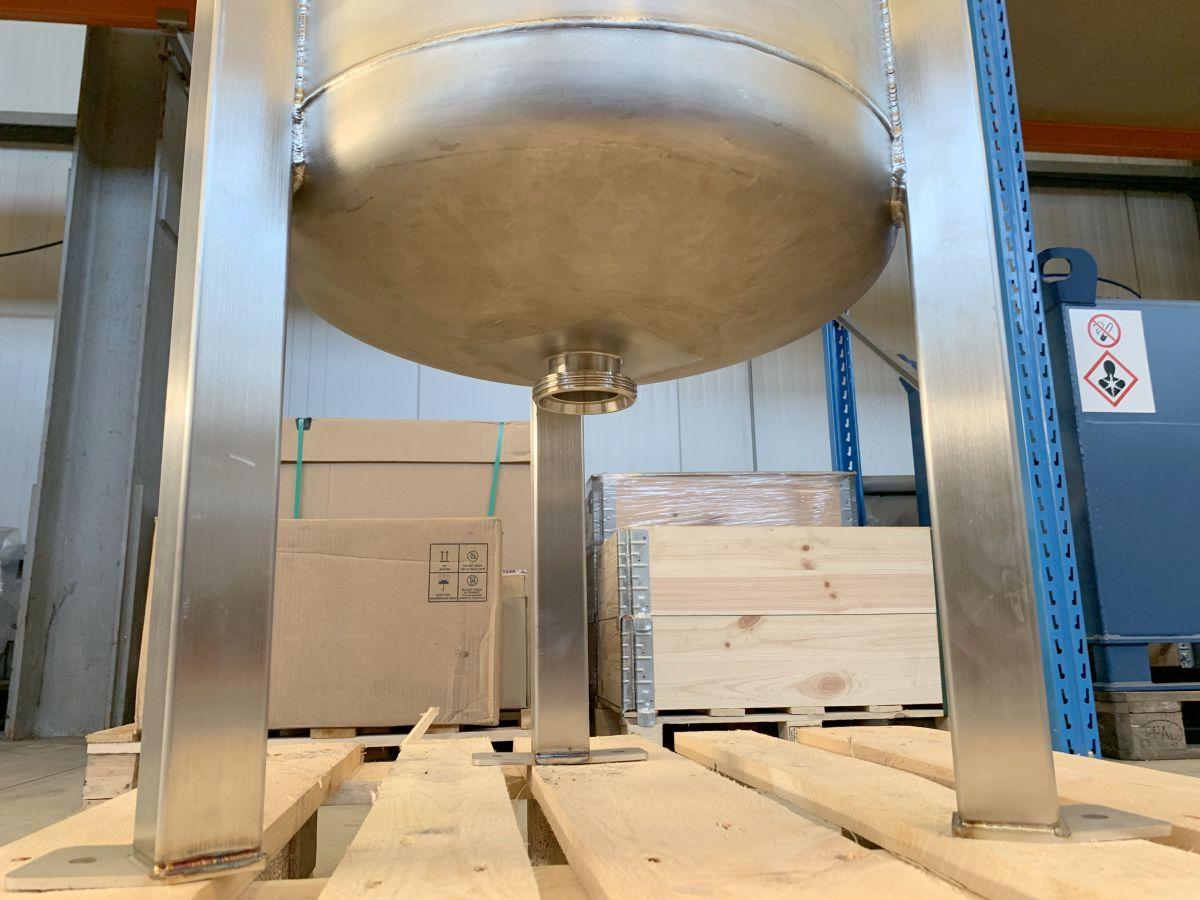

Bottom type: dished
Total discharge: yes

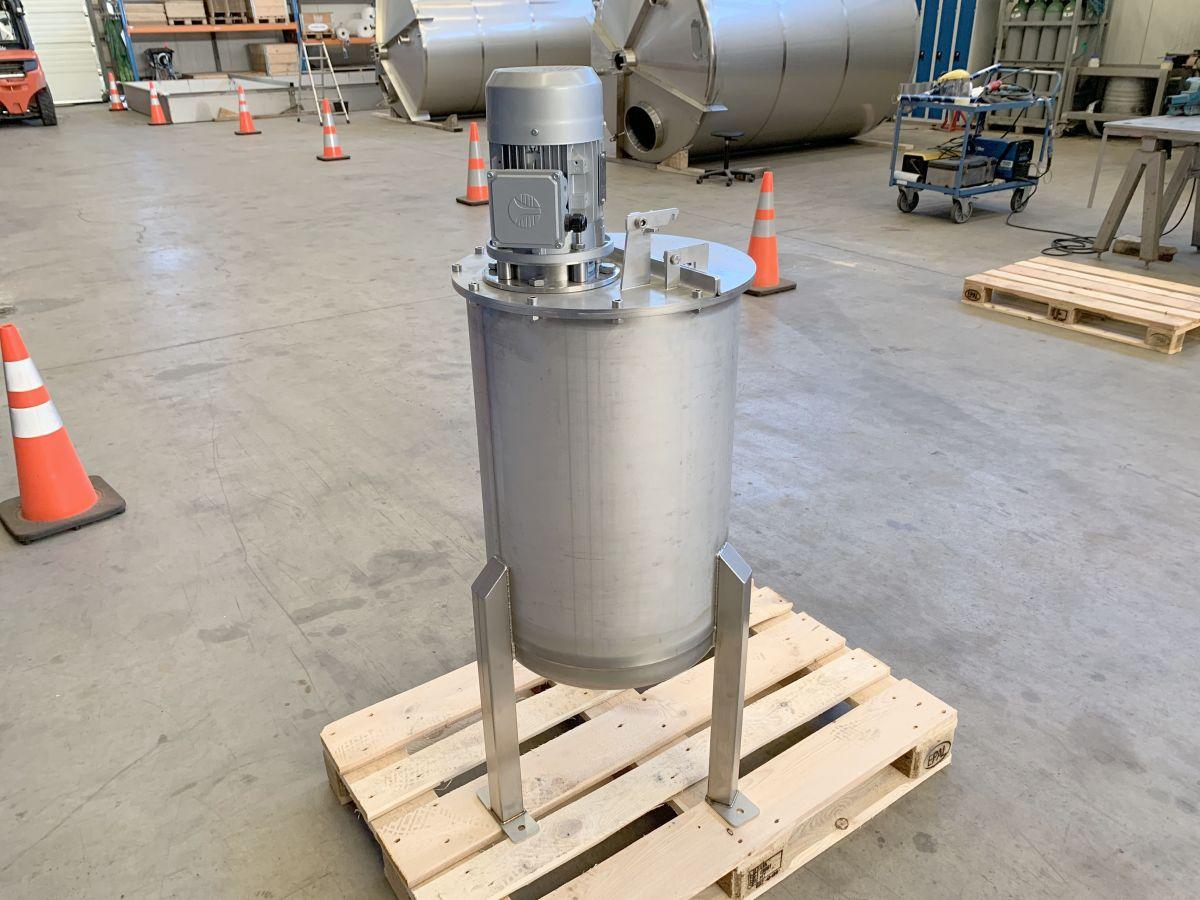

Fixation points: 3 non adjustable feet

Fixation point(s): RVS 304L
Suitable for food industry: no
Documents included: no
Technical drawing included: no
Registration plate on the tank: no

Flange for agitator: no
Tank outlet: inside Ø 50 mm
Outlet type: DIN11851
Top: 5 mm

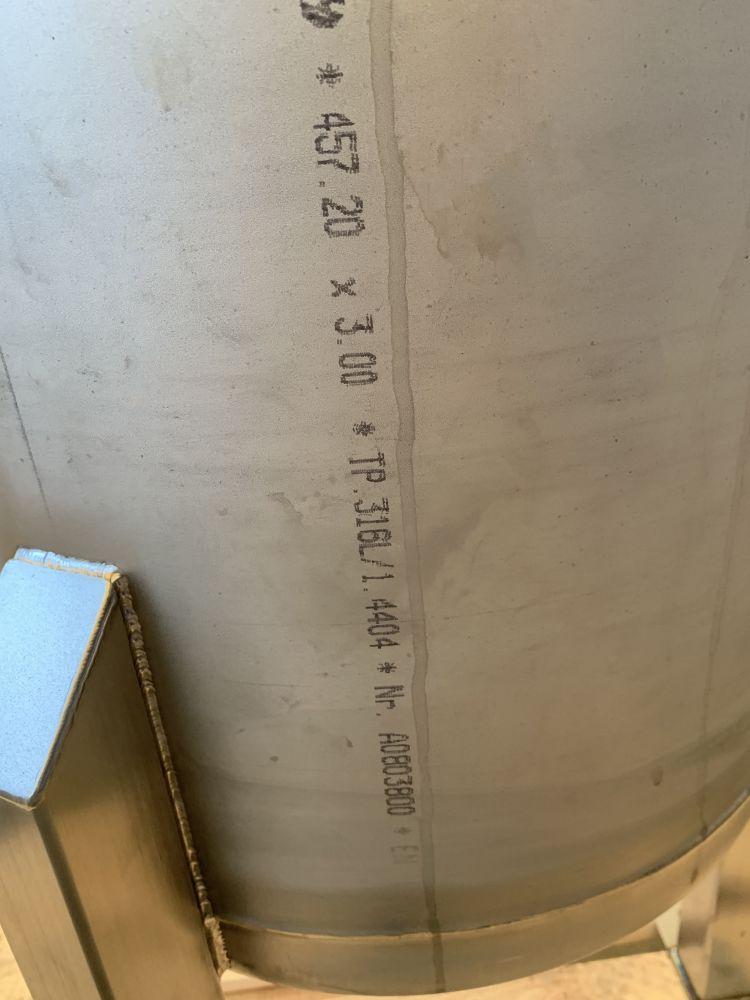

Cylinder: 3 mm

Bottom: 3 mm
Internal diameter tank: 445 mm
Distance from outlet to ground: 260 mm
Outer diameter tank: 500 mm
Cylinder height: 640 mm

Total height of tank: 1.370 mm
Empty weight tank: 100
