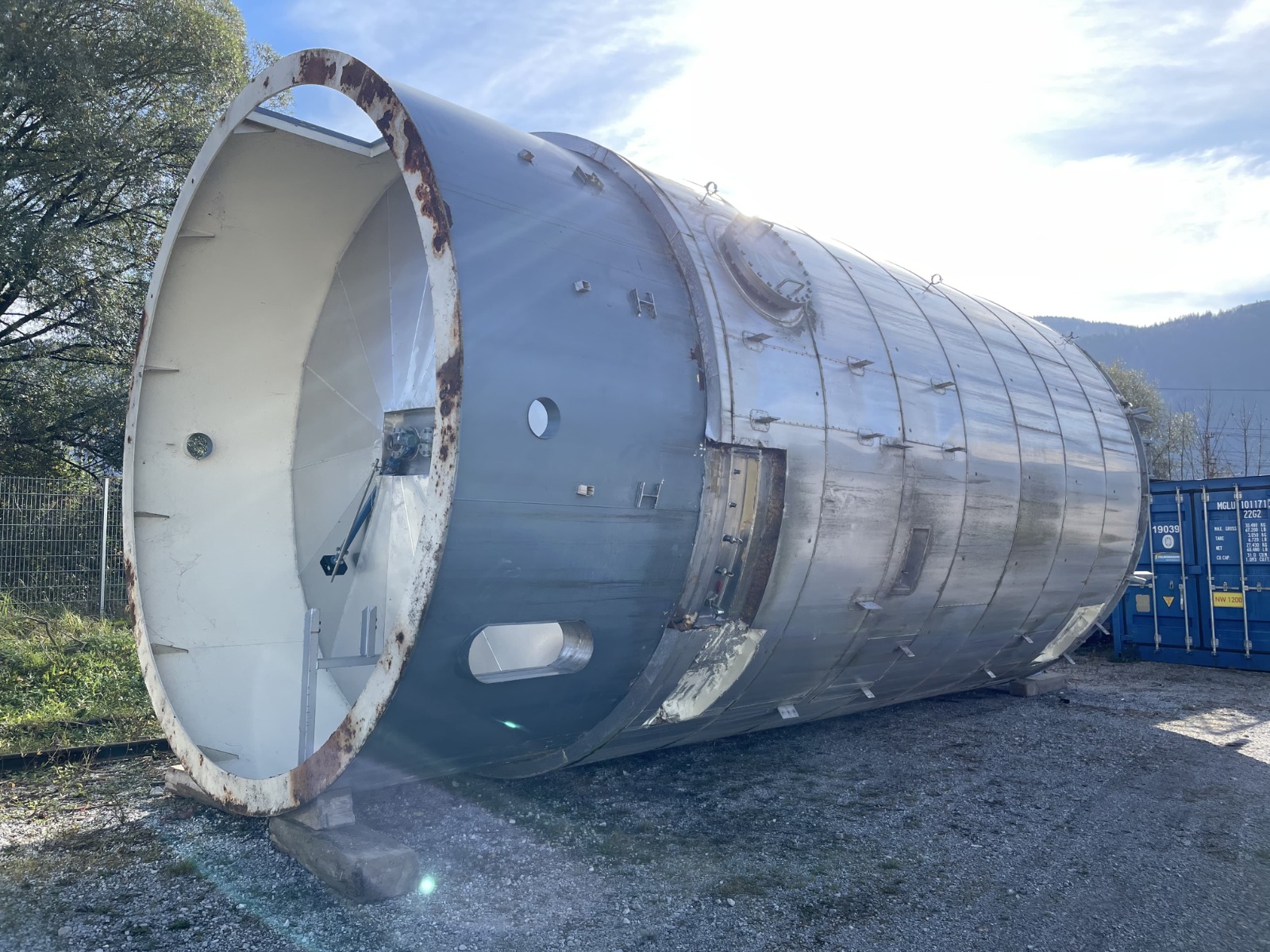

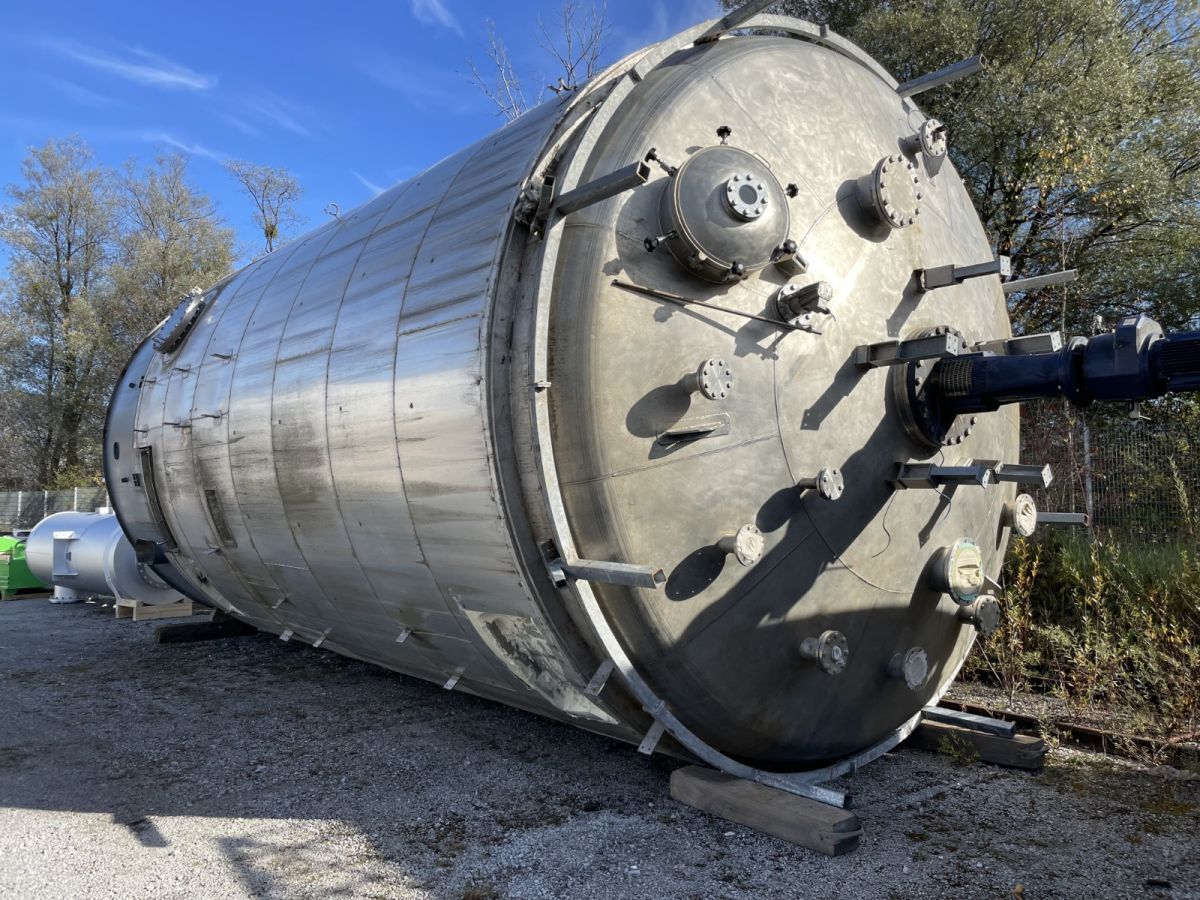

118000 liter tank i Syrafast 316

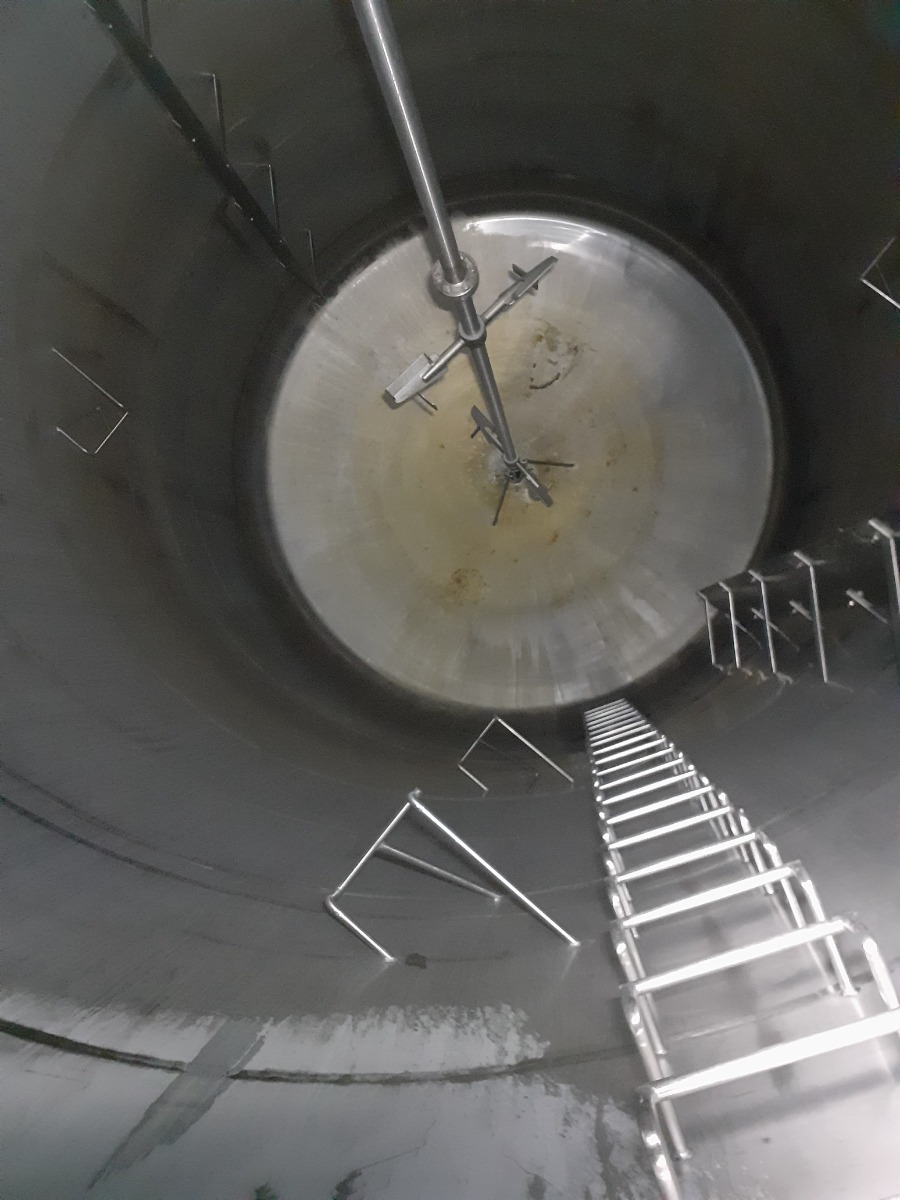

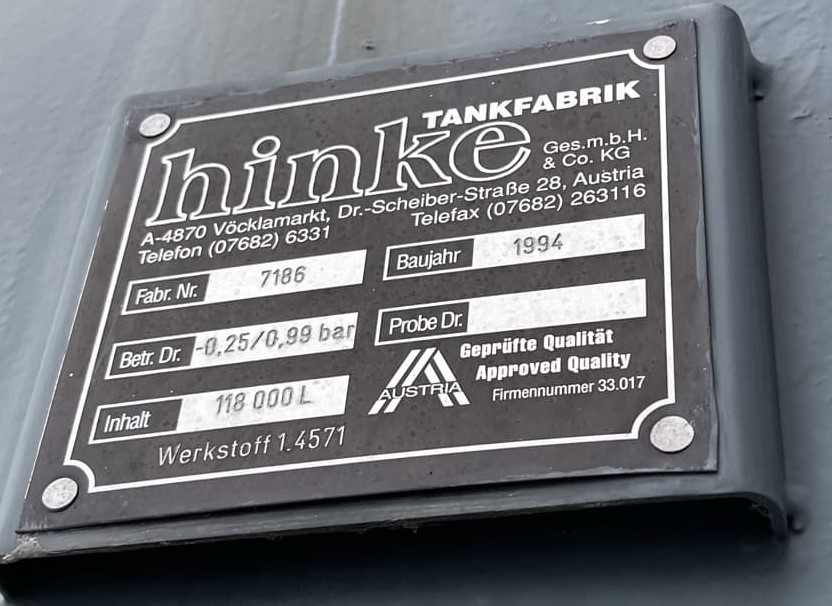

Volumetric volume (L): 118.000 L Pressure in tank: pressure and vacuum Max. pressure (Bar): 0,99 Bar Min. pressure (Bar): 0,25 Bar Material wet parts: SS AISI 316 (V4A) Model: vertical Configuration: insulated Heat exchanger: no Insulation: yes Mobile tank: no Total discharge: yes Documents included: no Technical drawing included: no Registration plate on the tank: yes Flange for agitator: no Outlet of tank: flange DN100 Agitator: yes Internal diameter tank: 4.410 mm Outer diameter tank: 4.700 mm Cylinder height: 6.500 mm Total height of tank: 10.860 mm
