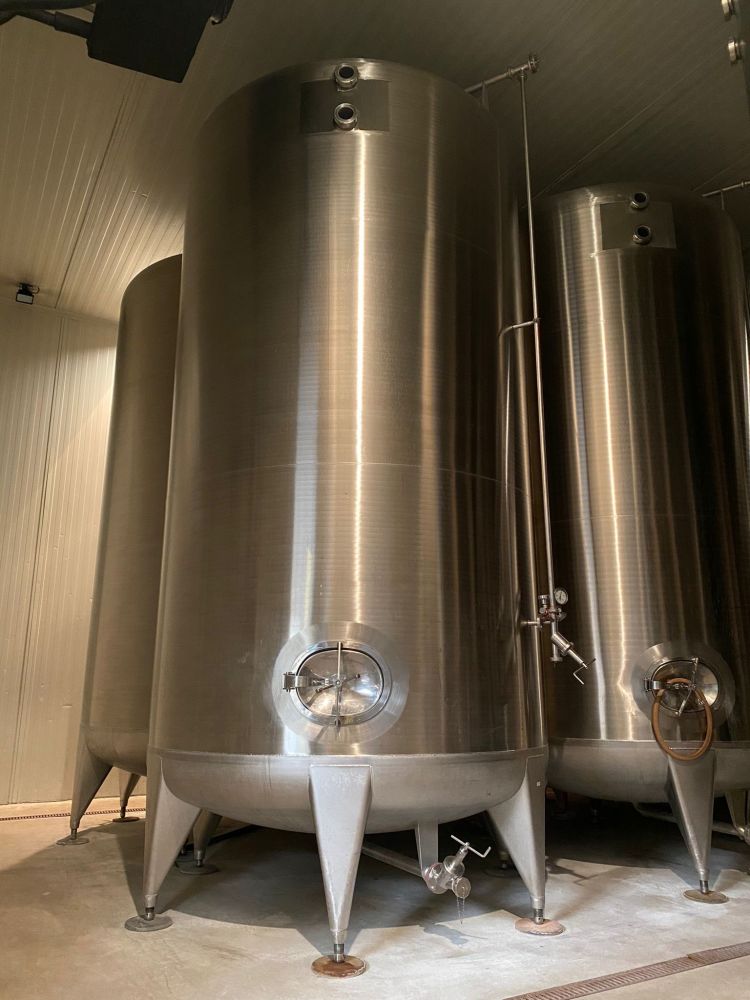

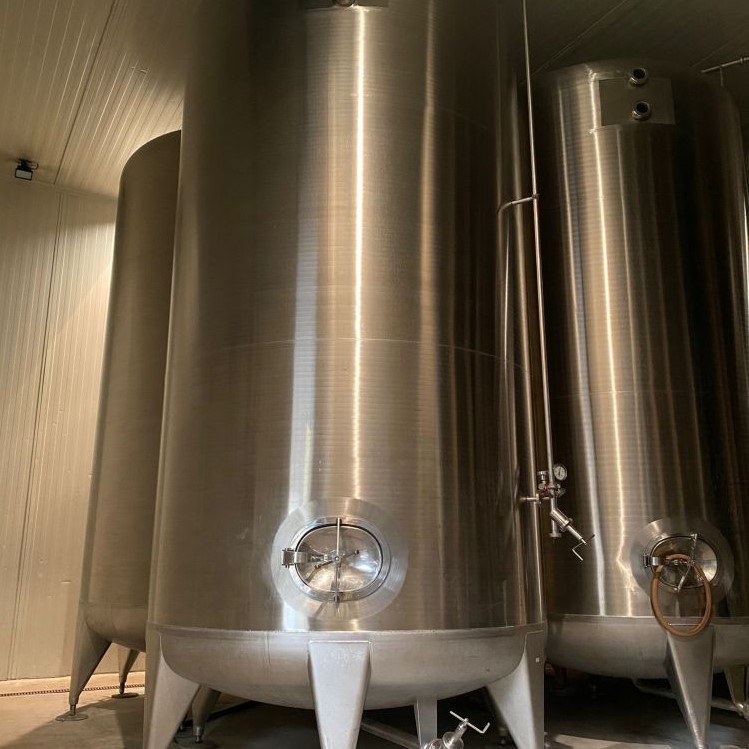

25000 liter tank i Syrafast 316

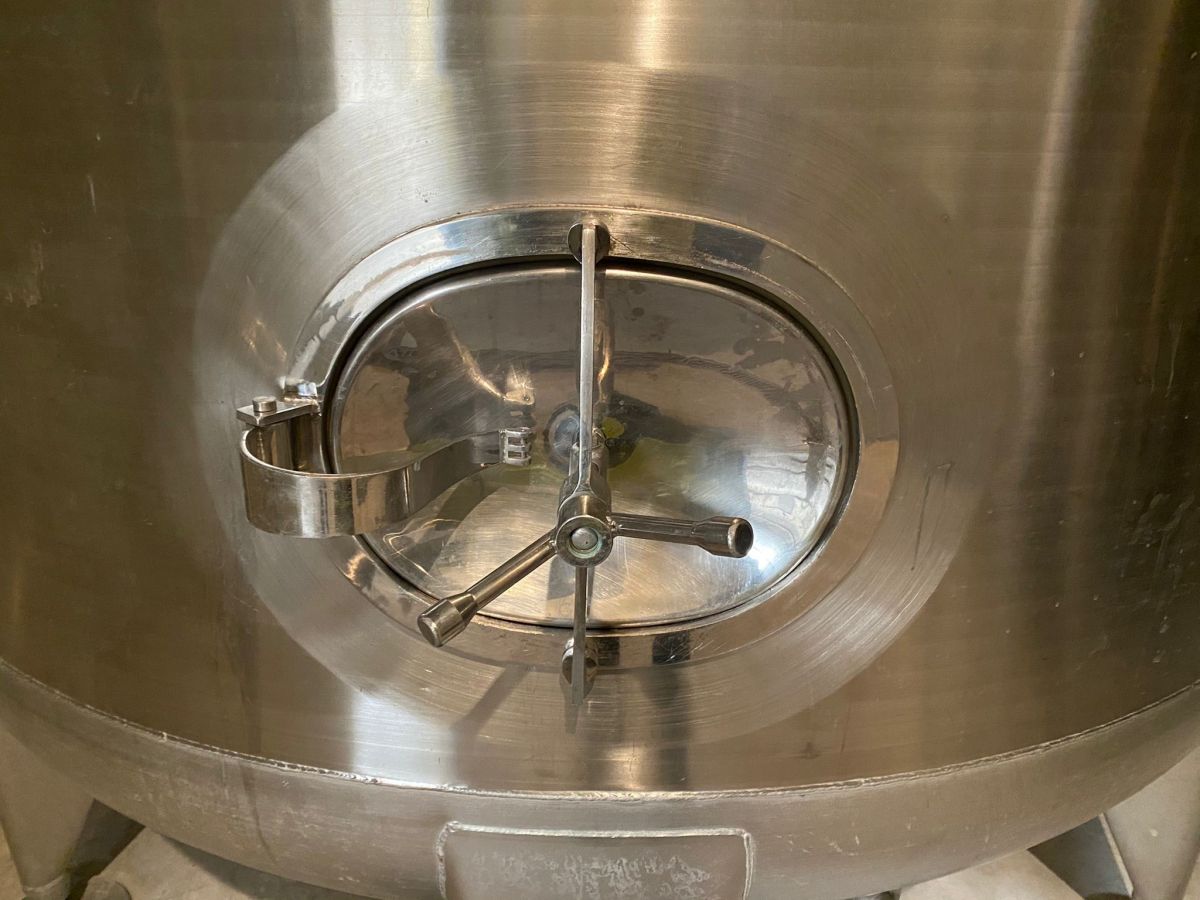

Additional information: food (fruit juice) Volumetric volume (L): 25.000 L Pressure in tank: pressure Max. pressure (Bar): 0,50 Bar Model: vertical Configuration: single-skin Heat exchanger: no Insulation: no Mobile tank: no Total discharge: yes Max Overpressure: 0,50 Bar Documents included: no Technical drawing included: no Registration plate on the tank: no Flange for agitator: no Position of manway: cylinder Outlet of tank: 50 Top: 3 mm Cylinder: 2,50 mm Bottom: 4 mm Outer diameter tank: 2.605 mm Cylinder height: 4.250 mm Total height of tank: 5.600 mm
