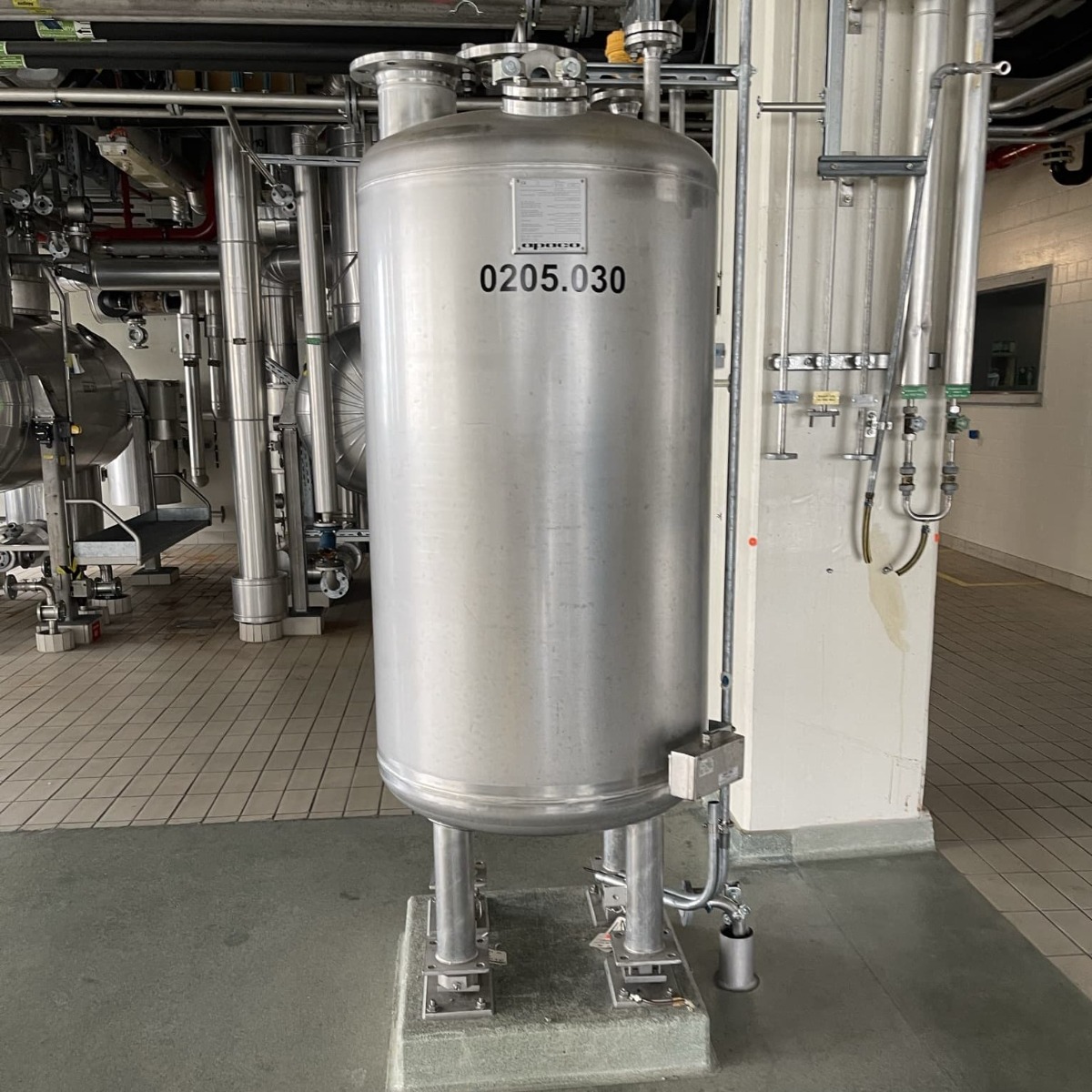

740 liter tank i Syrafast 316

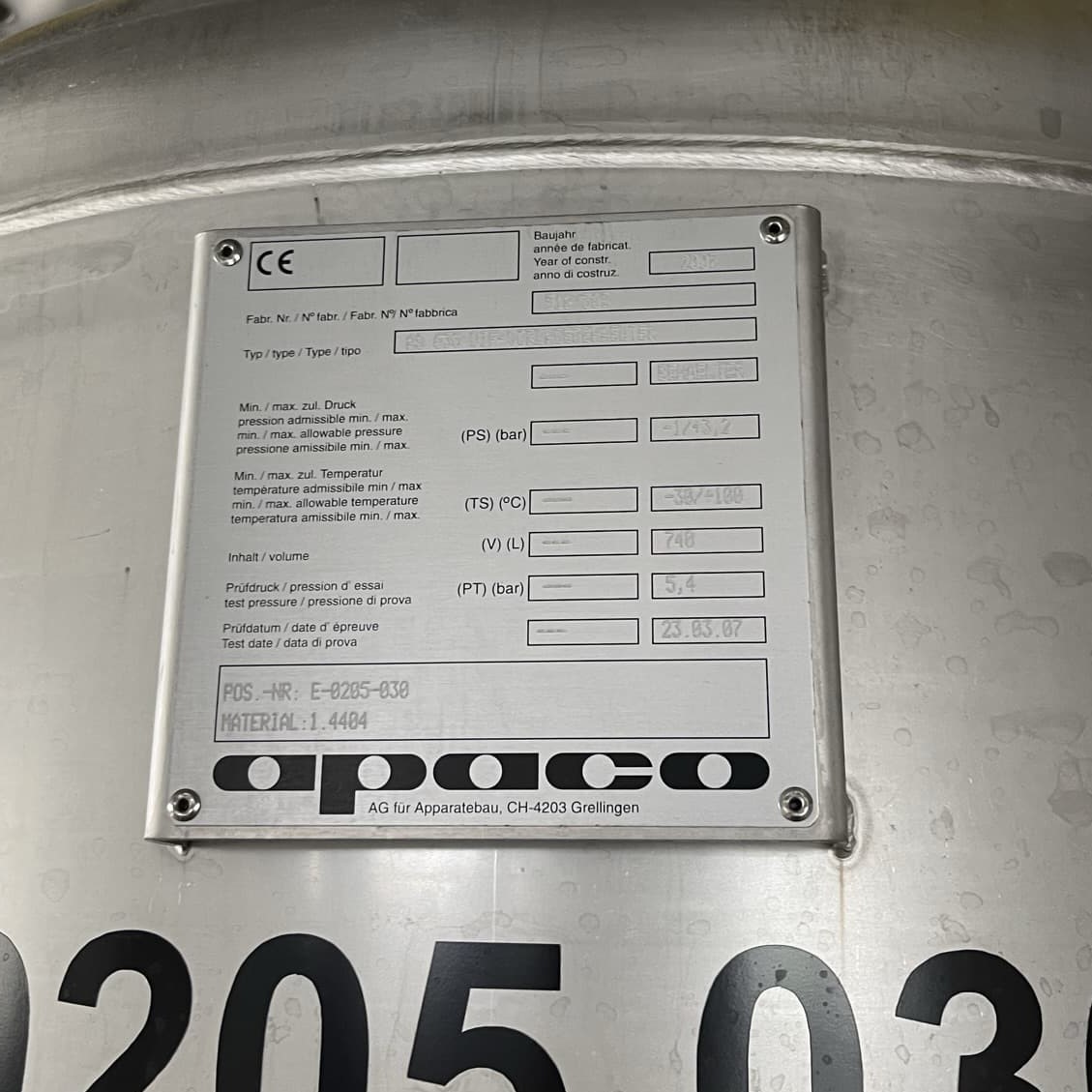

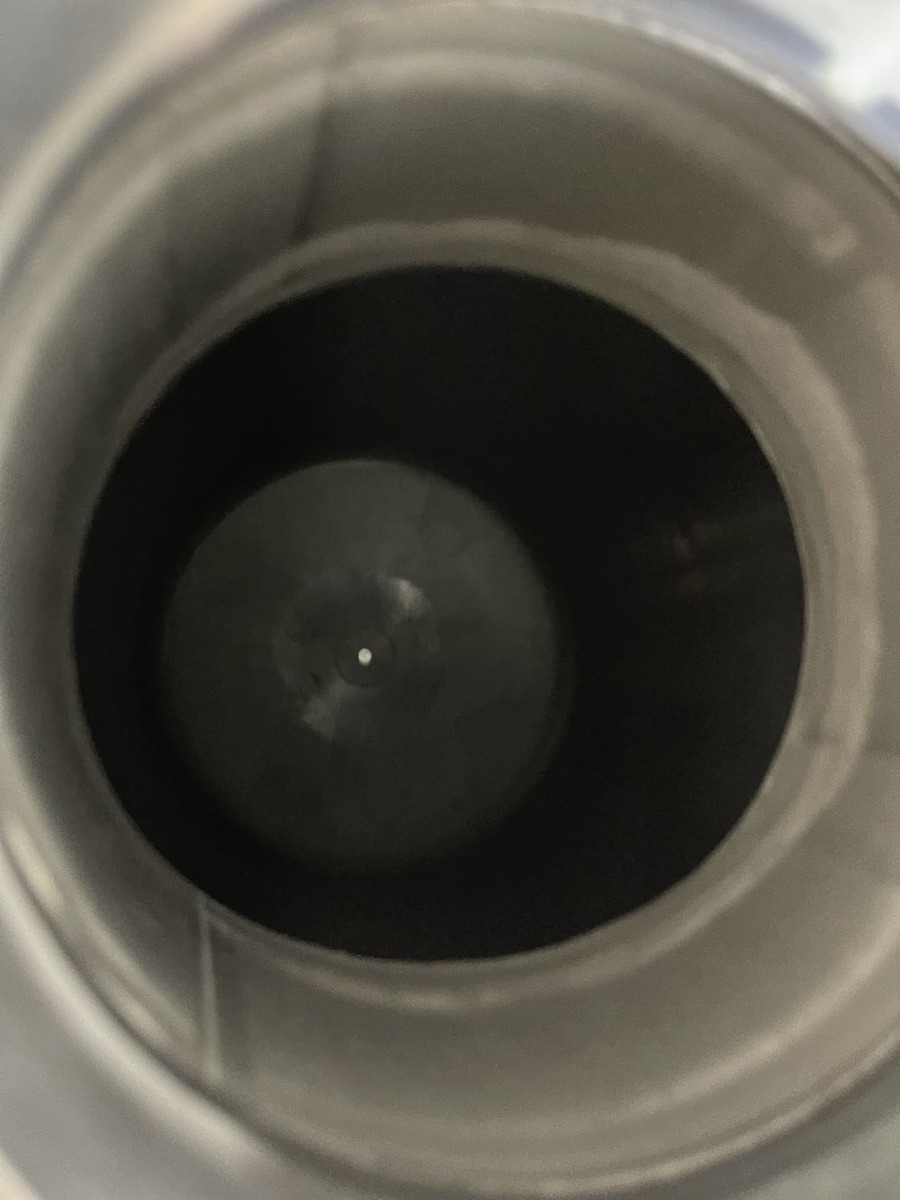

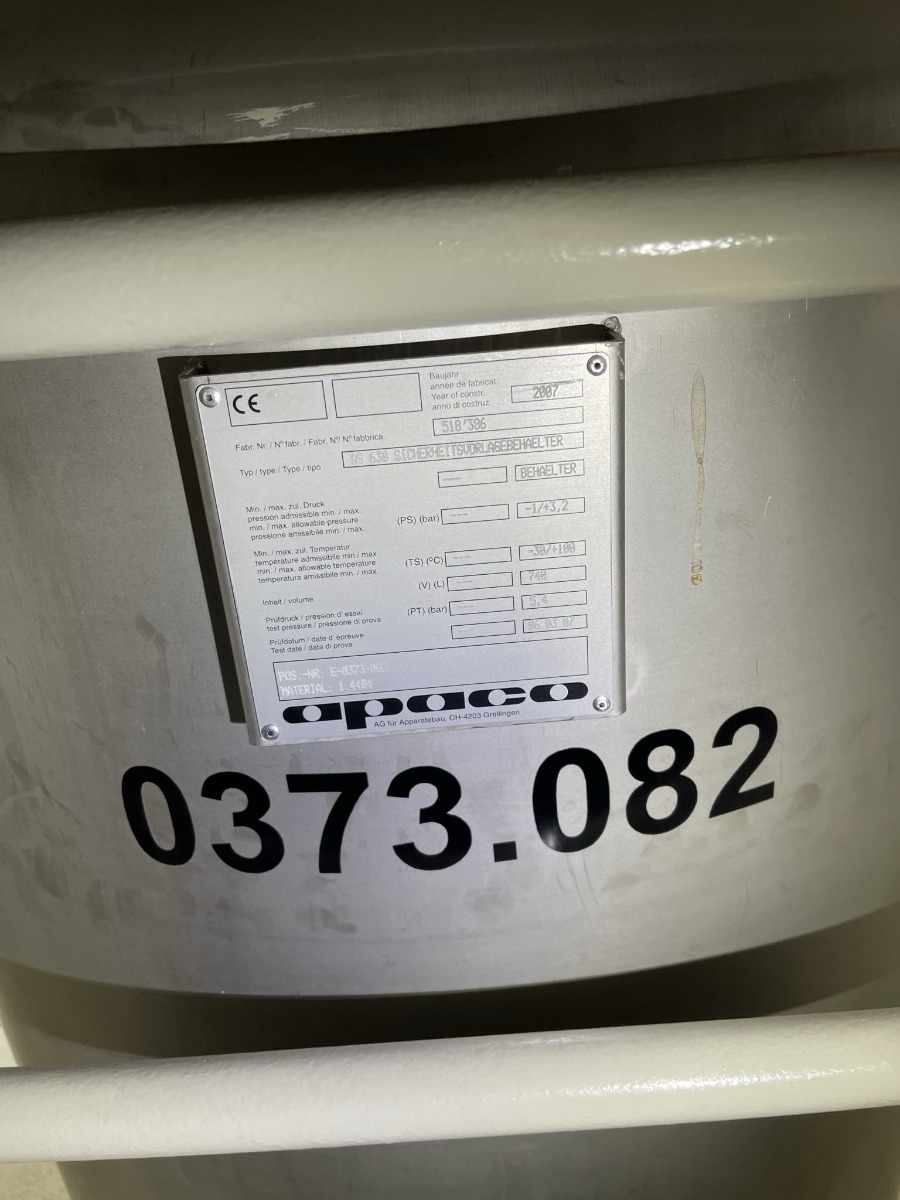

Additional information: Pharmaceutical chemistry; Technical documents only available for one of the two identical tanks; Hand hole DN 150 (the hand hole cover is missing on one of the two tanks); Total height of one tank approx. 2,000 mm, the other tank is slightly higher at approx. 2,120 mm due to a fitting Volumetric volume (L): 740 L Pressure in tank: pressure and vacuum Max. pressure (Bar): 3,20 Bar Min. pressure (Bar): 1 Bar Max. temperature (°C): 100 °C Material wet parts: SS AISI 316 (V4A) Model: vertical Configuration: single-skin Heat exchanger: no Insulation: no Mobile tank: no Total discharge: yes Max Overpressure: 3,20 Bar Max onderdruk: 1 Bar Documents included: no Technical drawing included: no Registration plate on the tank: yes Flange for agitator: no Outlet of tank: flange DN25 Cylinder: 4 mm Bottom: 4 mm Internal diameter tank: 800 mm Cylinder height: 1.260 mm Total height of tank: 2.120 mm
