17000 liter tank i Syrafast 316

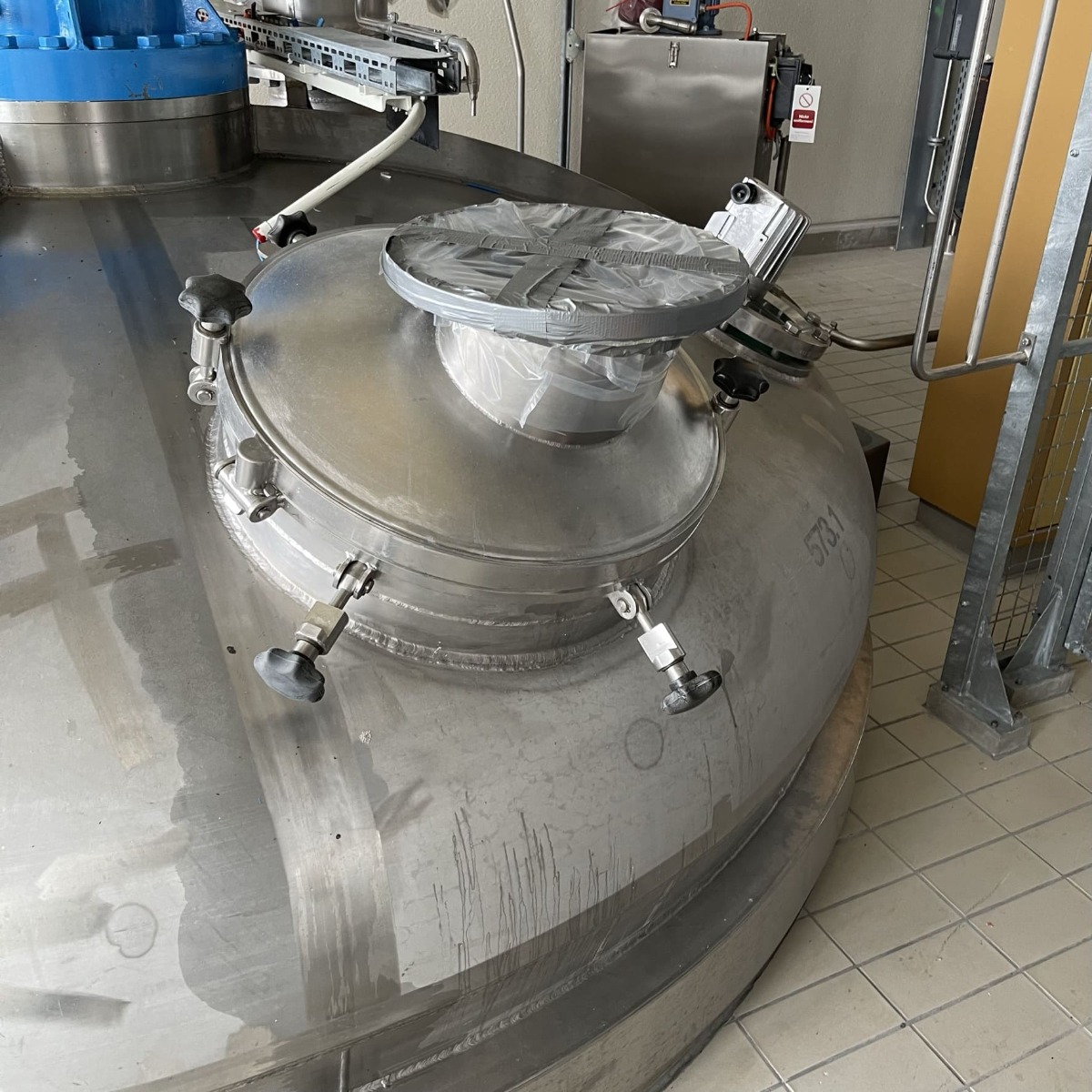

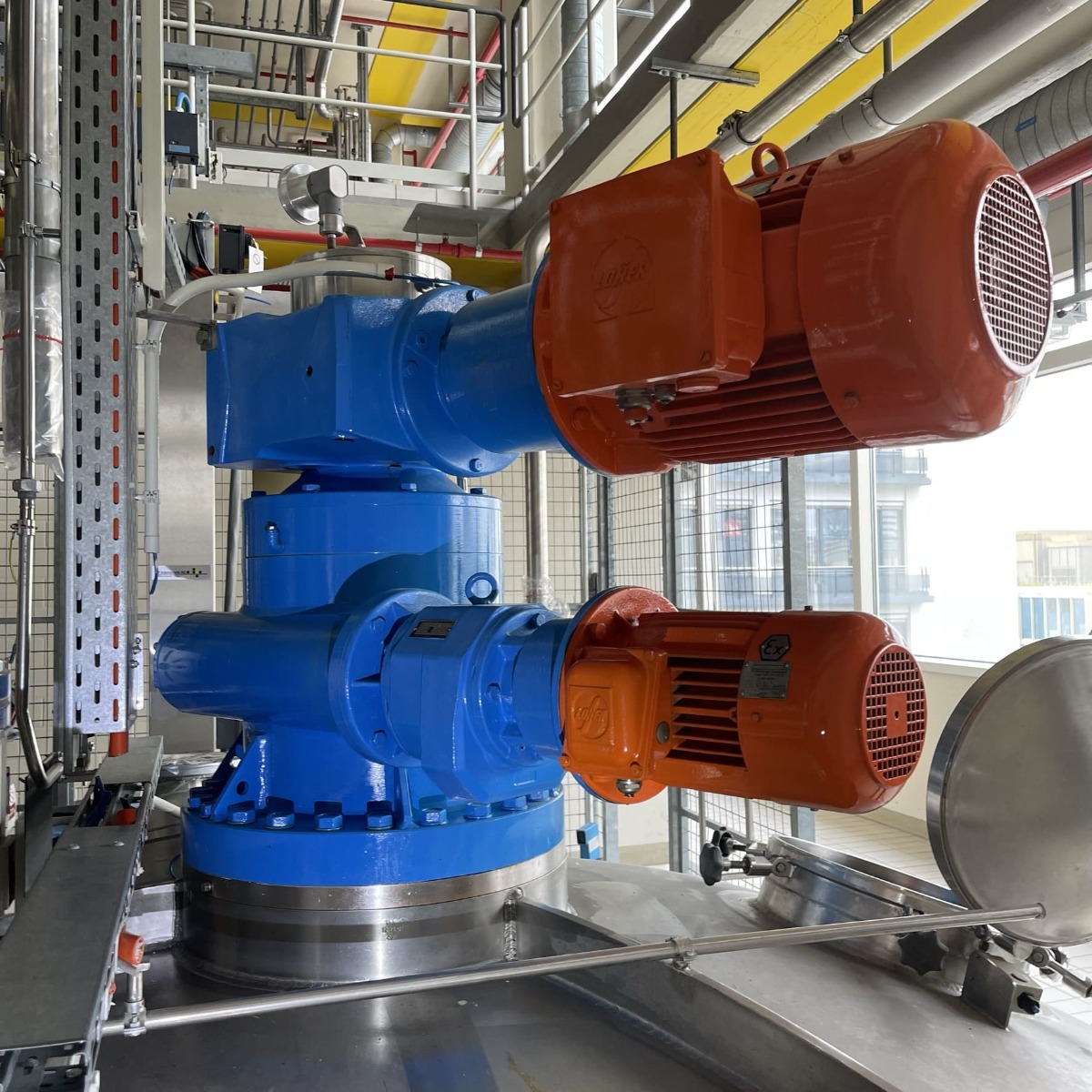

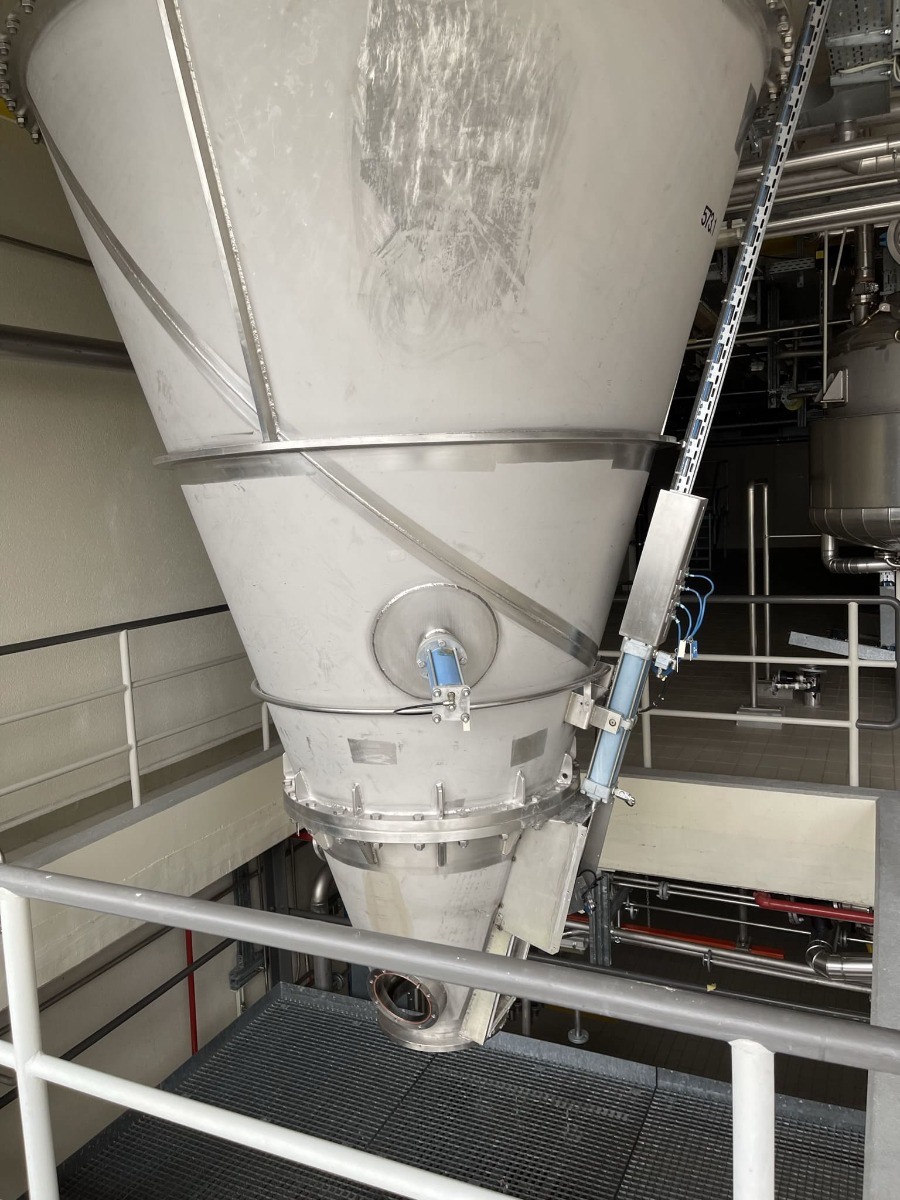

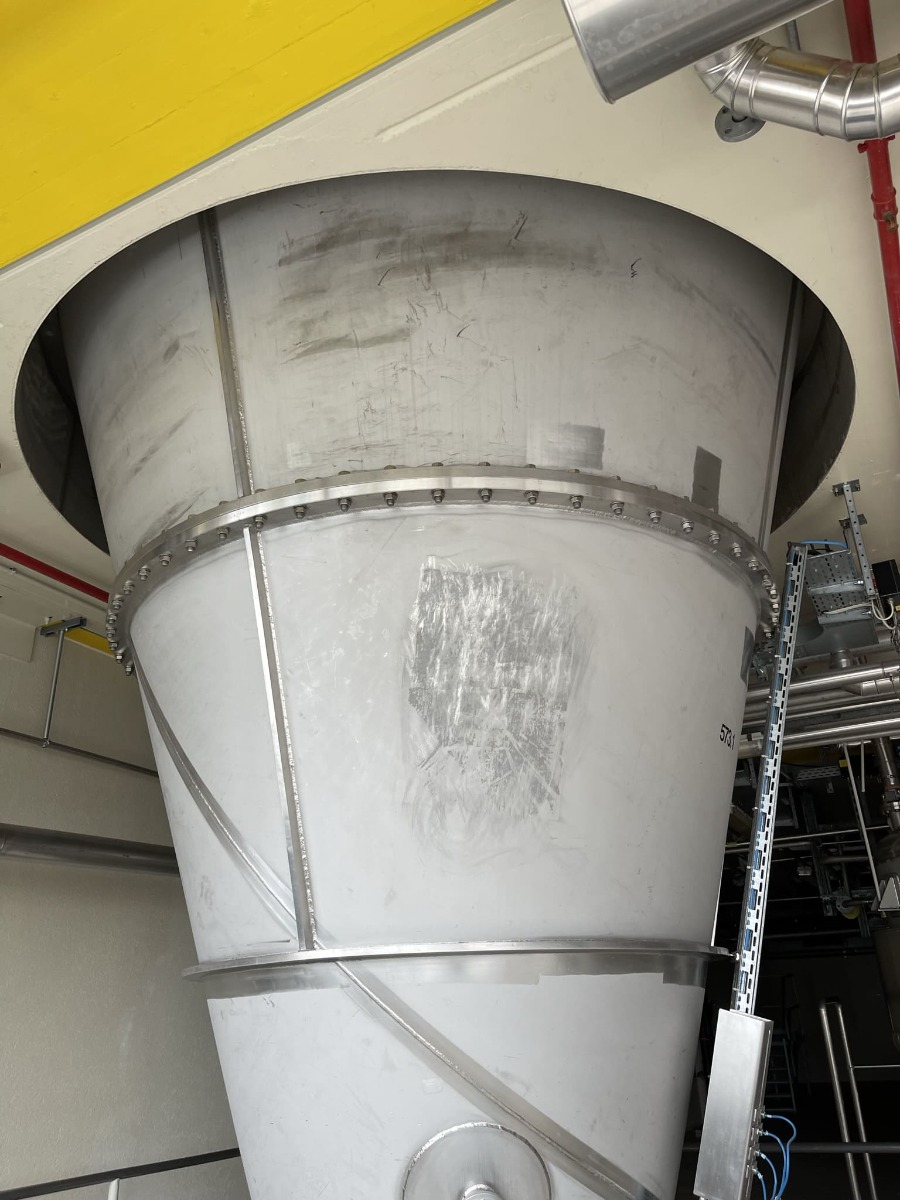

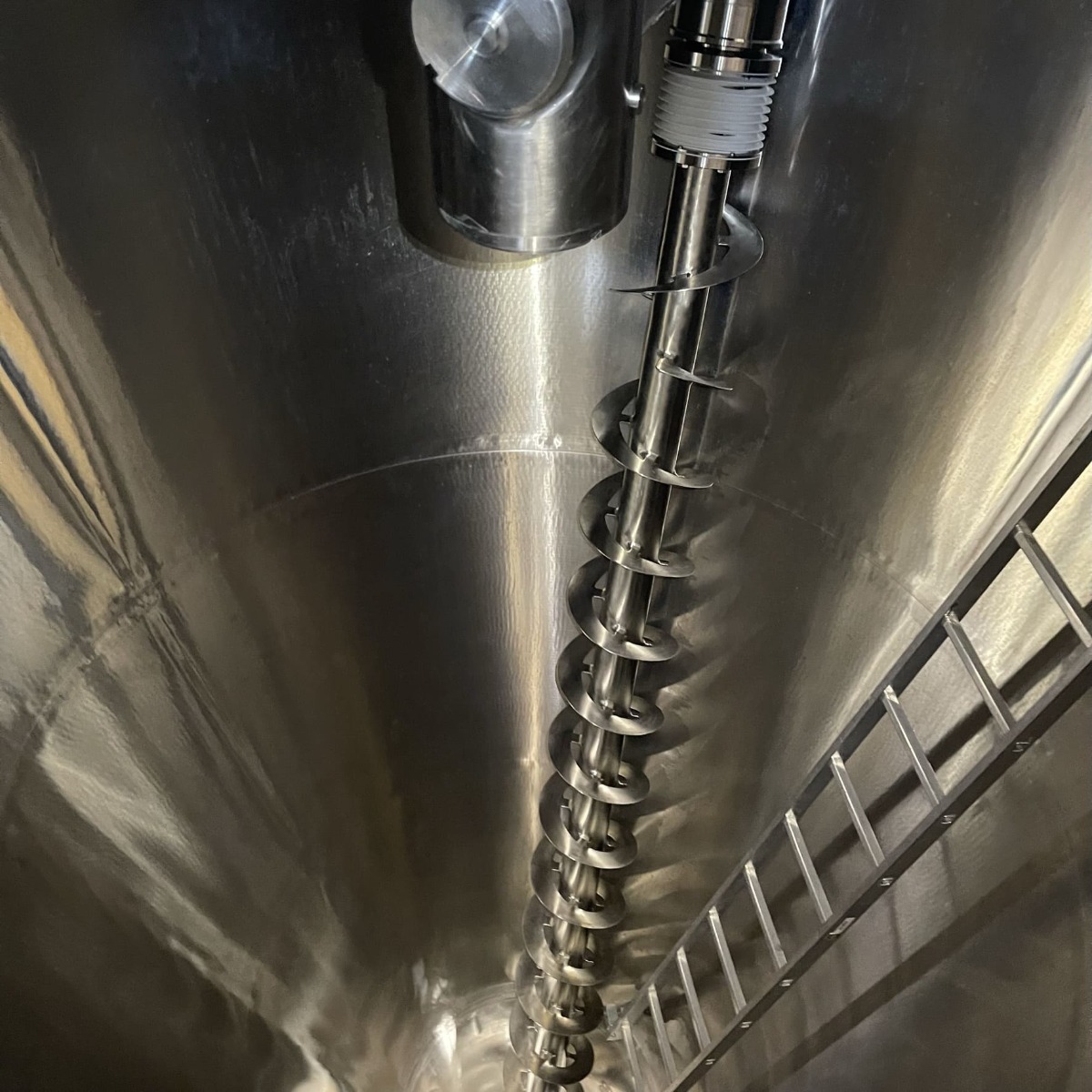

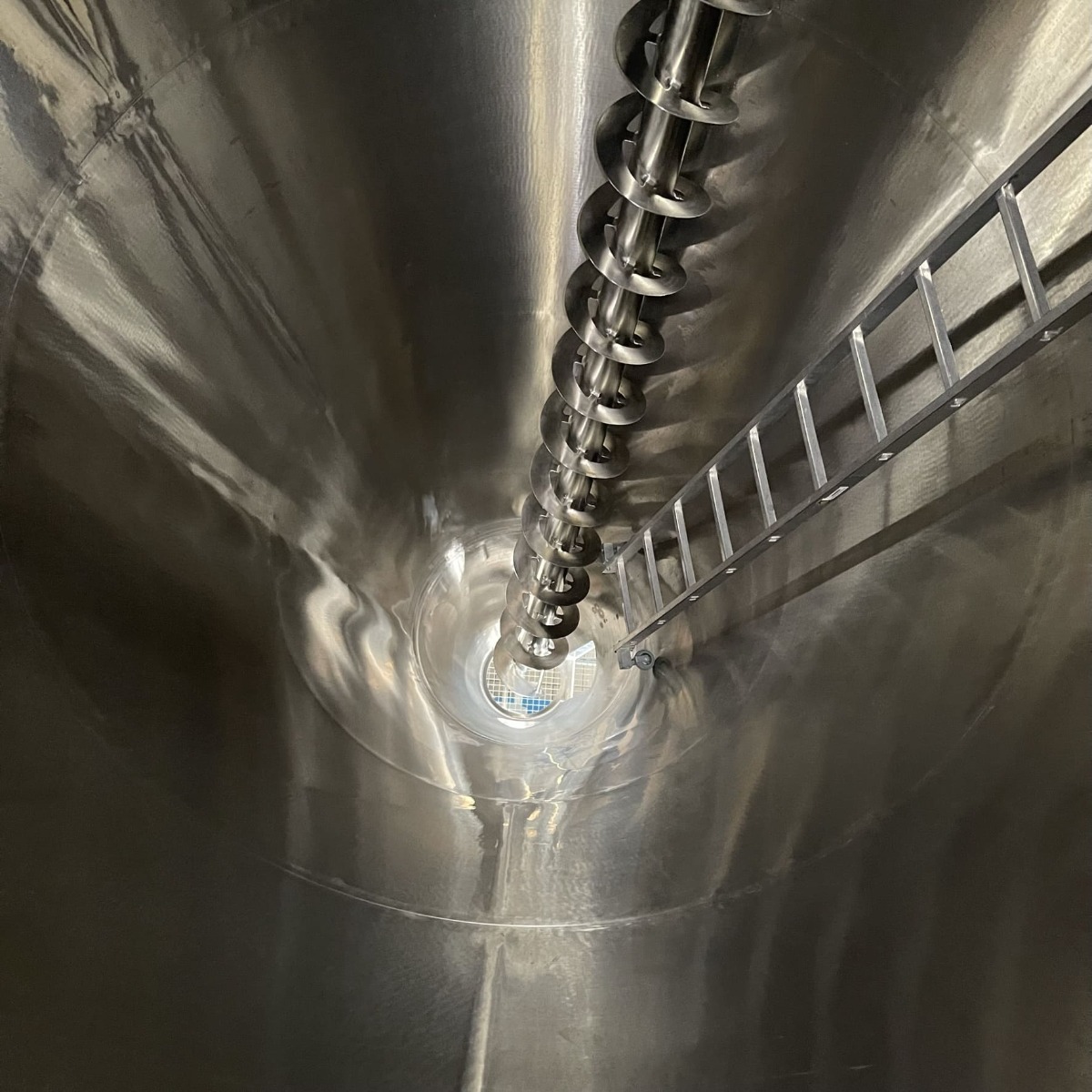

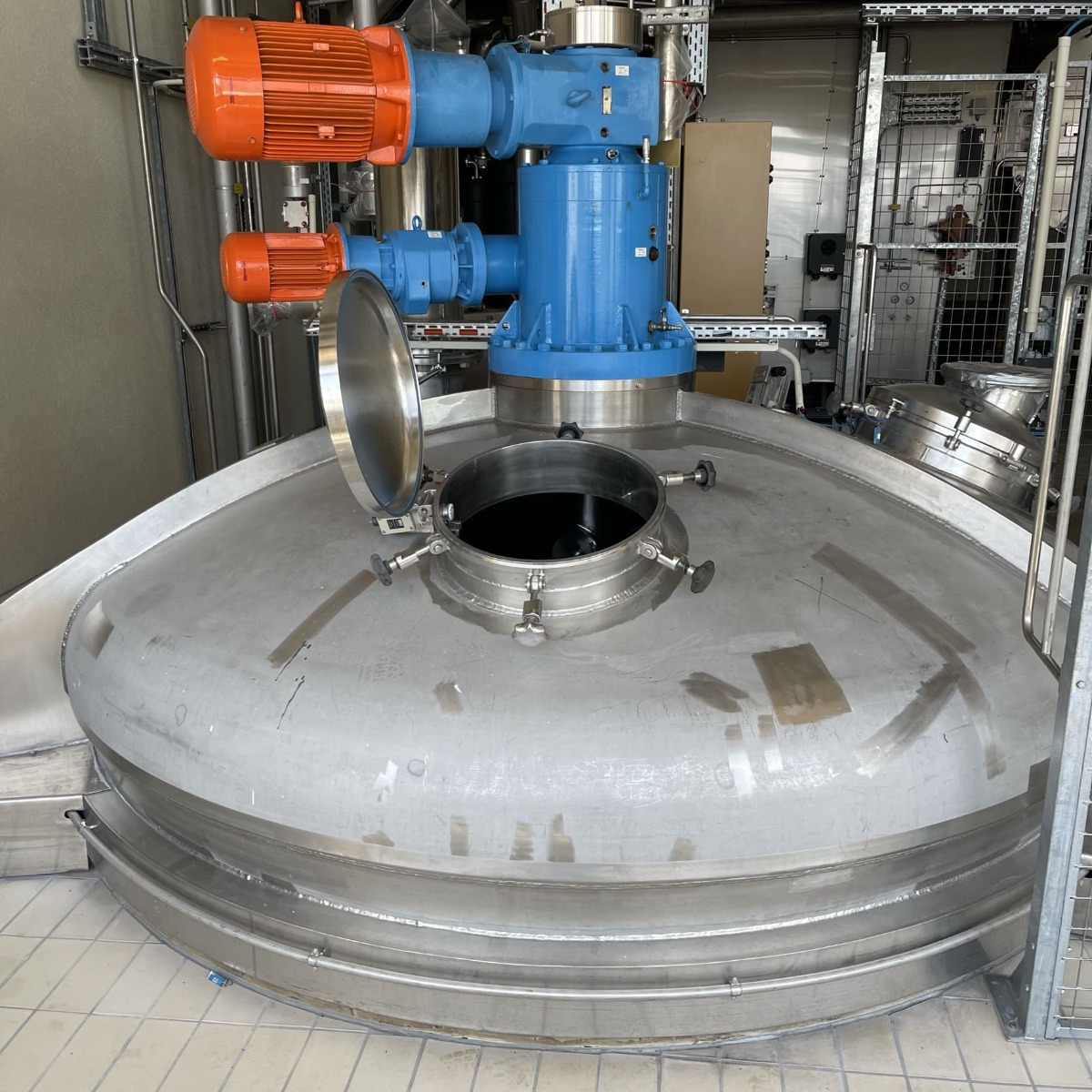

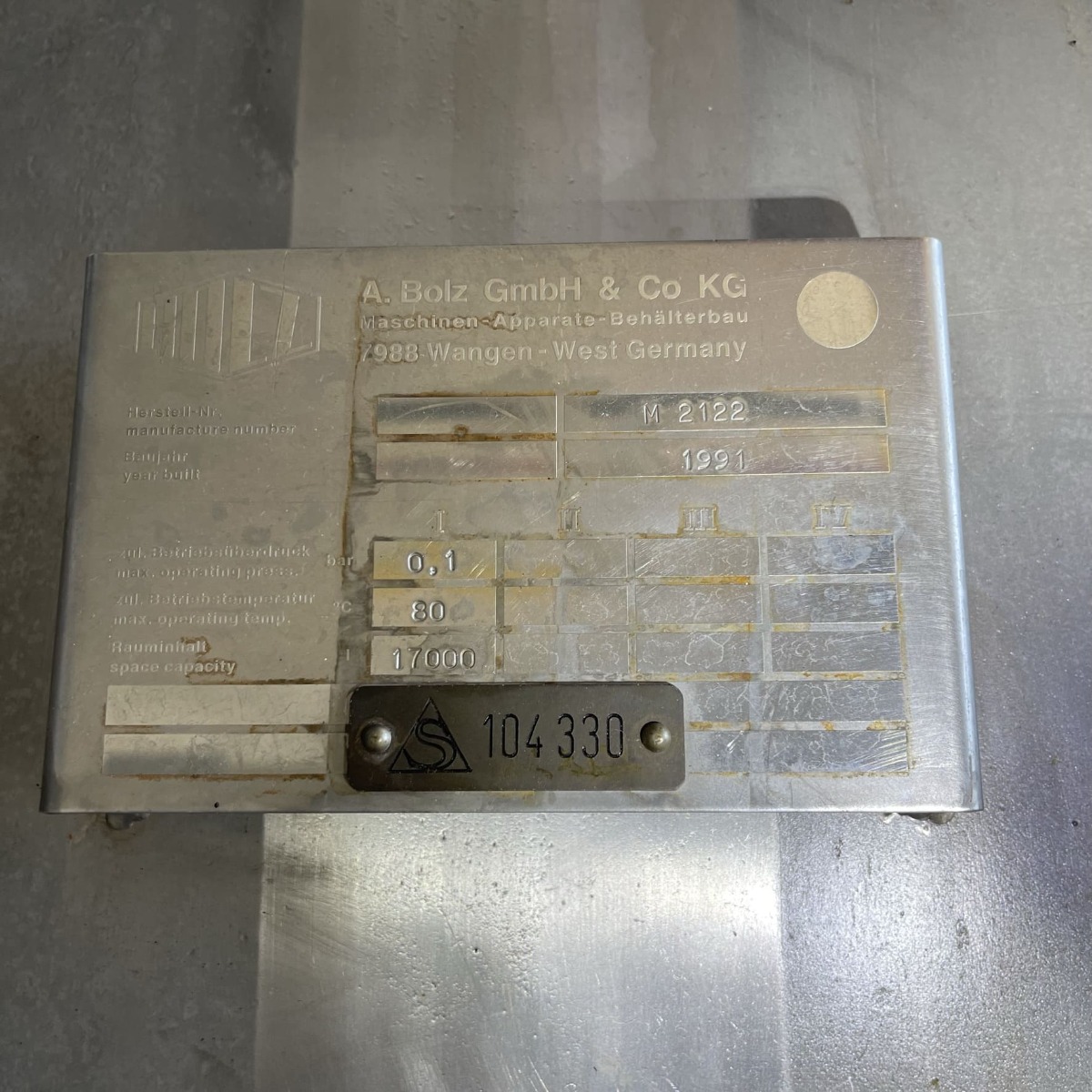

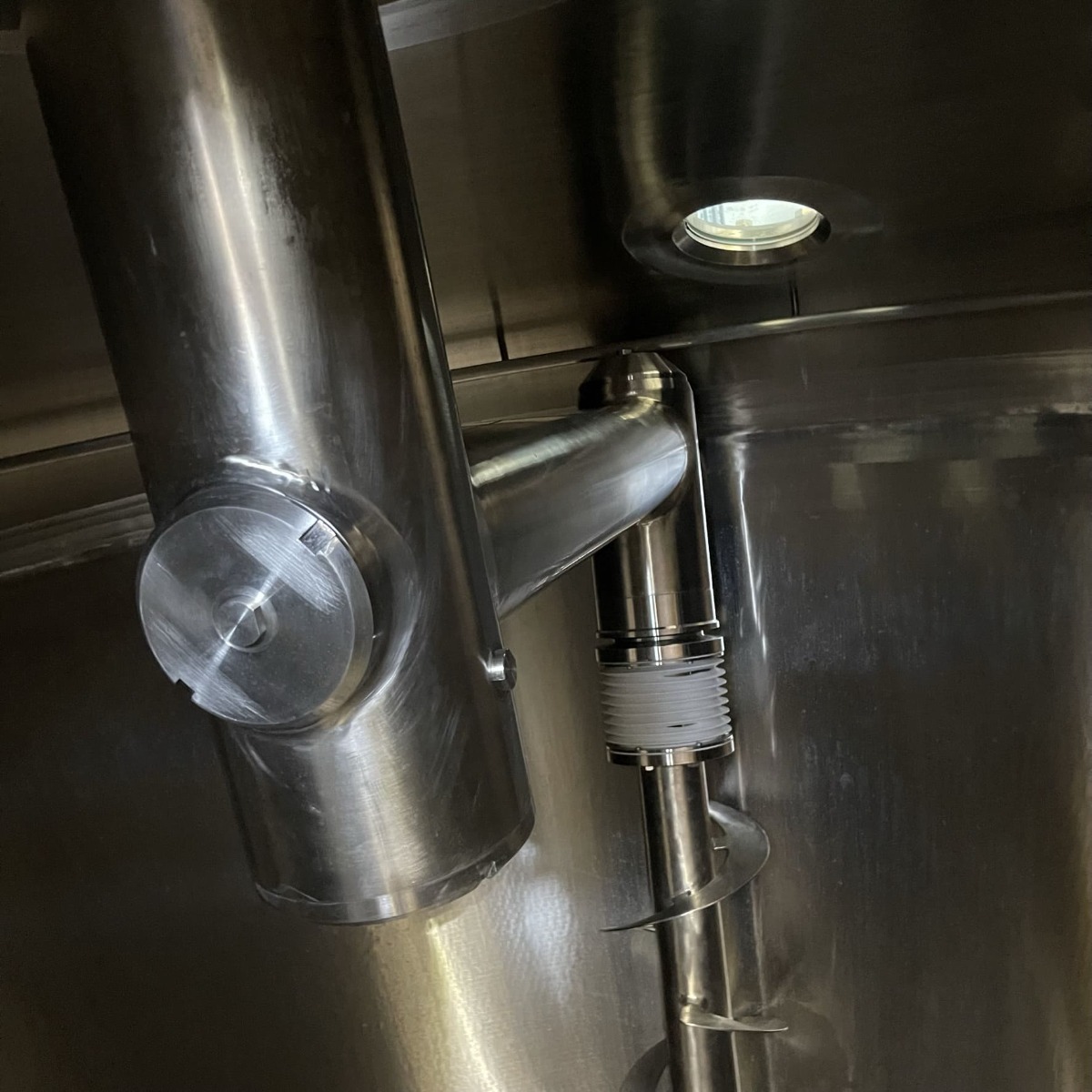

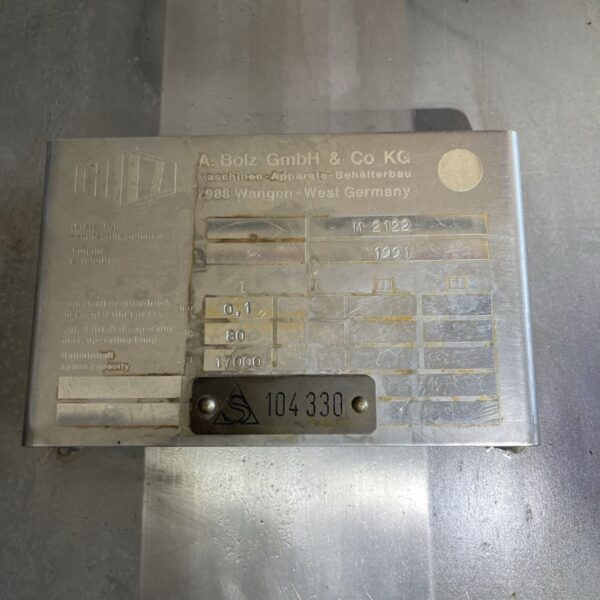

Additional information: Pharmaceutical chemistry; Dismantling not yet included in price, will be quoted based on acutal work performed; The BOLZ conical screw mixer works according to the proven principle of a rotating mixing screw being guided along the wall of the conical vessel at constant close distance by means of an orbital arm. The product flow maintains an intense yet gentle mixing and product displacement. Suited for demanding bulk solids of the pharmaceutical, chemical and food industries, it ensures a unique and gentle mixing process. Volumetric volume (L): 17.000 L Pressure in tank: pressure and vacuum Max. pressure (Bar): 0,10 Bar Min. pressure (Bar): 0,10 Bar Max. temperature (°C): 80 °C Model: vertical Configuration: single-skin Heat exchanger: no Insulation: no Mobile tank: no Total discharge: no Max Overpressure: 0,10 Bar Max onderdruk: 0,10 Bar Documents included: no Technical drawing included: no Registration plate on the tank: yes Flange for agitator: no Position of manway: in the bottom Agitator: yes Top: 15 mm Bottom: 5 mm Internal diameter tank: 3.230 mm Total height of tank: 6.850 mm
