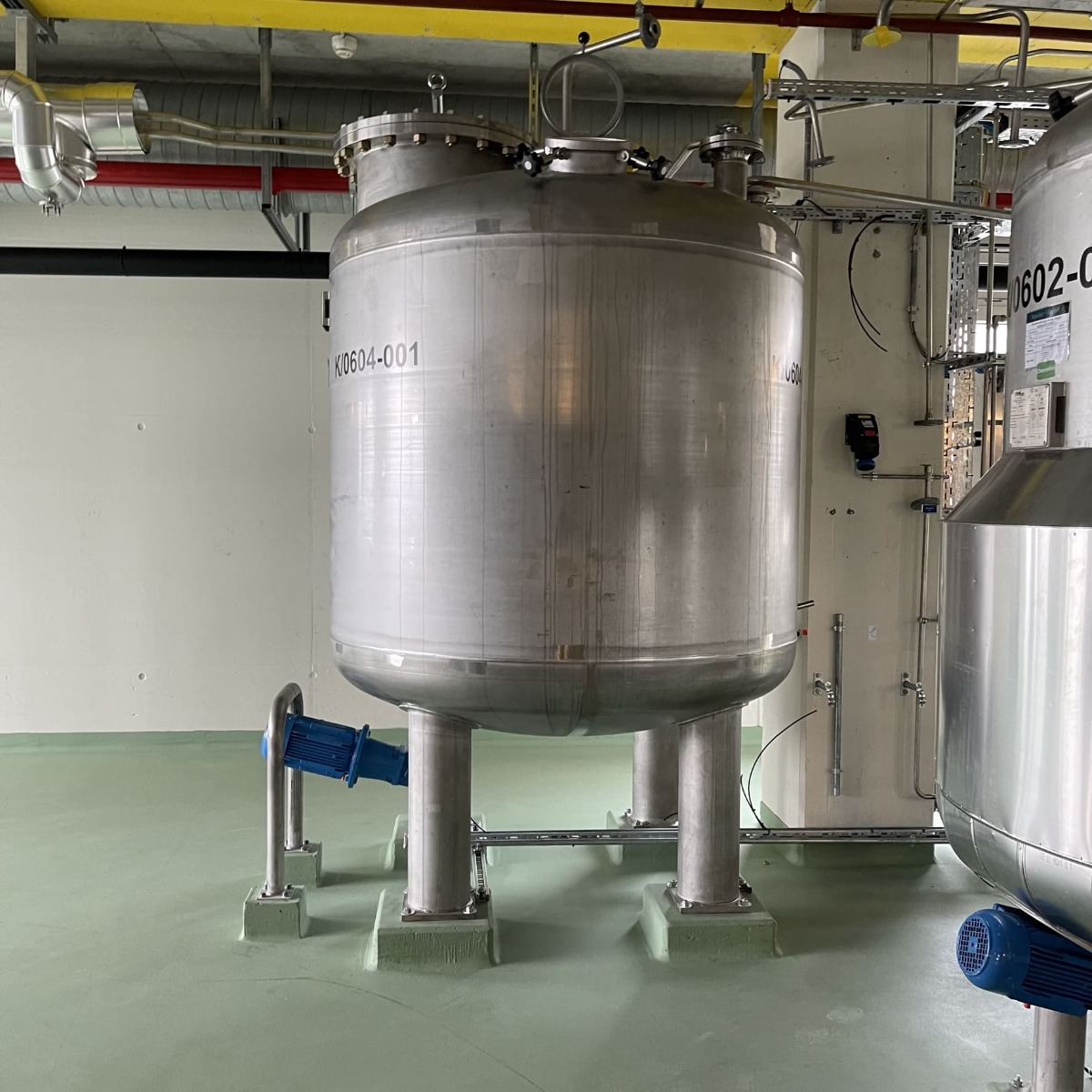

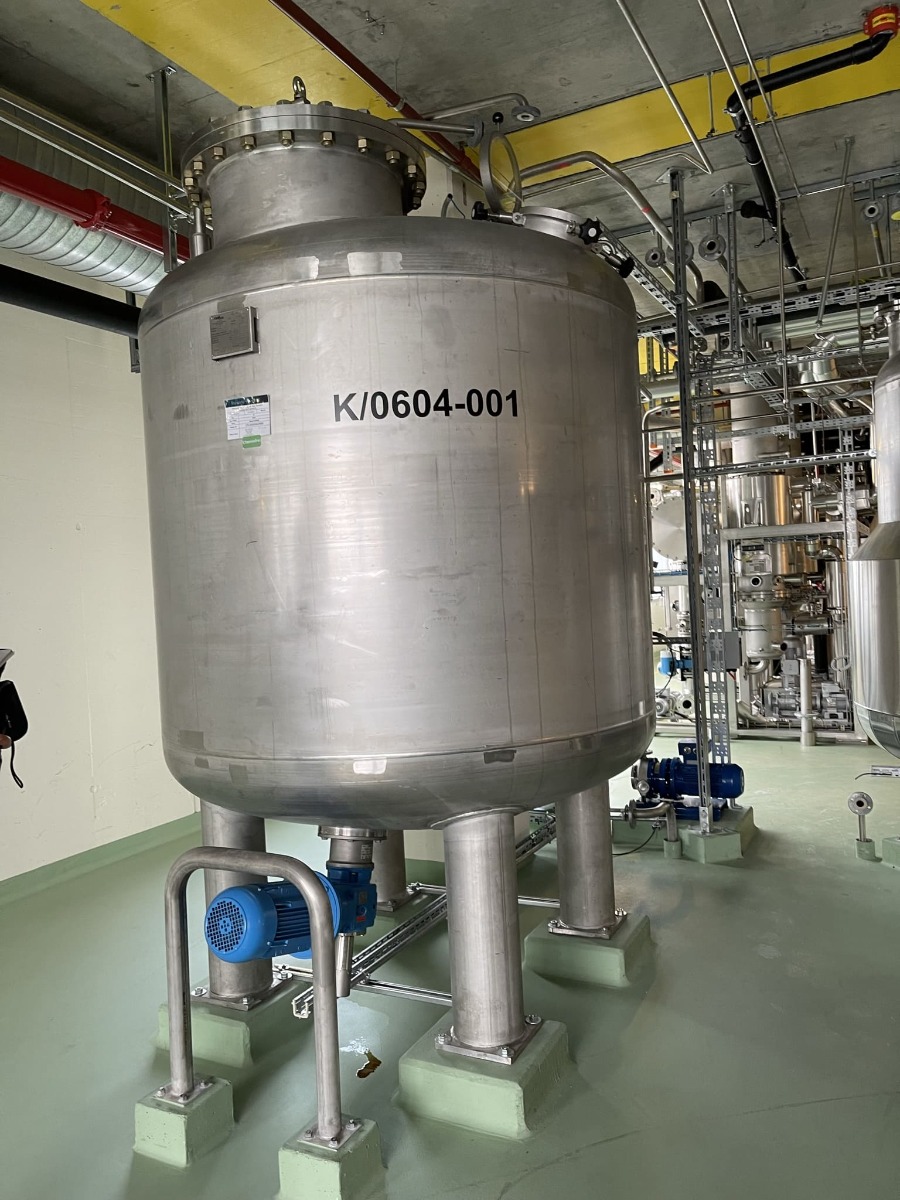

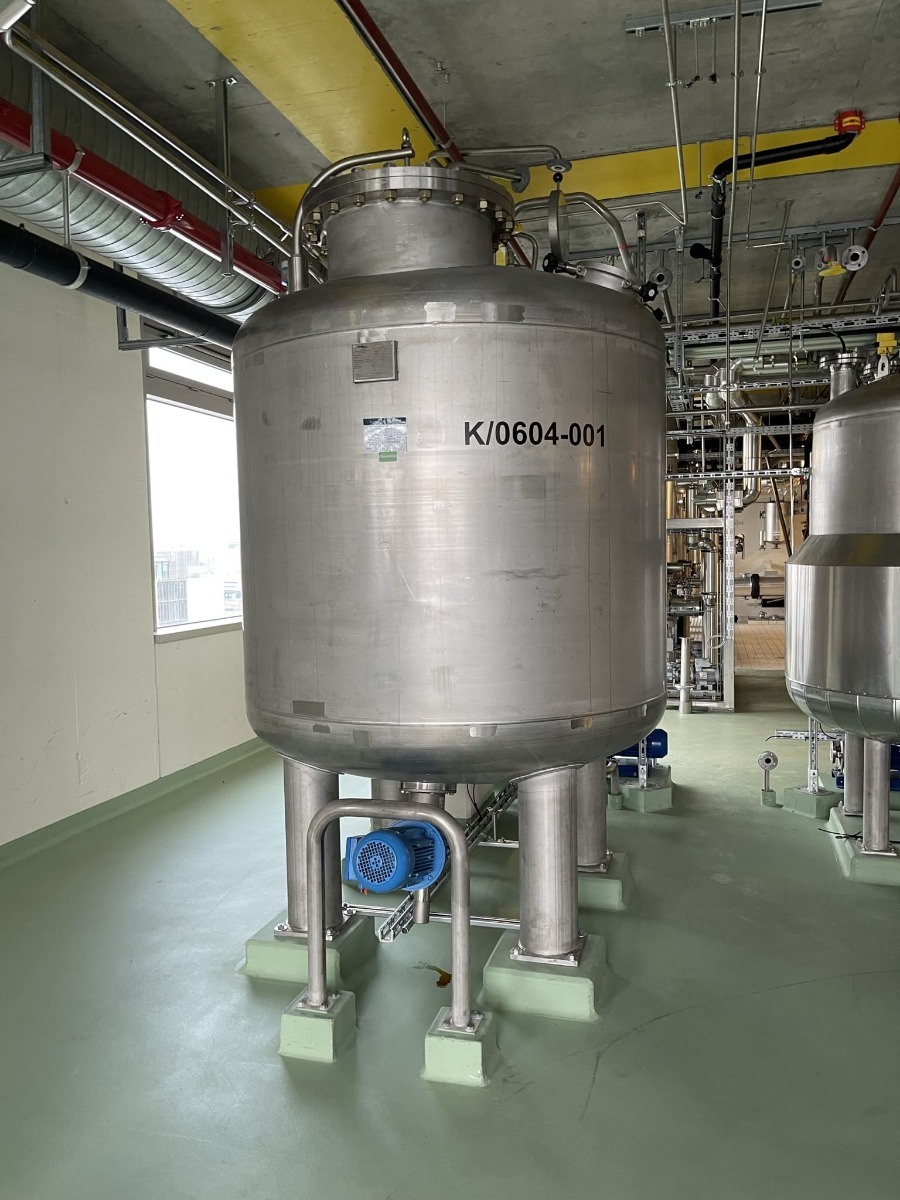

4630 liter tank i Syrafast 316

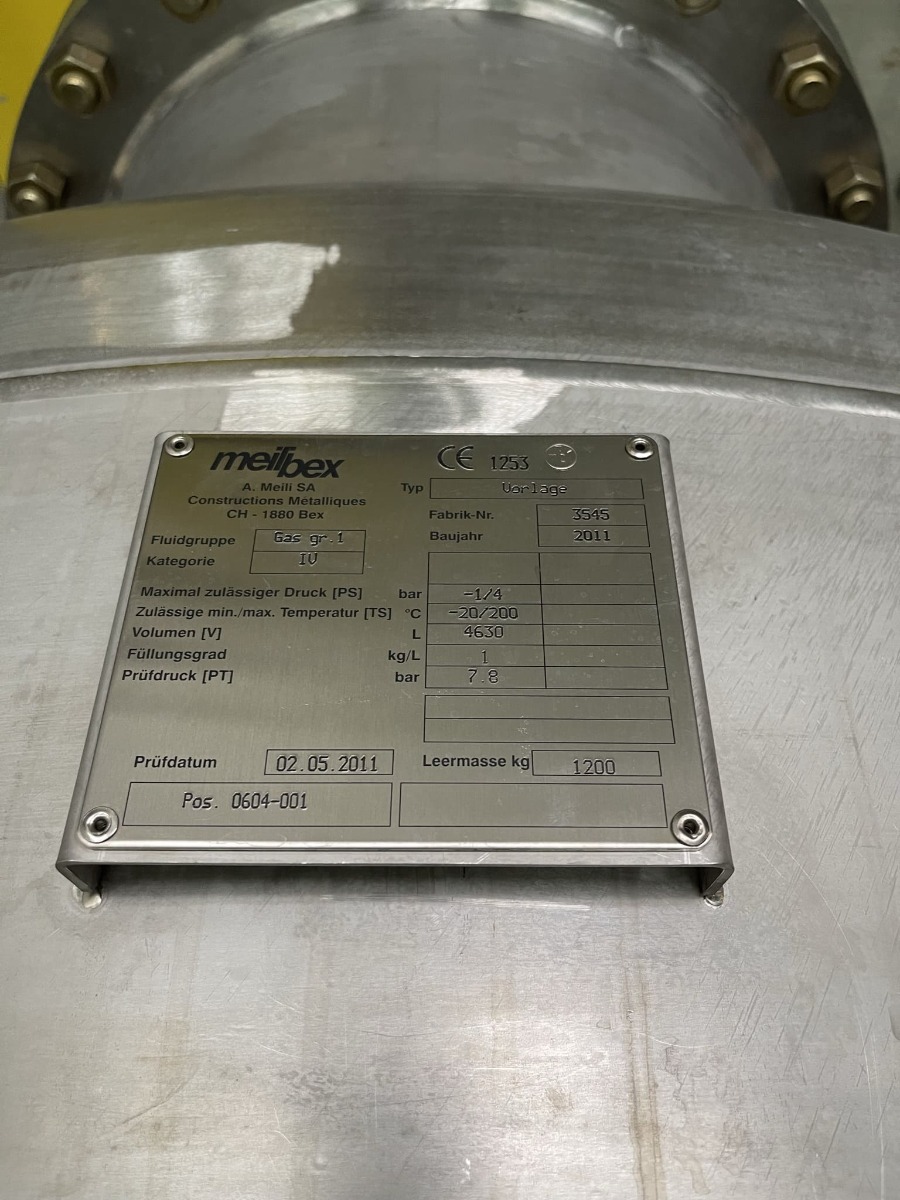

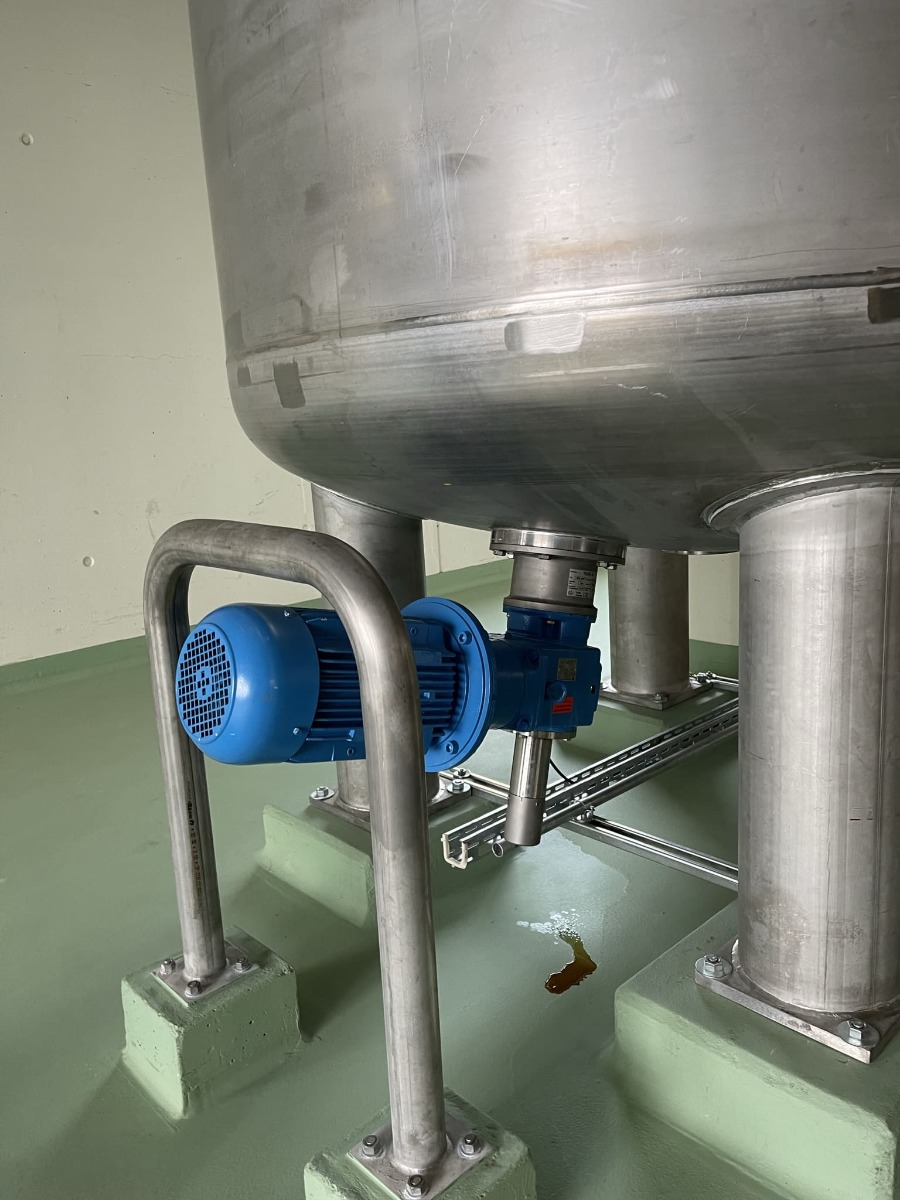

Additional information: Pharmaceutical chemistry; Hand hole diameter 250 mm; Gallow for hanging the manhole cover are missing (see photos) Volumetric volume (L): 4.630 L Pressure in tank: pressure and vacuum Max. pressure (Bar): 4 Bar Min. pressure (Bar): 1 Bar Max. temperature (°C): 200 °C Material wet parts: SS AISI 316 (V4A) Model: vertical Configuration: single-skin Heat exchanger: no Insulation: no Mobile tank: no Total discharge: yes Max Overpressure: 4 Bar Max onderdruk: 1 Bar Documents included: no Technical drawing included: no Registration plate on the tank: yes Flange for agitator: no Position of manway: in the bottom Outlet of tank: flange DN100 Agitator: yes Number of revolutions: 267 Power: 3 Cylinder: 6 mm Bottom: 7,10 mm Internal diameter tank: 1.800 mm Cylinder height: 1.330 mm Total height of tank: 3.100 mm
