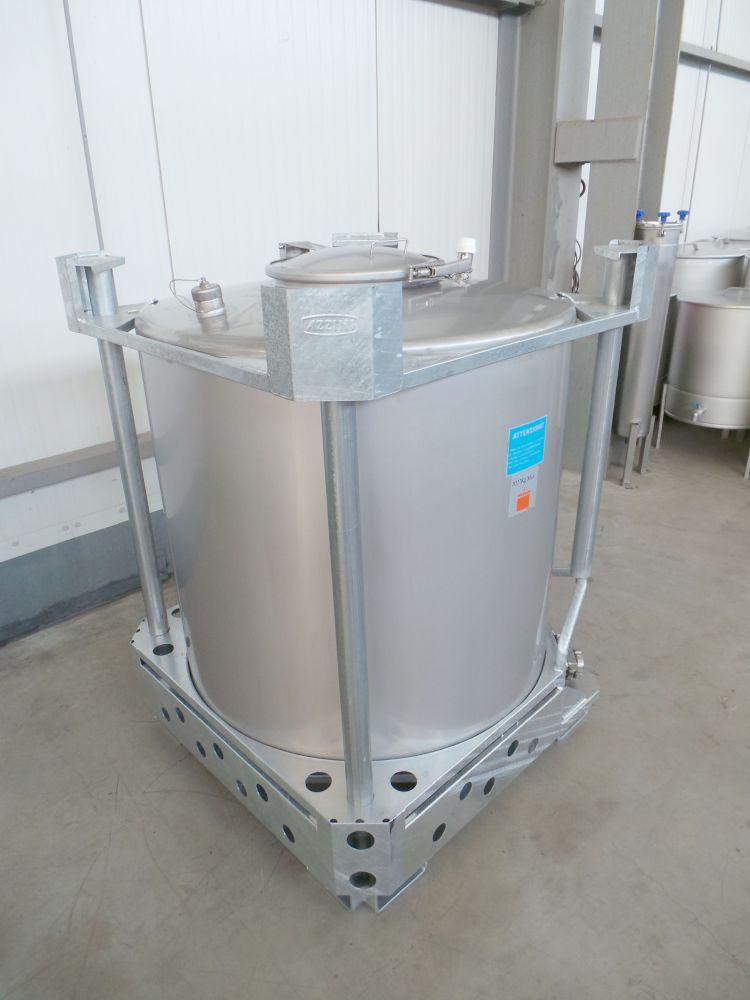

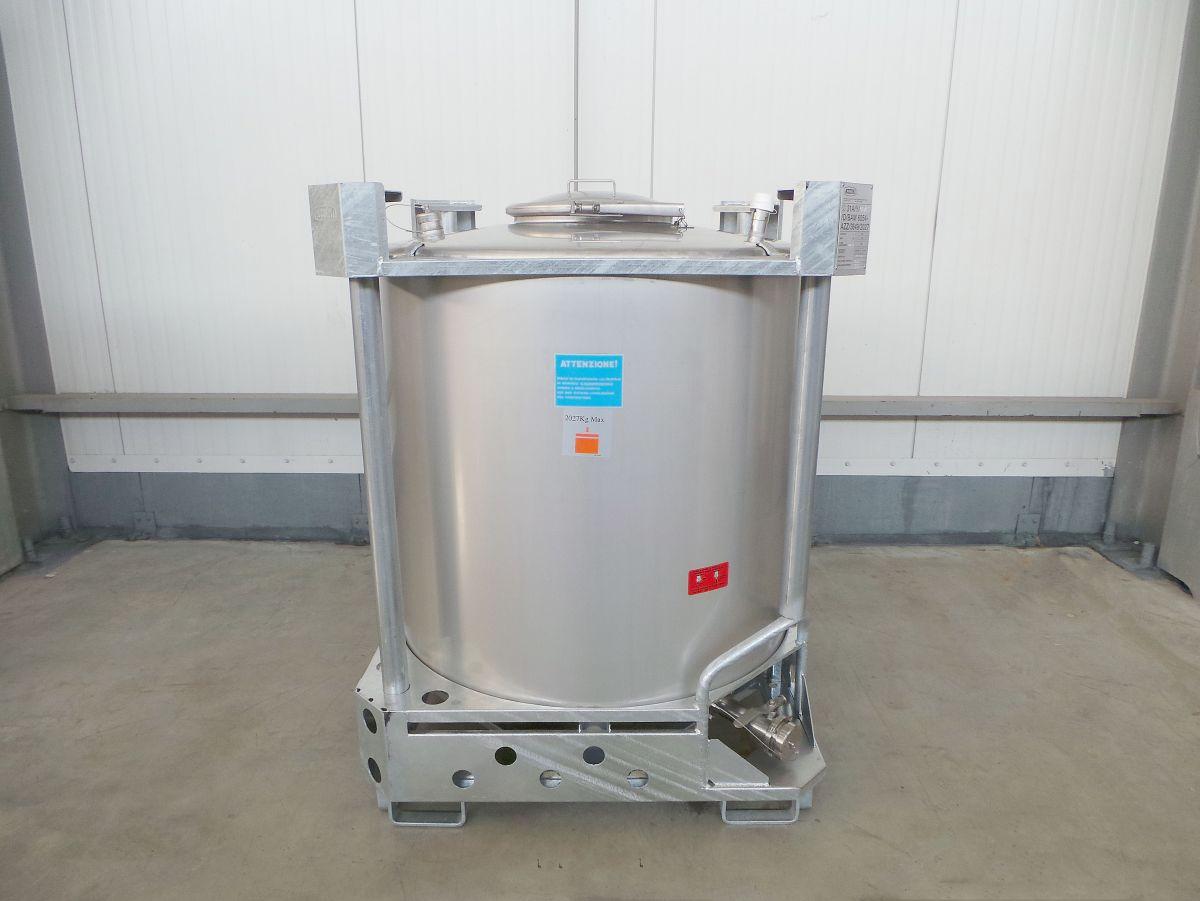

995 liter tank i Rostfritt 304

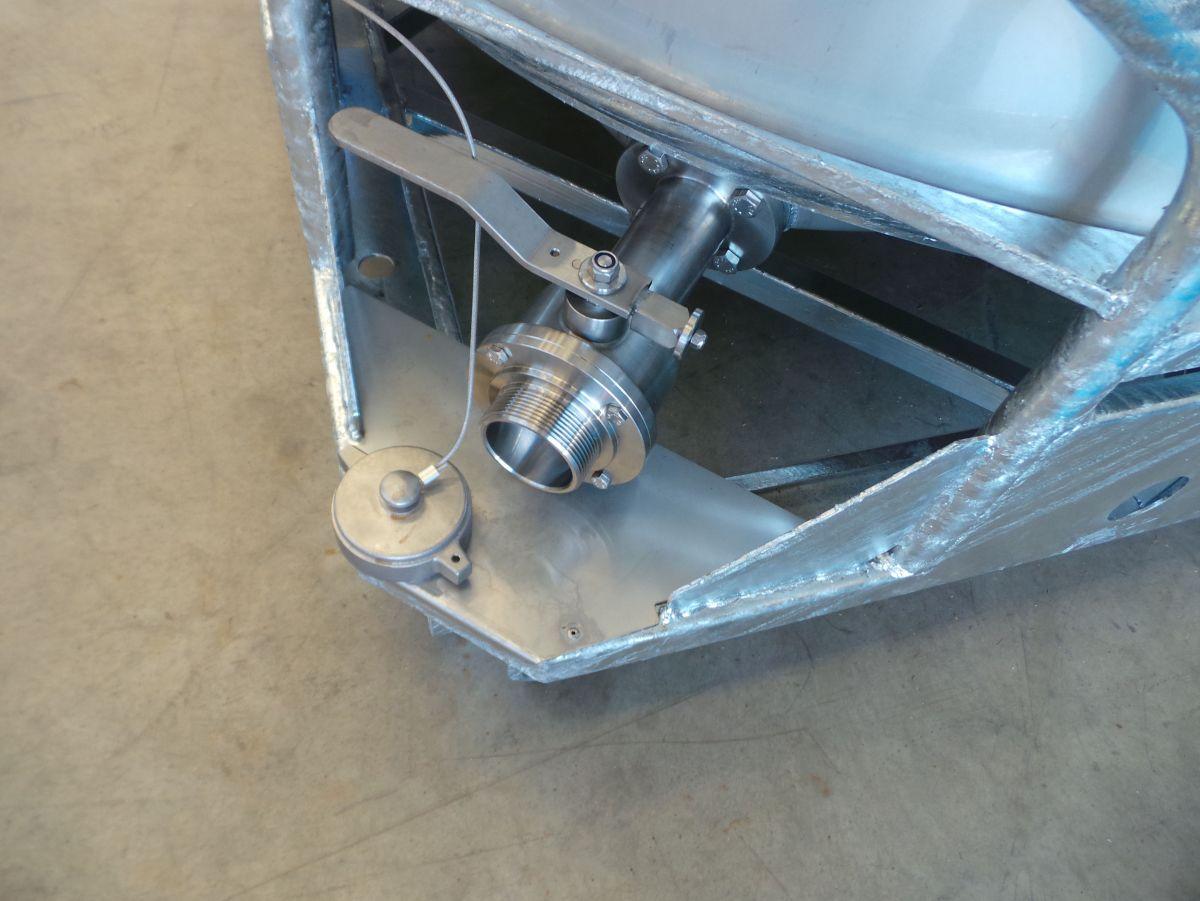

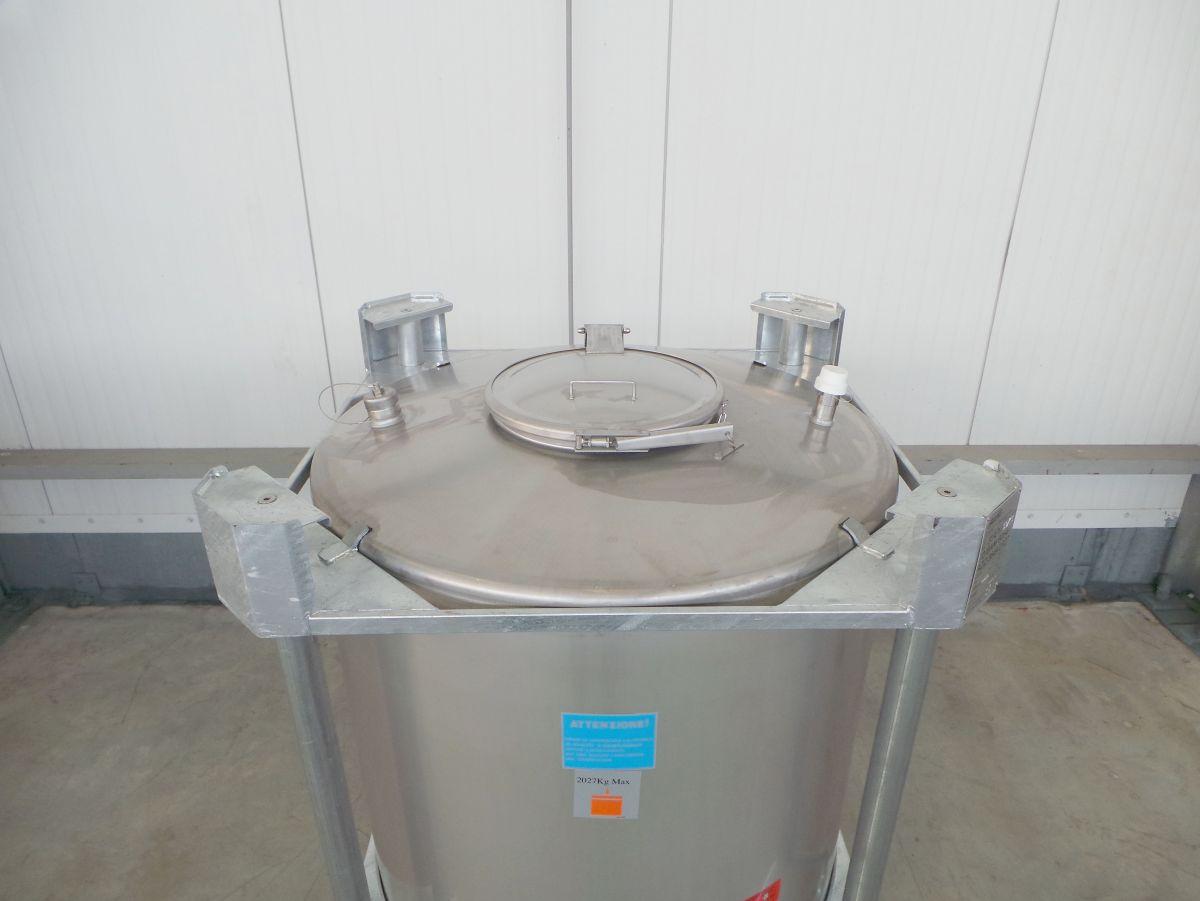

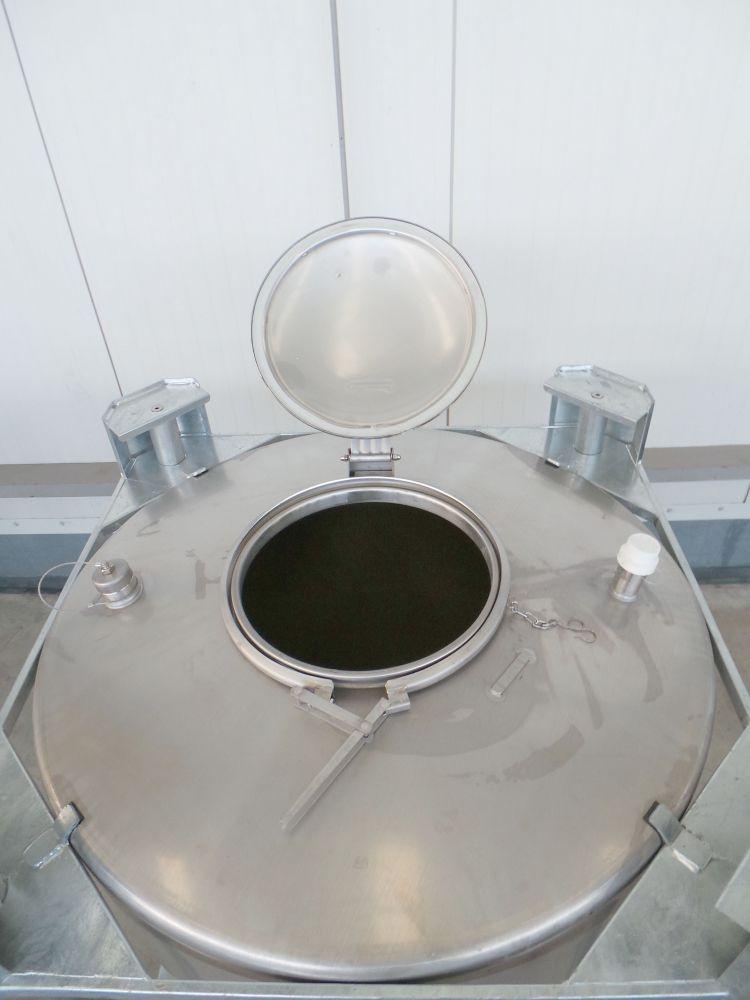

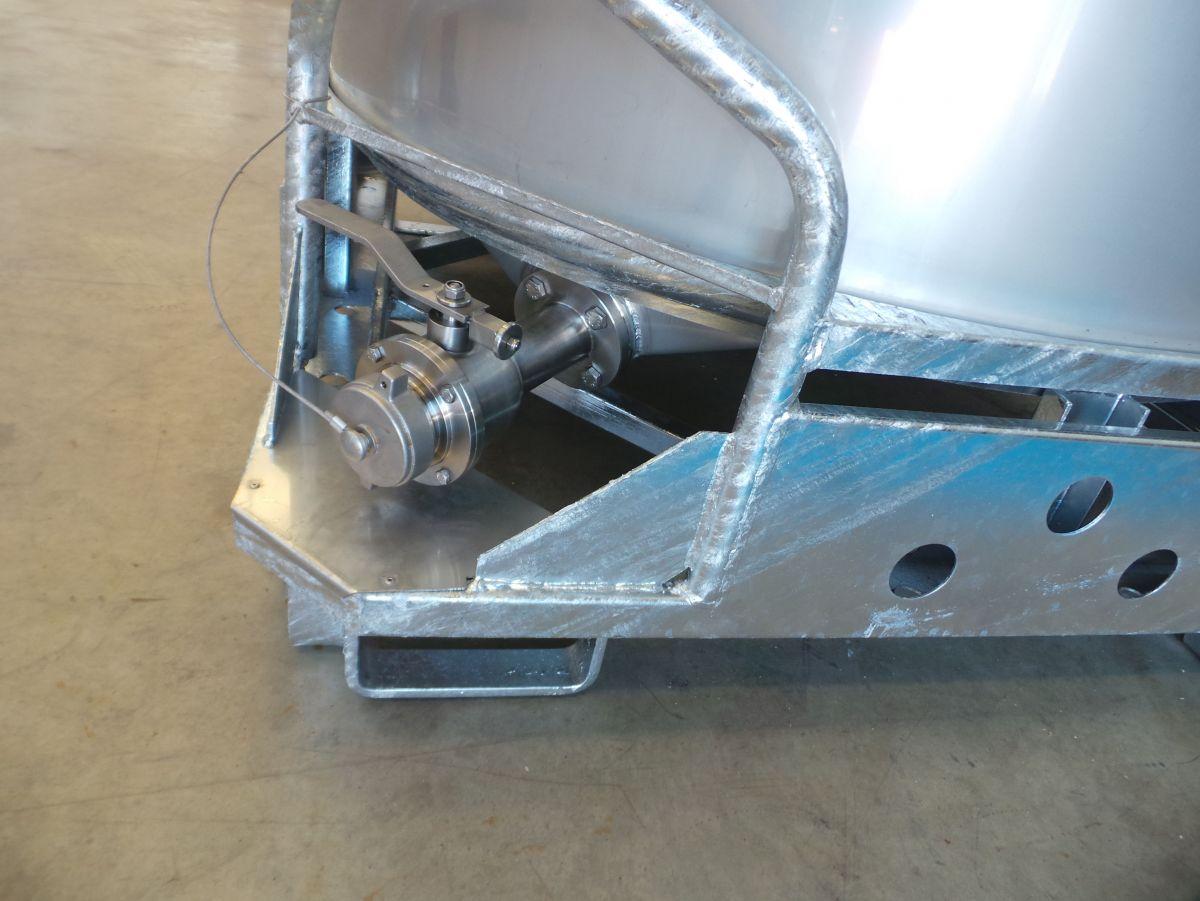

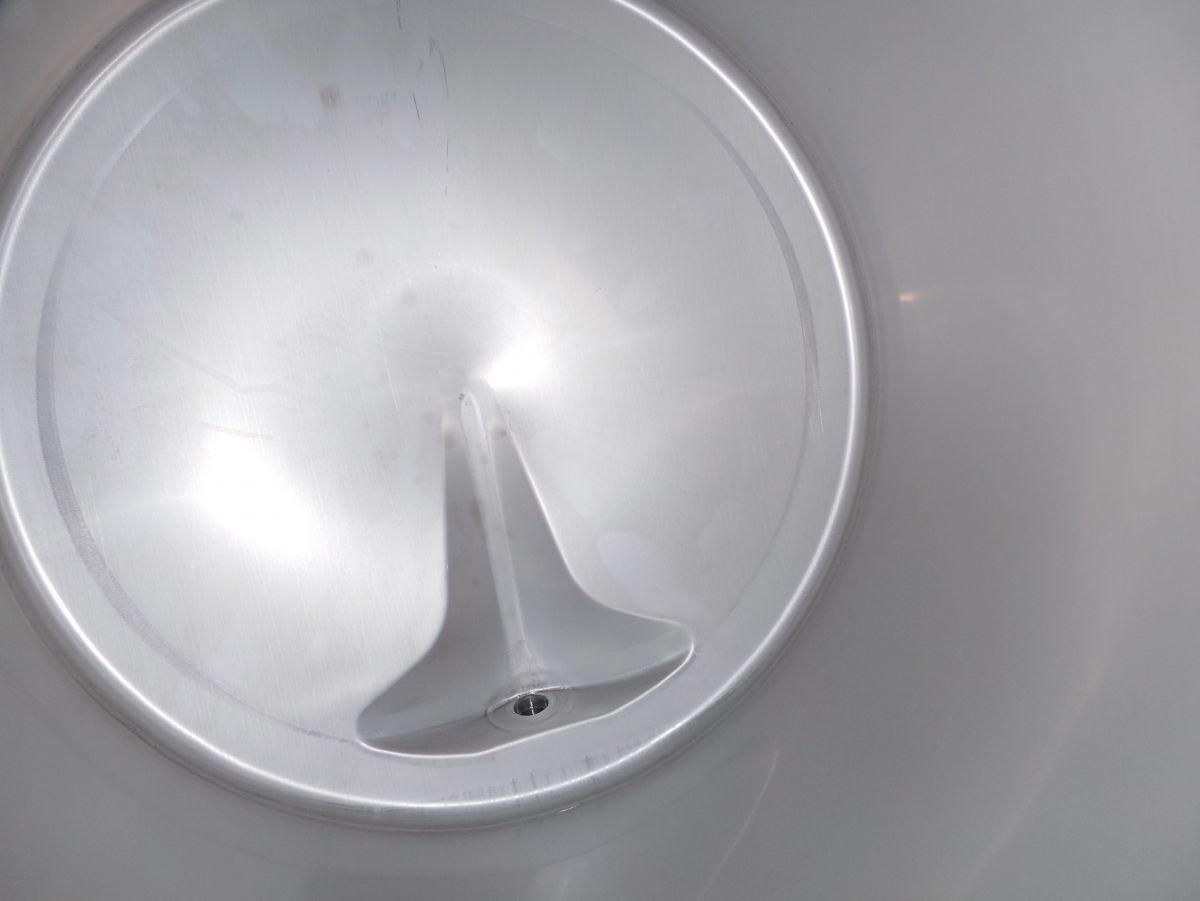

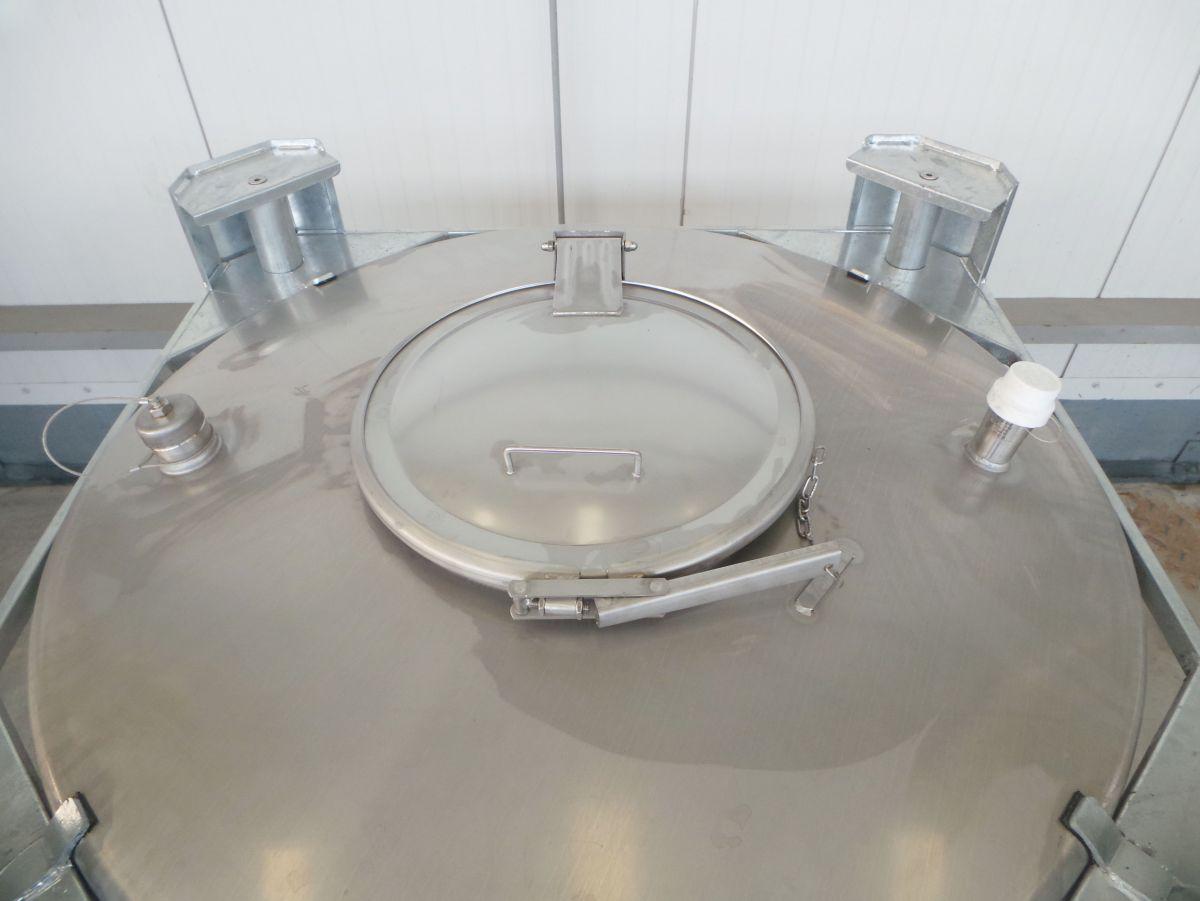

item available on order Article type: brand new palletized transporttank (for ADR) - type IBC-PL0 Additional information: The standardised PLO IBC containers which we offer from our stock are not applicable for food use! Volumetric volume (L): 995 L Max. density P (kg/m³): 1.900 Pressure in tank: pressure Max. pressure (Bar): 0,49 Bar Min. pressure (Bar): 0,02 Bar Material wet parts: SS AISI 304 (V2A) Model: vertical Configuration: single-skin Heat exchanger: no Insulation: no Mobile tank: yes Top type: dished Shape of tank: conical Bottom type: flat sloping Total discharge: yes Fixation points: 4 stackable frame Manway(s): RVS 304 Gasket manway(s): EPDM Fixation point(s): galvanised steel Suitable for food industry: yes Documents included: yes, optional Technical drawing included: yes Registration plate on the tank: yes Flange for agitator: no Number of manways: 1 Position of manway: at the top Height manhole 1 (mm): 400 mm Hinged lid: yes CIP spray ball: no Tank outlet: inside Ø 50 mm Outlet type: BSP MALE Total outlet valve: yes Agitator: no, optional Top: 1,50 mm Cylinder: 1,50 mm Bottom: 1,50 mm Outer diameter tank: 1.080 mm Cylinder height: 970 mm Height of top: 175 mm Height of bottom: 240 mm Feet height: 90 mm Total height of tank: 1.445 mm Total outer width: 1.121 mm Total outer length: 1.121 mm Empty weight tank: 150
