995 liter i Rostfritt 304
30,000.00 SEK/st exkl moms
Mer information
Volym i liter | 995 |
---|---|
Nytillverkad/Begagnad | Nytillverkad |
Livsmedelsklassad | Ja |
Modell | Vertikal |
Material | Rostfritt 304 |
Omrörare | Nej |
Uppvärmning/kylning | Nej |
Isolerad | Nej |
Trycktank | Ja |
Ritning
Öppnaitem available on order

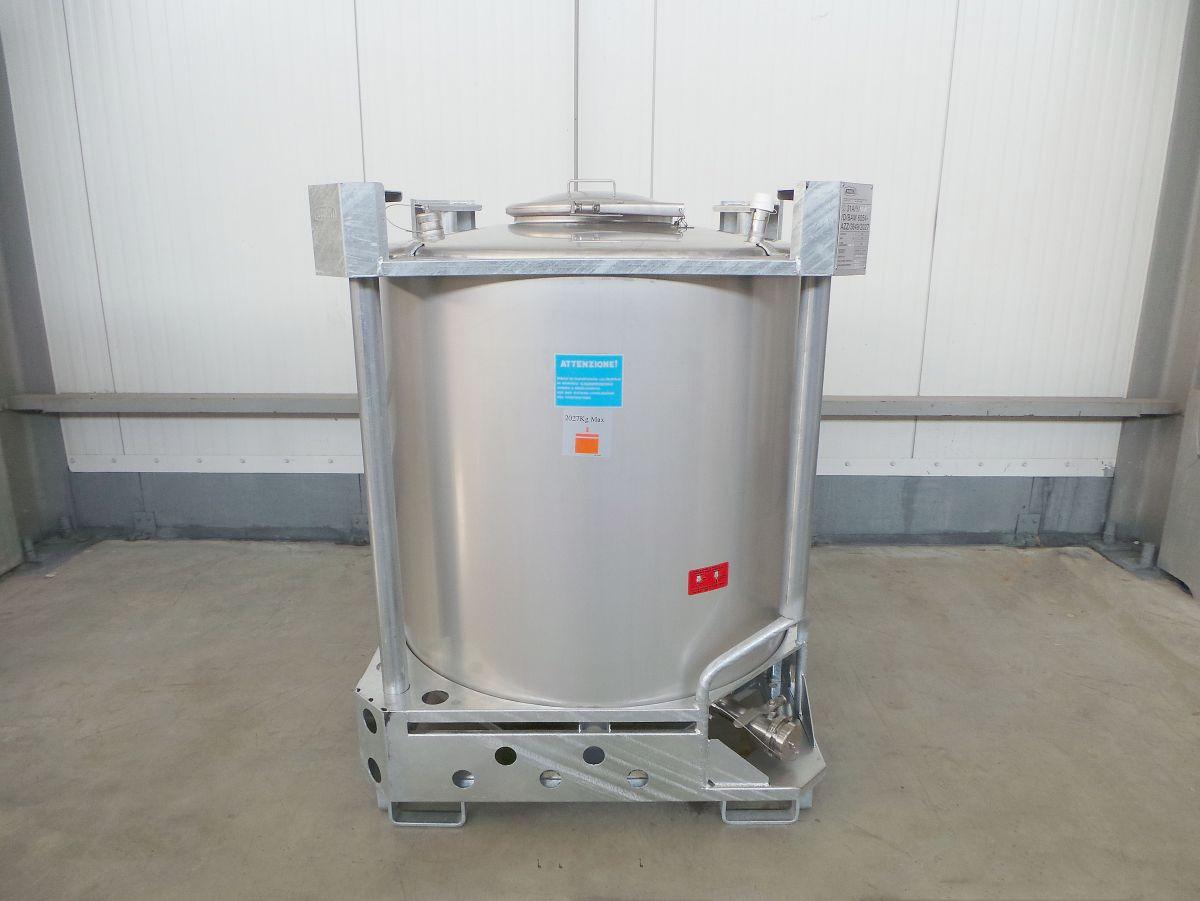

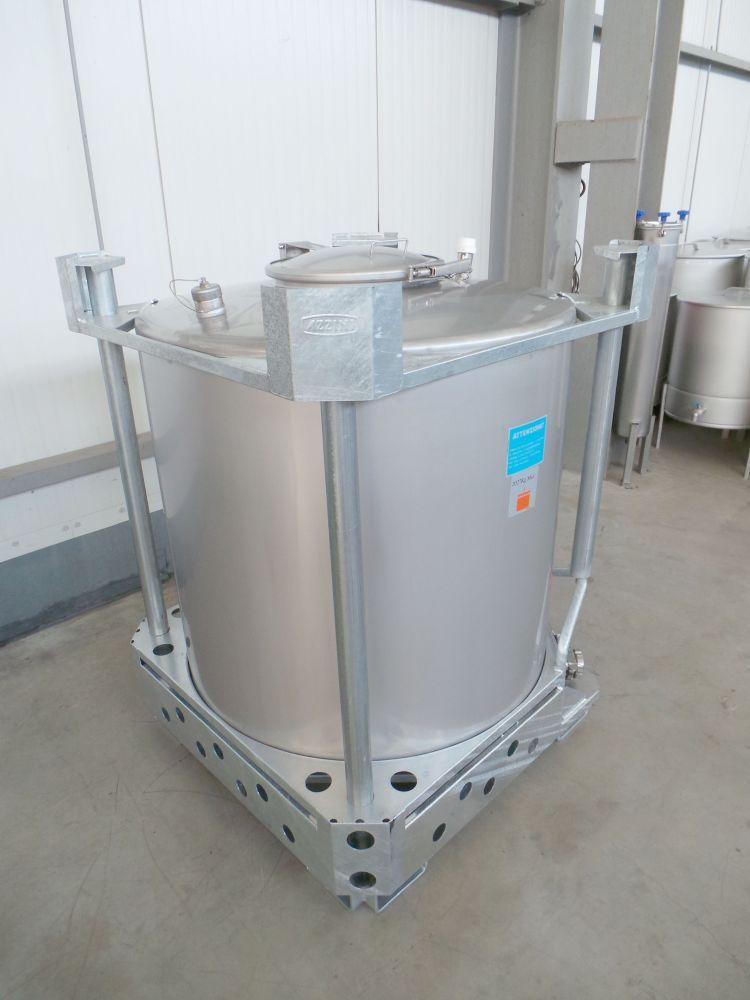

Article type: brand new palletized transporttank (for ADR) – type IBC-PL0
Additional information: The standardised PLO IBC containers which we offer from our stock are not applicable for food use!
Capacity: 995 L
Maximal density of the product: 1.900

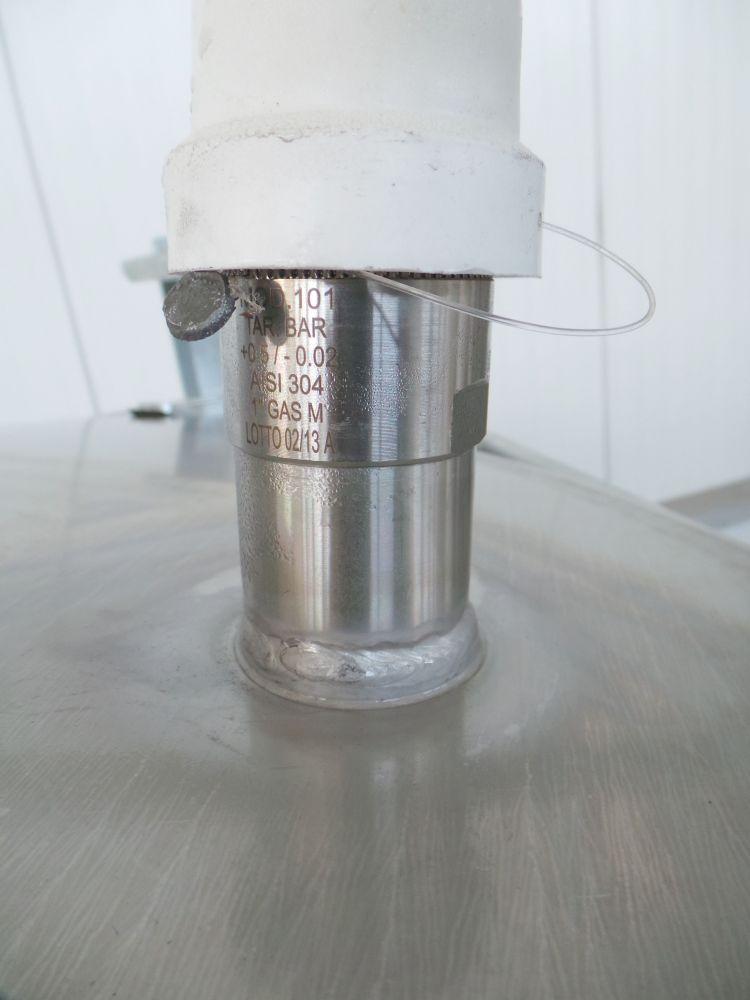

Working pressure in tank: pressure
Overpressure: 0,49 Bar
Underpressure: 0,02 Bar
Material wet parts: SS AISI 304 (V2A)
Model: vertical
Configuration: single-skin
Heat exchanger: no
Insulation: no
Agitator: yes, optional
Mobile tank: yes
Top type: dished
Shape of tank: conical

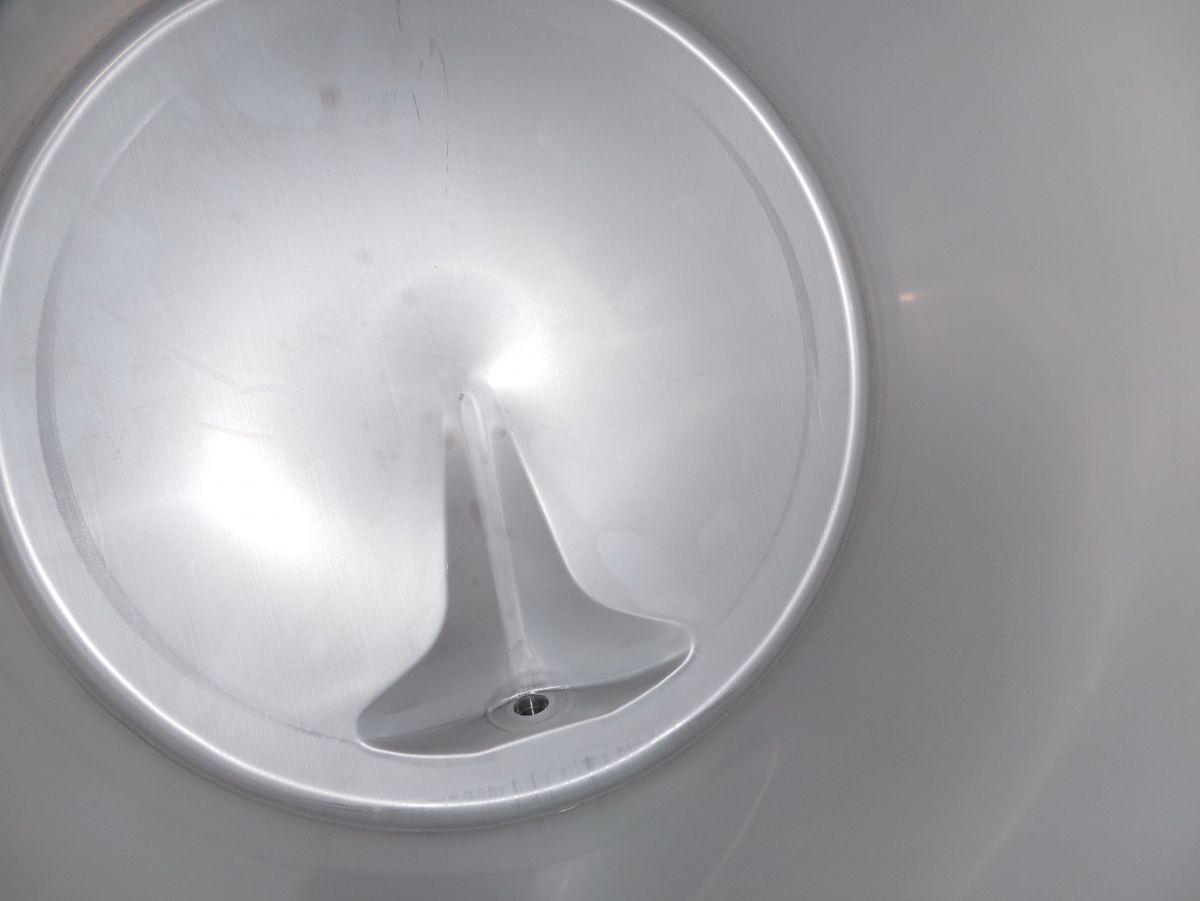

Bottom type: flat sloping
Total discharge: yes
Fixation points: 4 stackable frame
Manway(s): RVS 304
Gasket manway(s): EPDM
Fixation point(s): galvanised steel
Suitable for food industry: yes
Documents included: yes, optional
Technical drawing included: yes
Registration plate on the tank: yes
Flange for agitator: no

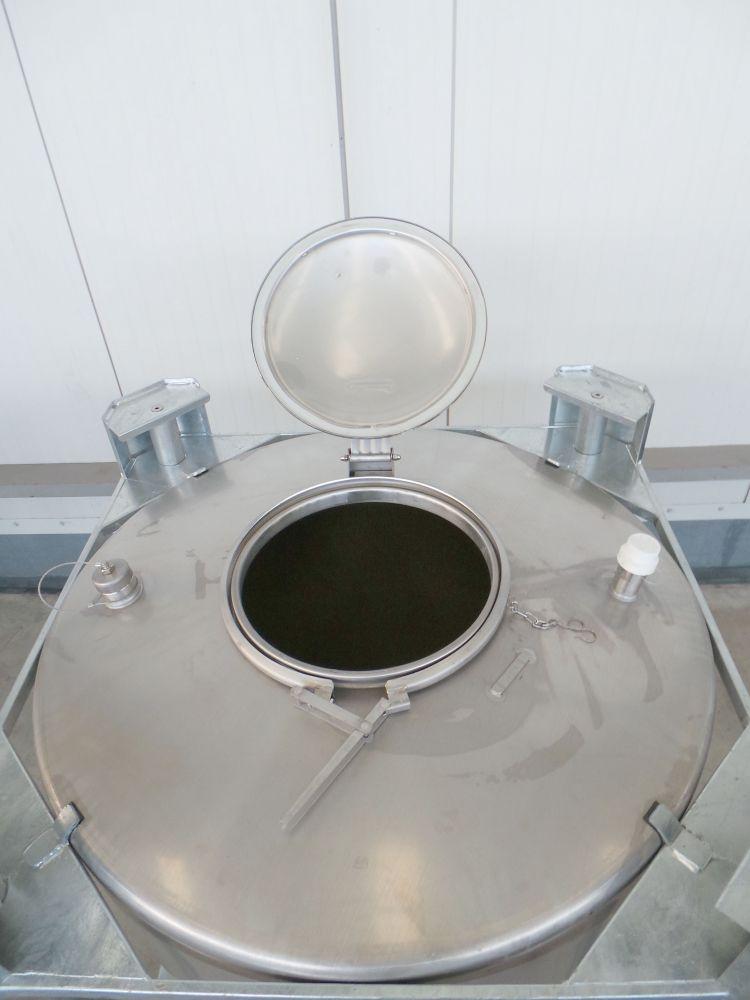

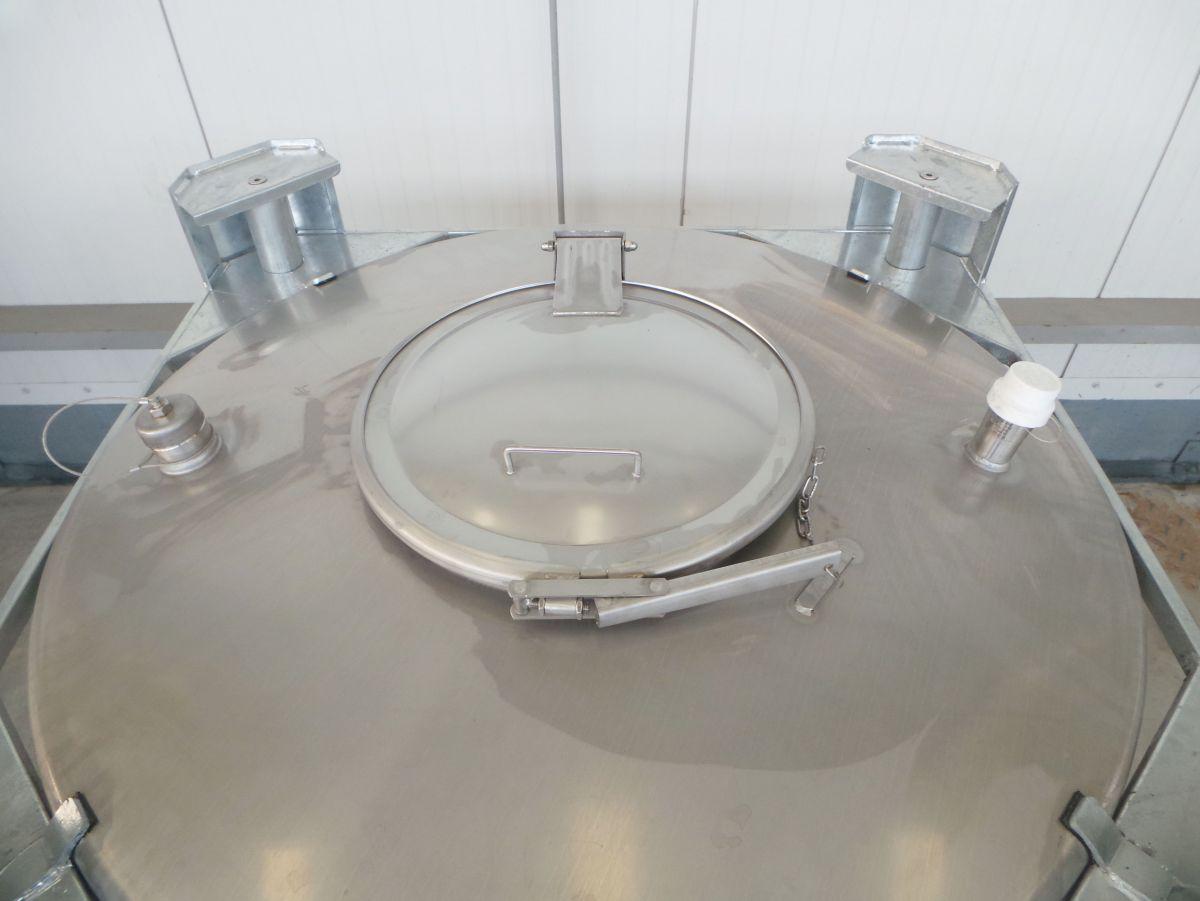

Number of manways: 1
Position manway: at the top
Manway 1: 400 mm
Hinged lid: yes
Spray ball: no

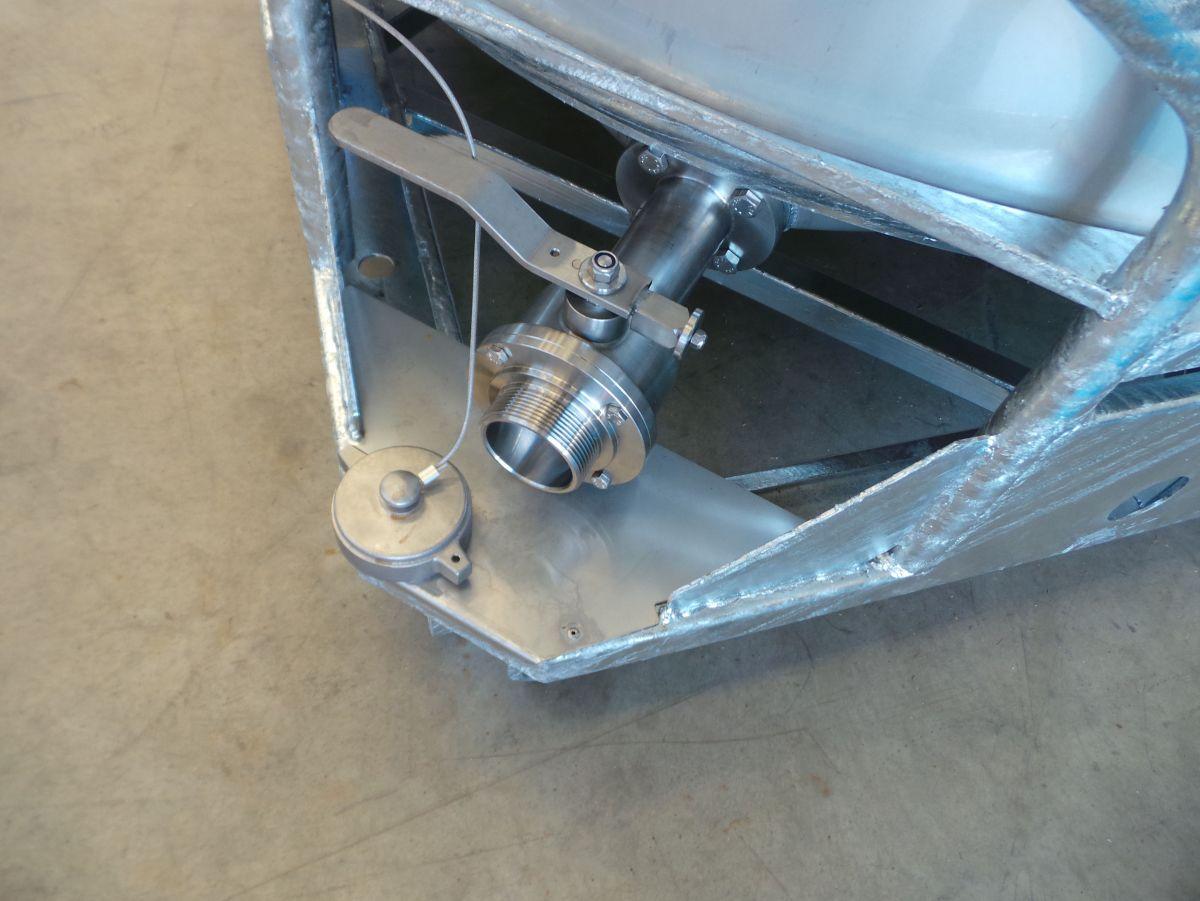

Tank outlet: inside Ø 50 mm
Outlet type: BSP MALE

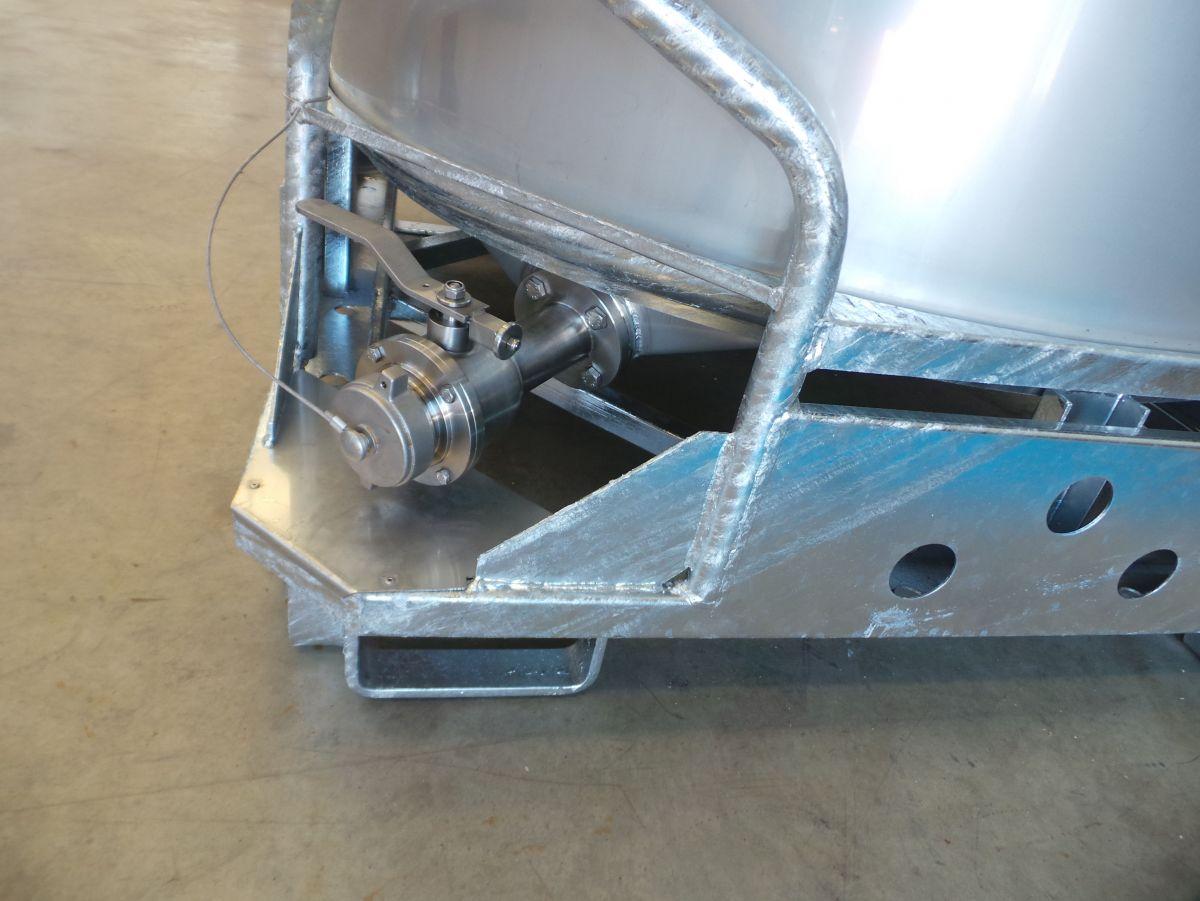

Total outlet valve: yes
Type shut-off valve: ball valve
Top: 1,50 mm
Cylinder: 1,50 mm
Bottom: 1,50 mm
Outer diameter tank: 1.080 mm
Cylinder height: 970 mm
Height of top: 175 mm
Height of bottom: 240 mm
Feet height: 90 mm
Total height of tank: 1.445 mm
Total outer width: 1.121 mm
Total outer length: 1.121 mm
Empty weight tank: 150
