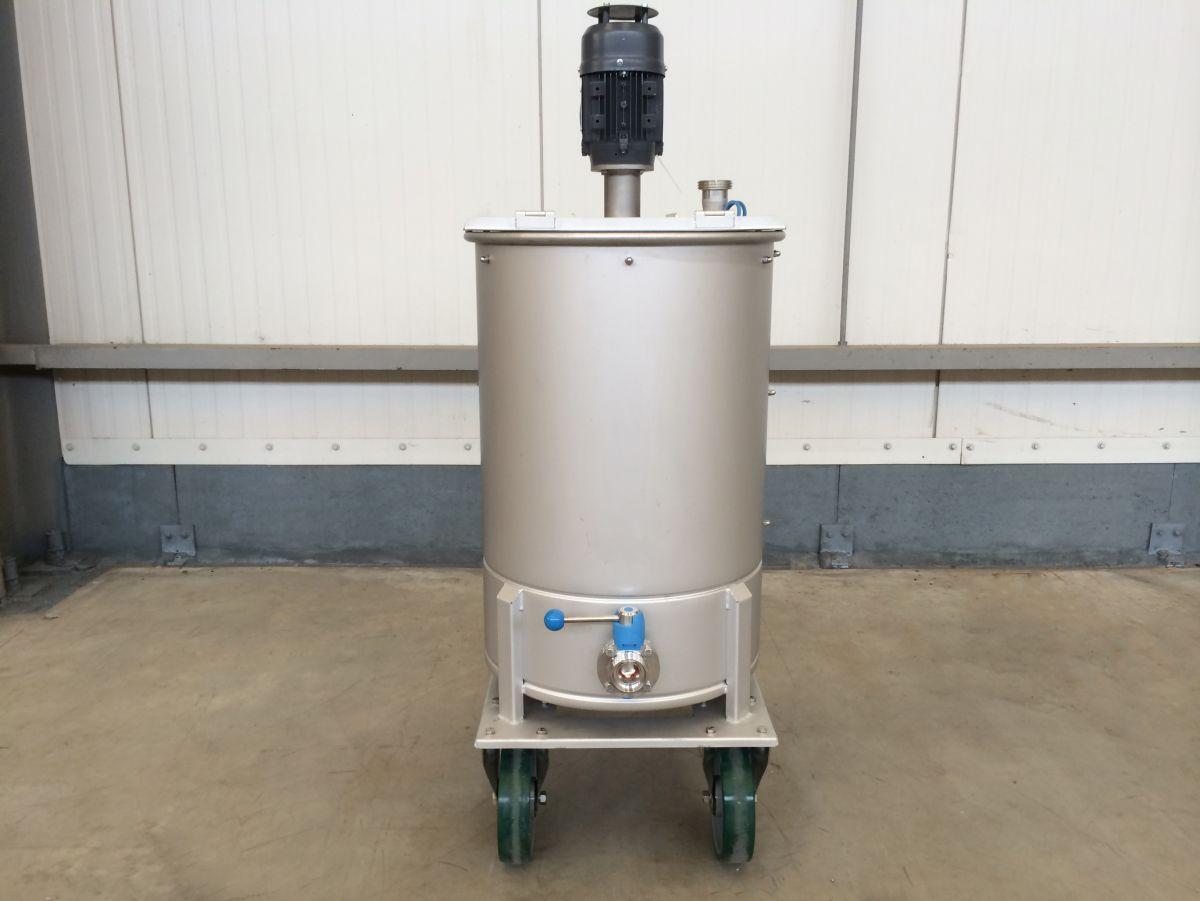

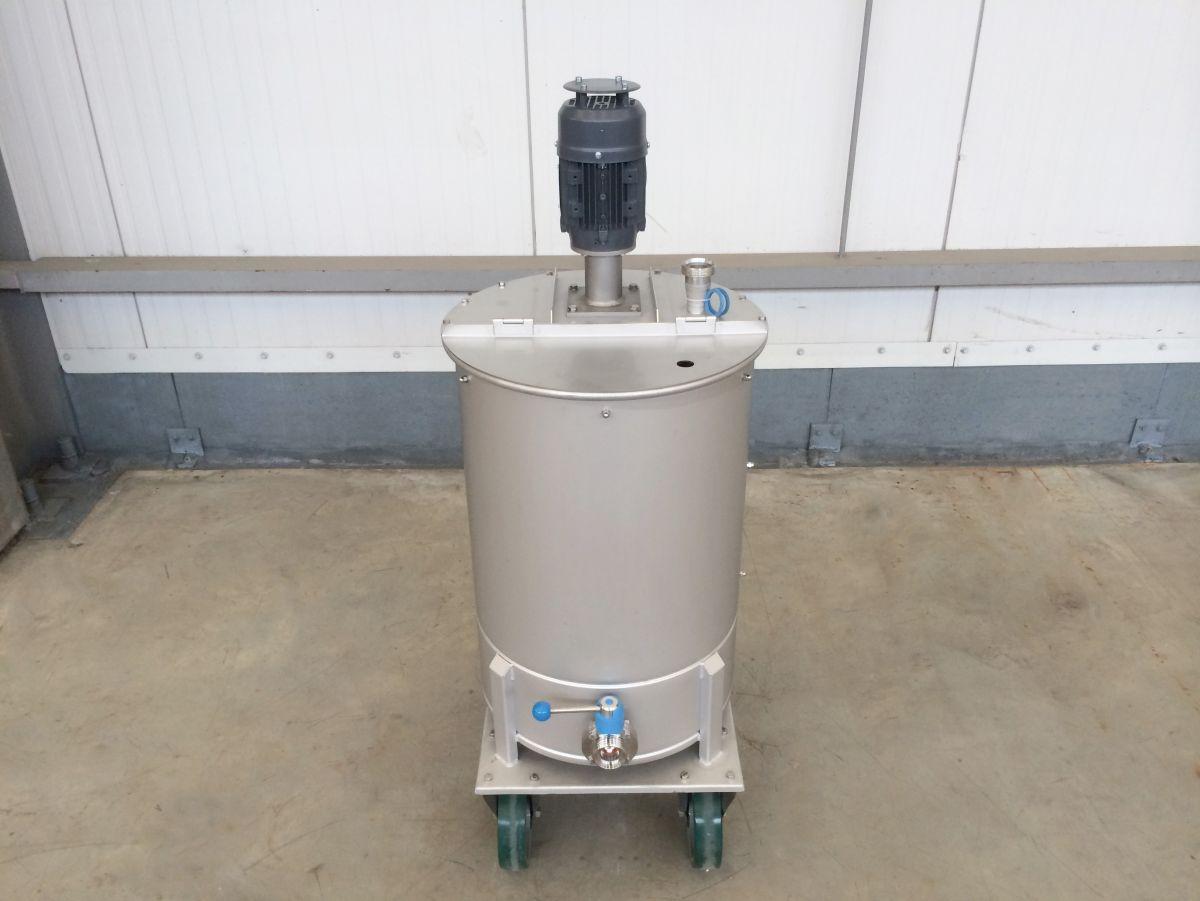

90 liter i Rostfritt 304

Article type: brand new mixing tank

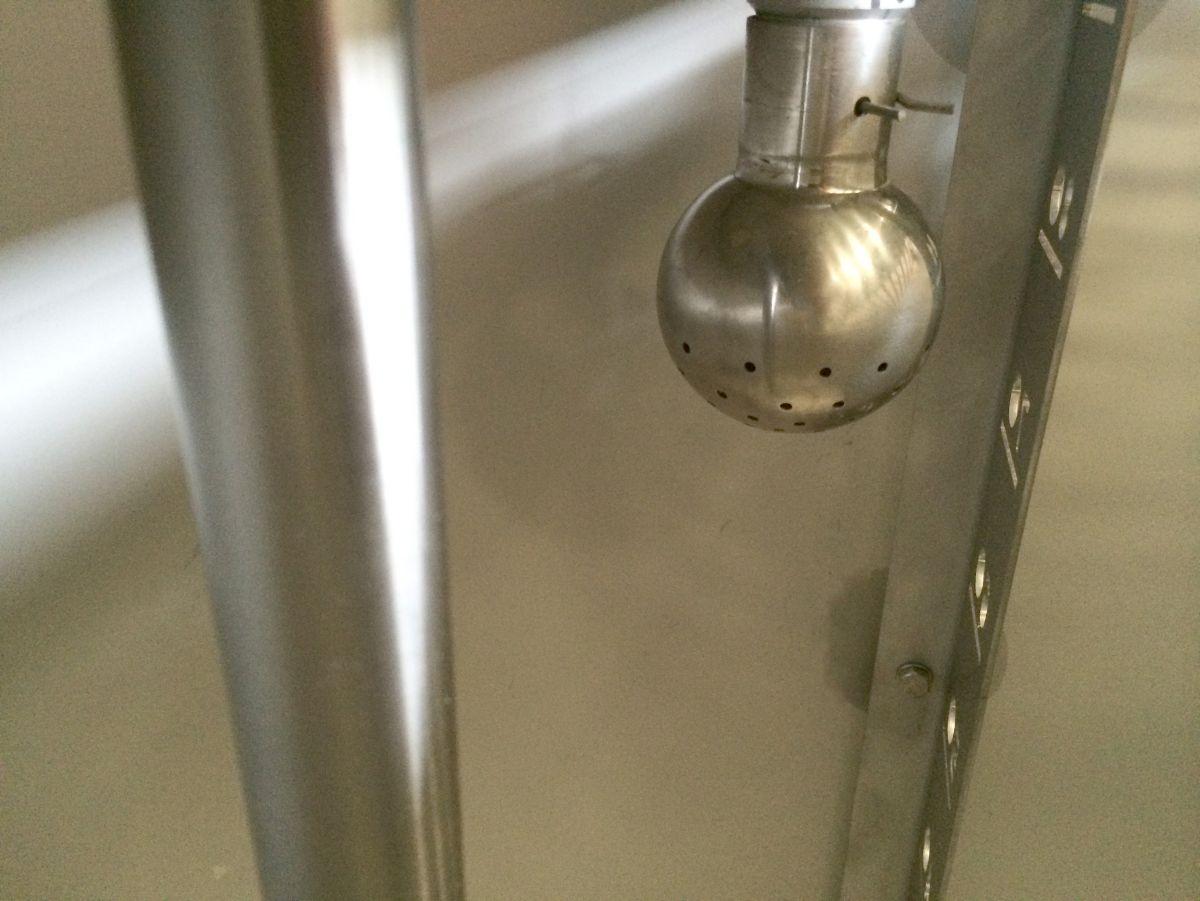

Additional information: closed tank on 4 stainless wheels; propellor agitator in SS stainless-steel AISI 304 (V2A): 0,37 kW – 1.500 rpm; lantern ring in stainless-steel; discharge valve DIN11851; CIP sprayball 1/2
Capacity: 90 L
Maximal density of the product: 1.000
Material wet parts: SS AISI 304 (V2A)

Model: vertical
Configuration: single-skin
Heat exchanger: no
Insulation: no
Agitator: yes

Mobile tank: no

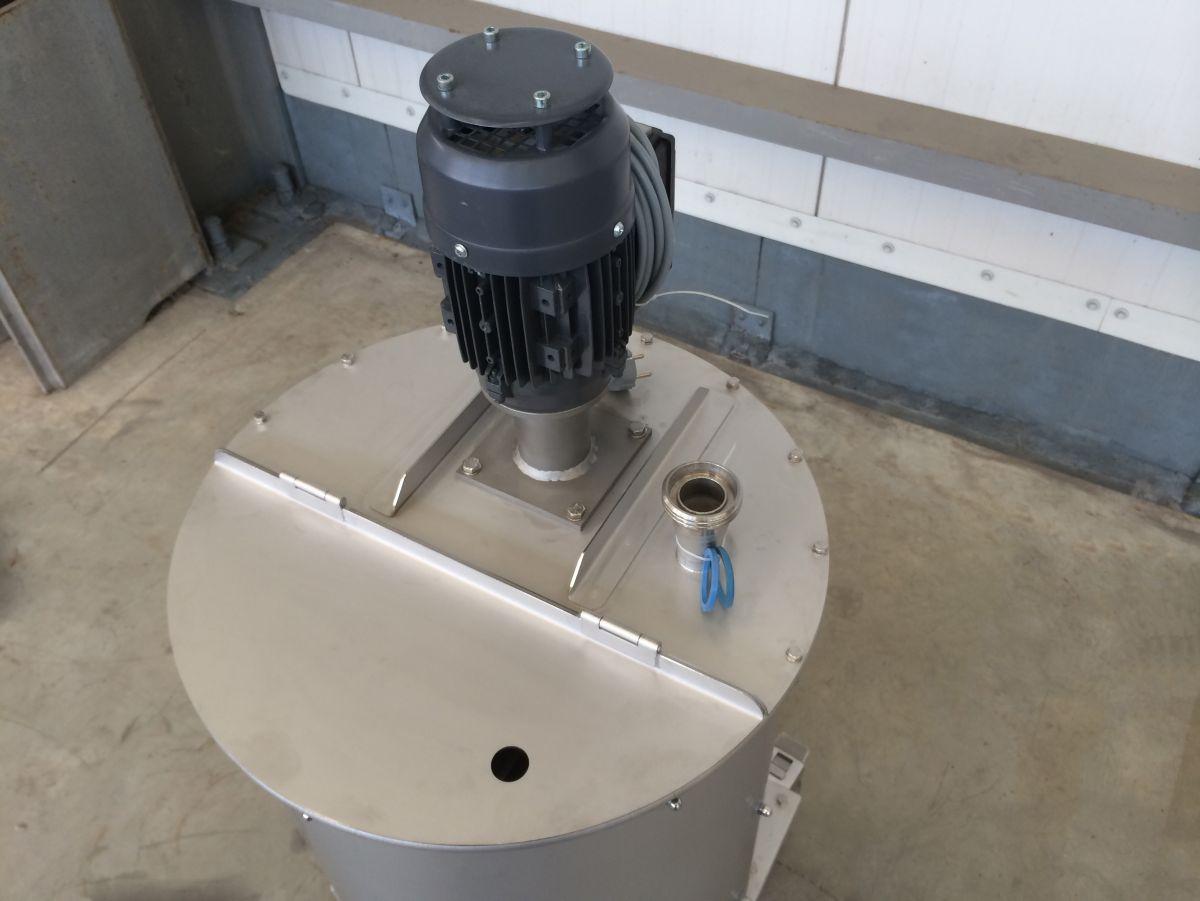

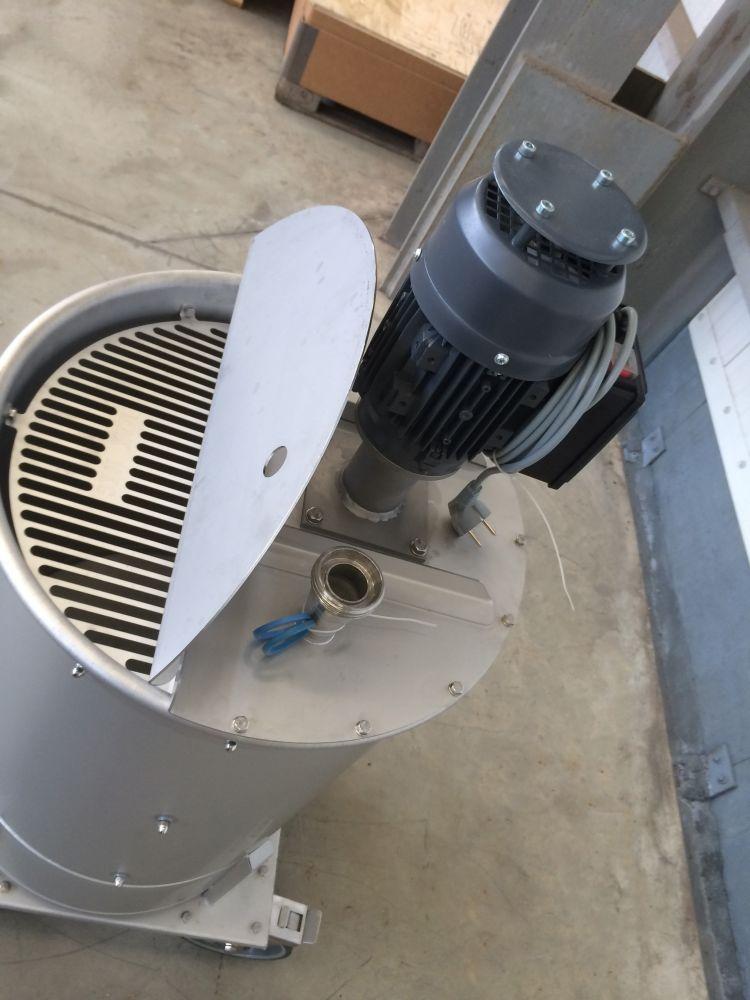

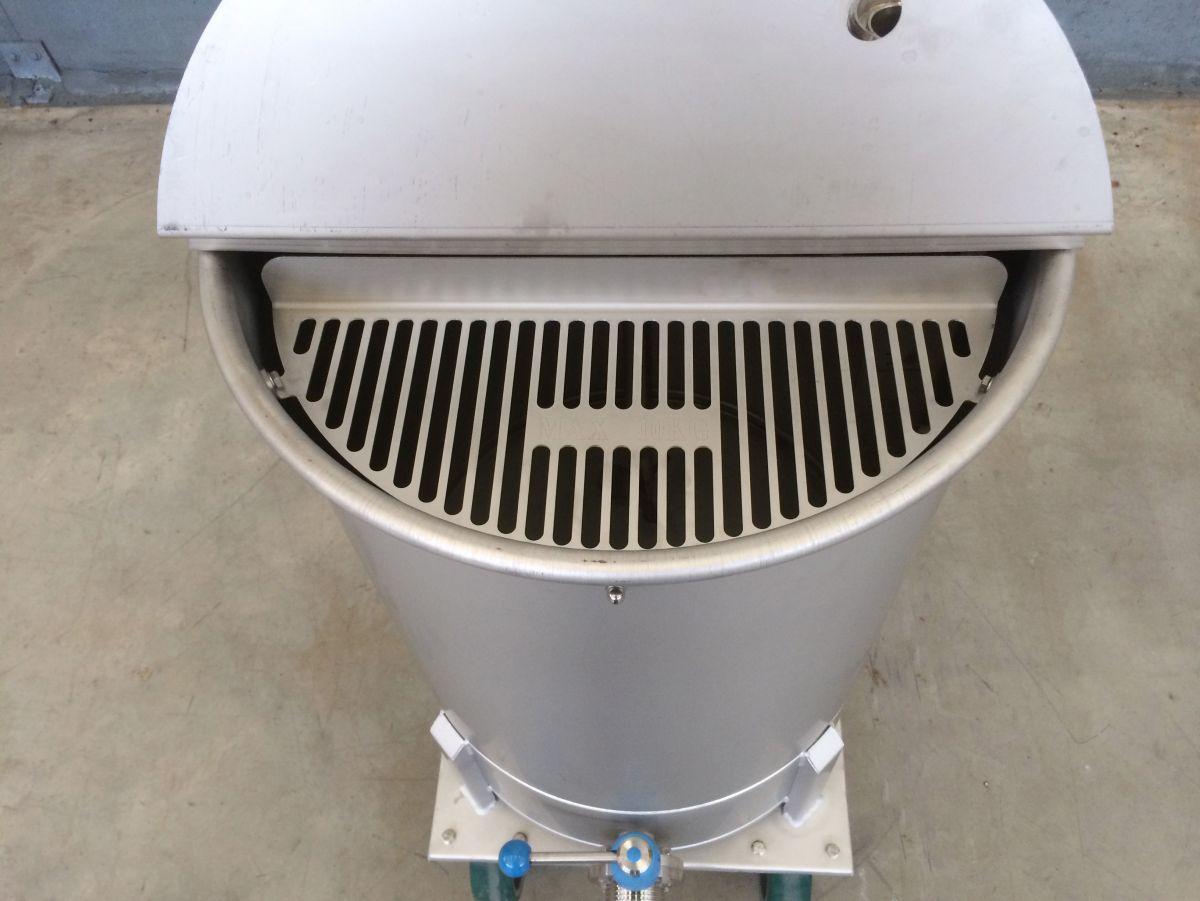

Top type: half hinging lid
Shape of tank: cylindrical
Bottom type: flat
Total discharge: yes

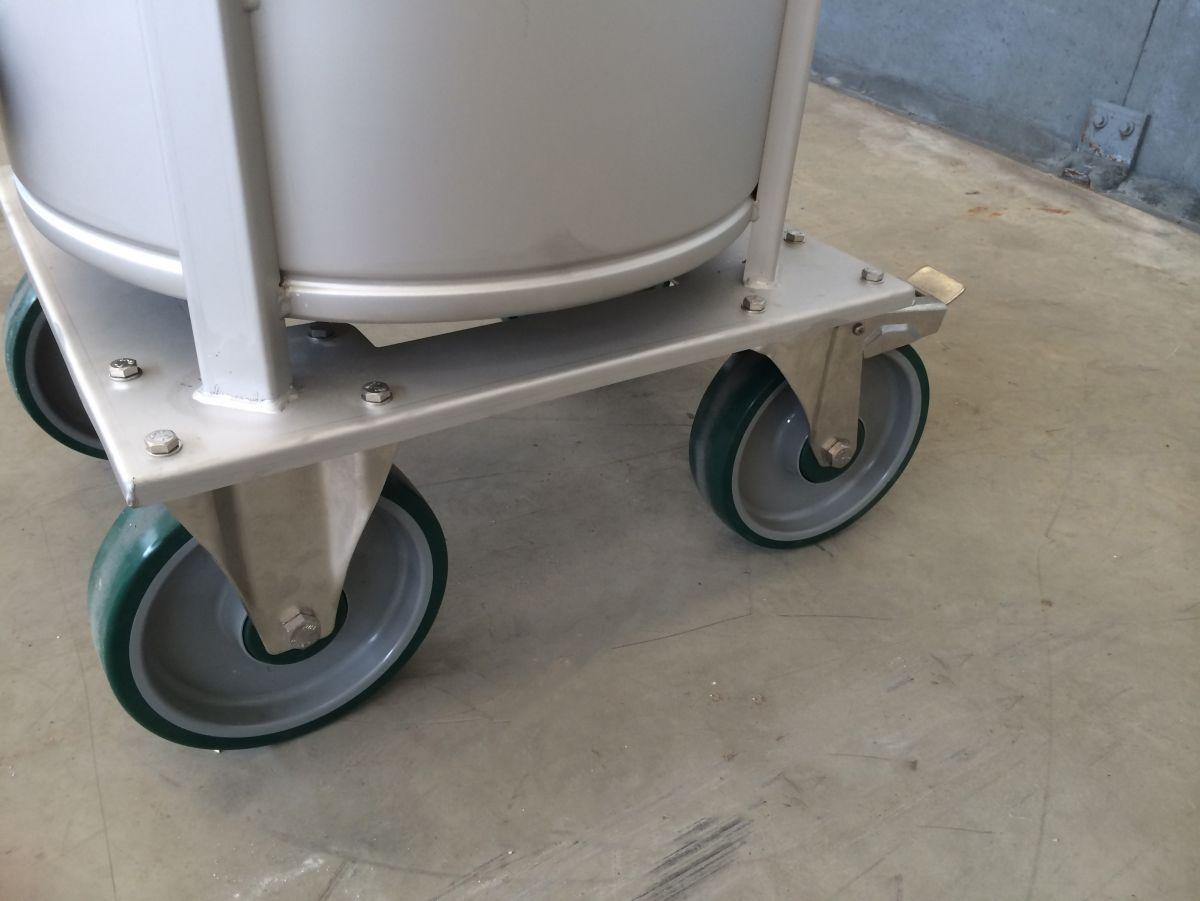

Fixation points: 4 casters
Fixation point(s): RVS 304
Wet parts agitator(s): SS AISI 304 (V2A)
Suitable for food industry: no
Documents included: no

Technical drawing included: no
Registration plate on the tank: no
Flange for agitator: no
Tank outlet: inside Ø 32 mm
Outlet type: DIN11851

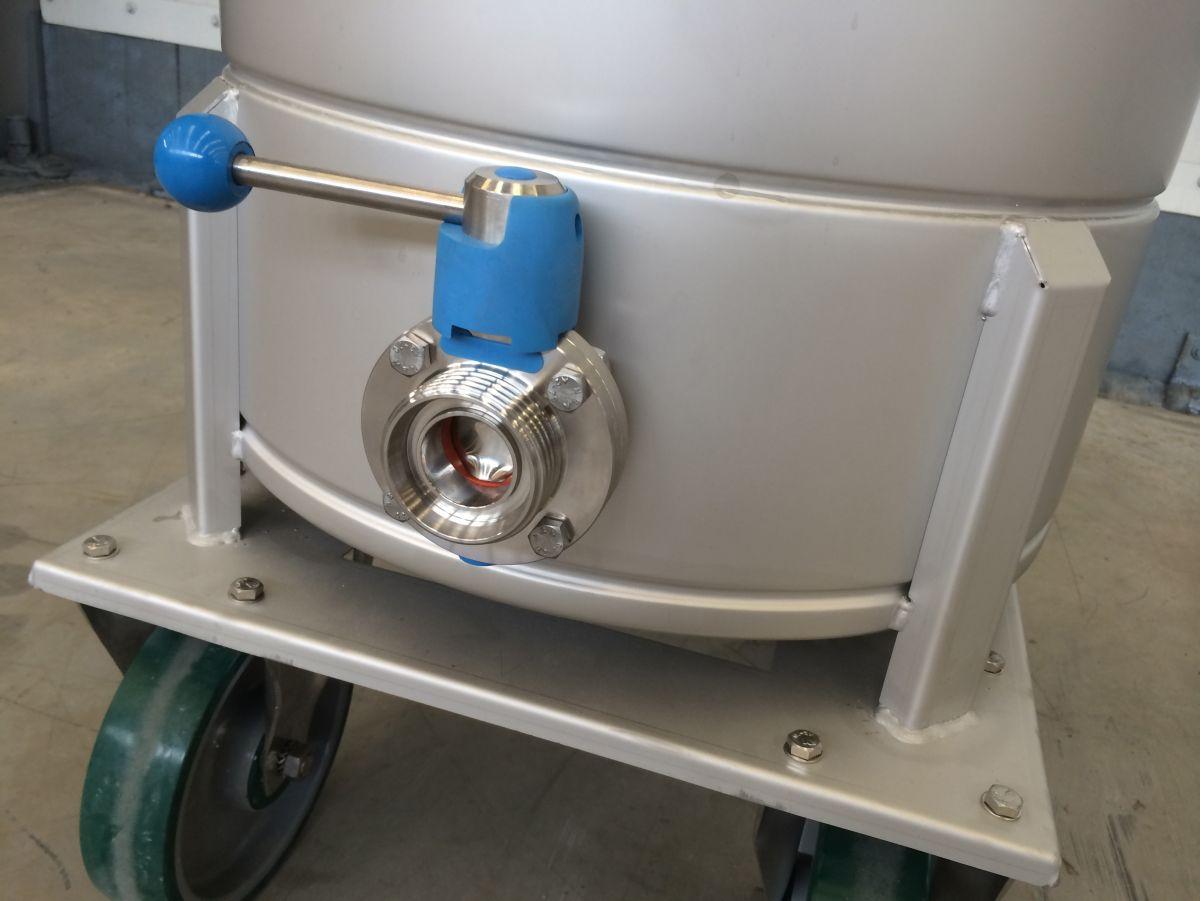

Type shut-off valve: butterfly valve

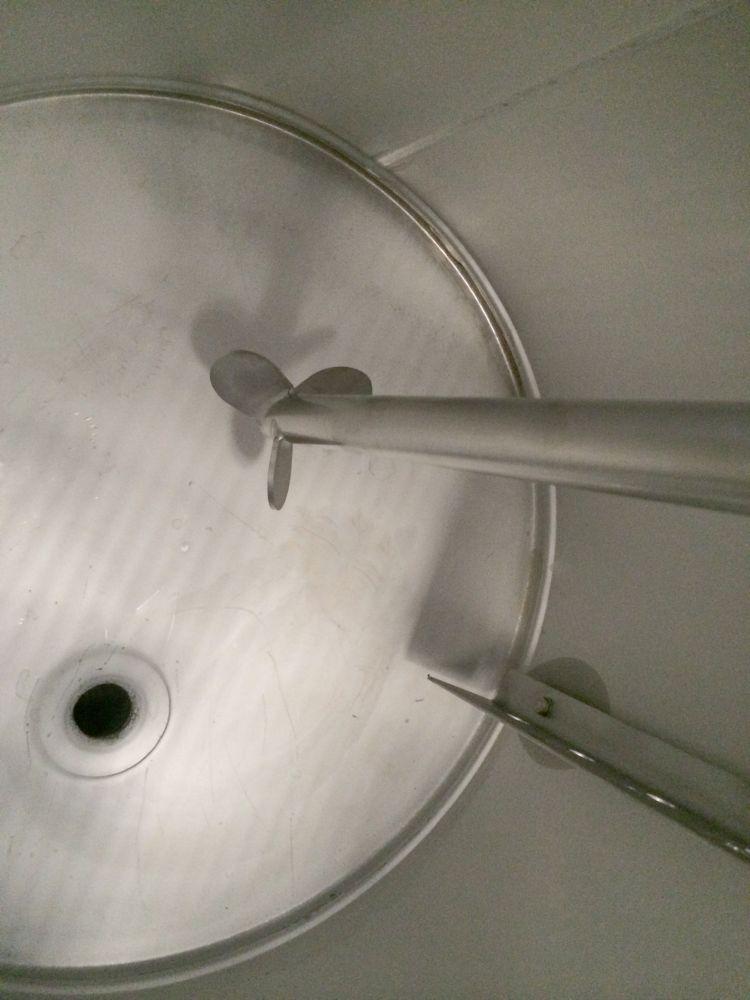

Agitator type: propeller agitator

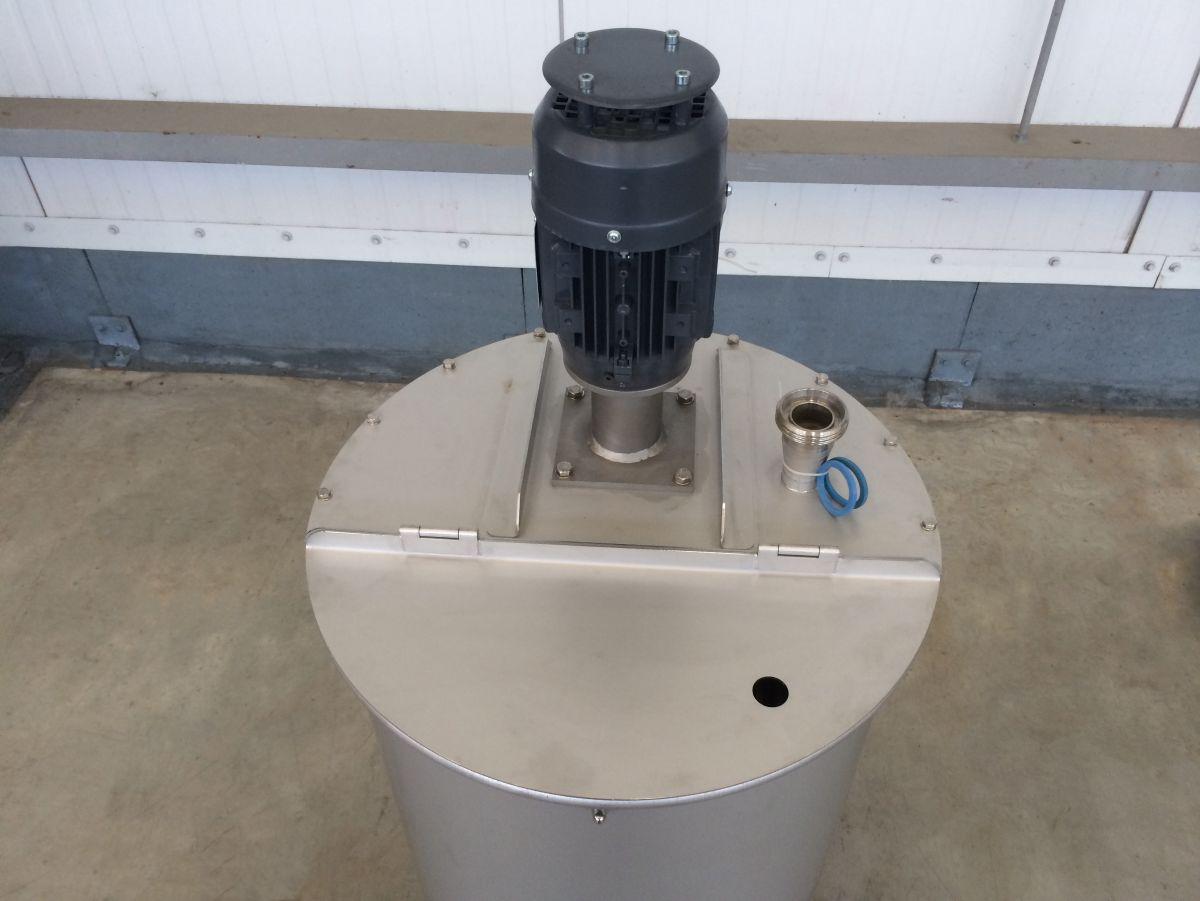

Position engine: at the top

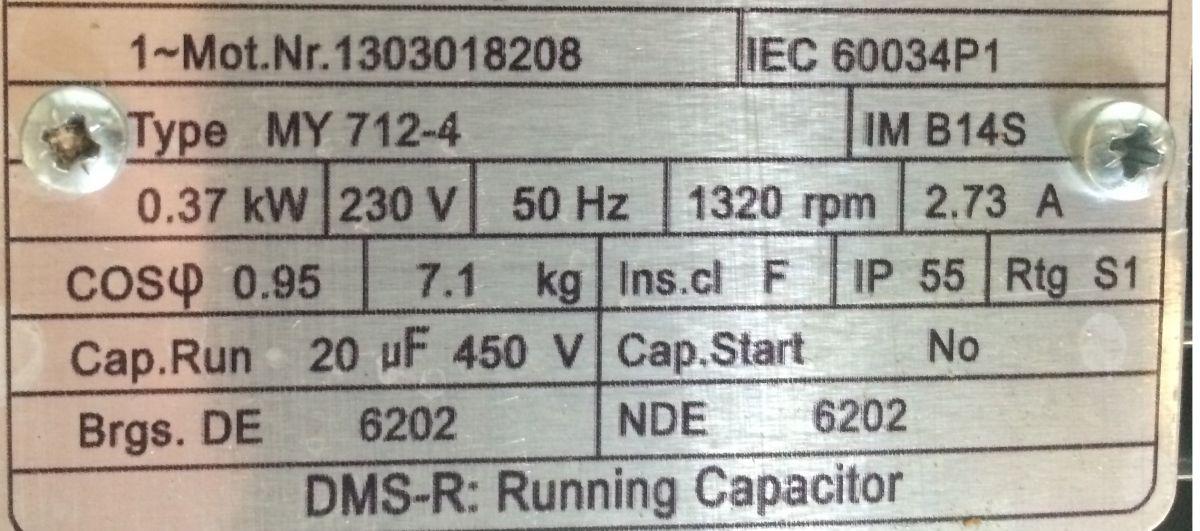

Number of revolutions: 1.320
Power: 0,37

Voltage: 220 V – mono
Top: 2,50 mm
Cylinder: 1,50 mm
Bottom: 1,50 mm
Internal diameter tank: 475 mm

Distance from outlet to ground: 375 mm
Outer diameter tank: 520 mm
Cylinder height: 550 mm
Total height of tank: 1.350 mm
Empty weight tank: 40
