8100 liter i Syrafast 316

item available on order

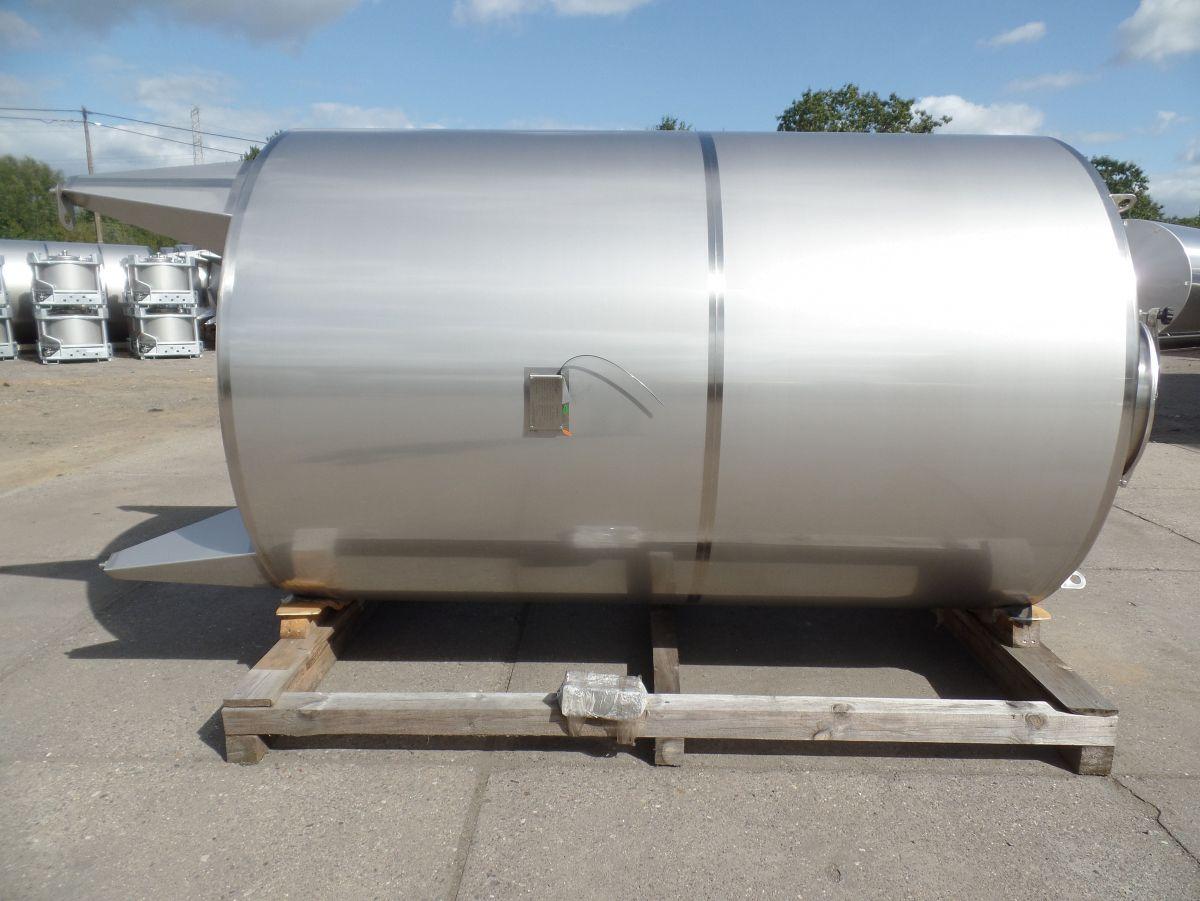

Article type: brand new storage tank – type K2-SL
Capacity: 8.100 L
Maximal density of the product: 1.200

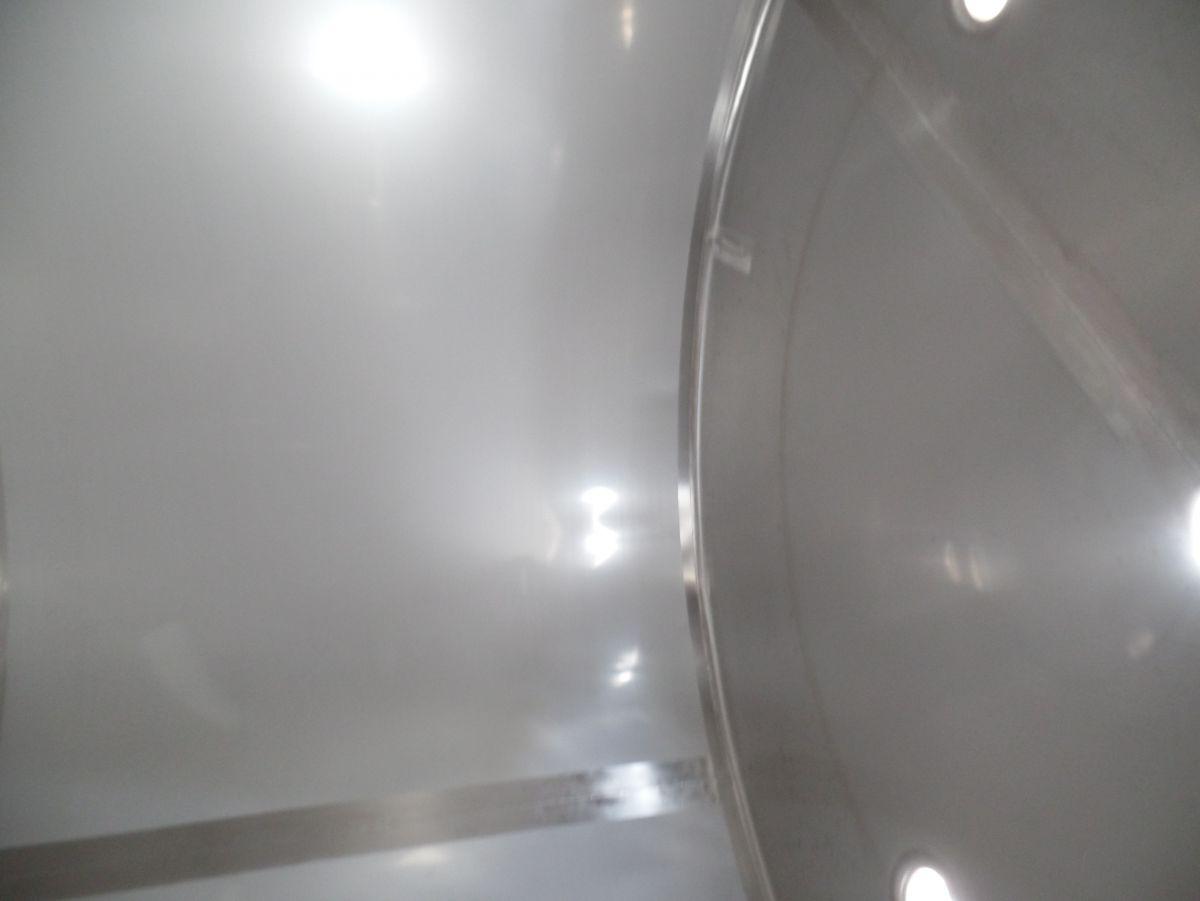

Ra inner weld: 1,60
Finish stainless steel: 2b

Working pressure in tank: ATM – atmosferic
Design pressure of the tank: 0,05 Bar
Max. working temperature: 100 °C
Min. working temperature: -10 °C
Material wet parts: SS AISI 316L (V4A)

Model: vertical
Configuration: single-skin
Heat exchanger: no
Insulation: no
Agitator: yes, optional

Mobile tank: no
Top type: conical 15 °
Shape of tank: cylindrical

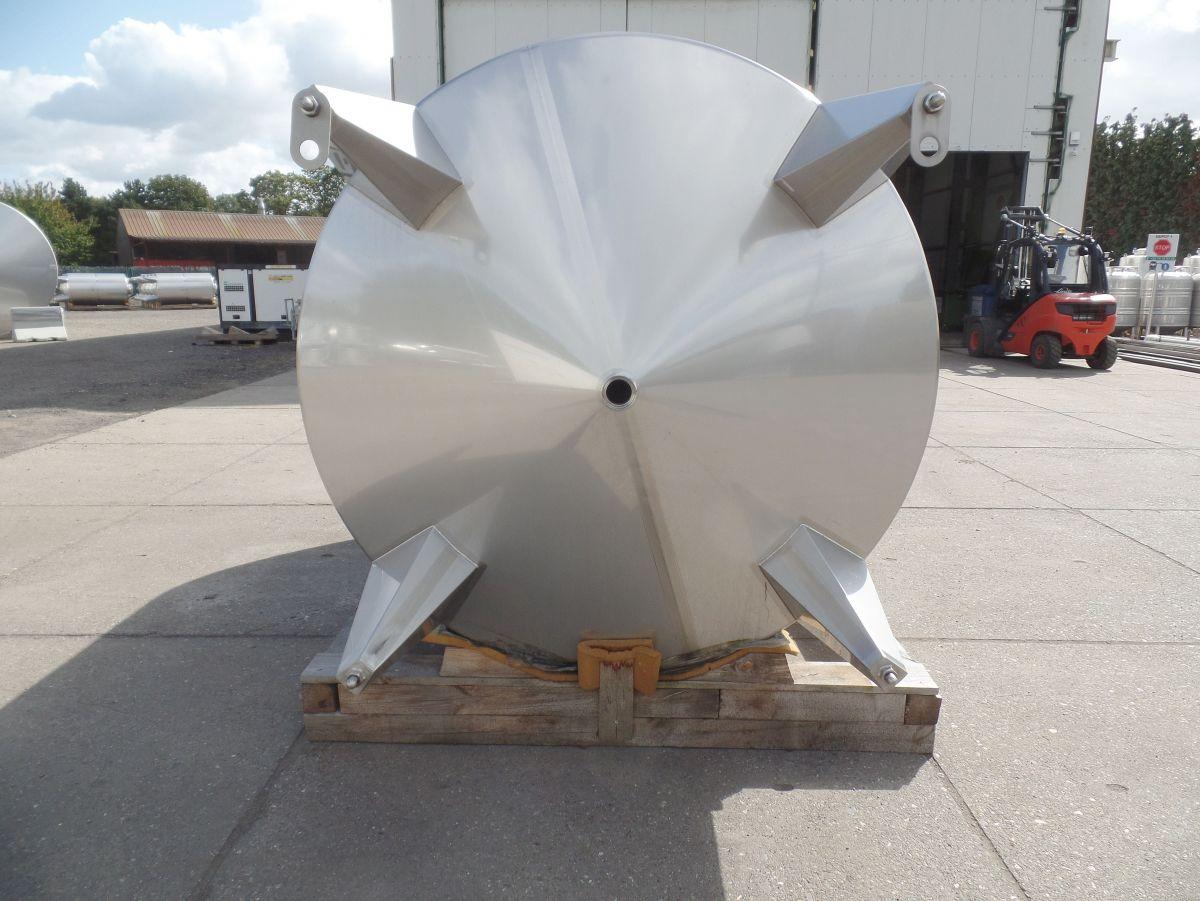

Bottom type: conical 15 °
Total discharge: yes

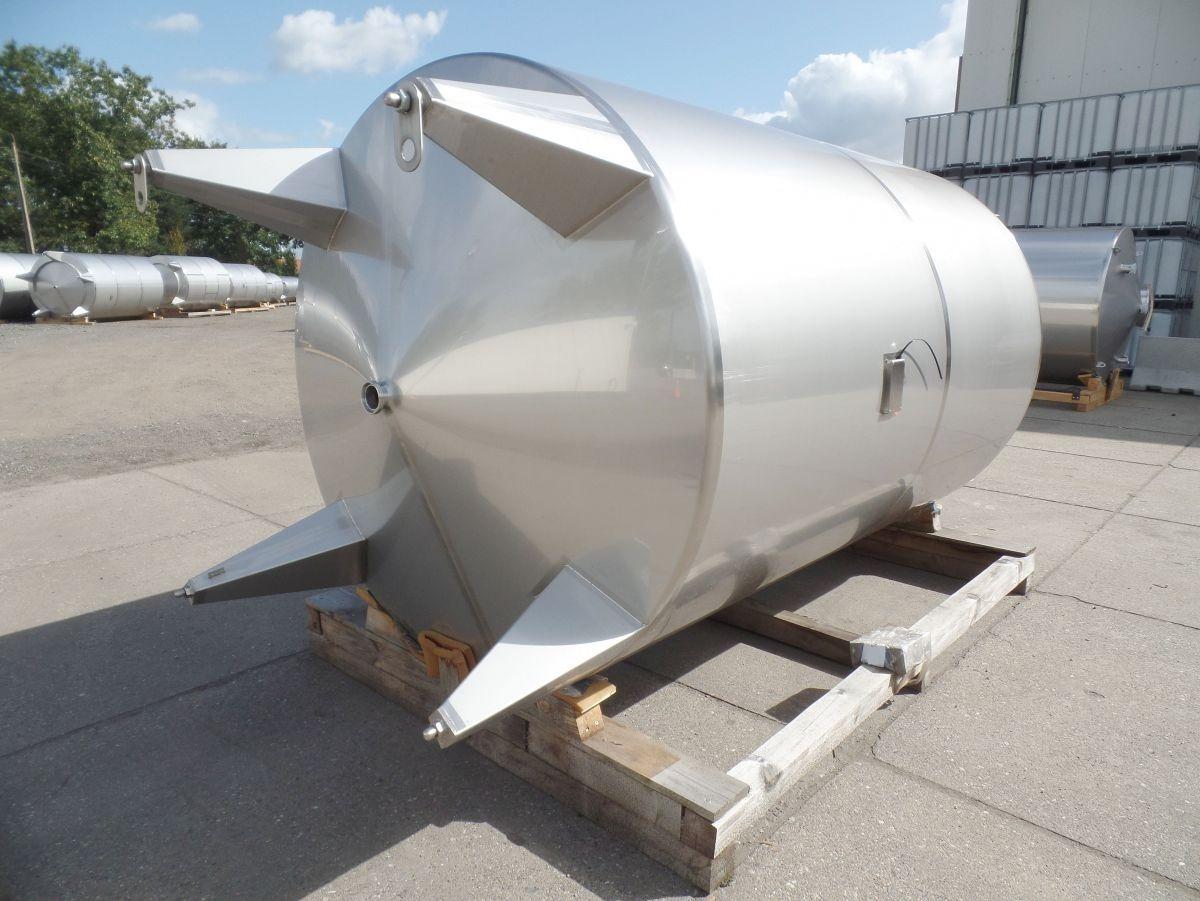

Fixation points: 4 adjustable feet
Legs: Set of baseplates and adjusting pieces included
Manway(s): RVS 316
Gasket manway(s): EPDM
Fixation point(s): RVS 304L

Suitable for food industry: yes
Documents included: yes, optional

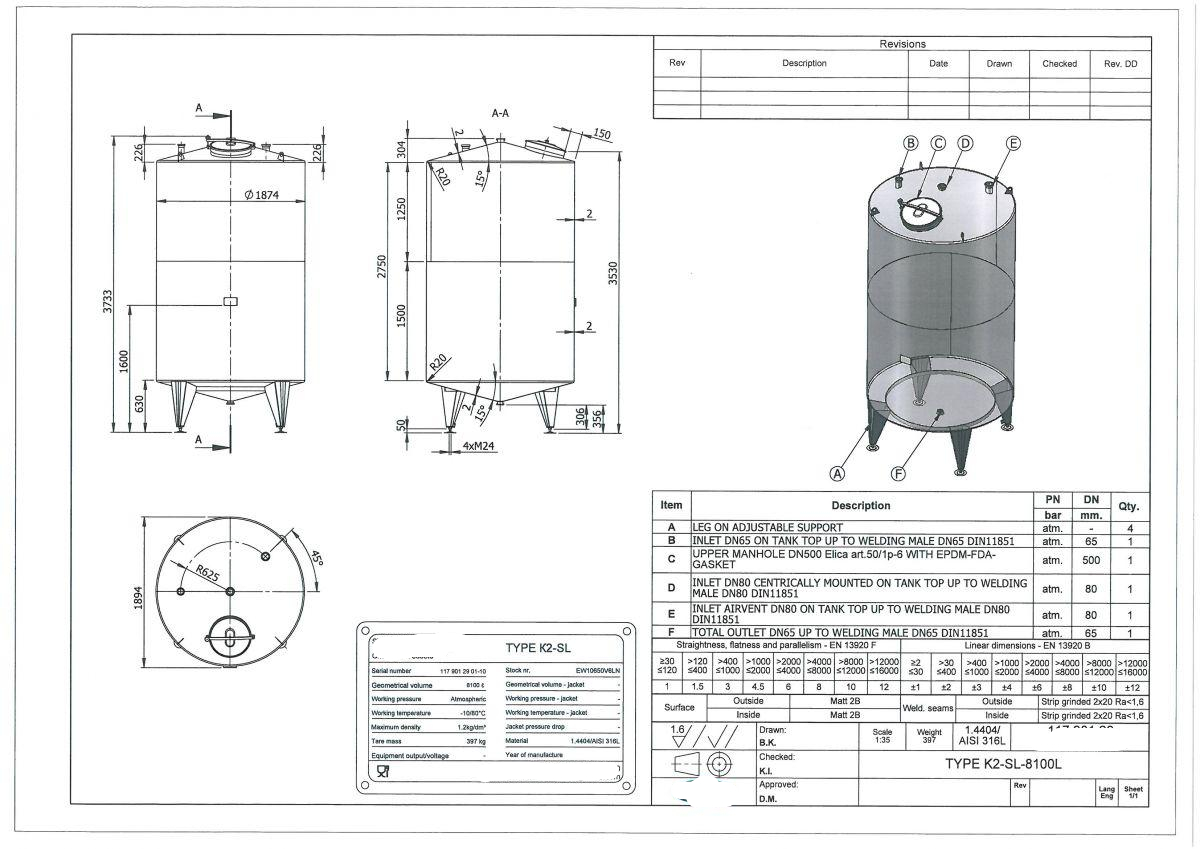

Technical drawing included: yes
Registration plate on the tank: yes
with inspection of: TUV

Flange for agitator: no

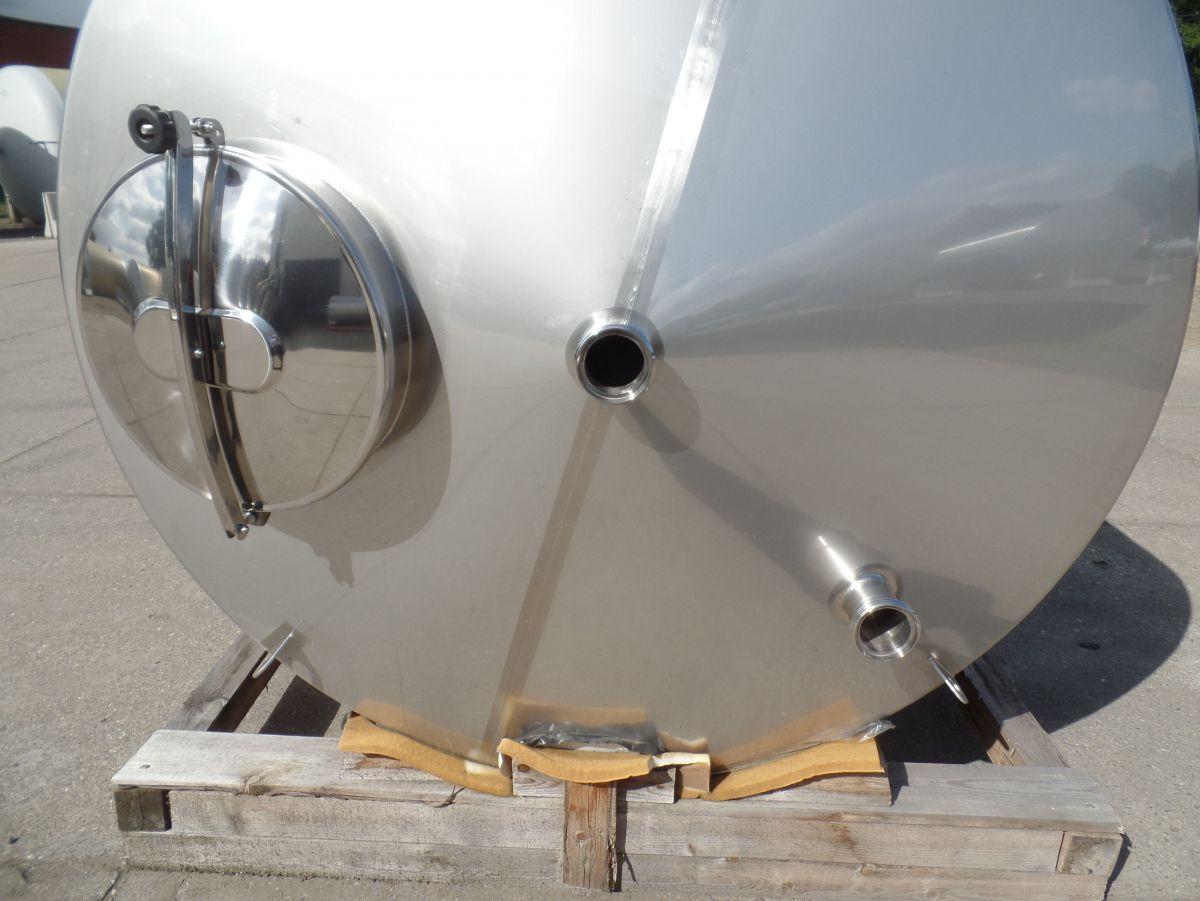

Number of manways: 1

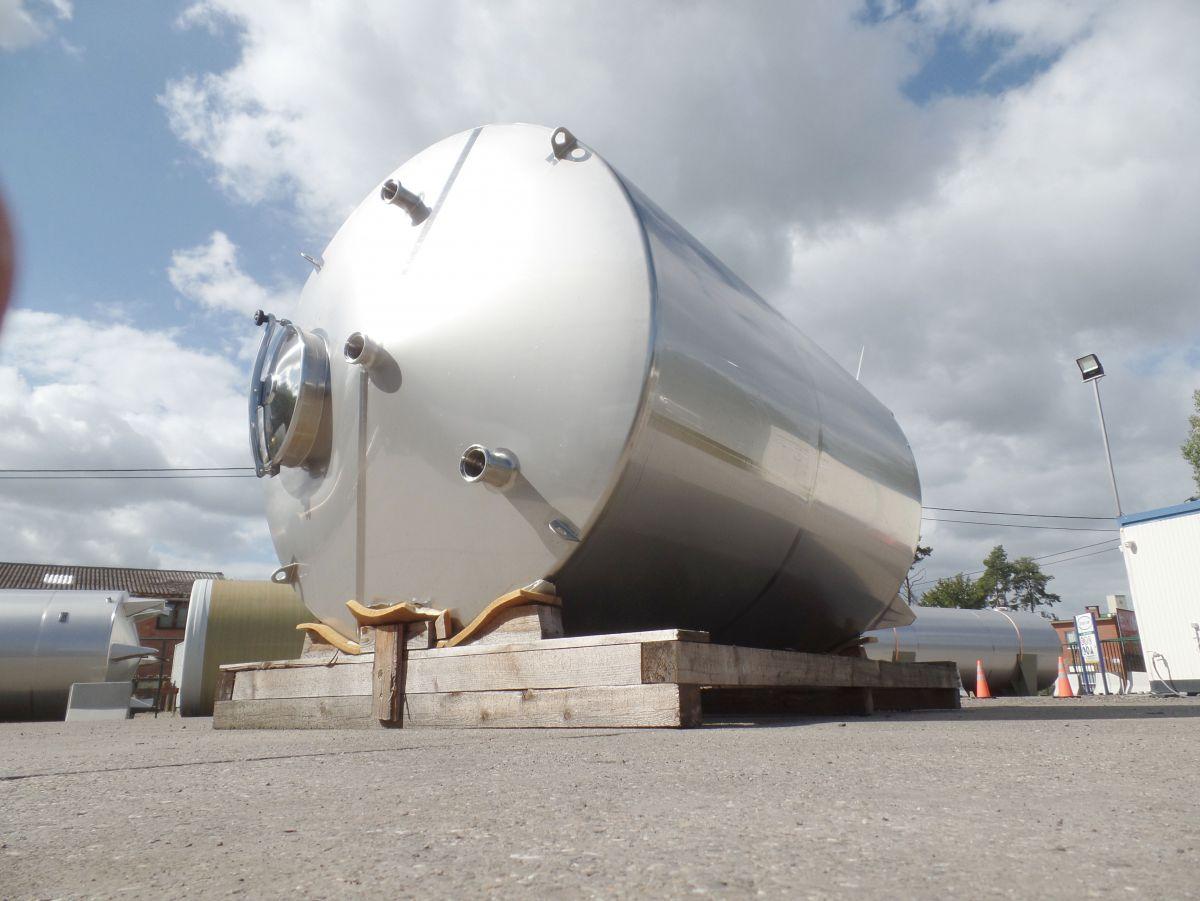

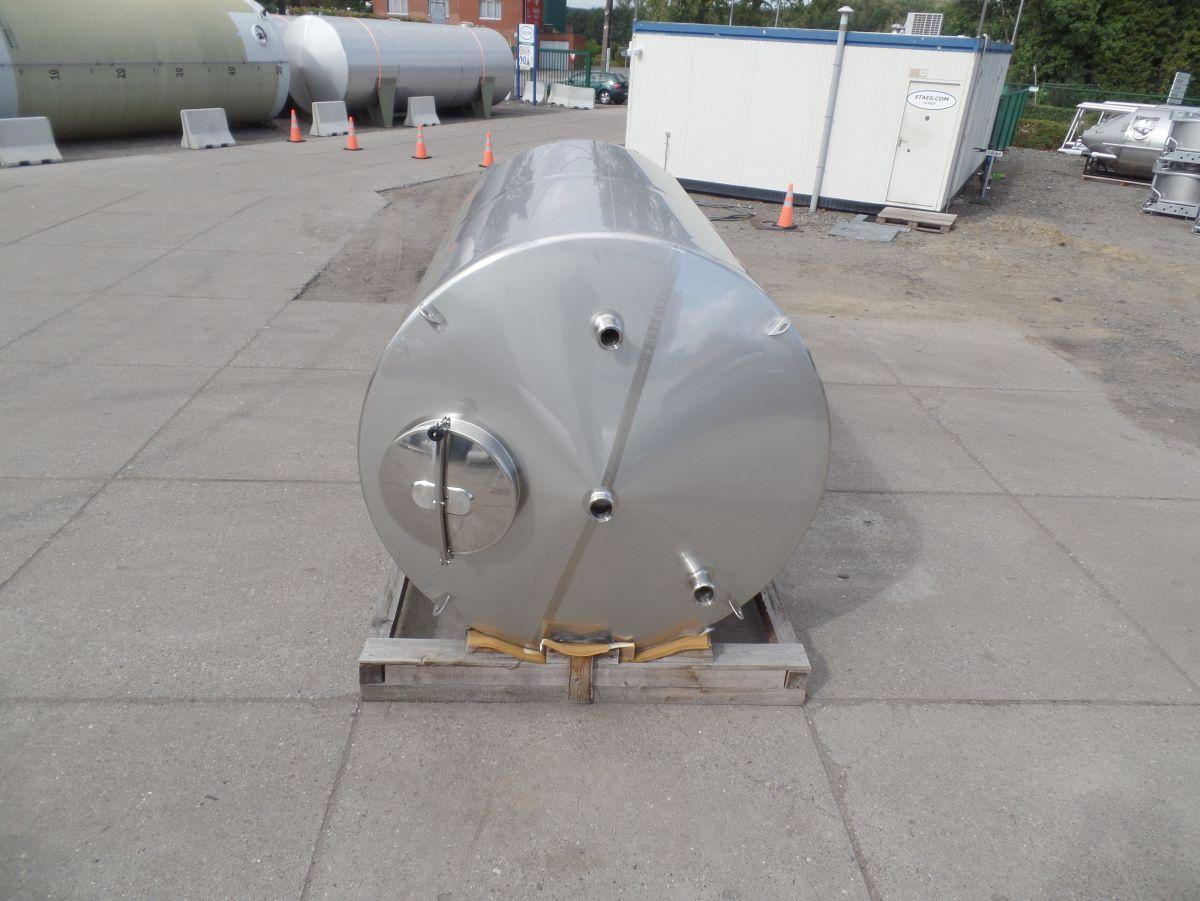

Position manway: at the top
Manway 1: 500 mm
Spray ball: yes, optional

Max. temperature CIP: 30 °C
Tank outlet: inside Ø 65 mm
Outlet type: DIN11851 male
Total outlet valve: yes, optional
Top: 2 mm

Cylinder: 2 mm
Bottom: 2 mm
Distance from outlet to ground: 306 mm
Outer diameter tank: 1.874 mm
Cylinder height: 2.750 mm

Feet height: 630 mm
Total height of tank: 3.733 mm
Empty weight tank: 412
