76 liter tank i Rostfritt 304
Art.nr: 266635
44,000,00 kr /st exkl moms
Isolerad:
Material:
Modell:
Nytillverkad eller begagnad:
Trycktank:
Uppvärmning/kylning:
Omrörare:
Lagersaldo:
Slut i lager

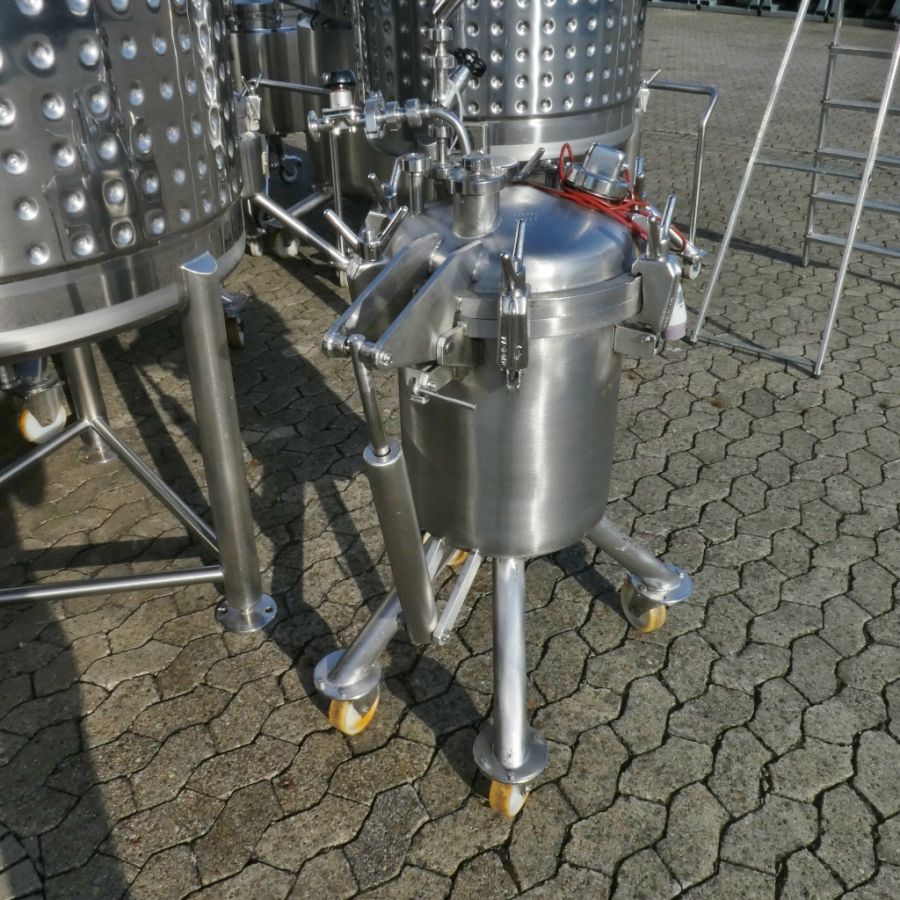

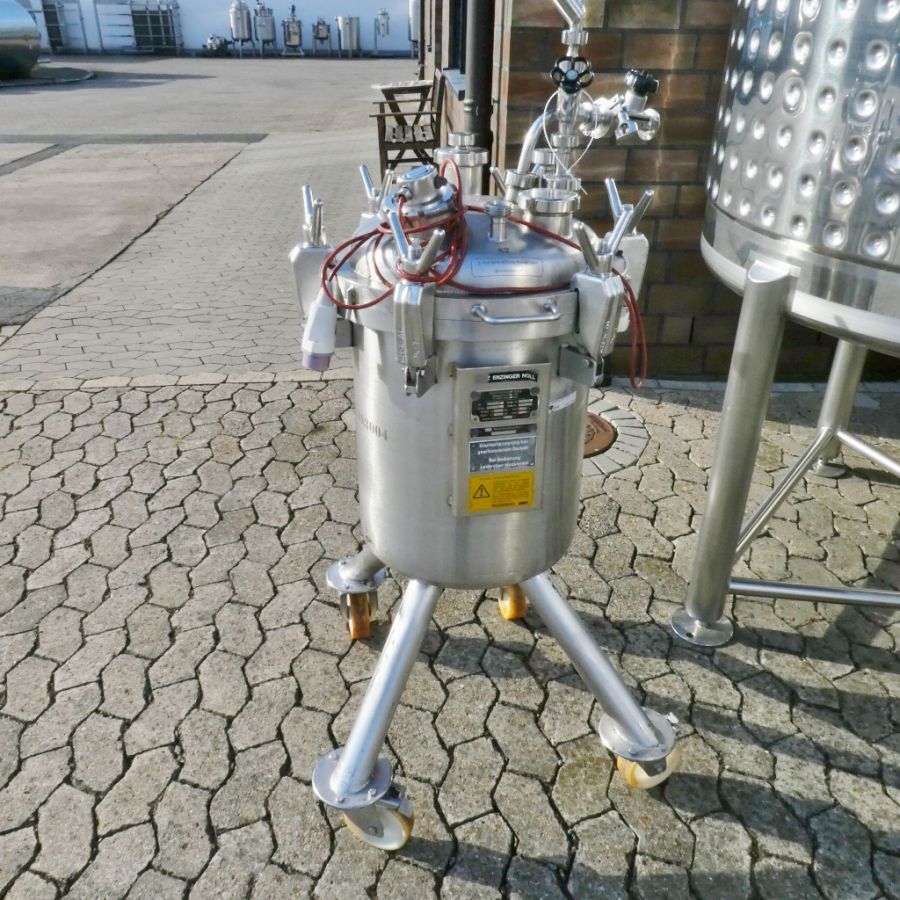

76 liter tank i Rostfritt 304

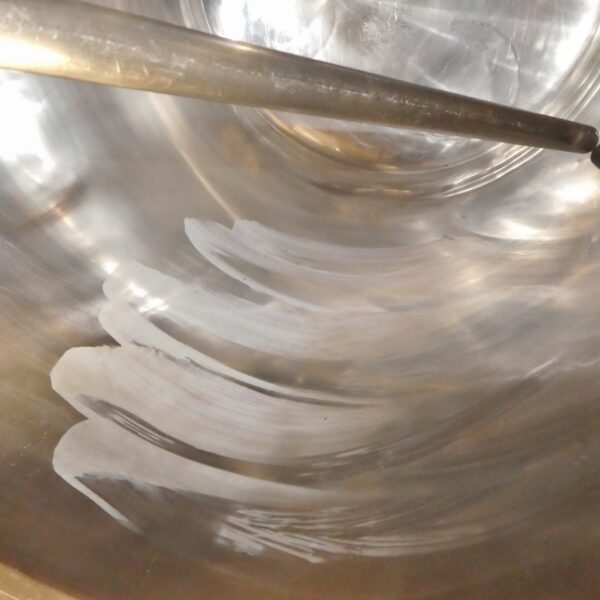

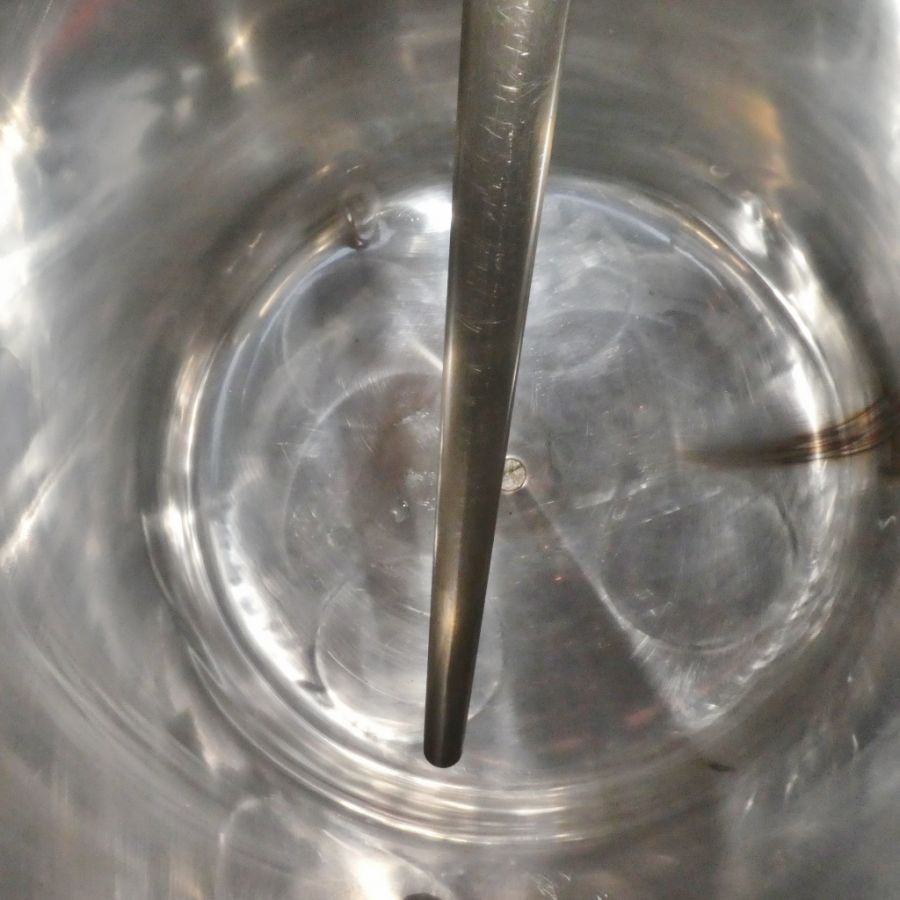

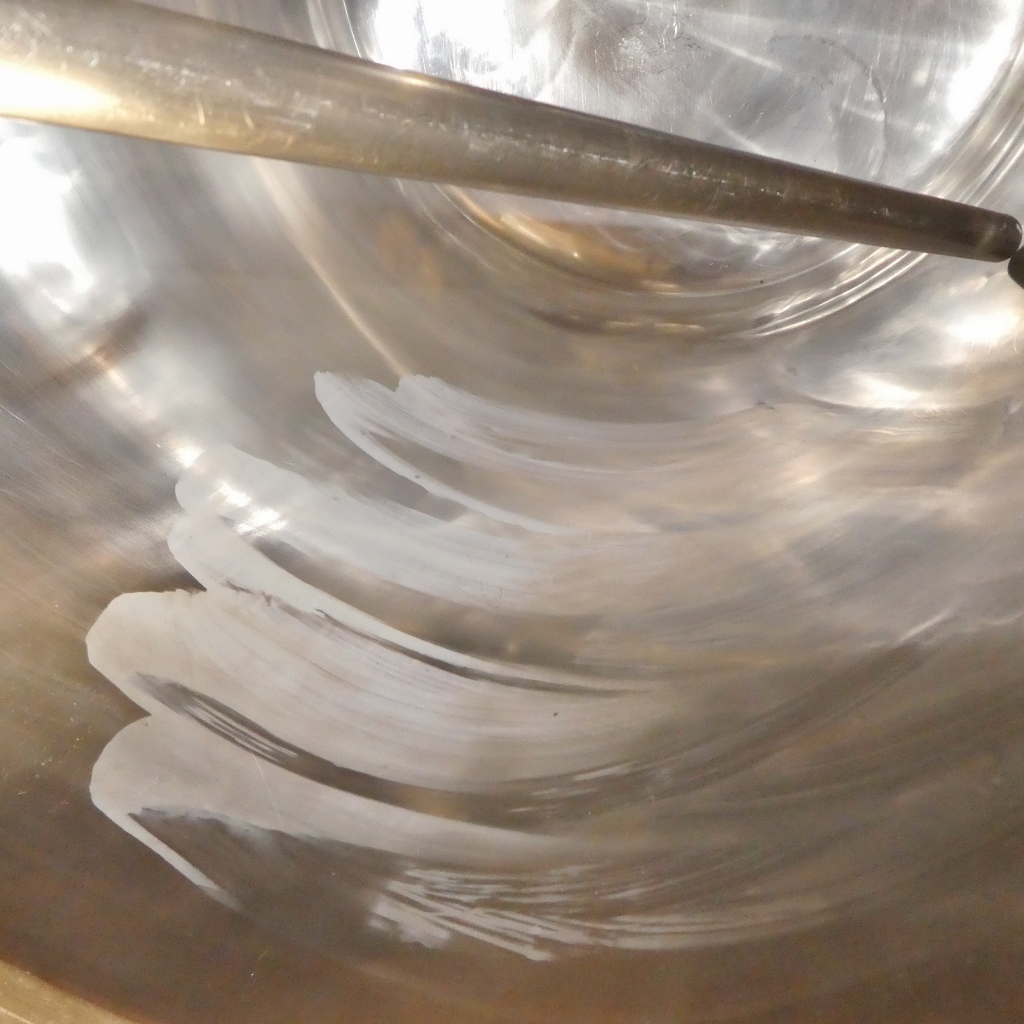

Additional information: pharmacy; mistakes in the material stamps; cylindermaterial 1.4301 (AISI 304); slight metallic discolourations inside
Volumetric volume (L): 76 L
Pressure in tank: pressure and vacuum
Max. pressure (Bar): 3 Bar
Min. pressure (Bar): 1 Bar
Max. temperature (°C): 133 °C
Material wet parts: SS AISI 304 (V2A)
Model: vertical
Configuration: single-skin
Heat exchanger: no
Insulation: no
Mobile tank: no
Total discharge: yes
Max Overpressure: 3 Bar
Max onderdruk: 1 Bar
Documents included: no
Technical drawing included: no

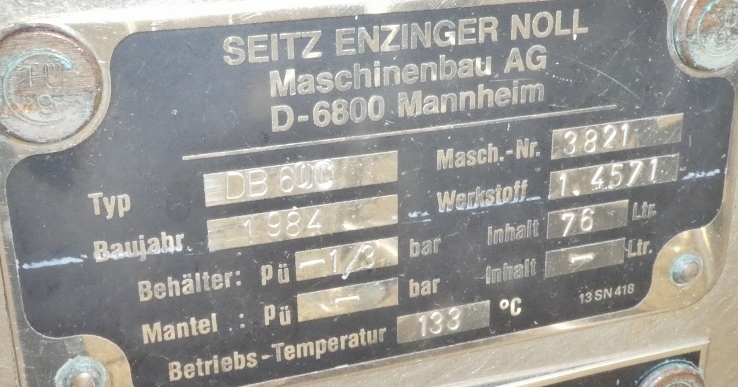

Registration plate on the tank: yes
Flange for agitator: no

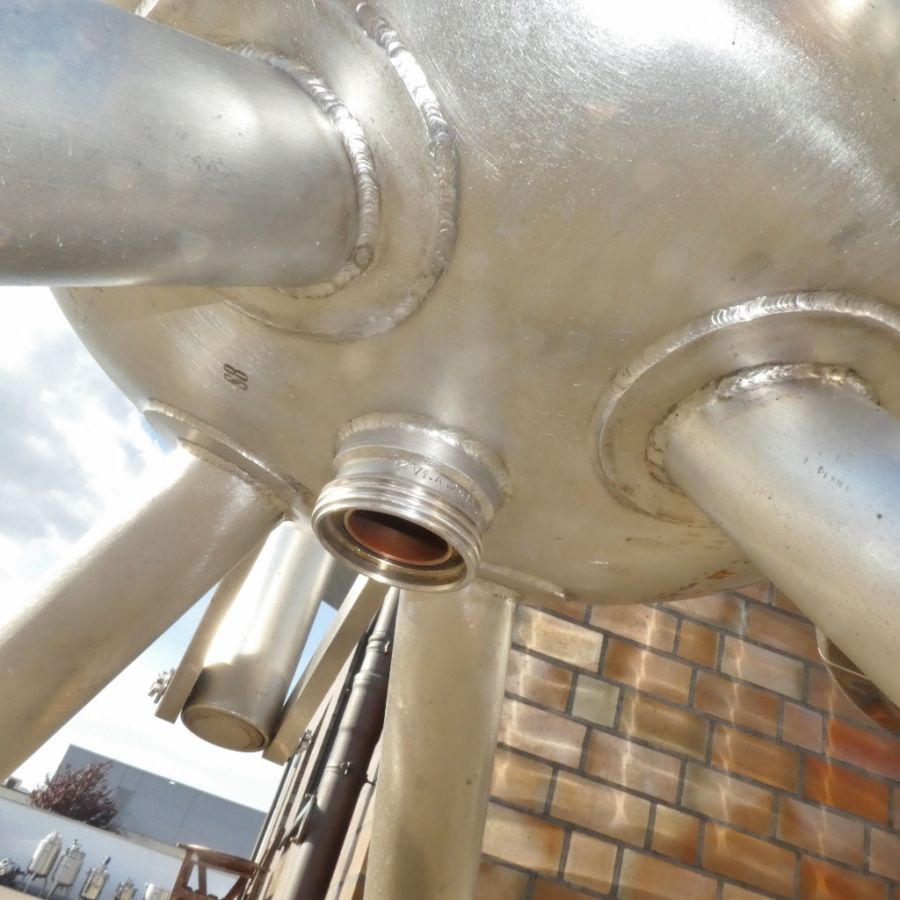

Outlet of tank: 35
Internal diameter tank: 400 mm
Cylinder height: 430 mm
Total height of tank: 1.500 mm
