750 liter i Syrafast 316

item available on order

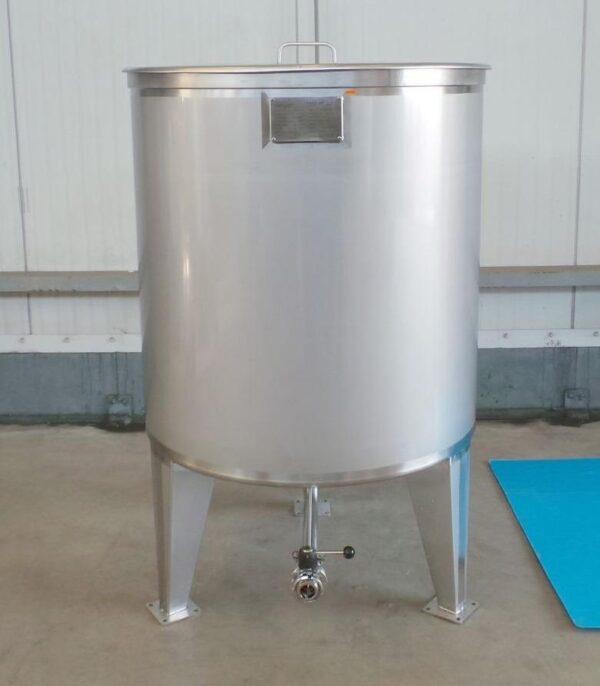

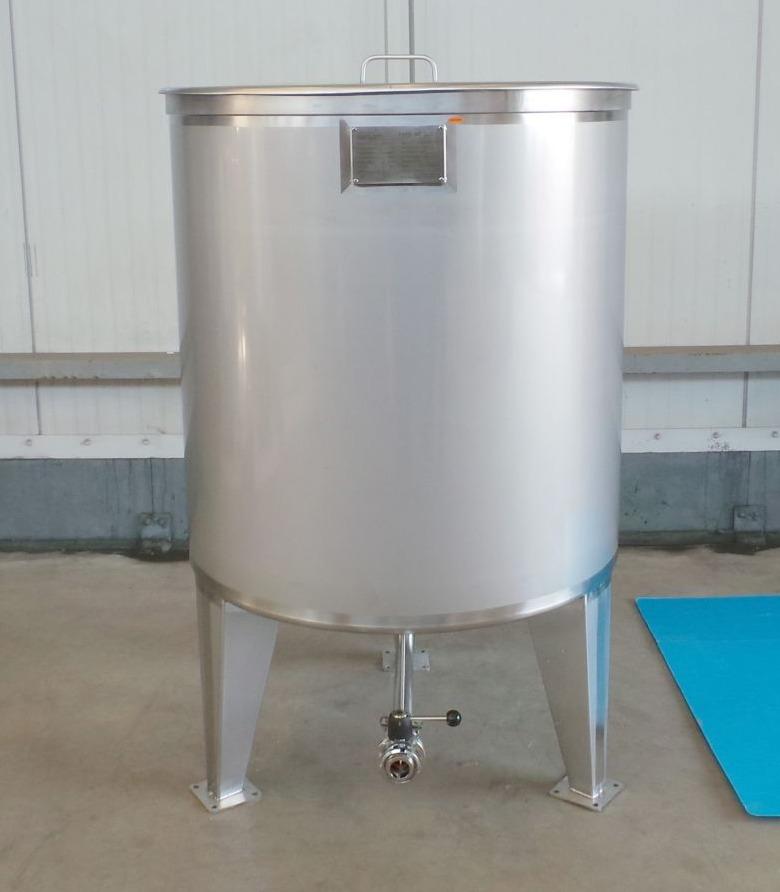

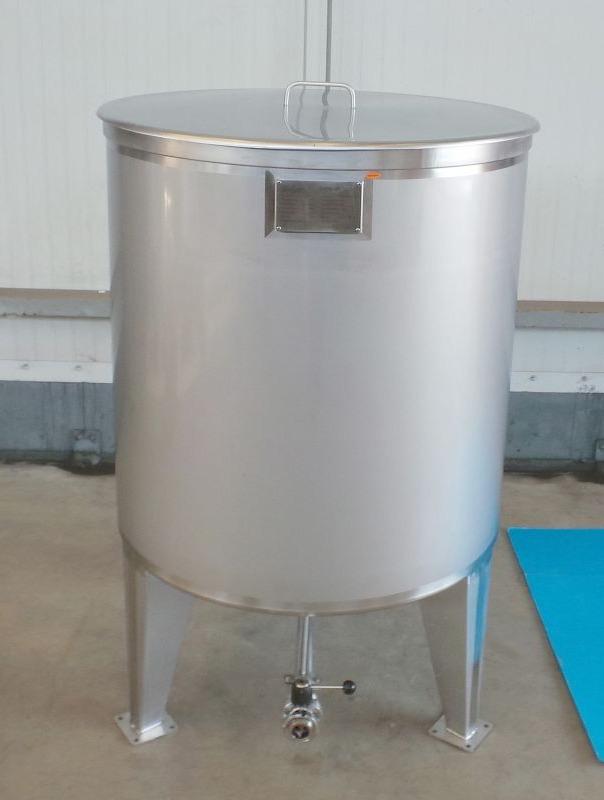

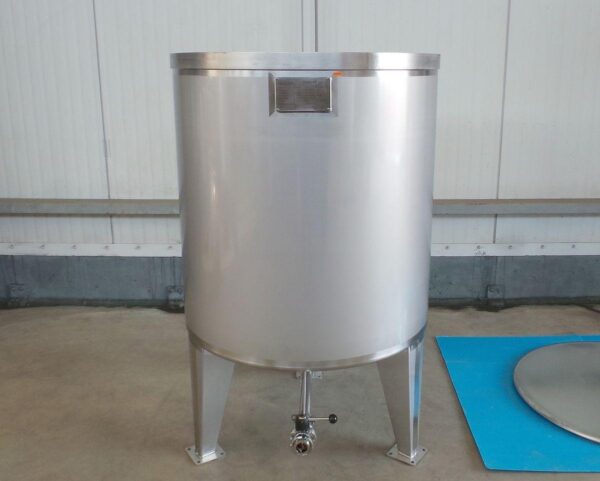

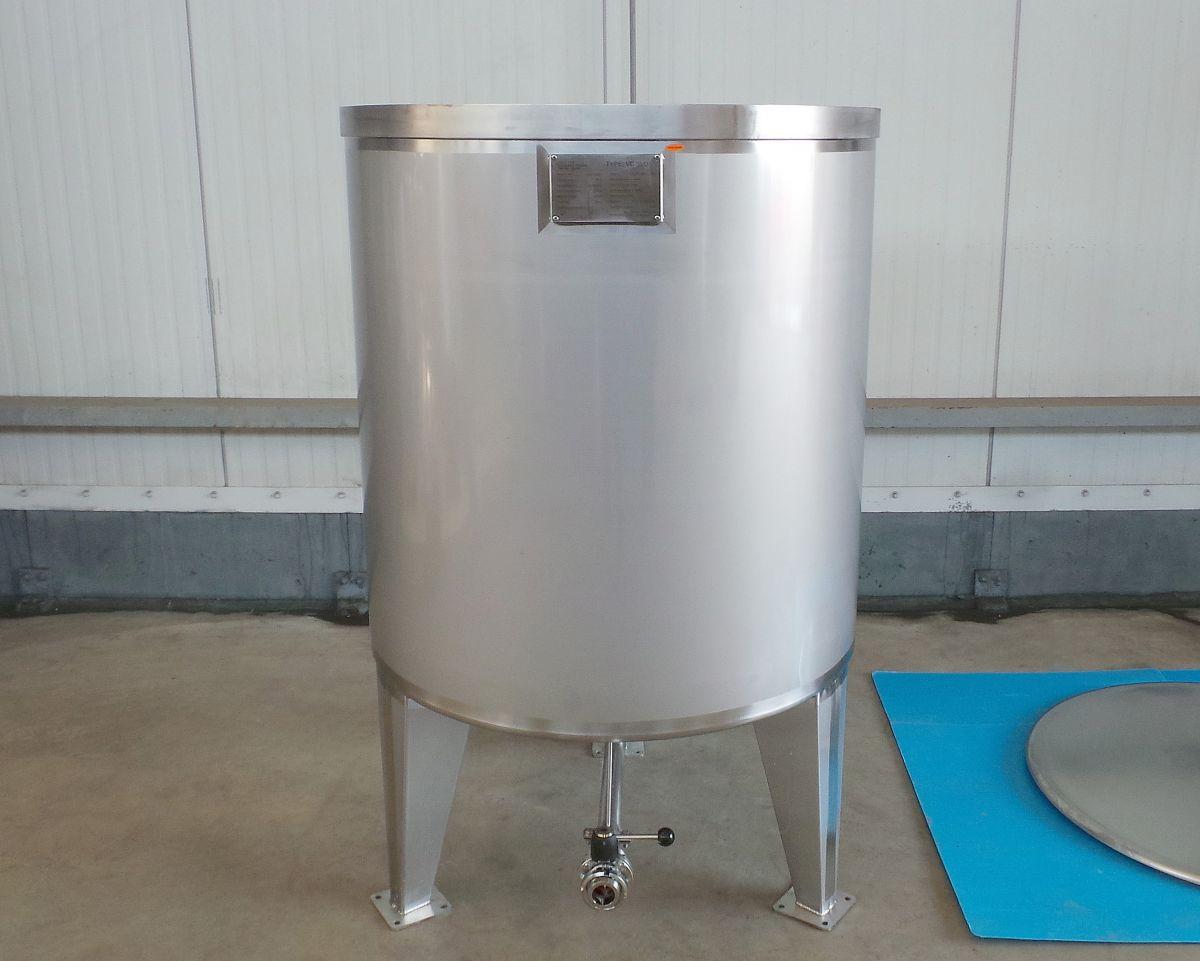

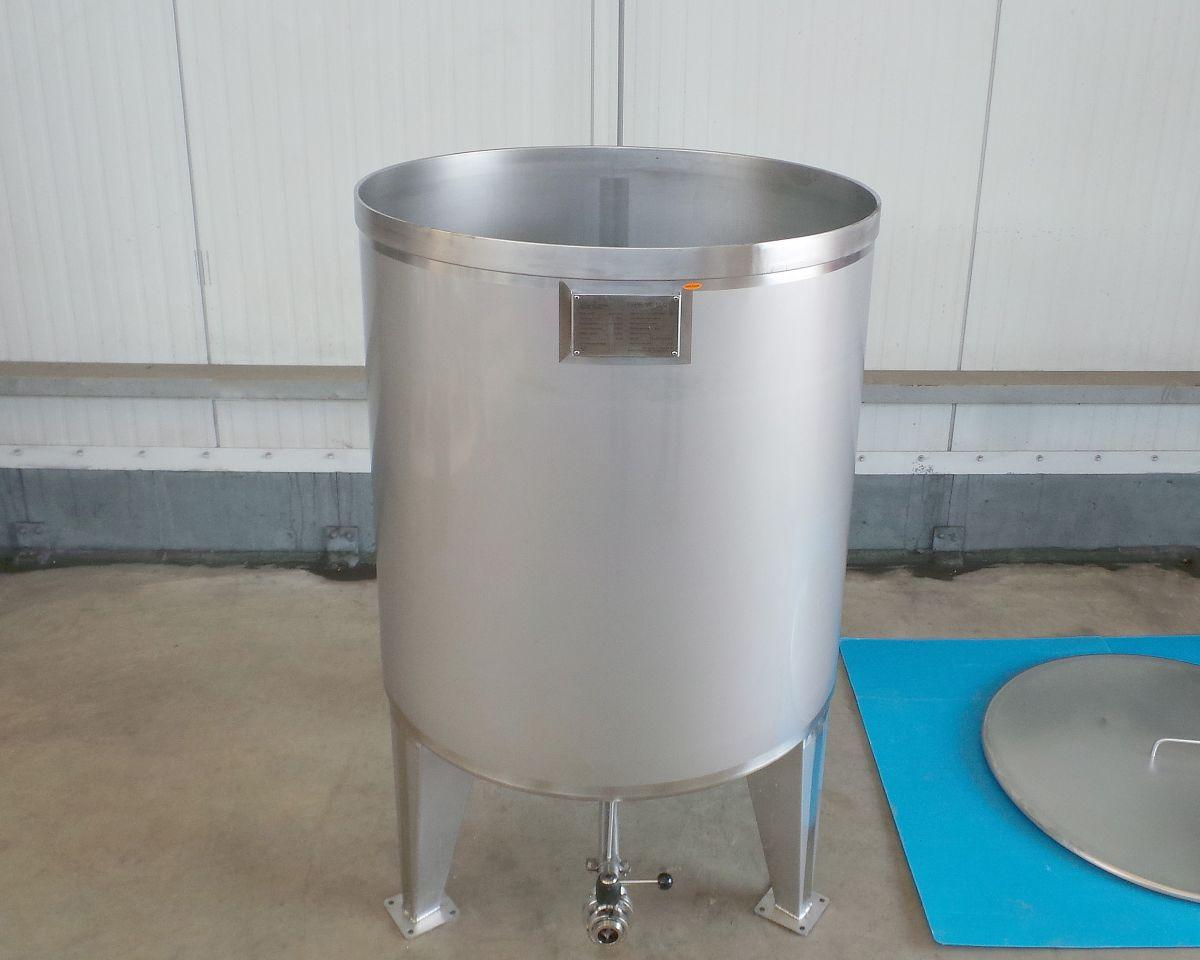

Article type: brand new storage tank – type VC-SLO
Capacity: 750 L
Maximal density of the product: 1.200

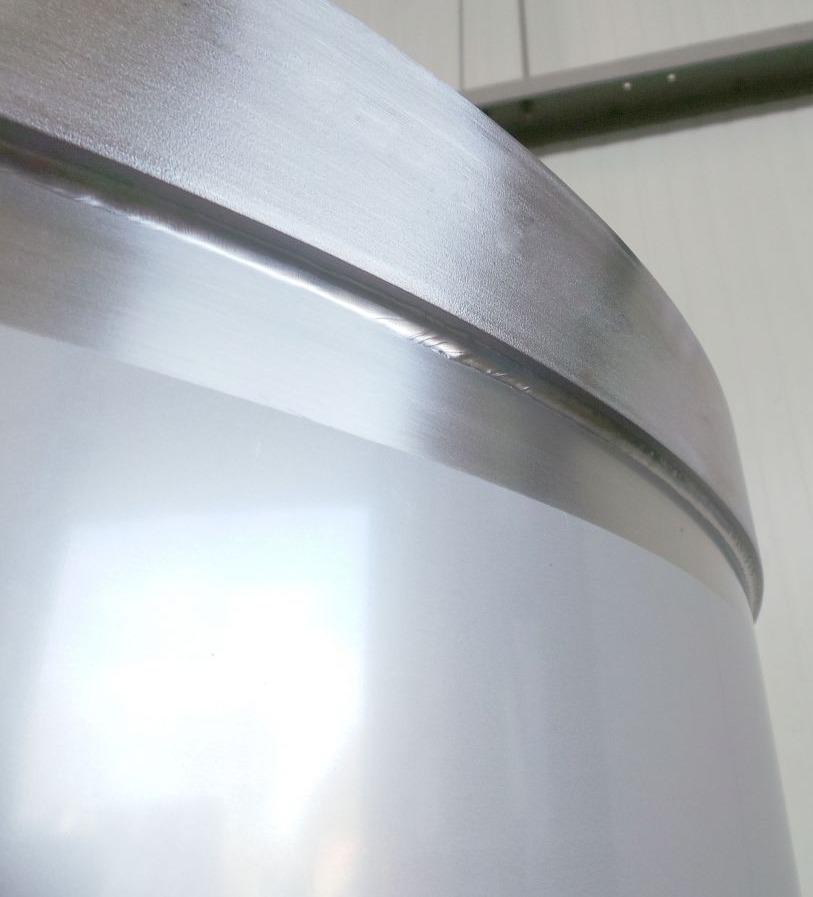

Ra inner weld: 0,80
Working pressure in tank: ATM – atmosferic

Max. working temperature: 80 °C
Min. working temperature: -10 °C
Material wet parts: SS AISI 316L (V4A)
Model: vertical
Configuration: single-skin

Heat exchanger: no
Insulation: no
Agitator: no
Mobile tank: no

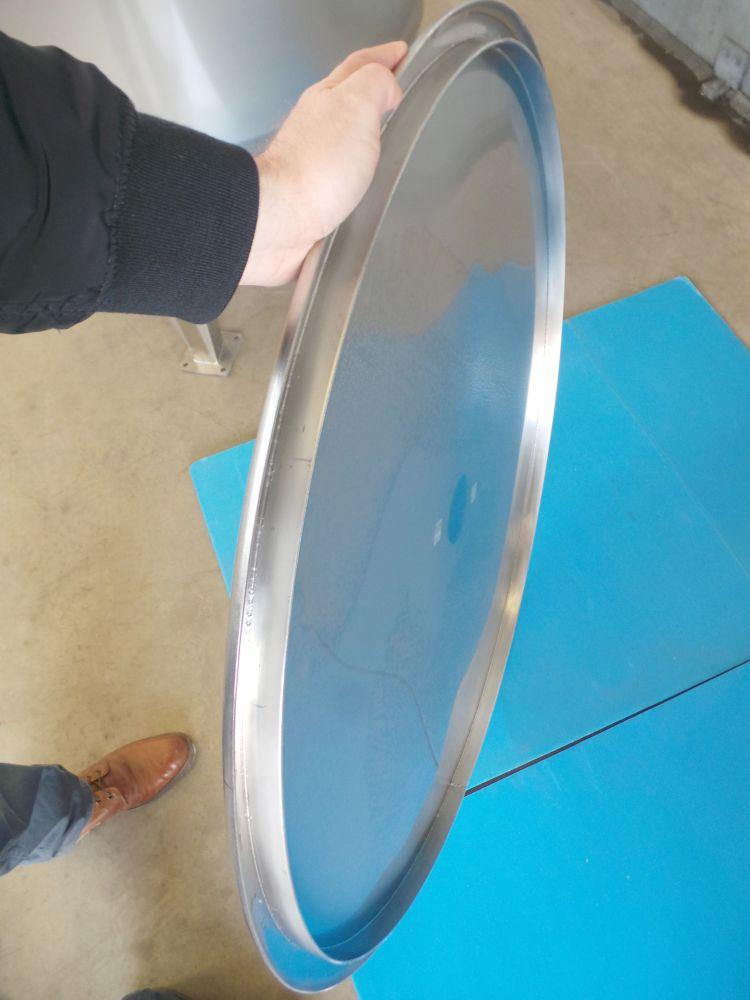

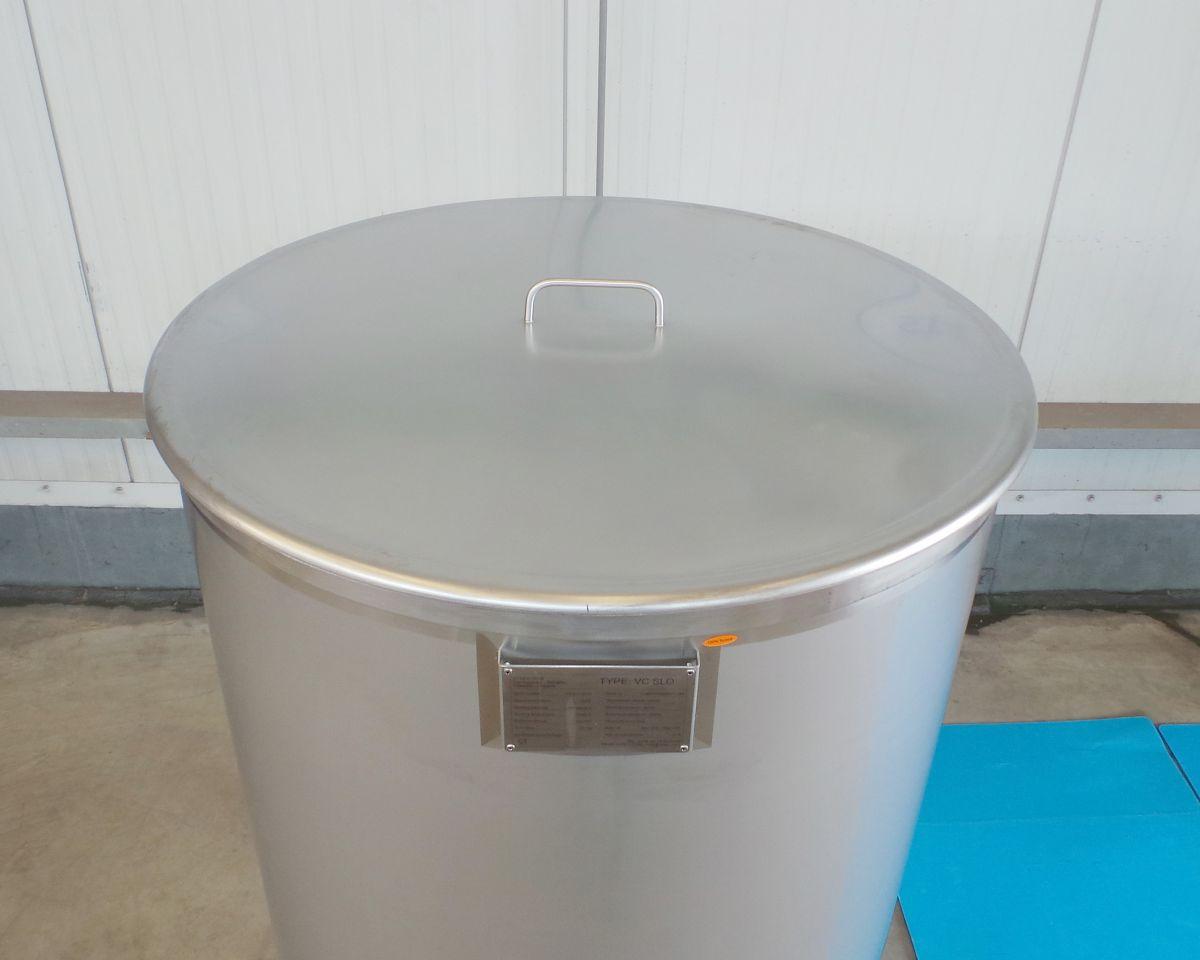

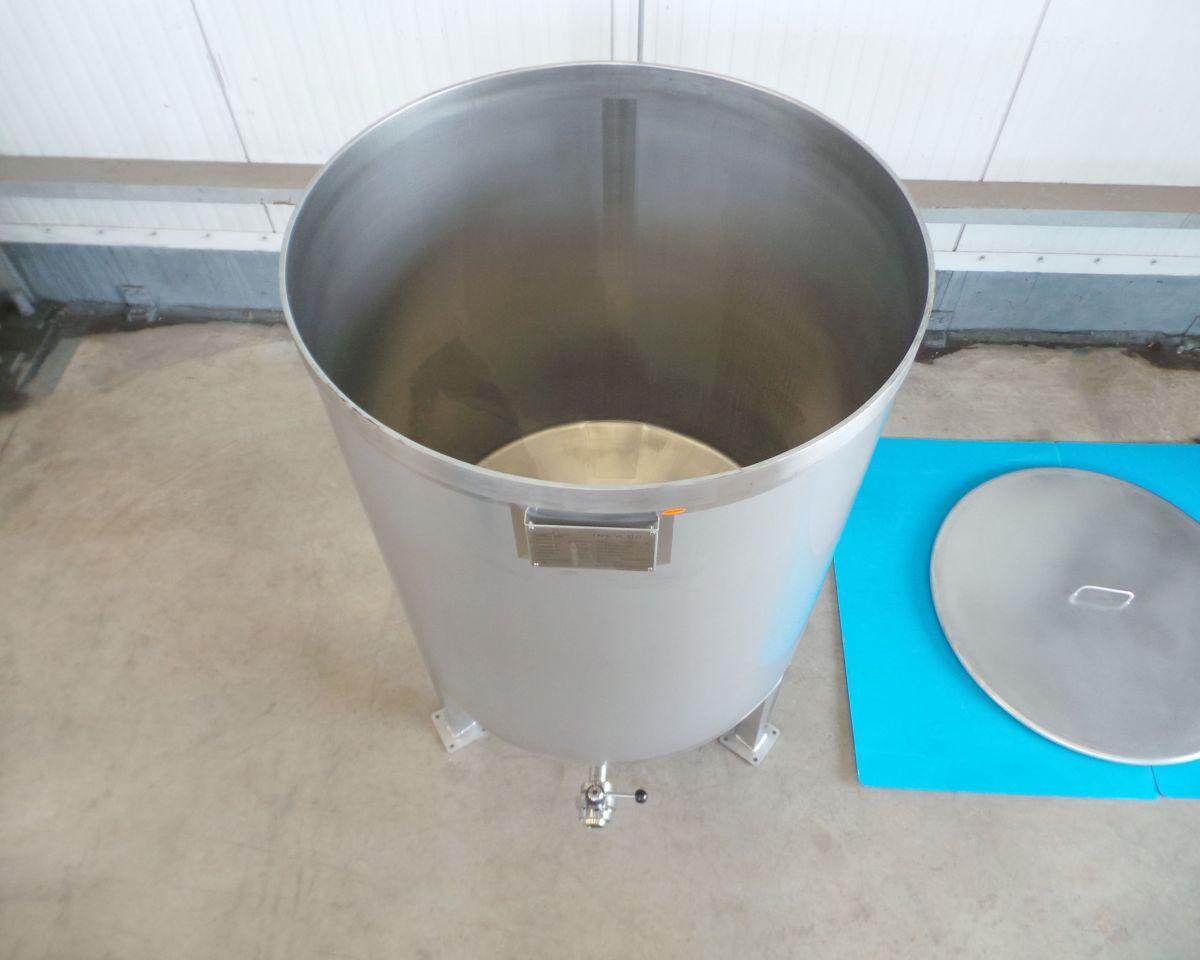

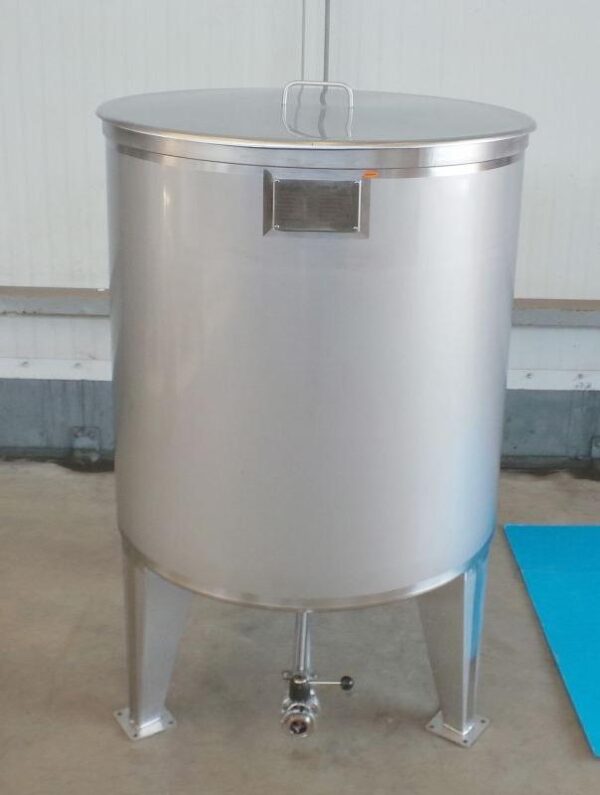

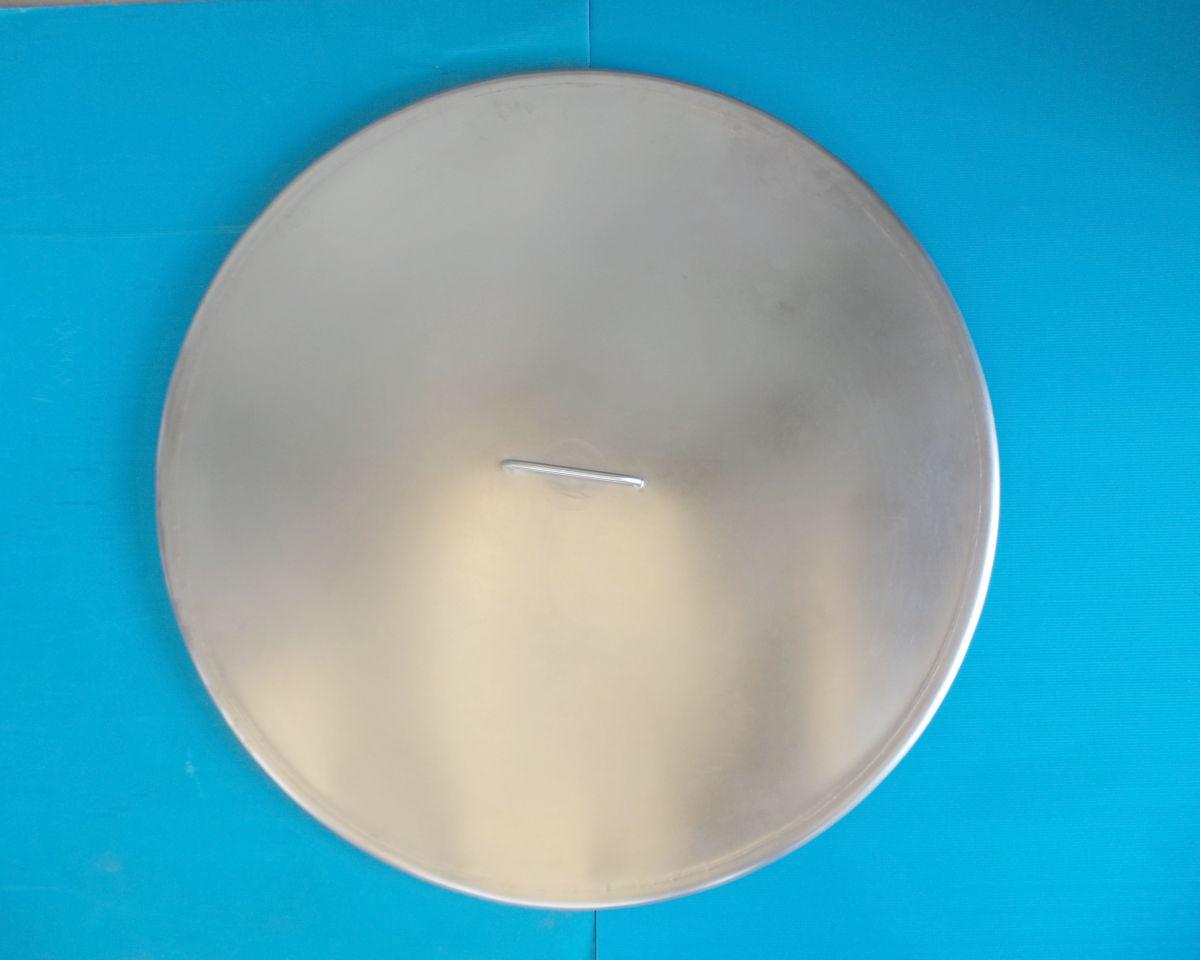

Top type: large seperat lid

Shape of tank: cylindrical
Bottom type: conical 20 °
Total discharge: yes
Fixation points: 3 non adjustable feet
Fixation point(s): RVS 304L

Suitable for food industry: yes
Documents included: yes, optional

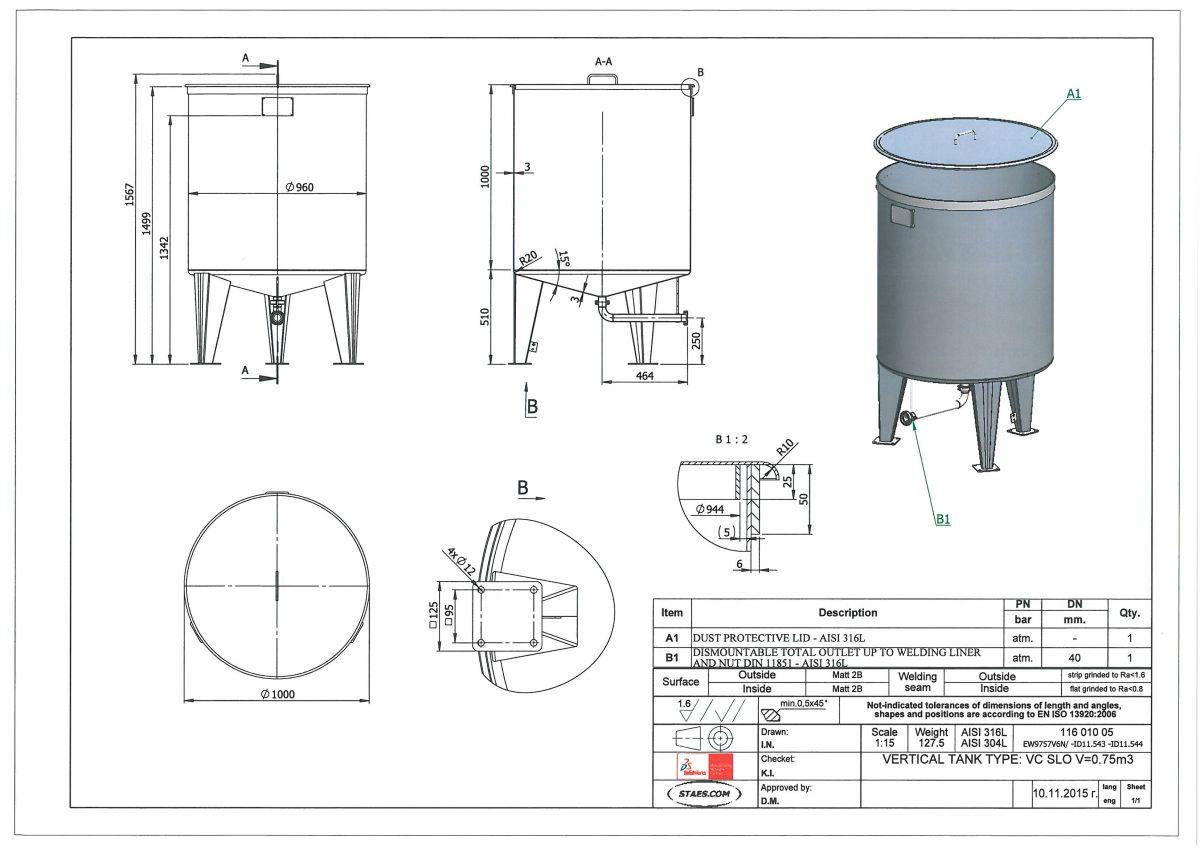

Technical drawing included: yes
Registration plate on the tank: yes
Flange for agitator: no

Spray ball: no

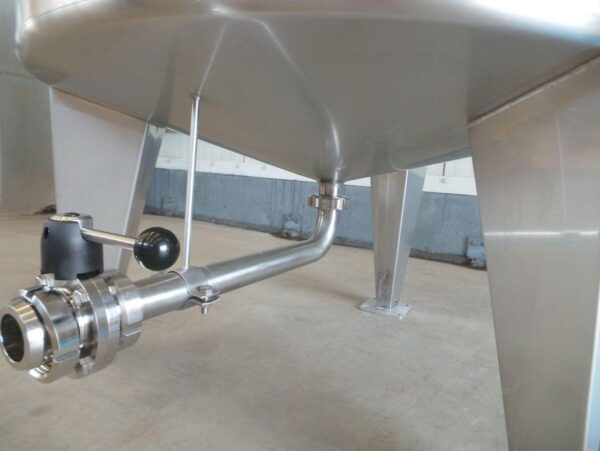

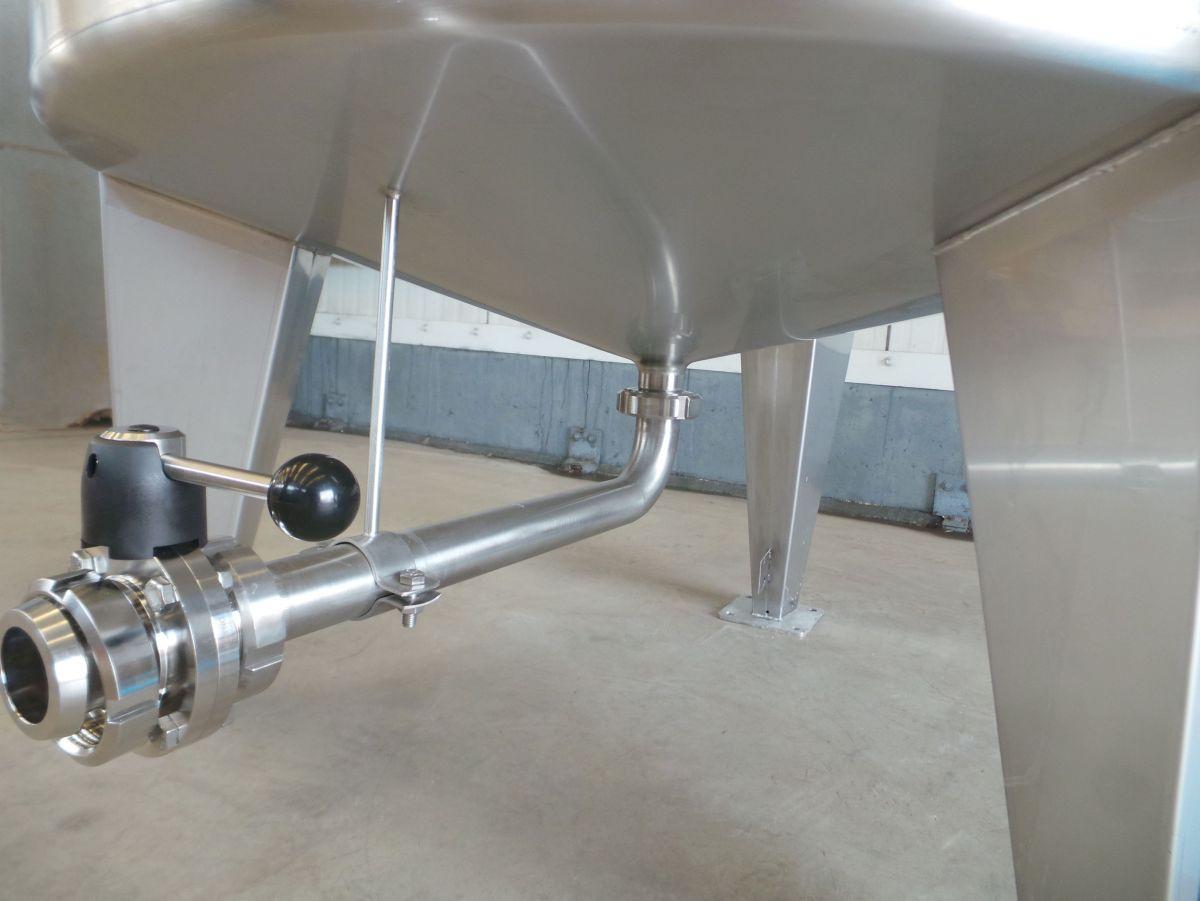

Tank outlet: inside Ø 40 mm
Outlet type: DIN11851 female
Total outlet valve: yes, optional
Type shut-off valve: butterfly valve

Top: 2 mm
Cylinder: 3 mm
Bottom: 3 mm
Distance from outlet to ground: 250 mm
Outer diameter tank: 960 mm

Cylinder height: 1.000 mm
Total height of tank: 1.567 mm
Empty weight tank: 128
