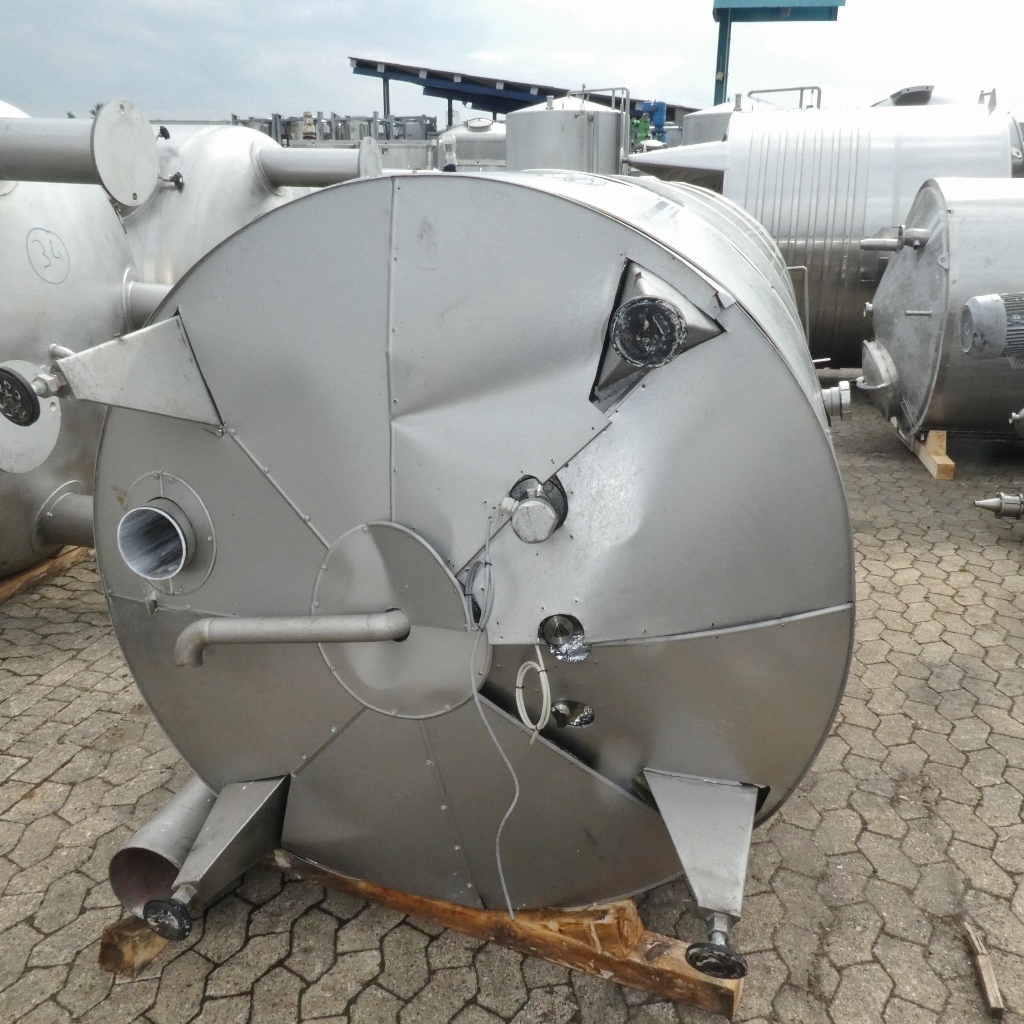

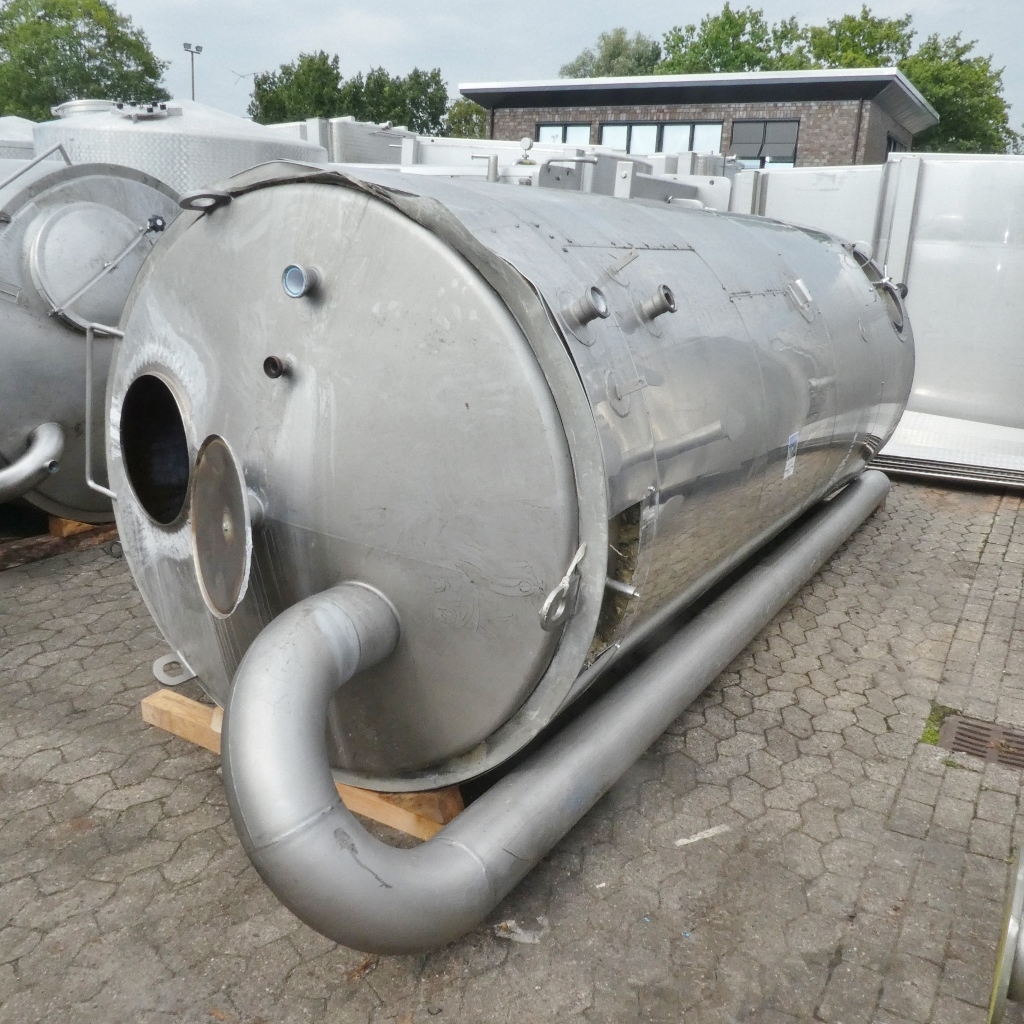

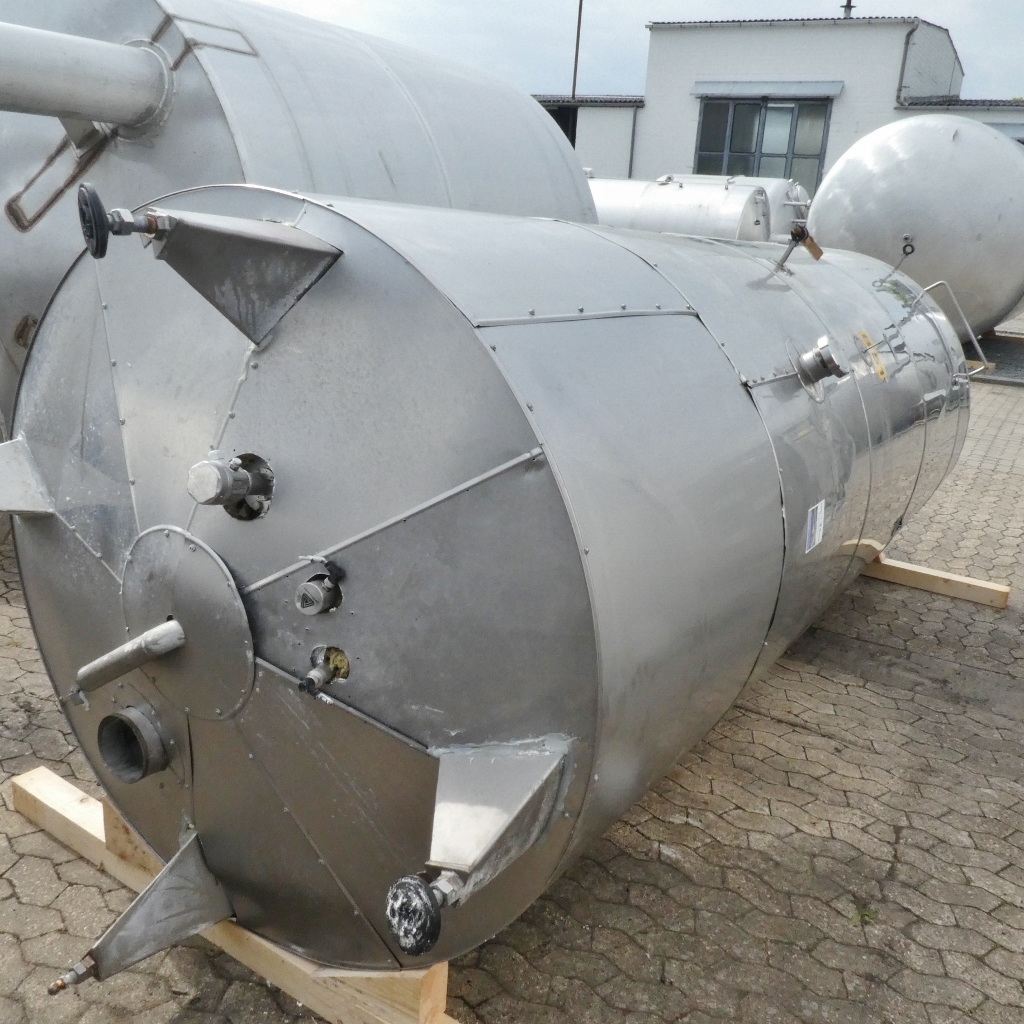

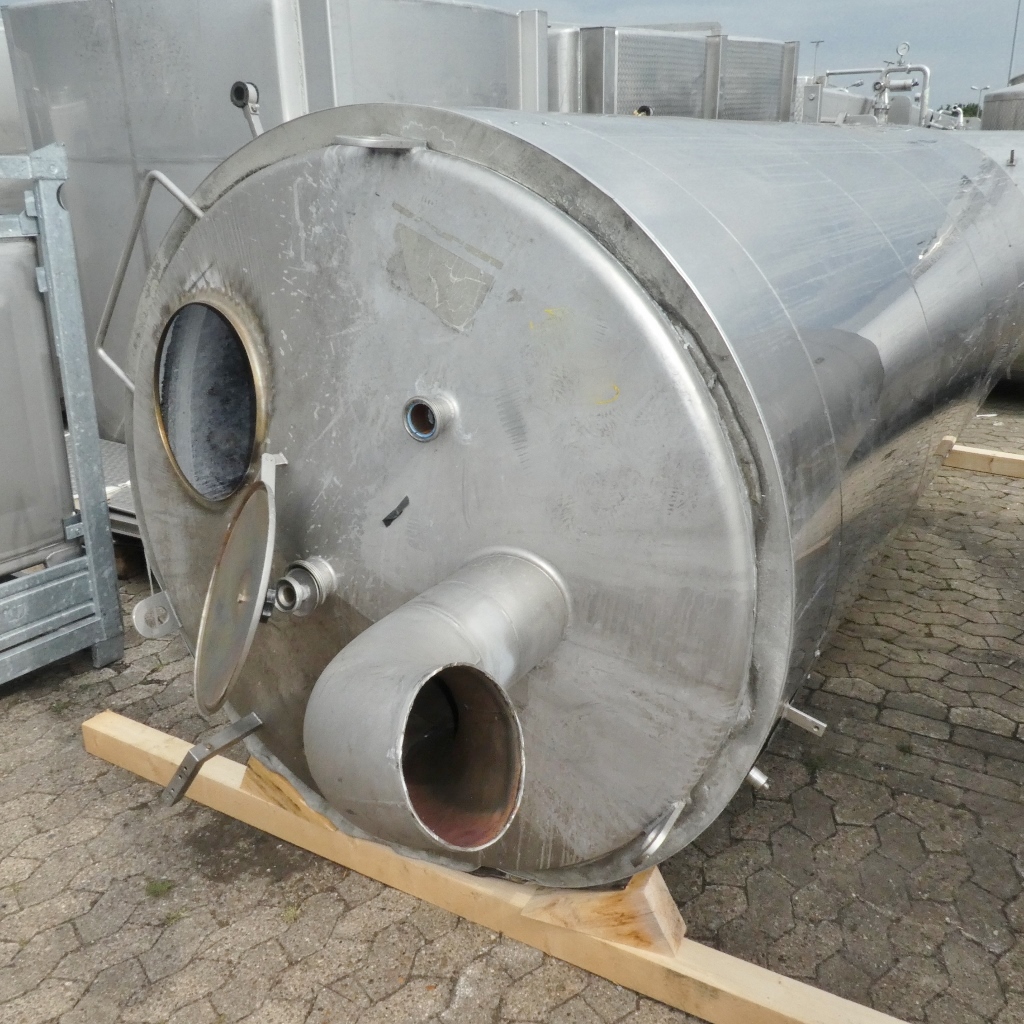

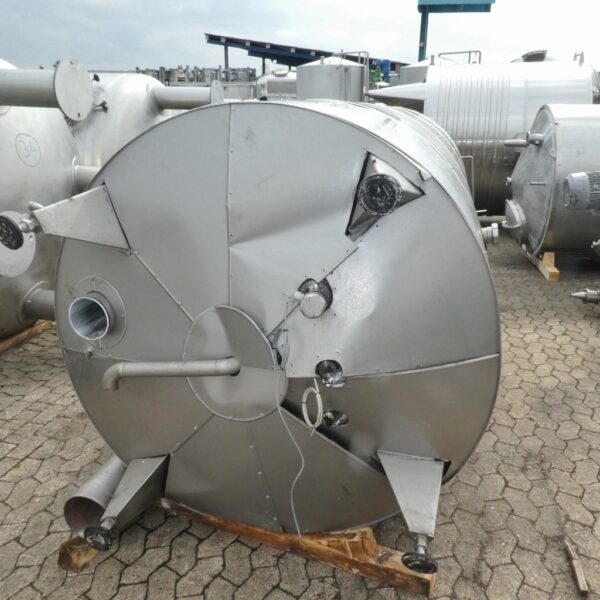

7000 liter tank i Rostfritt 304

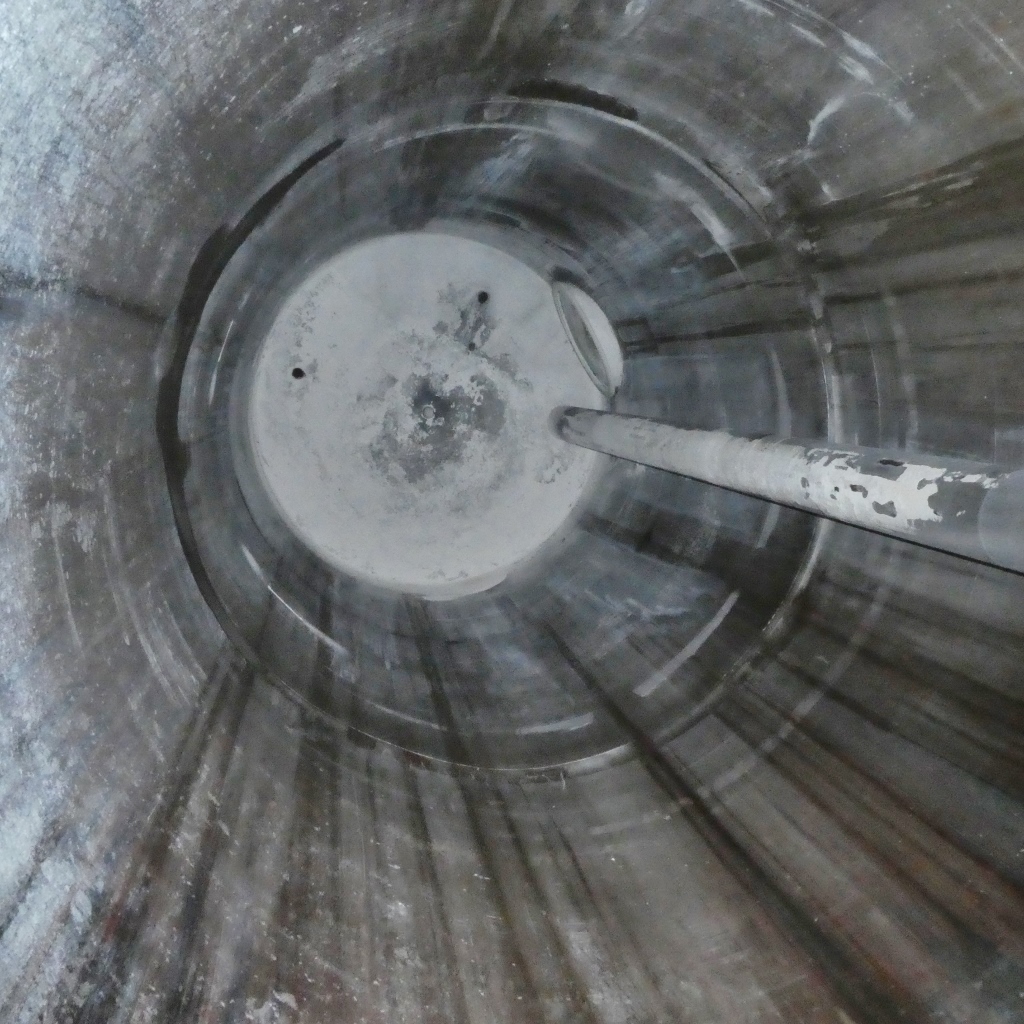

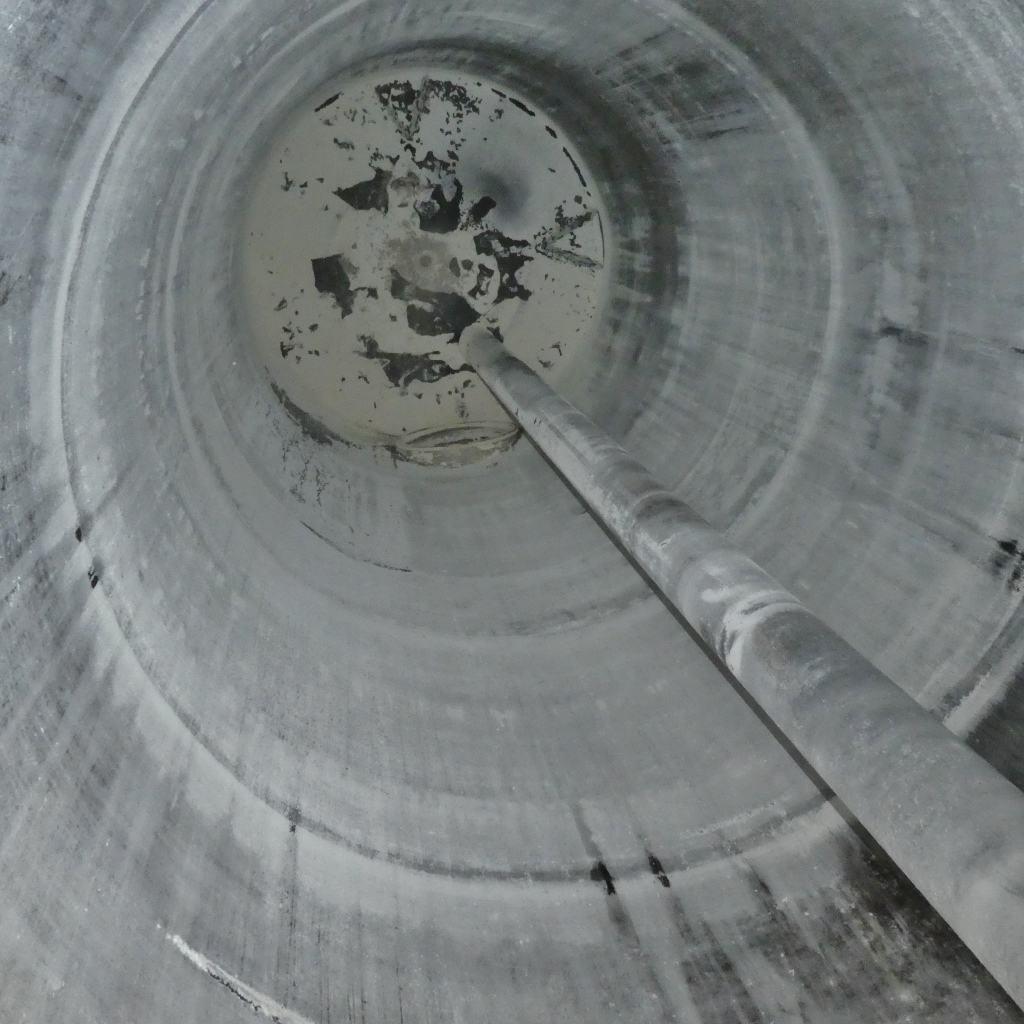

Additional information: Cip-tank in a dairy; 1 overflow pipe inside; 1 tank with a sprayball; at 1 tank 1 base plate of the feet is missing; some residues of previous content; bump at the insulation jacket; pipe end cut flush Volumetric volume (L): 7.000 L Pressure in tank: ATM - atmosferic Material wet parts: SS AISI 304 (V2A) Model: vertical Configuration: insulated Heat exchanger: no Insulation: yes Mobile tank: no Total discharge: yes Documents included: no Technical drawing included: no Registration plate on the tank: no Flange for agitator: no Position of manway: headside Outlet of tank: pipe end Ø appr. 50mm Internal diameter tank: 1.500 mm Outer diameter tank: 1.630 mm Cylinder height: 4.050 mm Total height of tank: 5.150 mm
