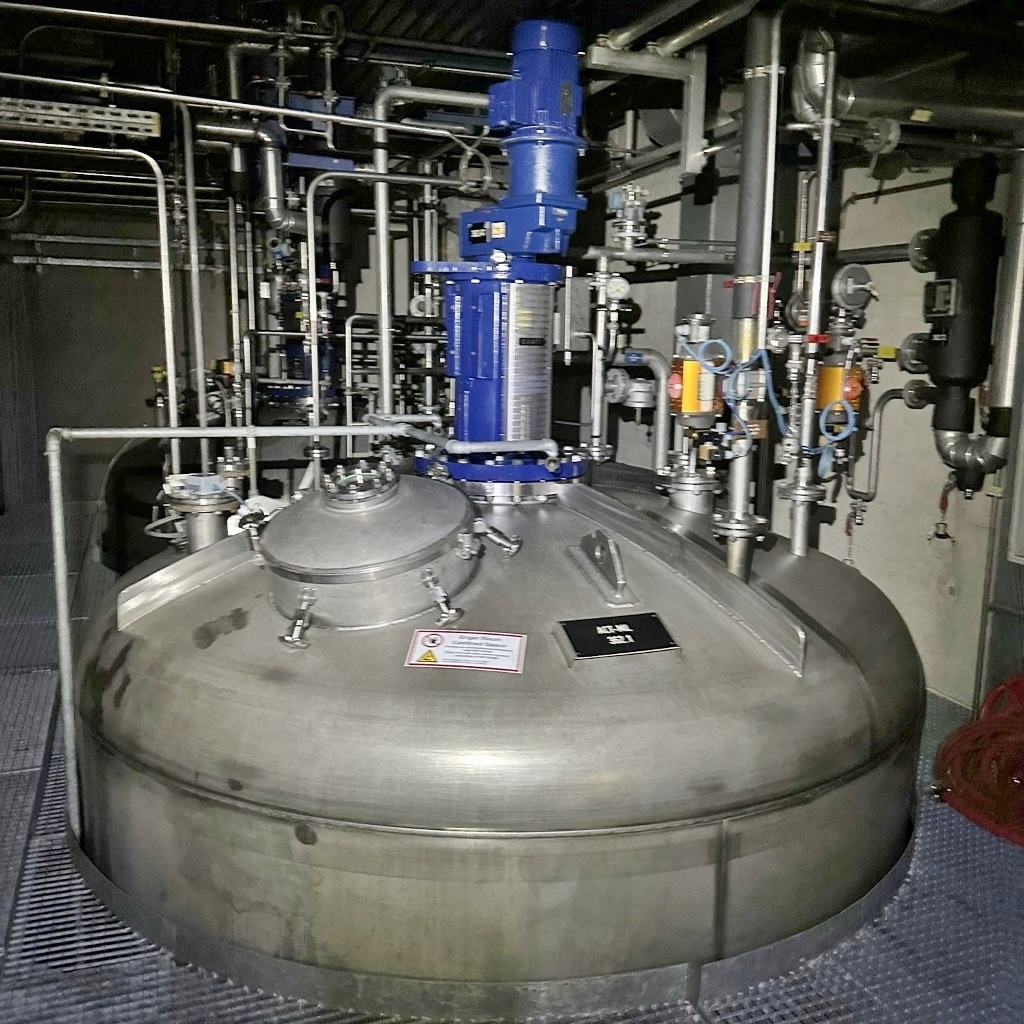

68155 liter tank i Syrafast 316

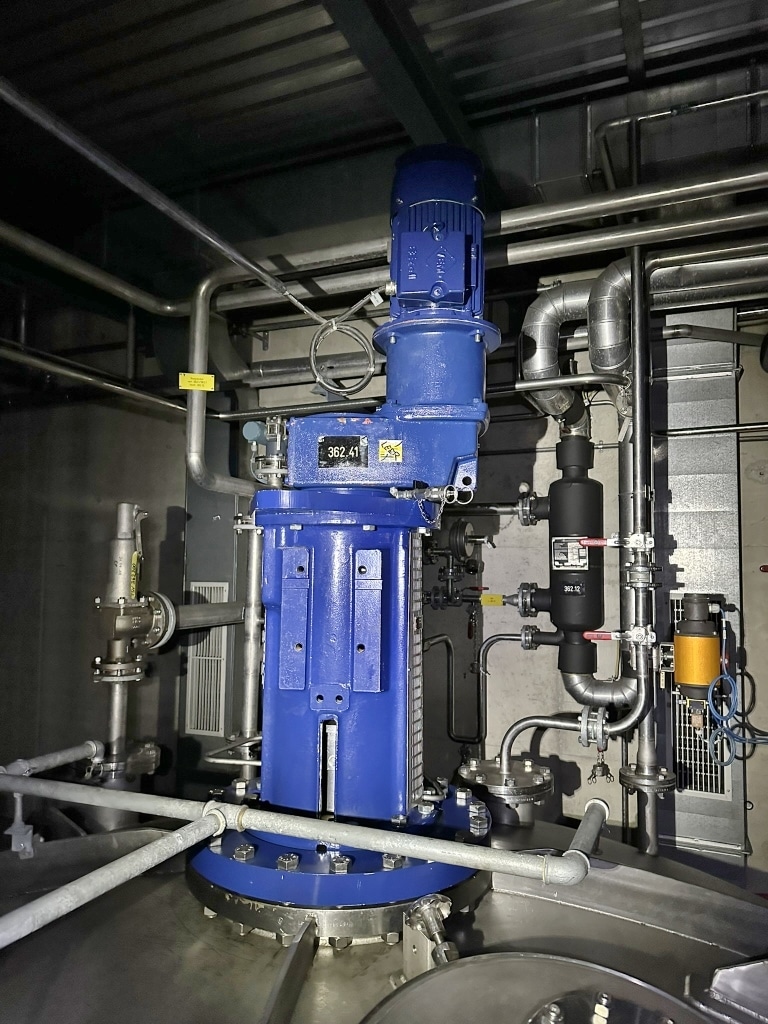

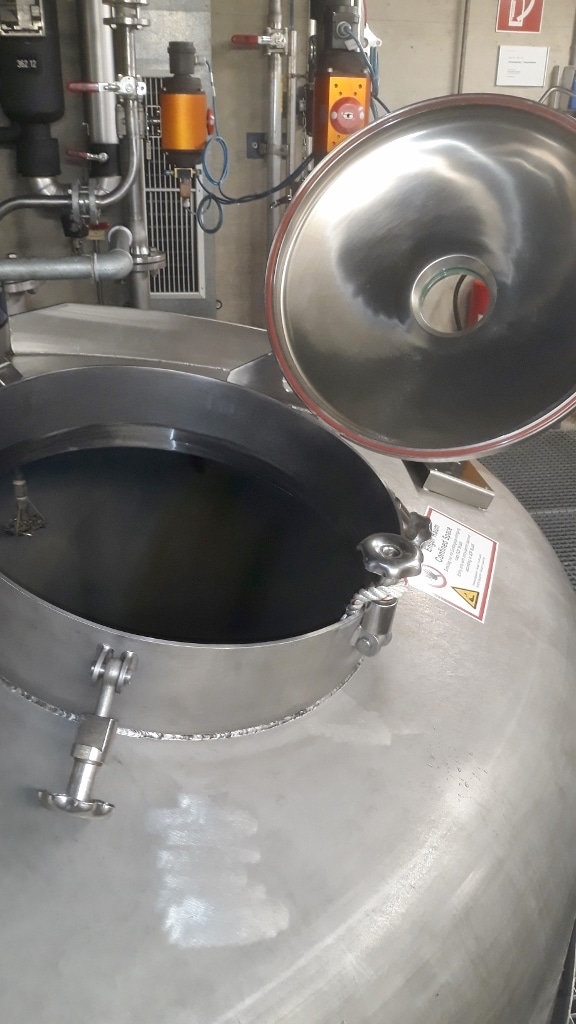

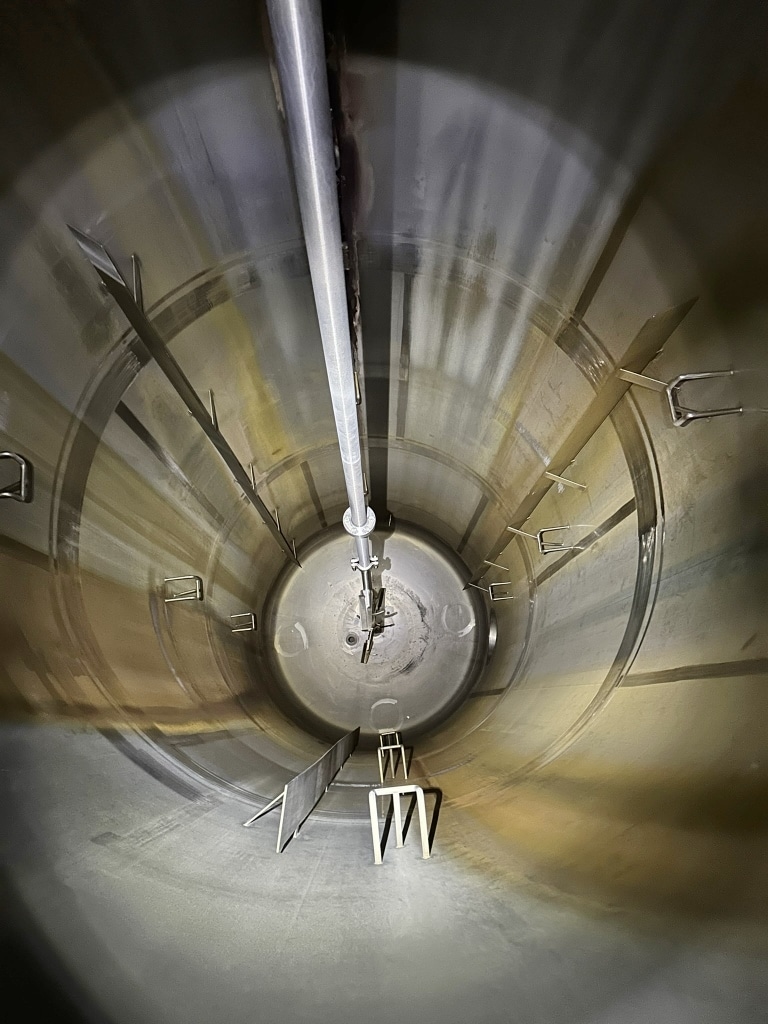

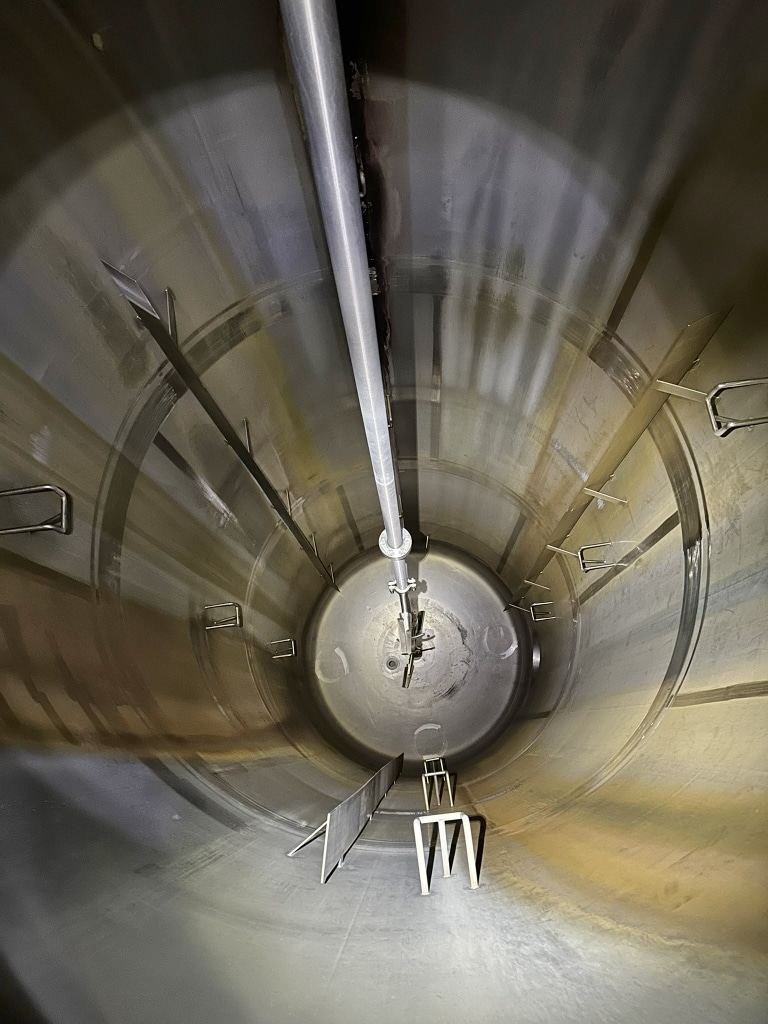

Additional information: Solvents; Manhole cylinder DN 600; Total height without taking the agitator into account; Metallic discolouration inside Volumetric volume (L): 68.155 L Pressure in tank: pressure and vacuum Max. pressure (Bar): 1 Bar Min. pressure (Bar): 0,25 Bar Max. temperature (°C): 100 °C Material wet parts: SS AISI 316 (V4A) Model: vertical Configuration: single-skin Heat exchanger: no Insulation: no Mobile tank: no Total discharge: yes Documents included: no Technical drawing included: no Registration plate on the tank: no Flange for agitator: no Outlet of tank: 100 Agitator: yes Number of revolutions: 77 Power: 5 Top: 8 mm Cylinder: 6 mm Bottom: 12 mm Internal diameter tank: 3.000 mm Cylinder height: 8.830 mm Total height of tank: 10.933 mm
