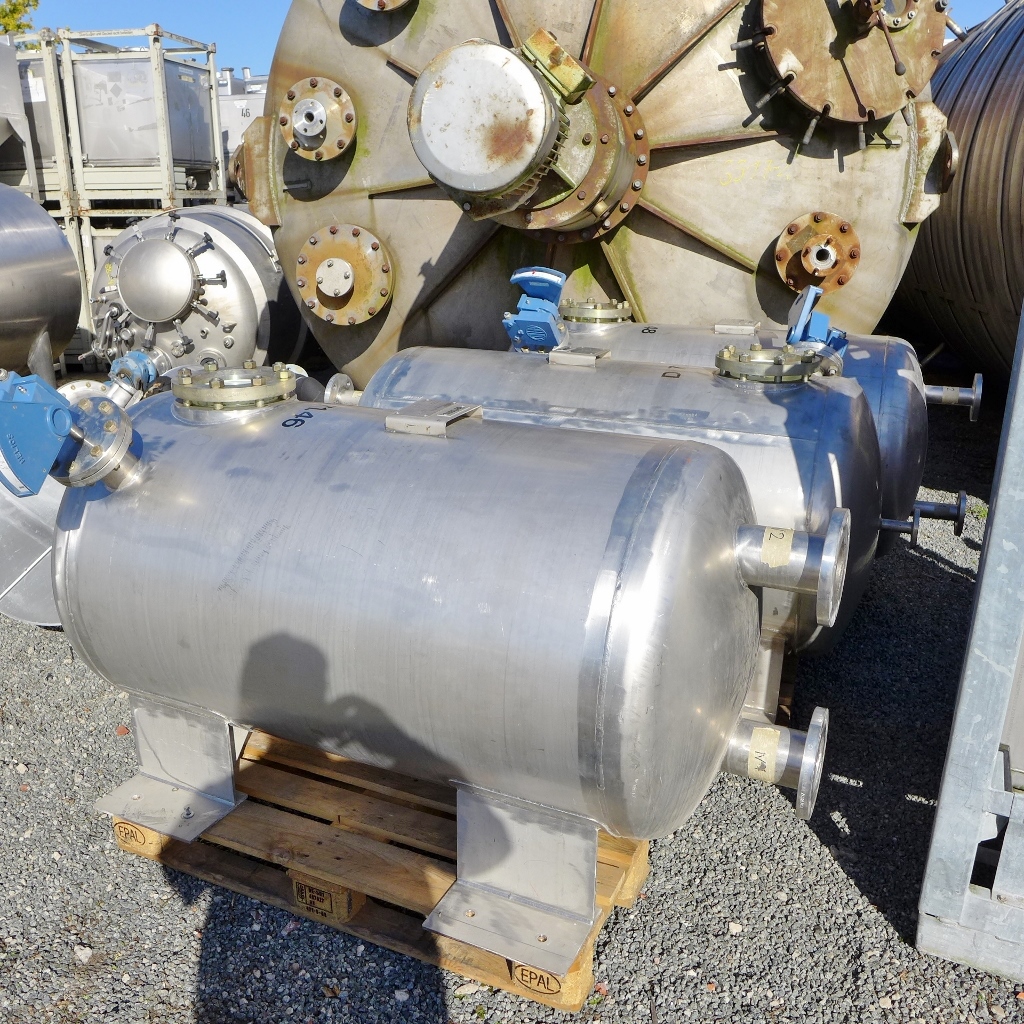

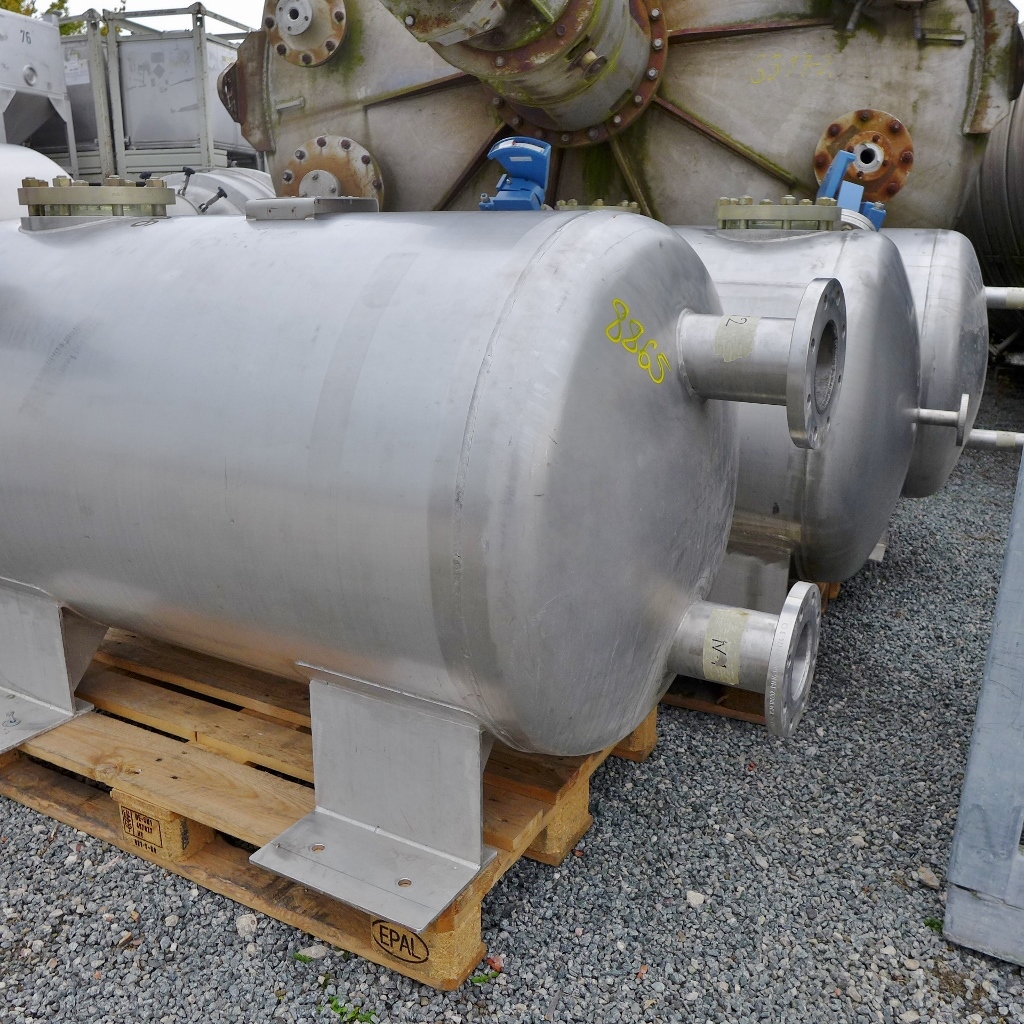

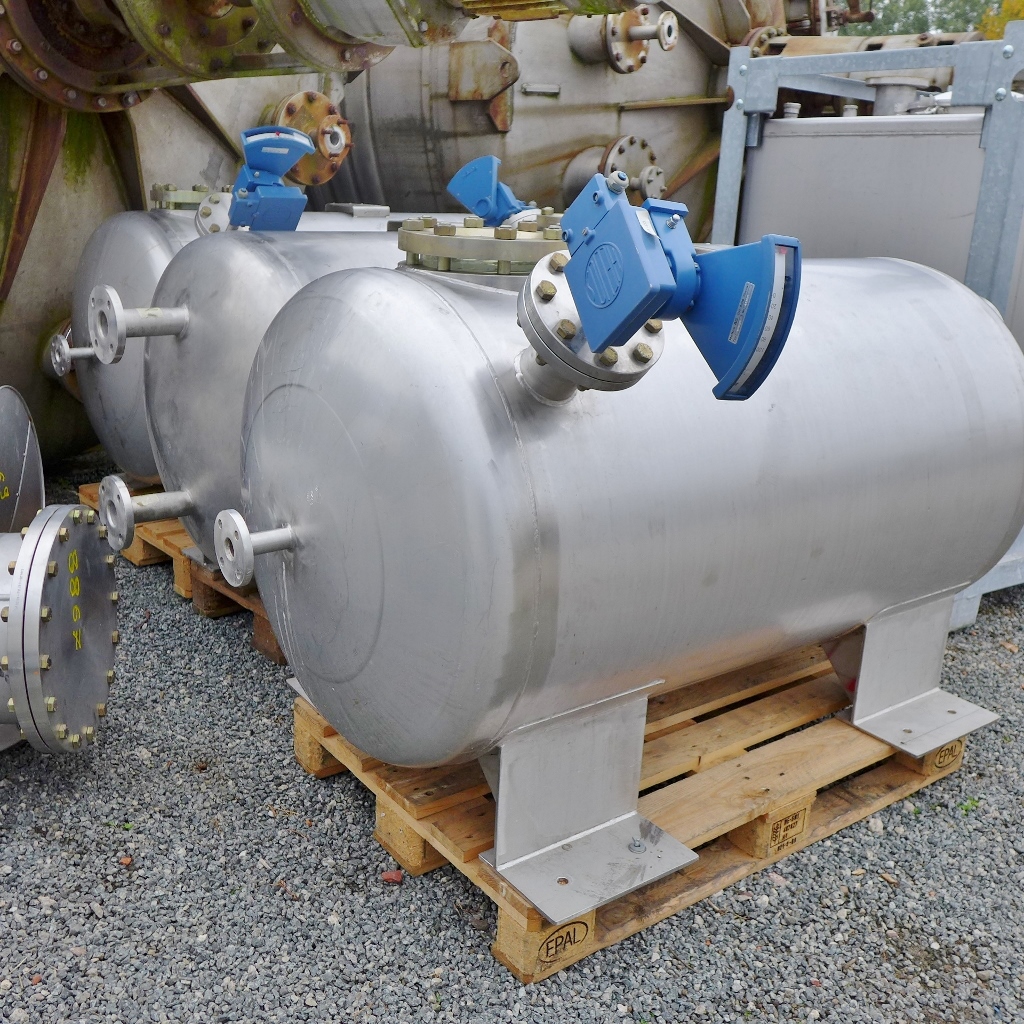

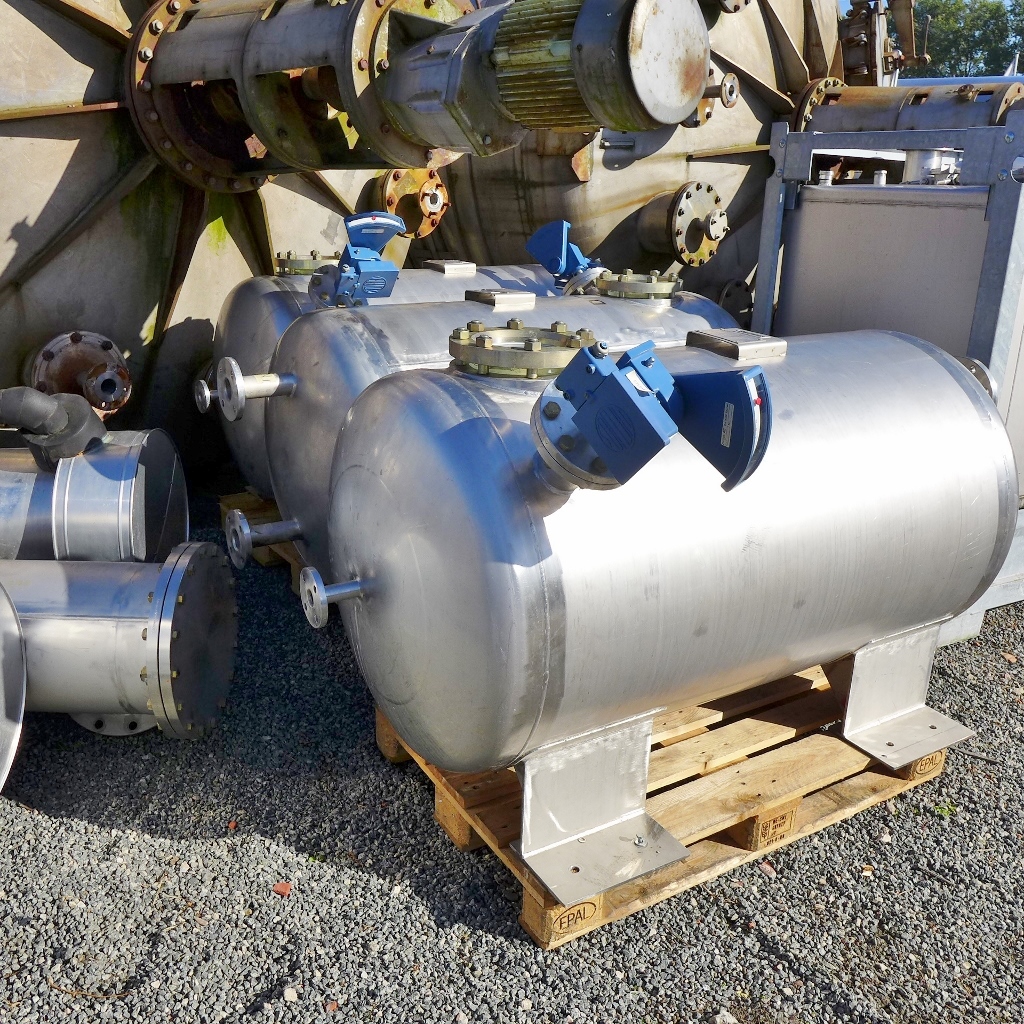

630 liter tank i Syrafast 316

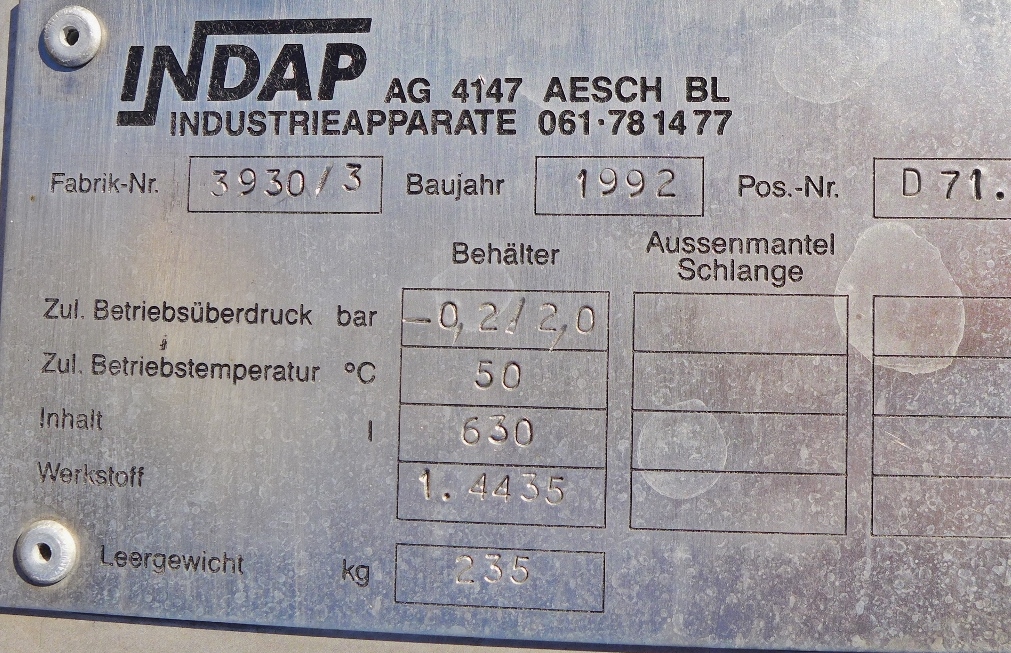

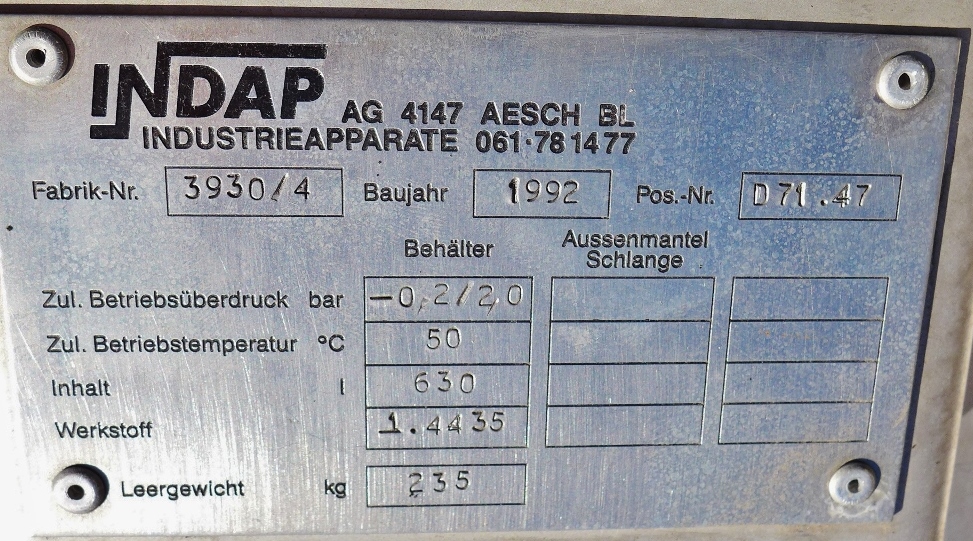

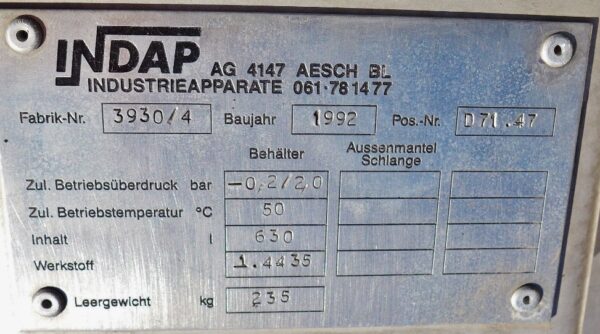

Additional information: Pharmaceutical Chemistry; Suspended design, bolted to 4 lateral, welded stainless steel plates in the system; Size of the connections in the upper bottom different (see photos) Volumetric volume (L): 630 L Pressure in tank: pressure and vacuum Max. pressure (Bar): 2 Bar Min. pressure (Bar): 0,20 Bar Max. temperature (°C): 50 °C Material wet parts: SS AISI 316 (V4A) Model: vertical Configuration: single-skin Heat exchanger: no Insulation: no Mobile tank: no Total discharge: yes Max Overpressure: 2 Bar Max onderdruk: 0,20 Bar Documents included: no Technical drawing included: no Registration plate on the tank: yes Flange for agitator: no Outlet of tank: flange DN25 Internal diameter tank: 790 mm Cylinder height: 1.250 mm Total height of tank: 1.900 mm
