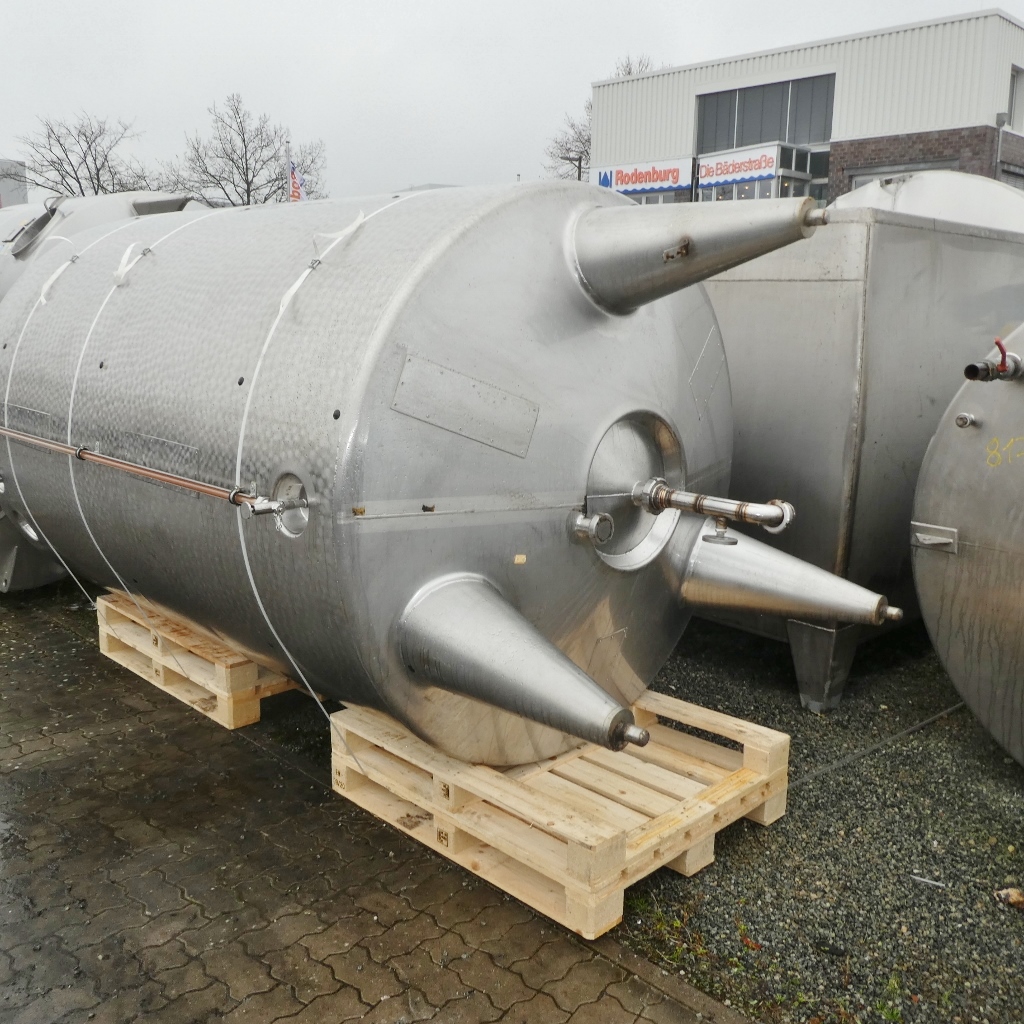

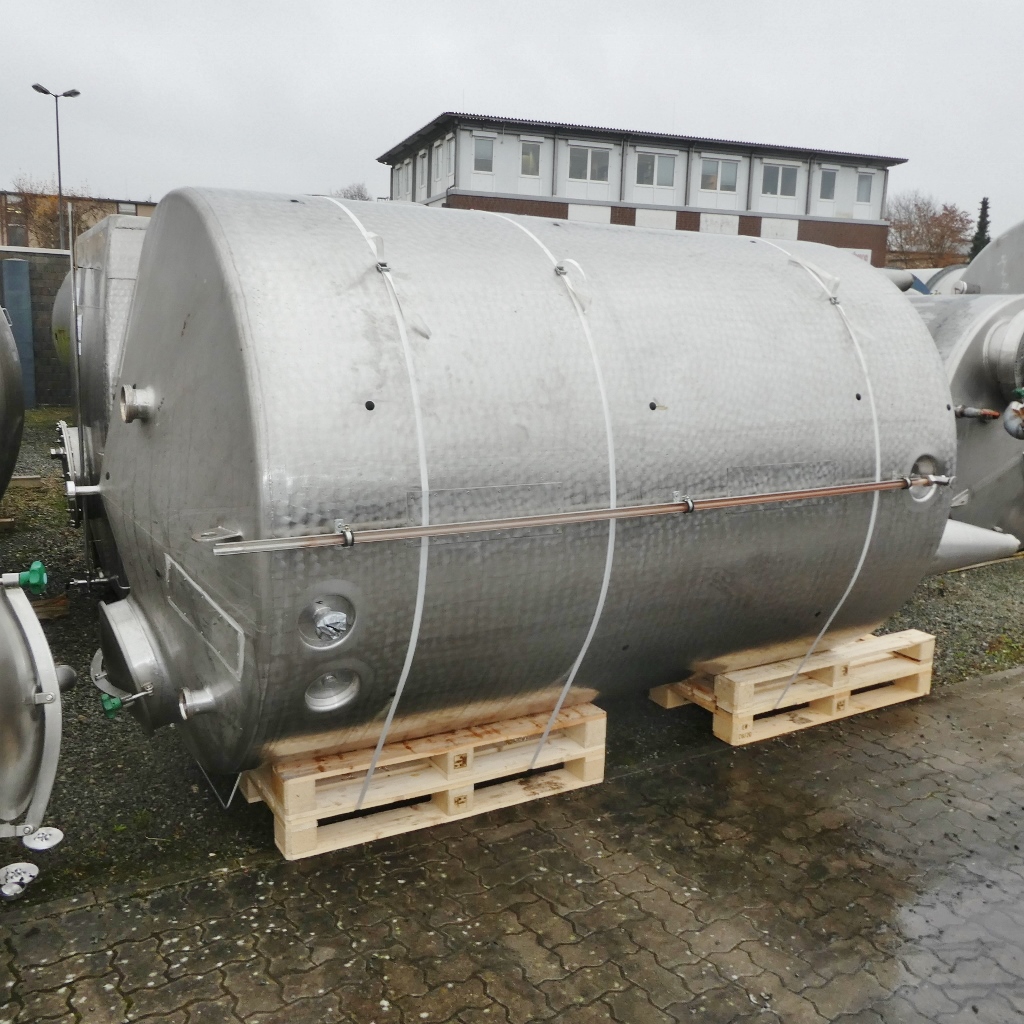

5700 liter tank i Rostfritt 304

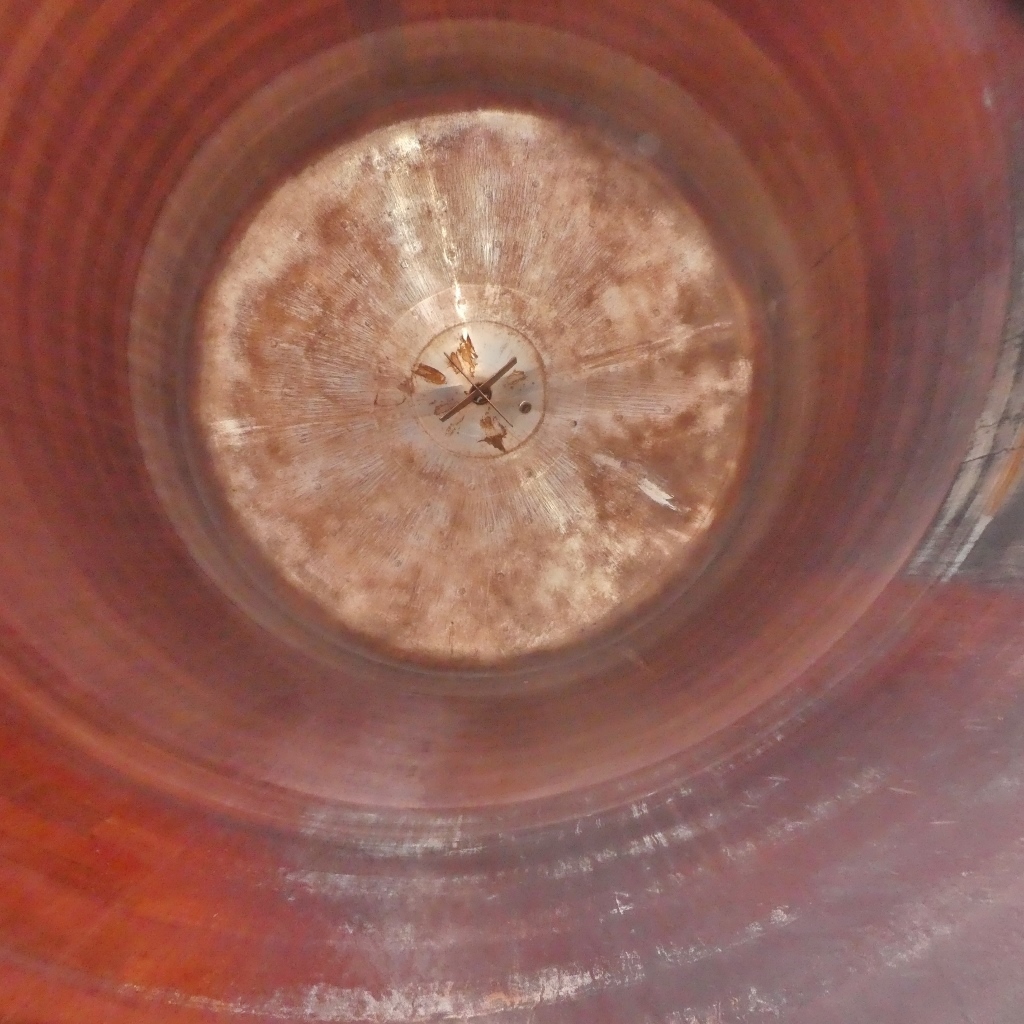

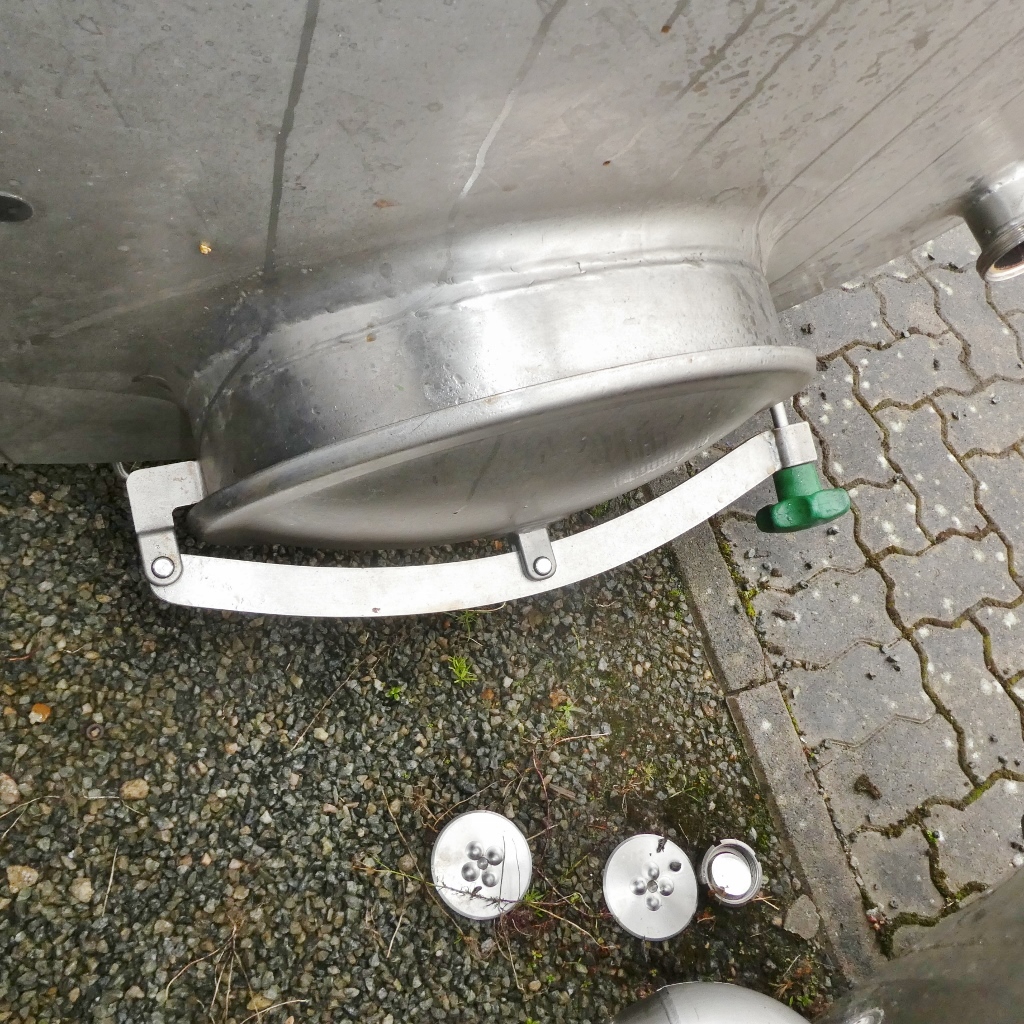

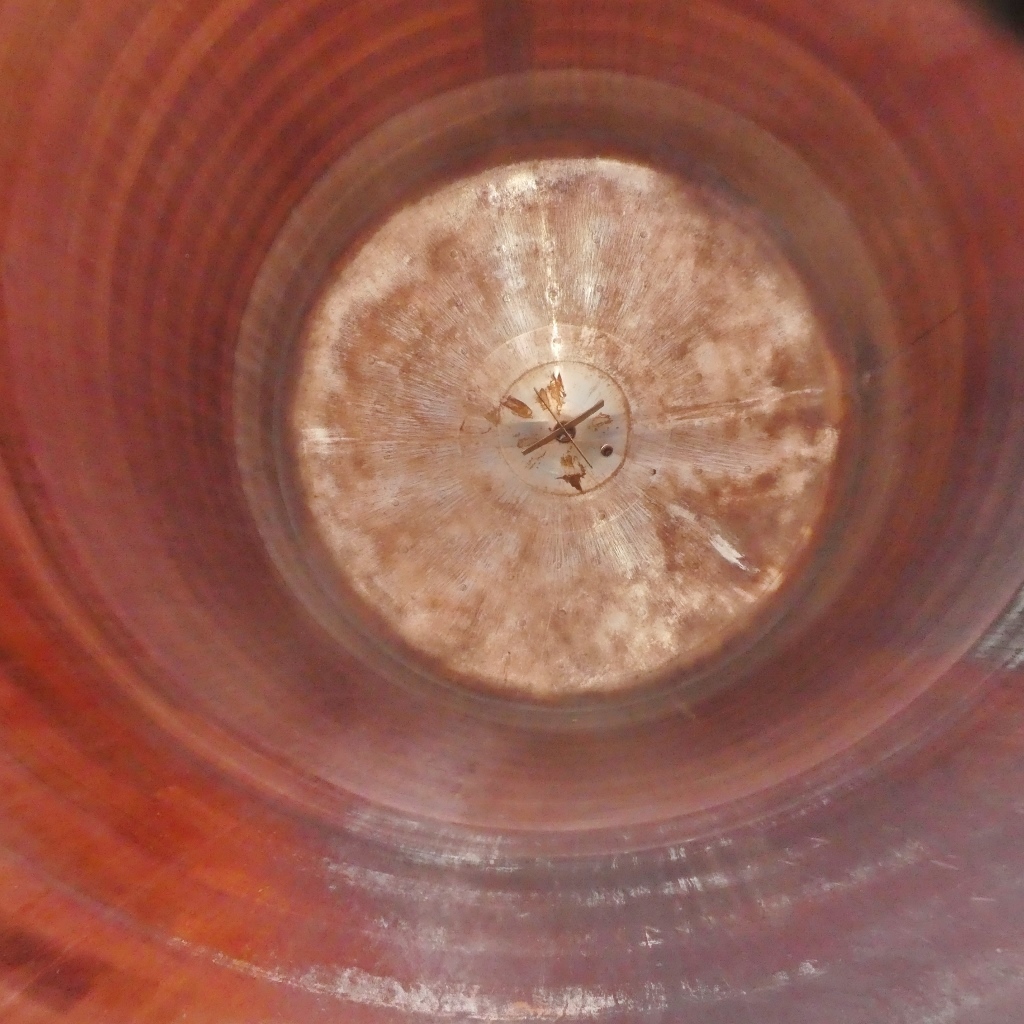

Additional information: Spirits; Adhesions and metallic discoloration inside the tank Volumetric volume (L): 5.700 L Pressure in tank: ATM - atmosferic Material wet parts: SS AISI 304 (V2A) Model: vertical Configuration: single-skin Heat exchanger: no Insulation: no Mobile tank: no Total discharge: no Volume: 103 L Max Overpressure: 4 Bar Max. working temperature: 90 °C Documents included: no Technical drawing included: no Registration plate on the tank: no Flange for agitator: no Position of manway: in the bottom Outlet of tank: 50 Internal diameter tank: 1.690 mm Outer diameter tank: 1.850 mm Cylinder height: 2.400 mm Total height of tank: 3.850 mm
