5400 liter tank i Syrafast 316

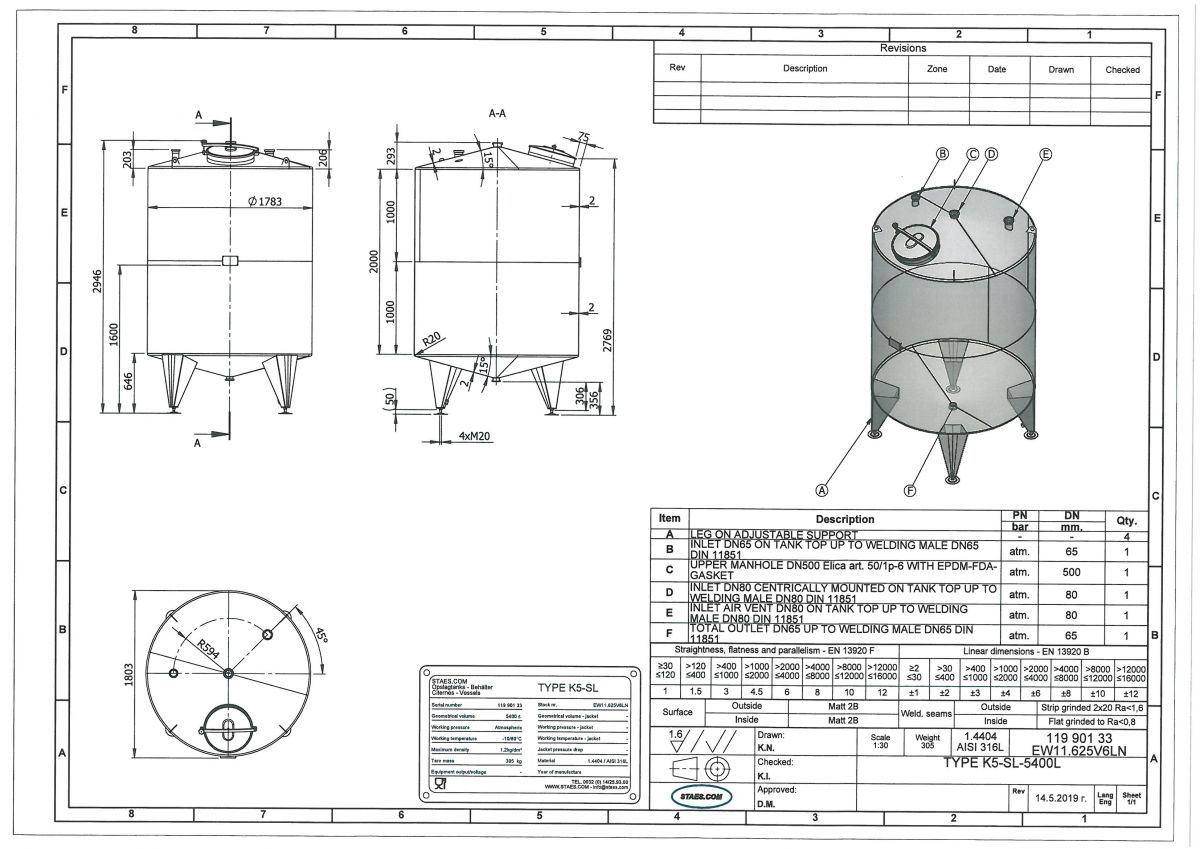

item available on order Article type: brand new storage tank - type K5-SL Additional information: inner surface 0.8µ    Volumetric volume (L): 5.400 L Max. density P (kg/m³): 1.200 Ra inner weld: 0,80 Finish stainless steel: 2B Pressure in tank: ATM - atmosferic Max. temperature (°C): 100 °C Min. temperature (°C): -10 °C Material wet parts: SS AISI 316L (V4A) Model: vertical Configuration: single-skin Heat exchanger: no Insulation: no Mobile tank: no Top type: conical 15 ° Shape of tank: cylindrical Bottom type: conical 15 ° Total discharge: yes Fixation points: 4 adjustable feet Manway(s): RVS 316 Fixation point(s): RVS 304L Suitable for food industry: yes Documents included: yes, optional Technical drawing included: yes Registration plate on the tank: yes Inspection of: TUV Flange for agitator: no Number of manways: 1 Position of manway: at the top Height manhole 1 (mm): 500 mm Tank outlet: inside Ø 65 mm Outlet type: DIN11851 male Total outlet valve: no, optional Agitator: no, optional Top: 2 mm Cylinder: 2 mm Bottom: 2 mm Distance from outlet to ground: 306 mm Outer diameter tank: 1.783 mm Cylinder height: 2.000 mm Feet height: 646 mm Total height of tank: 3.000 mm Empty weight tank: 305
