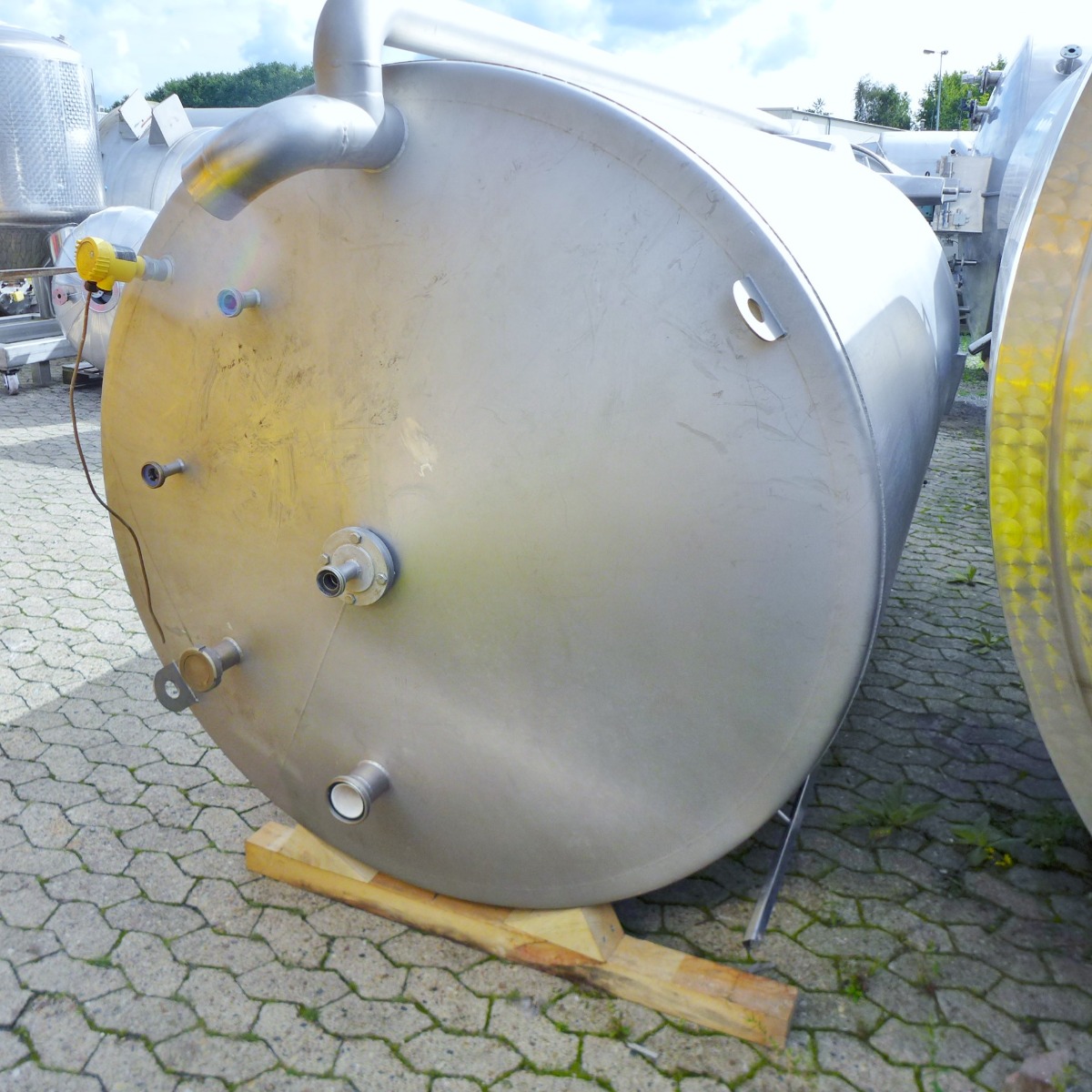

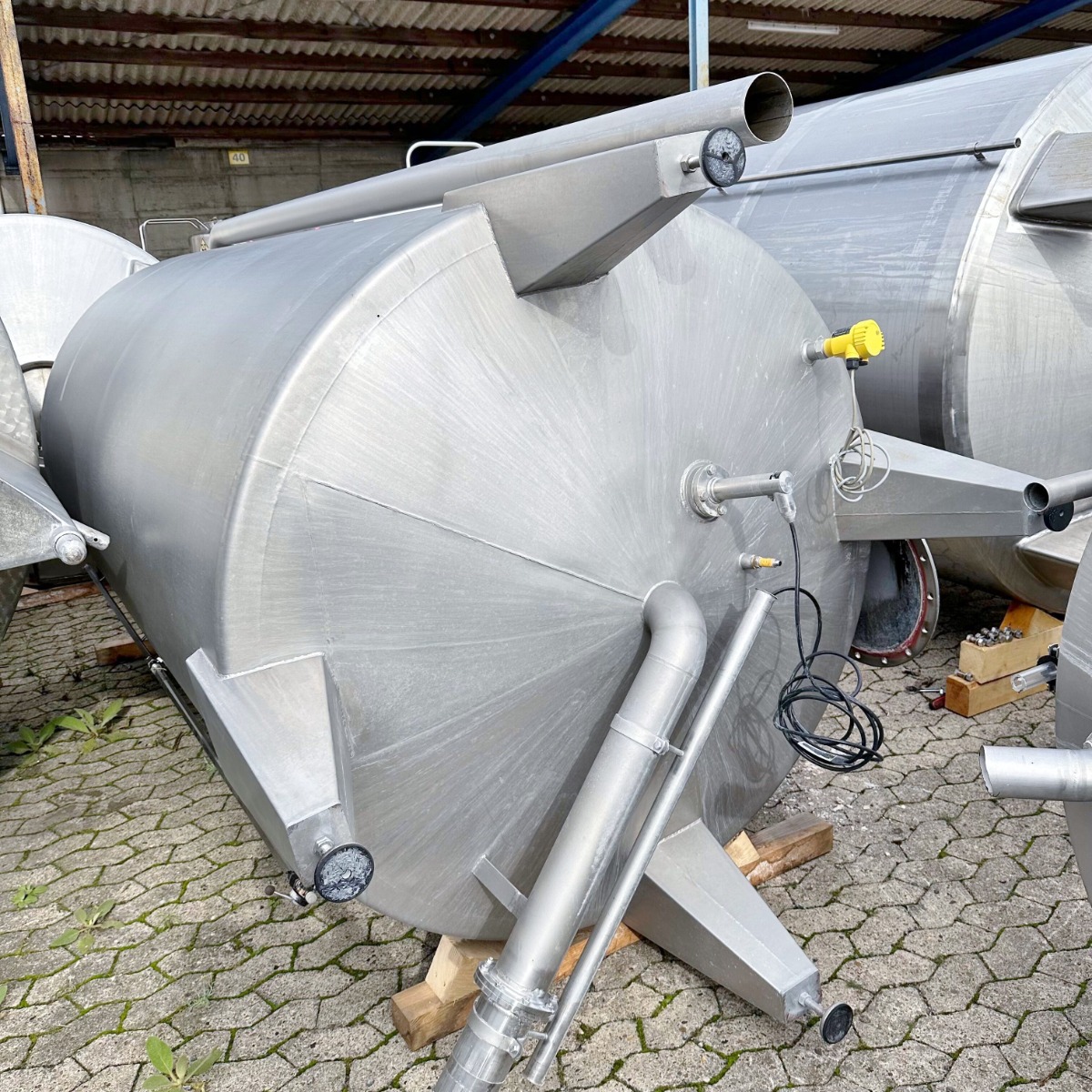

5350 liter tank i Syrafast 316

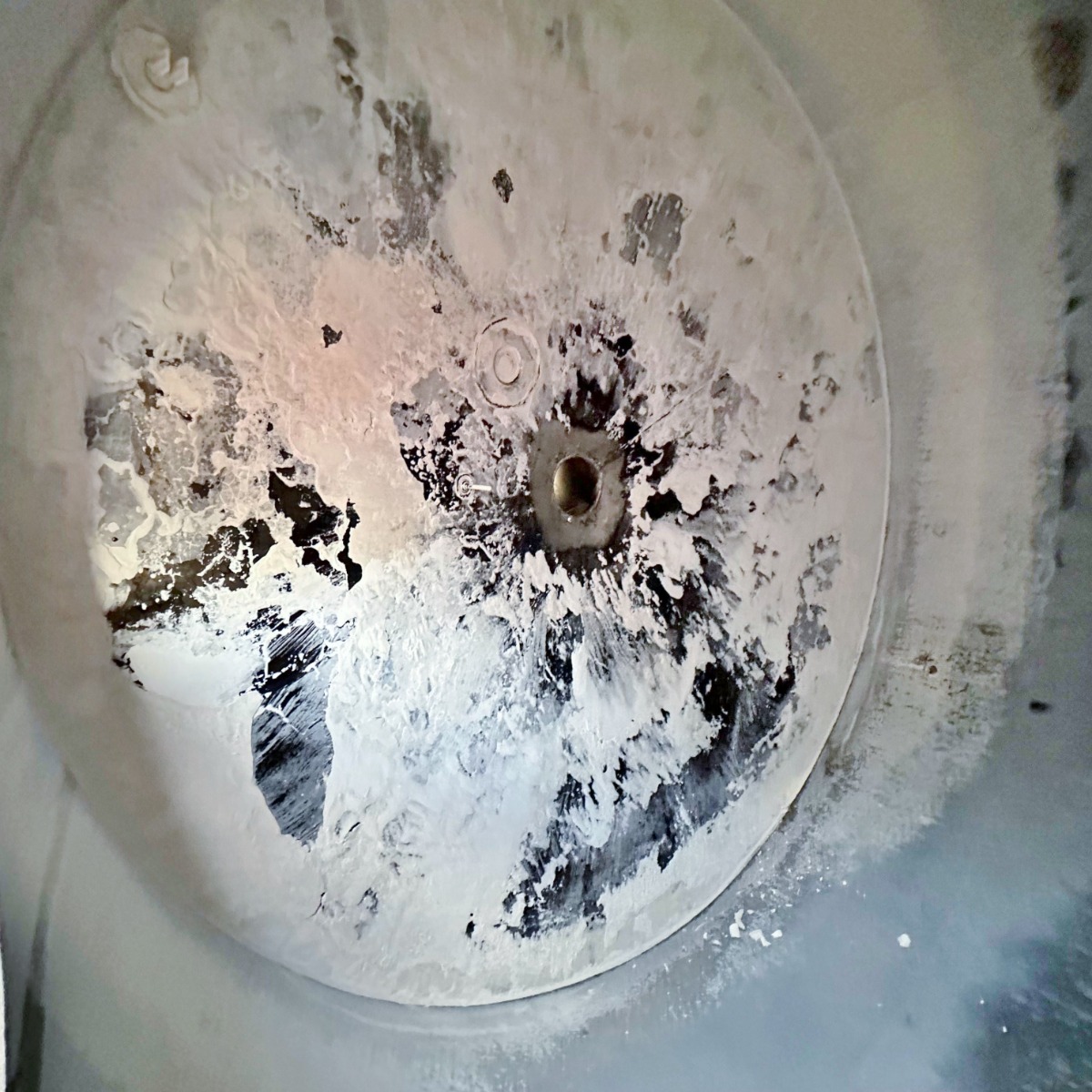

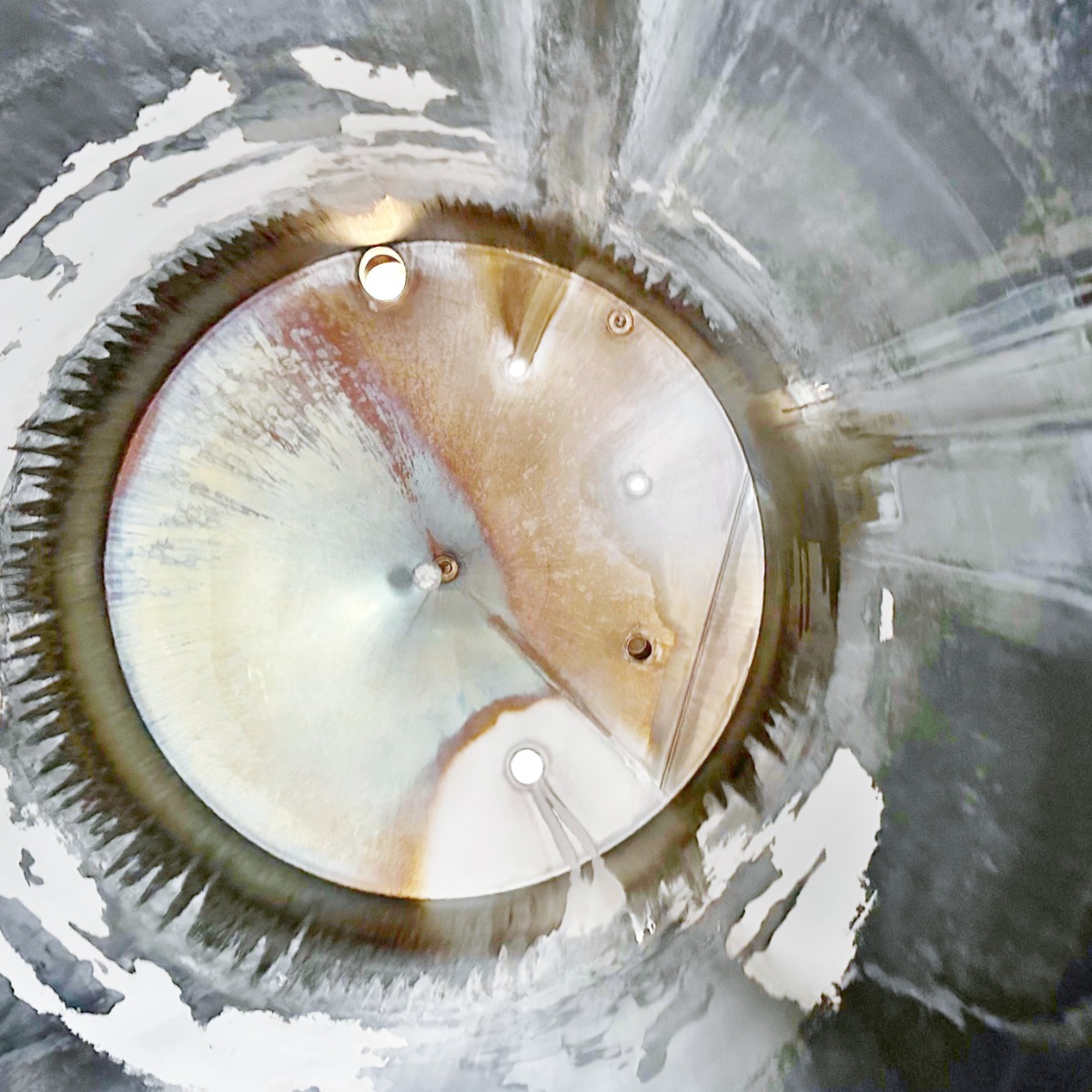

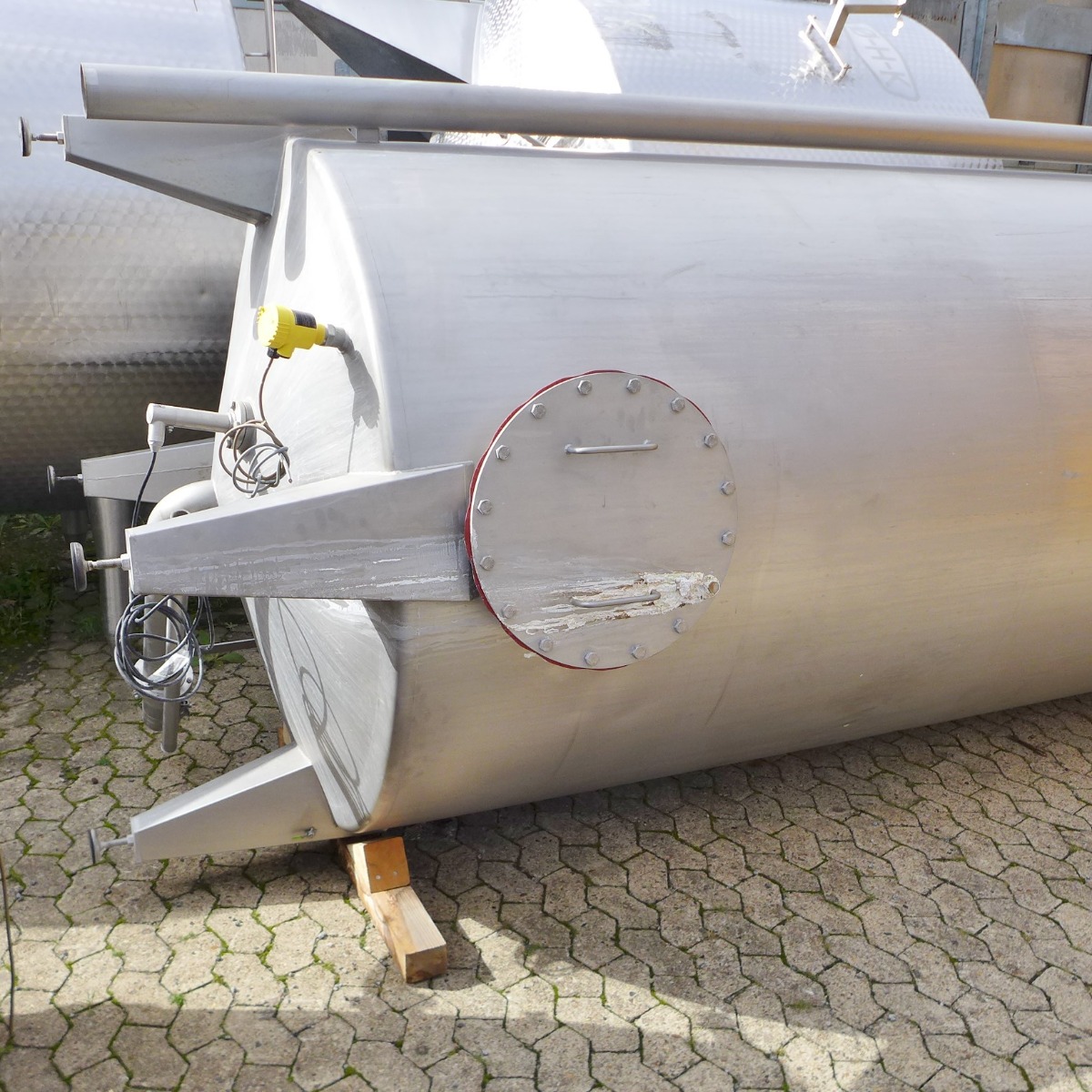

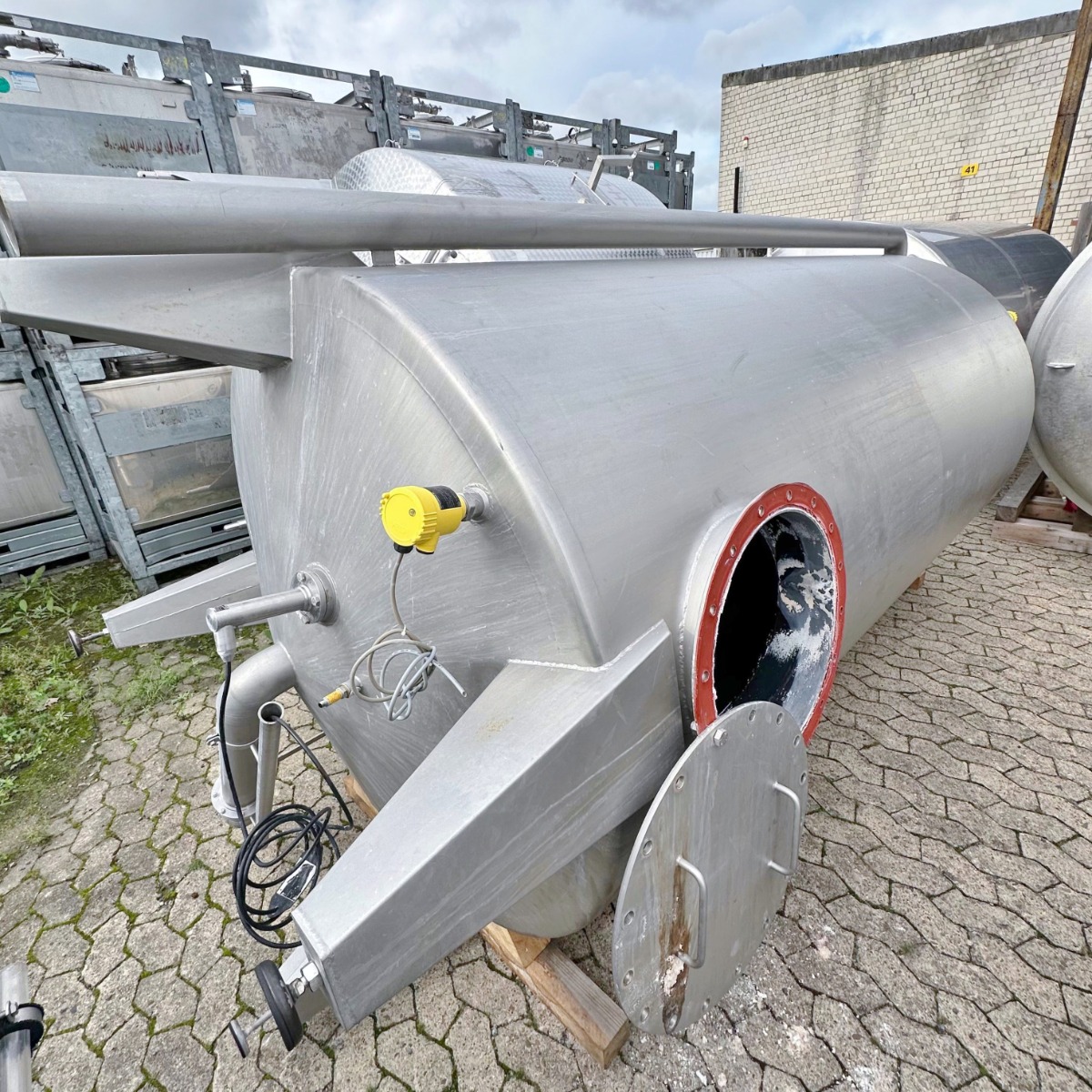

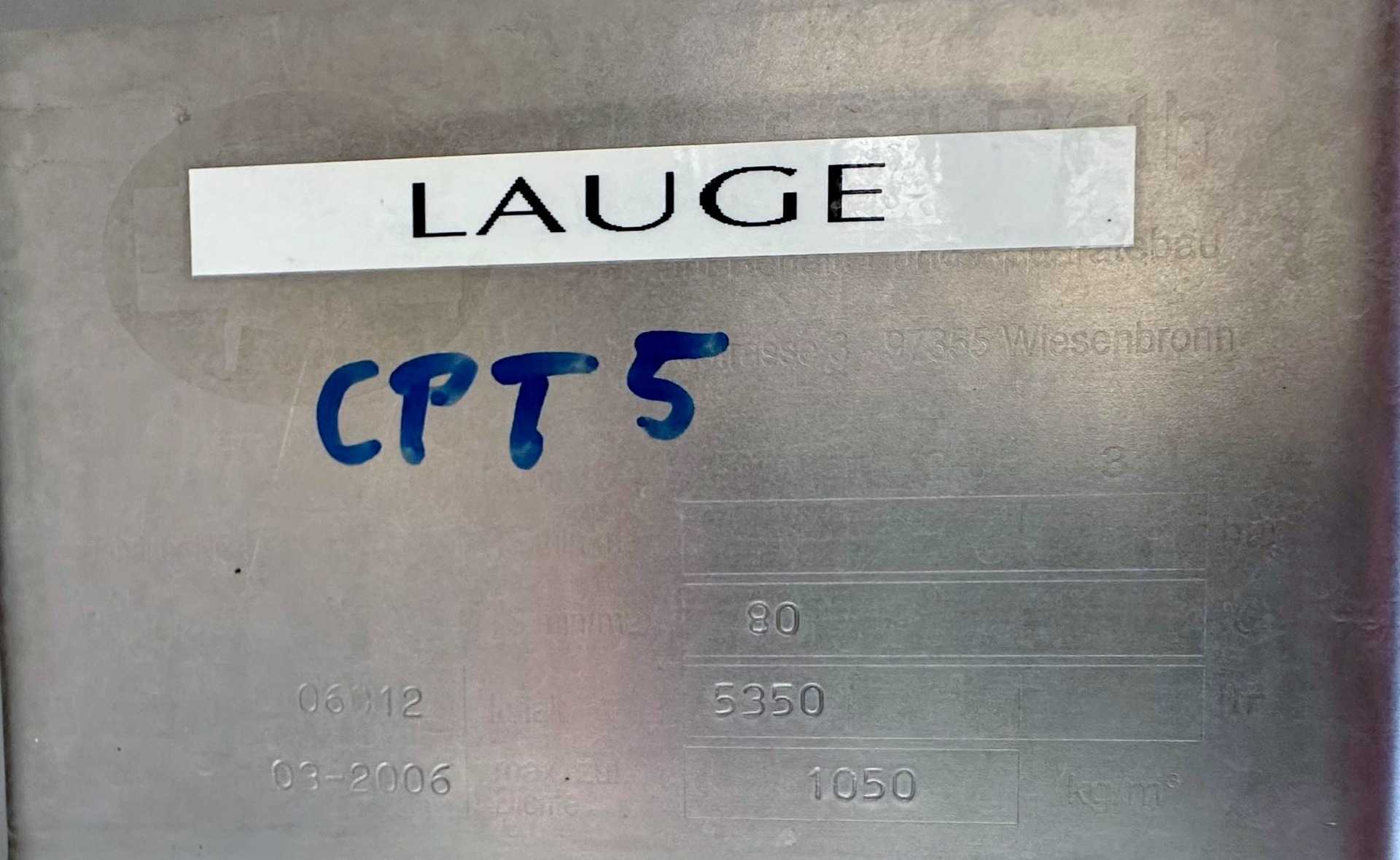

Additional information: lye; manhole diameter: approx. 500mm; some residues of previous content Volumetric volume (L): 5.350 L Pressure in tank: ATM - atmosferic Max. temperature (°C): 80 °C Material wet parts: SS AISI 316 (V4A) Model: vertical Configuration: insulated Heat exchanger: no Insulation: yes Mobile tank: no Total discharge: yes Documents included: no Technical drawing included: no Registration plate on the tank: yes Flange for agitator: no Position of manway: cylinder Outlet of tank: 100 Internal diameter tank: 1.475 mm Outer diameter tank: 1.620 mm Cylinder height: 2.920 mm Total height of tank: 4.000 mm Total outer width: 2.000 mm
