523 liter i Rostfritt 304

item available on order

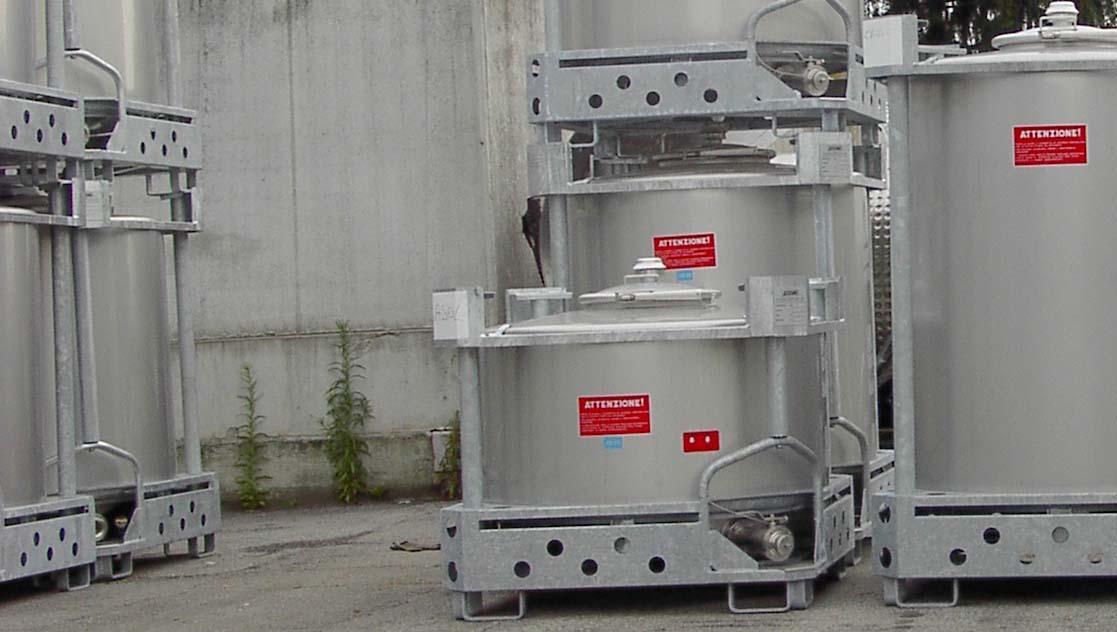

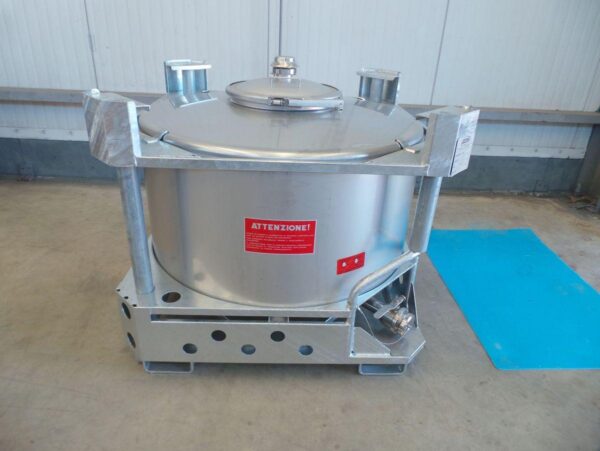

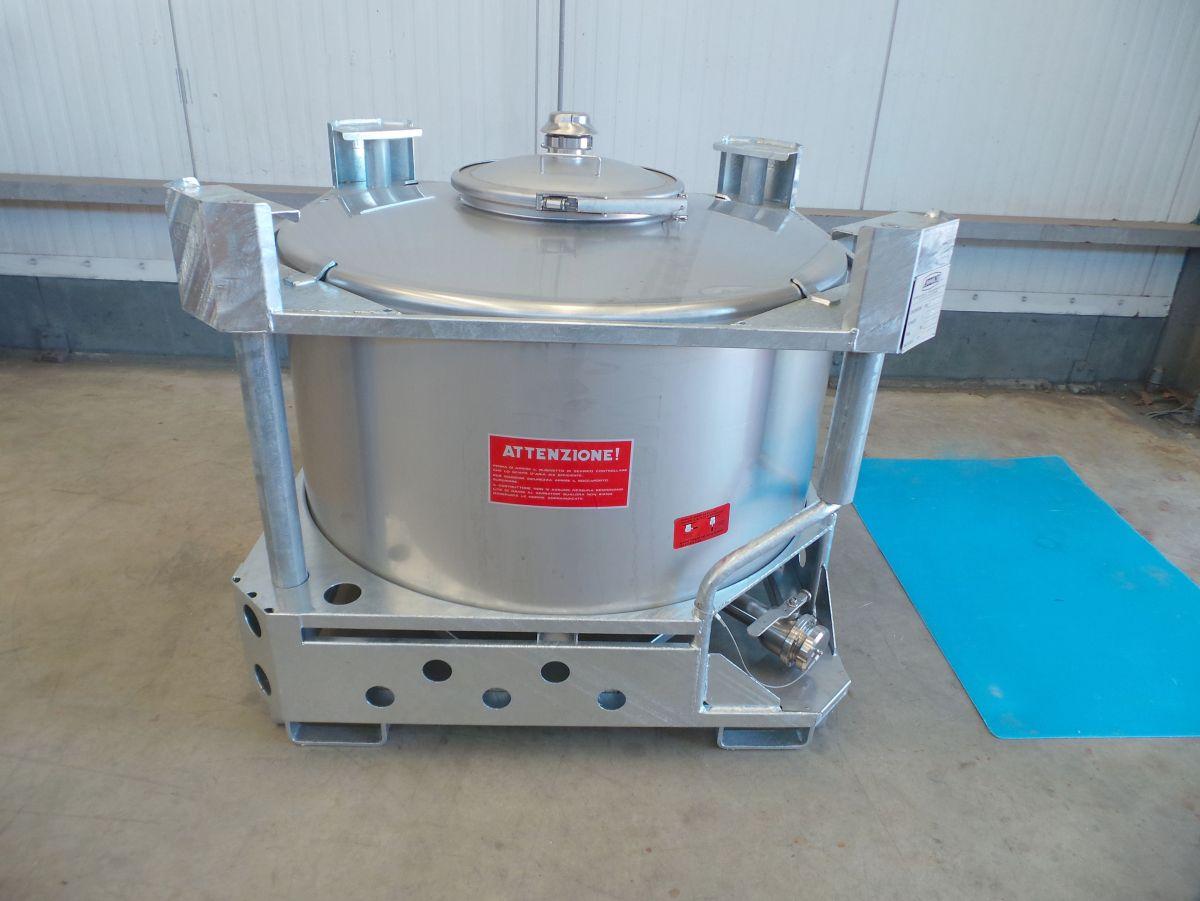

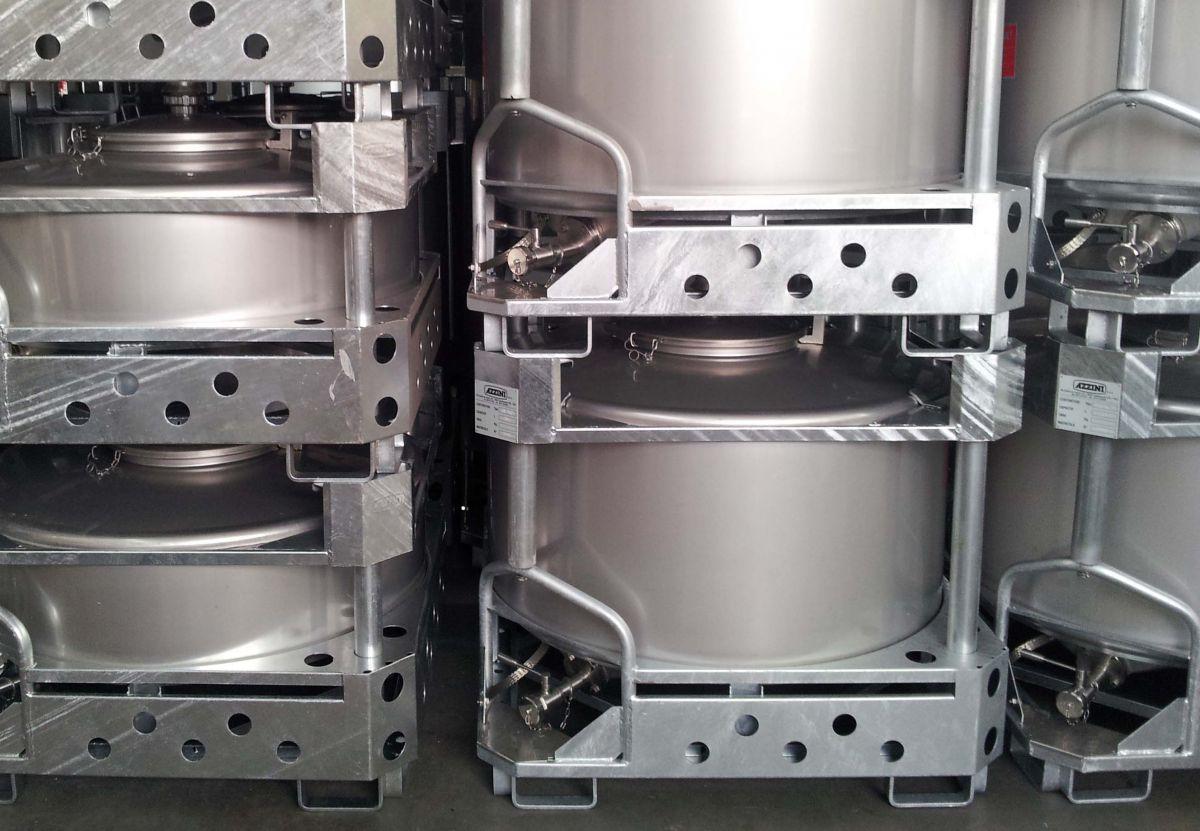

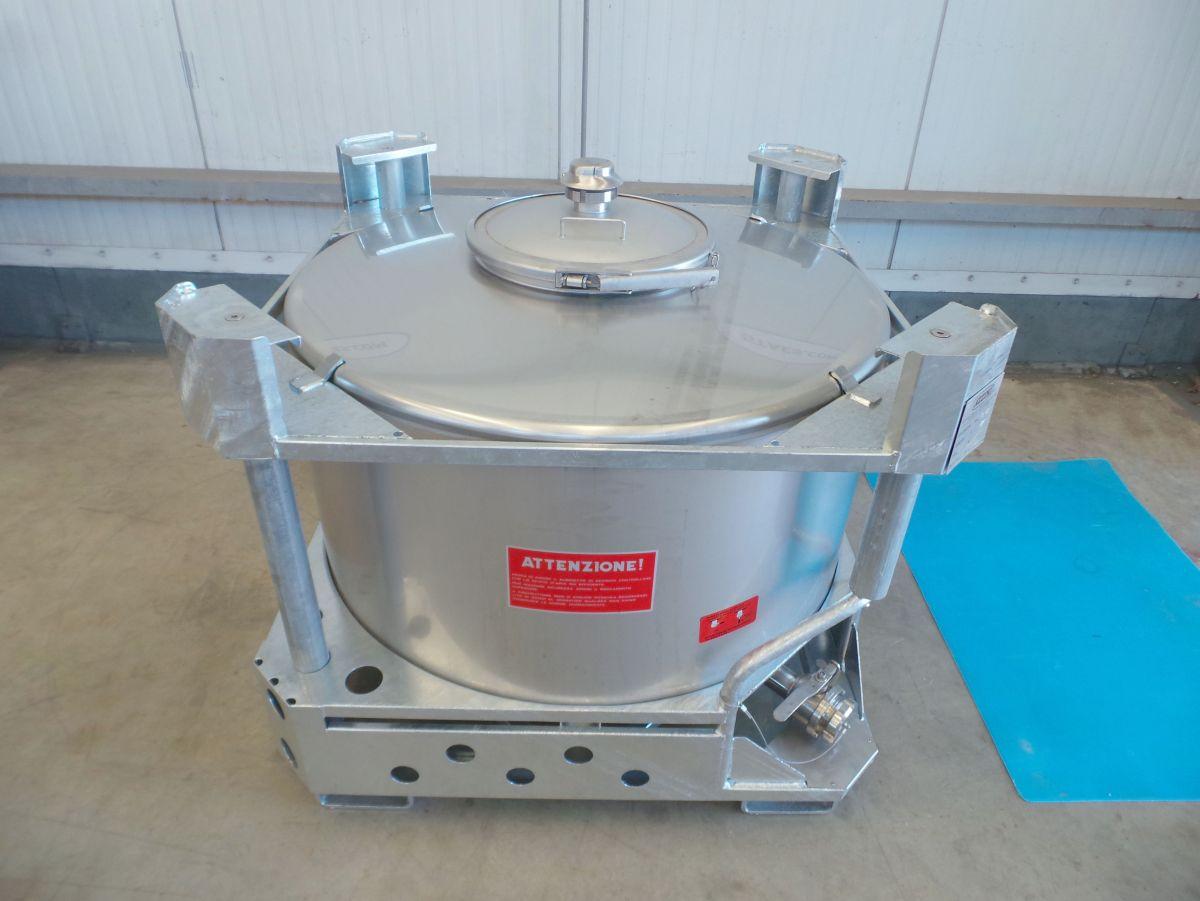

Article type: brand new transport tank – type IBC-PL
Additional information: We can take more containers in production for you.
Capacity: 523 L
Maximal density of the product: 1.900
Material wet parts: SS AISI 304 (V2A)

Model: vertical
Configuration: single-skin
Heat exchanger: no
Insulation: no
Agitator: yes, optional

Mobile tank: yes

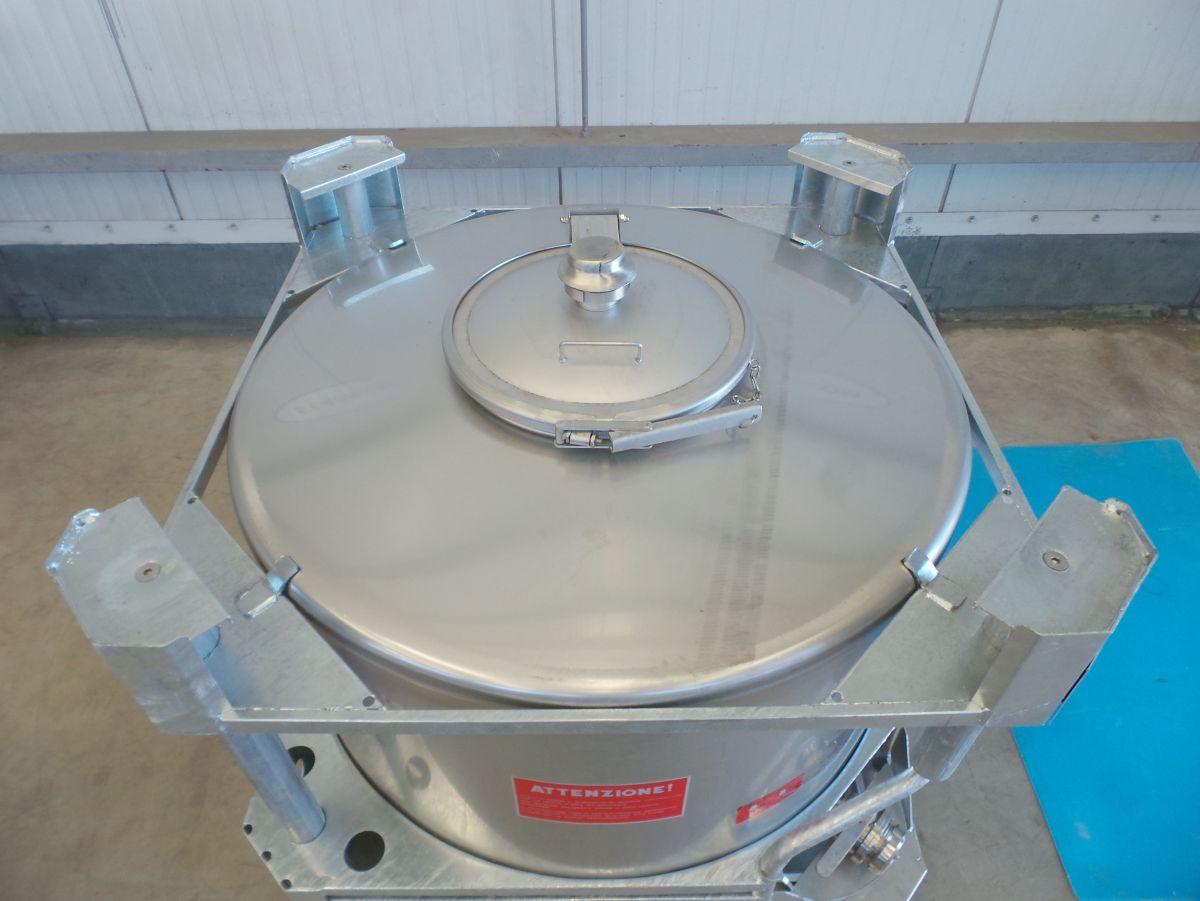

Top type: dished
Shape of tank: square

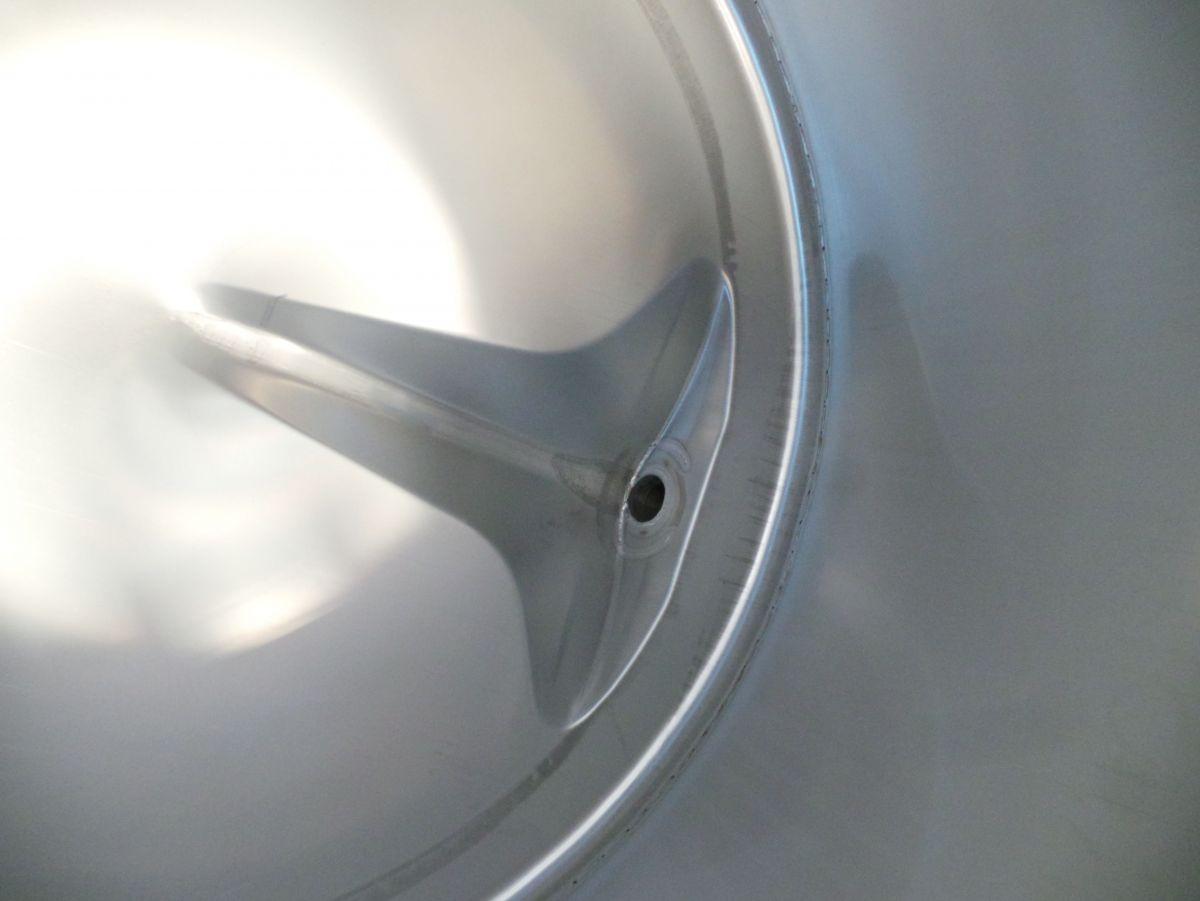

Bottom type: dished
Total discharge: yes

Fixation points: 4 non adjustable feet
Fixation point(s): plastic
Suitable for food industry: yes
Documents included: yes, optional
Technical drawing included: yes

Registration plate on the tank: yes
Flange for agitator: no

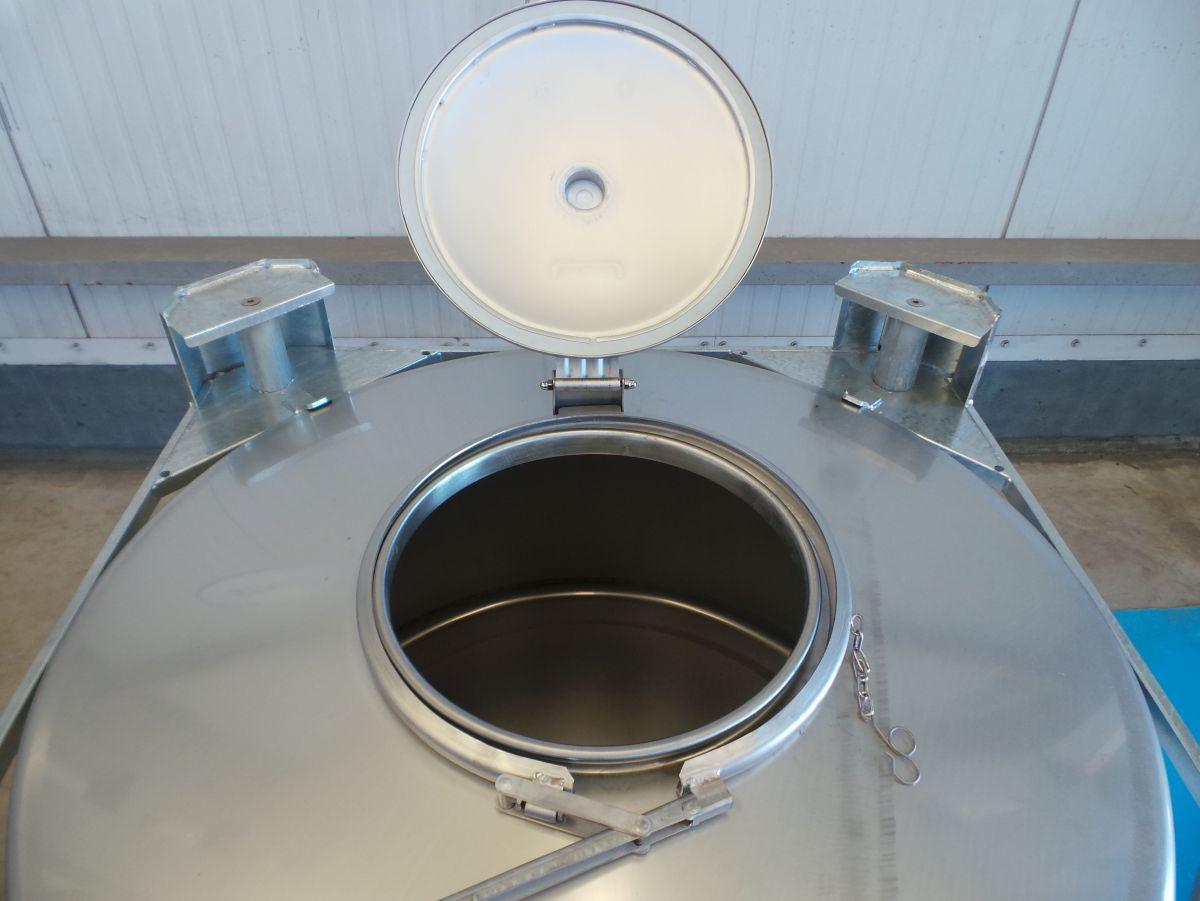

Position manway: at the top
Manway 1: 400 mm
Spray ball: no

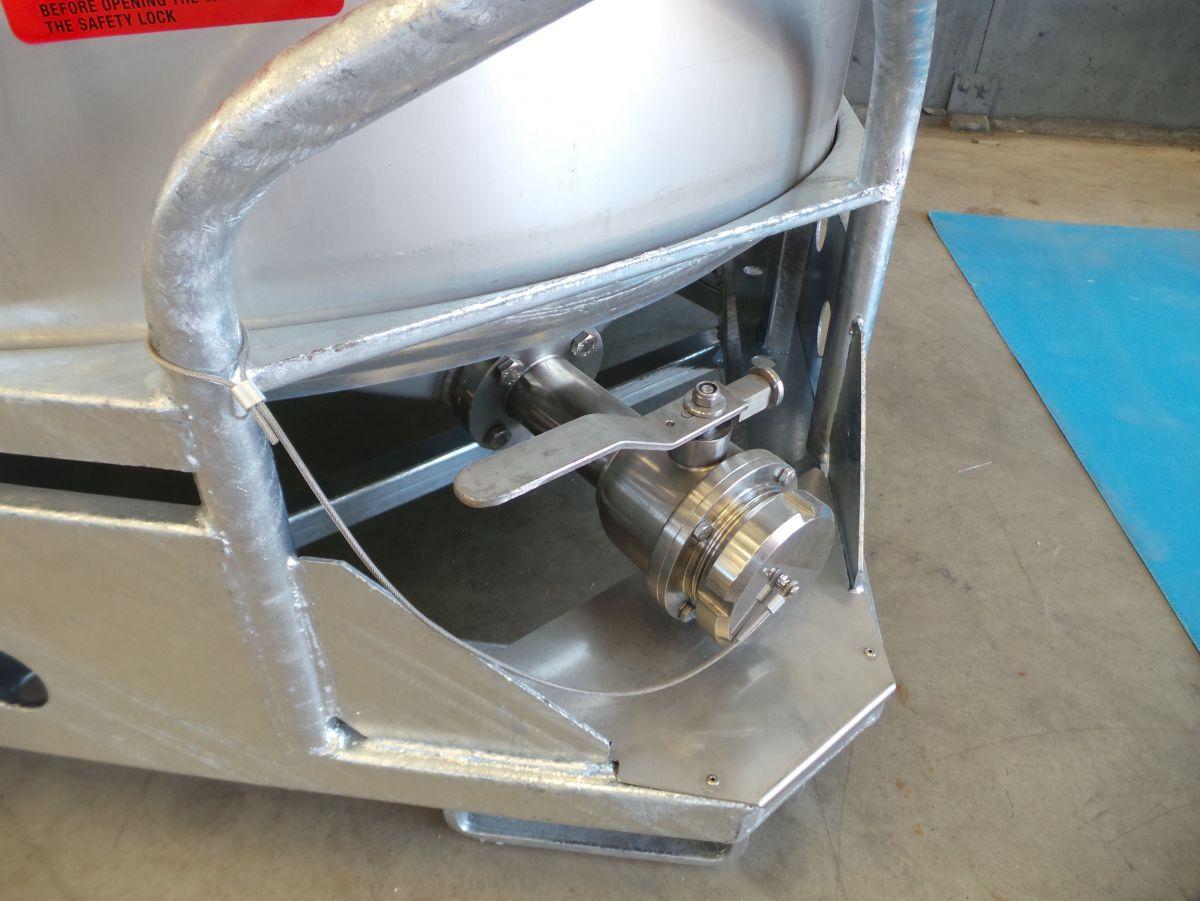

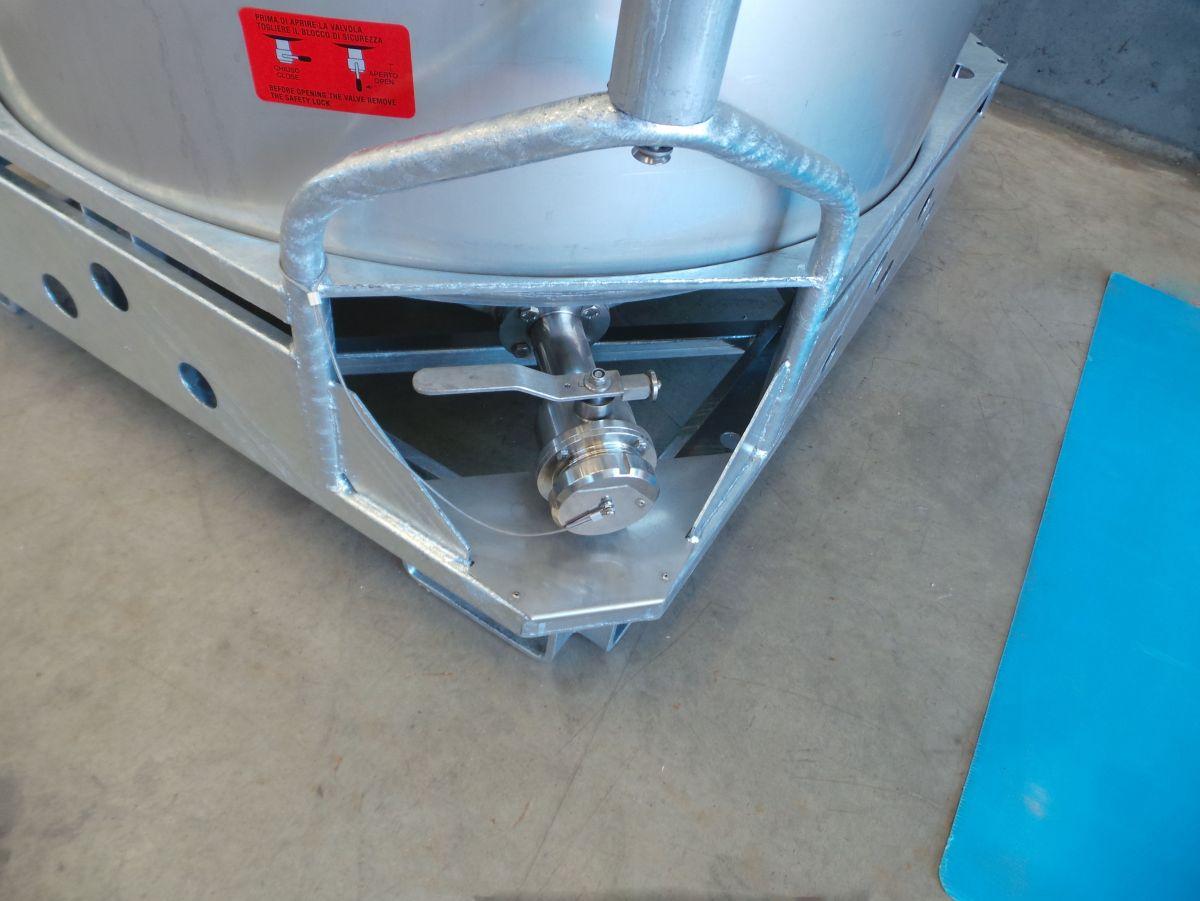

Total outlet valve: yes
Type shut-off valve: ball valve
Top: 1,50 mm
Cylinder: 1,50 mm
Bottom: 1,50 mm

Total height of tank: 980 mm
Empty weight tank: 600
