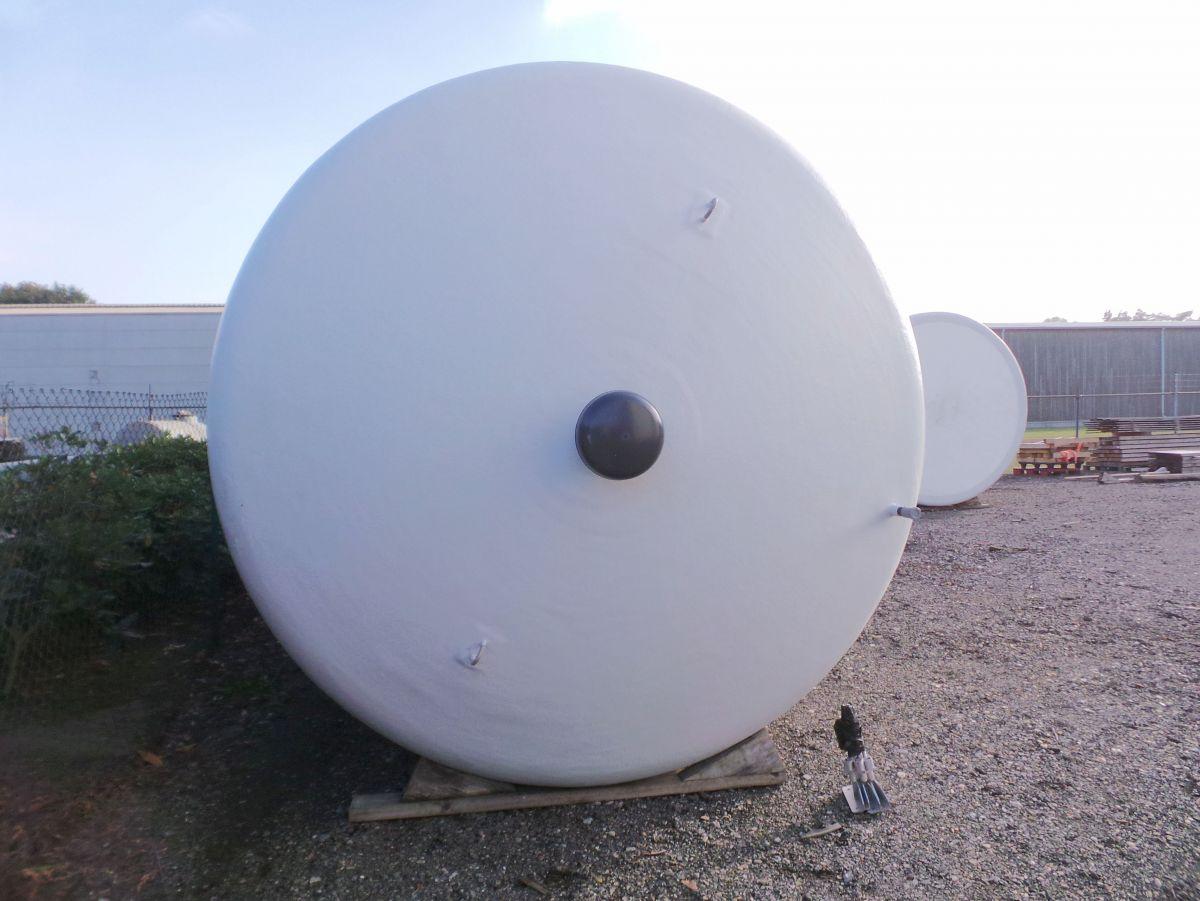

52000 liter i GAP/Plast
116,000.00 SEK/st exkl moms
Mer information
Volym i liter | 52000 |
---|---|
Nytillverkad/Begagnad | Nytillverkad |
Livsmedelsklassad | Ja |
Modell | Vertikal |
Material | GAP/Plast |
Omrörare | Nej |
Uppvärmning/kylning | Nej |
Isolerad | Nej |
Ritning 52000 liter GAP
Öppnaitem available on order

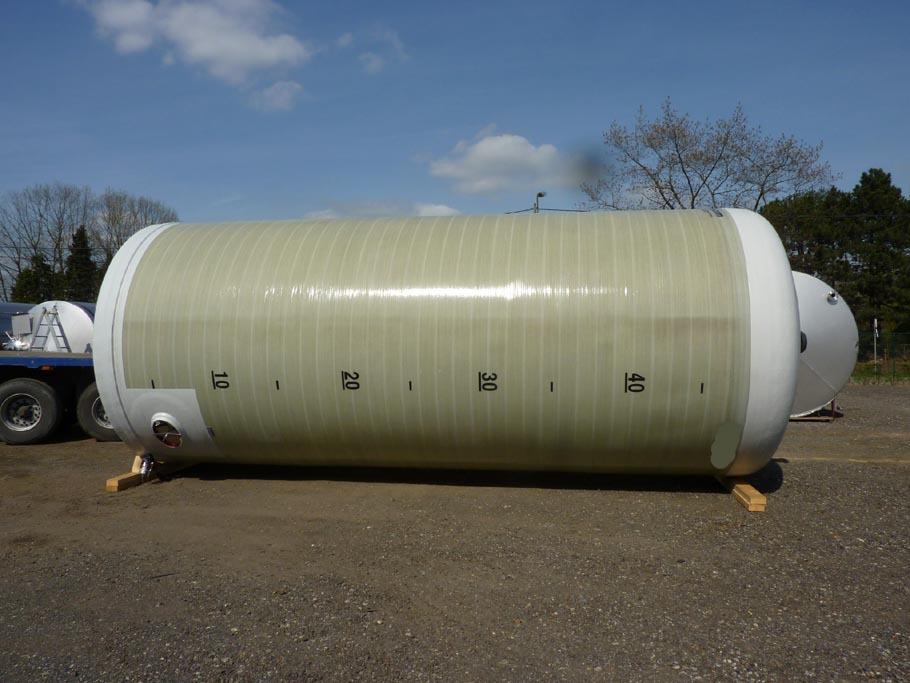

Article type: brand new storage tank – type MP-SEF

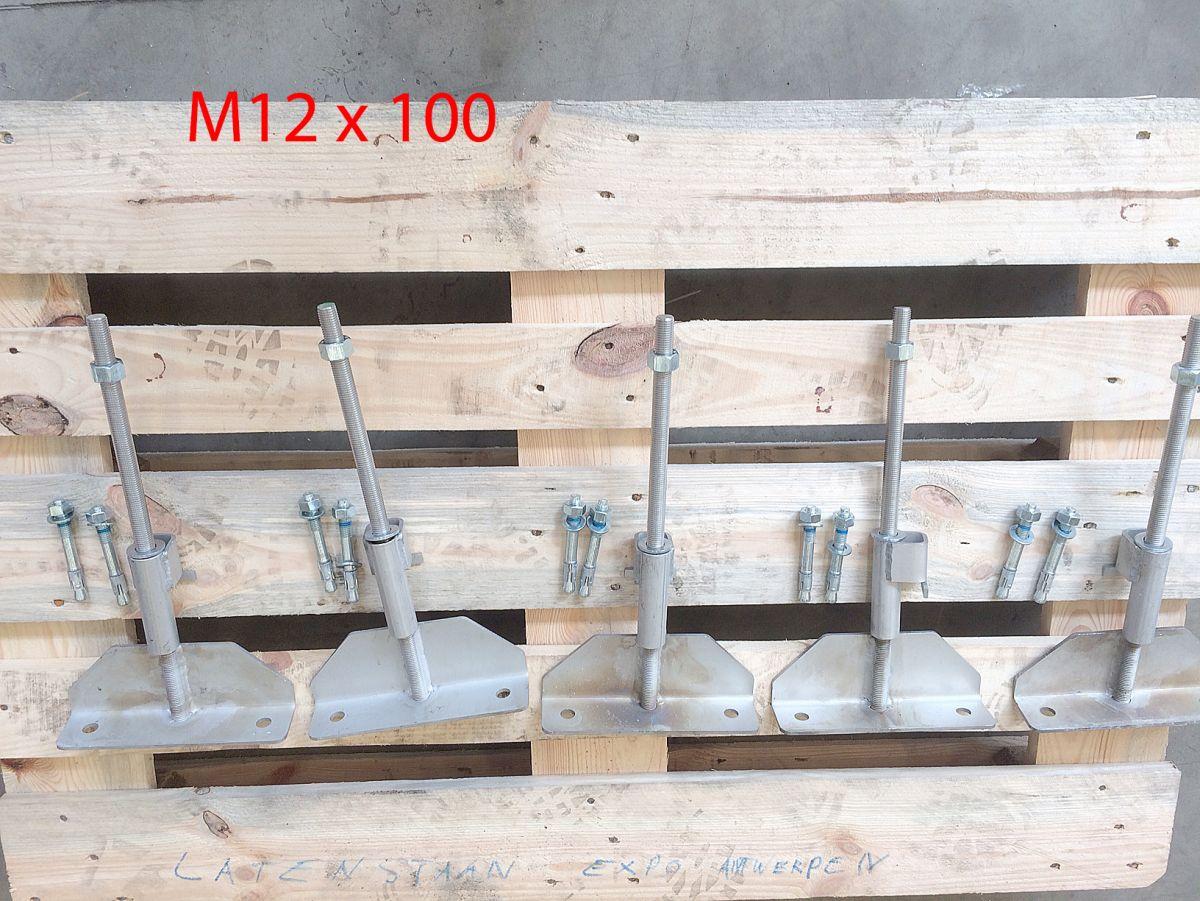

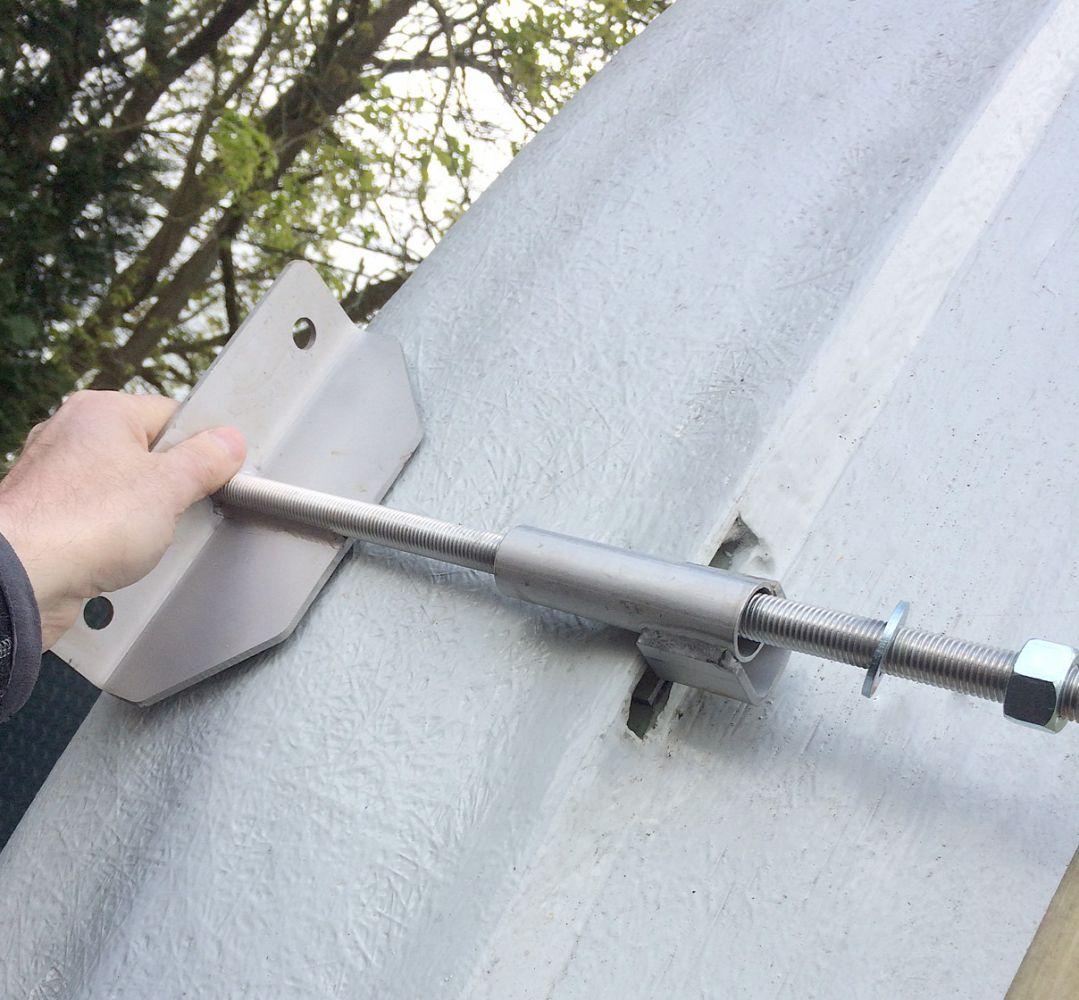

Additional information: lid for manway in stainless-steel (SS); set of anchorage points in stainless-steel (SS) included; tank will be delivered with Food grade certificate
Capacity: 52.000 L
Maximal density of the product: 1.300
Working pressure in tank: ATM – atmosferic
Material wet parts: polyester (fiberglass)
Model: vertical
Configuration: single-skin
Heat exchanger: no
Insulation: no
Agitator: no
Mobile tank: no
Top type: dished
Shape of tank: cylindrical
Bottom type: flat
Total discharge: no

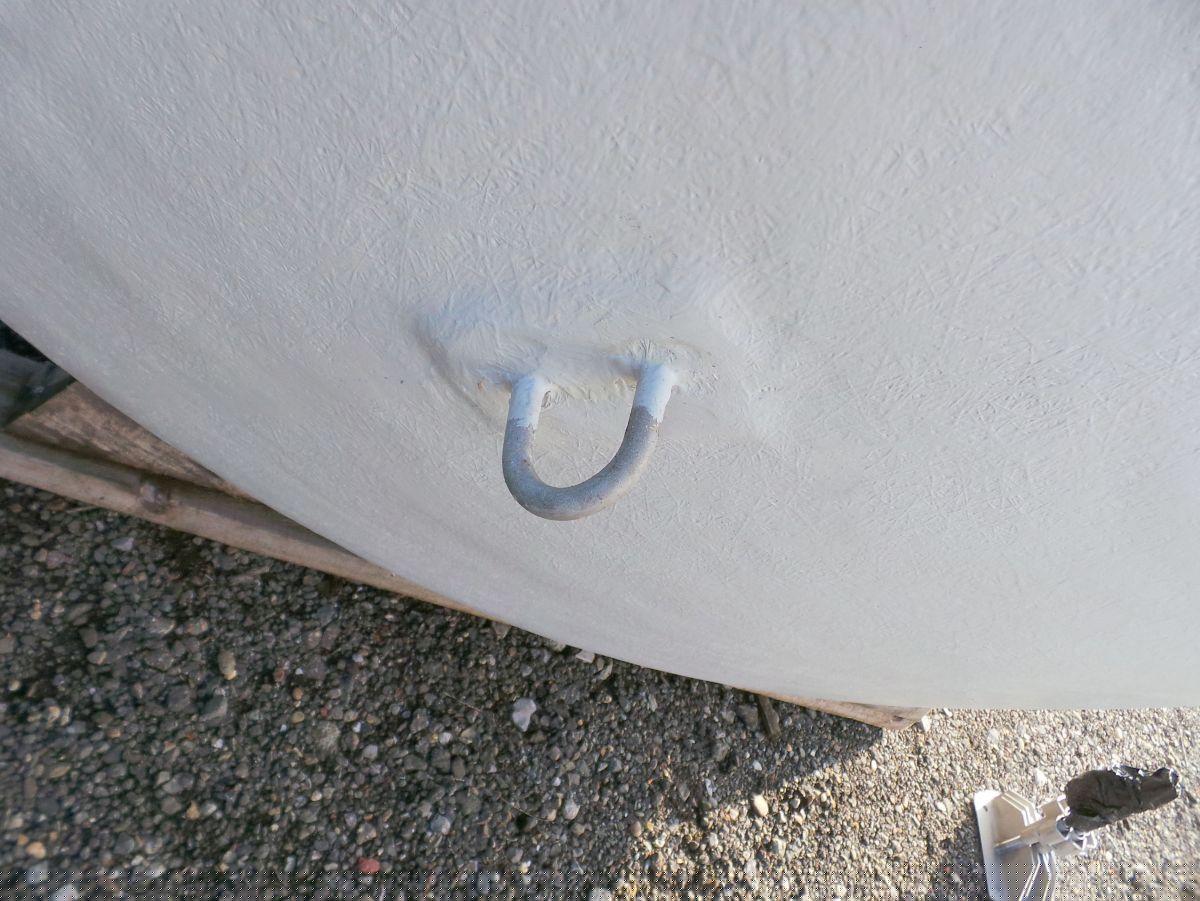

Fixation points: attachment points
Outer jacket (ornamental wall): polyester
Valve: aluminium
Fixation point(s): RVS 304
Suitable for food industry: yes
Documents included: yes, optional
Technical drawing included: yes
Registration plate on the tank: yes
Flange for agitator: no

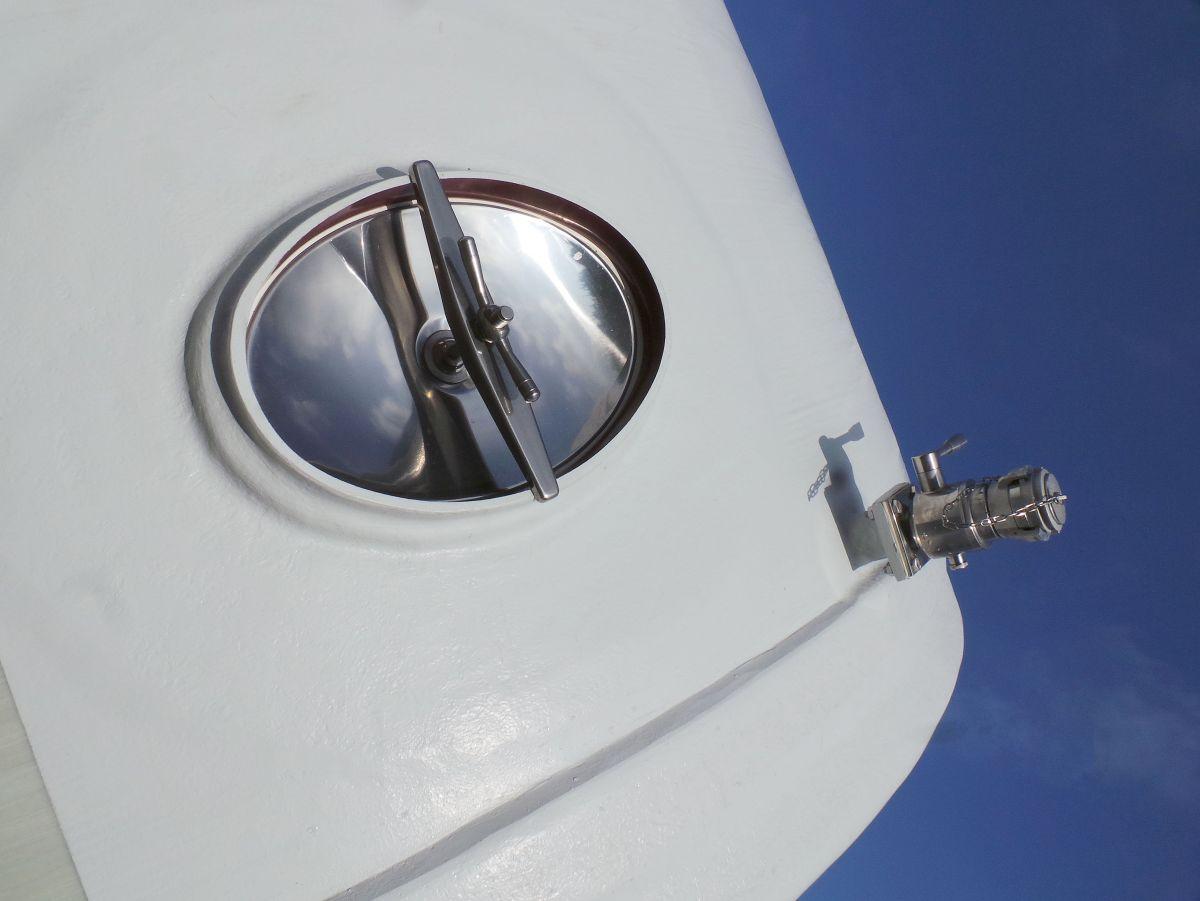

Manway 1: 320 mm x H 435 mm
Spray ball: no
Outlet type: Guillement 2″
Total outlet valve: yes
Type shut-off valve: ball valve
Outer diameter tank: 3.000 mm
Total height of tank: 7.895 mm
Empty weight tank: 1.200
