5200 liter i syrafast 316

Art.nr: 1718

Tipsa en kollega

Email

Beskrivning

https://www.staes.com/en/available-from-stock/WWG11495V6LN

Mer information

Antal

Isolerad

Livsmedelsklassad

Material

Modell

Omrörare

Uppvärmning/kylning

Volym i liter

Description of the article

  • Article type: brand new storage tank
  • Capacity: 5.200 L
  • Maximal density of the product: 1.200 kg/m³
  • Ra inner weld: 0,80 µ
  • Finish stainless steel: 2b
  • Working pressure in tank: ATM – atmosferic
  • Max. working temperature: 130 °C
  • Min. working temperature: -10 °C
  • In contact with the product: SS AISI 316L (V4A)
  • Model. vertical
  • Configuration: insulated with heat-exchanger
  • Heat exchanger: yes
  • Insulation: yes
  • Agitator: yes, optional
  • Mobile tank: no
  • Top type. conical 15 °
  • Shape of tank: cylindrical
  • Bottom type: conical 15 °
  • Total discharge: yes
  • Fixation points: 4 adjustable feet

Heat Exchanger (HE)

  • Type of HE on the cylinder: dimple-jacket
  • Position HE: the complet cilinder
  • Number of sections. 2
  • Water pressure HE: 3 Bar
  • Steam pressure HE: 0,50 Bar
  • Contact surface cylinder: 9 m²
  • Connection HE: 1″ BSP
  • Working temperature HE cylinder: 110 °C
  • Type of HE on the bottom: dimple-jacket
  • Connection of the bottom to the cylinder: buiten isolatie
  • Water pressure HE: 3 Bar
  • Steam pressure HE:0,50 Bar
  • Connection HE: 1″ BSP
  • Working temperature HE bottom: 110 °C

Overview materials

  • Mat. wet parts: SS AISI 316L (V4A)
  • Heat exchanger: RVS – 304 with rockwool insulation
  • Insulation material: Rockwool
  • Outer jacket (ornamental wall): RVS 304L
  • Manway(s): RVS 316
  • Gasket manway(s): EPDM
  • Fixation point(s): RVS 304L

Equipment

  • Suitable for food industry. yes
  • Documents included: yes, optional

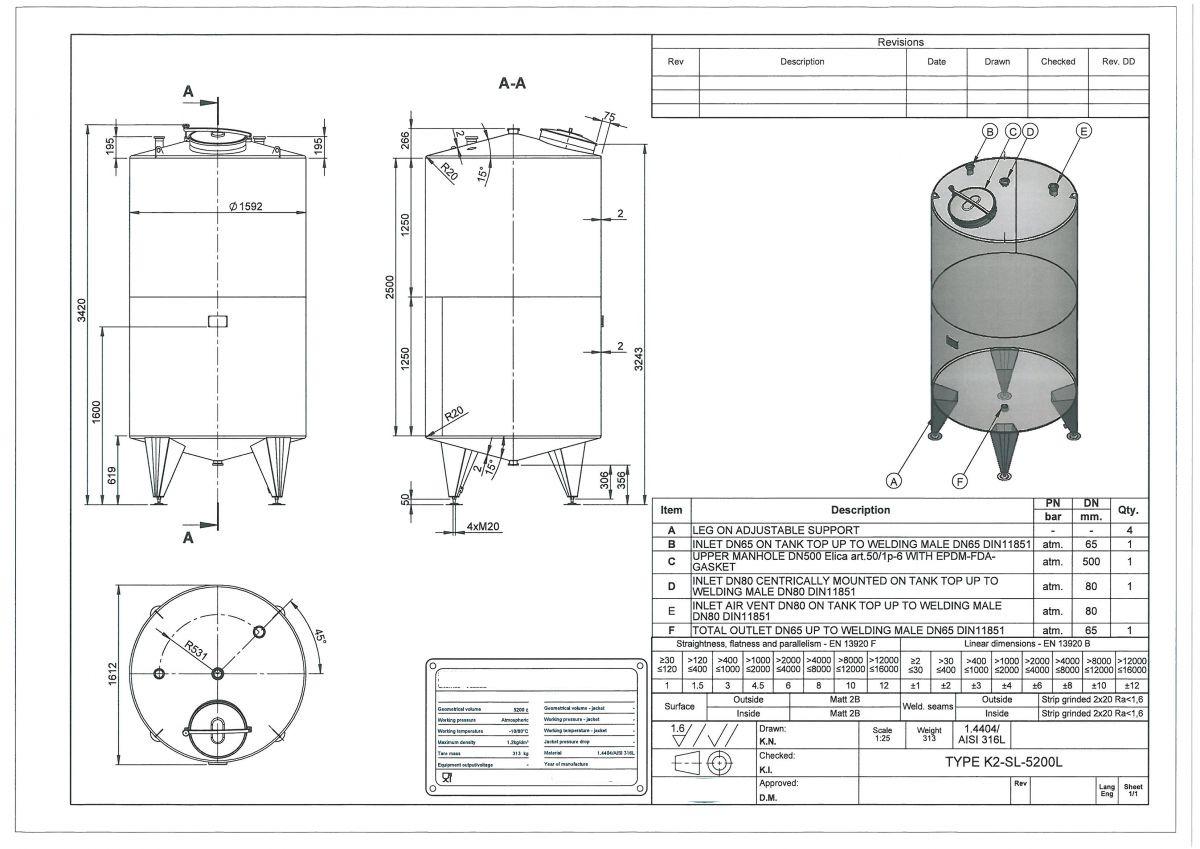

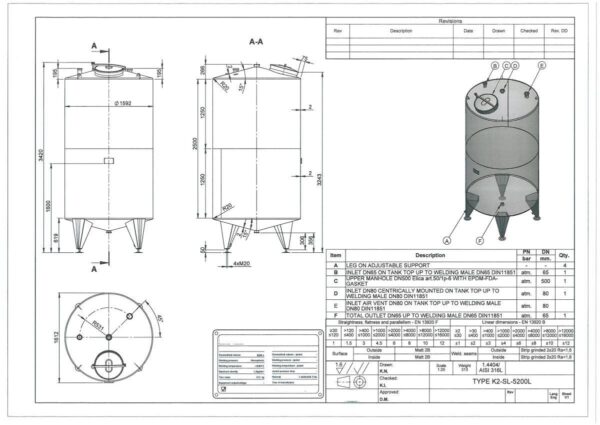

  • Technical drawing included: yes
  • Registration plate on the tank: yes
  • with inspection of: TUV
  • Flange for agitator: no
  • Number of manways: 1
  • Position manway: at the top
  • Manway 1: Ø 500 mm
  • Spray ball: yes, optional
  • Tank outlet: inside Ø 65 mm
  • Outlet type: DIN11851 male
  • Total outlet valve: yes, optional

Wall thicknesses of the inner tank

  • Top: 2 mm
  • Cylinder: 2 mm
  • Bottom: 2 mm

Wall thicknesses of the ornamental wall and insulation

  • Cylinder: 2
  • Insulation body: yes
  • Bottom: 2
  • Insulation bottom/sides: yes
  • finish of the outer jacket: welded
  • Insulation material: Rockwool
  • Insulation thickness: 50

Dimensions of the tank

  • Internal diameter tank: 1.592 mm
  • Distance from outlet to ground: 296 mm
  • Outer diameter tank: 1.706 mm
  • Cylinder height: 2.500 mm
  • Feet height: 548 mm
  • Total height of tank: 3.420 mm
  • Empty weight tank: 760 Kg
