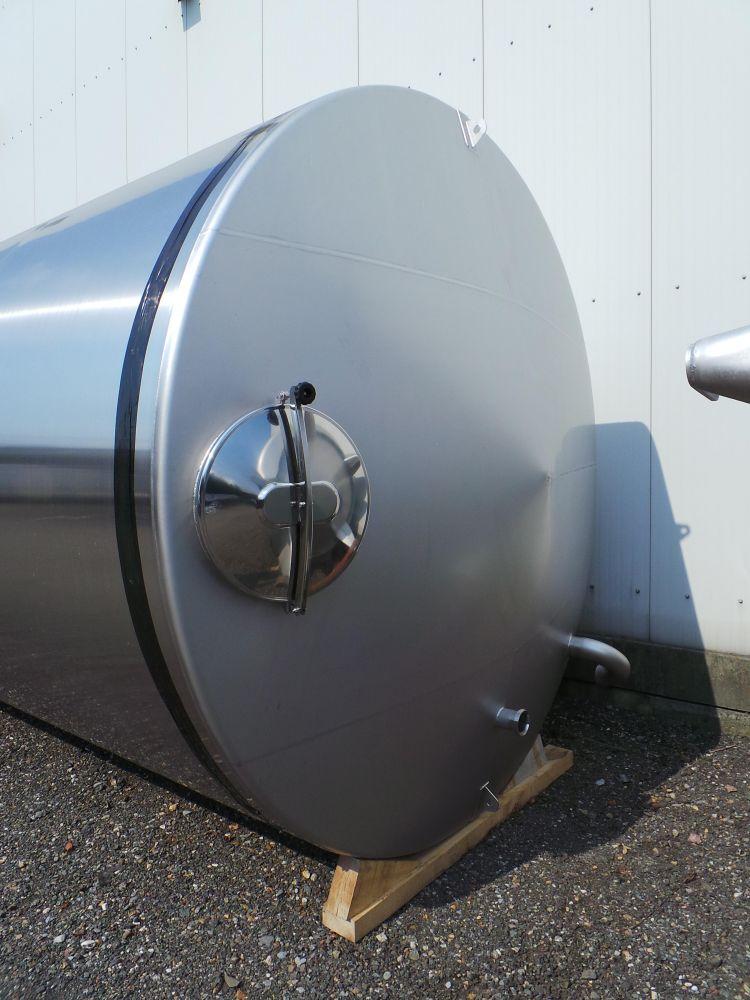

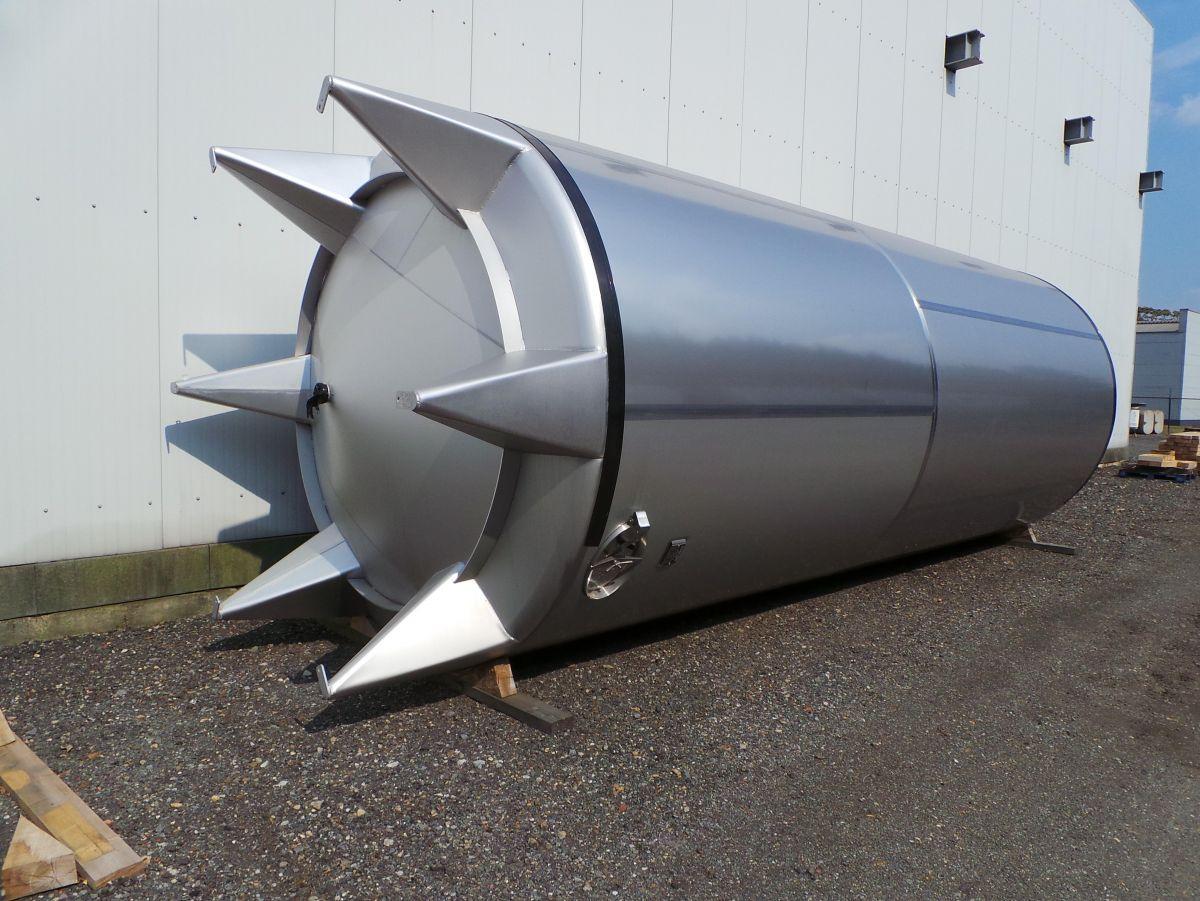

50000 liter tank i Rostfritt 304

item available on order Article type: brand new storage tank - type TZN-SL Volumetric volume (L): 50.000 L Max. density P (kg/m³): 1.000 Pressure in tank: ATM - atmosferic Material wet parts: SS AISI 304 (V2A) Model: vertical Configuration: single-skin Heat exchanger: no Insulation: no Mobile tank: no Top type: conical 13 ° Shape of tank: cylindrical Bottom type: conical 20 ° Total discharge: yes Fixation points: 6 non adjustable feet Manway(s): RVS 304 Gasket manway(s): EPDM Fixation point(s): RVS 304 Suitable for food industry: yes Documents included: no Technical drawing included: no Registration plate on the tank: no Inspection of: No Documentation Flange for agitator: no Number of manways: 2 Position of manway: headside Height manhole 1 (mm): 500 mm Position 2nd manway: cylinder Height manhole 2 (mm): 440 x 308 mm Tank outlet: inside Ø 80 mm Outlet type: DIN 11851 Top: 2,50 mm Cylinder: 2,50 mm Bottom: 4 mm Distance from outlet to ground: 400 mm Outer diameter tank: 2.984 mm Cylinder height: 7.000 mm Height of top: 382 mm Height of bottom: 600 mm Feet height: 1.000 mm Total height of tank: 8.382 mm Empty weight tank: 1.850
