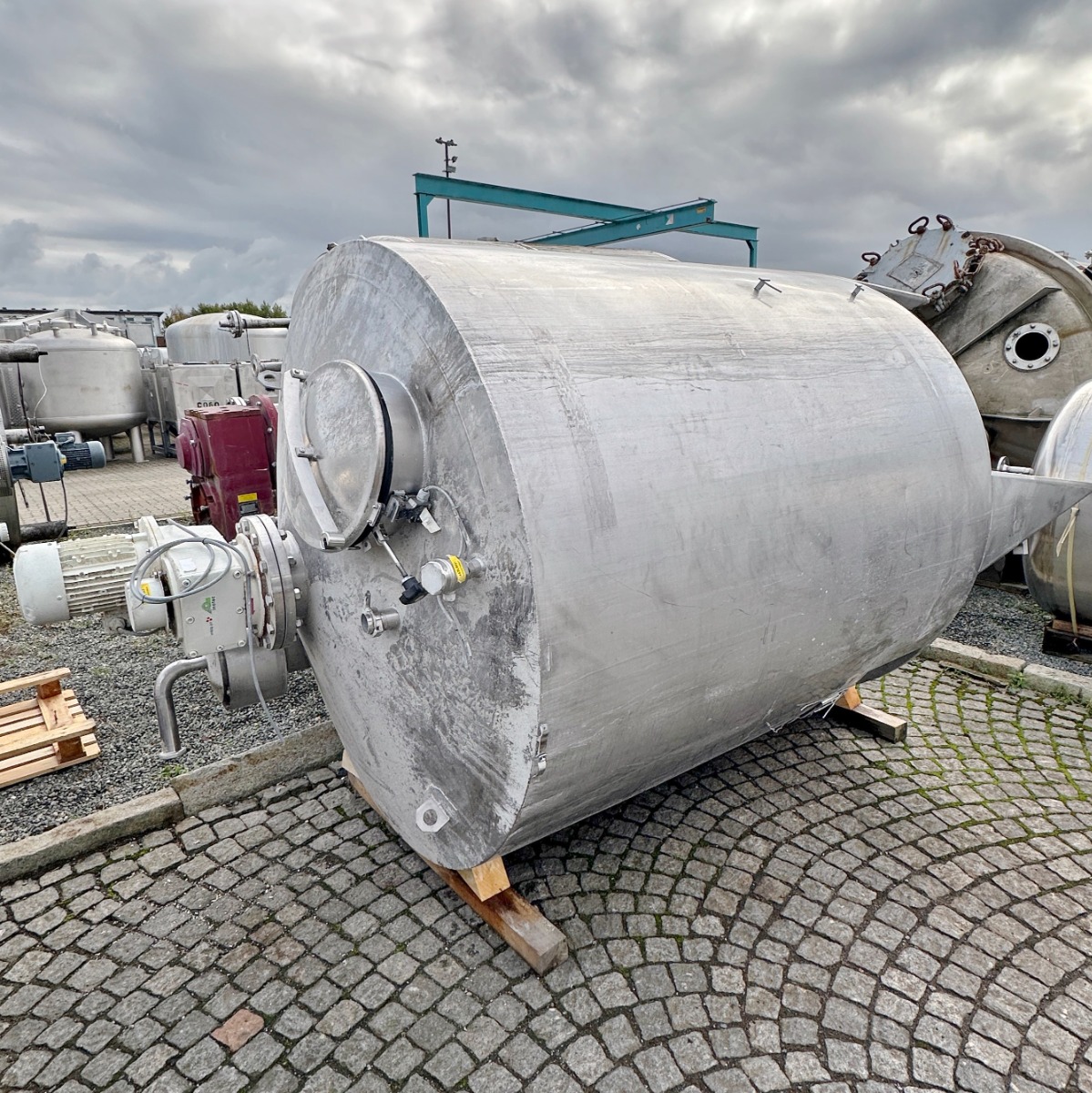

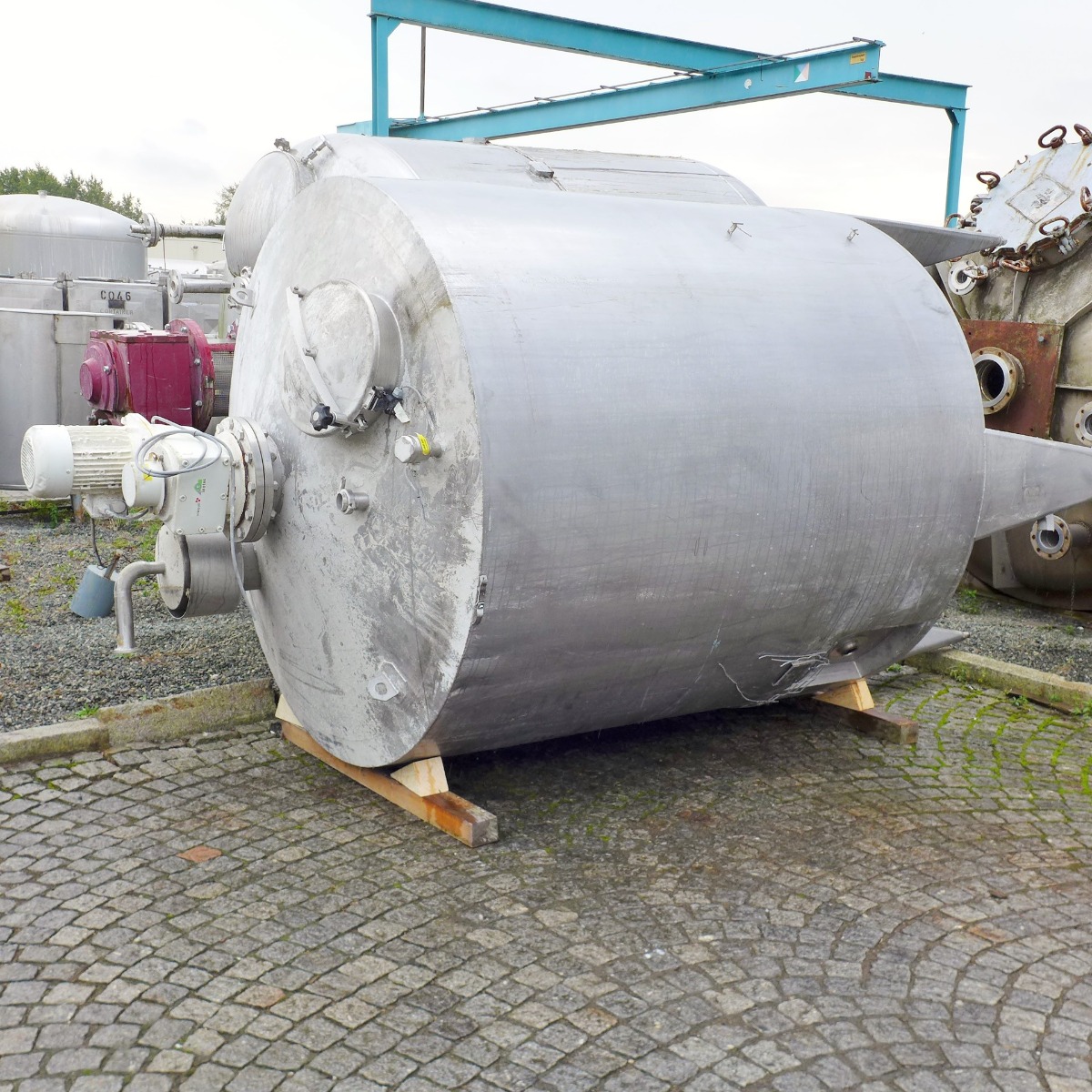

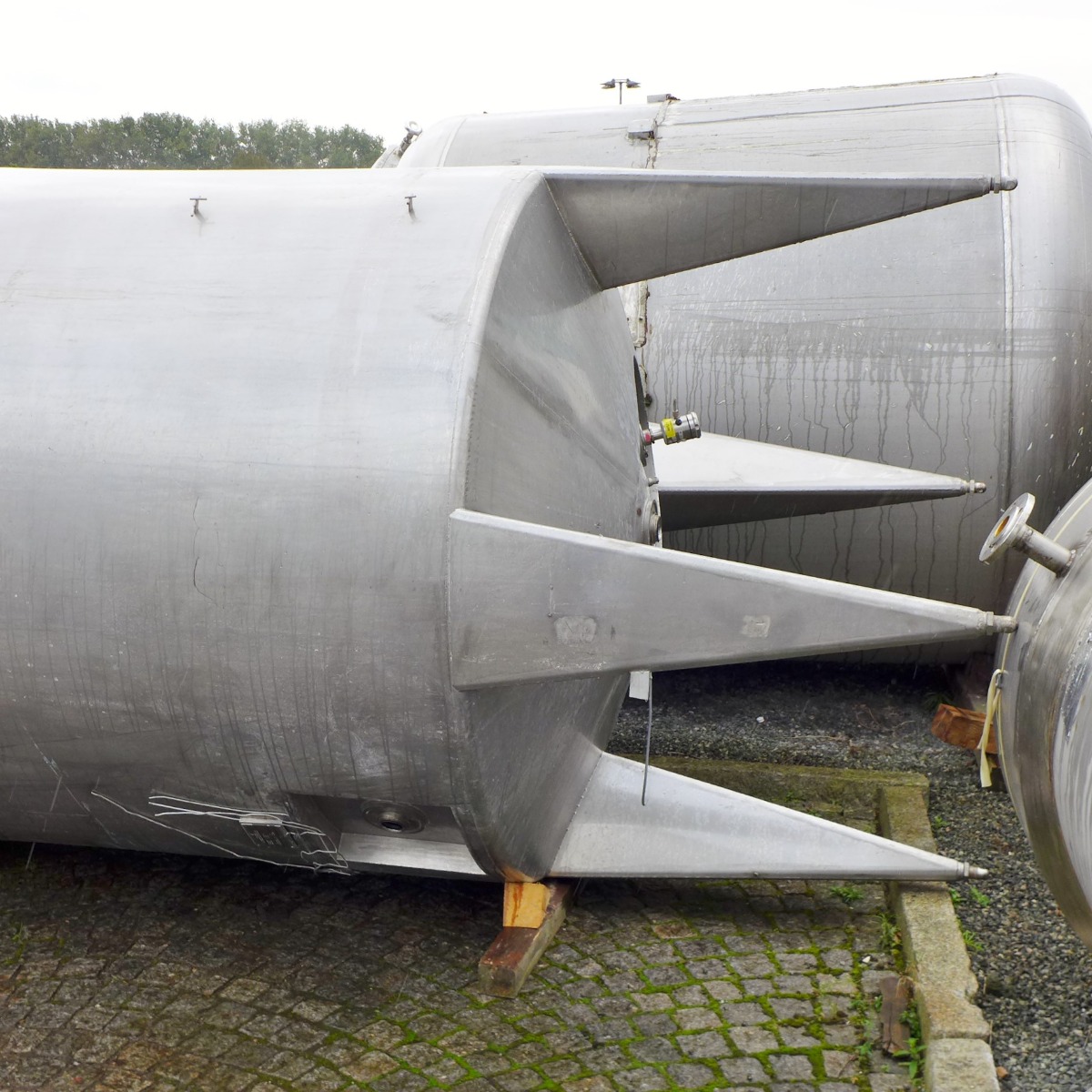

5000 liter tank i Rostfritt 304

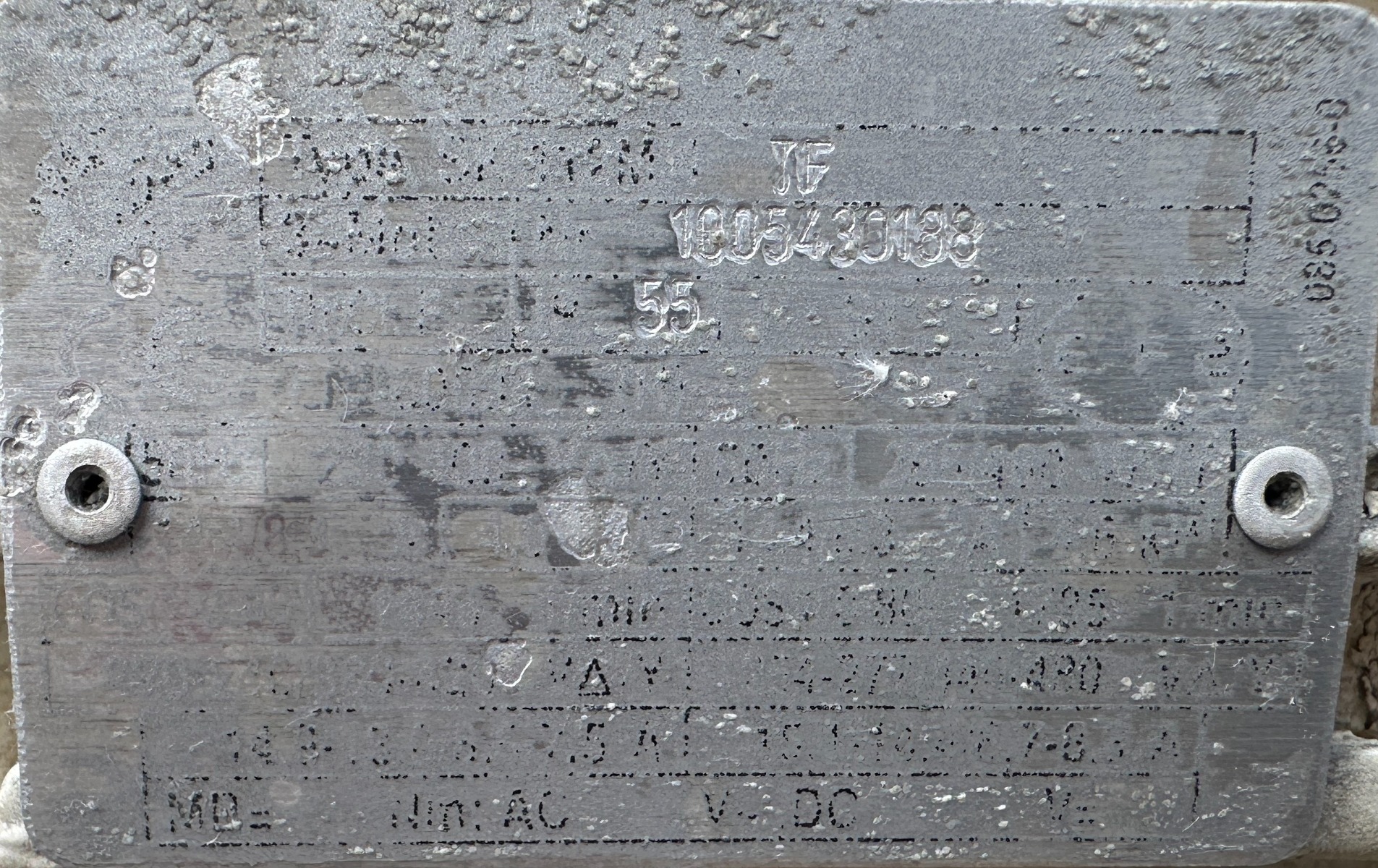

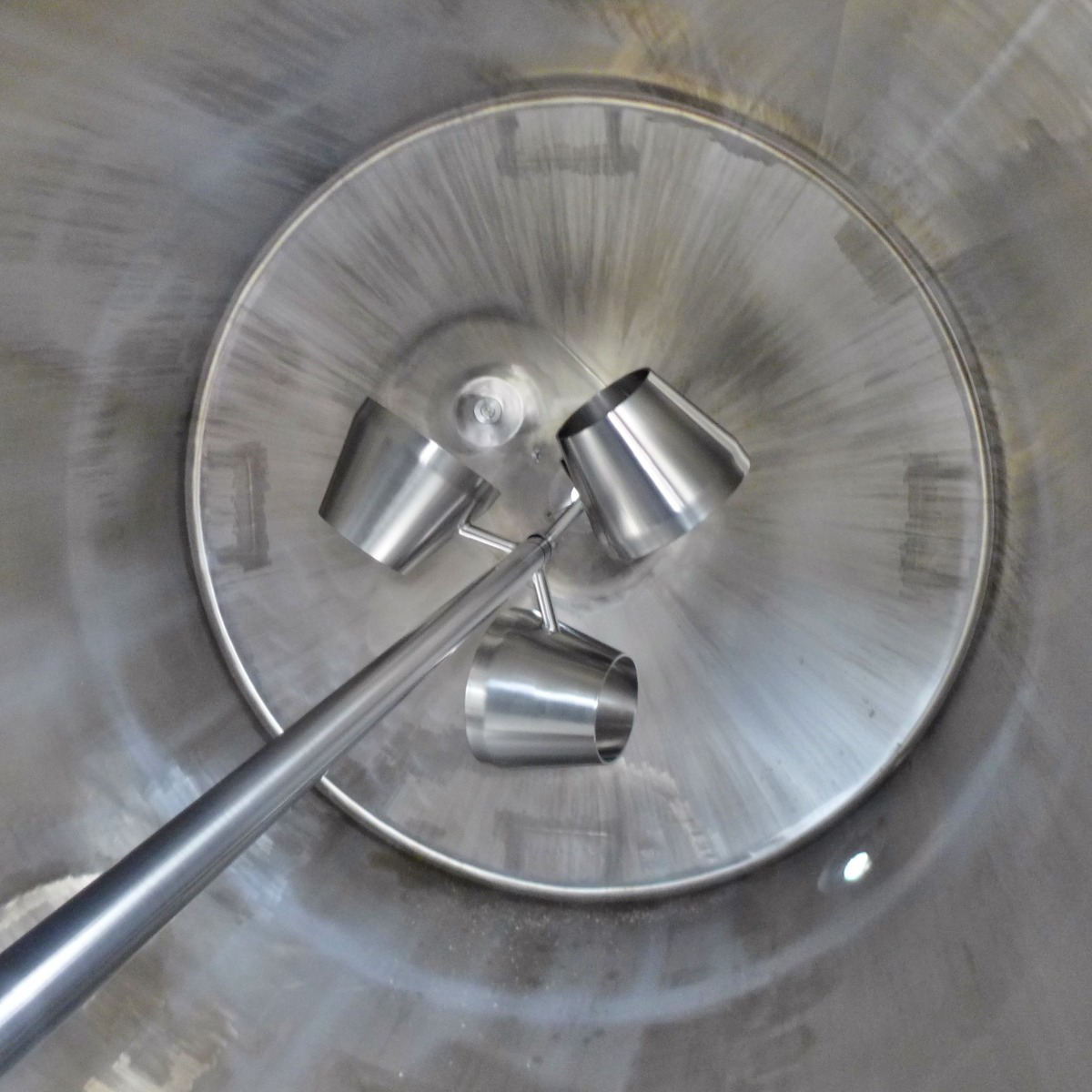

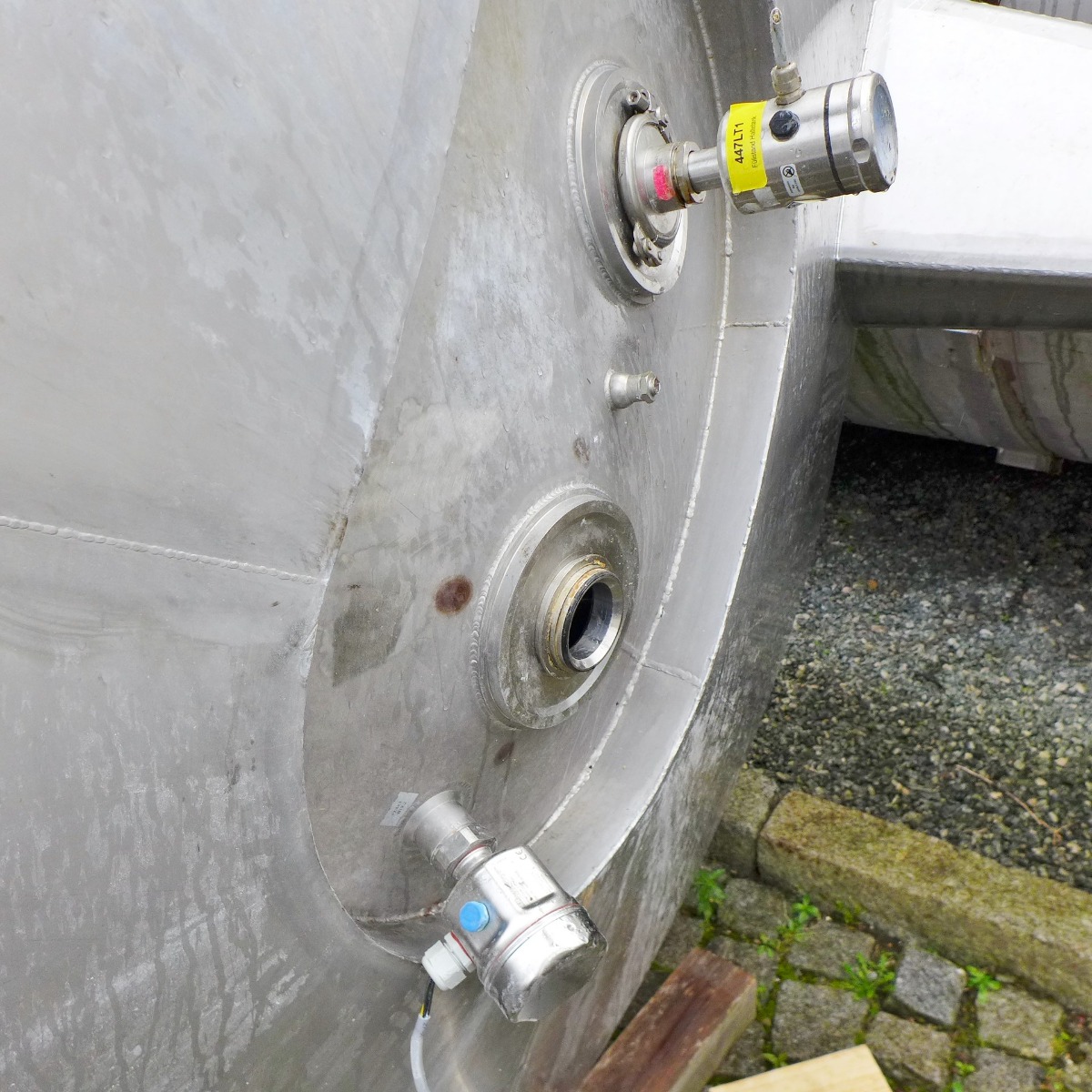

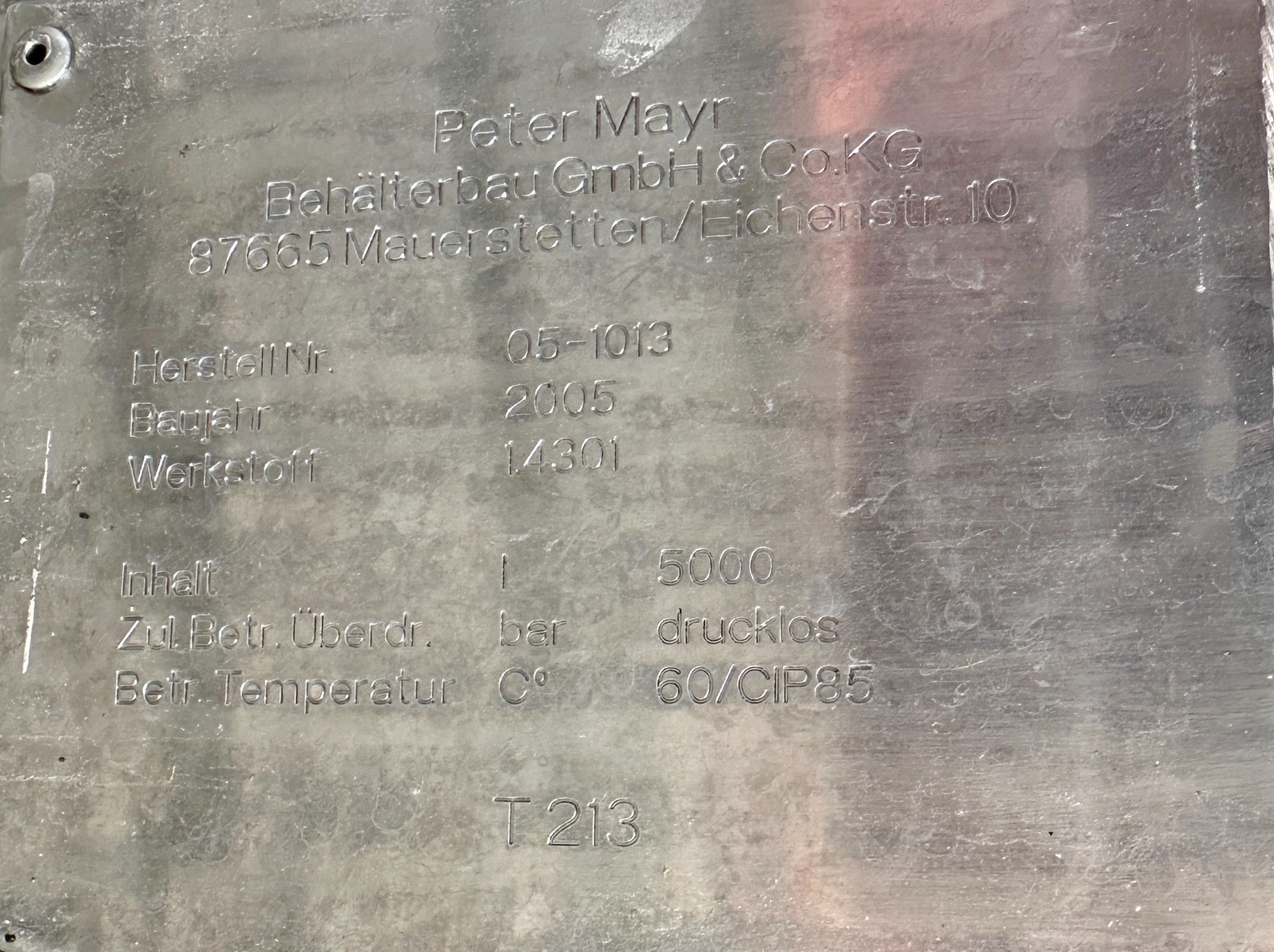

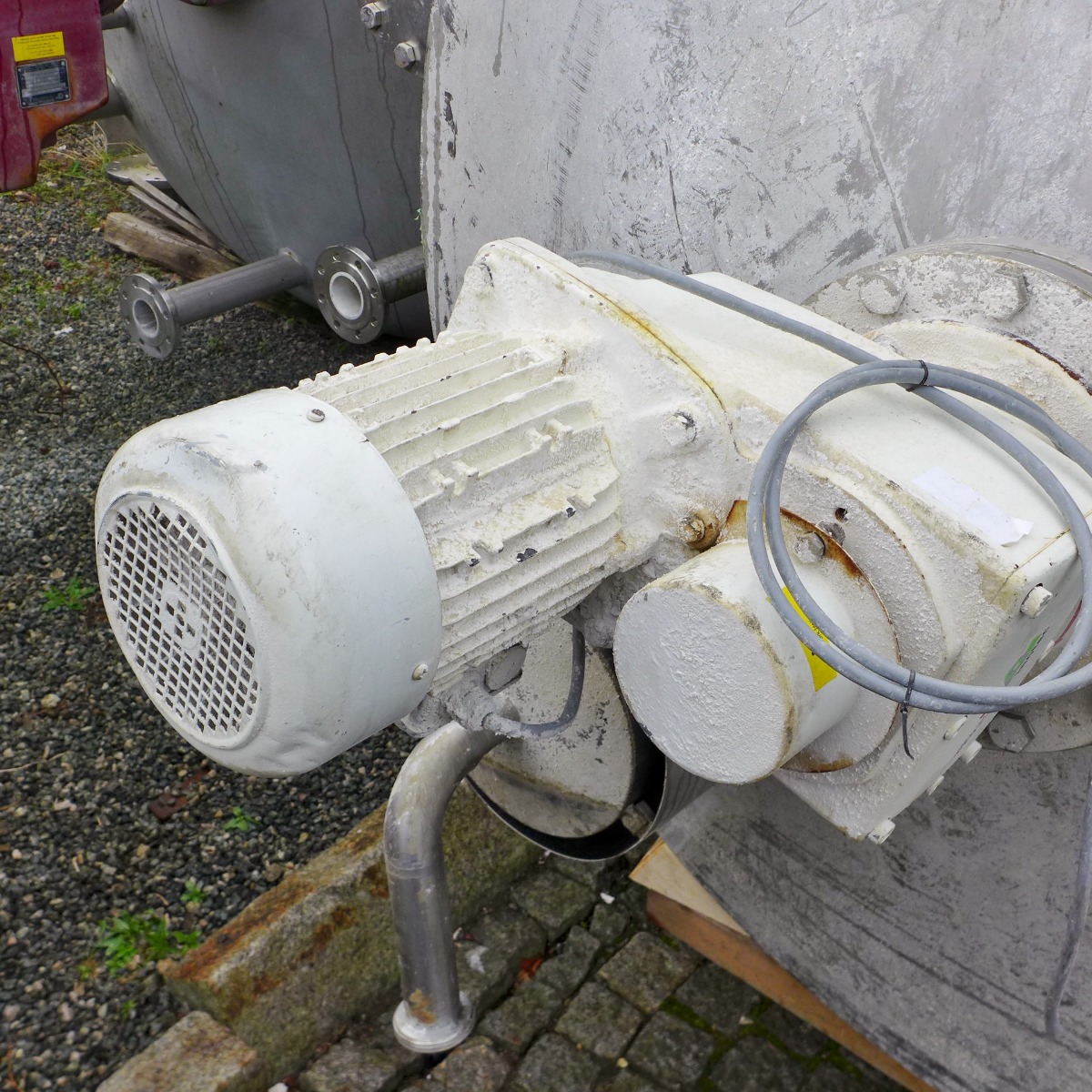

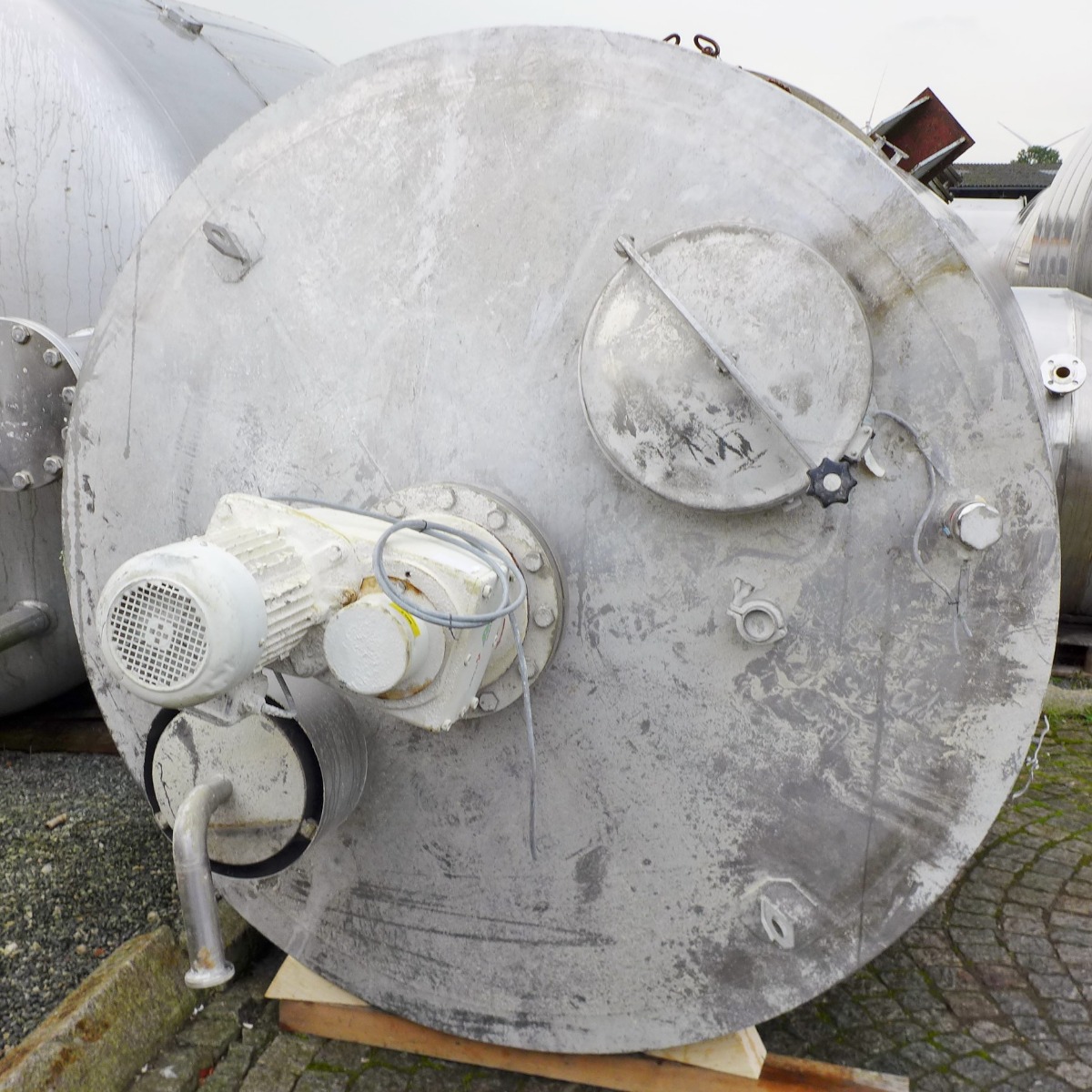

Additional information: food industry; manhole diameter: approx. 410 mm; ; some residues of previous content; bump at the insulation jacket Volumetric volume (L): 5.000 L Pressure in tank: ATM - atmosferic Max. temperature (°C): 60 °C Material wet parts: SS AISI 304 (V2A) Model: vertical Configuration: insulated Heat exchanger: no Insulation: yes Mobile tank: no Total discharge: yes Documents included: no Technical drawing included: no Registration plate on the tank: yes Flange for agitator: no Position of manway: in the bottom Outlet of tank: 51 Agitator: yes Internal diameter tank: 1.750 mm Outer diameter tank: 1.900 mm Cylinder height: 2.000 mm Total height of tank: 4.080 mm
