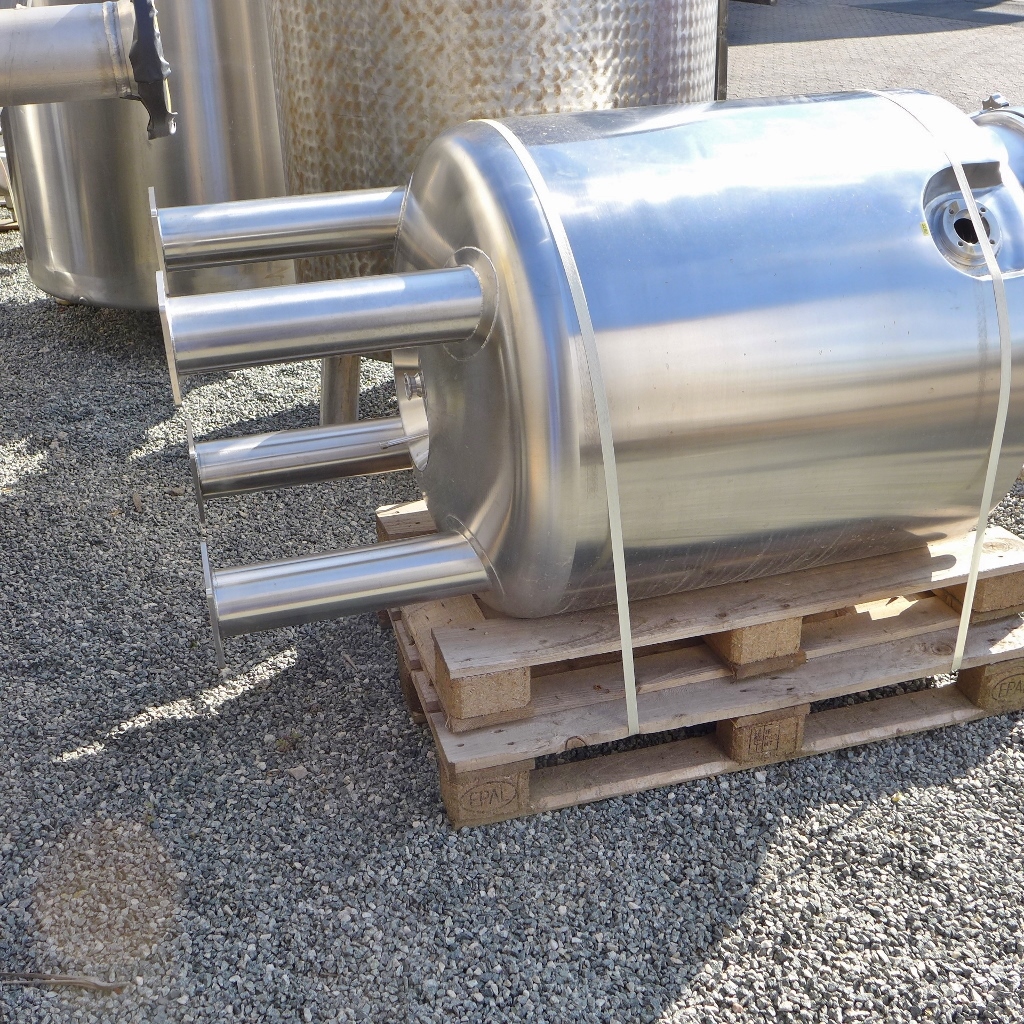

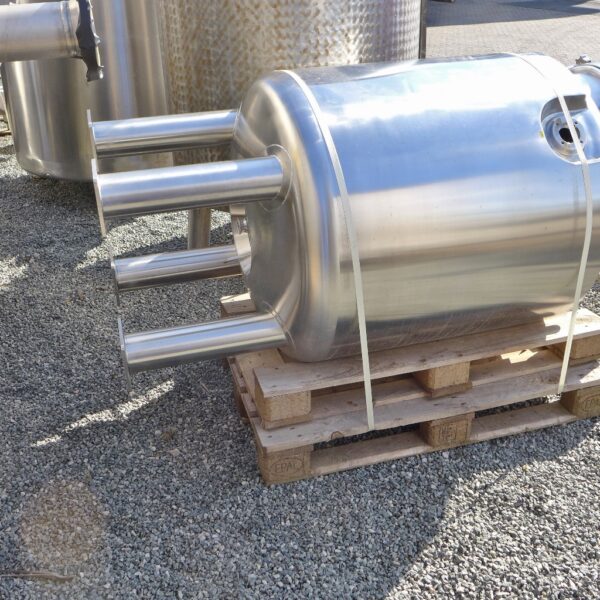

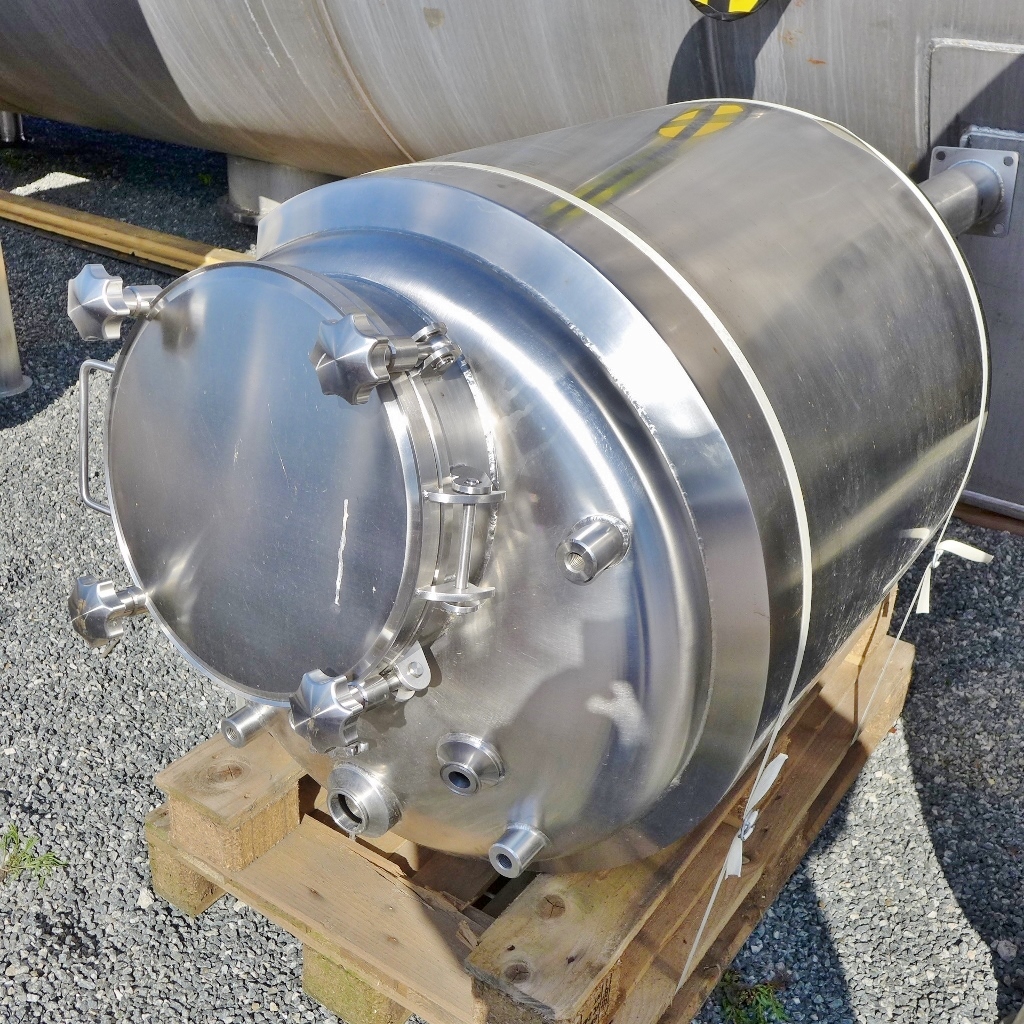

500 liter tank i Syrafast 316

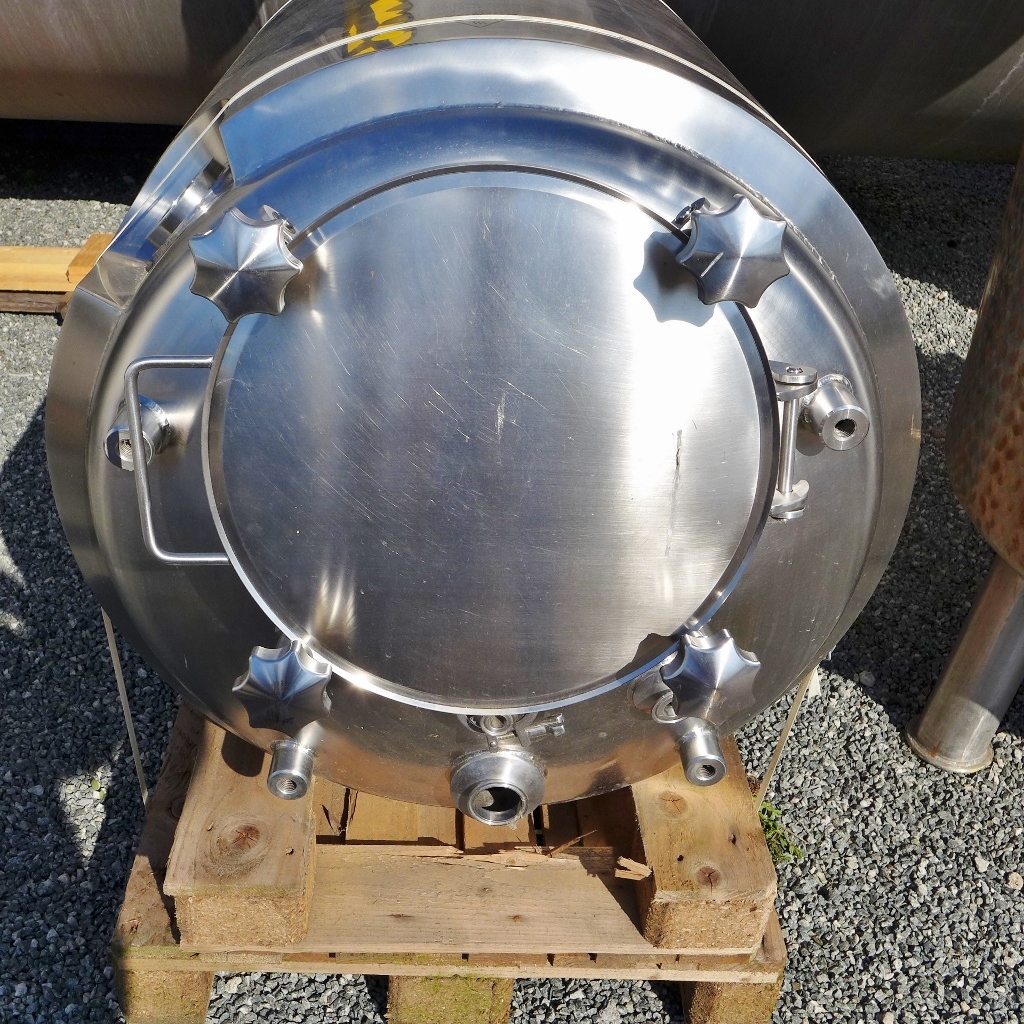

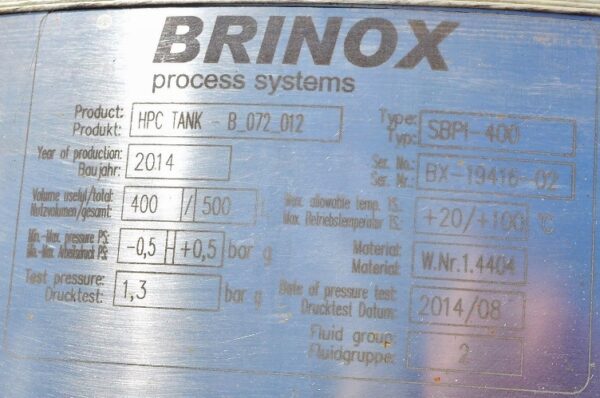

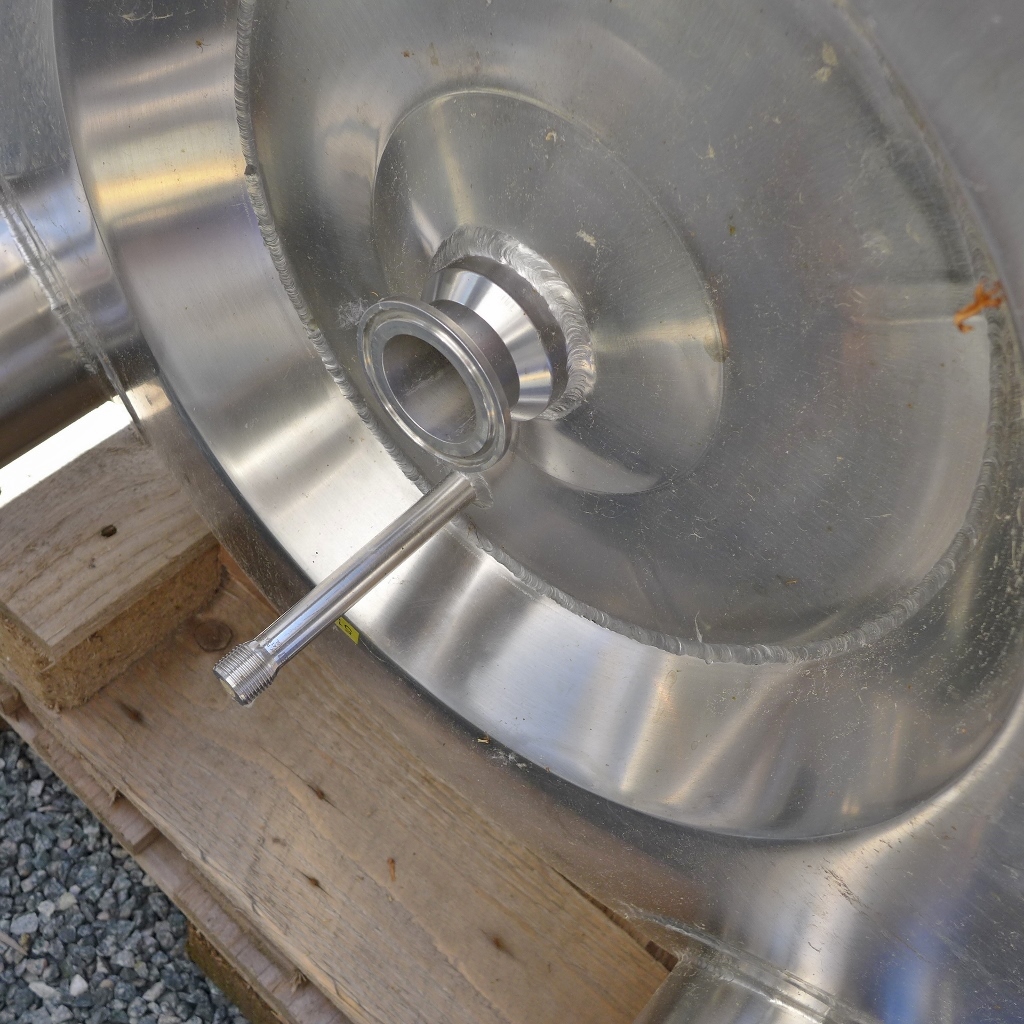

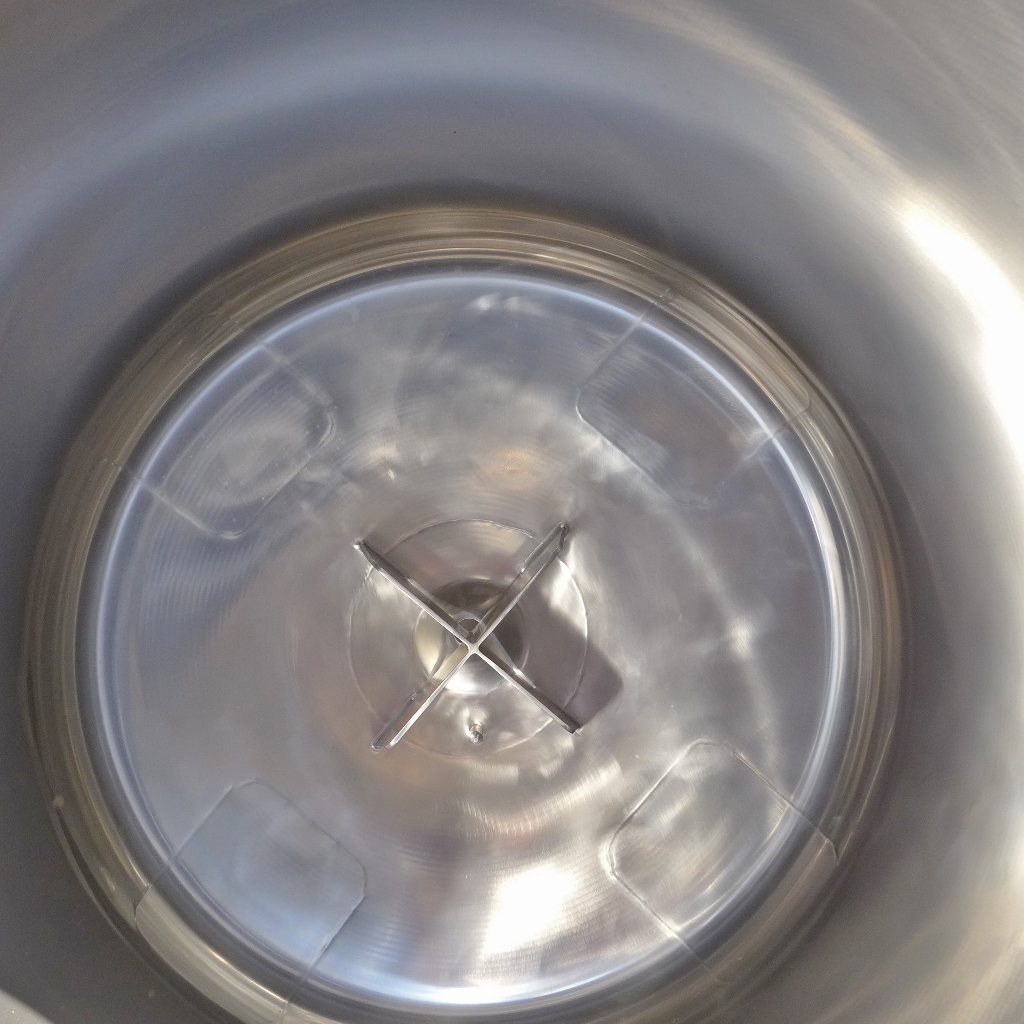

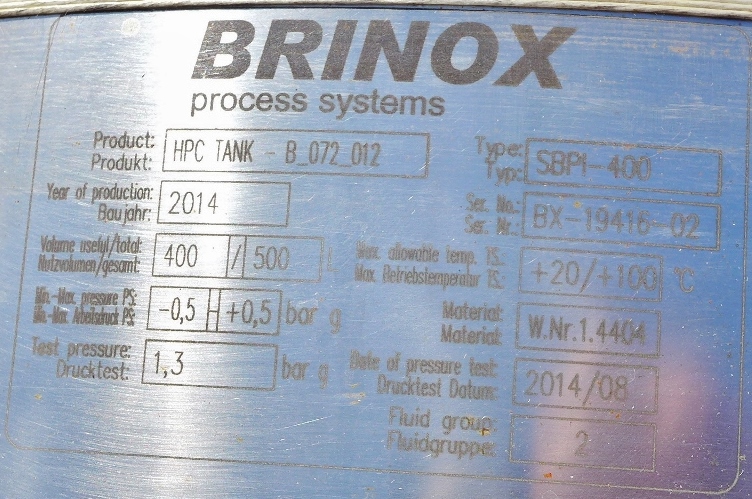

Additional information: 1 vortex disrupter inside above the outlet Volumetric volume (L): 500 L Pressure in tank: pressure and vacuum Max. pressure (Bar): 0,50 Bar Min. pressure (Bar): 0,50 Bar Max. temperature (°C): 100 °C Material wet parts: SS AISI 316 (V4A) Model: vertical Configuration: insulated Heat exchanger: no Insulation: yes Mobile tank: no Total discharge: yes Max Overpressure: 0,50 Bar Max onderdruk: 0,50 Bar Documents included: no Technical drawing included: no Registration plate on the tank: yes Flange for agitator: no Position of manway: in the bottom Outlet of tank: 30 Internal diameter tank: 790 mm Outer diameter tank: 900 mm Cylinder height: 780 mm Total height of tank: 1.800 mm
