500 liter i rostfritt 304 eller syrafast 316
Art.nr: 3181Tipsa en kollega
Beskrivning
PRICE…………………………..850,00 eur/piece – 20% discount
OPTIONS for 500 L:
- Material AISI 316………………………………..250,00 eur/tank – 20% discount
- Insulation foam 50 mm……………………….650,00 eur/tank – 20% discount
- Cooling/heating jacket hight 750 mm….380,00 eur/tank – 20% discount (max working pressure 1,8 bar)
Mer information
| Antal | |
|---|---|
| Livsmedelsklassad | |
| Material | |
| Modell | |
| Omrörare | |
| Volym i liter |
Nytillverkade tankar. Dessa tankar kan tillverkas i både rostfritt 304 och syrafast 316.
Tankarna kan även anpassas med isolering och eller uppvärmning/kylning.

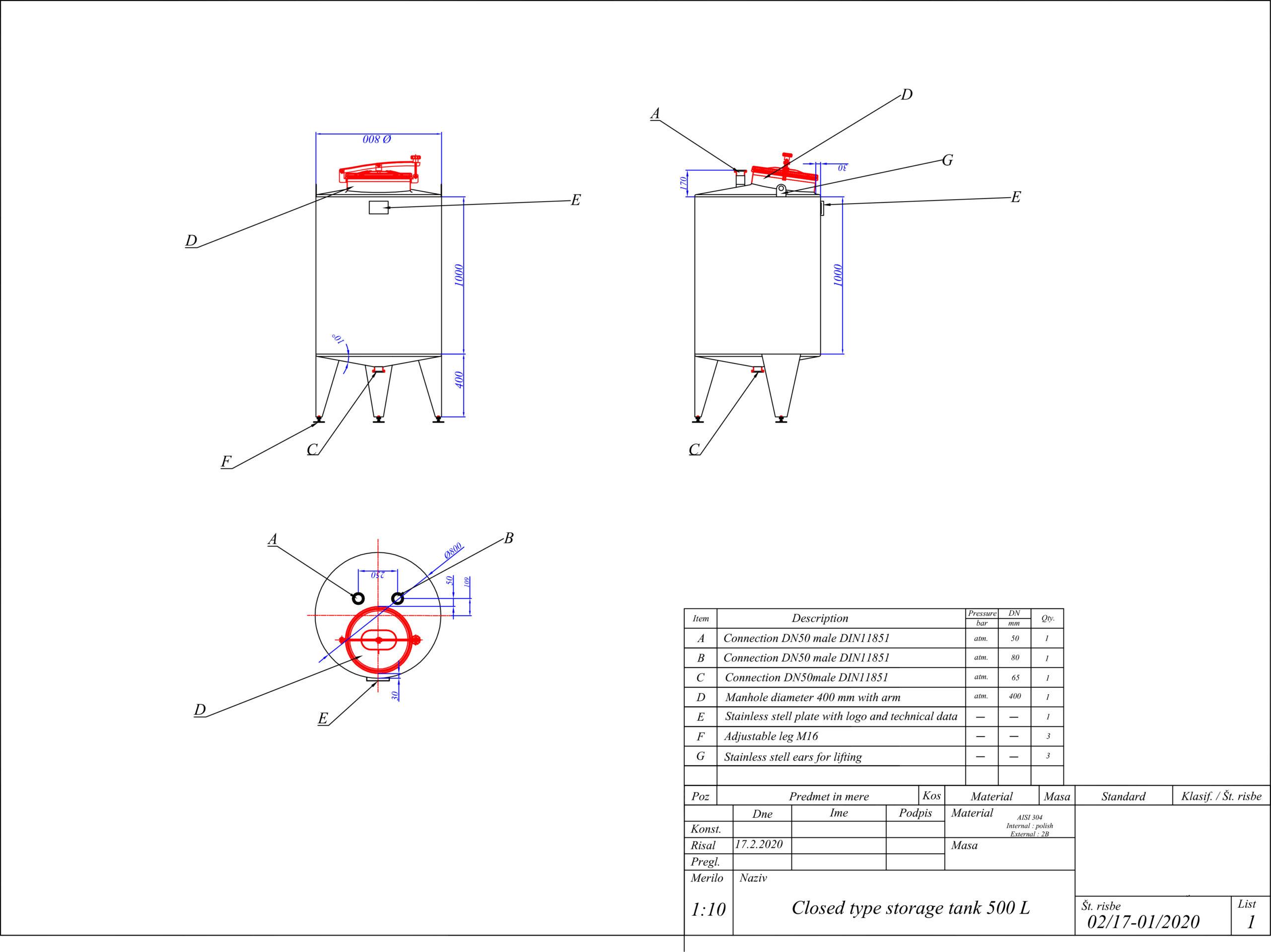

- Diameter of the tank 800 mm
- Hight of jacket 1000 mm
- Hight legs 400 mm
- Adjustable legs 3 pcs
- Conical centrical bottom down and on the top
- Material AISI 304 or AISI 316
- Total outlet just connection male DN50
- Table with technical data
- On the top, position center circle door diameter 400 mm with safety arm
- On the top 2 pc connection male DN50
- On the top inox ears for lifting tank
- All internal welds are make with grinding whell and than high polish
- Outside surface are 2B matt/white
