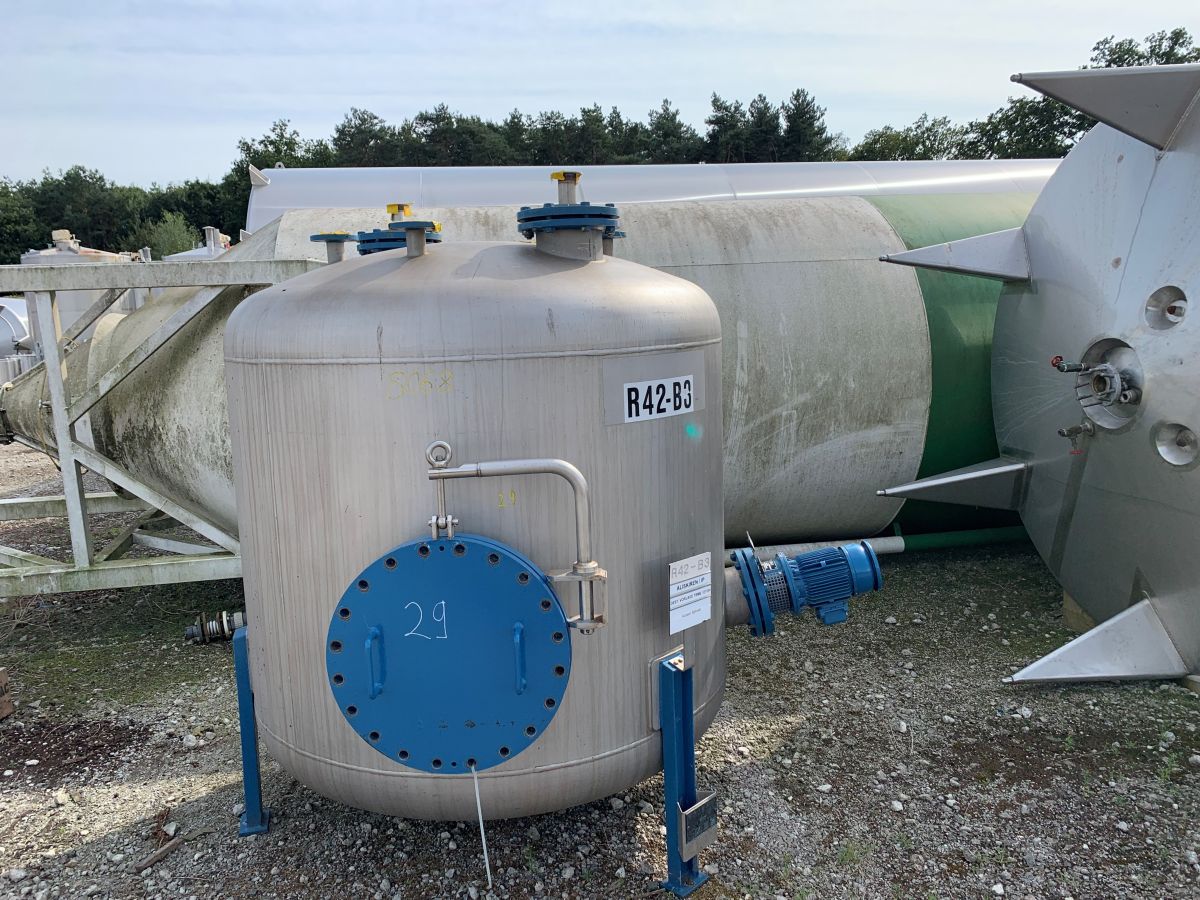

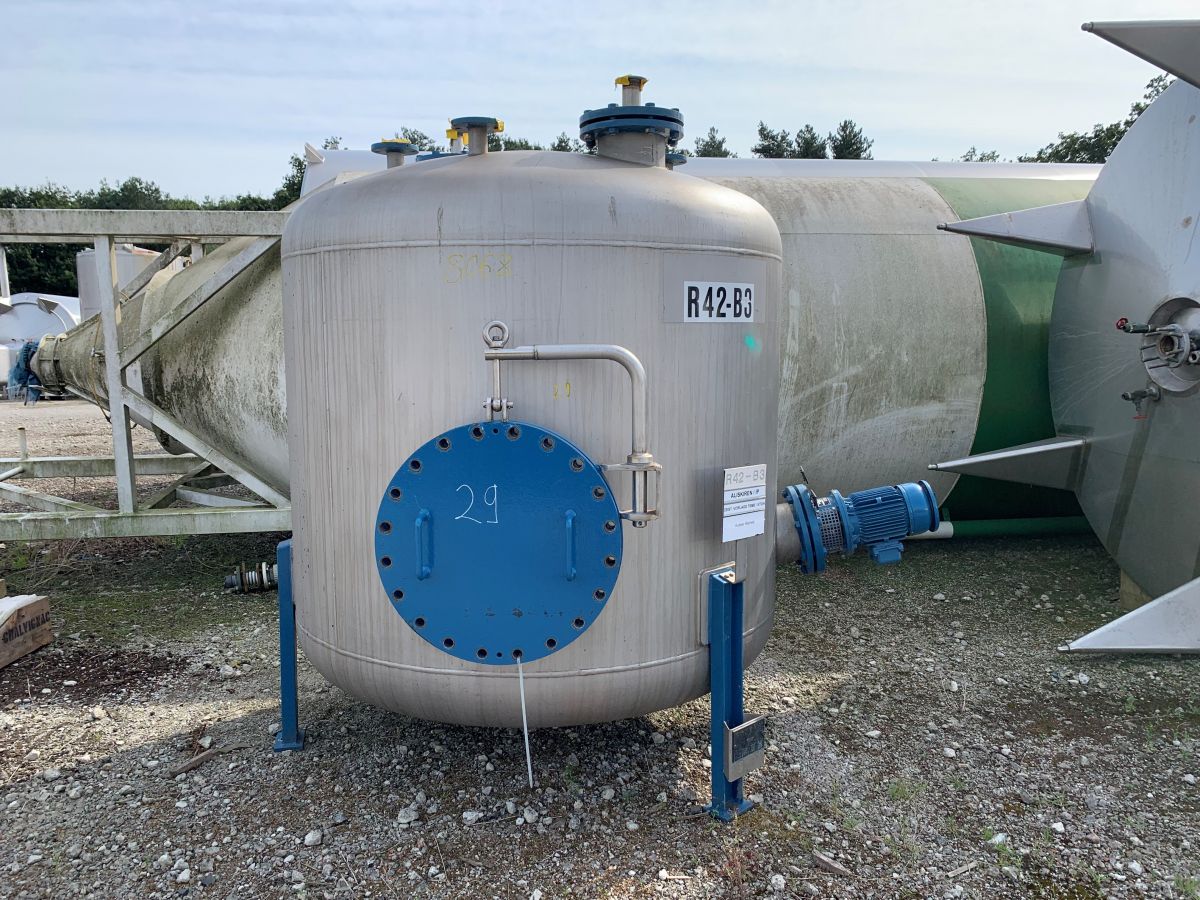

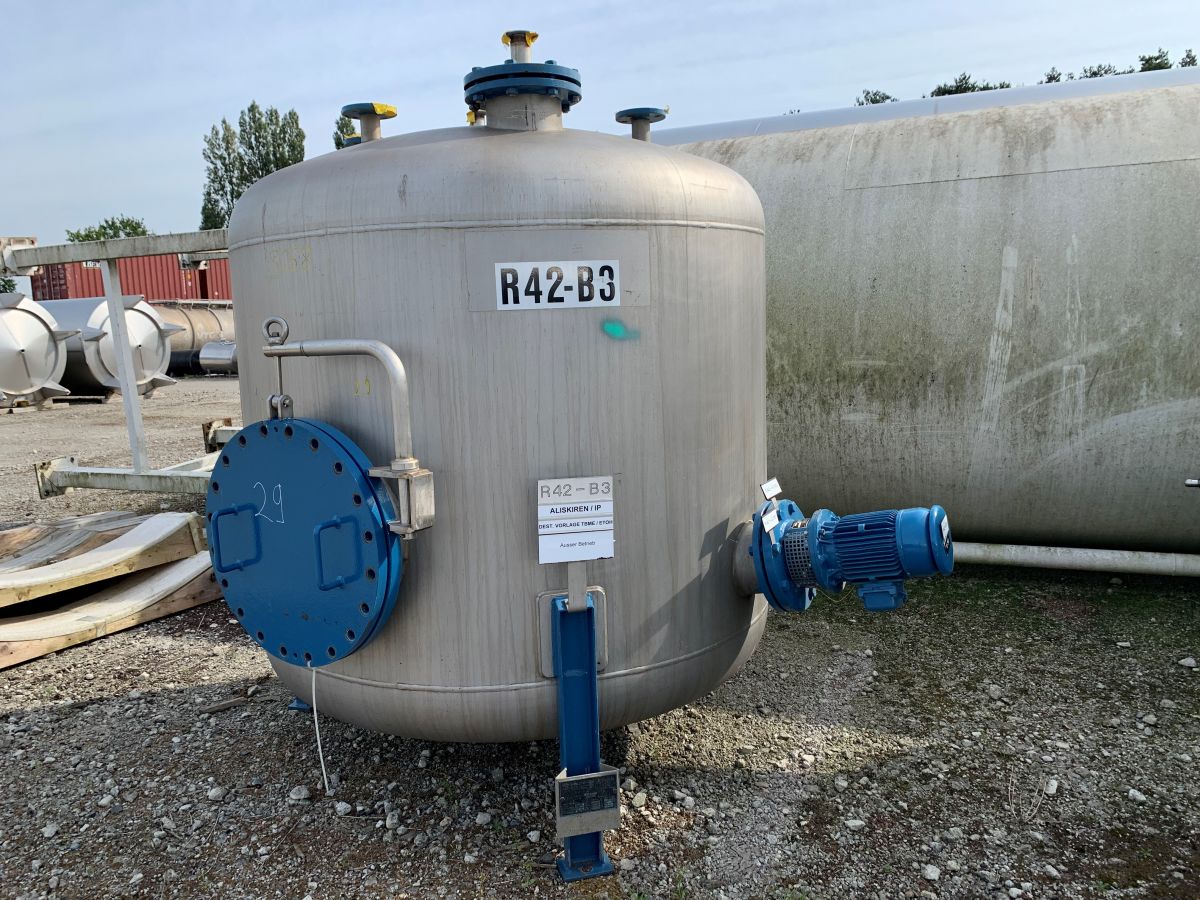

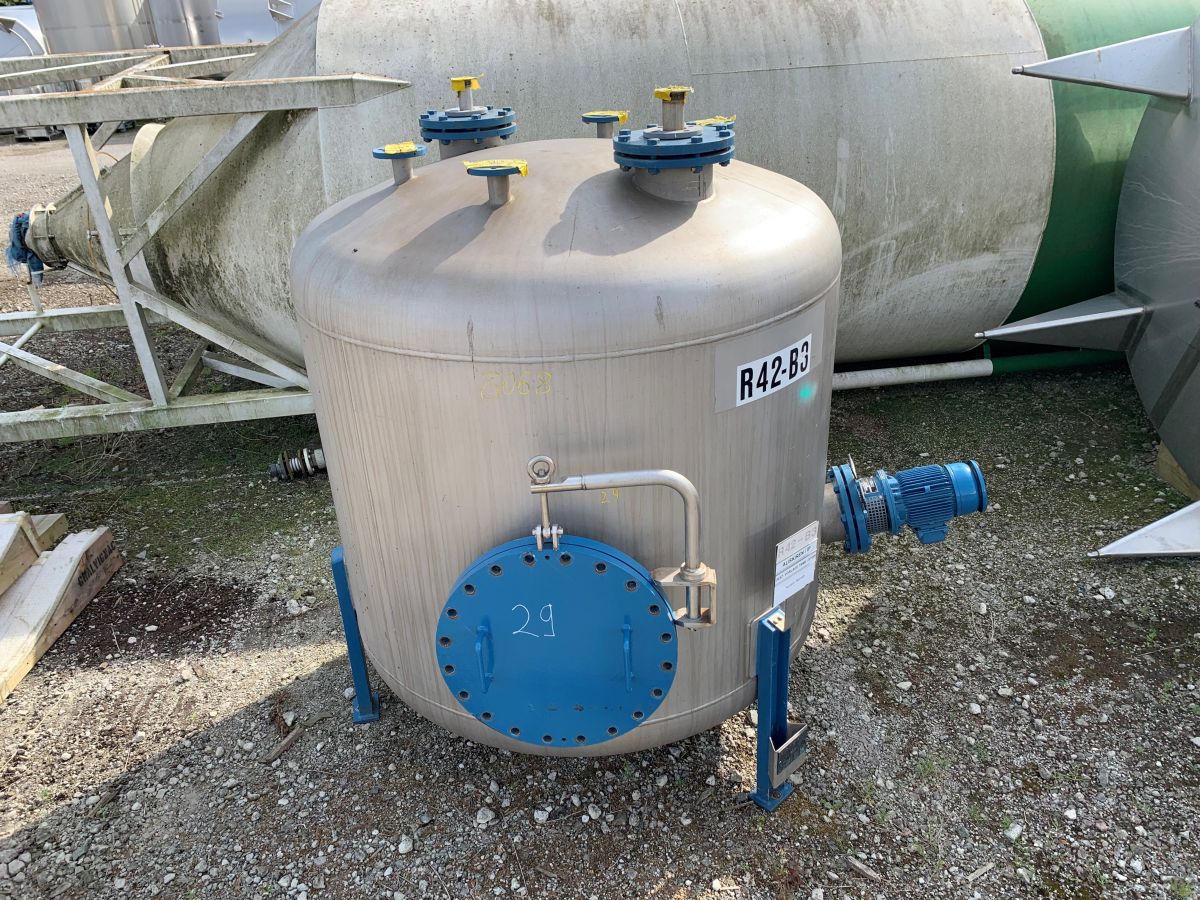

4370 liter tank i Syrafast 316

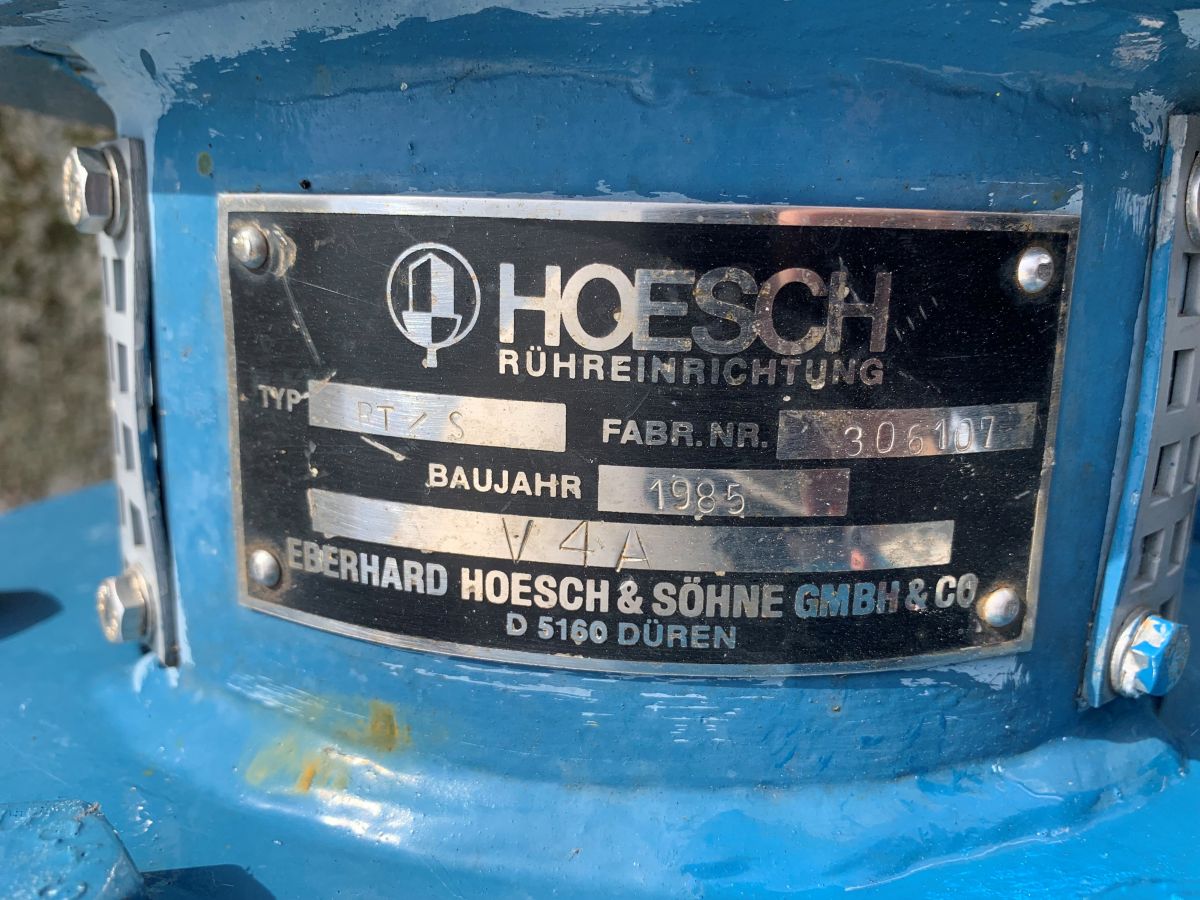

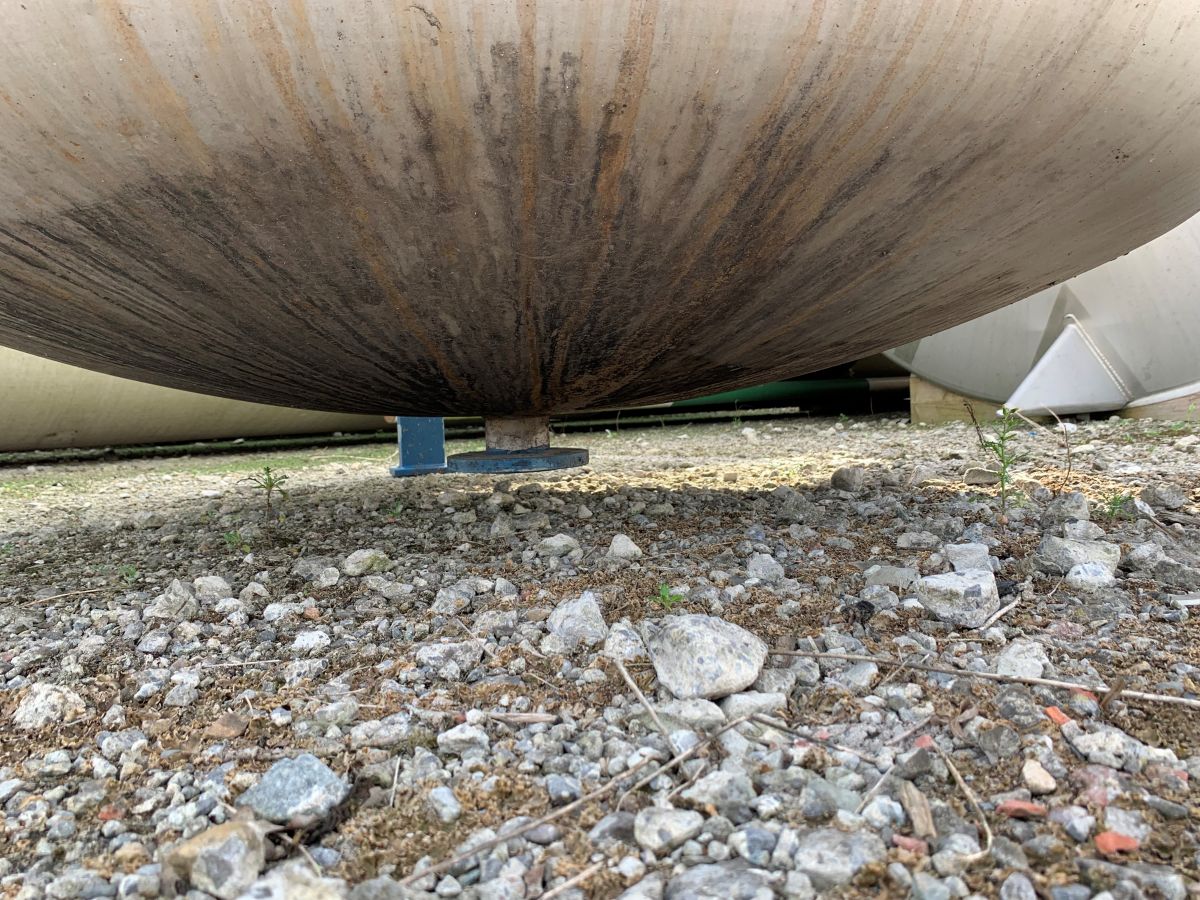

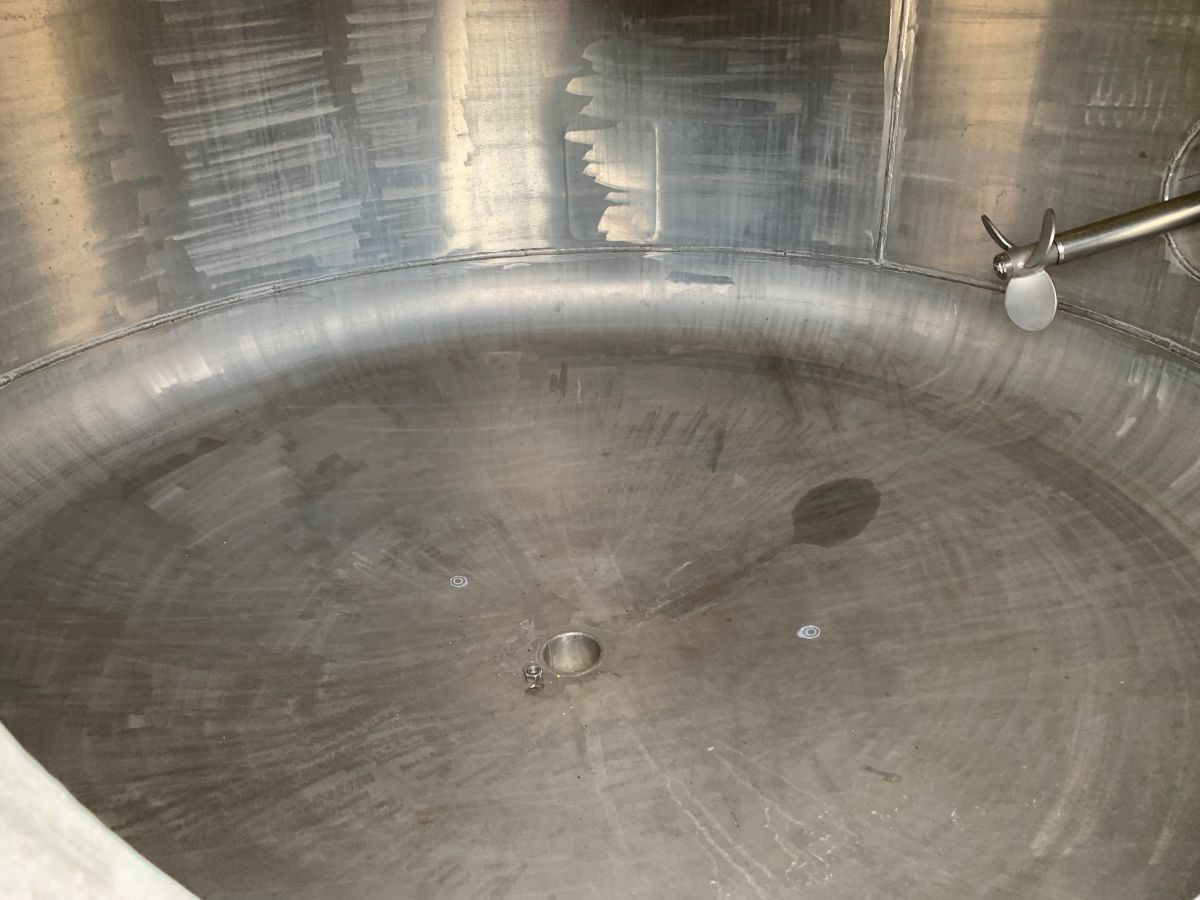

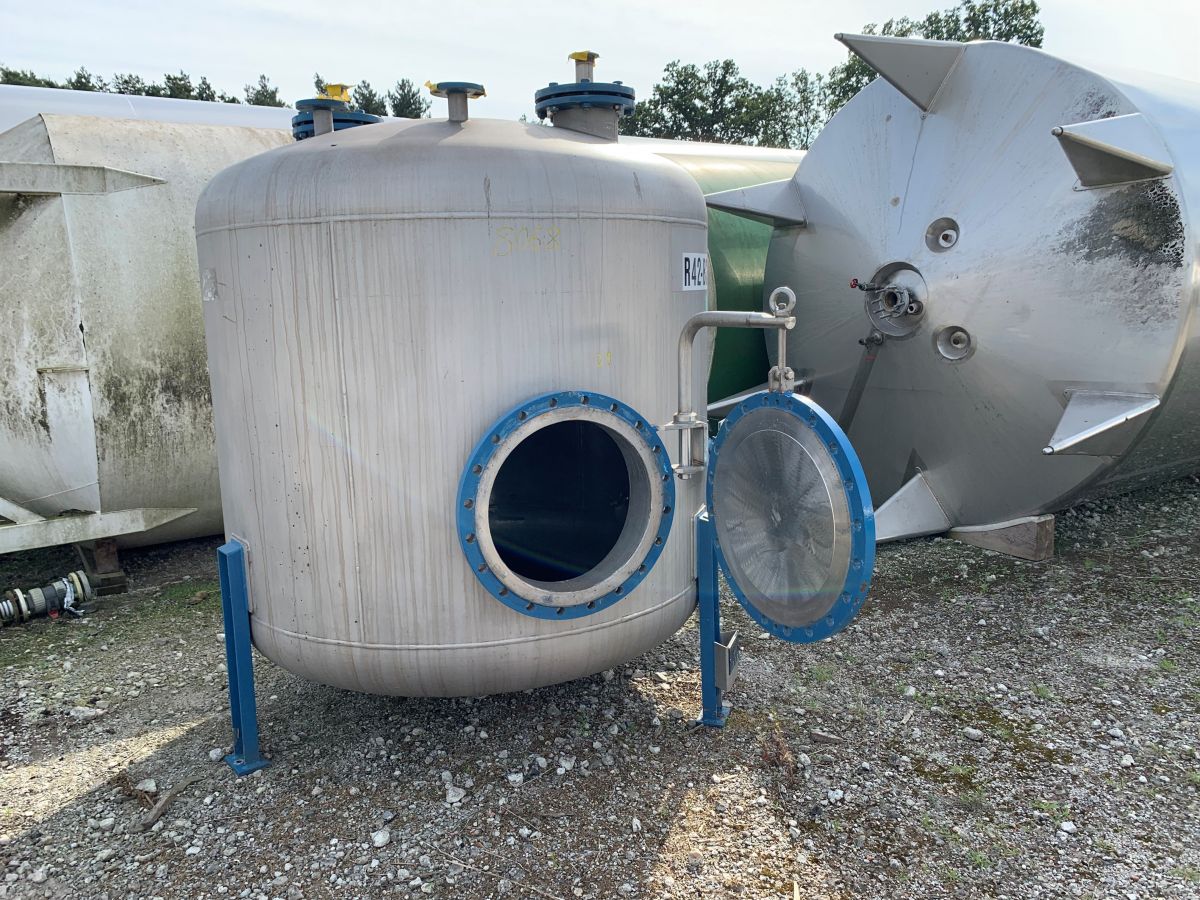

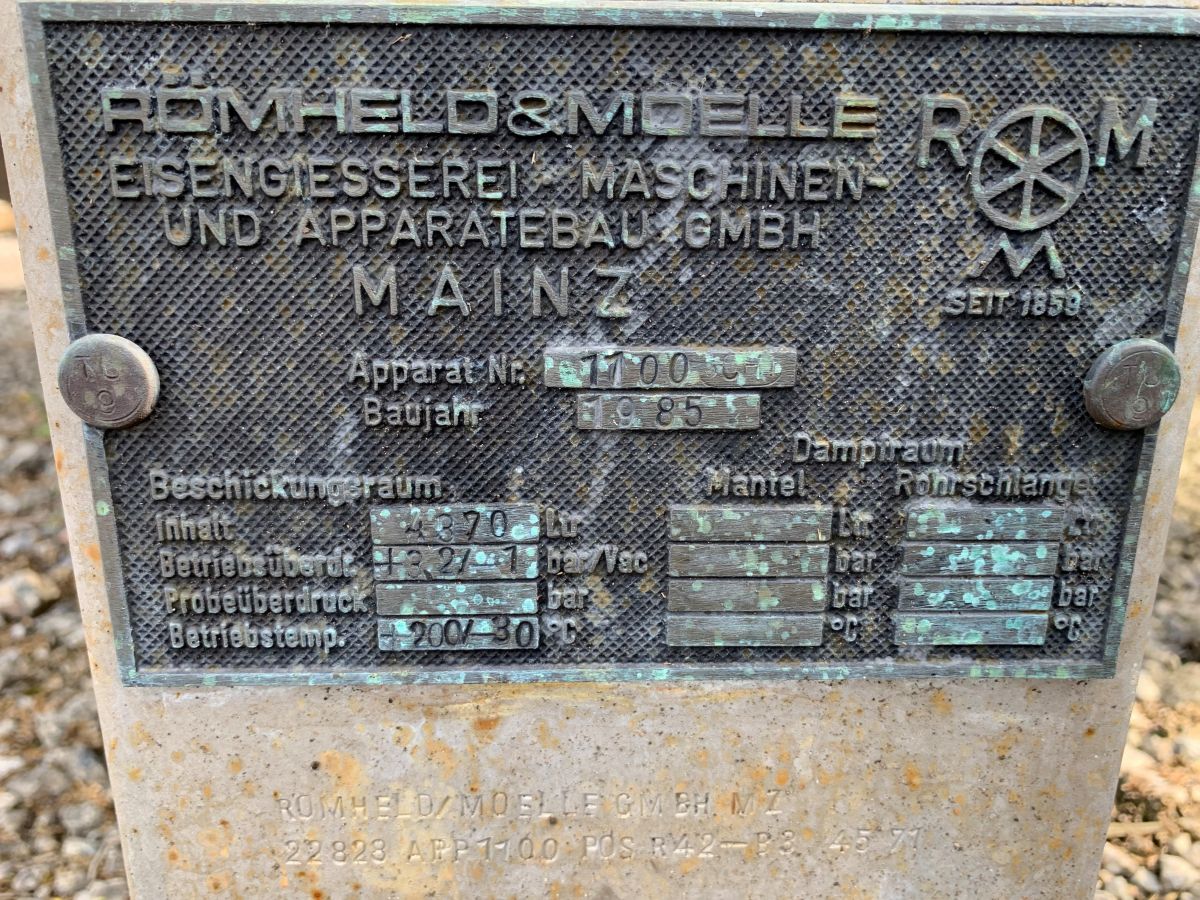

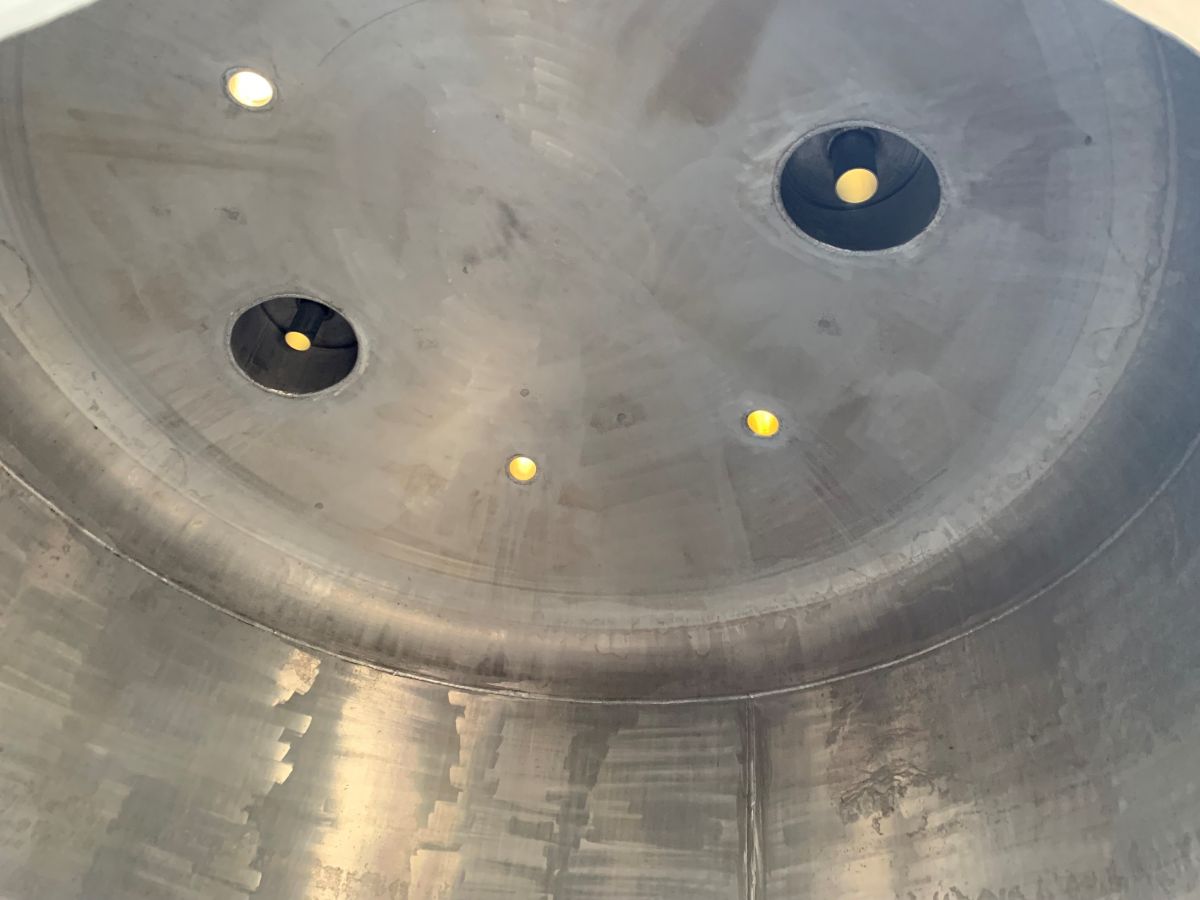

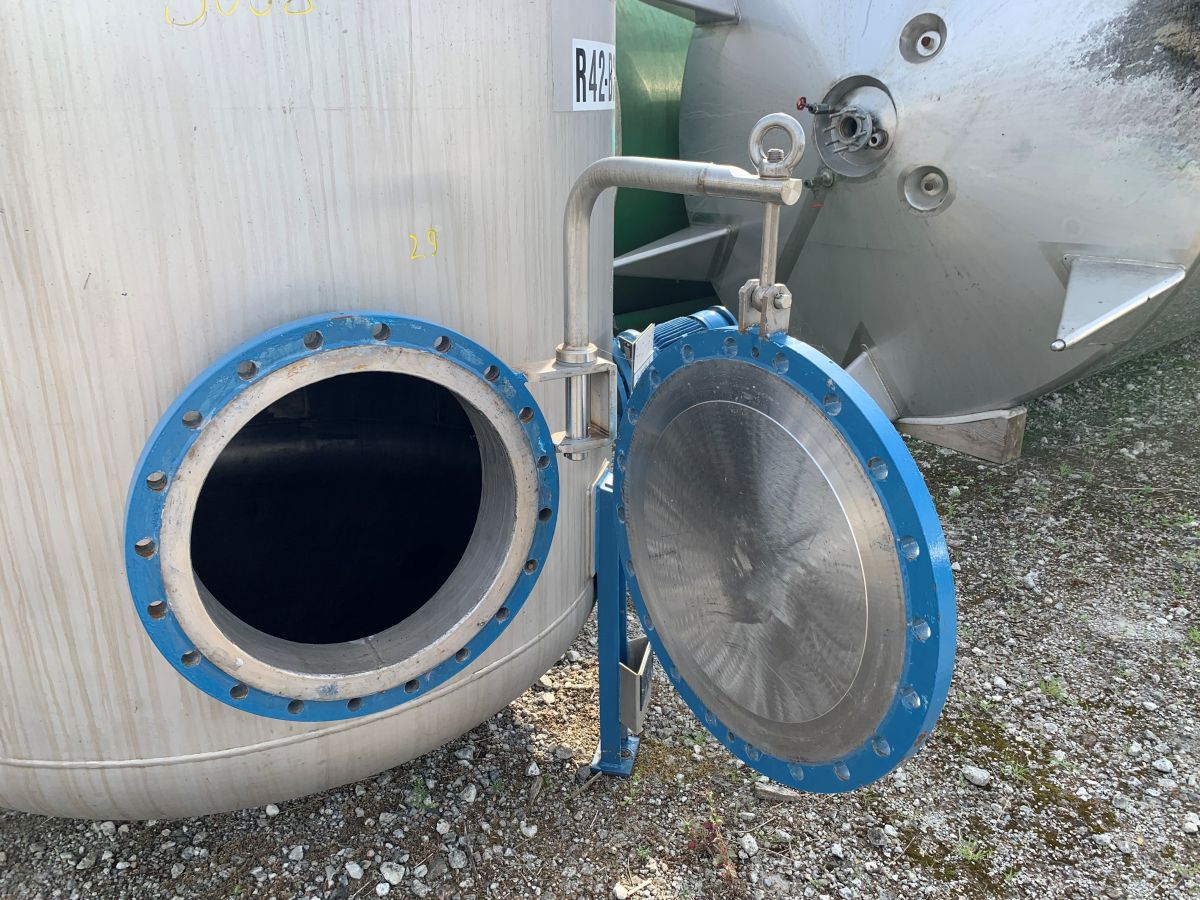

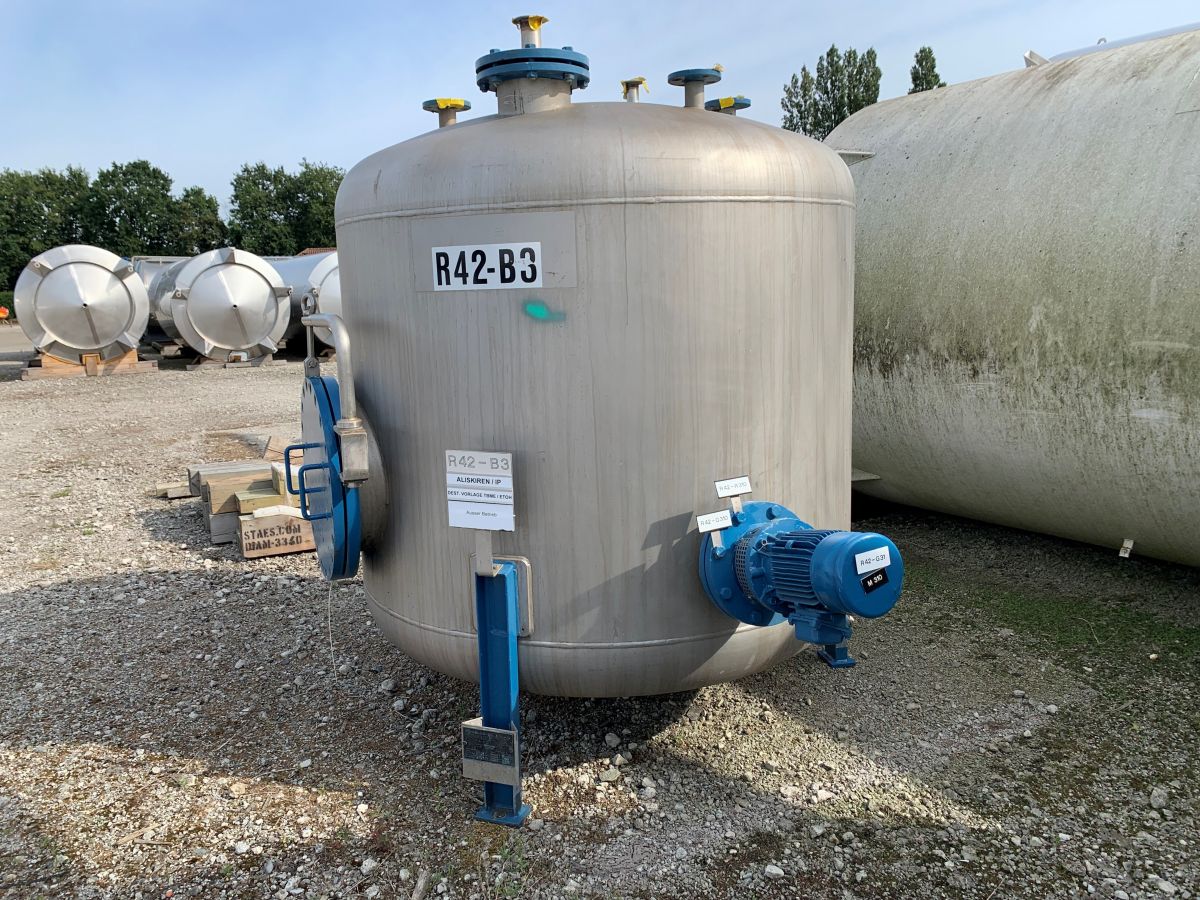

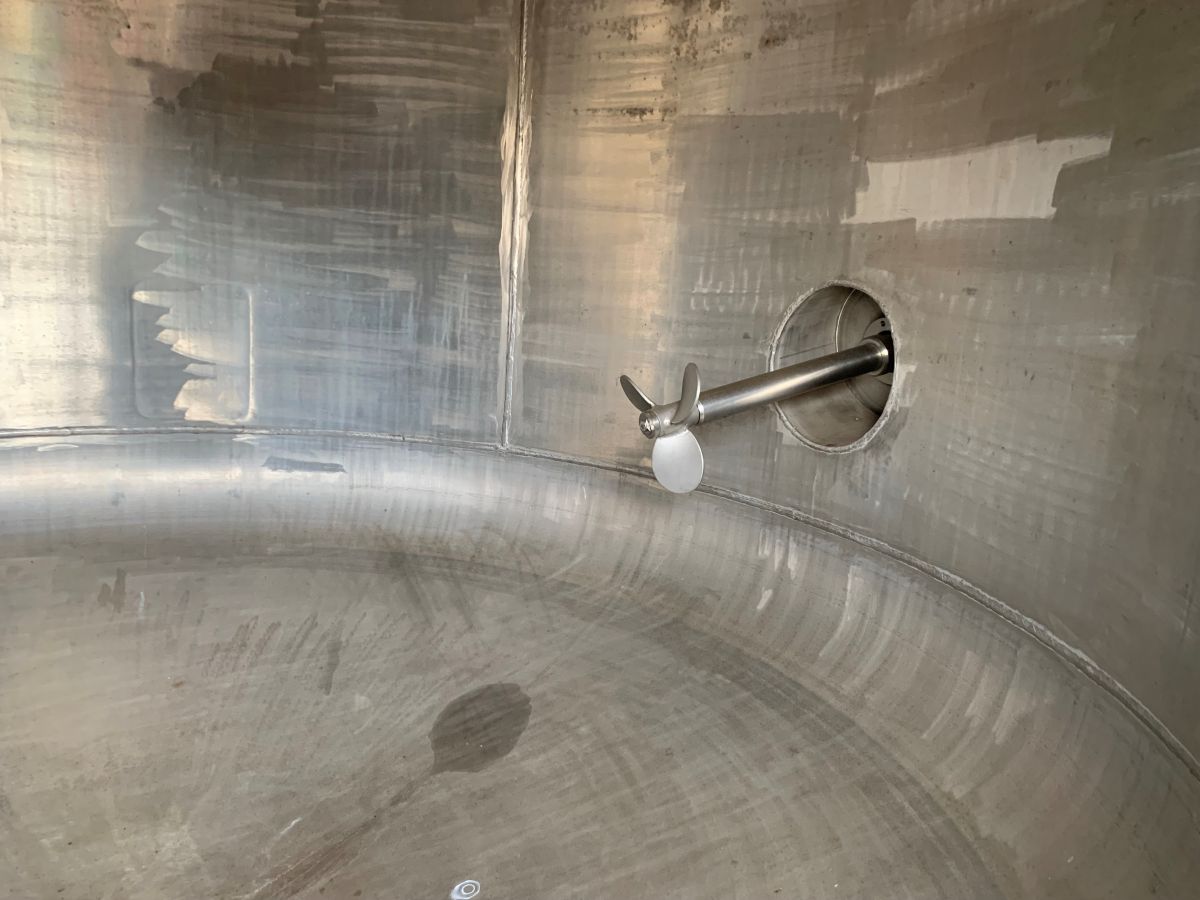

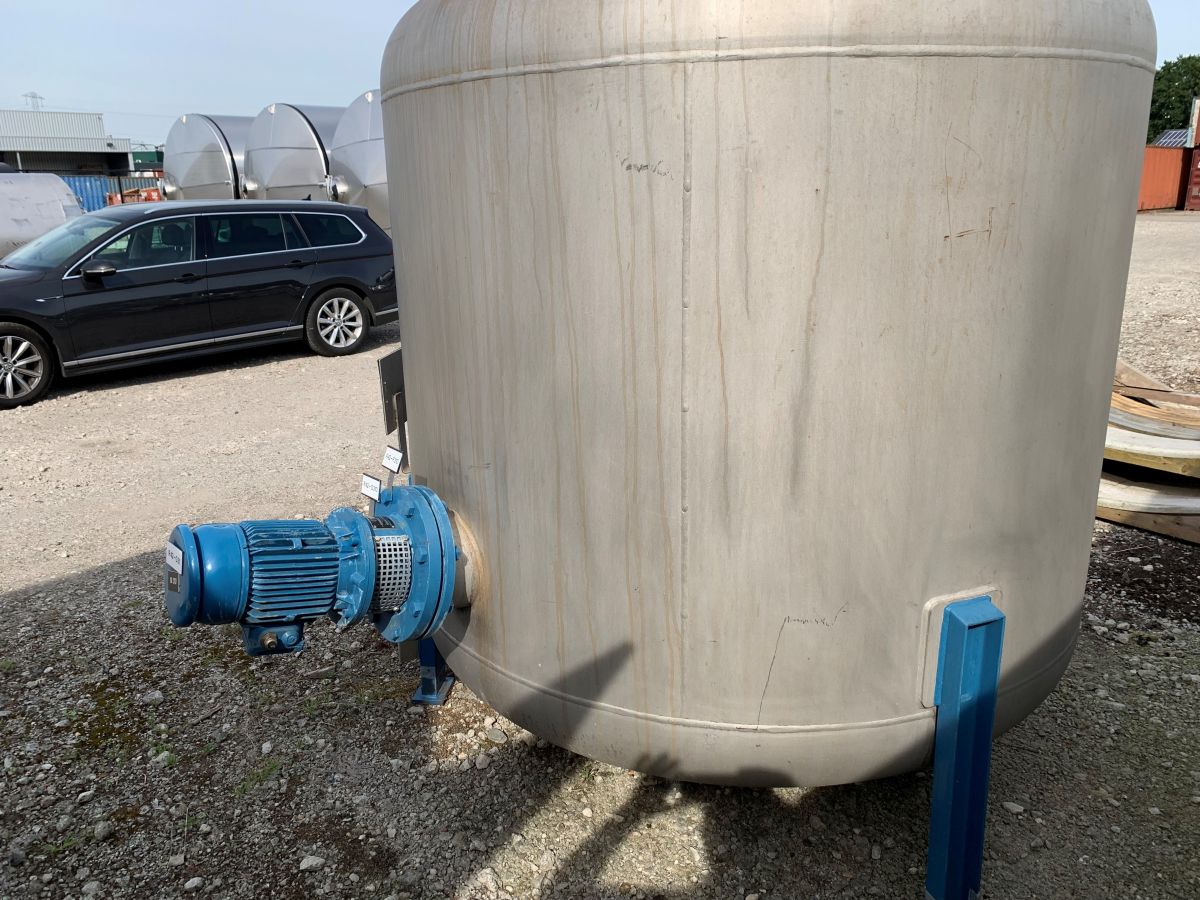

Article type: second-hand pressure tank Additional information: we can’t give any guarantees about the agitator Volumetric volume (L): 4.370 L Pressure in tank: pressure Max. pressure (Bar): 3,20 Bar Min. pressure (Bar): -1 Bar Max. temperature (°C): 200 °C Min. temperature (°C): -30 °C Material wet parts: SS AISI 316 (V4A) Model: vertical Configuration: single-skin Heat exchanger: no Insulation: no Mobile tank: no Top type: dished Shape of tank: cylindrical Bottom type: dished Total discharge: yes Fixation points: 3 non adjustable feet Fixation point(s): painted steel Suitable for food industry: no Documents included: no Technical drawing included: no Registration plate on the tank: yes Flange for agitator: no Number of manways: 1 Position of manway: cylinder Height manhole 1 (mm): 500 mm Tank outlet: inside Ø 80 mm Total outlet valve: no Agitator: yes Agitator type: propeller agitator Position engine: in the cylinder Number of revolutions: 955 Power: 4,30 Voltage: three-phase Top: 8 mm Cylinder: 6 mm Bottom: 6 mm Distance from outlet to ground: 70 mm Outer diameter tank: 1.780 mm Cylinder height: 1.250 mm Total height of tank: 2.360 mm Empty weight tank: 1.500
