16842 liter tank i Rostfritt 304
Art.nr: 266314
149,000,00 kr /st exkl moms
Isolerad:
Material:
Modell:
Nytillverkad eller begagnad:
Trycktank:
Uppvärmning/kylning:
Omrörare:
Lagersaldo:
Slut i lager

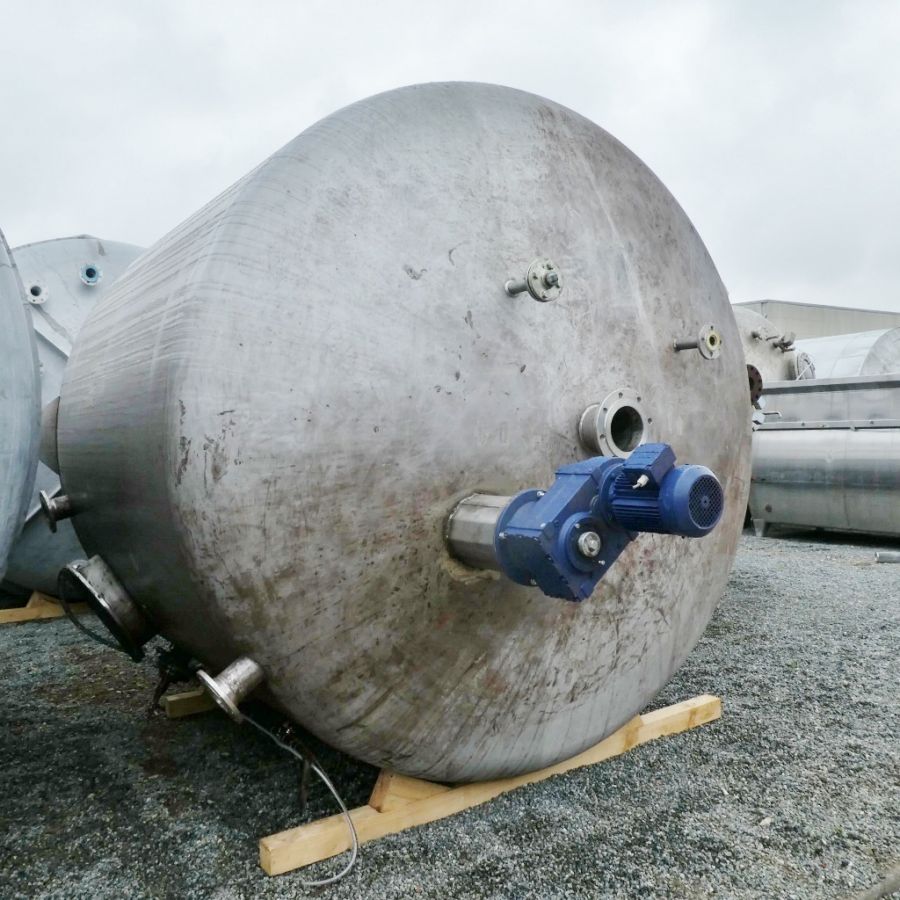

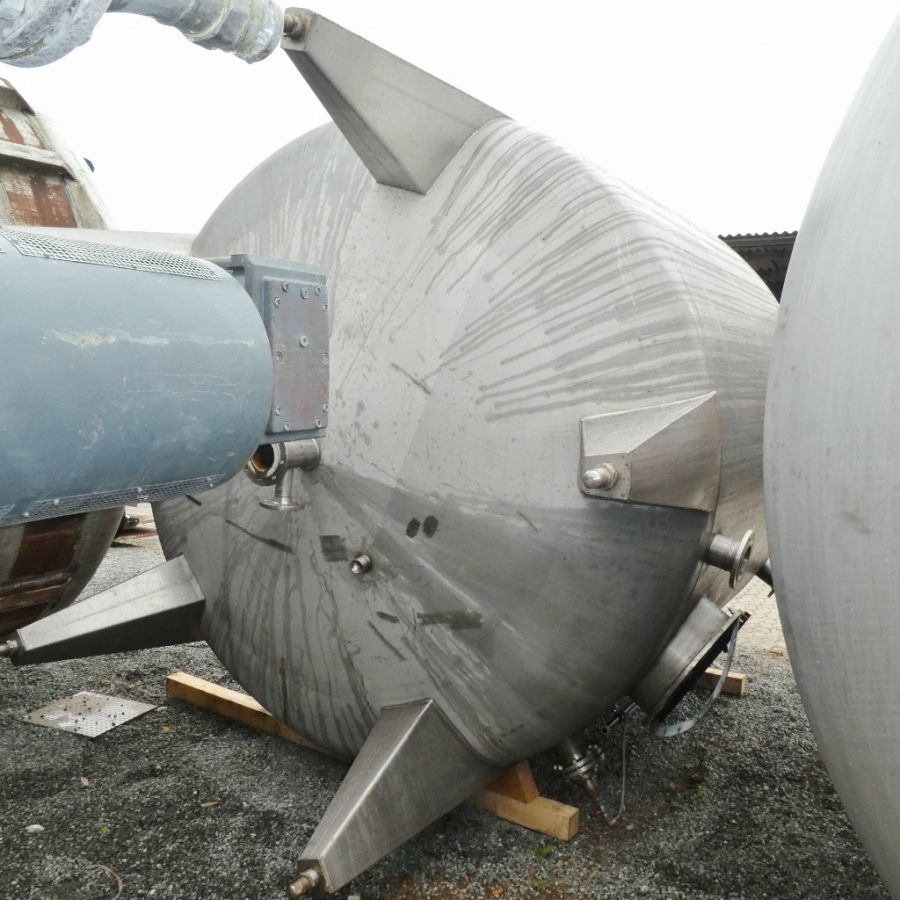

16842 liter tank i Rostfritt 304
Additional information: chemistry; some residues of previous content
Volumetric volume (L): 16.842 L
Pressure in tank: ATM - atmosferic
Material wet parts: SS AISI 304 (V2A)
Model: vertical
Configuration: single-skin
Heat exchanger: no
Insulation: no
Mobile tank: no
Total discharge: yes
Documents included: no
Technical drawing included: no

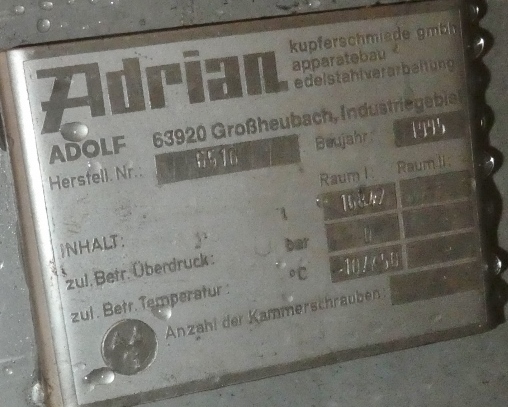

Registration plate on the tank: yes
Flange for agitator: no

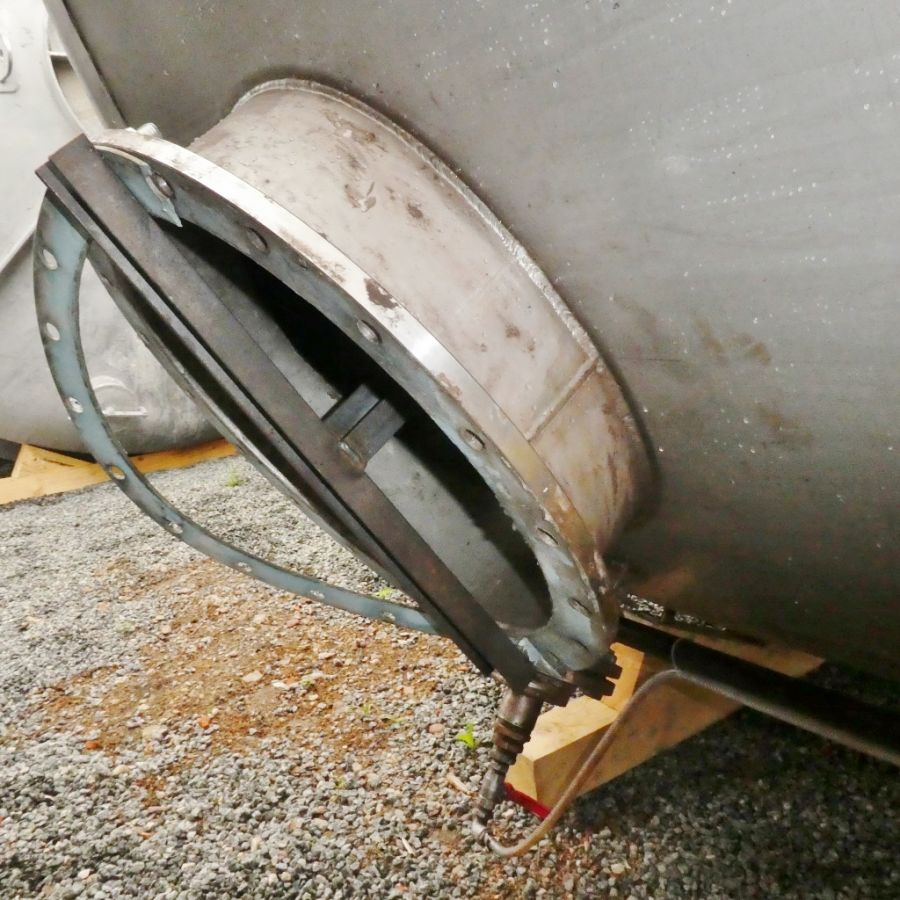

Position of manway: cylinder
Outlet of tank: available

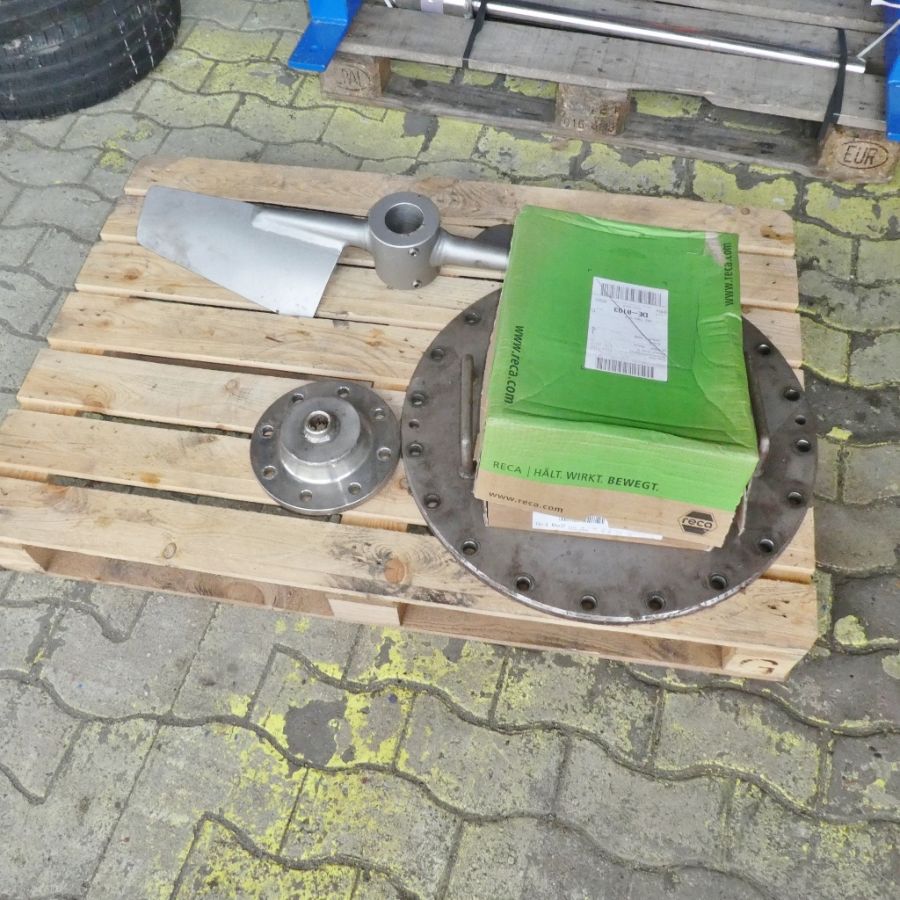

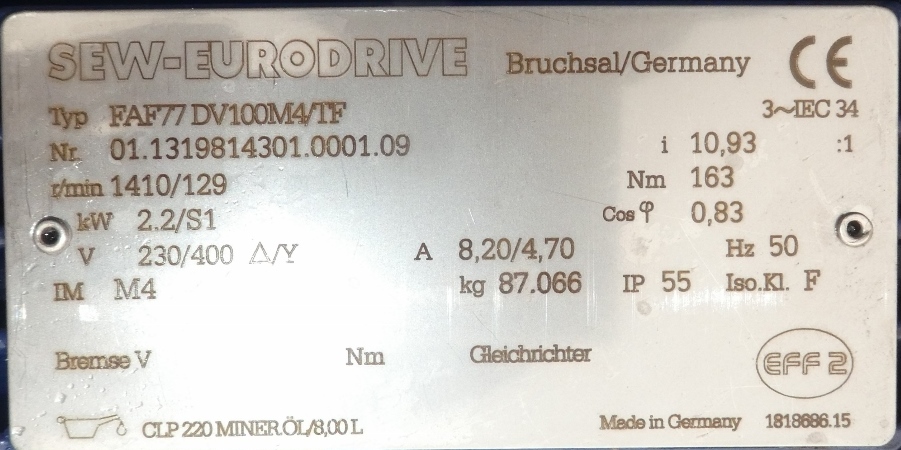

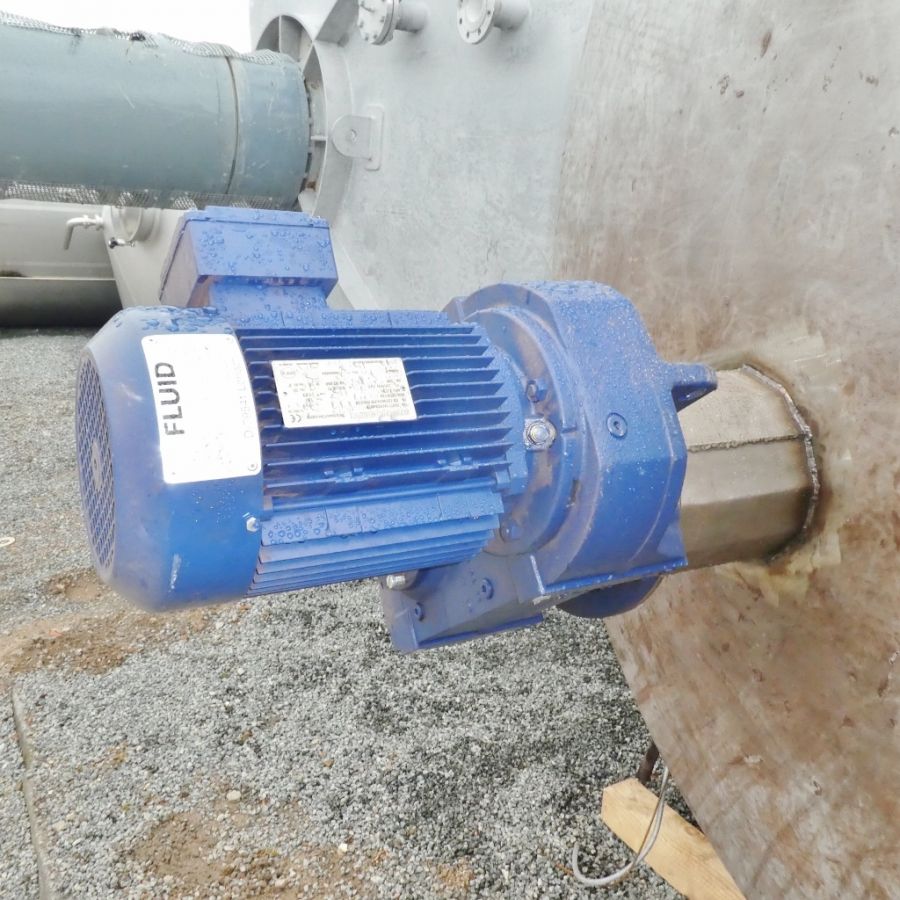

Agitator: yes
Number of revolutions: 129
Power: 2,20
Cylinder: 3 mm
Bottom: 3,90 mm
Internal diameter tank: 2.800 mm
Cylinder height: 2.000 mm
Total height of tank: 4.550 mm
