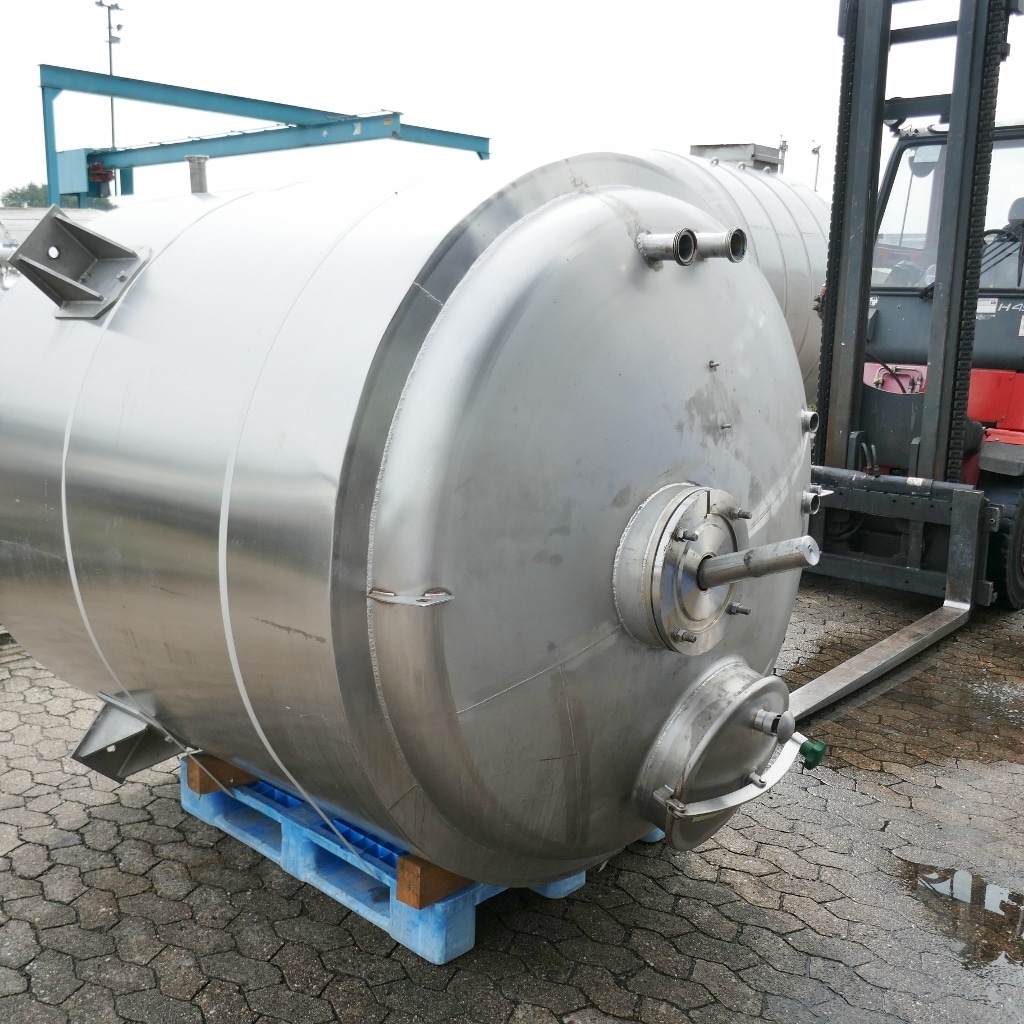

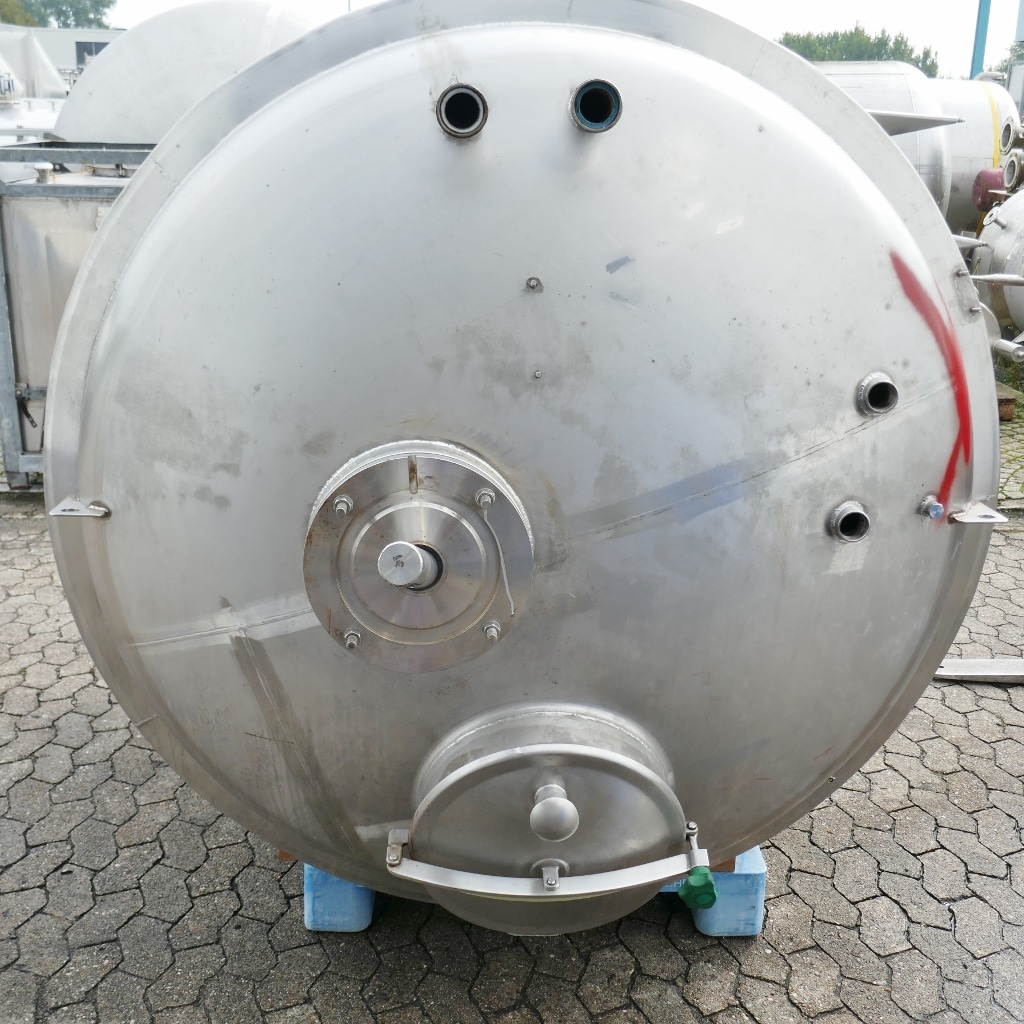

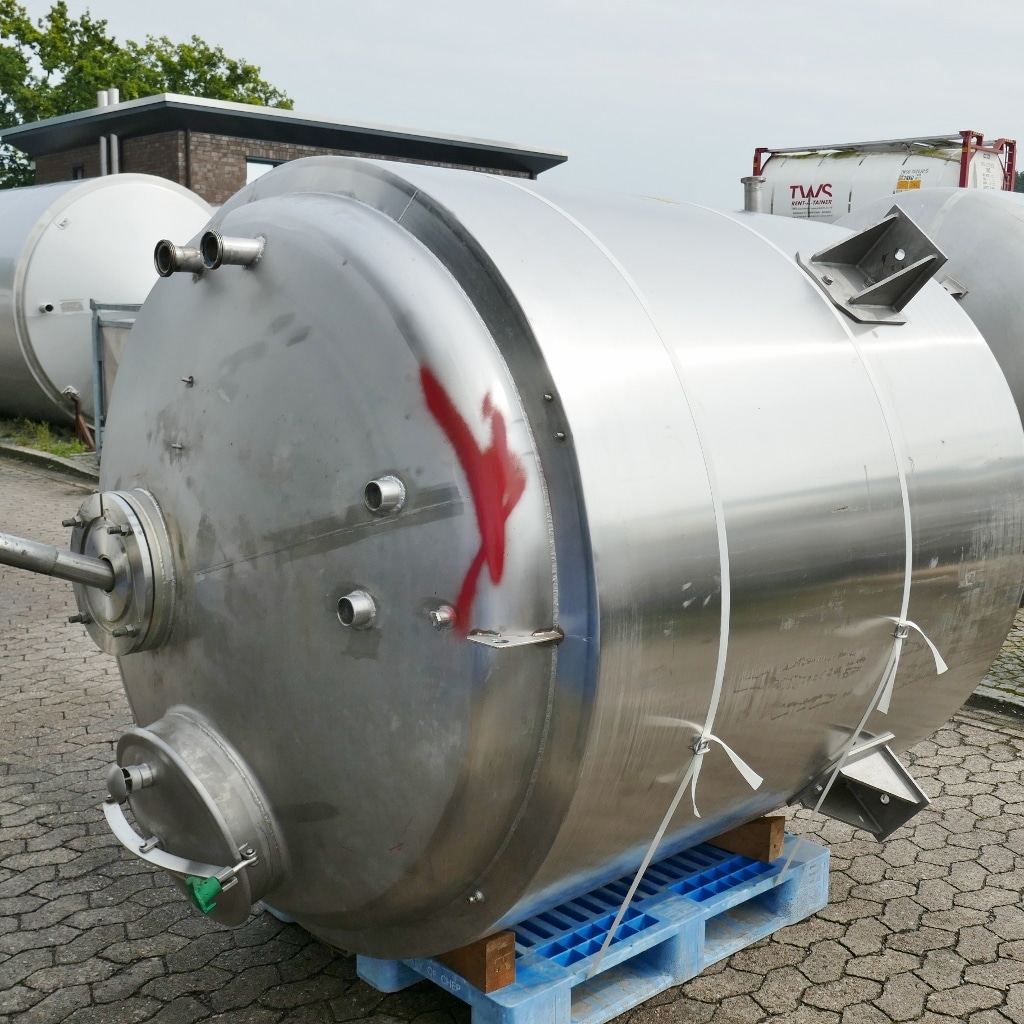

3900 liter tank i Syrafast 316

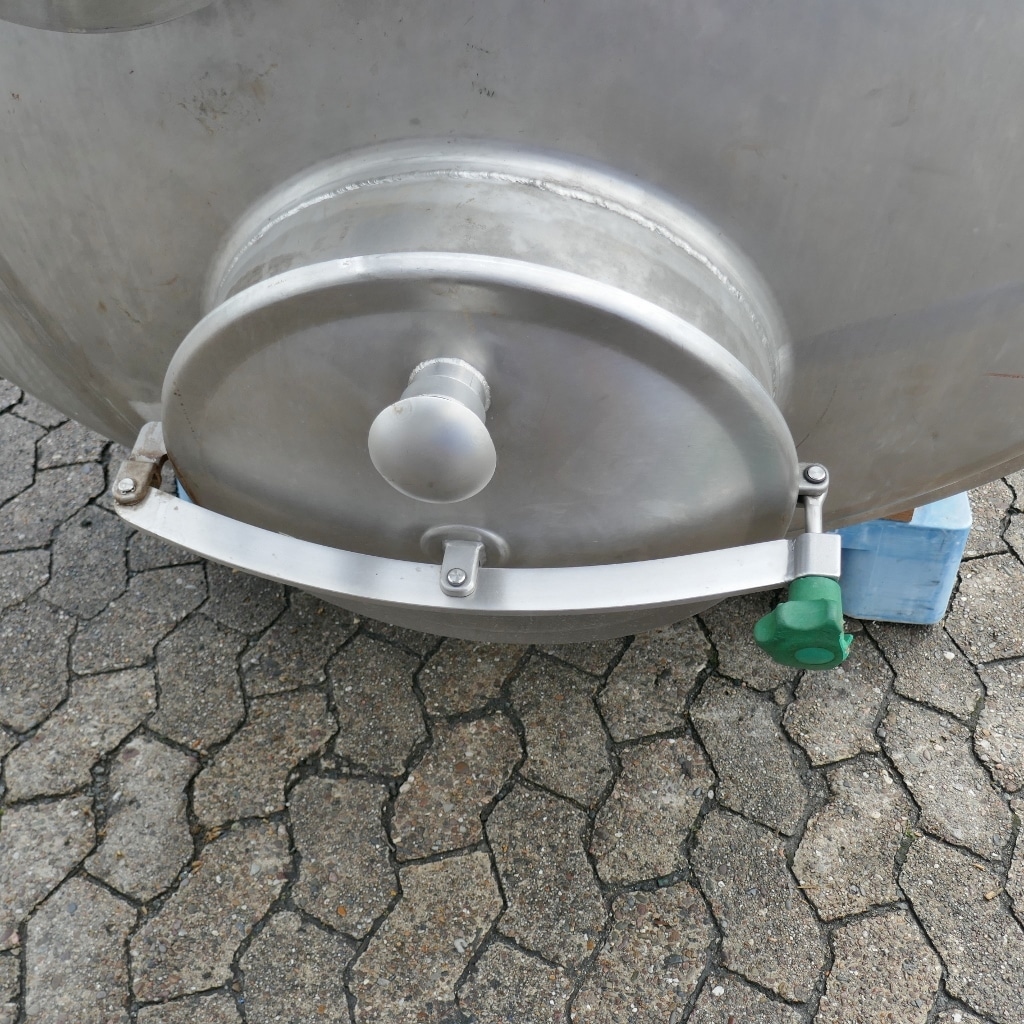

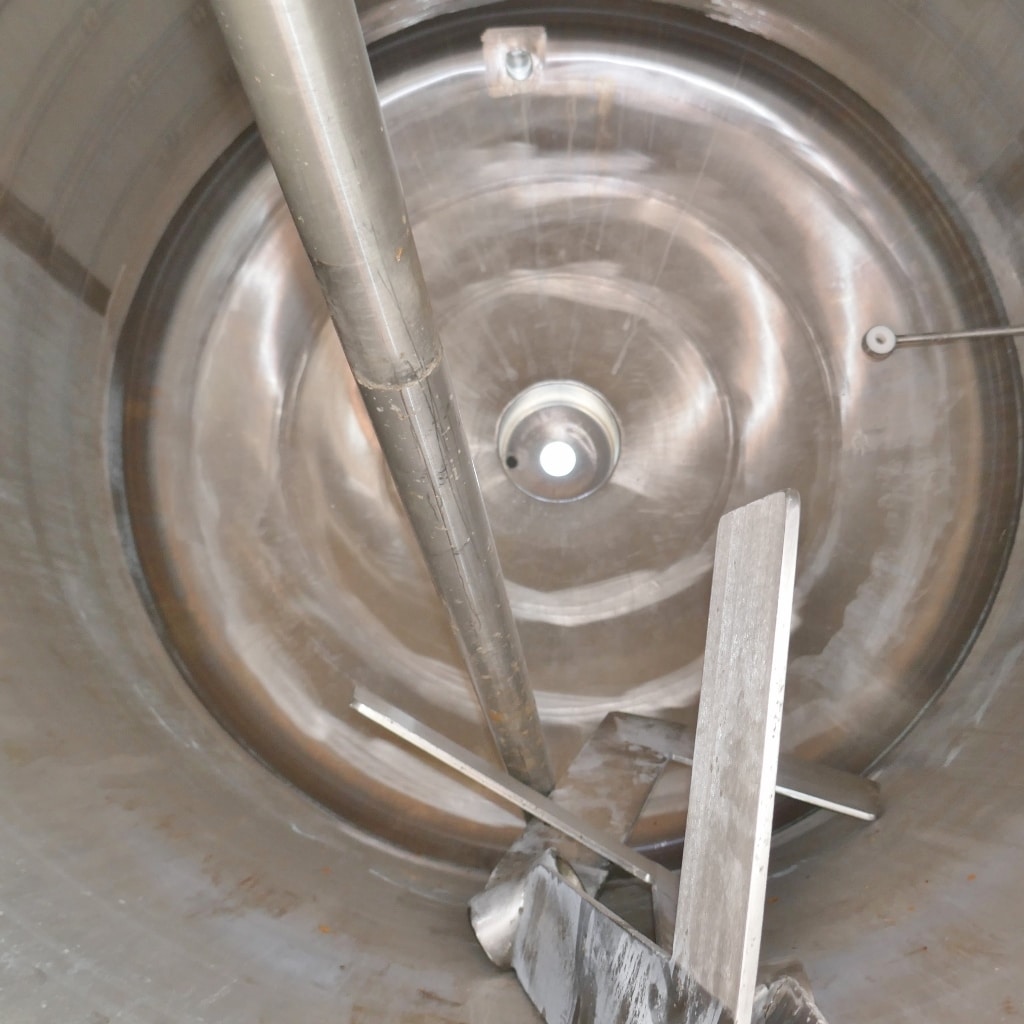

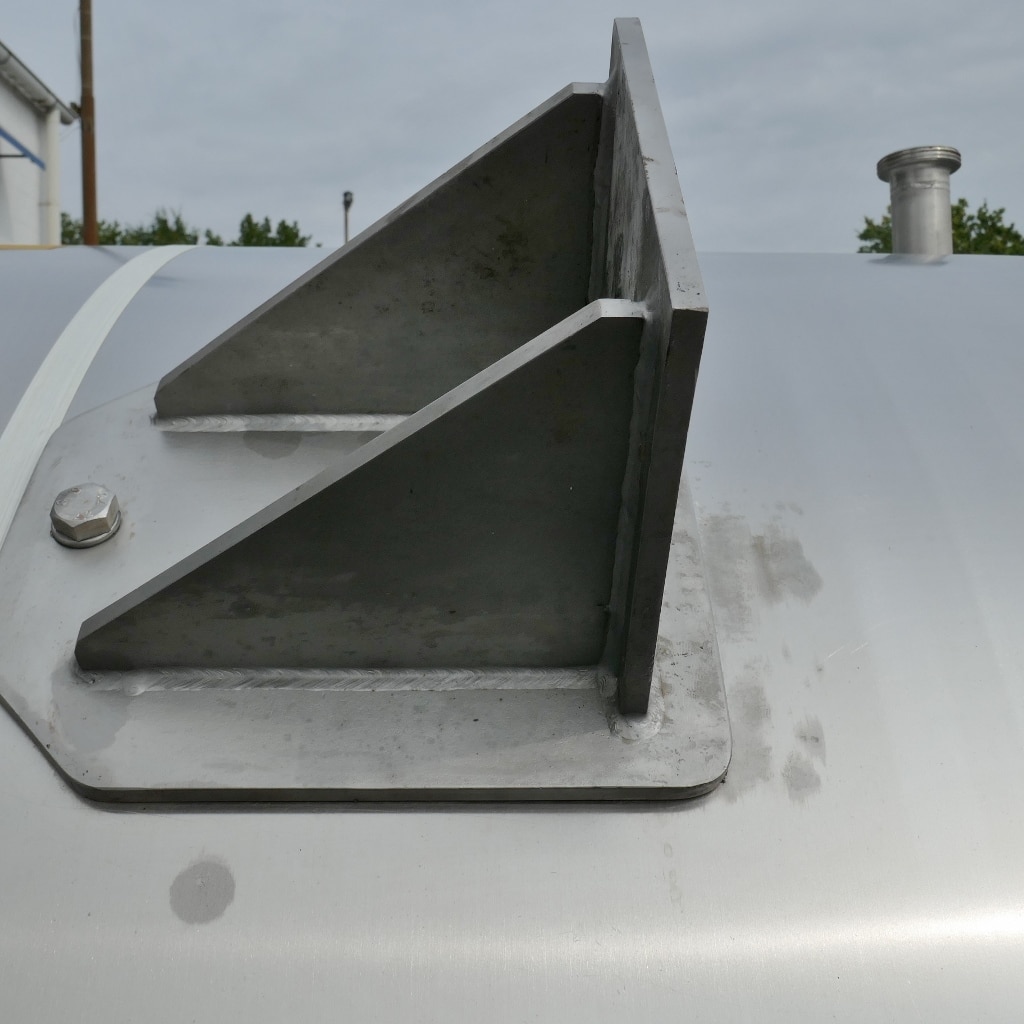

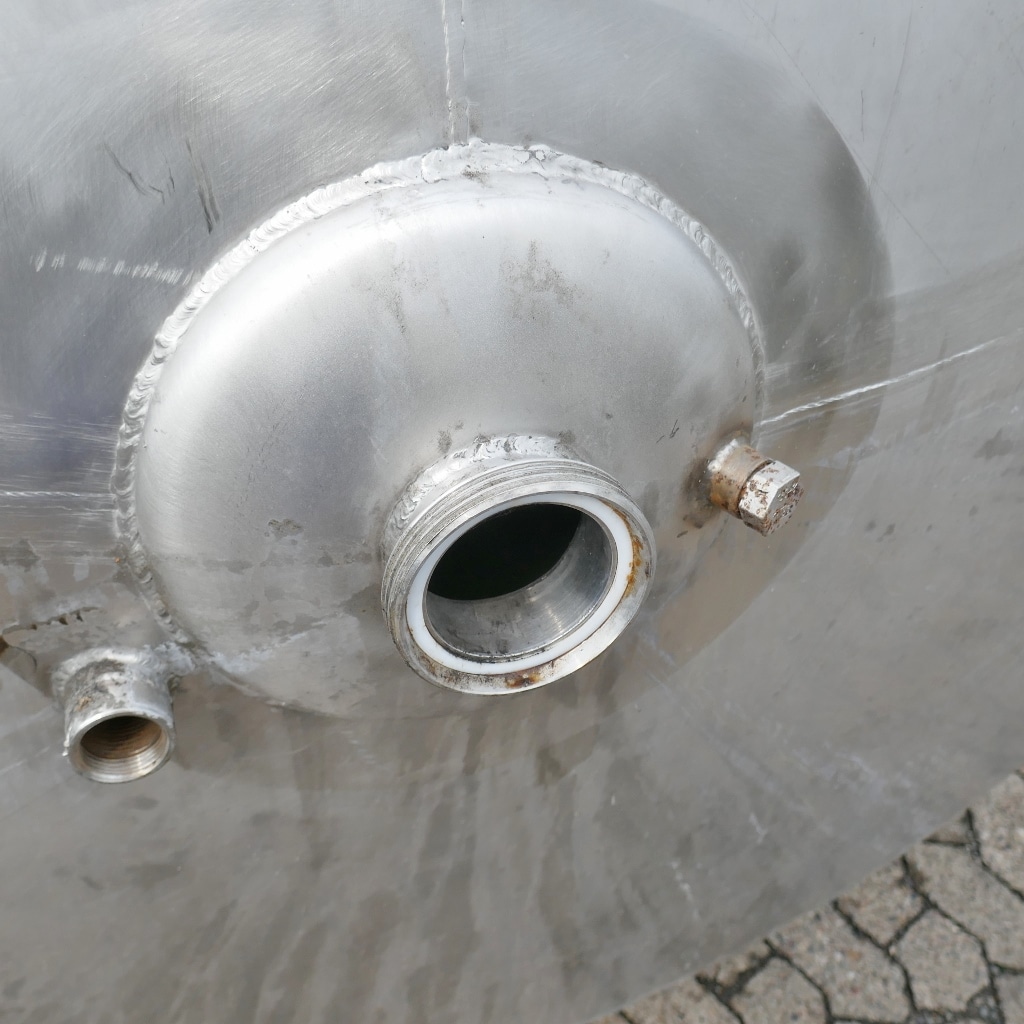

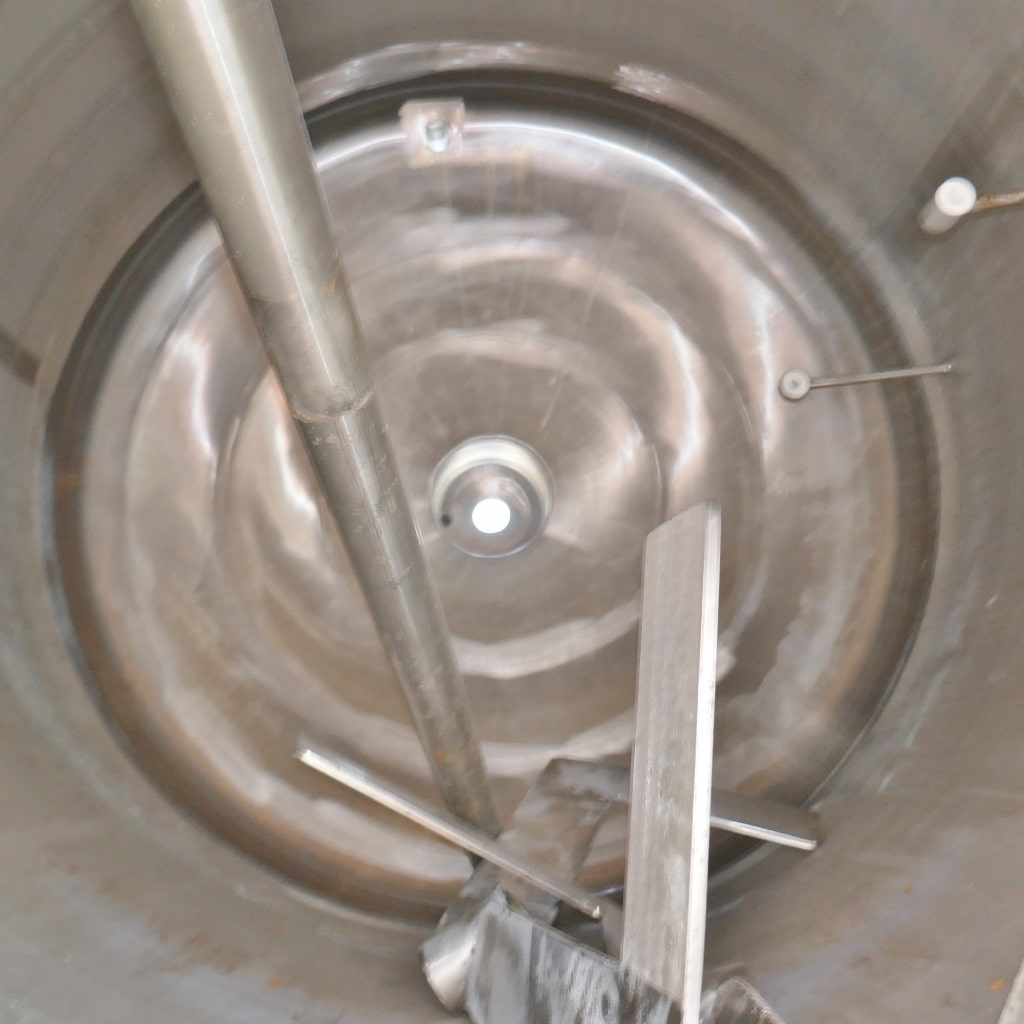

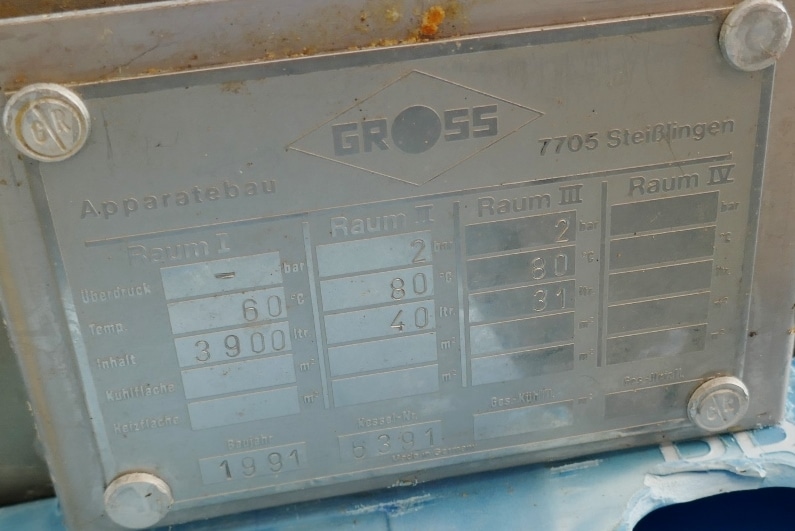

Additional information: 4 support brackets made of stainless steel; some residues of previous content; motor-/gear is missing Volumetric volume (L): 3.900 L Pressure in tank: ATM - atmosferic Material wet parts: SS AISI 316 (V4A) Model: vertical Configuration: insulated with heat-exchanger Heat exchanger: yes Insulation: yes Mobile tank: no Total discharge: yes Volume: 71 L Max Overpressure: 2 Bar Max. working temperature: 80 °C Type HE on the bottom: heating/cooling jacket Type HE on the cylinder: half pipe welded onto the outside of the innertank Heat exchanger: RVS 304 Documents included: no Technical drawing included: no Registration plate on the tank: yes Flange for agitator: no Position of manway: in the bottom Outlet of tank: DN65 DIN 11851 Agitator: yes Internal diameter tank: 1.590 mm Outer diameter tank: 1.750 mm Cylinder height: 1.550 mm Total height of tank: 2.700 mm
