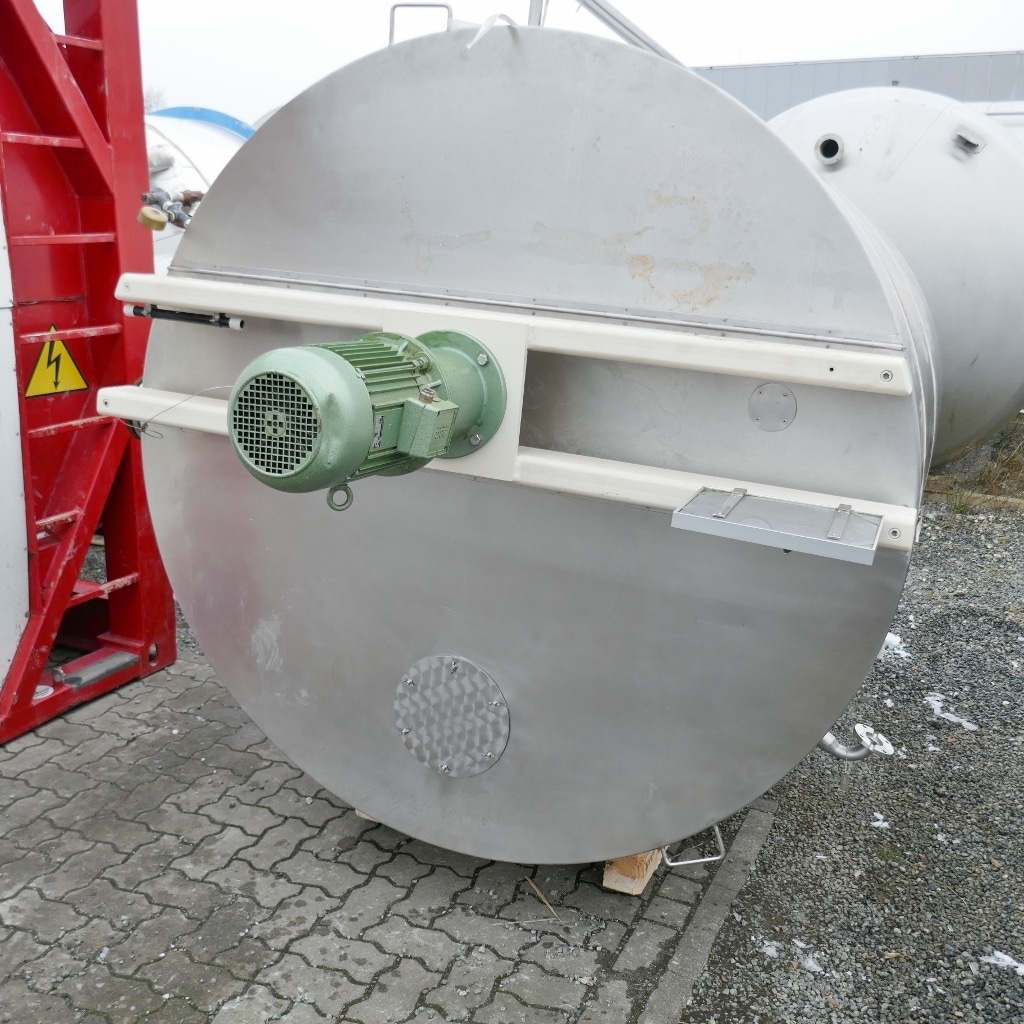

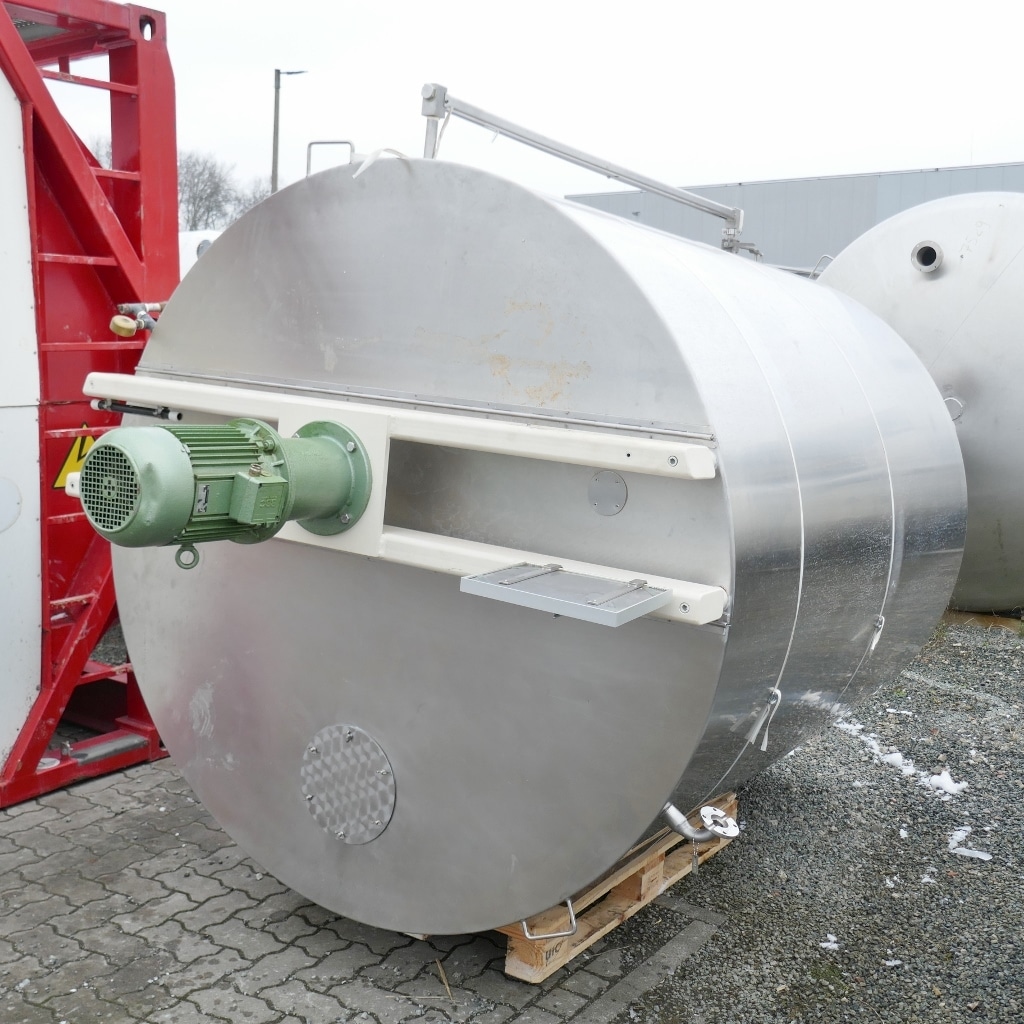

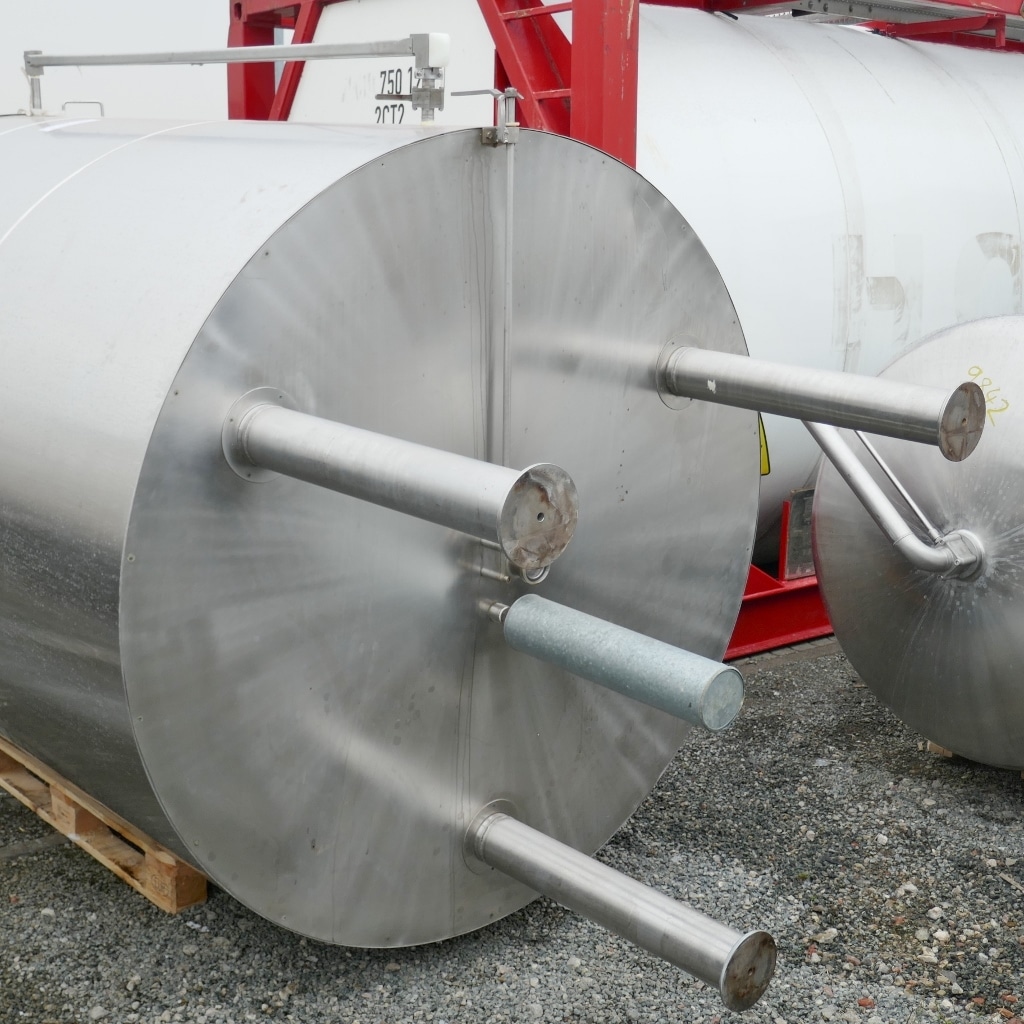

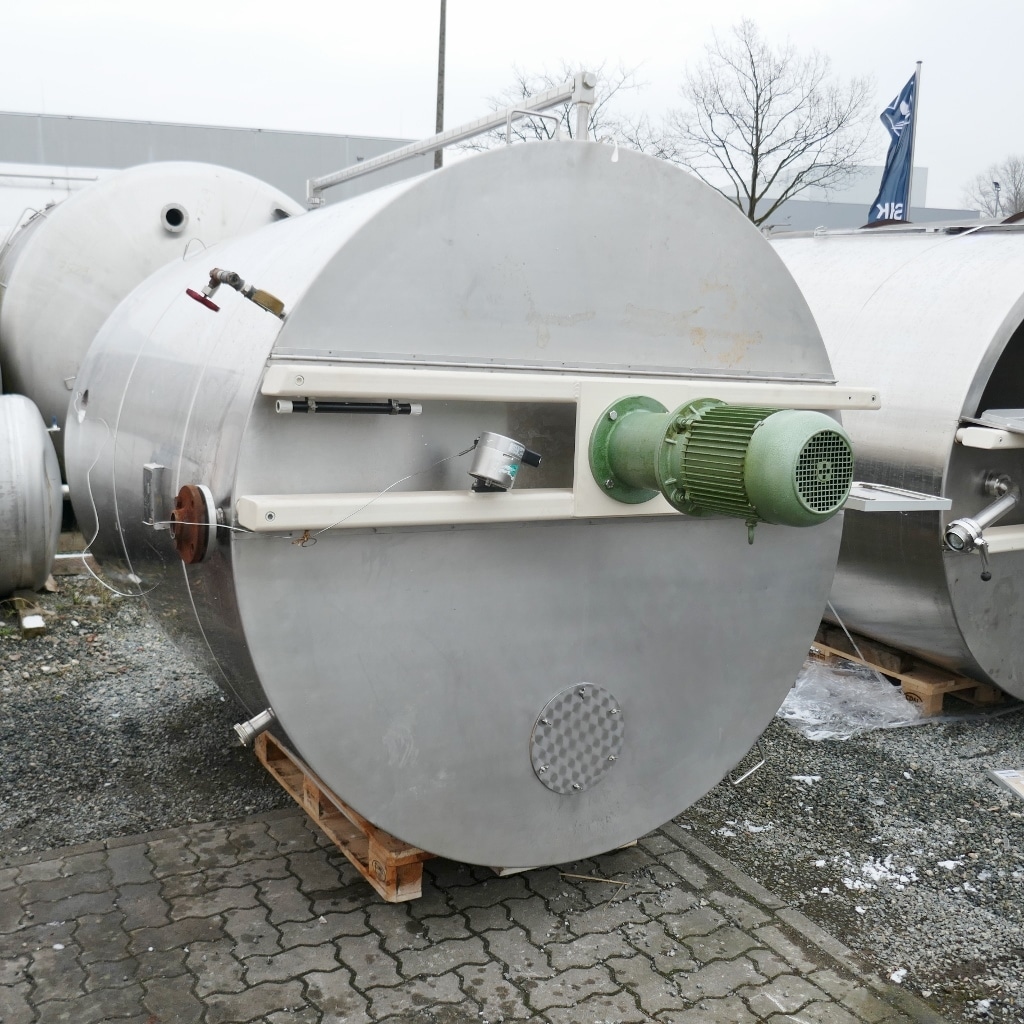

3600 liter tank i Rostfritt 304

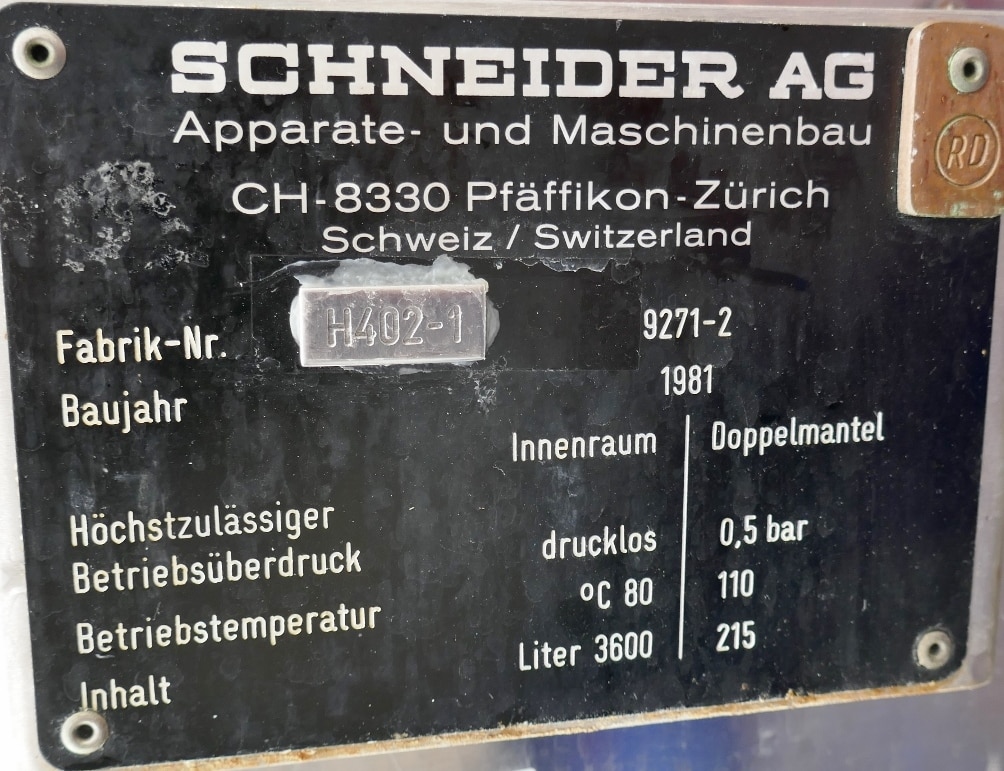

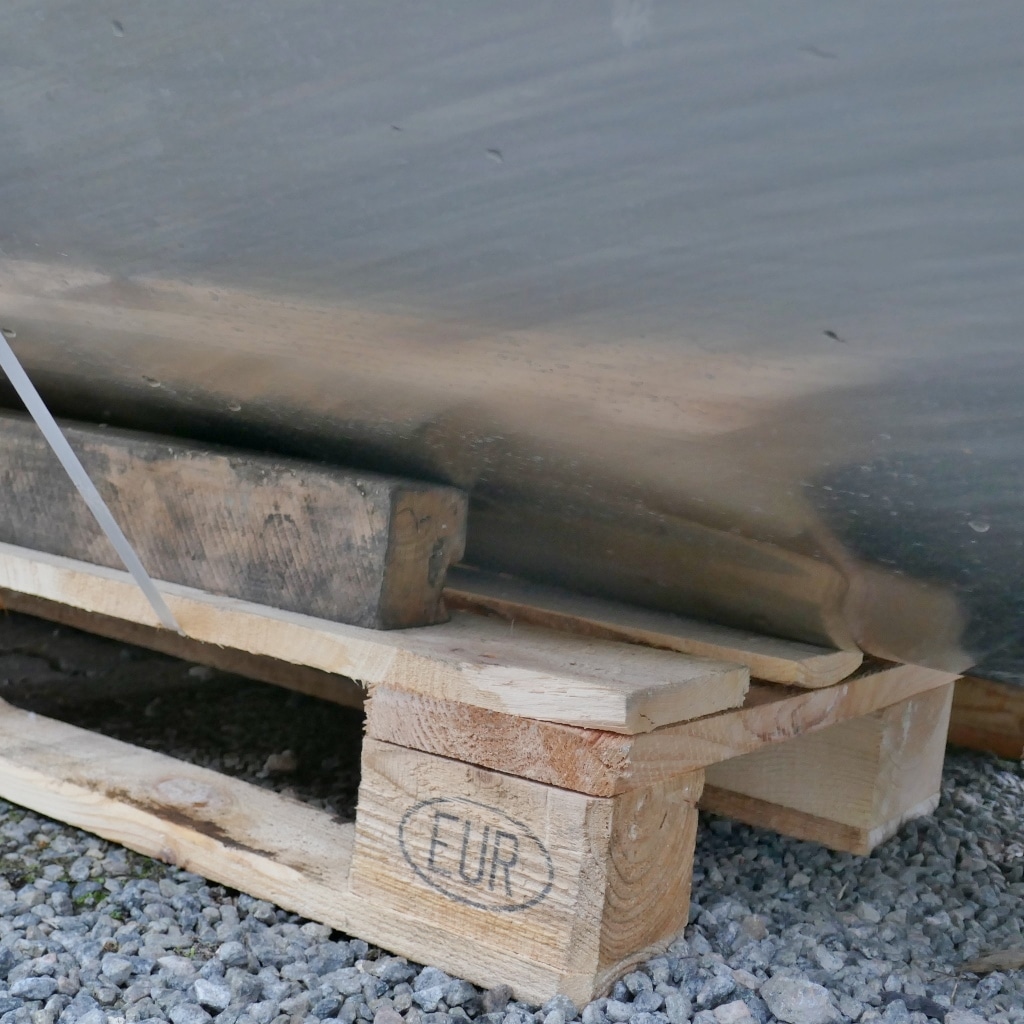

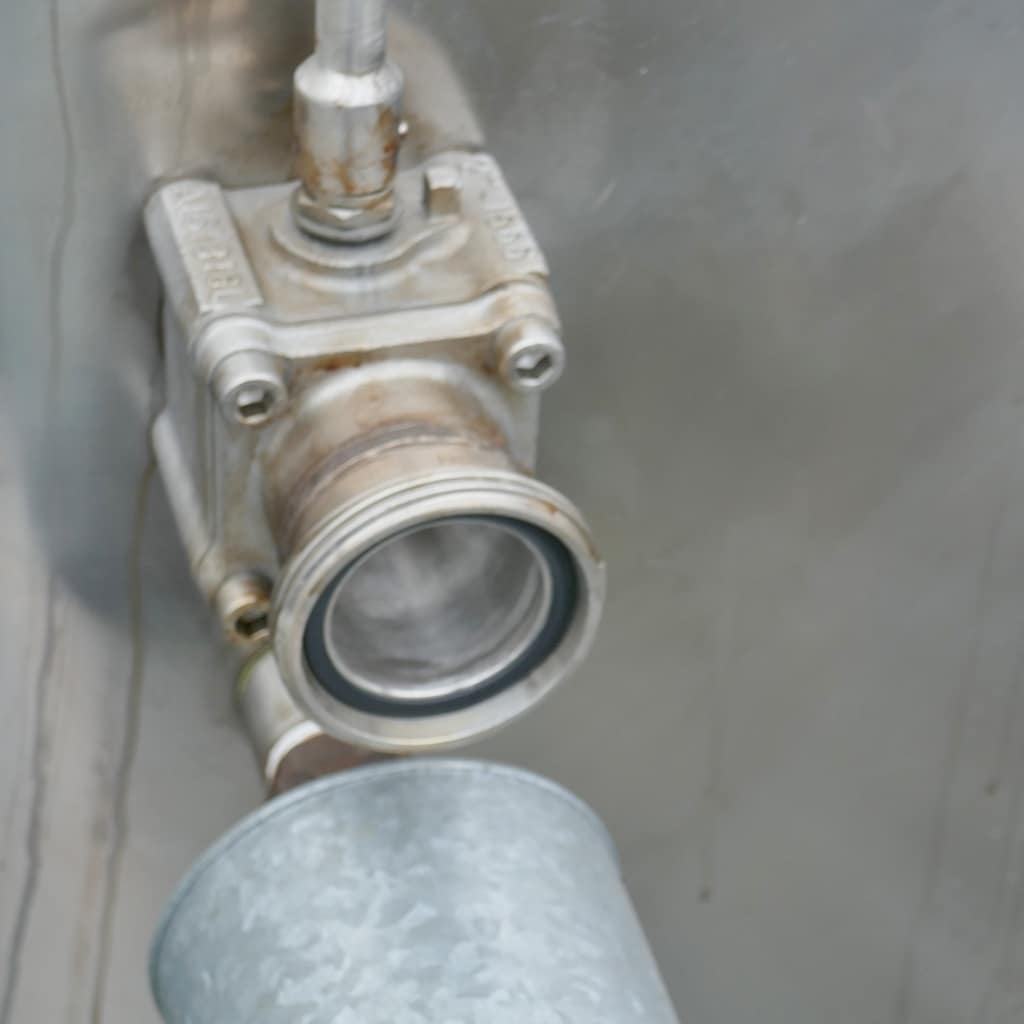

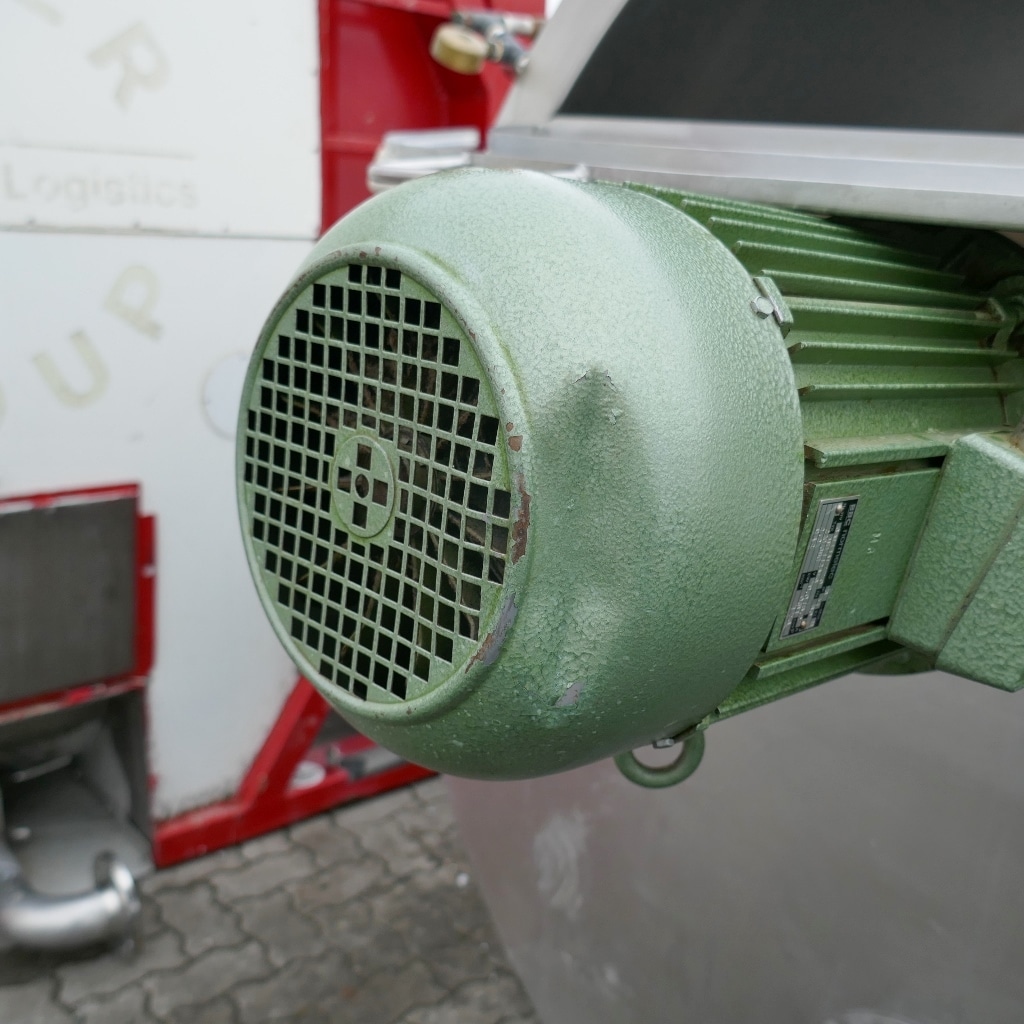

Additional information: Pharmacy; bump at the insulation jacket Volumetric volume (L): 3.600 L Pressure in tank: ATM - atmosferic Max. temperature (°C): 80 °C Material wet parts: SS AISI 304 (V2A) Model: vertical Configuration: single-skin Heat exchanger: no Insulation: no Mobile tank: no Total discharge: no Volume: 215 L Max. working temperature: 110 °C Type HE on the bottom: heating/cooling jacket Type HE on the cylinder: heating/cooling jacket Documents included: no Technical drawing included: no Registration plate on the tank: yes Flange for agitator: no Outlet of tank: DN50 DIN 11851 Number of revolutions: 962 Power: 2,20 Internal diameter tank: 1.590 mm Outer diameter tank: 1.750 mm Cylinder height: 1.750 mm Total height of tank: 3.650 mm
