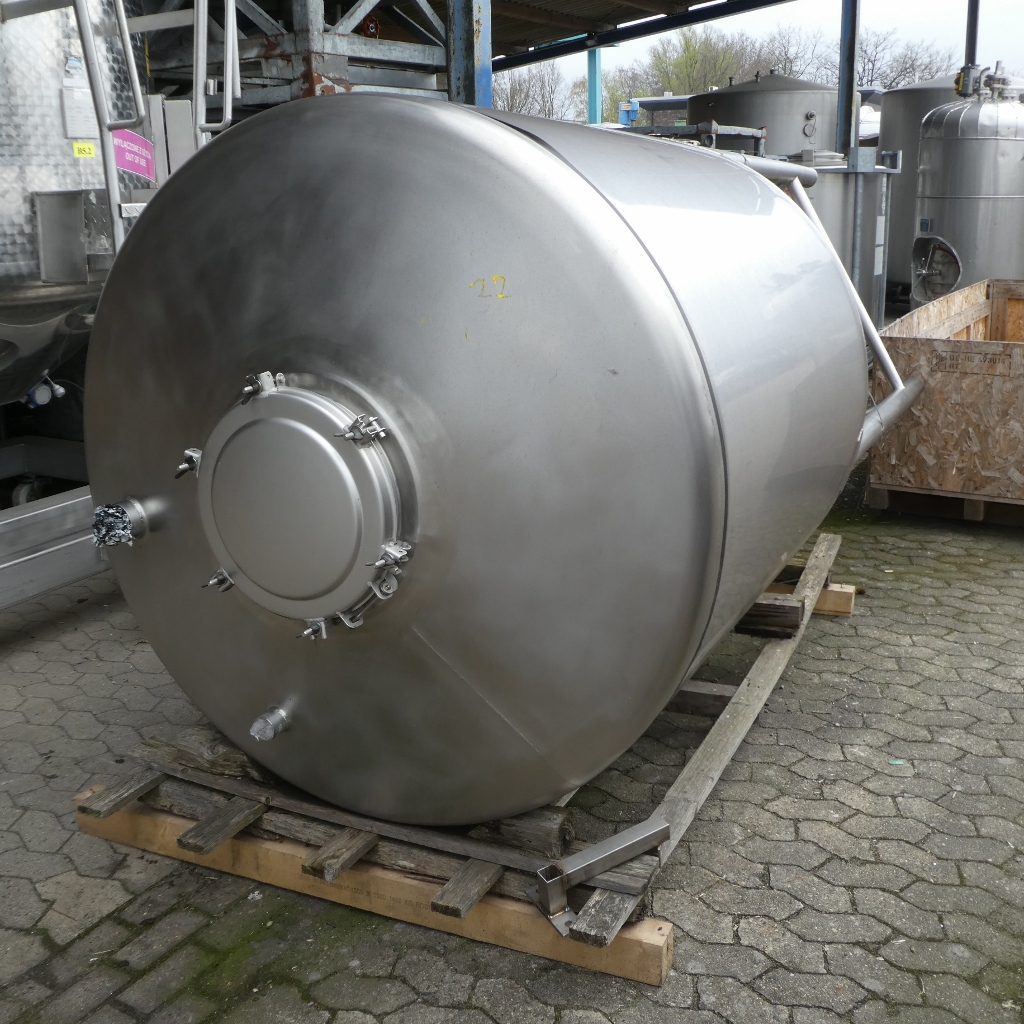

3500 liter tank i Rostfritt 304

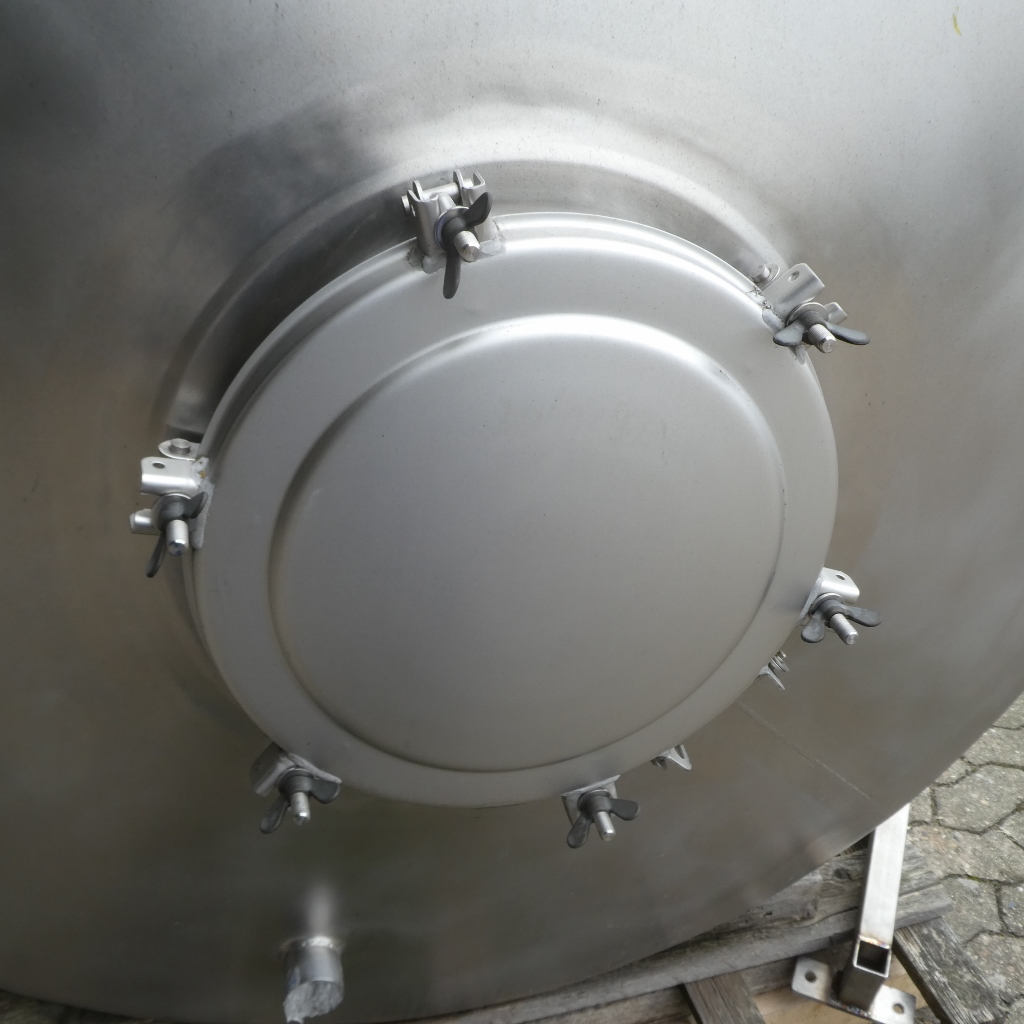

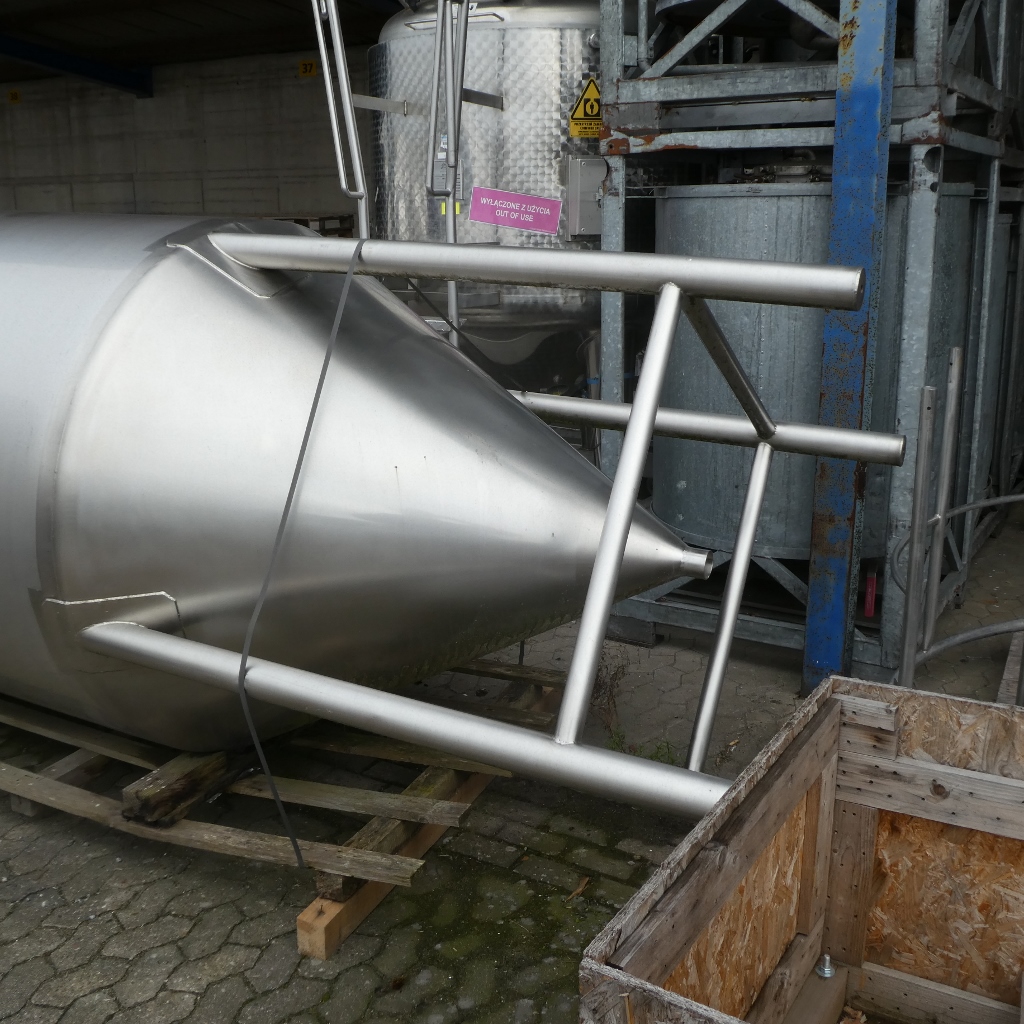

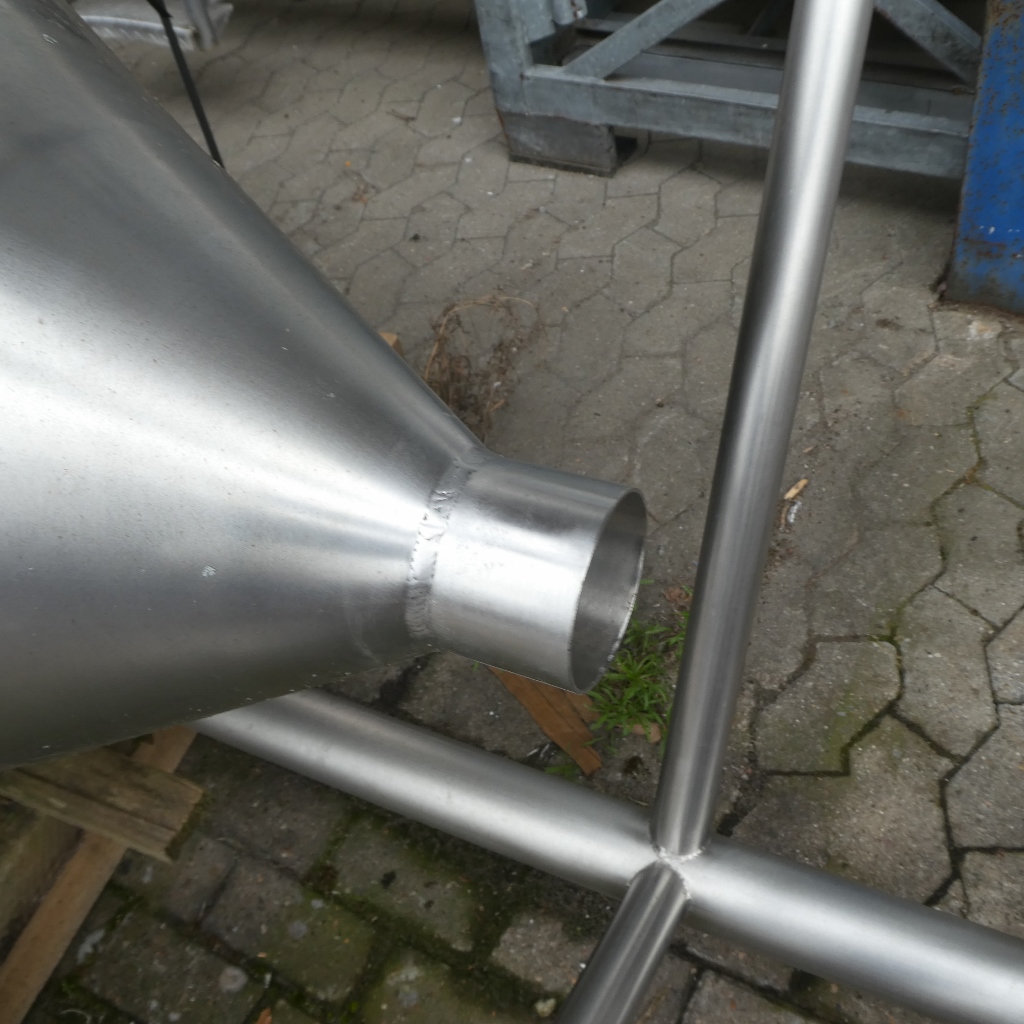

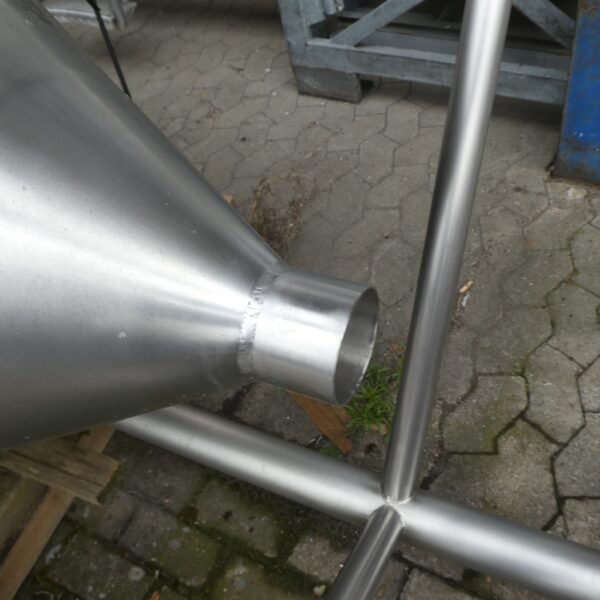

Additional information: Cone height appr. 1200 mm; pipe outlet; height-adjustable screws of the feet are no longer available Volumetric volume (L): 3.500 L Pressure in tank: ATM - atmosferic Material wet parts: SS AISI 304 (V2A) Model: vertical Configuration: single-skin Heat exchanger: no Insulation: no Mobile tank: no Total discharge: yes Documents included: no Technical drawing included: no Registration plate on the tank: no Flange for agitator: no Position of manway: in the bottom Outlet of tank: 68 Internal diameter tank: 1.490 mm Cylinder height: 1.500 mm Total height of tank: 3.450 mm Empty weight tank: 700
