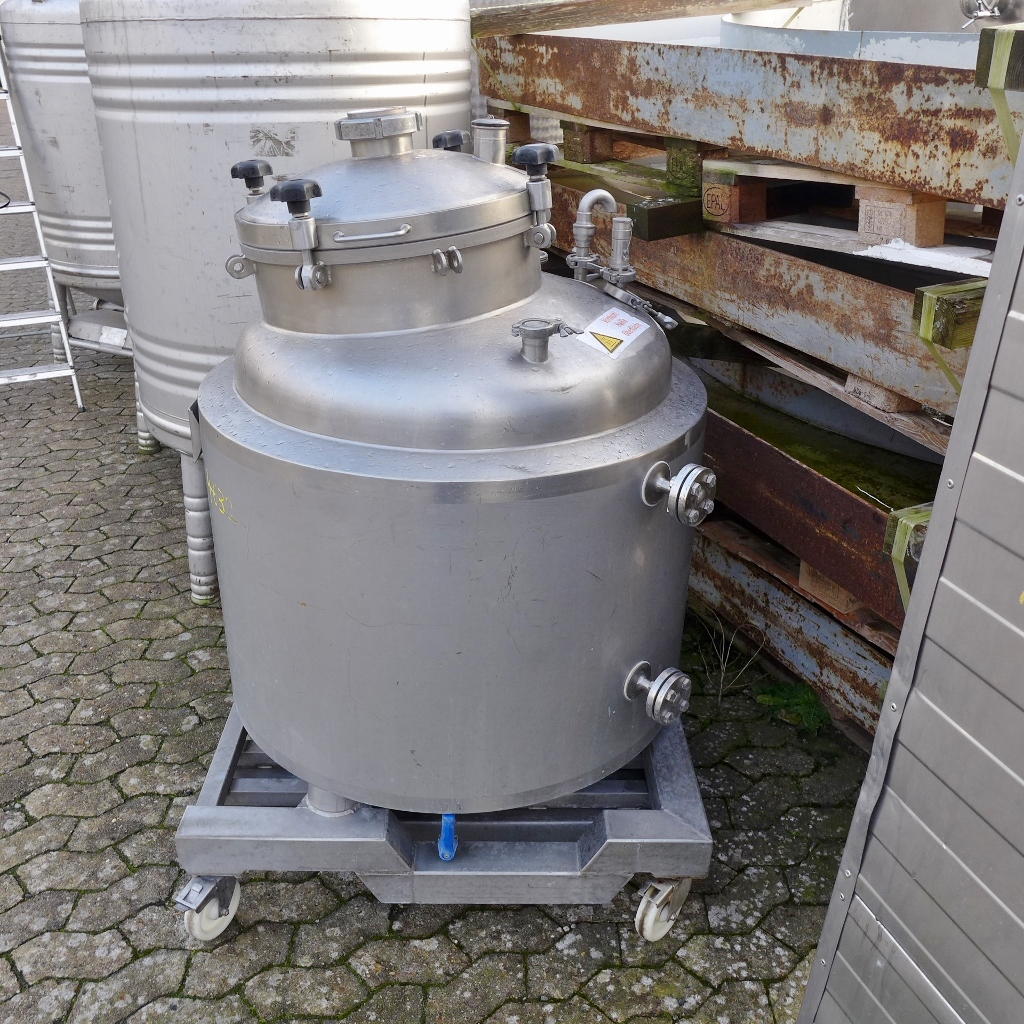

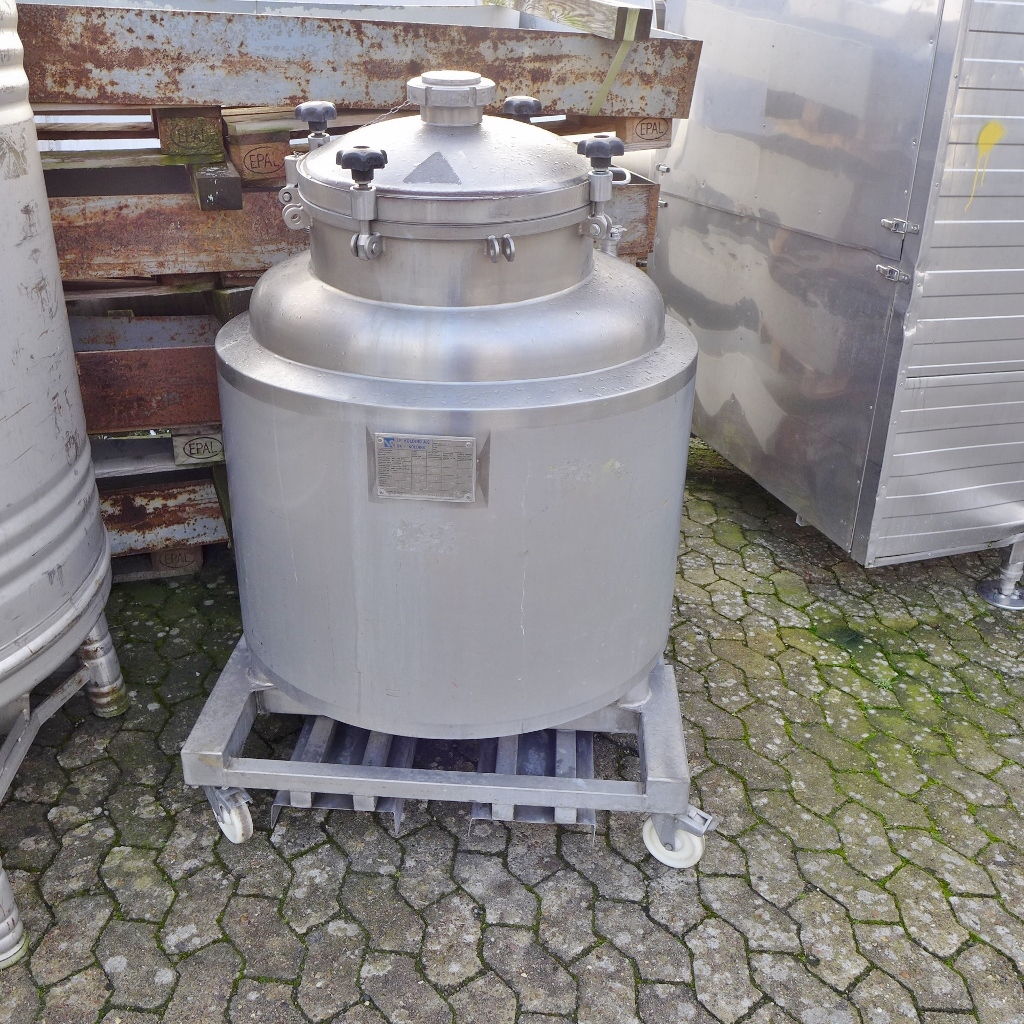

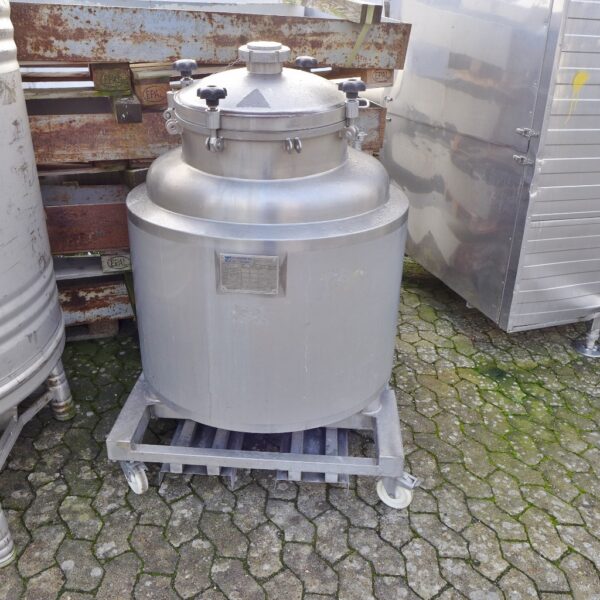

338 liter tank i Syrafast 316

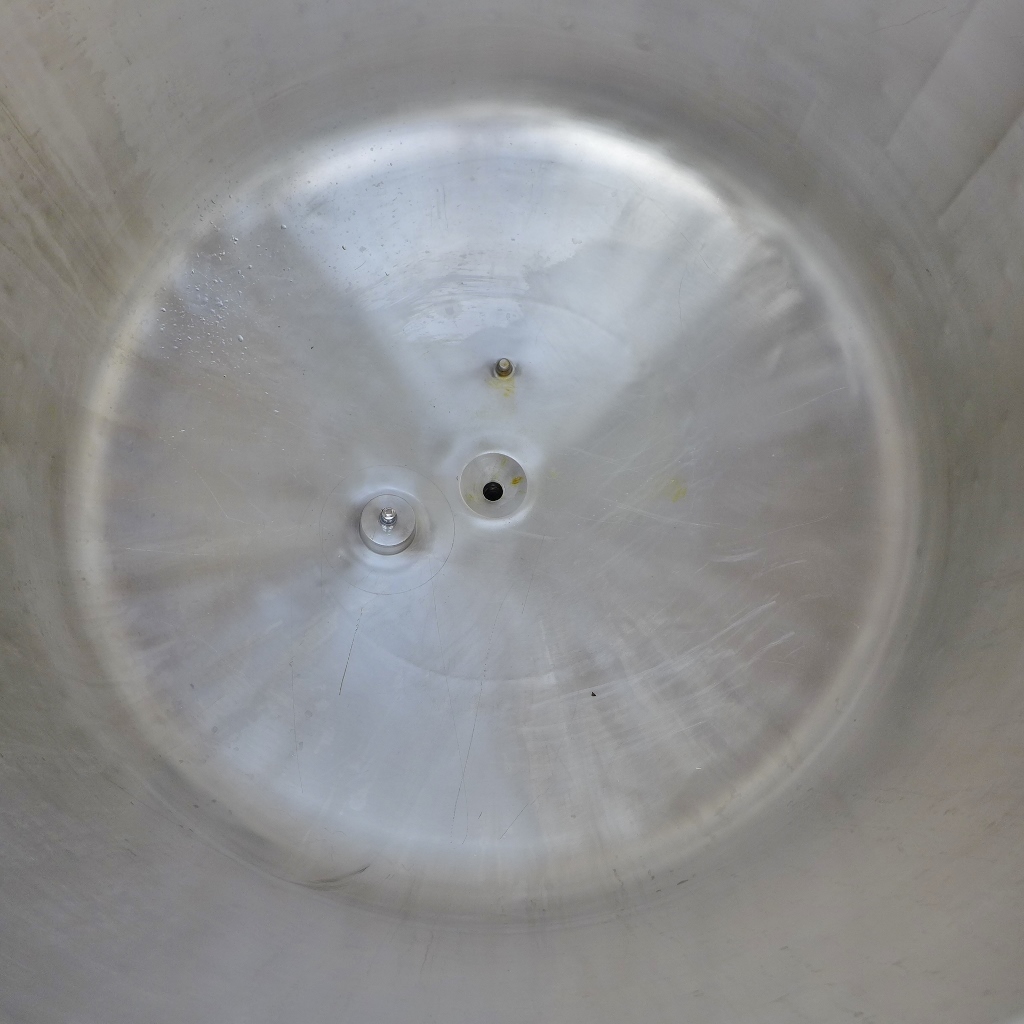

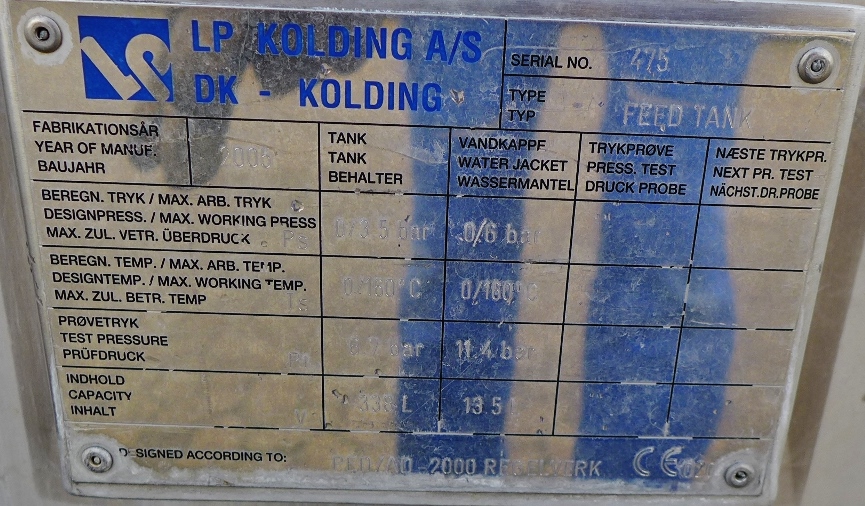

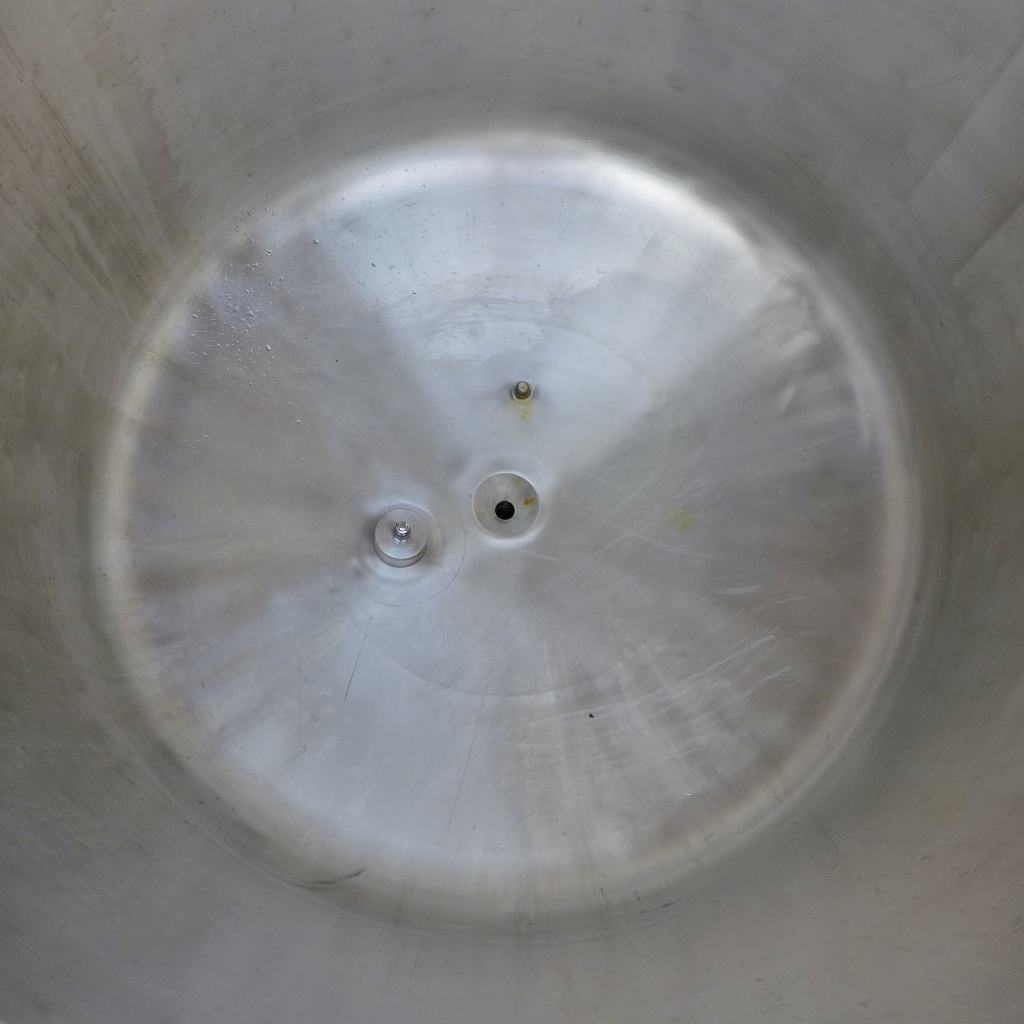

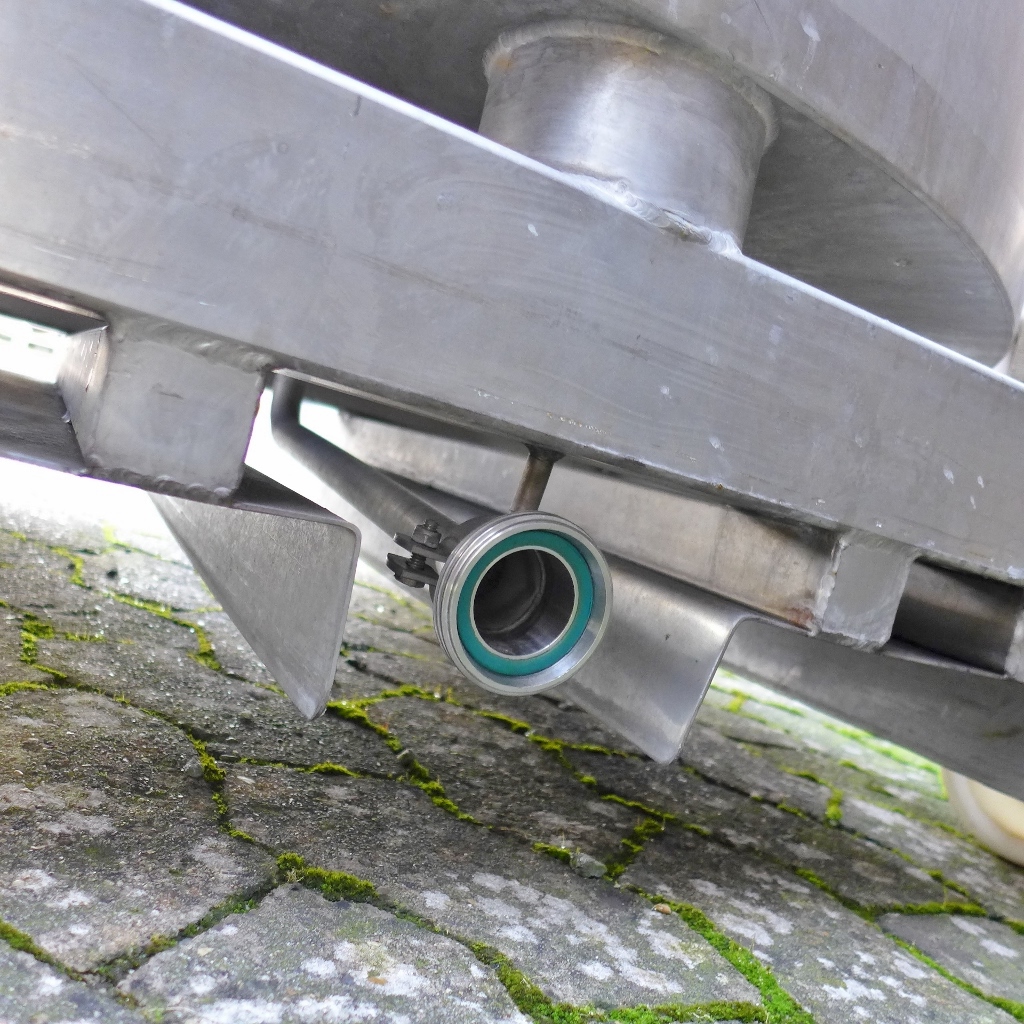

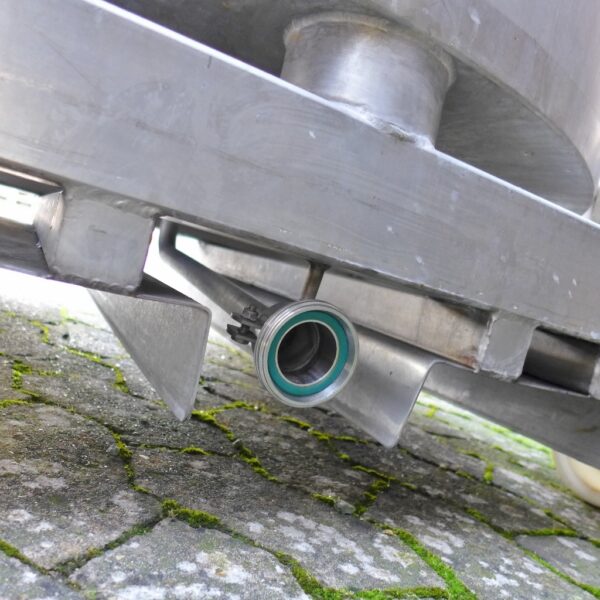

Additional information: Food colours; Frame, Aisi 304; outlet opening in the lower bottom approx. 22 mm (outlet extension at the end DN 40 DIN 11851); Screw connections of the manhole cover incomplete Volumetric volume (L): 338 L Pressure in tank: pressure Max. pressure (Bar): 3,50 Bar Max. temperature (°C): 160 °C Material wet parts: SS AISI 316 (V4A) Model: vertical Configuration: insulated with heat-exchanger Heat exchanger: yes Insulation: yes Mobile tank: no Total discharge: yes Volume: 14 L Max Overpressure: 6 Bar Max. working temperature: 160 °C Documents included: no Technical drawing included: no Registration plate on the tank: yes Flange for agitator: no Position of manway: in the bottom Internal diameter tank: 800 mm Outer diameter tank: 940 mm Cylinder height: 550 mm Total height of tank: 1.450 mm
