32000 liter tank i Rostfritt 304

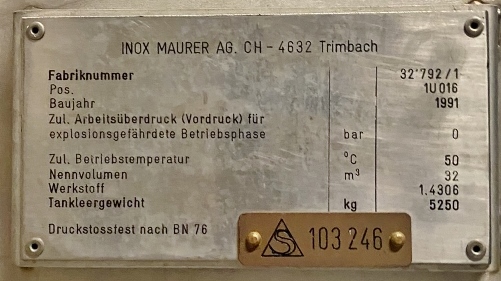

Additional information: Pharmaceutical chemistry; Total volume according to drawing 41618 liter, therefore the net volume on the name plate refers to a use case of medium up to 1.2 kg/liter; manhole cover plated Volumetric volume (L): 32.000 L Pressure in tank: ATM - atmosferic Max. temperature (°C): 50 °C Material wet parts: SS AISI 304 (V2A) Model: vertical Configuration: single-skin Heat exchanger: no Insulation: no Mobile tank: no Total discharge: yes Documents included: no Technical drawing included: no Registration plate on the tank: yes Flange for agitator: no Outlet of tank: available Cylinder: 8 mm Bottom: 8,70 mm Internal diameter tank: 3.200 mm Cylinder height: 4.280 mm Total height of tank: 5.900 mm
