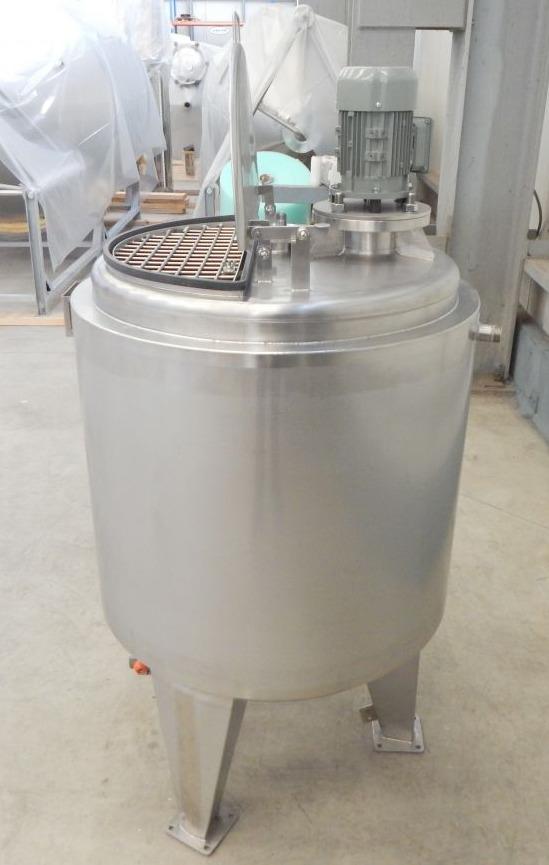

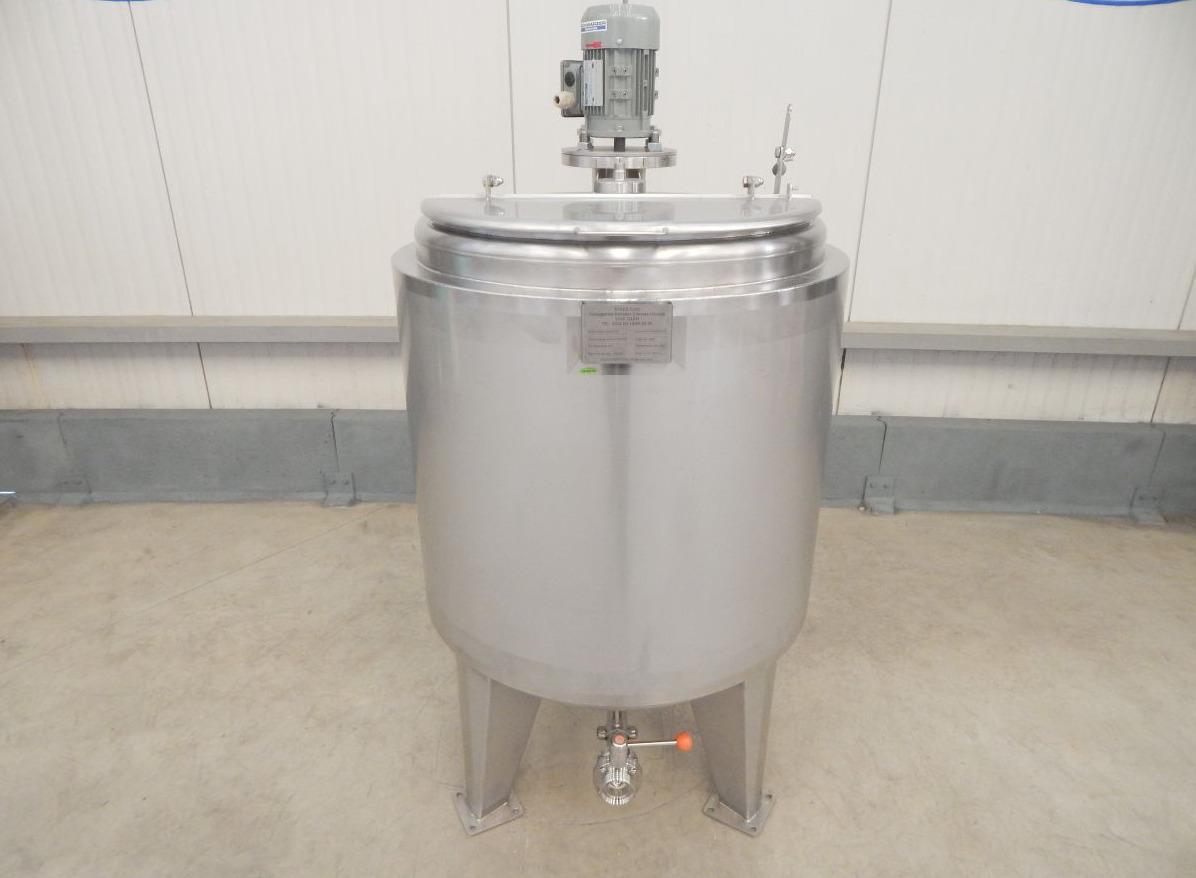

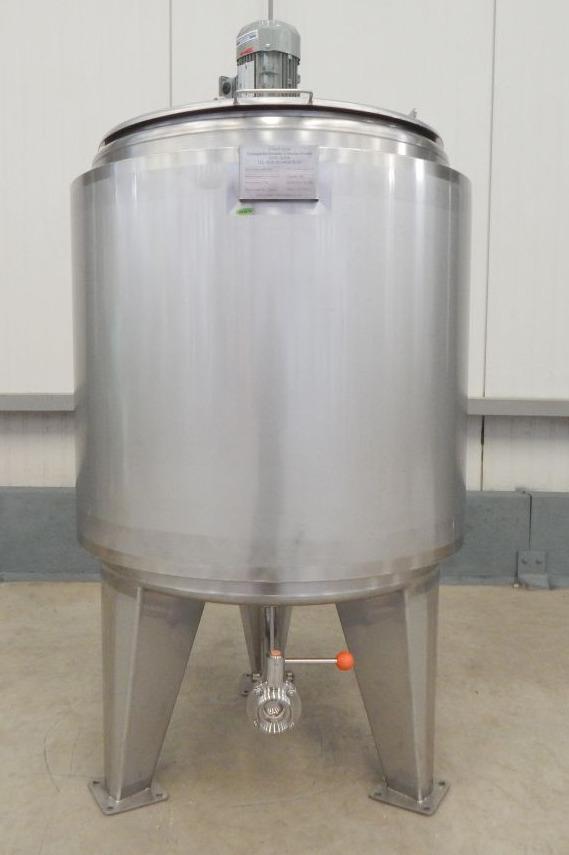

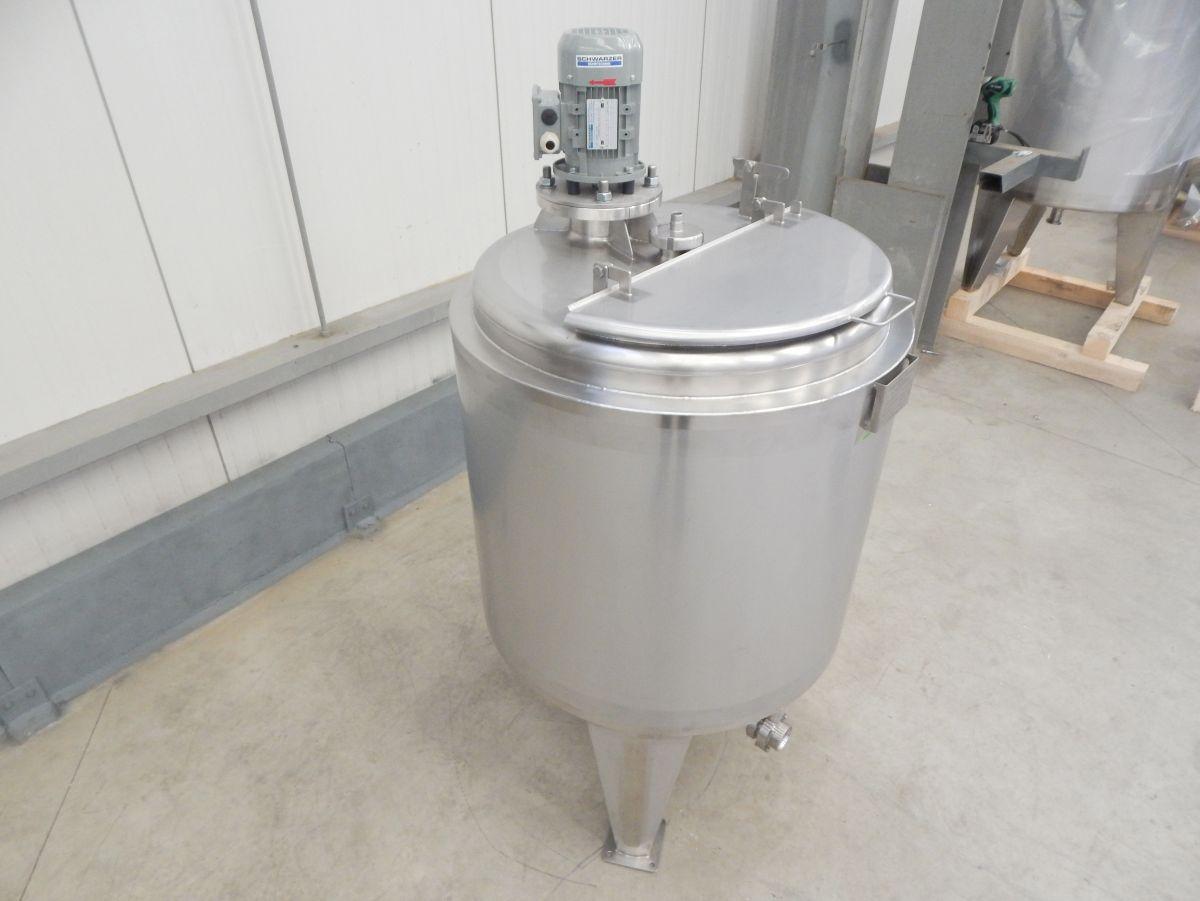

300 liter tank i Syrafast 316

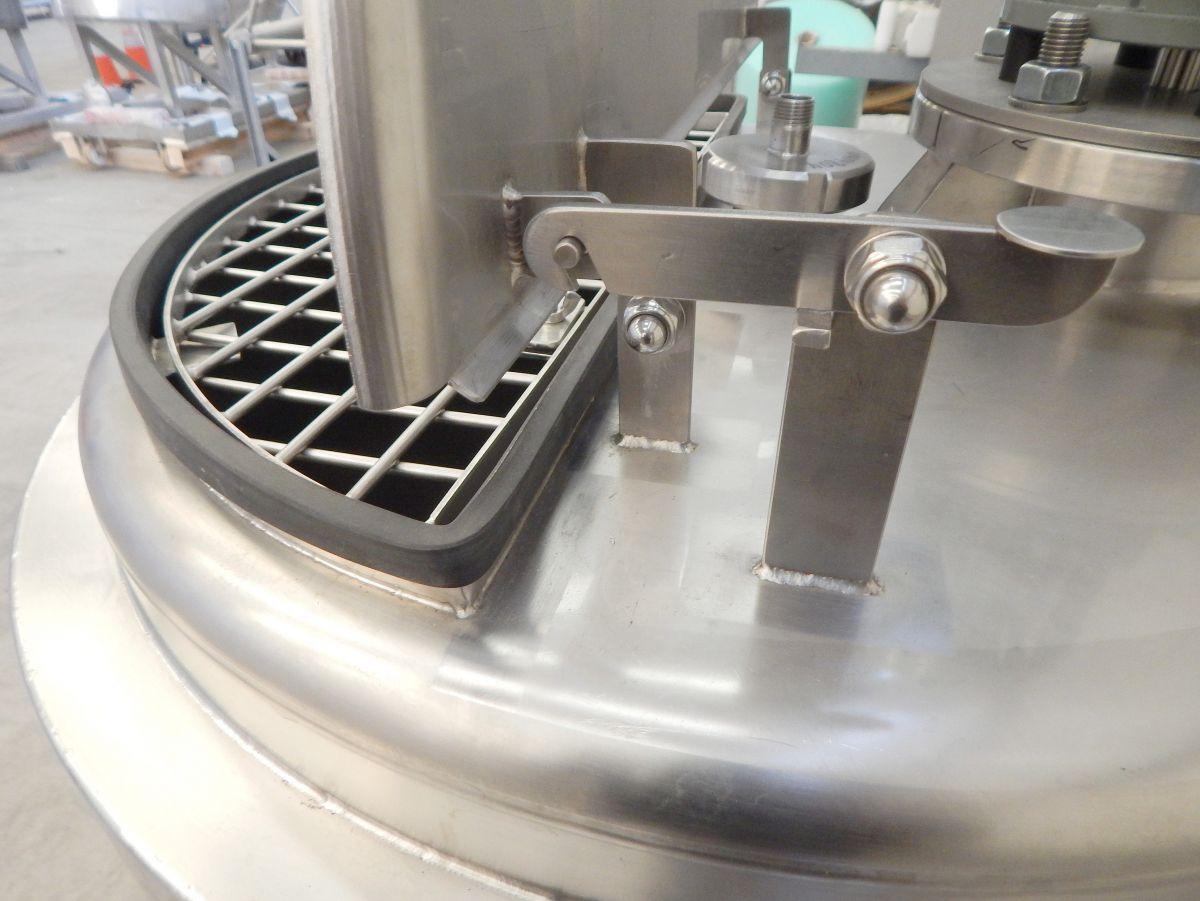

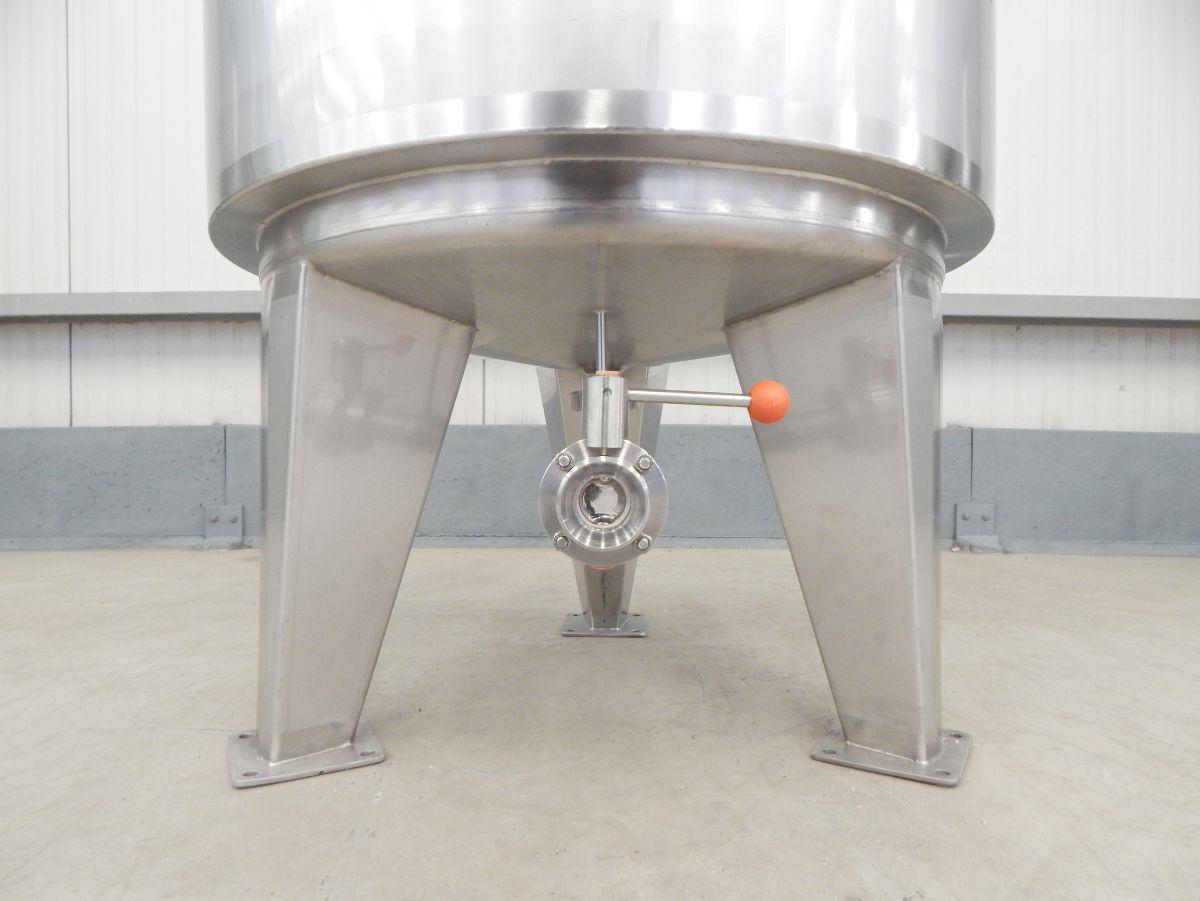

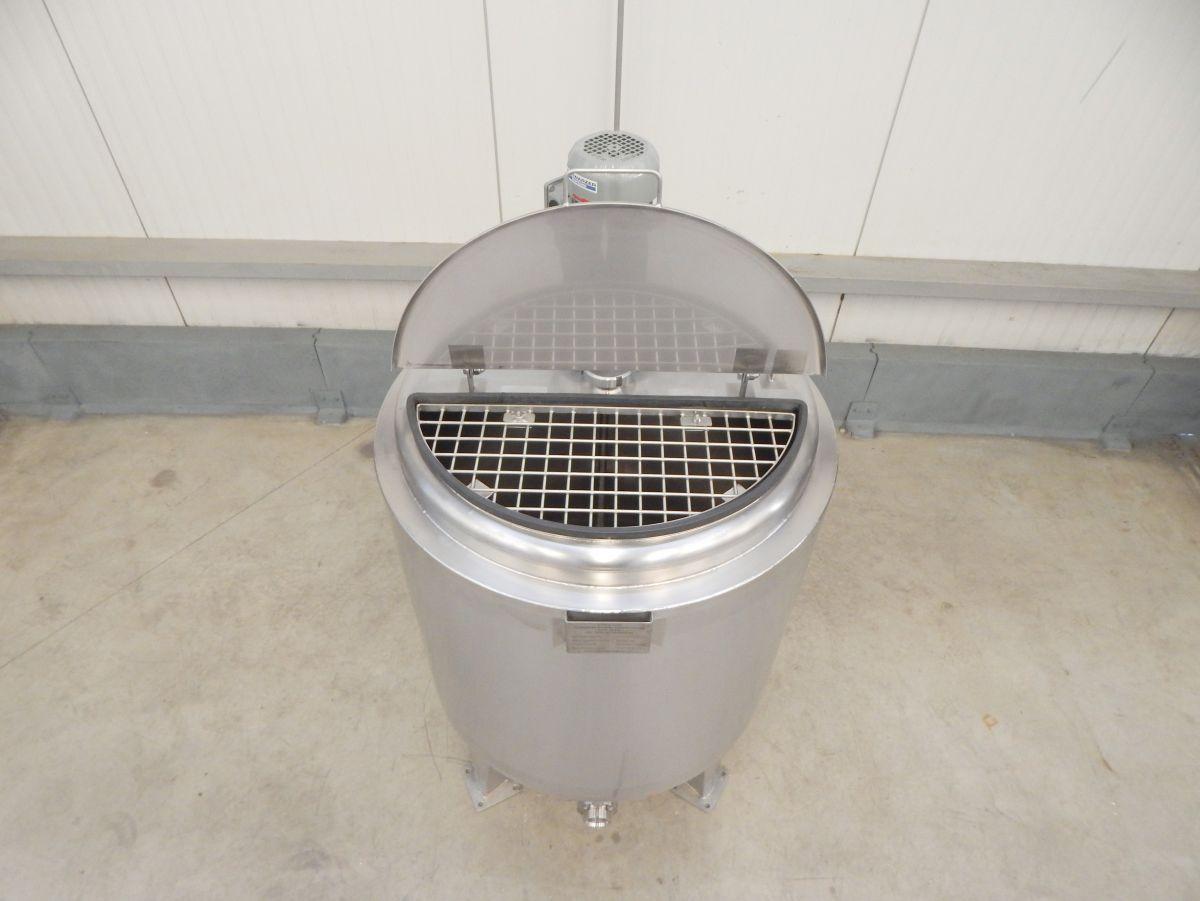

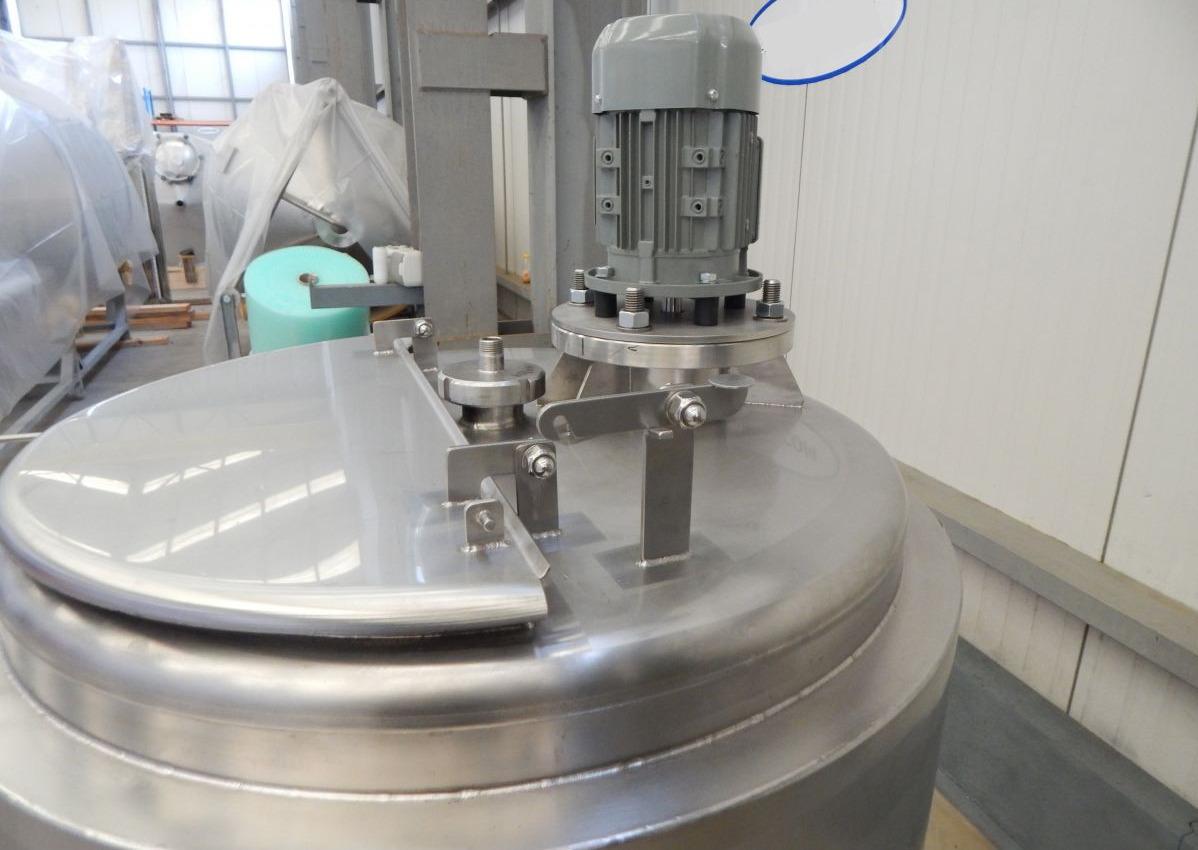

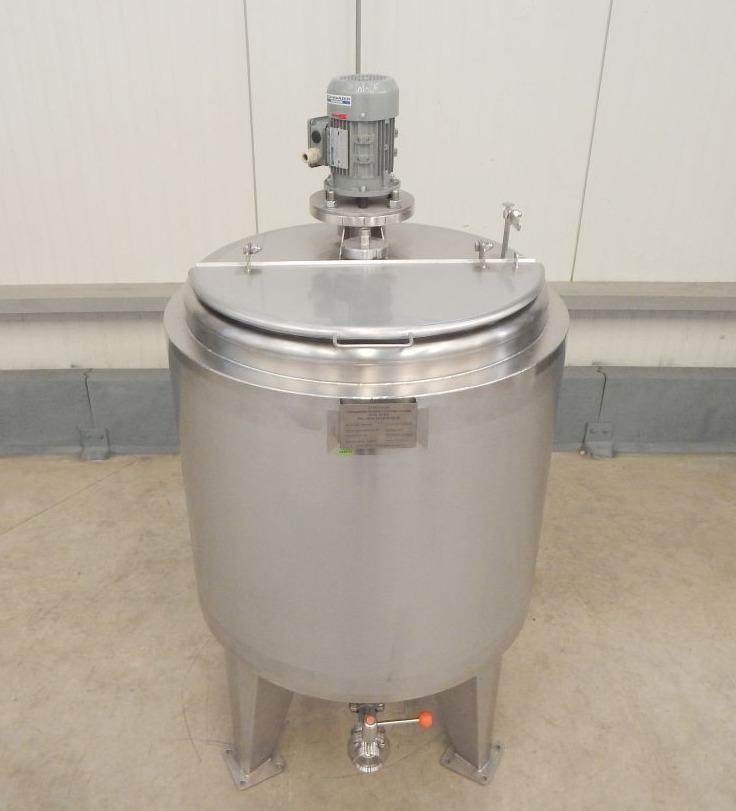

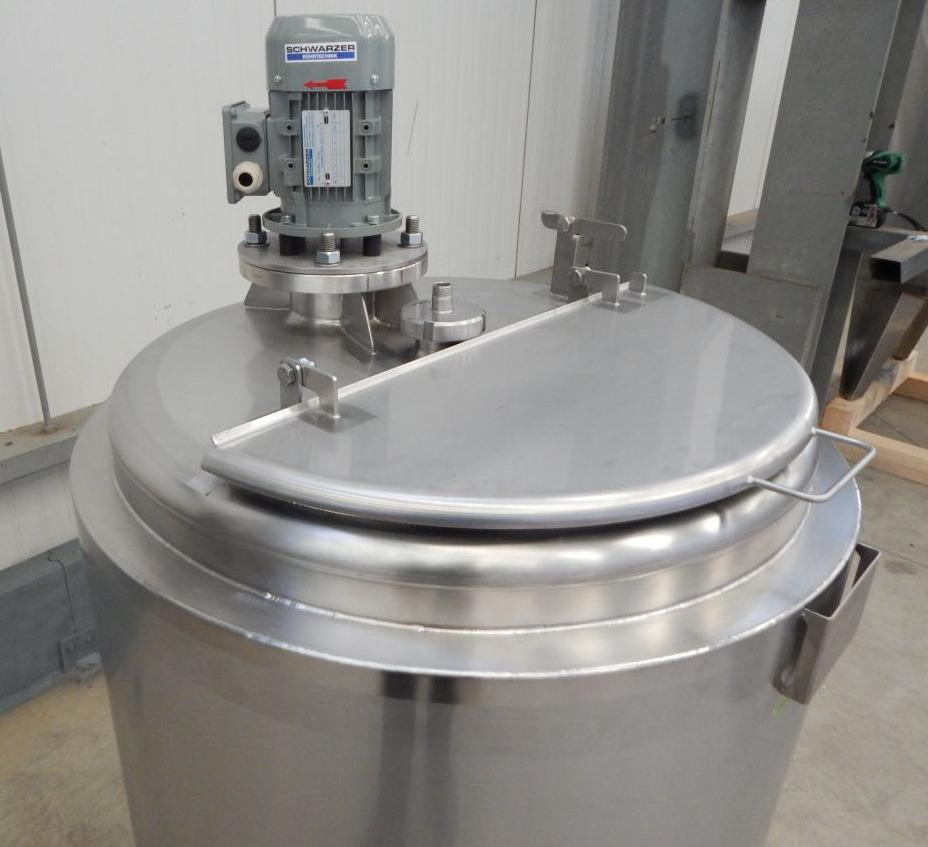

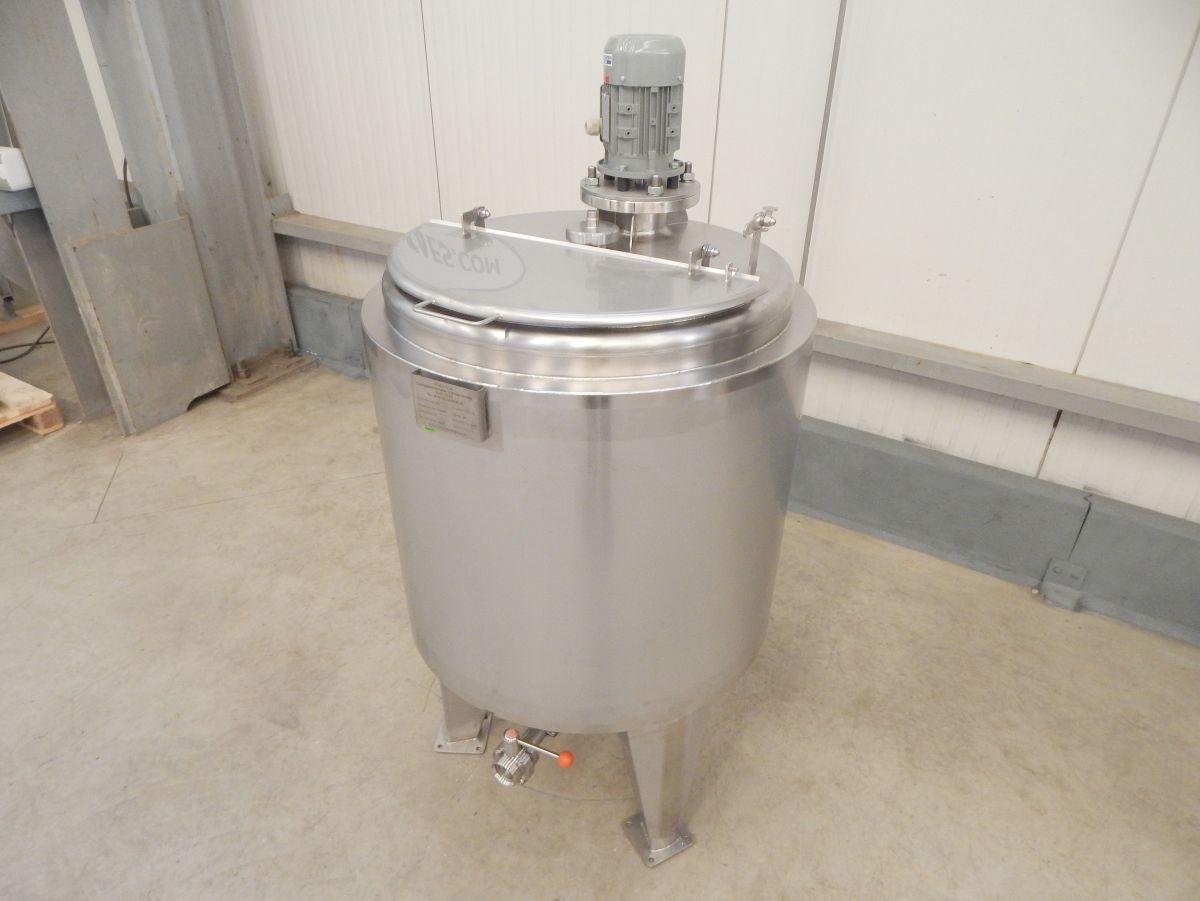

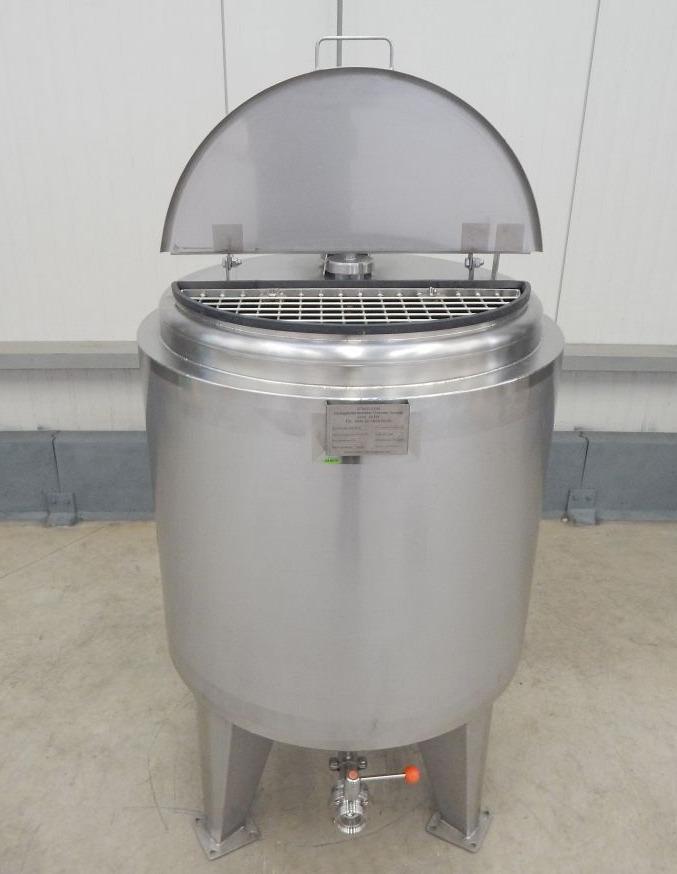

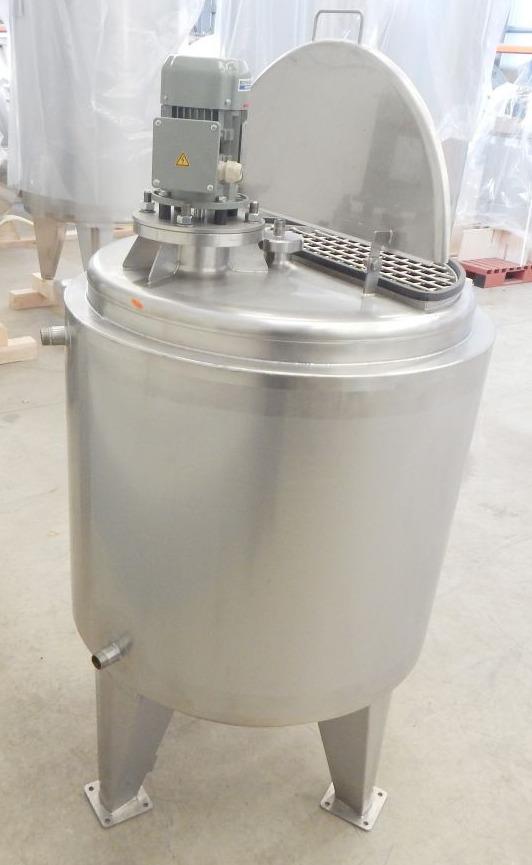

item available on order Article type: brand new mixing tank - type VC-HILA Additional information: delivered with food certificate; article price without agitator; choice of 2 different types of agitators; see options; (The article can also be purchased without options); Ra=<0.8µm           Volumetric volume (L): 300 L Max. density P (kg/m³): 1.200 Ra inner weld: 0,80 Finish stainless steel: 2b Pressure in tank: ATM - atmosferic Max. temperature (°C): 100 °C Min. temperature (°C): -10 °C Material wet parts: SS AISI 316 (V4A) Model: vertical Configuration: insulated with heat-exchanger Heat exchanger: yes Insulation: yes Mobile tank: no Top type: half hinging lid ° Shape of tank: cylindrical Bottom type: conical 10 ° Total discharge: yes Fixation points: 3 non adjustable feet Type of HE on the cylinder: dimple-jacket Position HE: the complet cilinder Height HE: 625 mm Number of sections: 1 Water pressure HE: 3 Bar Hydraulic test pressure: 4,50 Bar Contact surface cylinder: 1,30 m² Working temperature HE cylinder: 100 °C Heat exchanger: RVS 304 Outer jacket (ornamental wall): RVS 304 Valve: RVS 316L Fixation point(s): RVS 304 Suitable for food industry: yes Documents included: yes, optional Technical drawing included: yes Registration plate on the tank: yes Flange for agitator: yes CIP spray ball: no, optional Tank outlet: inside Ø 40 mm Outlet type: DIN11851 Total outlet valve: no, optional Agitator: no, optional Top: 3 mm Cylinder: 3 mm Bottom: 3 mm Cylinder: 40 Insulation body: yes finish of the outer jacket: welded Internal diameter tank: 703 mm Outer diameter tank: 783 mm Total height of tank: 1.760 mm Empty weight tank: 300
