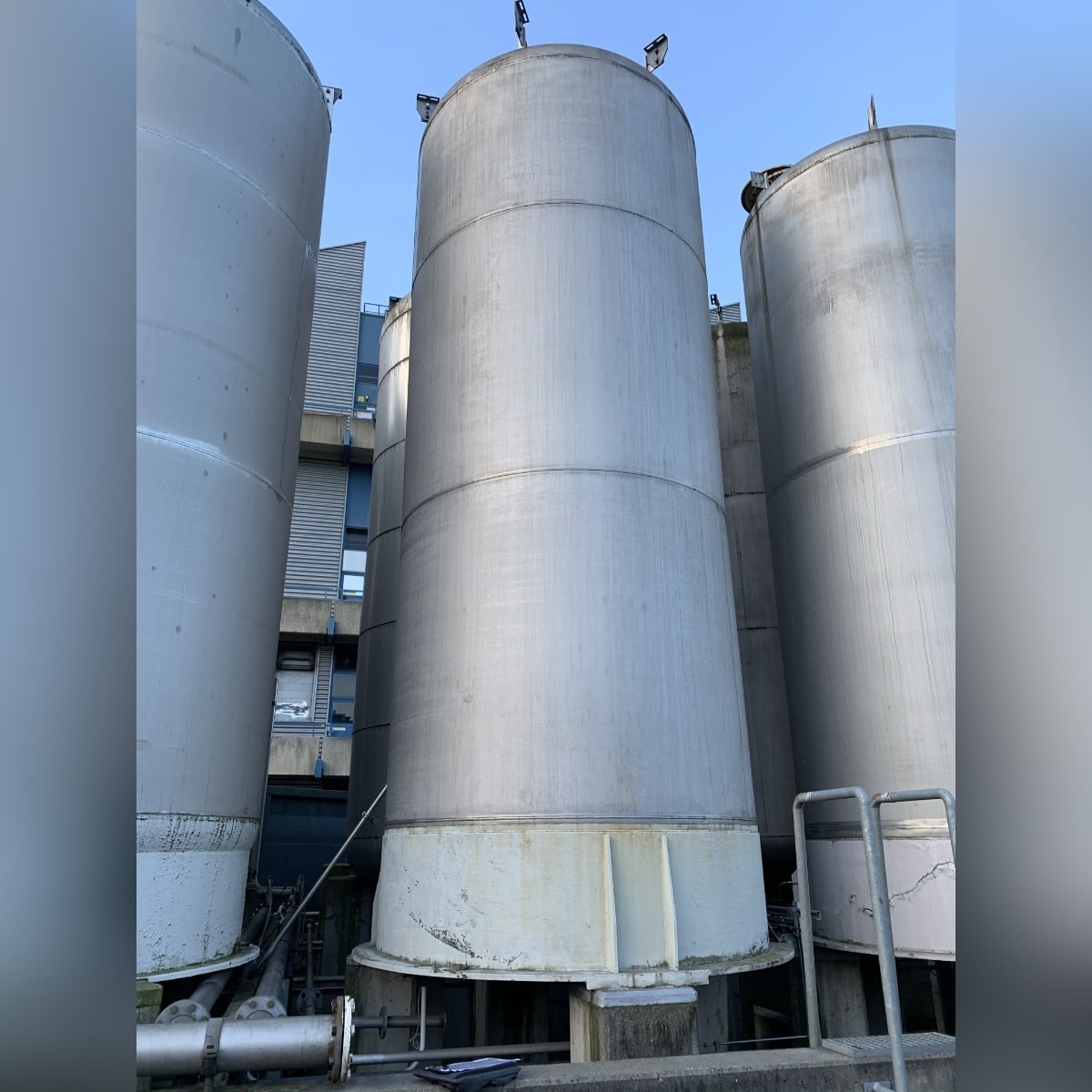

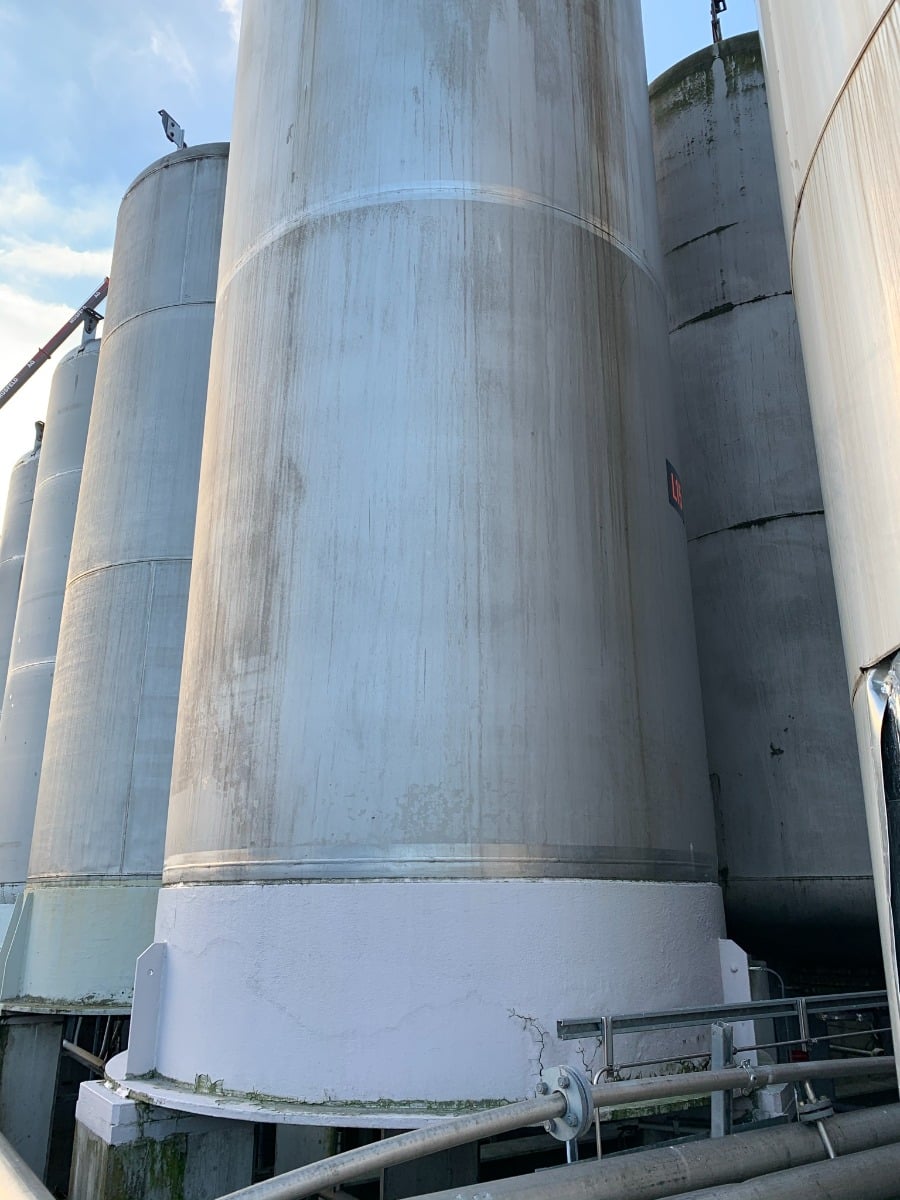

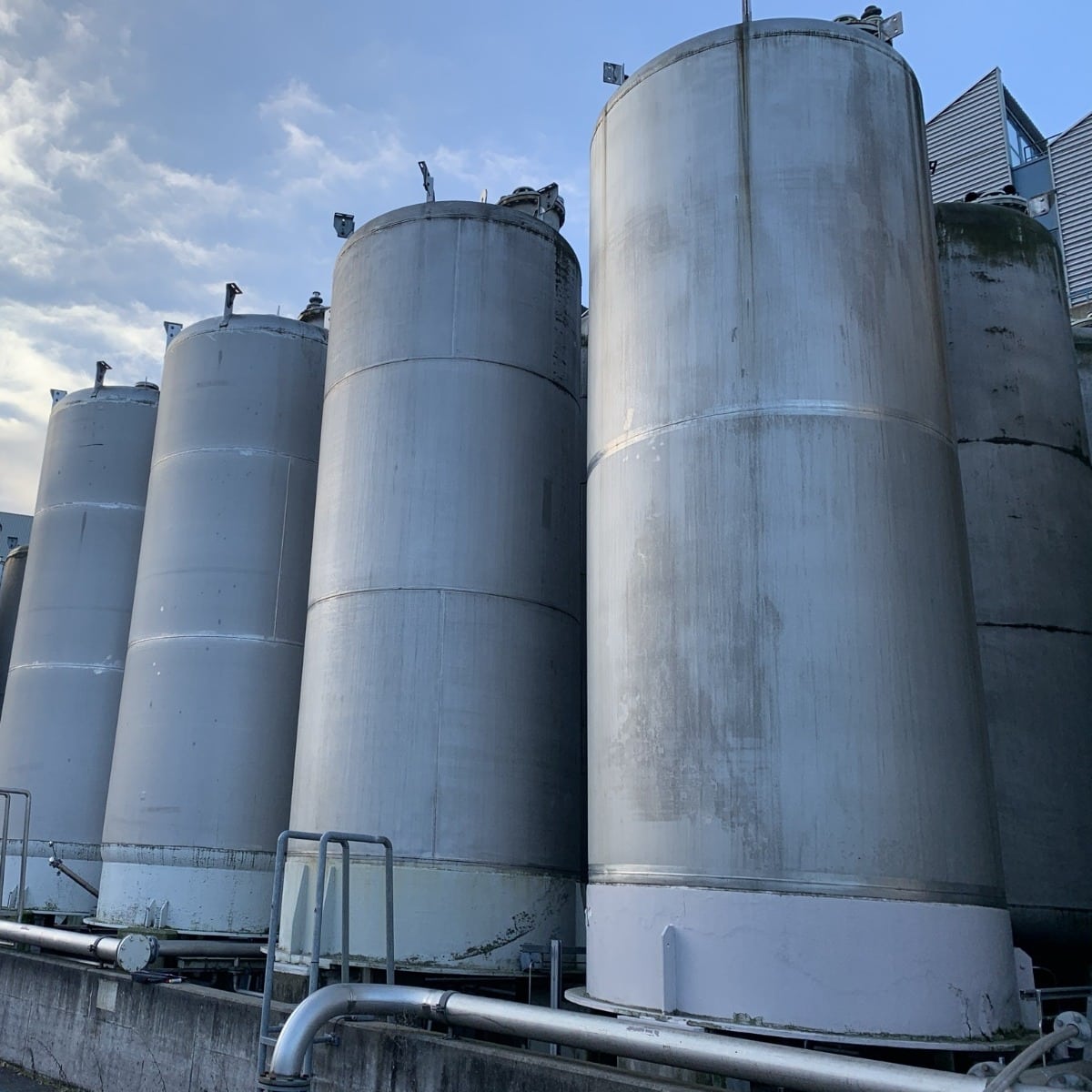

27200 liter tank i Syrafast 316

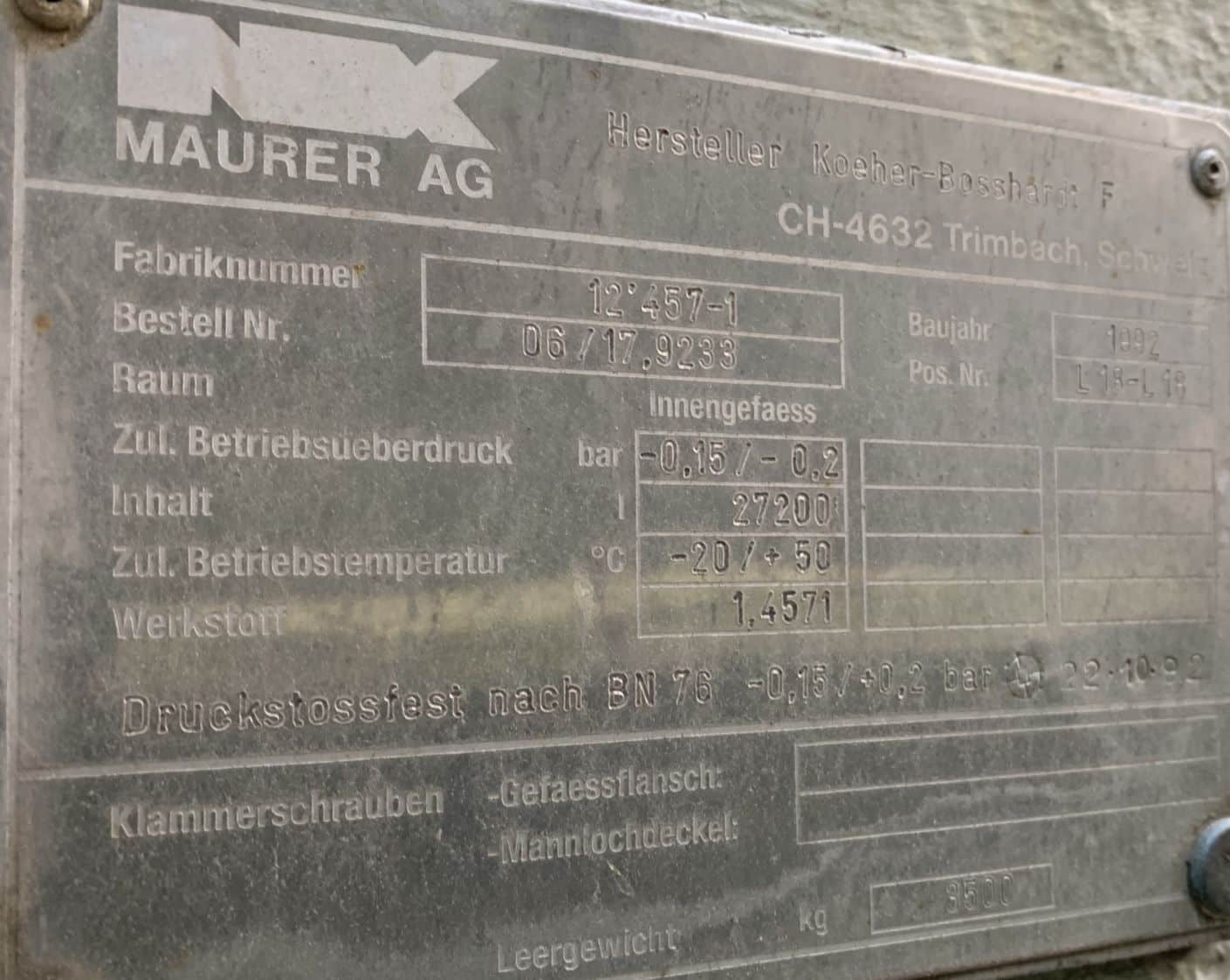

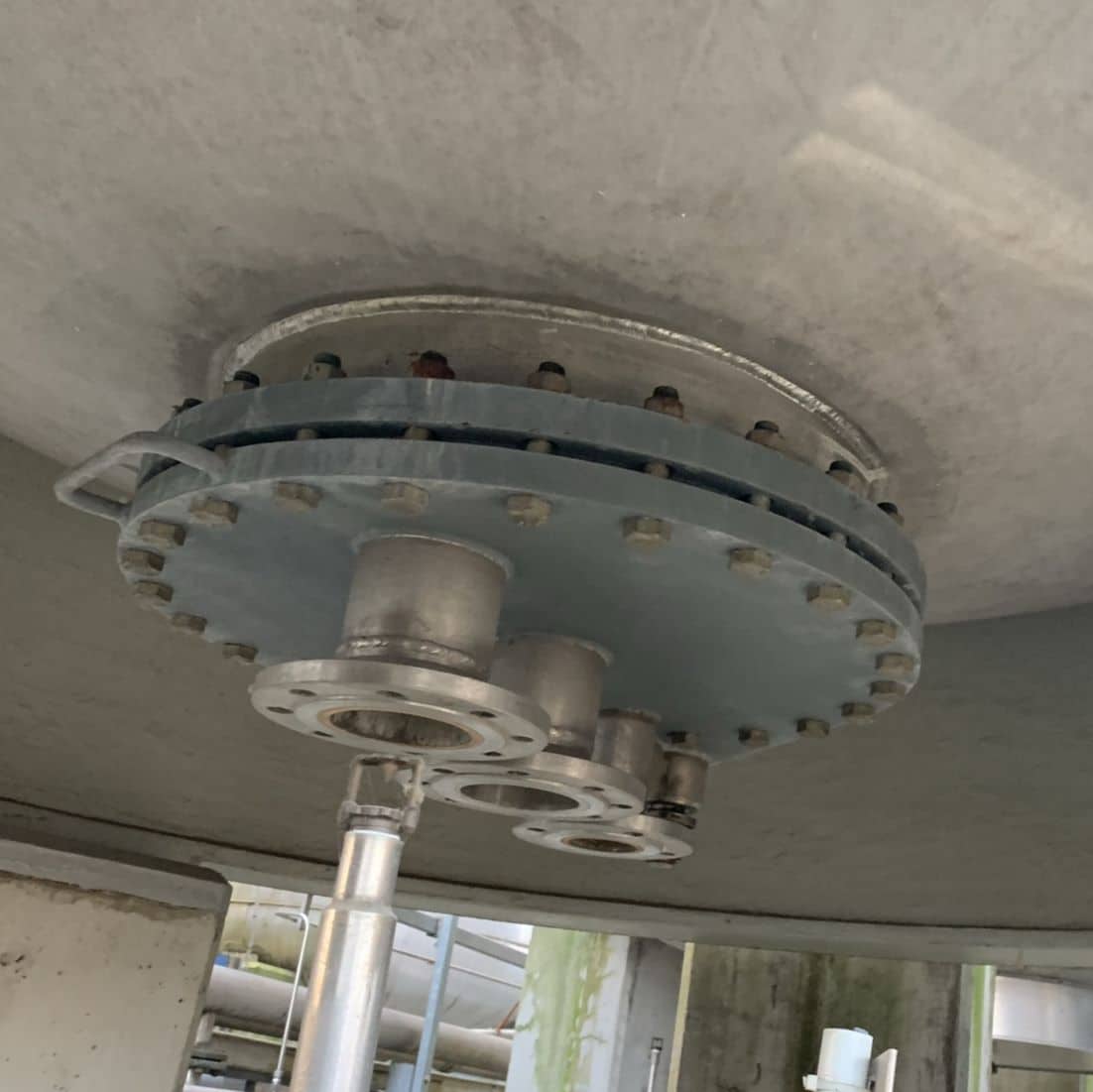

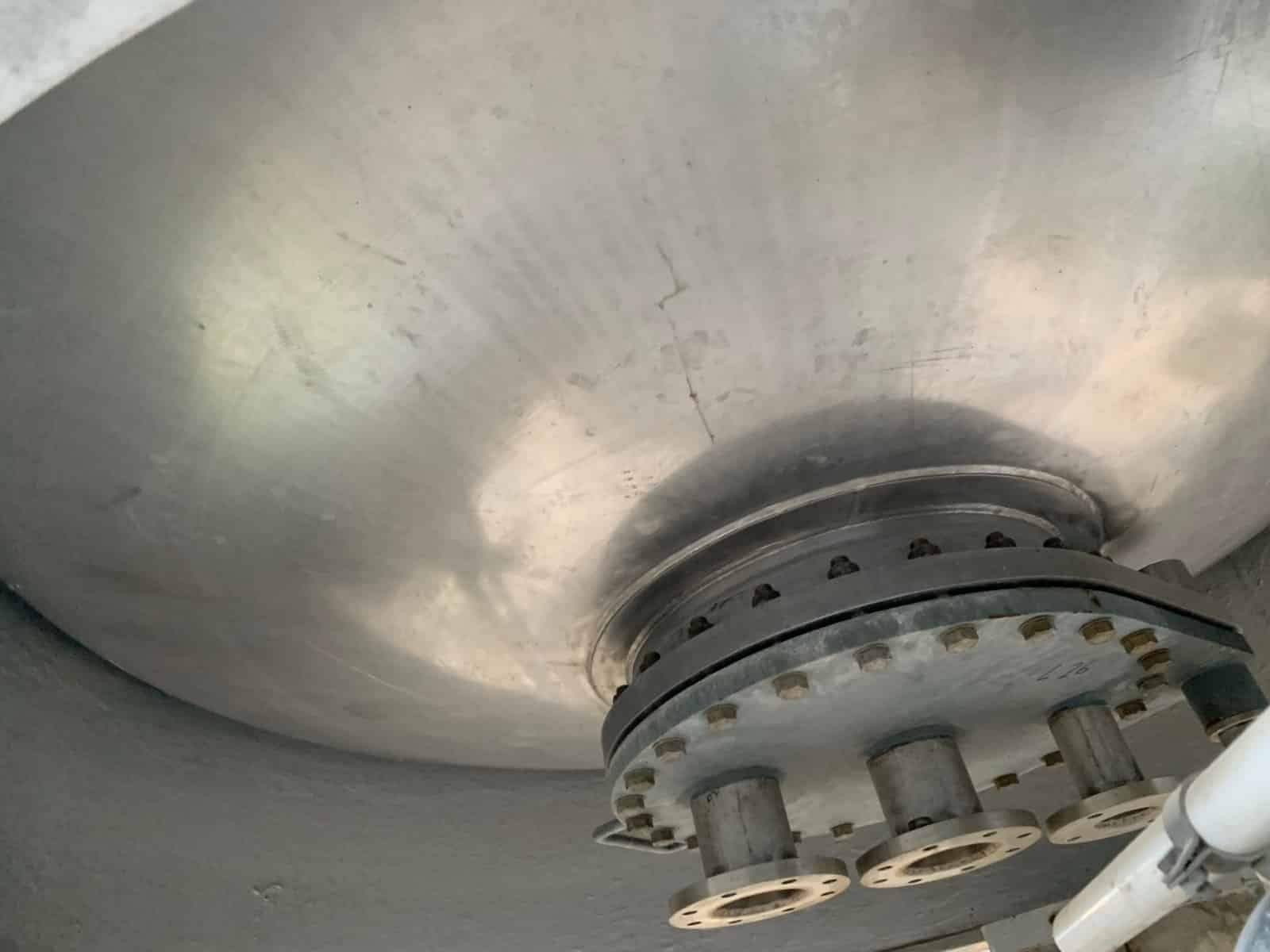

Additional information: Pharmaceutical Chemistry; Stainless steel 304 upright frame; wall thickness of bottom cylinder segment approx. 6 mm; some residues of previous content; manhole cover plated Volumetric volume (L): 27.200 L Pressure in tank: pressure and vacuum Max. pressure (Bar): 0,15 Bar Min. pressure (Bar): 0,20 Bar Max. temperature (°C): 50 °C Material wet parts: SS AISI 316 (V4A) Model: vertical Configuration: single-skin Heat exchanger: no Insulation: no Mobile tank: no Total discharge: yes Documents included: no Technical drawing included: no Registration plate on the tank: yes Flange for agitator: no Position of manway: headside Outlet of tank: available Top: 6,10 mm Cylinder: 5 mm Bottom: 6,10 mm Internal diameter tank: 2.400 mm Outer diameter tank: 2.400 mm Cylinder height: 5.400 mm Total height of tank: 7.150 mm
