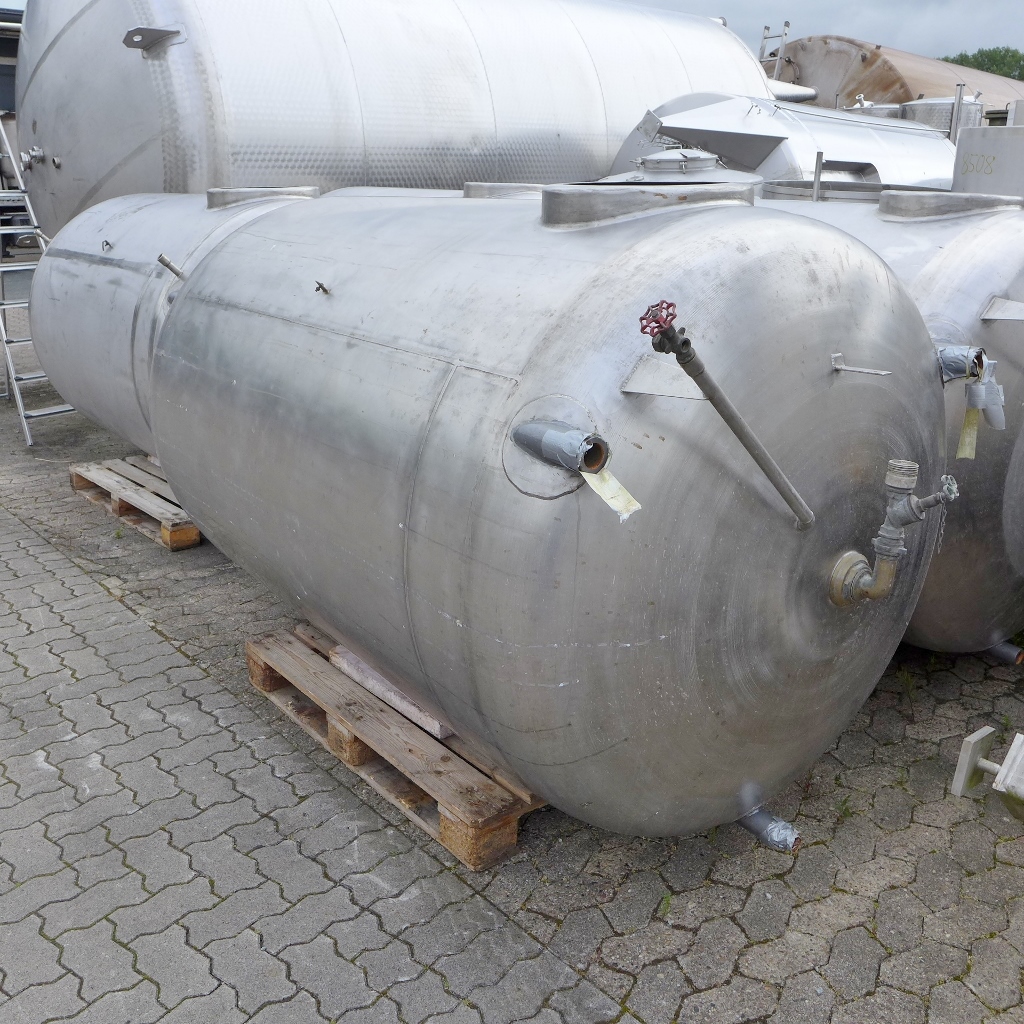

2600 liter tank i Rostfritt 304

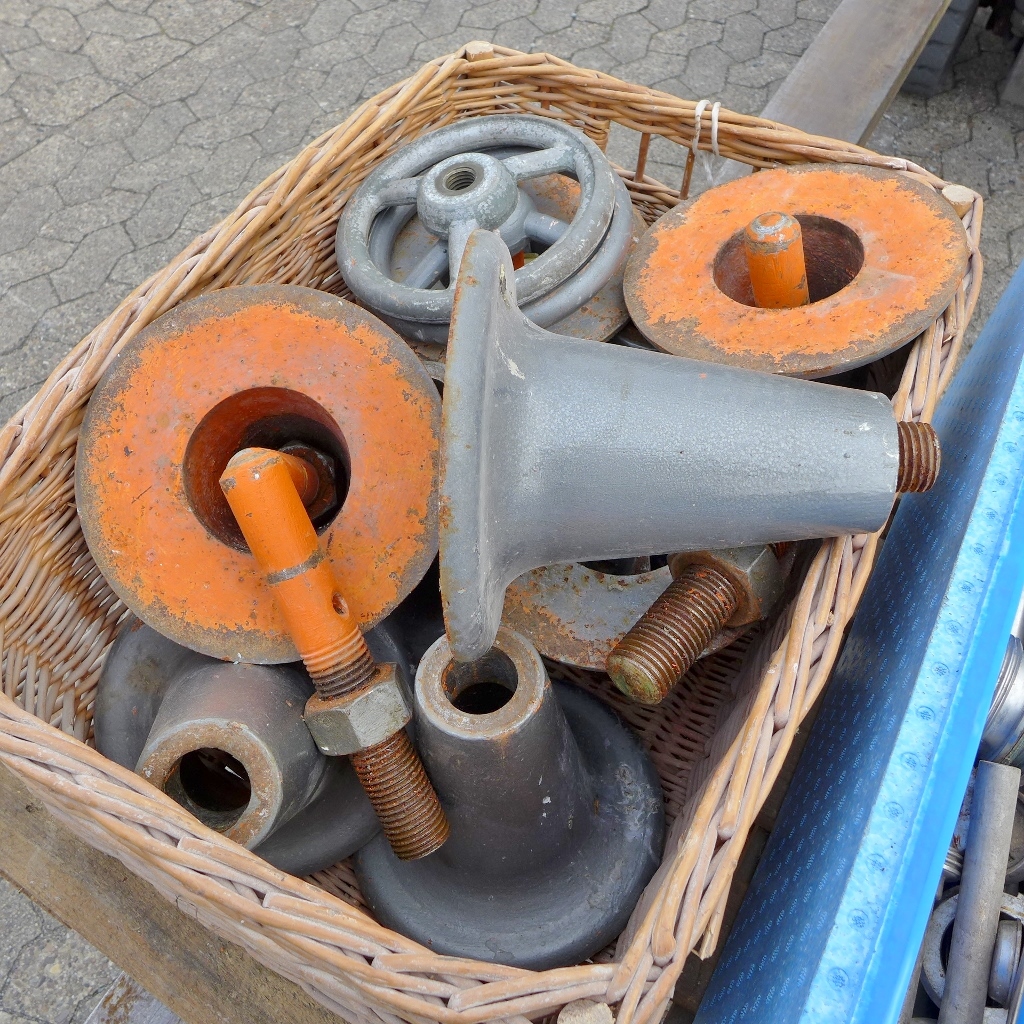

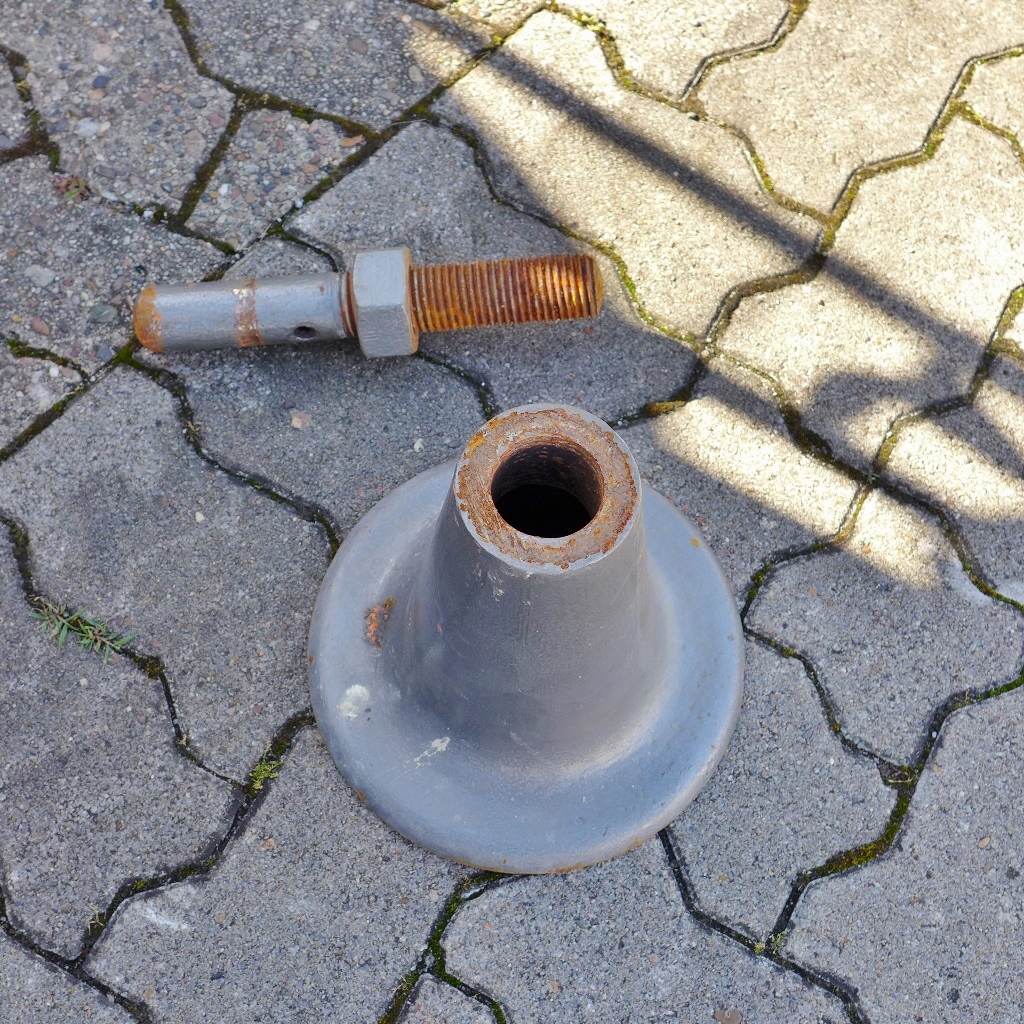

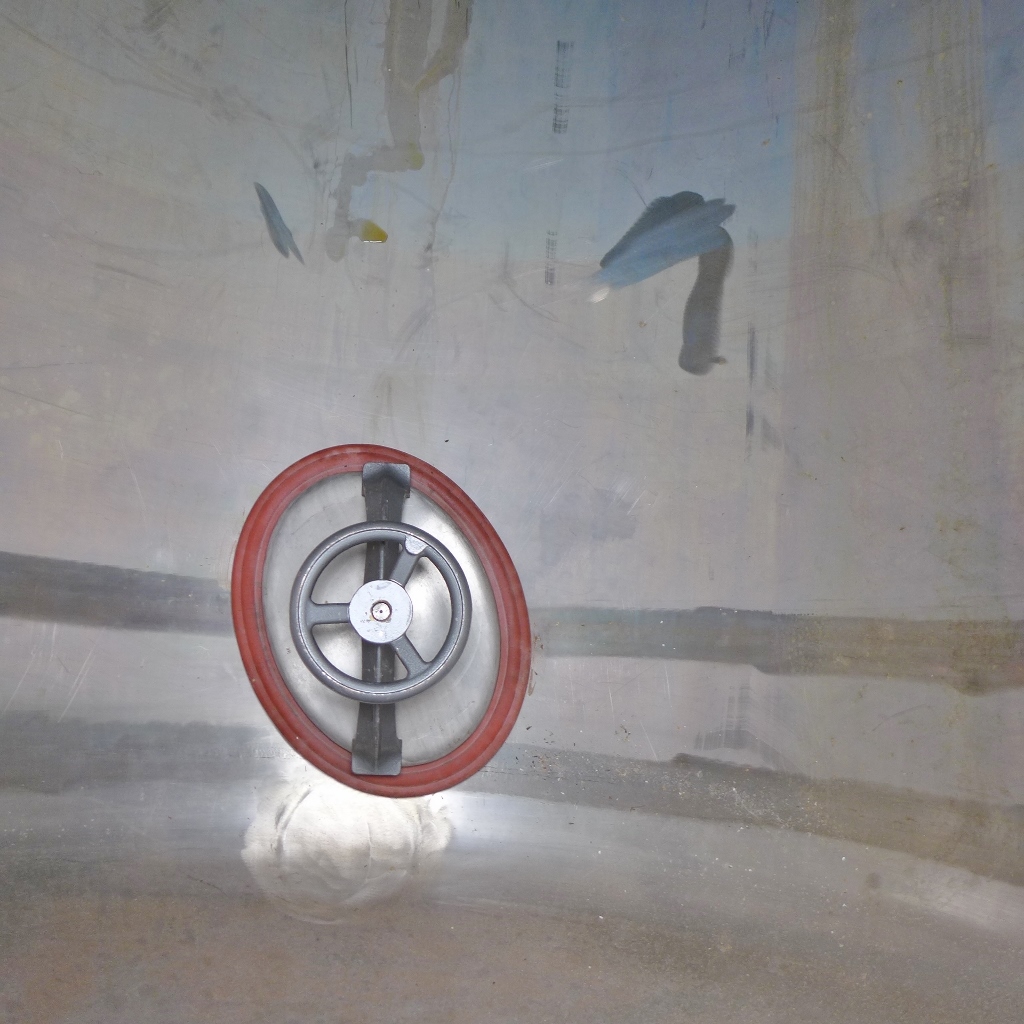

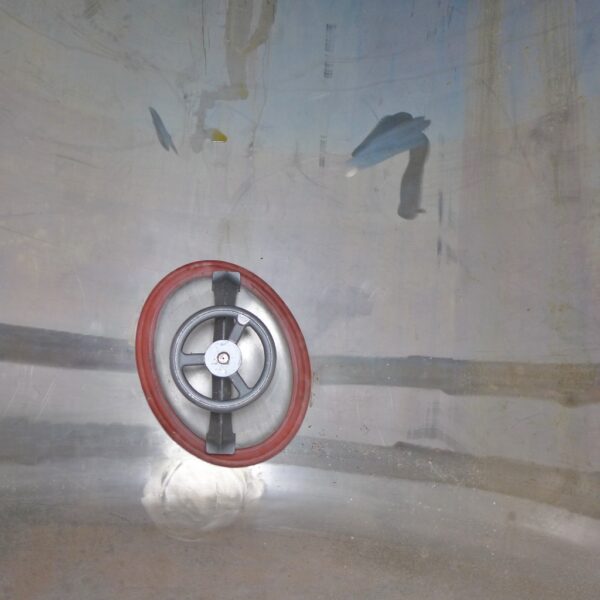

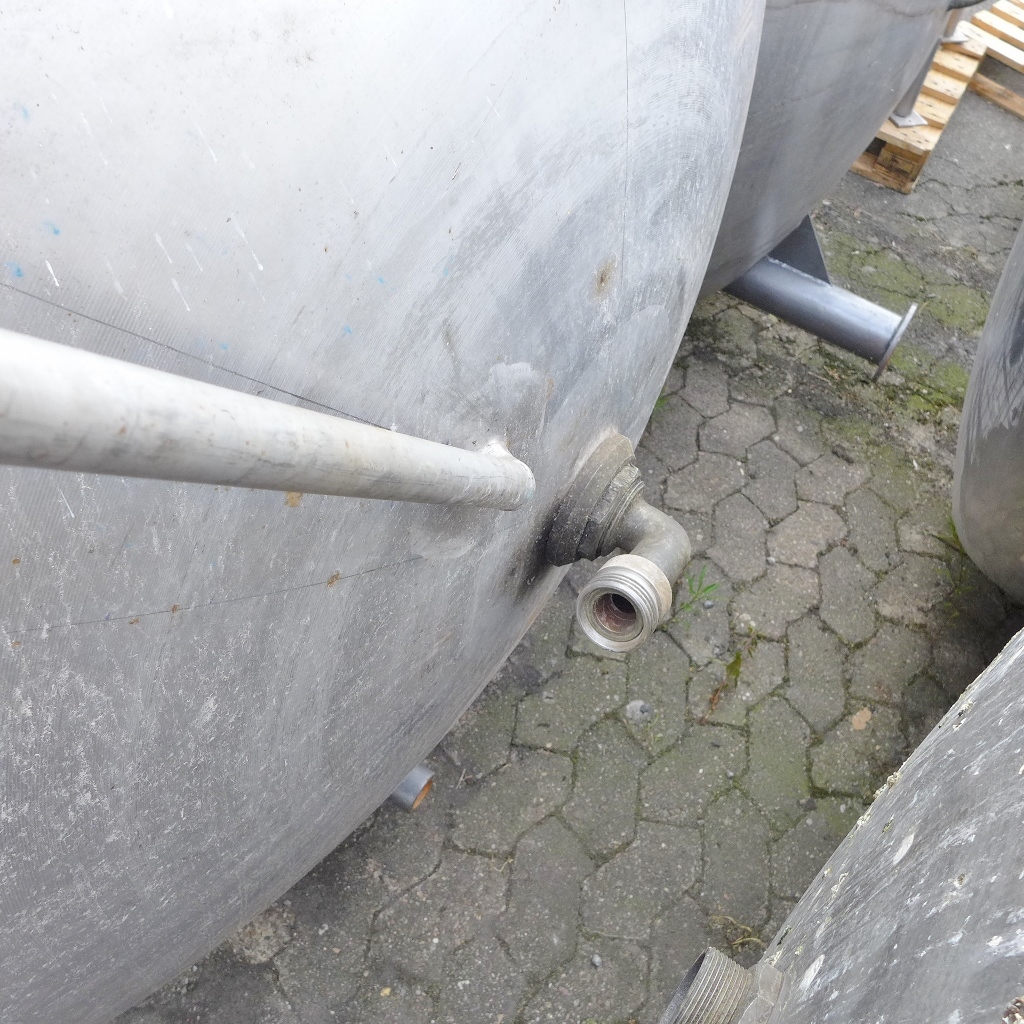

Additional information: Wine storage; Manhole approx. 300 x 400 mm; 3 loose insert feet each with 3 height-adjustable screws made of Fe (insert sleeves welded to the tank also made of Fe) Volumetric volume (L): 2.600 L Pressure in tank: ATM - atmosferic Material wet parts: SS AISI 304 (V2A) Model: vertical Configuration: single-skin Heat exchanger: no Insulation: no Mobile tank: no Total discharge: yes Documents included: no Technical drawing included: no Registration plate on the tank: no Flange for agitator: no Position of manway: cylinder Outlet of tank: 25 Internal diameter tank: 1.350 mm Cylinder height: 1.690 mm Total height of tank: 2.650 mm Empty weight tank: 650
