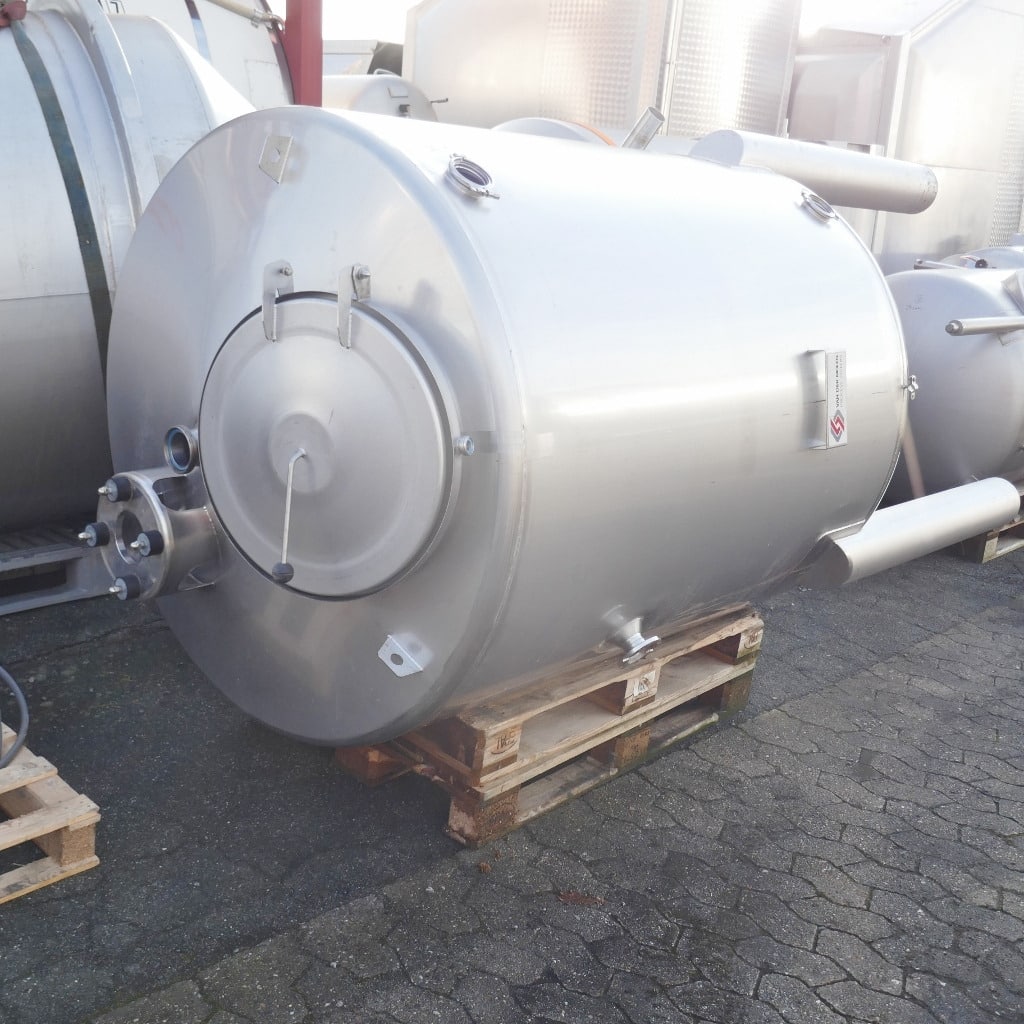

2200 liter tank i Syrafast 316

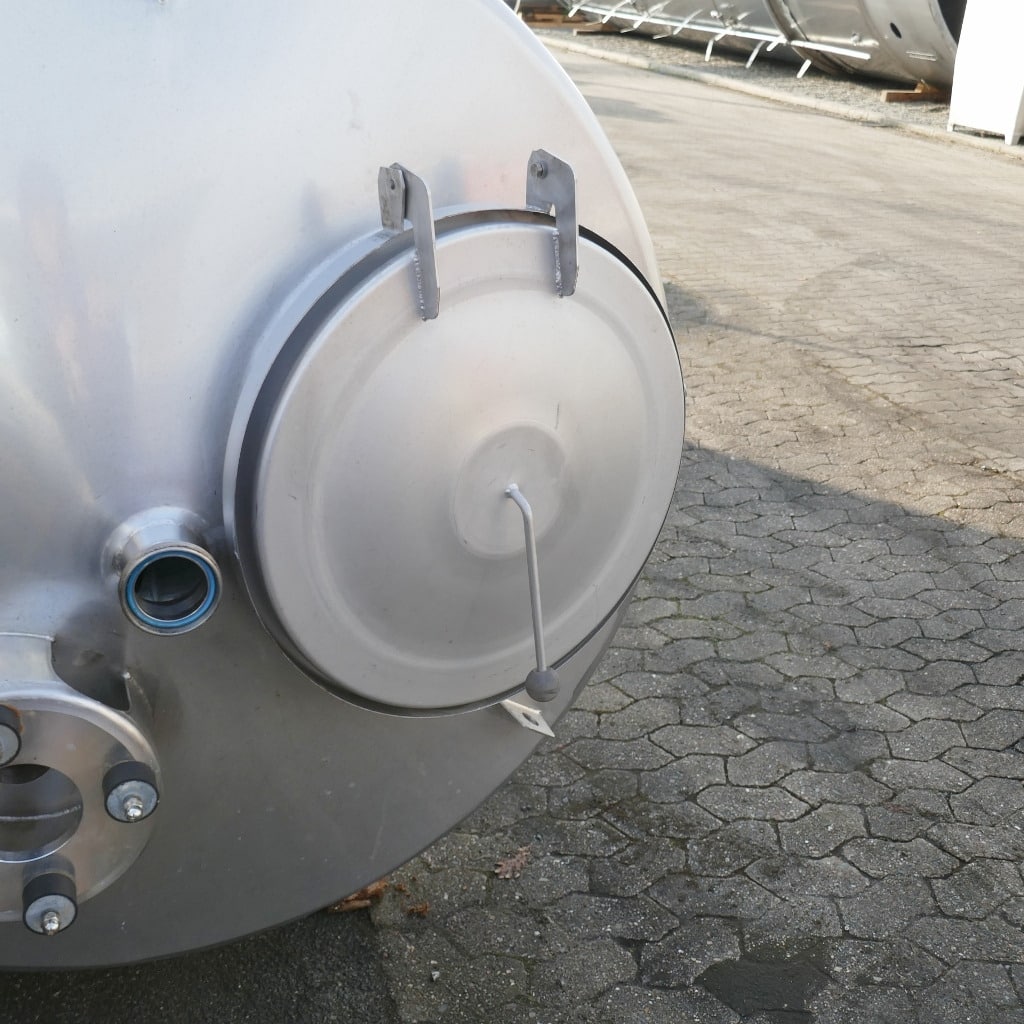

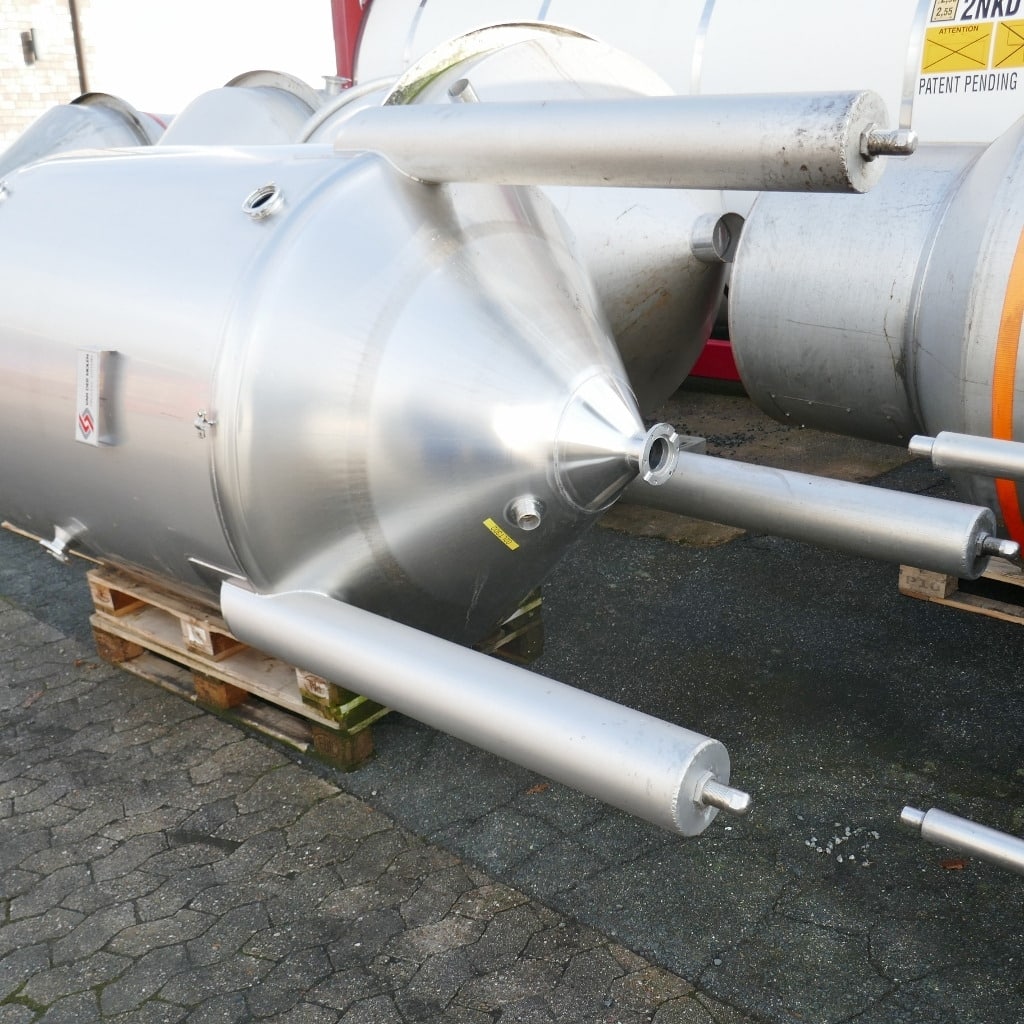

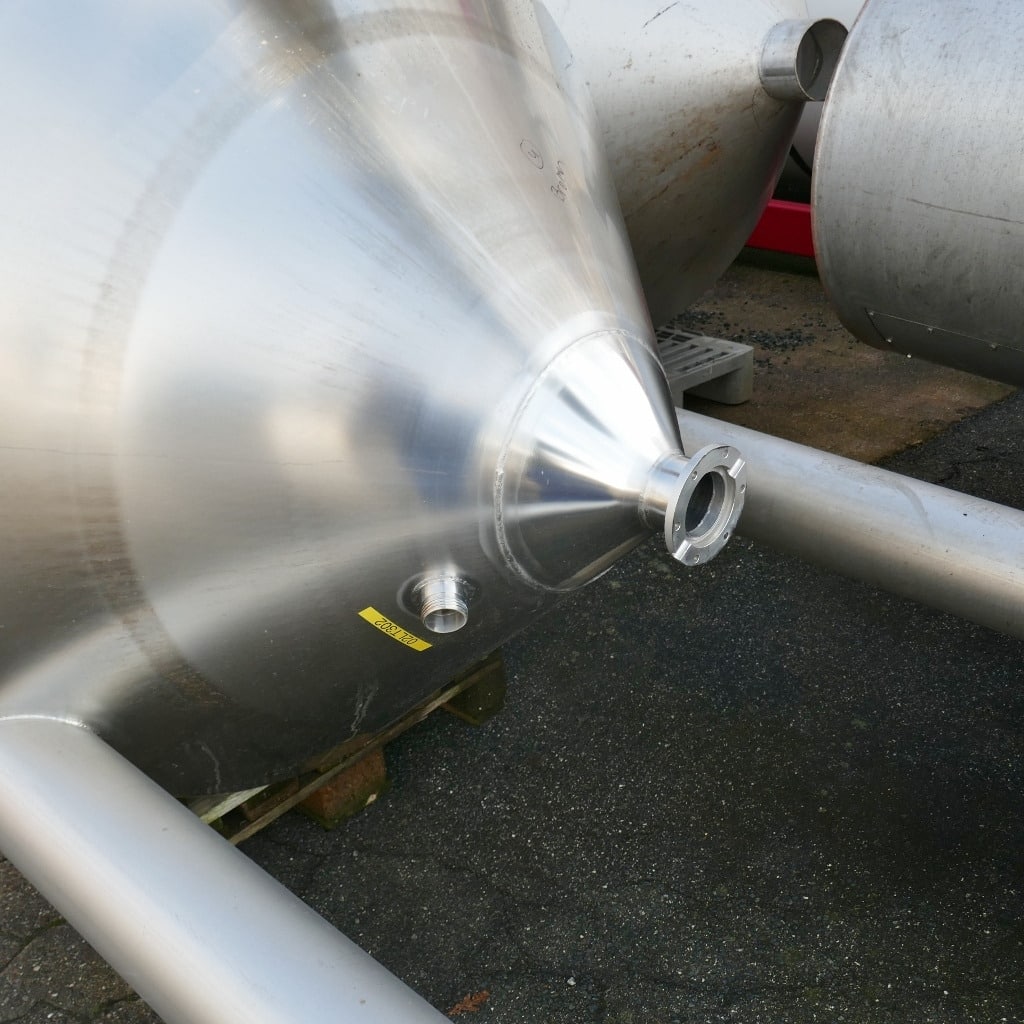

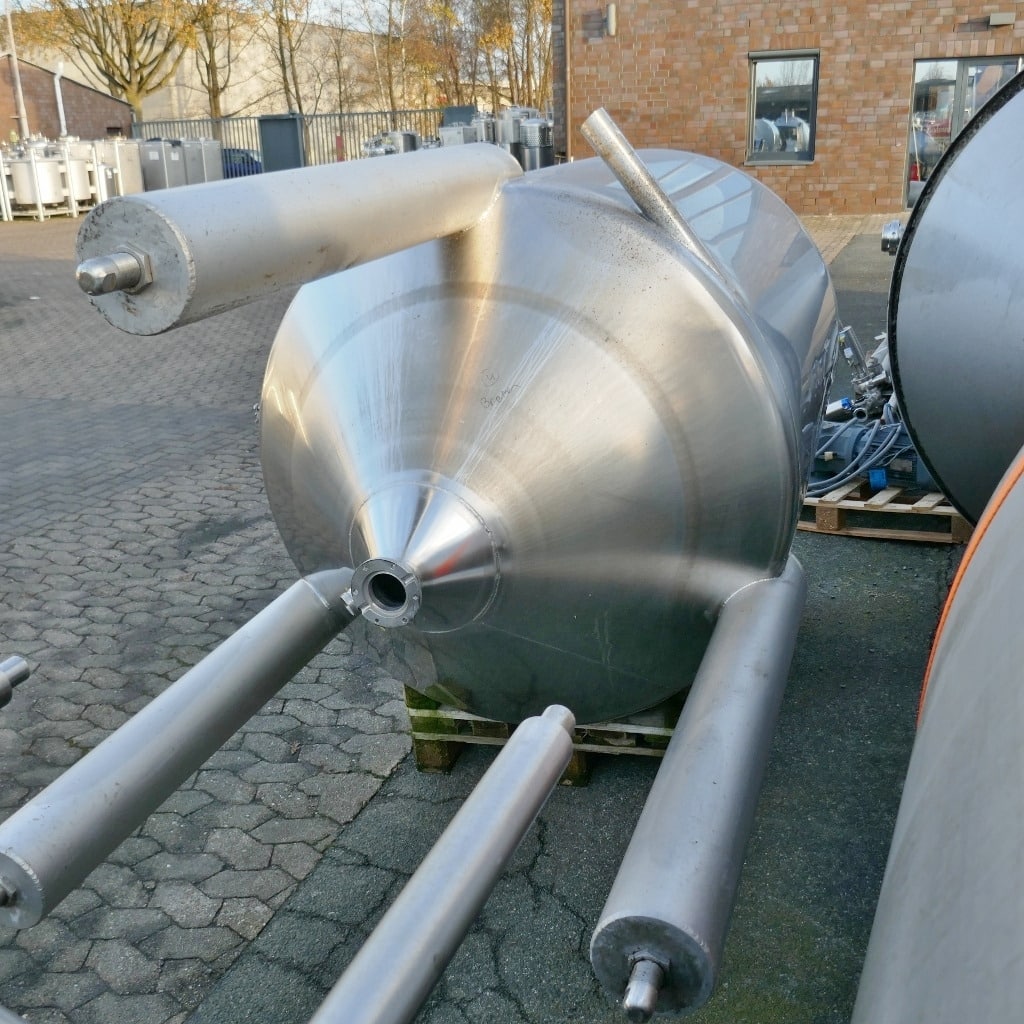

Additional information: Food; Manhole diameter approx. 465 mm; cone height approx. 650 mm; outlet fitting no longer available; some residues of previous content Volumetric volume (L): 2.200 L Pressure in tank: ATM - atmosferic Material wet parts: SS AISI 316 (V4A) Model: vertical Configuration: single-skin Heat exchanger: no Insulation: no Mobile tank: no Total discharge: yes Documents included: no Technical drawing included: no Registration plate on the tank: no Flange for agitator: yes Position of manway: headside Outlet of tank: 70 Internal diameter tank: 1.290 mm Cylinder height: 1.500 mm Total height of tank: 3.100 mm
