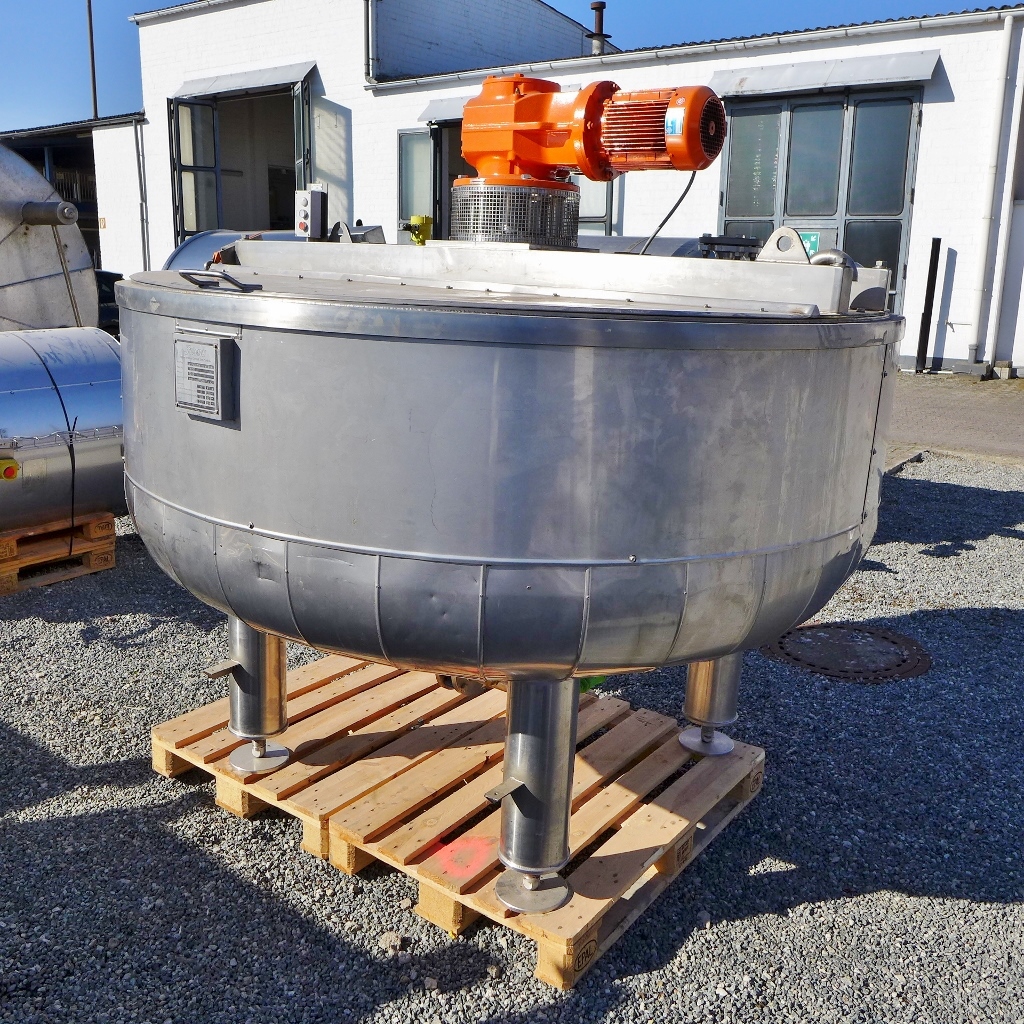

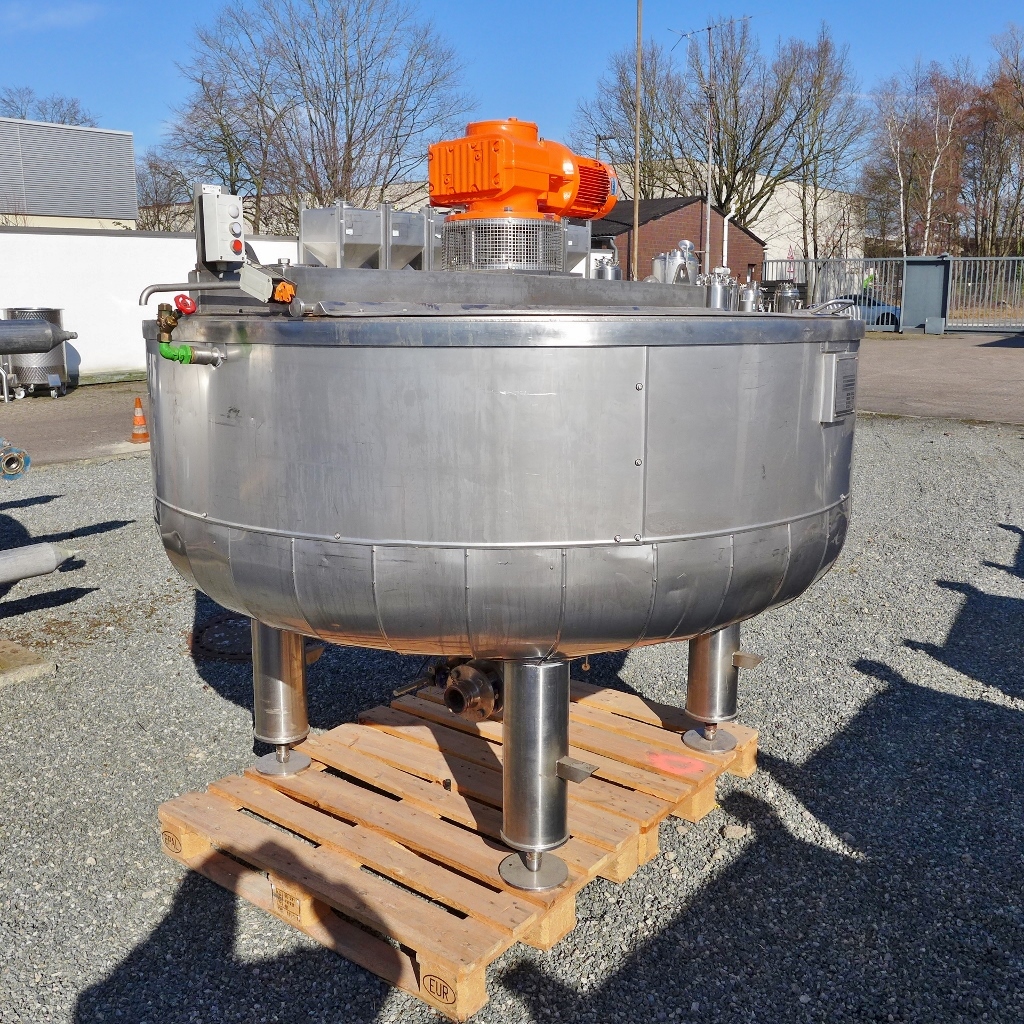

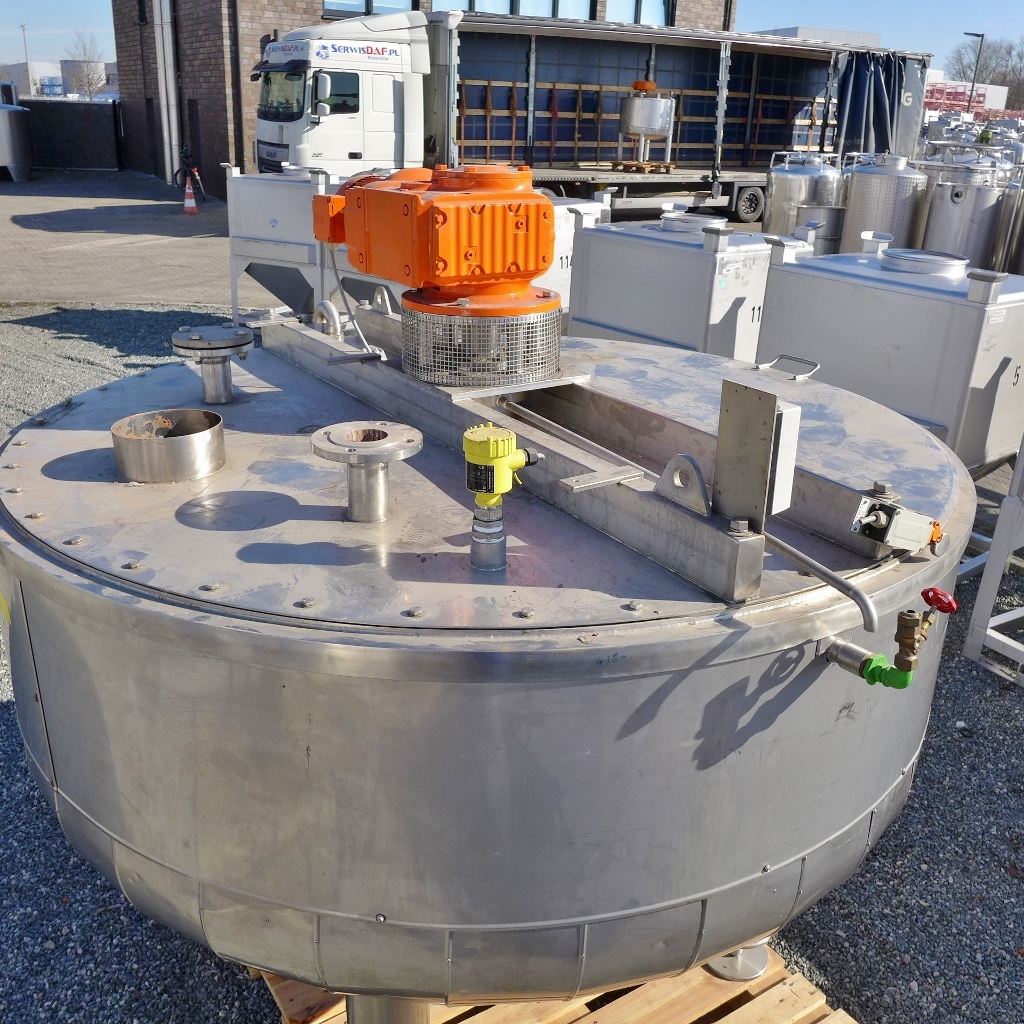

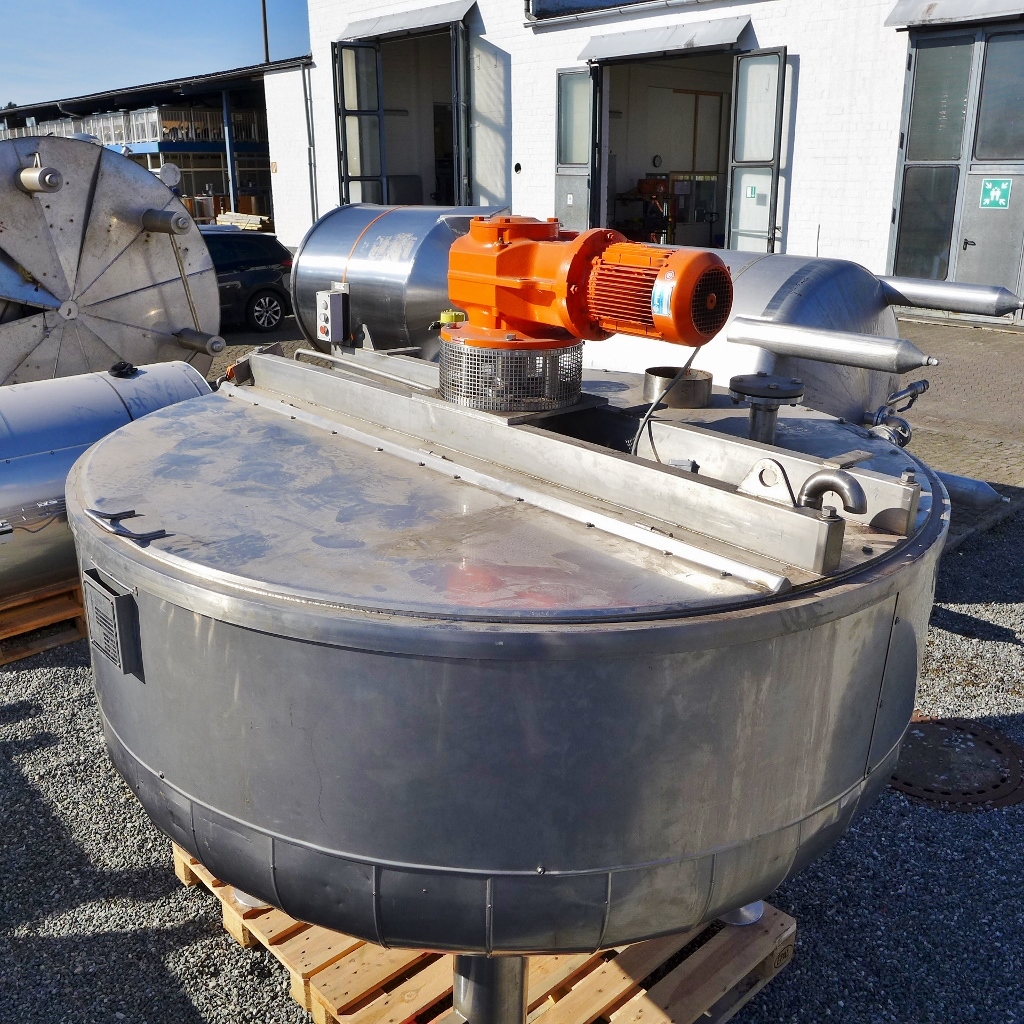

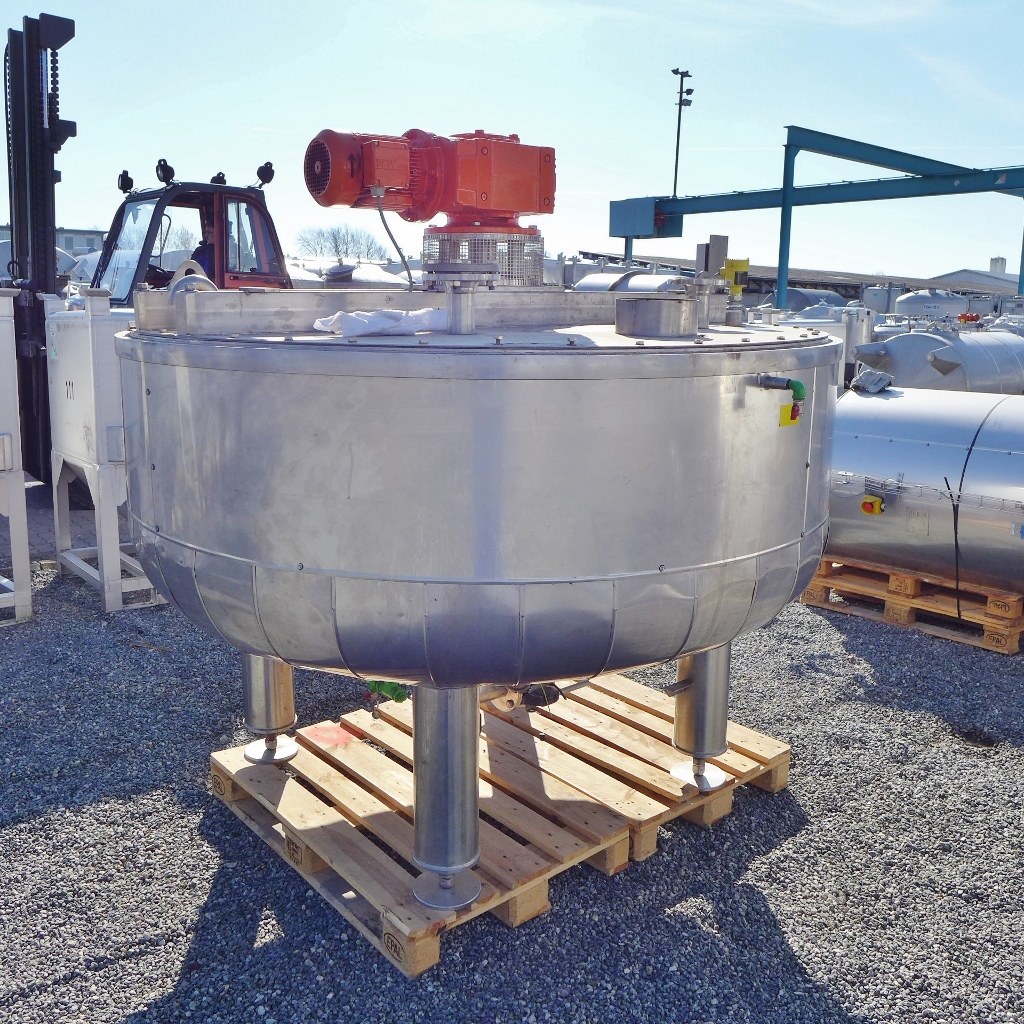

2171 liter tank i Syrafast 316

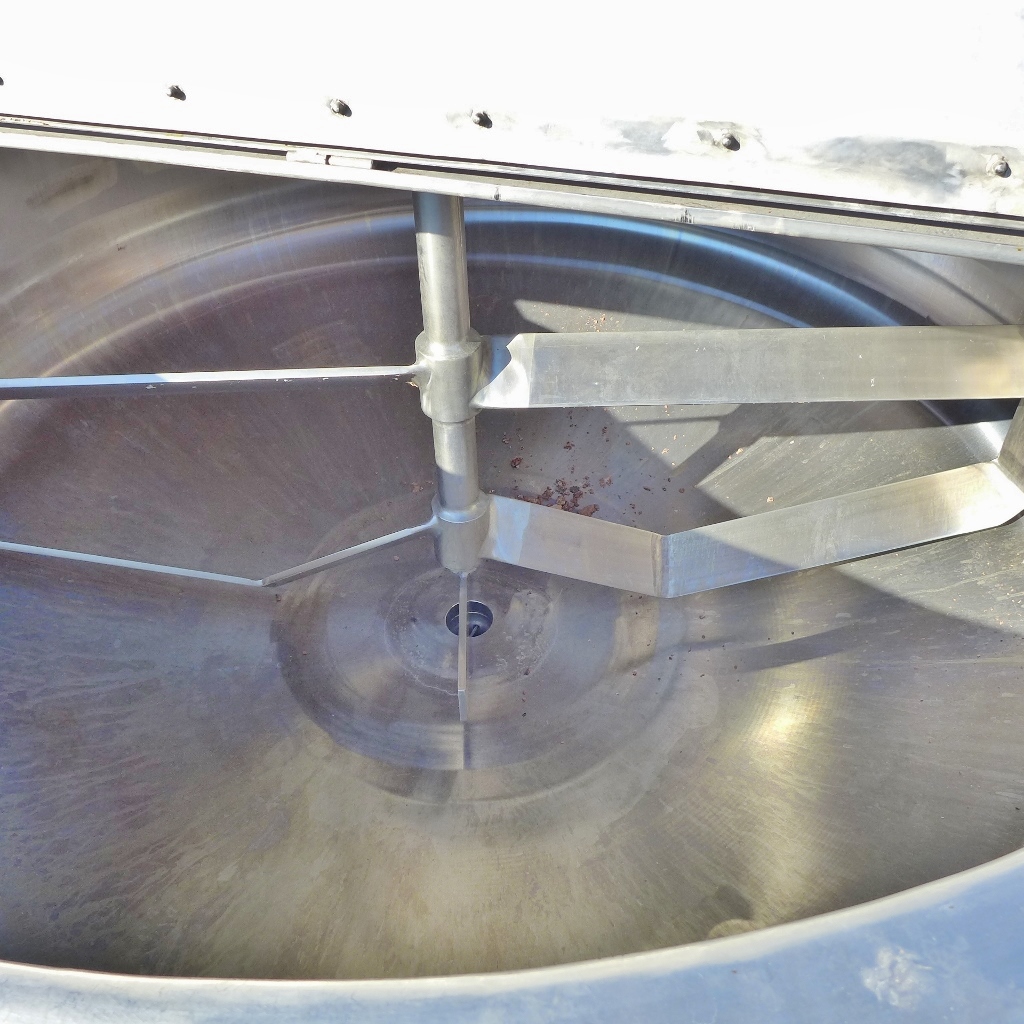

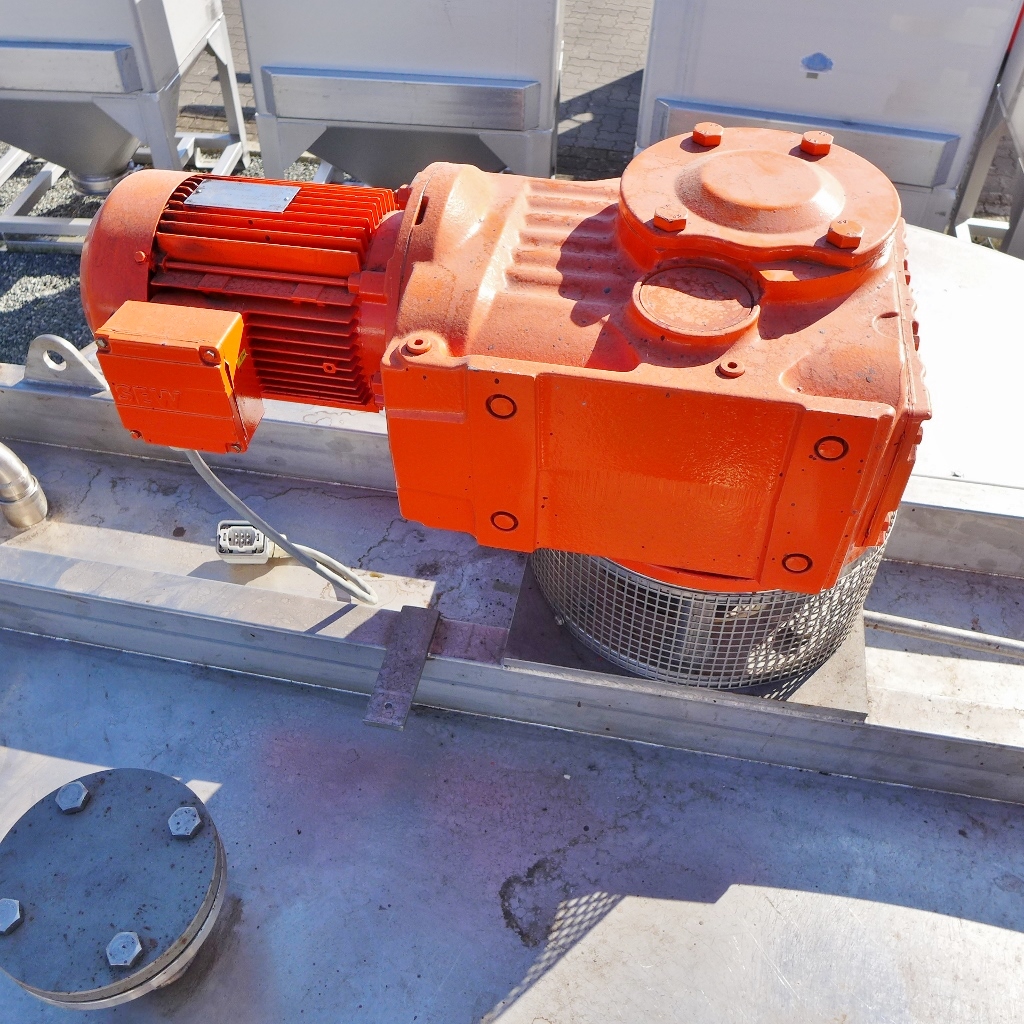

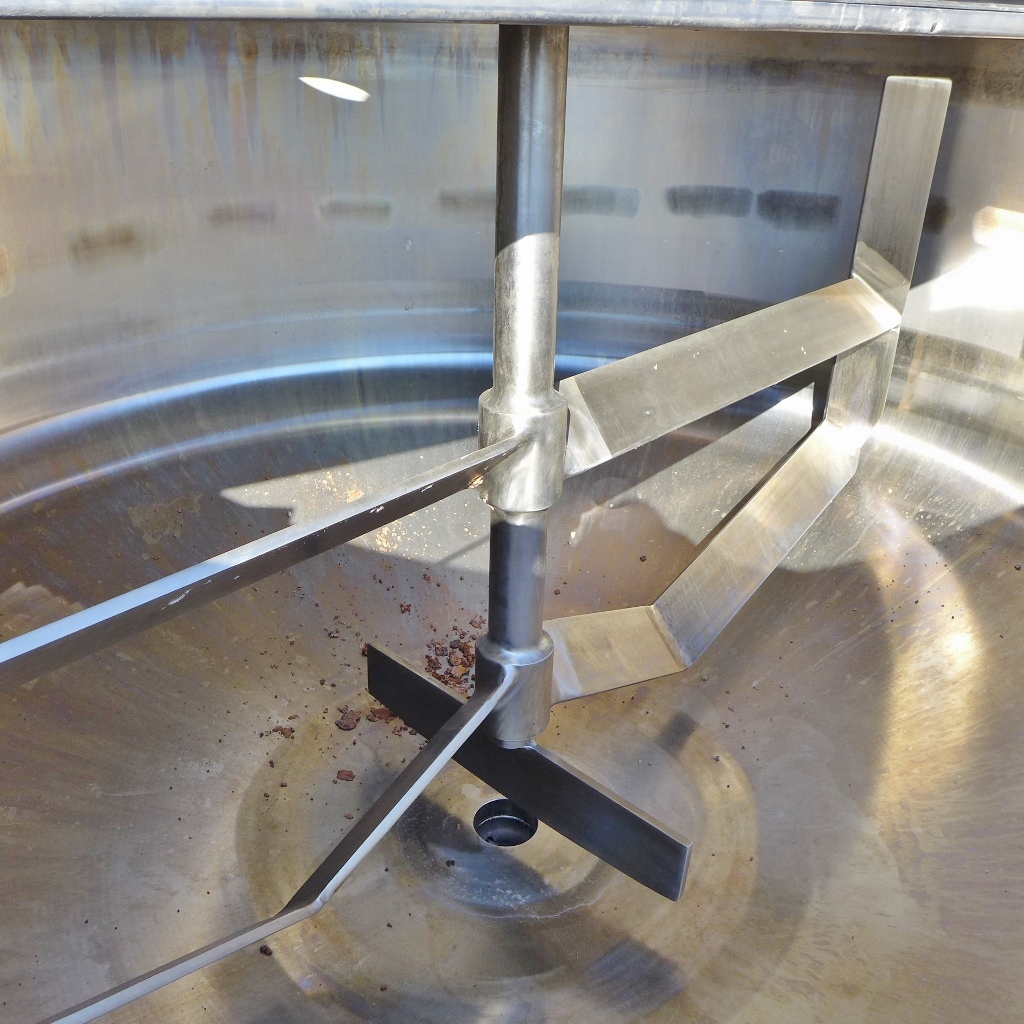

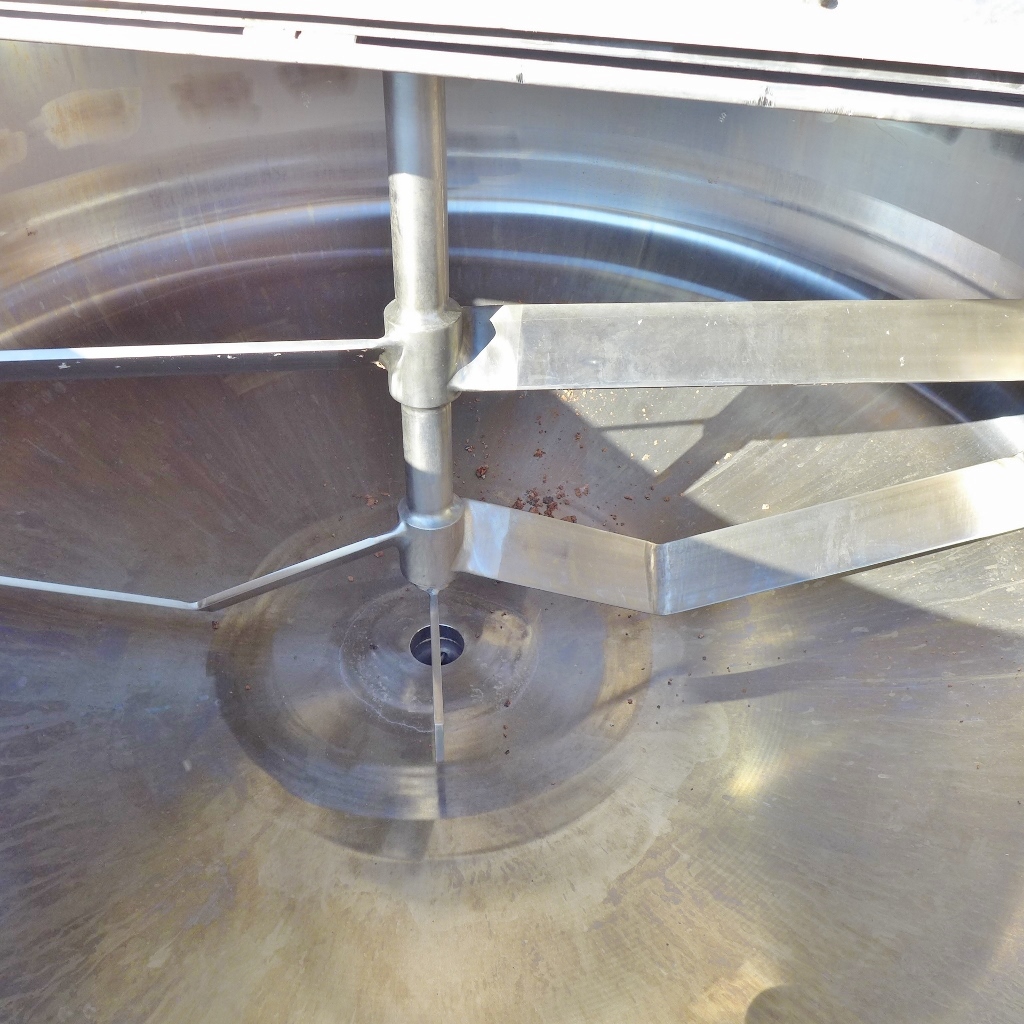

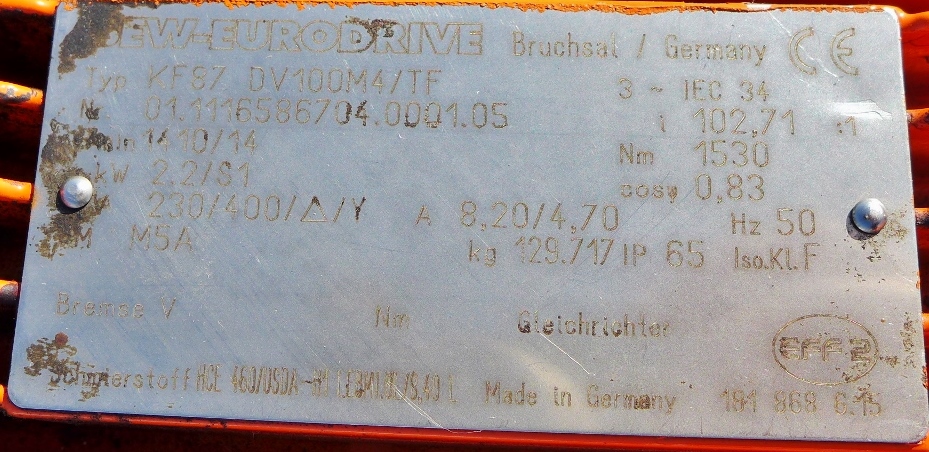

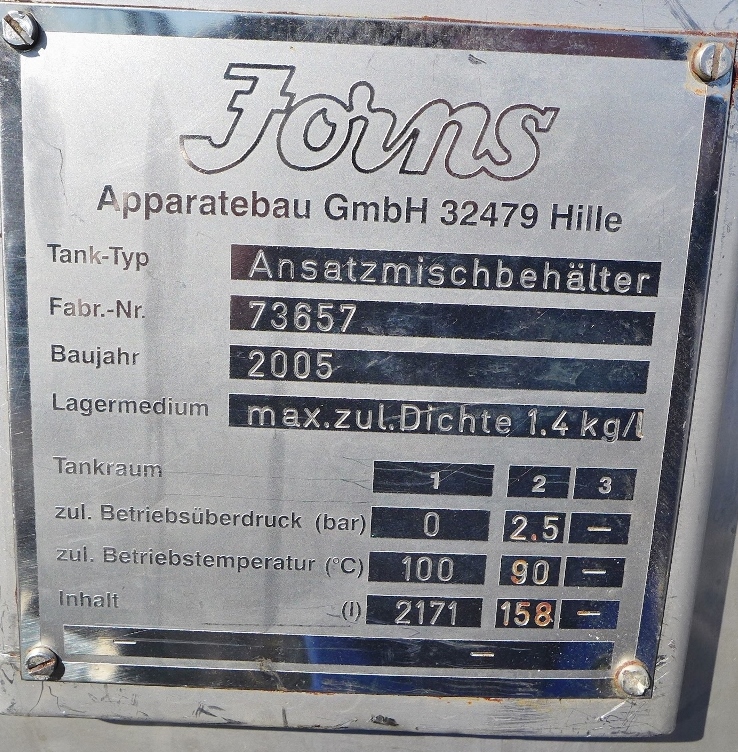

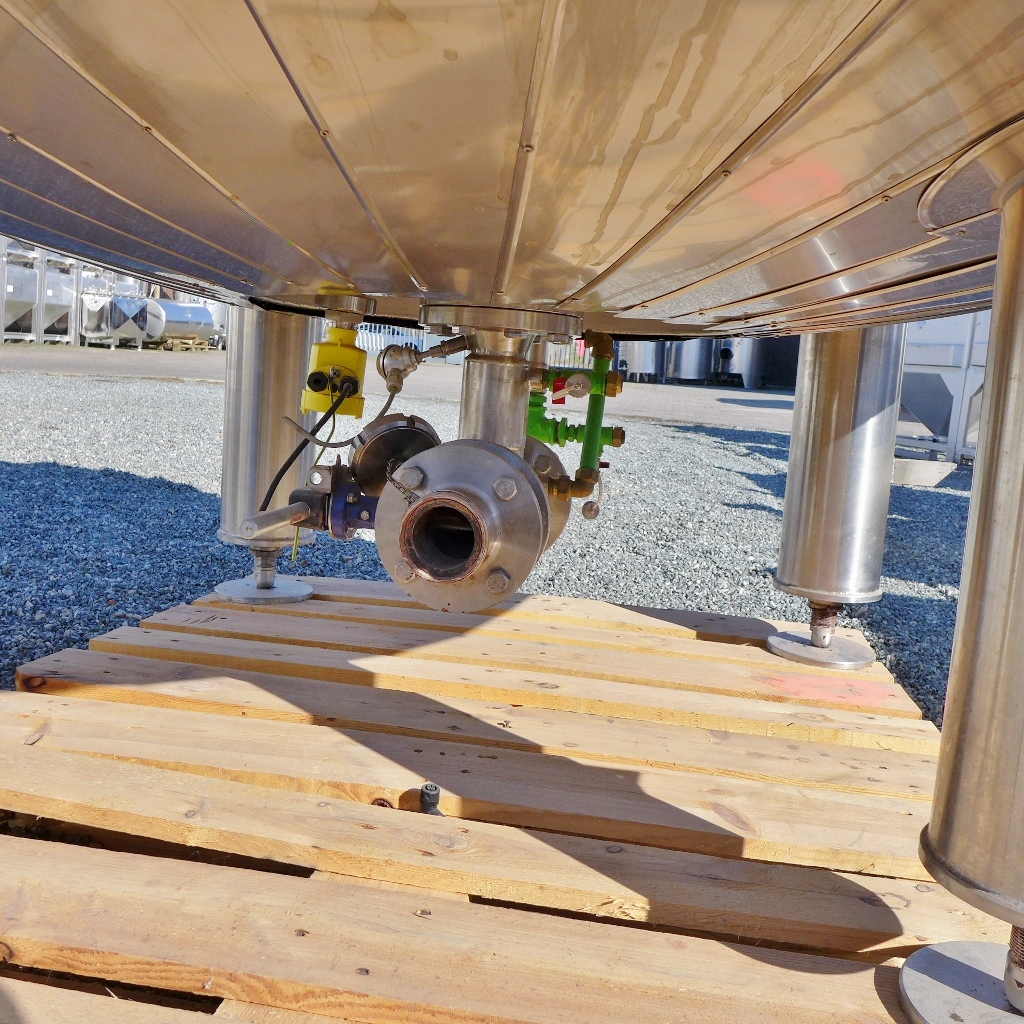

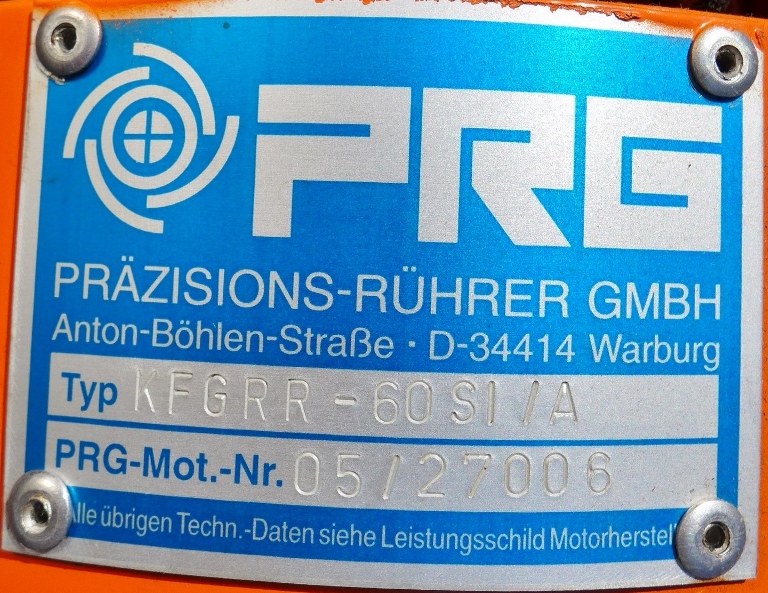

Additional information: Confectionery industry; Outlet 1 block flange diameter pipe inside 80 mm with flanged, tapering fitting; slight metallic discoloration inside the tank; dents at the insulation jacket Volumetric volume (L): 2.171 L Pressure in tank: ATM - atmosferic Max. temperature (°C): 100 °C Material wet parts: SS AISI 316 (V4A) Model: vertical Configuration: insulated with heat-exchanger Heat exchanger: yes Insulation: yes Mobile tank: no Total discharge: yes Volume: 158 L Max Overpressure: 2,50 Bar Max. working temperature: 90 °C Type HE on the bottom: heating/cooling jacket Type HE on the cylinder: heating/cooling jacket Heat exchanger: RVS 304 Documents included: no Technical drawing included: no Registration plate on the tank: yes Flange for agitator: no Outlet of tank: available Agitator: yes Number of revolutions: 14 Power: 2,20 Internal diameter tank: 1.880 mm Outer diameter tank: 2.090 mm Cylinder height: 510 mm Total height of tank: 2.100 mm
