21600 liter tank i Syrafast 316

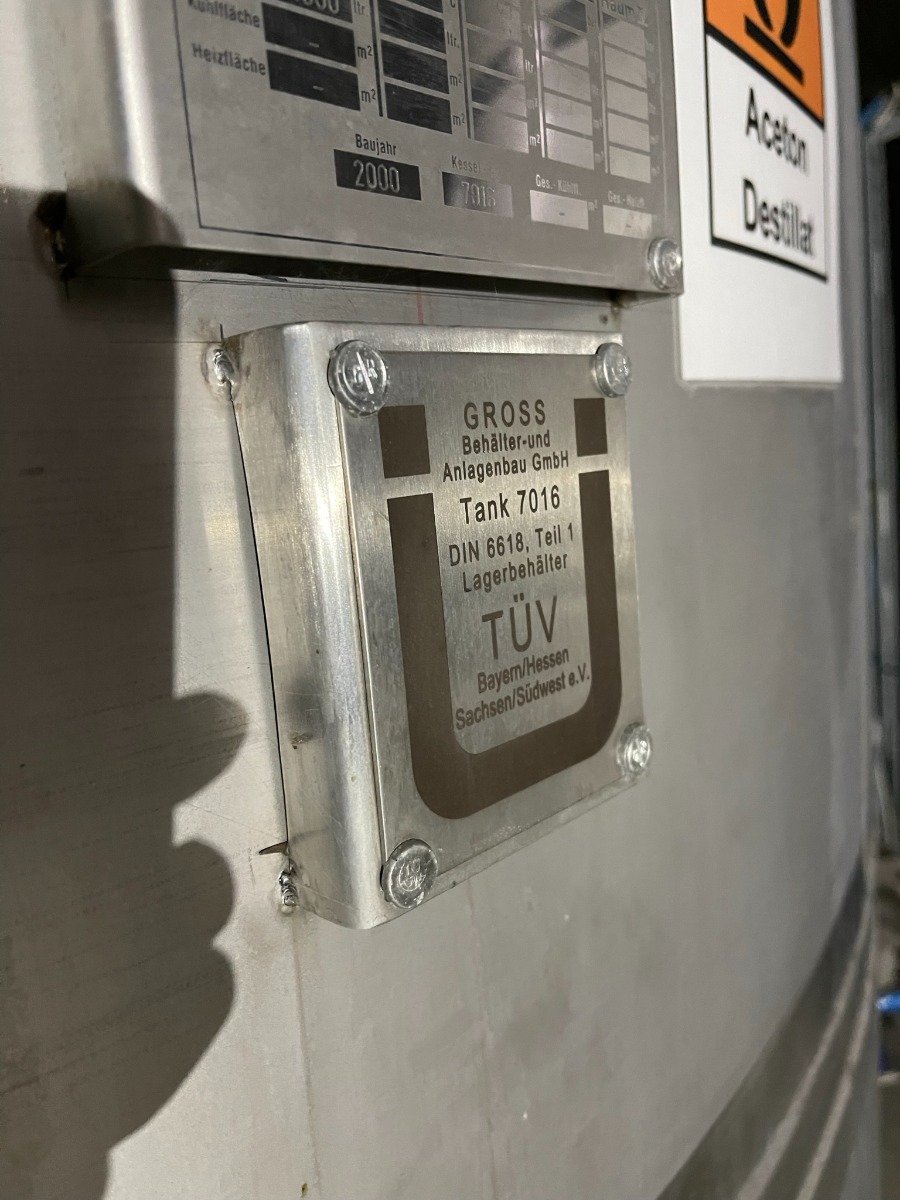

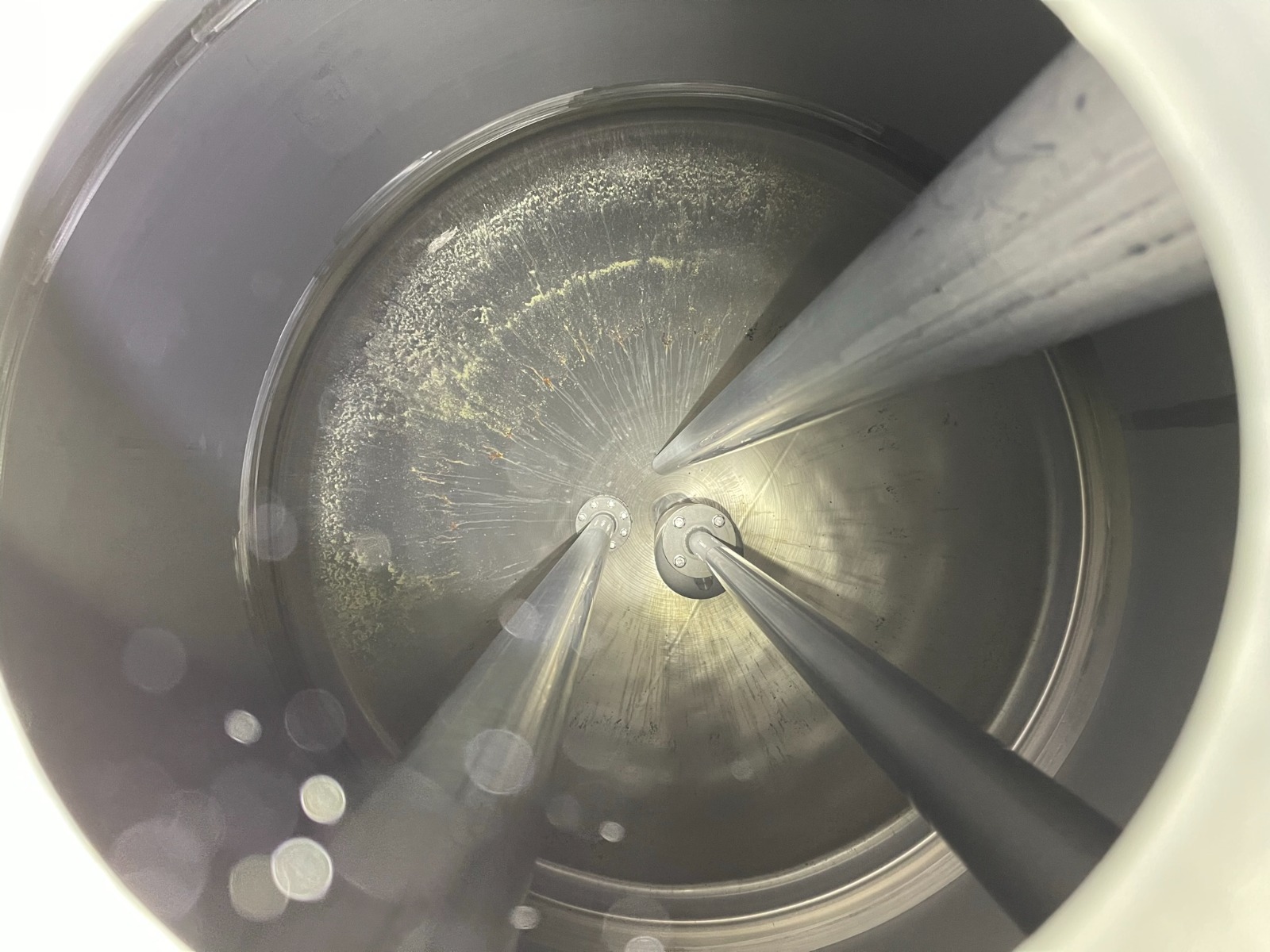

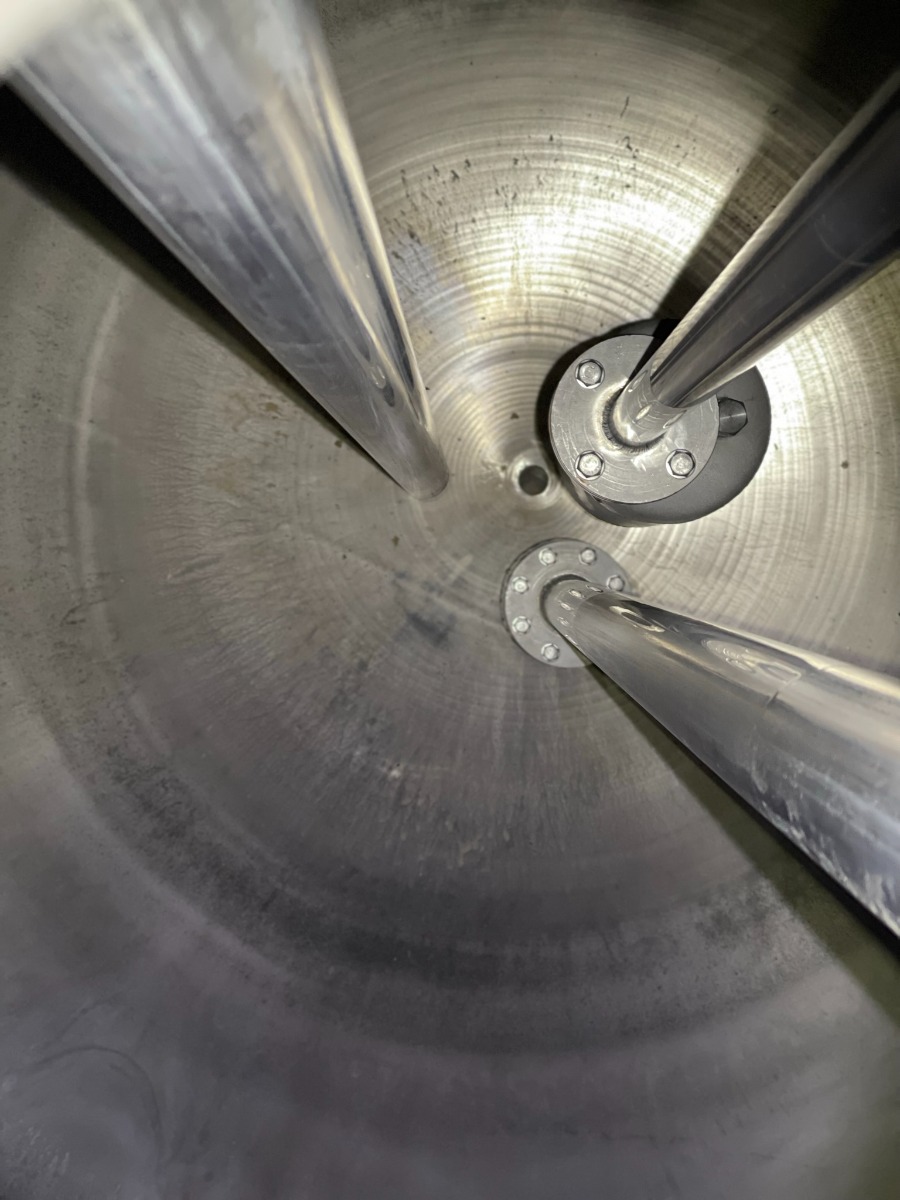

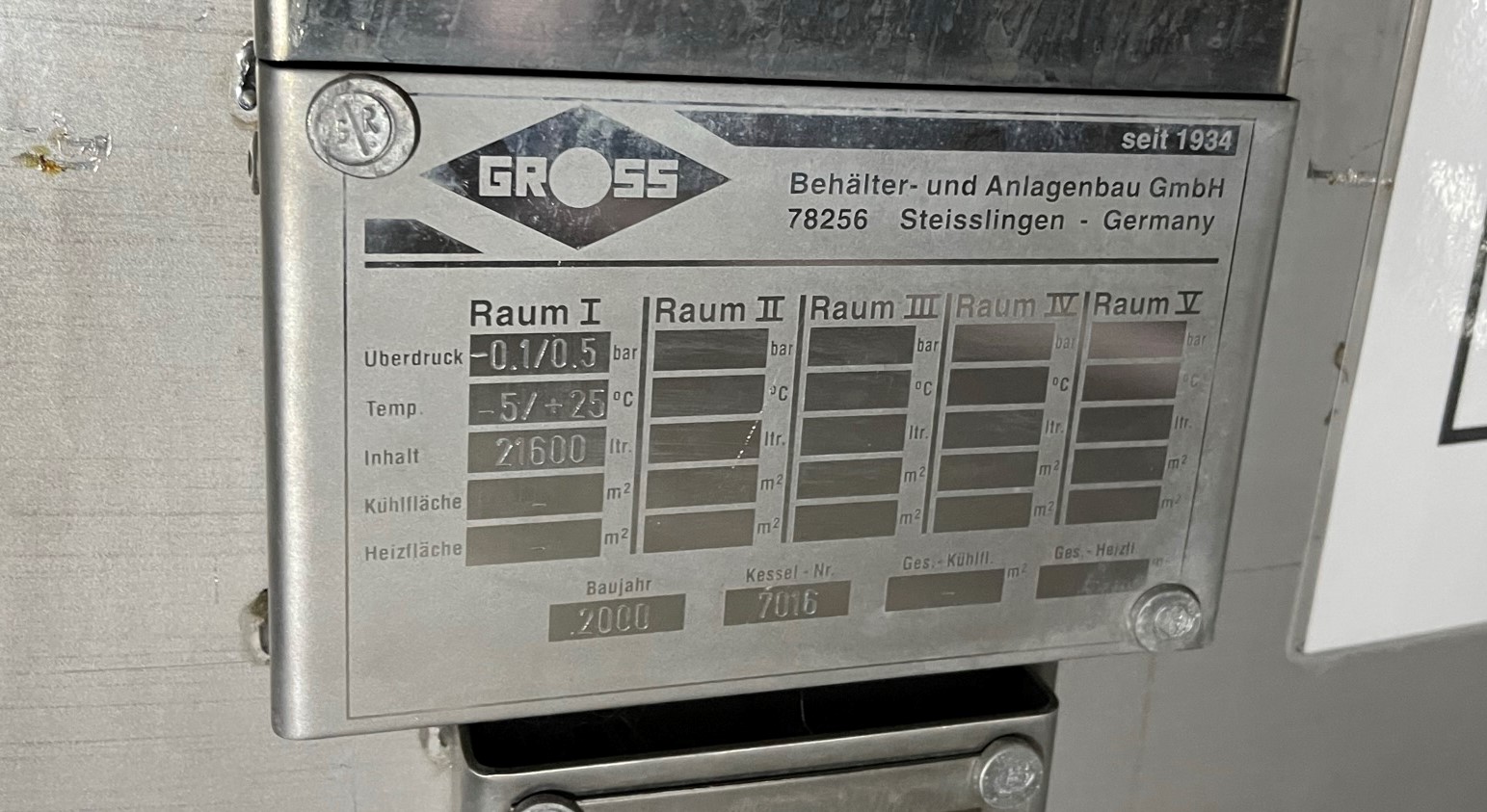

Additional information: Solvents; Built according to DIN6618; pipelines inside the tanks; stand frame, 1.4301 (Aisi 304); manhole cover, 1.4541 (Aisi 304) Volumetric volume (L): 21.600 L Pressure in tank: pressure and vacuum Max. pressure (Bar): 0,50 Bar Min. pressure (Bar): 0,10 Bar Material wet parts: SS AISI 316 (V4A) Model: vertical Configuration: single-skin Heat exchanger: no Insulation: no Mobile tank: no Total discharge: yes Documents included: no Technical drawing included: no Registration plate on the tank: yes Flange for agitator: no Position of manway: headside Outlet of tank: flange DN50 Cylinder: 3,50 mm Bottom: 5 mm Internal diameter tank: 2.890 mm Cylinder height: 2.500 mm Total height of tank: 4.600 mm
