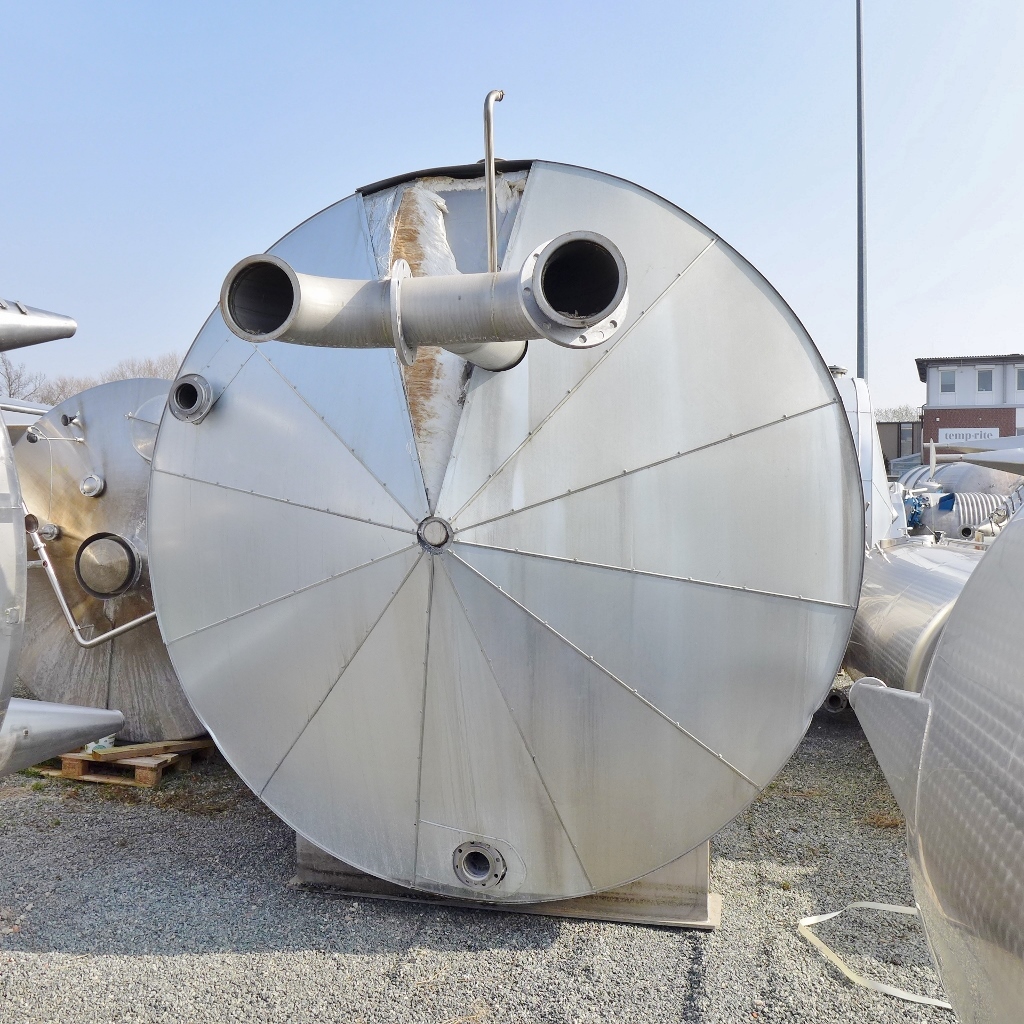

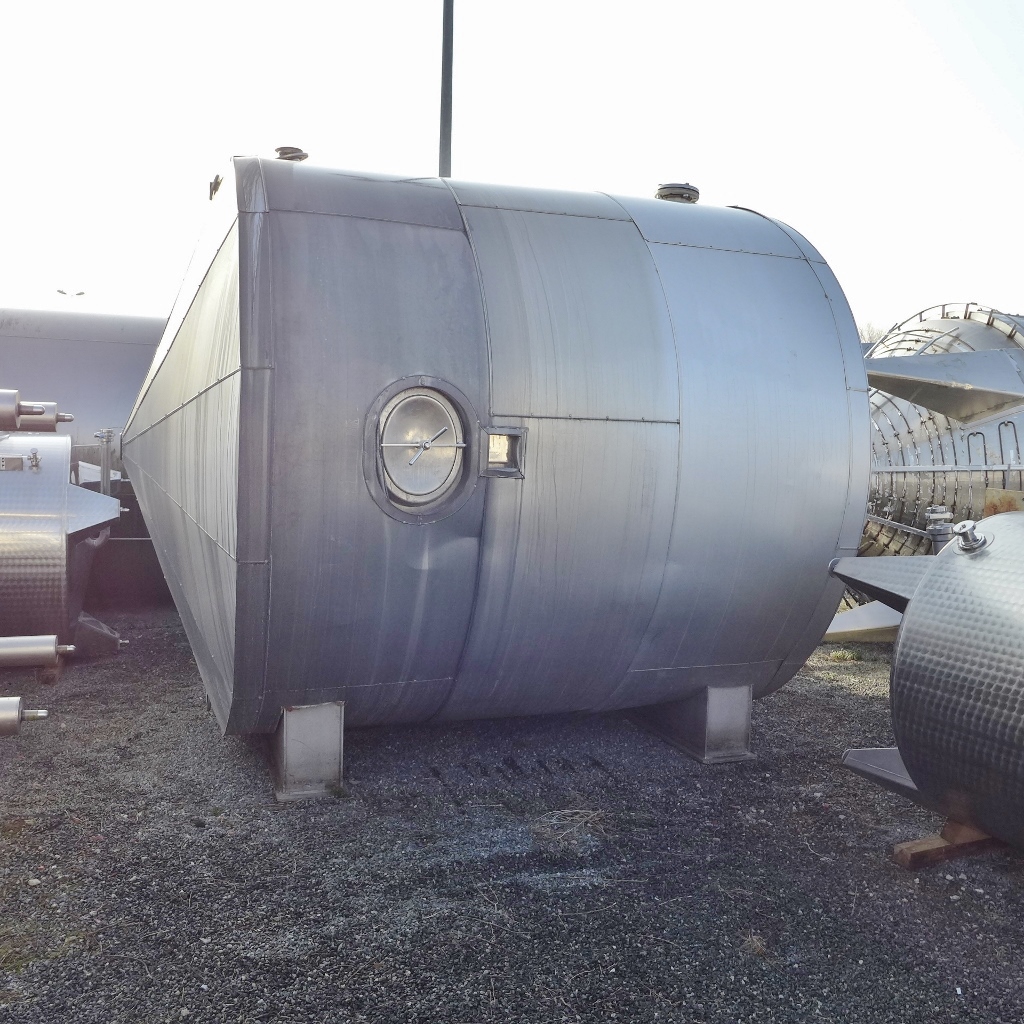

21000 liter tank i Rostfritt 304

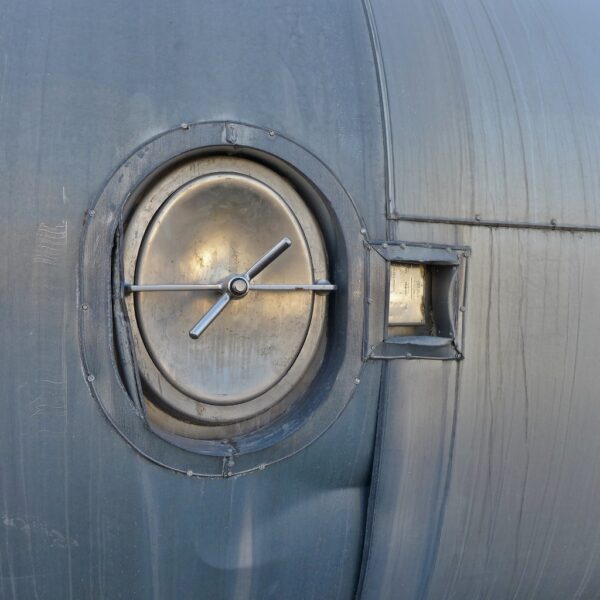

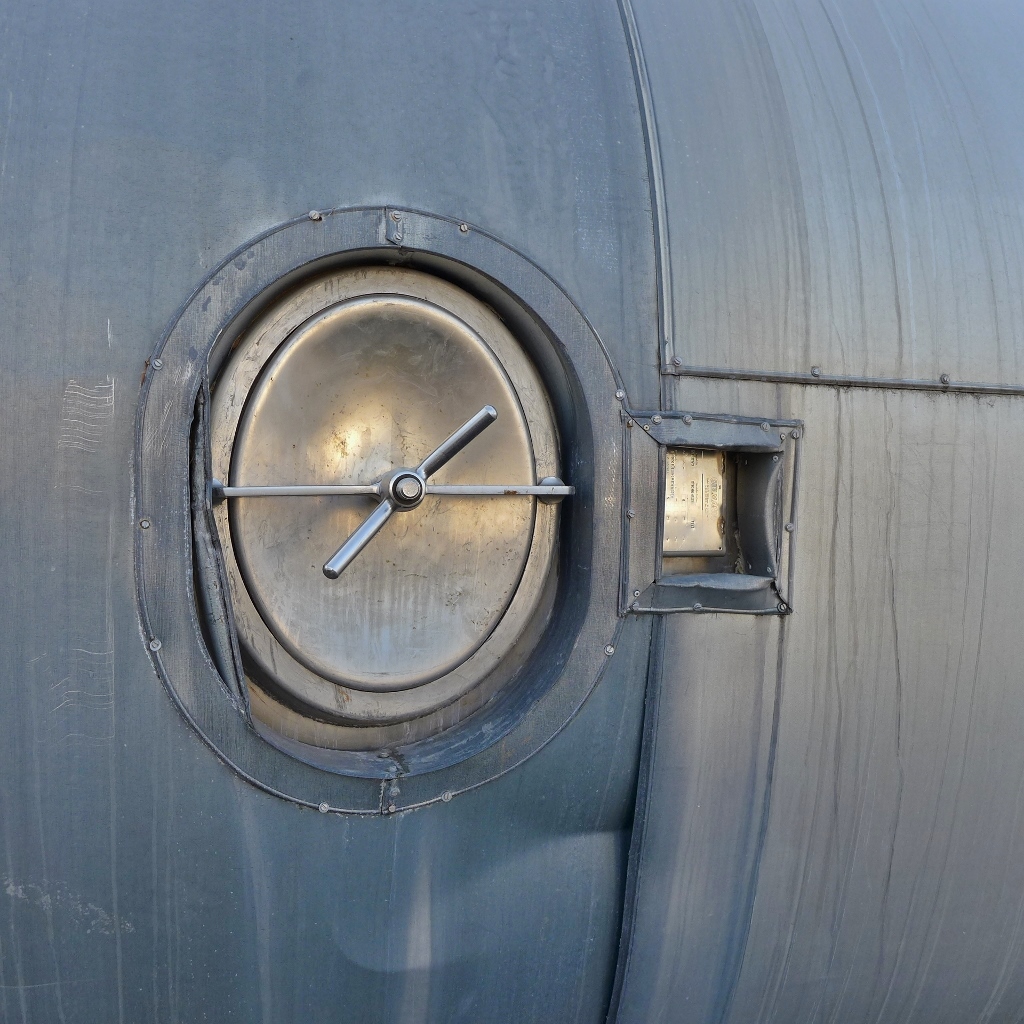

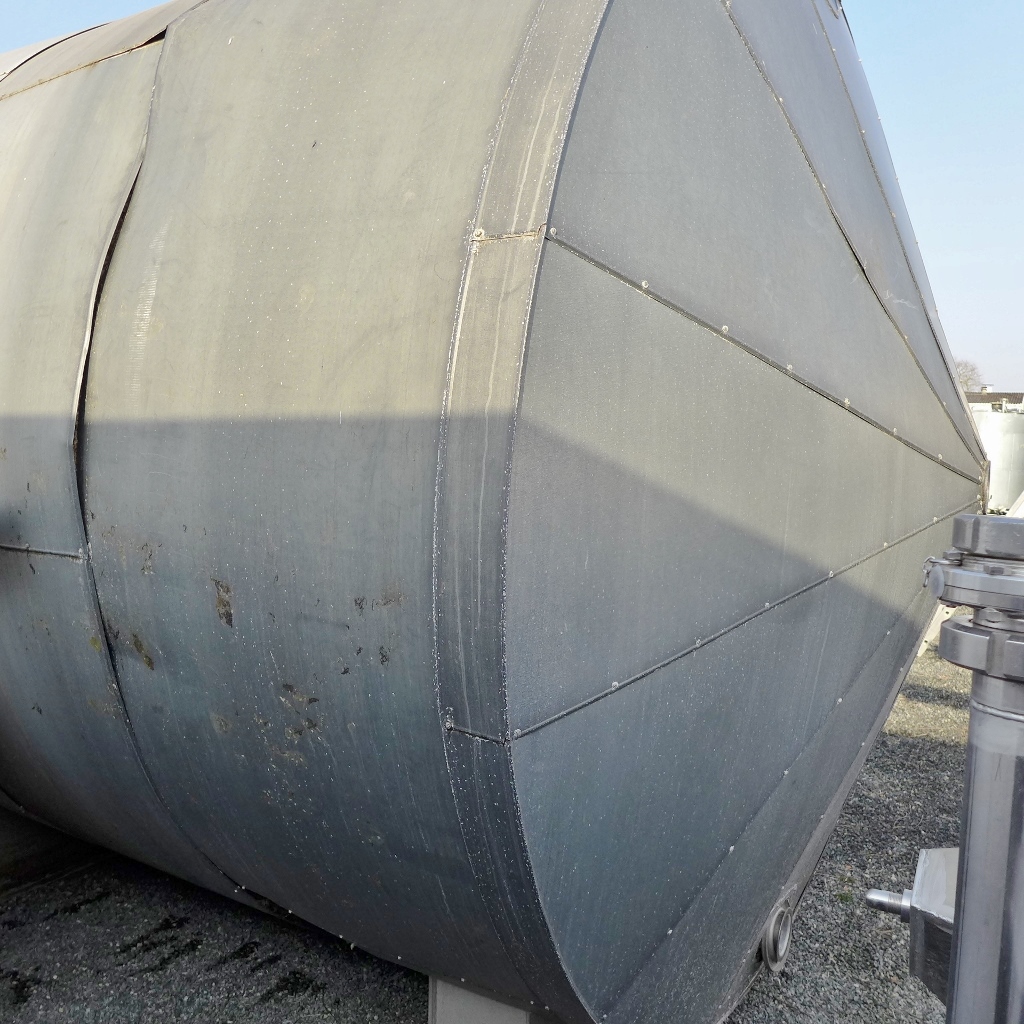

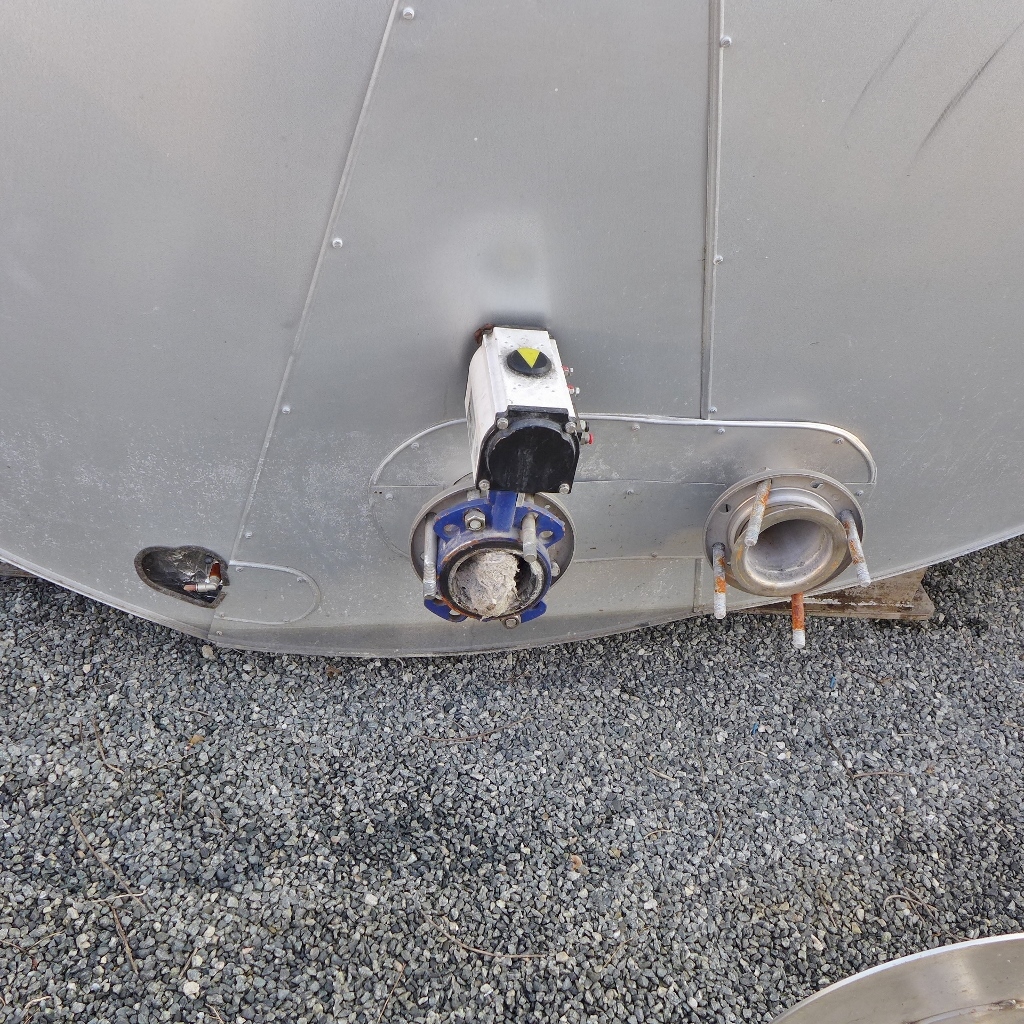

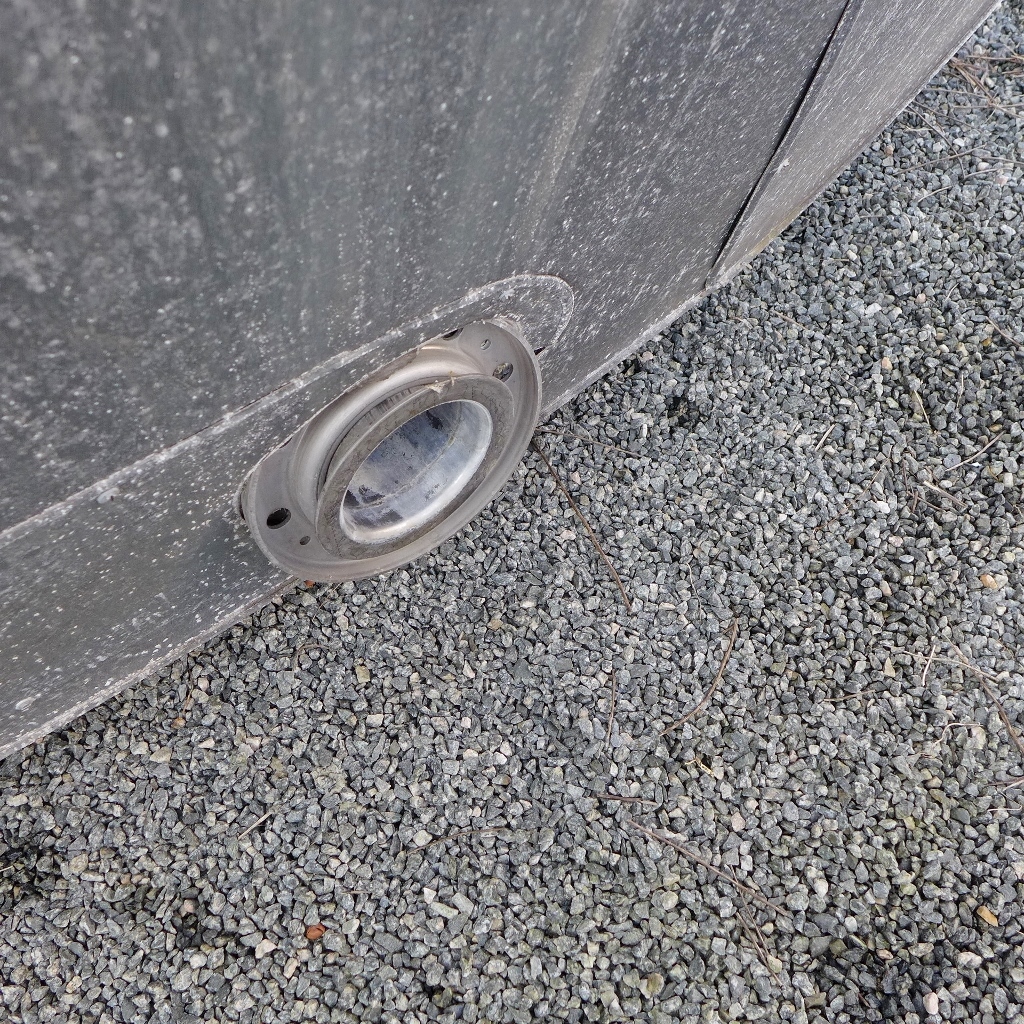

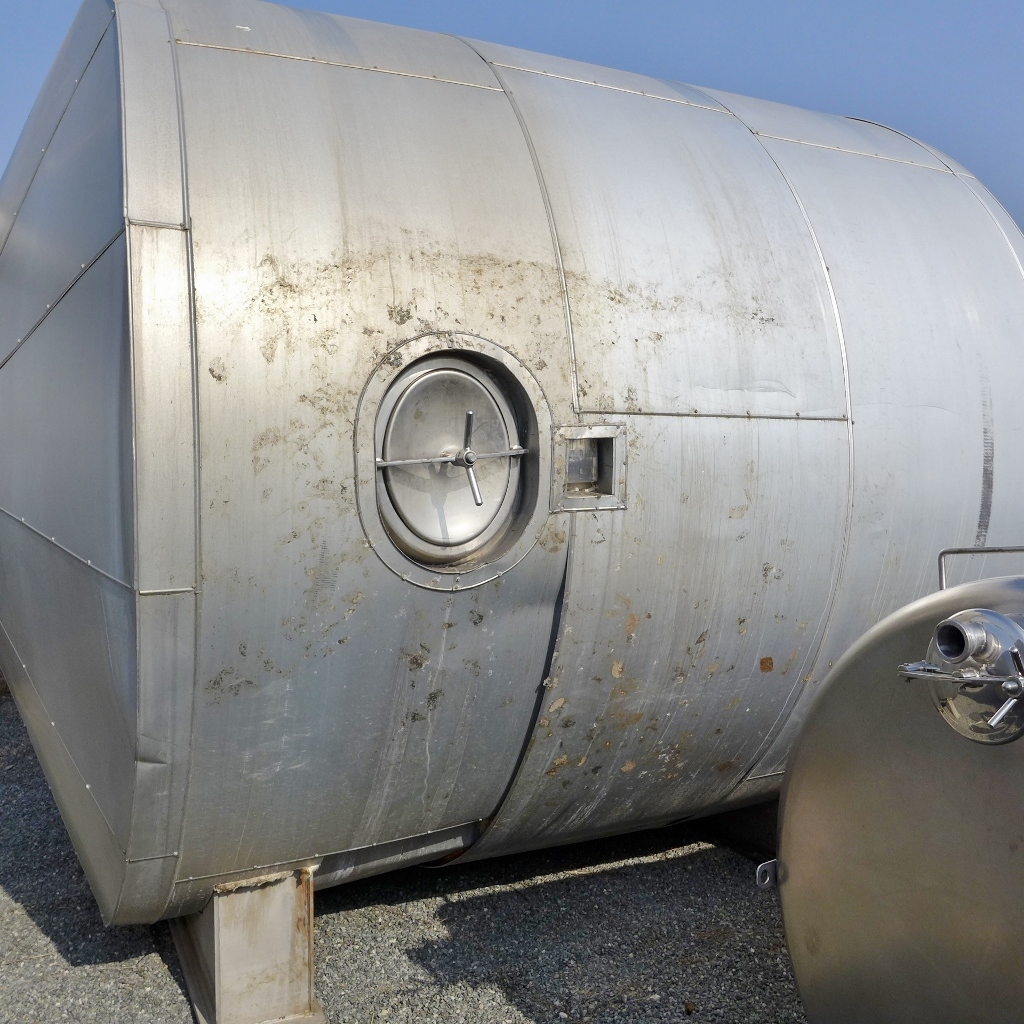

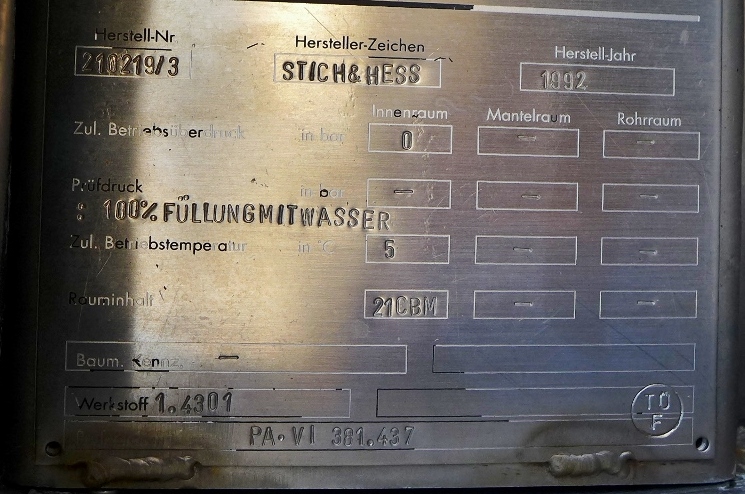

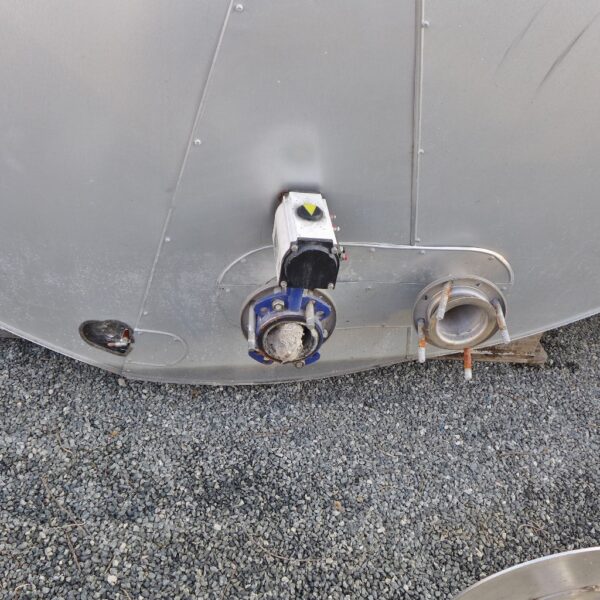

Additional information: Textile industry; Wall thickness of the bottom at the manhole: 4 mm; Wall thickness of the other bottom: 3 mm; insulation partly no longer complete; Insulating jacket partially detached or no longer completely; bump at the insulation jacket Volumetric volume (L): 21.000 L Pressure in tank: ATM - atmosferic Material wet parts: SS AISI 304 (V2A) Model: horizontal Configuration: insulated Heat exchanger: no Insulation: yes Mobile tank: no Total discharge: yes Documents included: no Technical drawing included: no Registration plate on the tank: yes Flange for agitator: no Position of manway: cylinder Outlet of tank: 110 Cylinder: 3 mm Internal diameter tank: 2.900 mm Outer diameter tank: 3.180 mm Total height of tank: 3.450 mm Total outer length: 4.950 mm
