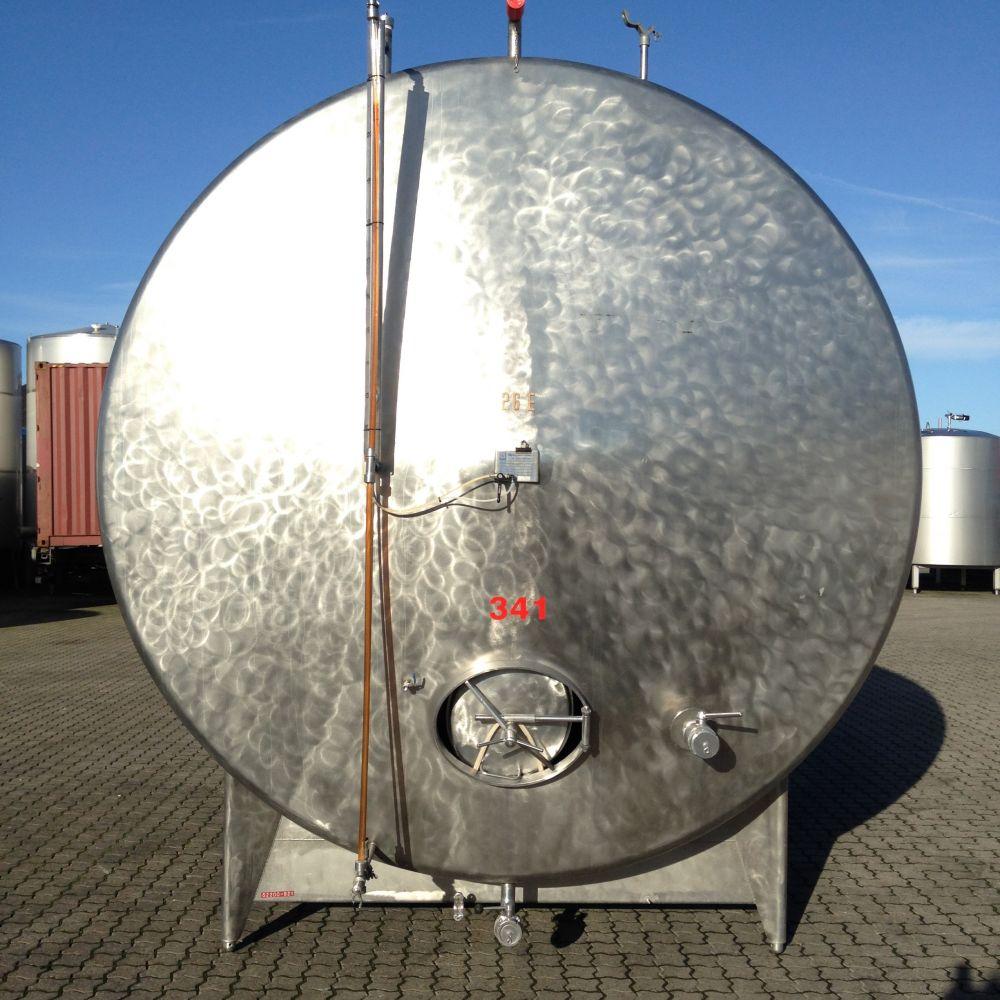

20000 liter i Syrafast 316

Article type: second-hand storage tank
Capacity: 20.000 L
Working pressure in tank: ATM – atmosferic
Material wet parts: SS AISI 316 (V4A)
Model: horizontal

Configuration: single-skin
Heat exchanger: no
Insulation: no
Agitator: no
Mobile tank: no

Shape of tank: cylindrical
Wall type: conical
Total discharge: yes
Manway(s): RVS 316
Gasket manway(s): unknown

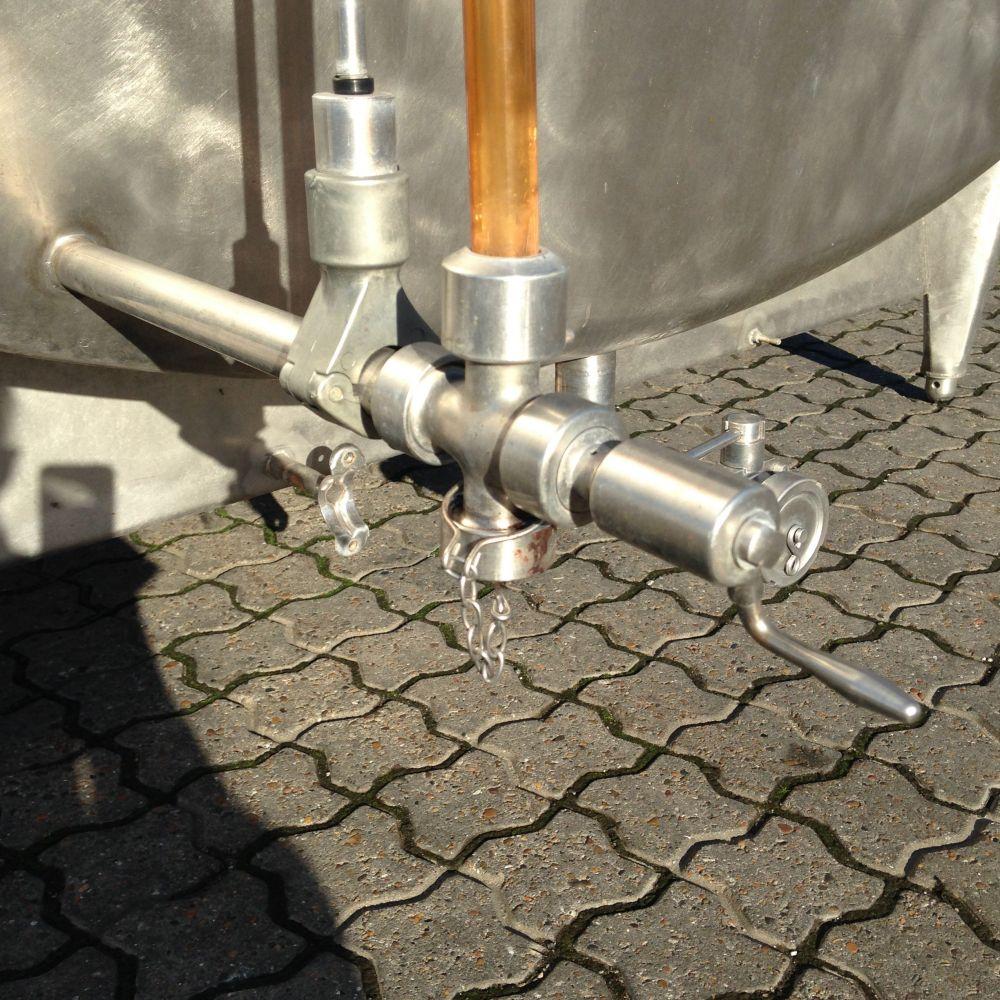

Valve: RVS 316
Gasket shut-off valve (mat): unknown
Fixation point(s): RVS 304L
Suitable for food industry: yes
Documents included: no

Technical drawing included: no
Registration plate on the tank: yes
Flange for agitator: no
Number of manways: 1
Position manway: headside

Spray ball: no
Tank outlet: inside Ø 50 mm
Outlet type: DIN11851 male
Total outlet valve: yes
Type shut-off valve: butterfly valve

Outer diameter tank: 2.900 mm
Total height of tank: 3.340 mm
Total outer length: 3.800 mm
Empty weight tank: 1.200
